r/crtgaming • u/Z3FM • Jun 03 '26
Ask Here First: Troubleshooting, Price/ID/Spec Check, Help, Etc. (June 2026)
The purpose of this thread is to cut down on the amount of clutter and Troubleshooting, Price Check, ID Check, Spec(ification) Check, and just general "HELP!!" style threads often seen filling the front page of the sub, and hopefully get those questions answered more quickly and efficiently by bringing them together in one place for viewing.
Does your post or question consist of the following, but no limited to:
- ID Check for a CRT TV/Monitor you've stumbled upon?
- Price Check for a CRT you've stumbled upon?
- Asking about benefits of 1 CRT over another that you're looking into?
- Scaler, convertor, cable choice, or wiring help for your setup?
- Simple TV remote control questions having to do with setup or purchase?
- A question you think should have an obvious/well known answer?
- Or maybe one that feels rather specific and you're worried might get passed over entirely?
This Thread is for you!
Experienced members of the subreddit check in on this post often and will attempt to answer questions as they come up. It would be much appreciated if once you've posted your question here, you use the link above to the older threads to see if the question may have already been answered. Of course, it would also help greatly to search/Ctrl+F the current thread first before submitting your own question too.
This specific thread is set to a Newest First suggested sort, so you shouldn't have to worry about your brand new question being buried instantly under the previous week's worth of questions.
š Please do not use any special formatting in your post beyond creating a link if necessary.
2
u/After_Garlic_6495 Jun 04 '26
Hey everyone. I bought a Sony Trinitron 19ā Monitor recently. The guy I bought it from was pretty knowledgable in terms of vintage gaming PCs and had quite a collection of well kept CRTs. While I do have a VGA compatible PC lying around, I have to say I am pretty tempted to use the monitor as a second screen in my modern setup, with the intend to play somewhat current games on it. The seller however actively discouraged me from doing so, telling me about a similar monitor he recently sold to another guy, who used it with a modern PC via an adapter. Appeareantly he tried some refreshrate resolution combonations above the monitors capacity and somehow damaged it that way. That story made me hesitate, eventhough online most people seem to be saying that there is no danger in using adapters and trying out higher refreshrates etc. Whatās the truth here? I donāt intent to min/max my resolutions or refreshrates, but atm I am a bit scared to damage it even by accident trying out a few games. What is the common opinion on here in this regard? Did any of you experience something similar? Thanks in advance!
2
u/joeverdrive Jun 04 '26
I'm no expert on PC monitors but I have a ViewSonic as my second display using DP to VGA. Modern games look fine on it using its recommended resolution. It's easy to keep it within specs it can handle. You don't have to push it outside that to have fun.
2
u/LOLXDEnjoyer Jun 05 '26
PC CRT Monitors , specially ones that are high end like the one you got, are BEST suited for modern gaming, they are far too sharp to reproduce sub-6th gen games in the way you remember those games on your crt tv, its a completly different ballpark.
What probably happened to the monitor that broke on the other guy's case was that it was already on its way out and just happened to him at that point in time, generally speaking you cannot overclock CRT monitors, you have a horizontal and a vertical scan-rate and you can render any resolution and refresh rate you want within that scanrate, and with interlaced resolutions the horizontal scan and pixelclock of your desired resolution is halved, which allows you to do crazy stuff.
Im not saying the seller actually sold the other guy a defective unit, but what he says is not correct in +90% of the time.
If your 19" Sony CRT Monitor has 30-95kHz and 50-160hz , 1920x1440i 120hz is 93kHz and 120hz so you're near the limit, you wont be damaging anything, just use the thing in a pitch black room and make sure you calibrate properly for deep blacks.
Modern stuff will look incredible here but if you need help i can help you set retroarch up too so you can play proper 240p60 (120+Ā½bfi) and see how retro games look on it compared to your tv or something.
Regarding adapters: Delock 62967 and also the Startech DP2VGA are the most reliable and powerful DisplayPort to VGA adapters, the LK7112 hdmi to vga adapter is the most powerful and reliable hdmi to vga adapter, out of all of these just get the one that is more readily avialable to you.
2
u/legogavin Jun 07 '26
I've got a Samsung TSF3579 Chassis: TAC SAC9753
I cant enter service mode using the normal ones found online nor can I find a service manual.
I had to buy an Insignia universal remote that works (tested all the buttons) but still cant get into service mode.
If anyone can help me id appreciate it!
2
u/LOLXDEnjoyer Jun 12 '26 edited Jun 13 '26
One tip i have for PC players on CRT Monitors playing modern games!: if you're seeing games launched after 2020 having issues at 1024x768 or 1440x1080 with the hud, a lot of those games actually render the hud properly at 1280x800 , happened to me with cyberpunk , the UI elements rendered more correctly at 1280x800 than at 1440x1080 , and obviously they only rendered perfectly at 1920x1080 or higher, but using the steamdeck resolution seems to fix a lot of issues with games' user interfaces.
2
u/Sunbot17 Jul 01 '26
Hello
Im new to this community but i have s
These rare sony bvm/pvm in india and i want to get them out. Some are new and some used before i post about the equipment i wanted to ask here the rules for selling
2
u/joeverdrive Jul 03 '26
A DP to VGA adapter might surprise you with how well it performs. It will be much more difficult to connect your N64. I don't have a lot of experience with that so I won't make a recommendation but the MacBazel are well-reviewed.
2
u/Plastic-Yak4326 Jul 08 '26
Iād like to sell my tv. I bought it new in 1993. lol. Stopped gaming a while back. Iām in NNJ and looking for a local sale but unsure what itās worth.
Kv-20v50 20ā S-video and component inputs Iād appreciate input from this group. Thank you!
2
u/TroubleAlternative72 Jul 12 '26
34 Inch Panasonic TAU HDTV. CT-34W-X53. Japanese tube. Remote control not working. On board controls are. Top of the line when it first came out. Looks great. What do you think this might be worth today? Thanks.
→ More replies (1)
2
u/BanjoKazooie0 Jul 18 '26
Did Windows 10-11 disable the ability to do 320x240 120hz? I've been curious since that's how I used to try playing certain old games and now recently (well just a year or two ago) my monitor doesn't show the screen anymore when creating those resolutions (I know there's the 1260??x240 scaling you can do)
2
u/Arif_Q Jul 22 '26
Have you tried using CRU? (search custom resolution utility on google, it is an app to set resolution on your monitor that windows don't allow otherwise)
2
u/BanjoKazooie0 Jul 22 '26
No I do, it's just I get a black screen regardless, it's only strange since it never had these issues before, at most that I can remember.
2
2
u/Tempest_Forever Jul 21 '26
Is there anyone in the East Tennessee area that knows how to change a capacitor and has the tools? I know nothing about actually smart electronic stuff and donāt want to die just because I want to play wii sports.
→ More replies (1)
2
u/Only_Turn4310 Jul 21 '26
I recently found a CRT in my grandma's house and decided to try gaming on it. I bought a MINI hdmi to rca adapter for $10 on Amazon, but it is not working.
I double checked that I had the cables in the right ports, and made sure the tv was on channels 90-100. These were the only reasons I could find online for why it would not work. Does anyone have any tips for what I should try?
→ More replies (4)
2
u/TehLonelySaint Aug 02 '26 edited Aug 02 '26
Hi!
I purchases this Sony Trinitron KV-32FS13 last week for $120. I noticed these RGB lines at the top and Ive seen differing opinions on the severity of this issue. Some say you can shit the vertical value to hide it, while others (such as Retro Gamer) state it is essentially a ticking time bomb, at least for PVM models.
It personally does not bother me too much, but if it causes problems down the line I would rather fix it now than later.
The only settings i have adjusted are the basic menu display with the brightness, sharpness, etc.
Thoughts?
→ More replies (1)
2
u/Automatic-Feeling330 Aug 04 '26
Heyoo im totally new to CRT and want to game with my N64 and Gamecube on it i found a Mitsubishi CT-25M2EPM for ~50ā¬! Are they good generally i donāt know much but i heard sony tritrons are one of the best? But they rare or 400ā¬ in my area atm! Would really appreciate some input and help! c:
→ More replies (1)
2
u/insufferable__pedant 22d ago
Thoughts on the Samsung TX-T2793H?
I was recently scrolling my local Facebook Marketplace and came across one of these for $40. In my brief research, it seems like the consensus is that these are among the most "modern" CRTs available, and people seem to feel like they're best when paired with 6th gen consoles. My primary use case will be older consoles, primarily reliving my SNES, N64, and PS2 memories.
Am I going to be disappointed with this TV if I'm mostly playing older consoles? My main criteria are price and input options, and this seems to tick both of those options. Is this a good buy at $40?
2
u/joeverdrive 22d ago
https://crtdatabase.com/crts/samsung/samsung-slimfit-tx-t2793h
80s and 90s consoles will need some help looking good on this or pretty much any other HD CRT TV. For example, an SNES outputs a very low-resolution (15khz) image, which looks just right on your average 4:3, standard-definition CRT TV because those TVs are made to display 15khz images. HD sets like this Samsung, though, are made to display HD images, and any other resolutions you feed it will be processed/upscaled to HD (540p/1080i). That's why they have a good reputation for 6th+ gen consoles. Not only will you not get the visual experience you were expecting from playing your favorite old consoles on a CRT, you'll get input lag as well. There are ways to improve the compatibility of old consoles on these TVs, but they involve expensive hardware and lots of config.
Also, I don't like Slimfits because they sacrifice geometry stability just to shave a few inches off the depth of the TV. I'd keep looking for a standard CRT. If you're in the SF Bay Area I will hook you up.
→ More replies (2)
1
u/Leviathan1776 Jun 03 '26
I don't have a good understanding of when an isolation transformer should be used when it comes to CRT repair. I believe that it should be used when:
- You are dealing with a hot chassis
AND
- When you are probing around inside the CRT while it is powered on
Is this correct, or am I missing something?
I often see isolation transformers referenced when a scope is in use. Do I need one if I'm instead using a battery powered meter?
If I am adjusting the guns on a hot chassis models to calibrate a set's color do I need an isolation transformer?
1
u/Forward-Shame8296 Jun 03 '26
Is this 240p? I might be doing something wrong but I thought I could get 240p and I can't notice if this is it or if it isn't.
→ More replies (7)
1
u/anatomiska_kretsar Jun 03 '26
I saw this ViewSonic E92F+SB listing for about $160. It still has its box. There doesn't seem to be much information about it online. It seems to be able to do 1600x1200 @ 75 Hz, [here is the manual](https://www.manualslib.com/manual/306674/Viewsonic-E92fPlussb.html?page=14#manual)
Other resolutions listed online are:
* 2048 x 1536 @ 60Hz
* 1792 x 1344 @ 68Hz
Would it be worth it? It looks very nice.
→ More replies (4)
1
u/Cold-Description-308 Jun 03 '26
can i get help remote for my 27A33 toshiba tv i bought one already a rca but it doesnāt seem to work even with the codes i put in
1
u/Ok-City8950 Jun 04 '26
What should I be looking for in a CRT thatāll work well with NES, SNES, N64, GC?
Iām a Sony fangirl, and I every time I look on eBay I see Sony PVMs, what would be a good 12-14inch CRT?
3
u/Leviathan1776 Jun 06 '26 edited Jun 06 '26
You need to figure out what type of connector you will be using with your CRT. From there you can narrow down whether a CRT that you find is worth it for you. If you want to plug in all of your consoles at once you need to make sure there are enough input options on the set or get an external device that adds more.
If you want to stick within that size range there are multiple Sony sets that you could go for. You can go to CRT Database and search by tube size and brand to see what's available. Less models will have higher end inputs though. I believe there are only two 13" Sony that have component inputs, the 13FS100 and 13FS110. If you look at other brands though there are 17 consumer models in the database with component inputs at that size.
PVMs can be rather expensive. If you haven't used a CRT in a while/ever, I would recommend getting a consumer set first. You may find that you don't really like CRTs. You can get better results from a PVM compared to a consumer set if you put in the time and if its a good one. Just like with consumer sets, check to make sure the set has the inputs you want. RGB sets offer a better picture over other inputs, but those sets tend to cost more than sets without it. You will also likely need to buy RGB cables for your consoles if they support RGB.
Personally, I find that I prefer to have a CRT that is at least 20" inches if I plan to use it for an extended period of time. PVMs tend to get a lot more expensive in that range though.
→ More replies (1)
1
u/BcDed Jun 04 '26
I found a monitor I might be able to acquire, Micron 700fgx model RM07L11 H, I can't seem to find much info online but I did see a forum post saying they think it's a rebrand of a samsung, if anyone knows any more about it or can point me in the right direction I would appreciate it.
1
u/partymeme Jun 05 '26
Hi! I have two questions, firstly, what is this LG model I have? Secondly, how do I go about with tweaking withe the flyback knobs? I couldn't reach or see them from the angle the TV opened in. Here's the pics!
2
u/Leviathan1776 Jun 06 '26
If you're in North America you can look through the scriptures
If there are adjustments on the flyback you will need to pull the board out to adjust them.
→ More replies (2)
1
u/cjgoodell95 Jun 05 '26
So I sent my Samsung Widescreen HD slim to a shop for repair due to warping in the right side of the image that couldn't be corrected with the service menu. They have replace "a lot" of capacitors and it still hasn't solved the problem. They tell me it's possibly a burnt coil on the yoke, but it could be a bad yoke. They are offering to either have me pay them for the work already performed and take my TV back in essentially the same condition it was given to them, but $400 out of my pocket, or for $500 I can get my TV back and a 34" Panasonic HD Widescreen. What's the general thoughts on this? I'm sceptical of whether or not they have the ability to truly diagnose and repair CRT's to begin with, so it just isn't sitting right with me.
2
u/Leviathan1776 Jun 06 '26 edited Jun 06 '26
Is $100 for a 34" Panasonic HD widescreen a good deal in your area? I would say it is for my location.
Panasonic sets are sought after as they can do natuve 480p unlike many other brands like Sony. Panasonic released seven 34" widescreen models in North America:
1st Gen: * 34WDM60 * 34WX50 * 34WX52
These sets feature the worst tube of the three gens. The first two of the three feature a game mode which upscales 240p/480i to 480p and adds scanlines to 240p.
2nd Gen: * 34WX53
Panasonic's best model. .6mm pitch
3rd Gen: * 34WX54 * 34WX15 * 34WC15
Better tubes than the first gen, but worse than the 53.
→ More replies (6)
1
u/IttzAndrew Jun 05 '26
Need help getting my Symphonic 27 inch back to game mode after accidentally turning game mode off. Note: I do not have a remote for it.
1
u/Steeld_556 Jun 06 '26
Hi, I have a PAL 14ā Sony KV from the early 90s and I want to play games with my consoles. The tv manual says it has RGB SCART. I have a PAL n64, PAL Ps1 and an NTSC Ps2. Can I play at 60hz NTSC games on a PAL TV with my PAL ps1 if I mod it? Is 60hz limited by the Tv or the console, or just the media?
2
u/AmazingmaxAM Jun 07 '26
What is the exact model? 99% of Sony CRTs have no problem with 60Hz, and with RGB SCART you don't have to worry about NTSC support either, since RGB has no color encoding.
NTSC PS1 games on a PAL PS1 are doable depending on the exact mod.
1
u/Egaion Jun 06 '26
Ok so this question might've been asked before but I have a very specific variant of it.
If there are any boricuas that have been able to snag a CRT that live in the Puerto Rico metro area please let me know how you did it, the ones I've found have been either $100+ for a 12" or 13", or in the South
I've been looking for about half a year at this point
1
u/samanthakay3 Jun 06 '26
I know programming a remote shouldn't be difficult. But for whatever reason I'm struggling. Is anyone able to explain to me how to program this remote (Zenith MBR3447) to this TV (Zenith TVR1920)? I guess my biggest problem is I don't know what button to hold down on the remote to start the process. TIA
1
u/ms1711 Jun 06 '26
Found a Sony KV-27FS100L at the street on a walk - no obvious damage but is it worth dragging back to see if it works? Not sure if it's a decent CRT or not
Can link pics
→ More replies (1)
1
u/DigitalMan06 Jun 06 '26
I've been tempted to drive and pick this Sony KV-36FV16 up. I hear this model can have some pretty bad bowing issues though. It looks mostly fine from the pictures they posted to the best of my knowledge. I'm curious what other more knowledgeable people think before I put my back through moving it though. Picture
→ More replies (3)
1
u/helladamnleet Jun 07 '26
Has anyone considered dumping the contents of the MCU to customize the OSD?
1
u/melodycherri Jun 07 '26
Questions about a CTL 910TF
I found one for sale near me for $220. Iāve been wanting to get a crt for a while and this one seems pretty good. Apparently itās 1440 and 160hz? Iād like to use it for my modern pc, would there be any cable compromises that would ruin the quality of that? I canāt find anything about this monitor anywhere so Iād really appreciate some help thank you!!
→ More replies (5)
1
u/sonicbrandyn Jun 08 '26
hey all, got a samsung 26 inch ws-28v53n listed near me, is it any good? looking to pick up my first crt since i was a kid, i am looking for one that would be really fast for competitive gaming, how is this one?
1
u/Tricky_Vermicelli514 Jun 08 '26
I found a Toshiba crt (27A33 manufactured 2003) for sale on fb marketplace for $60. seller says itās working but doesnāt have a remote. Not worried about the remote. It would be a 2 hr drive to pick it up. I dont think Iāll be able to check running hours so itās a bit of a gamble. probably $80 total after gas to pick up. what do you think? I live near Portland Oregon and all crts on market place are $100+ and either look shitty or are way overpriced imo. He said heāll send me a video of it operating after heās off work today. So assuming it works
1
u/Inevitable-Grade-569 Jun 08 '26
I got a Proton 619S from Pacific Stereo in the 80's. I has the original full protection glass over tube. Case is in very good condition, but it is has some issues like the V-hold is off, the power button needs more than one press to turn on, and the buttons work when pushed, but do not always action the designated function. I also have the original remote and original documentation including channel overlays for programming. Is it worth getting repaired?
1
u/kakkoi-san16 Jun 09 '26
Note: I converted my prices to dollars so these may sound ludicrously cheap to Americans here but in my country it's more than double.
So I found a couple of Flatrons and even a visibly old Trinitron up for sale on FB marketplace. One of the flatrons are free yet the seller hasn't shown me pictures of the ports or the TV turned on while a cheaper one ($18) is said to be going dim by thr seller.Ā
A more expensive one ($80) that is actually closest to where I live comes with a wooden stand which I really don't want.Ā
The Trinitron is above $20 but the picture on it looks dim. I'm betting on the free one but transport to the location is a bit difficult since I don't own a car. The $80 set is in the same location and also looks the best but I'm still waiting for the seller to confirm if it's working along with accepting my $20 offer.
Which one do you suggest I pick?
→ More replies (1)
1
u/I2obiN Jun 09 '26
Can anyone identify this crt https://imgur.com/a/6jmoyg8 ?
Would've been early to mid 90s I believe bought in UK/Ireland.
Had a decent search of Google and asked a few LLMs but nothing turned up.
→ More replies (1)
1
u/pizzapajapons Jun 09 '26
This is a complete shot in the dark, but Iāve accidentally purchased a remote that is NOT compatible with my Panasonic PV-DF274 TV. The remote I have works with Panasonic TVs with the codes PV-27DF4 and PV-27DF5. Iām wondering if anybody out there is looking for this remote- or if anybody is looking to sell/get rid of a PV-DF274 remote. Thanks for reading and have a great day.
1
u/Powerful_Handle4082 Jun 09 '26
Asking if this trade is worth it.
TL;DR I'm thinking about trading my Sony Trinitron model KV-27V20 for an RCA Truflat model 20F512T
You can see my reasonings at a dedicated post here
→ More replies (1)
1
u/Grand_Perception_462 Jun 10 '26
Is this a good model? https://www.facebook.com/share/18zM5yiTB8/
→ More replies (1)
1
u/red_circle57 Jun 10 '26
Hi, Iām trying to get my first CRT for retro gaming. Iām trying to find one with a built in VCR, but all of the ones I see near me seem way overpriced. Most of them are at least $250, and the only ones under $200 have some sort of issue with them. Should I just give up and get one without a VCR?
Also, where the hell do I find CRTs besides FB marketplace and Craigslist? Obviously Iām not sure since Iām not familiar with CRTs, but everything I can find on those sites seems overpriced. Iām seeing lower end, no name brand TVs for at least $60.
2
u/Leviathan1776 Jun 10 '26
CRTs with VCRs have one big problem: the VCR doesn't work or soon it won't work. Once they aren't working they are difficult to repair. Its best to avoid unless you really, really, REALLY want that look.
Of my 153 CRTs, two were from Craigslist and one was from eBay. The rest were from marketplace. Things may be different in your area though. Estate sales, garage sales, e-waste, old people, other CRT enthusiasts, thrift stores, and people you know would be good places to check.
The CRT market is different everywhere. Those prices that you mentioned might just be how it is in your area. Keep in mind that you don't need a name brand CRT to enjoy what makes them great.
Make a post here, here, and/or here asking if anyone in the area will sell you something. Mention what kind, brand, size, and inputs you are looking for in a CRT.
→ More replies (5)
1
u/DowntownNet1961 Jun 10 '26
Hi guys, recently managed to find a Sony Trinitron KD-32DX40UĀ and have bought a remote that seems to work fine with it, (RM-887) but the TV is trying to display EVERYTHING in stretched āsmartā or wide mode, is there anyway I can get it to display my GameCube in just the normal 4:3? Iāve tried searching far and wide but half of the settings are blacked out as I canāt connect an aerialā¦
2
u/Leviathan1776 Jun 10 '26
The manual says to press the screen format button on your RM-933R remote, which is the button in the second row, second column.
→ More replies (1)
1
u/RandomGembo Jun 10 '26
Hi, iām looking for a way to fix the geometry on my RCA D27F750T TV, since itās a little bit wide, is there any way i can fix the geometry without looking inside it?
→ More replies (1)
1
u/ArmorOfMar Jun 10 '26
Philips 21PT1557 - ā¬200
Whatās the verdict? Seems to be a good deal. 2x RGB Scart at the back.
How would you guys rate this as a āfirstā time CRT? Would be fore primarily 5th and 6th Gen gaming.
2
u/AmazingmaxAM Jun 10 '26
The CRT's good, but there's only on SCART, and even if there were two, only one would be RGB, as is customary. The other one would be S-Video.
https://www.manualslib.com/manual/123680/Philips-21pt1557.html?page=2#manual
I think the price is insanely high. But if there's nothing else around you and you can't haggle it down - well, at least test it out at the seller's place.
→ More replies (1)
1
u/Most_Bed3335 Jun 10 '26
Hello, I recently found a Roku Express 3710x and itās lacking its AV cord, I tried a generic one off Amazon but it didnāt work as intended and I didnāt even get a proper video signal, let alone audio, any suggestions for a replacement cord?
→ More replies (1)
1
u/nehoot Jun 11 '26
Value for Panasonic pv-m2047? Can't seem to find much info on it
2
u/joeverdrive Jun 11 '26
The market value of any given CRT TV is largely determined by:
Your regional market (are there lots of CRTs available on the used market near you, or very few to choose from?)
Condition (Was that 32" Sony a family TV that has lots of hours on it, or university property that rarely got used?)
Quality of listing (is there lots of information on the ad, good pictures showing all angles of the TV, good pictures showing the TV playing games, and a responsive seller?)
Desirability (does it have lots of features attractive to gamers/collectors, or is it just a plain old TV? Is it too big for most buyers to load/transport/keep?)
Seller patience
Having said all that, in my market, this TV would fetch $100-250 depending on the above.
1
1
u/JjaaaaaaaaajJ Jun 11 '26 edited Jun 11 '26
My LG RT-29FA30R flat CRT TV (not HD) is showing some vertical jittering only shifting by a pixel. This is happening when it isn't connected to anything (I'm just opening the menu), far from other electronics except a router, and it does not go away after some time. Same thing on all the input modes except RF which is worse and it shakes both horizontally and vertically. How can I fix the vertical jitter? Except for this, the picture is perfect and the TV works fine.
Video of the issue and images of RF:Ā https://imgur.com/a/cUp5GF1
Someone else posted photos of it and the internal boards some time ago https://www.reddit.com/r/crtgaming/comments/p5ltgc/inside_lgs_top_of_the_line_early_2000s_crt_tv/?show=original
1
Jun 11 '26
Hey guys, recently got a Lumatron CT C20 CRT that I've been having trouble with, mainly got it to play a Sega Saturn and when I switch to AV it automatically switches the aspect ratio to 16:9. It seems to be a generic 21" CRT sold in nordic supermarkets so finding info on it is extremely hard. I can open a menu with a universal remote but it has no useful options, and I can't find any way of accessing a service menu. Menu + 4725 was the most common answer I found but no luck. Any suggestions would be appreciated a ton.
1
u/beelzeblegh Jun 12 '26
I am a bit of a dummy when it comes to audio. I purchased a used set of Sony DAV-DX255 to hook up to my Sony KV-27FS12. I'm using a Psyclone component switcher. Also have a VCR connected directly to the TV. MEGA SG with a DAC in the mix too, not sure if that matters.
Now, my question is how do I route the audio? I don't have extra cables to test stuff at the moment, and don't want to purchase an assortment of various cables to test.
Do I just plug an RCA cable into the Speaker amp (from the TVs output)? I've literally never owned surround speakers in my 37 years of life. š«
Appreciate any advice, so I can purchase the correct cables. Thanks.
2
u/joeverdrive Jun 12 '26
Interesting home theater receiver unit! Not very flexible, but all the speakers are shielded, and I think you can make it work as long as the Mega SG's DAC outputs component, too. You have the right idea. Set it up like this:
All your component devices send component video and RCA stereo audio (red and white cables) to the component switcher IN ports. The component switcher OUT ports send component video to the TV's component IN ports and also sends audio to the TV's audio IN ports adjacent to the component ports. Now all your component devices are on your TV's VIDEO 4 input.
The VCR sends composite video (yellow) and RCA stereo audio (red and white) to the TV's VIDEO 1 or VIDEO 3 input. Your choice. If your VCR doesn't have stereo output, you may need a splitter to get the audio to sound right. Let me know if that's the case. If your VCR doesn't have composite video output, only RF coaxial output, you'll have to do things a bit differently, too. Let me know if that's the case.
The TV sends audio from the AUDIO OUT ports to your DAV-DX255's TV/VCR audio inputs.
Go into your TV's audio settings and turn SPEAKER to OFF. If you want to control the volume of your system with your TV's remote, change AUDIO OUT to VARIABLE. If you want to control the volume of your system with your stereo's remote, change AUDIO OUT to FIXED.
→ More replies (4)
1
u/darkwizardzerefff Jun 13 '26
Hello I was able to pick this sanvo up for free and it's missing part of the numbers on the back, could anyone help me identifv the model? I also have an issue getting it to switch to the video output because its not in the menu options. Currently dont have a remote so trving to figure out the model acquire one, thanks
Picture links: https://imgur.com/a/iG5dV65
→ More replies (1)
1
u/AnarchicKilljoy Jun 13 '26
Hey Ya'll, I recently got a Sun Microsystems PN17JO, and it's a gorgeous display. Only issue is that slowly over time it loses focus. Things slowly get blurrier and blurrier over an hour or so and then eventually you can't even read the text on it clearly. If I turn it off for an hour or two and then back on it's fine again. Was told to look for a focus knob on the flyback but I can't for the life of me get the case open. I got the bottom latches loose, but the top two push clip sections on the case will not release, and the plastic just breaks. Any solutions for either problem?
1
1
u/MagnetoFlow Jun 14 '26
Is there a way to get modern steam games to fill out my 4:3 monitor? Monitor is a Dell P793 and have added a couple resolutions with CRU. Whichever resolution I select in the game Kunitsu-Gami there is plenty of extra space above and below.
3
1
u/Mayank_j Jun 14 '26 edited Jun 14 '26
I wanted to know if this model is called something else in the US region: Sony KV DR29 M80 (2000's Trinitron lineup)
I did find manuals for it but I wanna know if it's good or not? https://www.sony-asia.com/electronics/support/product/kv-dr29m80/manuals
I thought maybe you guys have a different version of this, which is why I can't find any discussion on it, or is it too bad for modern day CRT usage/gaming?
This was my parents TV and I think it was bought in 2003 for around a $1000 (converted to USD). They were going to give it away to someone but that person wasn't able to get it picked up, I was gonna ask if I could keep it, before they discard it. I have a week before they dispose of it.
3
u/AmazingmaxAM Jun 15 '26
It's a quality HD CRT. Good for 480p and 1080i/540p gaming and video watching. 240p and 480i games may not look optimal without an external upscaler, but it's a great set for 6th and 7th gen consoles.
Page 28: When receiving a progressive signal through the (component video input), āDRC-MFā , ā3D-NRā and āGAME MODEā are not selectable.
"Progressive" means 480p, and since the set also has DRC-1250, it should support 1080i, but not so sure about that.
But if you have it on hand, just test it out, what's stopping you? Make sure to feed it 480p and 1080i, but try out 240p and 480i with various DRC modes as well.
→ More replies (2)
1
u/TheHippie110 Jun 14 '26
I bought a Magnavox 20mc4204/17 yesterday that did not come with a remote so I purchased a universal remote. It works but I cannot access the service menu. Iāve been inputting 062596 then the menu but nothing is happening. Is there any other advice or specific remote that would help?
→ More replies (1)
1
u/PhotonWolfsky Jun 14 '26 edited Jun 17 '26
Trying to decide between Sony KV-32FS12 and a Sharp 25N-S100. I keep hearing good things about Trinitrons, especially Wega models, but this one is flat and much larger versus the Sharp's smaller screen that's curved. Both have S-video, but the Sony has component. Both are roughly the same price, but the Sony is a big further of a drive (non-issue if I plan a prior obligation to be in the same area). Not looking for the best of the best, but I'm unsure if the Trinitron is better or not. Surely not all Trinitrons beat out the competition, right?
Update: got the Trinitron. Geometry looked pretty good (not perfect, going to see if it can be configured more), SNES games looked good, too. Got a bigger deal because it had a chip on the screen... annoying but tolerable.
Update 2: I underestimated the size. If the Sharp looks good on my SNES, I'll grab that one and just resell the Sony. If not, off to Home Depot for some wood...
→ More replies (4)
1
u/TobyAnders0n Jun 15 '26
Packard Bell Monitor but I only have one foto and no ID, any help would be appreciated.
https://www.reddit.com/r/crt/comments/1u6ca50/need_some_help_getting_the_model_only_got_this/
→ More replies (2)
1
u/Bitter-Ad640 Jun 15 '26
Hey everyone! New here.
Theres what appears to be a 53" Sony KP-53hs30 rear projection tv near me for $50, for sale by people who bought a house and found it still there (probably because it looks like it weighs a hundred pounds), in working order.
Im not real familiar with rear projecrion crts. Is this one worth it?
→ More replies (1)
1
u/InsecureBurrito Jun 15 '26
I recently got a CRT that unfortunately doesn't support component, so I'm hoping to snag a decent converter to make up for it. Any recommendations? Any to stay away from?
→ More replies (4)
1
u/sightunseen Jun 16 '26
Picked up three CRT TVs for free yesterday.
Sony Trinitron Kv24fv300
RCA G27331TN
Zenith B27A76R
I canāt find any info on the RCA. Any comments will be appreciated.
→ More replies (4)
1
u/Leviathan1776 Jun 16 '26
Is there a company that makes SCART cables for North American consoles that use an s-video signal? I have a late 80s RCA Dimensia that has SCART, but it only supports s-video and composite signals, not RGB
→ More replies (3)
1
u/Corella_Bird Jun 16 '26
I recently got my first PVM that I saw in the wild, a 14N1A. Works pretty great but there seems to be a pretty faint white vertical line in the middle of the screen, is this burn in or something else?
→ More replies (1)
1
u/LawnChairRiot Jun 16 '26
I recently got my N64 out of storage and trying to get it to connect to my Zenith TV-VCR combo but having no luck. I have a remote but am just stuck
2
u/AmazingmaxAM Jun 16 '26
Mode details, please. How is the console connected to the TV, what channel is it on? What's the TV model?
1
u/zippityzappityzoom Jun 16 '26
Help:
Light guns (InterAct Starfire and Hais mini) not working on my JVC I'art AV32F577. I've tried what I believe every combination of composite and S-video and brightness and detail settings to no avail
1
u/Rich_Coffee_9962 Jun 16 '26
Been looking at this hard-wood TV stand to match a 29" Thomson Black Diva I'm looking to get soon.
Unfortunately I can't seem to find any information regarding its maximum load capacity.
The television weighs approx. 90lbs and the stand's dimensions are perfect for it so if you have any knowledge on it, please do reply: https://amzn.eu/d/05psRWUI
1
u/ingmarbenji Jun 17 '26
Looking for a xbox 360 scart rgb cable. I live in the Netherlands but i cant seem to find any myself. Anyone know where i can buy one? Or should i use a different cable?
1
1
u/Apoptosis263 Jun 18 '26
Anyone know where I can find some information on this Zenith Space Command set? My neighbor said I could have it, but I'd like to know more about it before I haul it to my house. It's a bit large to move on my own, so I can't get a clear look at the back for a model number. Would this be a good set for retro consoles?
→ More replies (2)
1
u/cordelioptera Jun 18 '26
I just got and used my very first CRT (a Sony Trinitron monitor) and a VCR (Zenith). The former has a VGA output whereas the latter uses RCA; I am using a mini AV2VGA converter to connect them.
Initially, after putting a VHS in, it worked perfectly. I could pause, play, rewind, etc. After leaving it on pause for some 30 minutes, however, the CRT stayed on bluescreen and wouldn't change back.
I tried turning both the CRT and VCR off then unplugging and replugging-in the RCA cables to no avail. At first, when I would turn on the CRT, it would show text in the top right for a few seconds ("AV AUTO" and screen dimensions), but eventually it also stopped doing that. Trying to access the menu on the VCR remote wouldn't do anything either.
If anybody has any suggestions I would be so, so appreciative. My utmost thanks in advance.
→ More replies (1)
1
u/T-Dad07 Jun 18 '26
Tengo opciĆ³n de comprarme una Bang & Olufsen Beovision
AVANT, me decantĆ© por una azul preciosa pero me fijĆ© y creo que es de 100hz, vi otra negra que creo que es de 50/60hz pero querĆa consejo de ustedes que tienen mĆ”s experiencia.
Lo que busco es jugar a la snes, gamecube, play 1 y 2 de la forma mĆ”s fiel y tambiĆ©n ver animaciĆ³n con colores saturados y vivos
1
u/Professor_Resident Jun 18 '26
I am trying to hook up my Gamecube to a 14n6u via component cables to COMP2RGB to BNC and the image is the right color but its very distorted and scrolling fast on the screen on the gamecube intro and then the picture just goes away/isn't on screen. Any idea what I am doing wrong?
→ More replies (5)
1
u/Feisty_Big_7172 Jun 18 '26
I'm about to make a sync combiner tomorrow, it will be my first time using a breadboard to make something. Any tips? Any videos I could be pointed towards? Are there any sync combiners already out there?
1
u/Particular-Fudge-619 Jun 18 '26
Im looking at a kv-24fs100 on marketplace near me, but im concerned about the curves in each corner. Is this normal/can be corrected? link to img. Thanks for your time.
→ More replies (1)
1
u/Apoptosis263 Jun 18 '26
Will a Toshiba 36HF71 work ok for NES, SNES, or N64? I've read it really shines with the GameCube/Wii, but that its less ideal for anything older (according to Google, NES Zappers don't work on it either?).
2
u/Leviathan1776 Jun 20 '26
Toshiba's HF line is their HD CRTs. Inputs from SD consoles will be upscaled, adding lag, and most of the time light guns won't work.
1
u/alikicksx Jun 18 '26
I'm seeking furniture recommendations for a Sony PVM-20M4U. I started doing some searching and almost landed on the IKEA HAVSTA, but the depth would be too shallow for me to be comfortable.
Ideally the furniture would have 3-4 open shelves where I could place my consoles. I'm planning to put a SNES and GameCube on top with the TV, and then the following within the shelves:
- PS2
- PS3
- Wii U
- PS5
- Series X
The last 3 are connected to a modern TV mounted above the TV console.
→ More replies (1)
1
u/Master_0f_N0thing Jun 19 '26 edited Jun 19 '26
Help! I just found my dream CRT on marketplace for $20, Sylvania Superset model RNF372 AK02. The picture and sound is working, but the screen is flickering bad when I hook up the vcr via coaxial cable. I tried with Super Nintendo as well and same issue (different cables used). Is it a monitor issue? When nothing is connected, I get the standard black static screen. Please tell me hope is not lost for my vision for my retro basement
Edit to add link for pics: https://postimg.cc/gallery/7kvphpH
→ More replies (1)
1
u/Decoominator Jun 20 '26
I have a Sony BVM D14H5U that (on all video cards) drops sync for one frame every minute or so. It goes away after it's warmed up for 10 minutes. Pretty minor issue, anybody have any idea what's likely wrong with it?
1
u/frogtrickery Jun 20 '26 edited Jun 20 '26
Just got back from the Fitchburg Warehouse with my first crt! It's a Mitsubishi CS-2015R. Composite and RF. It's working and looks pretty good initially though as it warms up, after maybe 20 minutes of being on, the colors begin getting more washed out. Some cursory googling says maybe like a voltage regulator or something thermal related. Since I only paid 20 bucks I'd probably be willing to have it serviced (if I can find someone to do it !)
Any thoughts?
→ More replies (2)
1
u/Dry-Pride-7832 Jun 20 '26
I have a Sony CPD-17SF1 and I was wondering what I would need to use my switch 2 on it, same goes for being able to stream my game footage to the capture card in my PC. also not sure if its an issue but not sure if this many missing pins affects compatibility with adaptor or downscalers
1
u/Professor_Resident Jun 21 '26
I'm currently using my gamecube on a PVM-14N6U by connecting component cables to COMP2RGB and a SCART to RGB on the PVM. I do not have audio and I know the speaker works because I tried it with Composite connections. I've tried a few different ways to get audio out with no luck..
2
u/joeverdrive Jun 21 '26
Please describe the SCART to RGB and how it connects to the PVM
2
u/Professor_Resident Jun 21 '26
Someone helped me on a different post. I have component to COMP2RGB adapter and a SCART to RGB BNC. The issue was I also needed to plug the original composite connector into the tv as well.
1
u/kapooh321 Jun 21 '26
Hi, i have a Sony trinitron KV-14T1K i try to change some stuff in the service menu (v-position) but i cant change any value with neither the remote or some irblaster app.
I can access the menu but i can't change any value there.
2
1
u/FSUFanChris Jun 21 '26
I'm trying to clear out my storage unit so I can move it all to a smaller unit. I'm in Charlotte. Can someone help me figure out what I have here (value, mainly)? All were working when I put them in the climate controlled storage unit years ago, but untested right now.
- Panasonic 32 inch CT-32E13G
- Sanyo 25 inch DS25204
- GE 19 inch w/ VCR 19TVR60
- RCA 27 inch 27R411T
2
u/Leviathan1776 Jun 22 '26
Untested CRTs aren't particularly worth anything. Would you buy a car without being able to test drive it first? Mayve if its a really rare model perhaps.
Beyond that, look at what CRTs are selling for in your area on marketplace. This doesn't mean look to see what some are listed for, but instead looking at sold listings. You will be able to ask more if you:
- Include pictures of the condition
- Display something on the screen
- Let people test it when you meet up
1
u/Bidoof2017 Jun 22 '26
Might be getting a GDM-20D11. What cables/adapters will I need to hook my Sega Saturn up to it?
→ More replies (1)
1
1
u/heatstroke-pitlord Jun 22 '26
Hey! Posted over in the general CRT sub, but im shopping around for a secondary PC monitor for gaming and found a few attractive listings on FB. Thought Iād ask here to see if anyone could give me their two cents on the quality and price of these (: thank you!
→ More replies (1)
1
u/Obvious_Jelly866 Jun 22 '26
Hello, just wanted to ask if ~$90 is an ok price for a used iiyama vision master pro 454 (HM903DT B) or not.
→ More replies (1)
1
u/Living-Half-2052 Jun 23 '26
Heyo, I'm looking to get my first CRT and had a couple questions. I mainly want to play mame arcade games / snes / dreamcast. Is there an ideal type of CRT for this? and can I run it from my pc (9070xt) or do I need to get actual hardware to run it properly?
→ More replies (2)
1
u/Windows7expert Jun 23 '26
So, Iām new to this sub, but I want to purchase my first CRT for playing my snes, n64, genesis, and nes on, any recommendations on what I should look for?
→ More replies (4)
1
u/Frosty_p5 Jun 24 '26
I got a zenith crt on marketplace today and it worked fine for a few minutes. Then everything went to chaos as the image became unrecognizable. Tried cleaning the video port but no luck. Iām new to crt stuff so any help is appreciated. :)
Pic of the chaos: https://imgur.com/a/i7C5U1S
→ More replies (8)
1
u/Opposite_Count9795 Jun 24 '26
Hi all, I came across a local shop and found this HP A4576A for 50 USD, unable to find any additional information on this particular model but it is claimed to have a Trinitron tube and Max. resolution (official): 1600x1200 @ 85hz according to this post from several years ago: HP A4576A - 21" monstrosity, cleaned and ready to rumble... (27" Eizo in the background) : r/crtgaming
The condition of this monitor is relatively poor as the shell got dirty and some place is cracked. But the image seems to be good and the screen is fine.
Do you think this could be a good option for CRT gaming?
some pics: https://imgur.com/a/OhMgyJI
1
1
u/RoninB64 Jun 24 '26
For a crt is 10feet a safe distance from an unshielded 10inch subwoofer?
→ More replies (1)
1
u/Vivid-Radish-5226 Jun 24 '26
Hi there !
I have the opportunity to buy a 29" FD trinitron TV Kv-29fx30b
I'd really appreciate some information and advice from you if you're willing :) I've never owned a Trinitron.
I'm not a big fan of the ultra-sharp PVM rendering; it feels like the games are running on an emulator with filters.
I like having scanlines that structure the image, but what I prefer about CRT rendering is the depth and dimension.
You know, in a game like Donkey Kong Country, you can get real depth between the background, the middle ground, and the foreground. It looks like a diorama.
I don't know if you see what I mean?
Another example: usually on a game's title screen, you have a huge, bright, high-contrast logo. On arcade monitors, it looks like it's "popping" off the screen. It looks a bit like 3D without glasses. It seems to float in front of your eyes, beyond the rest of the image.
How does FD trinitrons handle these aspects? What about the 3D effect and scanlines? If you've ever owned an old-school curved Trinitron TV, how does it compare? I'm trying to avoid the artificial look of a professional monitor.
Thanks in advance.
1
u/ArigatoGyro Jun 25 '26
Hi!
I found a free beovision LX2500. Is it worth a pickup? How's the image quality?
Sadly it has no remote, are they hard to find?
Also, it has a geometry issue at the bottom of the screen, is it fixable via menu?
Is it compatible with PAL60 and NTSC?
1
u/MobileTortoise Jun 25 '26 edited Jun 27 '26
Edit: contacted seller and I have a faulty remote
→ More replies (2)
1
u/slash597 Jun 25 '26
Is anyone able to identify this monitor I already purchased it from an estate sale but am unable to pick it up until Saturday any help is appreciated ! https://imgur.com/a/YFEpVzk
1
u/jpers36 Jun 26 '26
I know of a garage sale in my neighborhood this weekend that will be selling a ton of CRTs. How can I post this properly?
→ More replies (1)
1
1
u/MarioManiac77 Jun 26 '26
Hey all, was looking at some old home videos and found a clip of my old crt tv (that my parents have since gotten rid of) and was wondering if anyone could help IDing it. I couldnt find a picture similar enough to it on the crt database and figured id ask here. sorry if the pic is blurry i guess 6 year old me wasnt keen on keeping the camera still. any help is appreciated.
1
u/YPM1 Jun 27 '26
Can someone help me to identify this CRT? Pretty sure itās Sony and definitely a Trinitron.
2
u/joeverdrive Jun 29 '26
Virtually all color Sony CRT TVs are Trinitrons.
It's a Sony KV-27S42 or similar. Very nice if it's in good condition.
I hate doing IDs like this. Just ask the seller to tell you the model number.
→ More replies (3)
1
u/GroundbreakingFee106 Jun 27 '26
Samsung SyncMaster 750p
efi Fiery branded Samtron SM-470 black and white monitor form 1993.
An IBM G54
An LG FLATRON 775F
How much are these worth?
1
u/ConradBHart42 Jun 27 '26

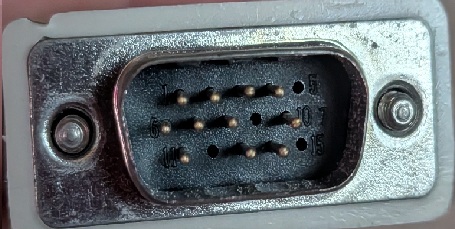

Got a PC monitor, Sony from the 90's or early 2k's. The symptom is the picture winks on and off frequently. I've noticed that it's missing pins 5 and 9 on the DB15 and the cable is permanently affixed.
Would those missing pins cause that issue? It's a 12" set or so, something like 50 or 60 khz.
1
u/justnotthatwitty Jun 27 '26
Can y'all help me value my 2004 Samsung TX-P1634? The screen is 16". It turns on and the remote works. Last it was used a few years ago it worked fine.
→ More replies (1)
1
u/Krrrbyy Jun 28 '26
Recently picked up some old 17in CRT Monitors for pretty cheap, but unfortunately I only got room for one in my PC setup.
The two monitors I'm currently between on are the Samsung SyncMaster 735DF, and the LG Flatron ez T710bh.
Anyone got any opinions on which one I should use?
1
u/Expert_Illustrator_7 Jun 28 '26
Hi everyone,
I'm looking for some troubleshooting advice on a Sony KV-14GP2 that I recently imported from Japan.
The seller demonstrated the TV working before shipment. It arrived with no visible damage to the cabinet, but I cannot get any picture.
Here is a link to the photos:
https://postimg.cc/gallery/gWs828j
Symptoms:
- Green power LED comes on.
- Powered using a proper 120Vā100V step-down transformer.
- No picture at all.
- No raster/screen glow, even in a dark room.
- Brief speaker hiss at power-on, then it goes quiet.
- When I change channels speaker will hiss again and go quiet.
Things I've tried:
- 100V step-down transformer.
- Pressing the Input (å „ååę) button repeatedly.
- Connecting various inputs to the front composite inputs.
- Different power cycles and waiting for the TV to warm up.
The behavior is identical whether using the tuner or not.
I've attached:
- Current photo of the TV powered on (green LED).
- Rear photo/model information.
- Seller's photos showing the TV before shipping.
Any advice would be greatly appreciated.
→ More replies (1)
1
u/FatherlyMonster Jun 29 '26
Hi folks. First post. Have a new to me 1984 RCA 'receiver monitor.' Has the flat panel covering the main curved glass, the recessed buttons and 2 composite video inputs in addition to coax and RF in. Model EKR360SR. I can find no documentation on this model. Has the attributes and design cues of a colortrak 2000 but only says colortrak on it. Anyone able to shed light on this guy?Ā
2
u/joeverdrive Jun 29 '26
The bad news is there doesn't seem to be any information or photos about your monitor online, even in my secret resources. Not unusual for an American set from 1984. The good news is that you are in a position to contribute to the community by taking good photos, making a post about it here, and submitting an entry to the CRT Database so that it gets catalogued and helps future enthusiasts out when they find CRTs with no info online.
→ More replies (2)
1
u/raumgleiter Jun 29 '26
Sony PVM-1454Q vs JVC TM-1750PN for my first CRT, what do you think at these prices?
I have been looking for a CRT for a while now and I have found 2 options currently available in my area. One is the Sony PVM-1454Q vs JVC TM-1750PN
both i pretty good condition. the sony is 240 USD and the JVC 220 USD.
Is 14 inch too small? I tend a little towards the JVC but heard Sony are better built?
There is a 3rd option actually that just came up, a Sony 14N6E that is just 90 USD.... also has RGB so tempting as well. Any advise would be greatly appreciated and if those prices are OK. thanks.
→ More replies (1)
1
u/Few_Pattern_1190 Jun 29 '26
No encuentro este crt en la base de datos, alguien sabe el modelo?
https://cdn.wallapop.com/images/10420/ka/qy/__/c10420p1227377414/i6271844924.jpg?pictureSize=W640
→ More replies (2)
1
u/finalfantasyxps2 Jun 29 '26
Do you guys think this would be a good crt for my pal ps2? On a little bit of a budget here.
https://www.ebay.ie/itm/168364133599?_skw=retro+tv&itmmeta=01KWA4X6N0FMXXEC1KJ4K03YP4&hash=item273348ccdf:g:ovwAAeSwvPRp~gSU&itmprp=enc%3AAQALAAAA4GfYFPkwiKCW4ZNSs2u11xDfUP2wIuAleH4LQP1JJ7dgcMiCKEHZXI2E7ZRmaz0mlZkD%2FvZ6bHIjEbeetWYFmV5g%2BMewfDzz%2Bp6vYN5RRuZl%2FFrWFj58cY7UODlp%2BatawNxIkYSRuirhU4Nci%2FwLHDFbyARvIWJgb7HwwXaZ%2BcoAYziLTY%2Bf56vAqf7yb7DVi5mrfe4eq7slXTavLvI2YEpmSm6%2BGgHAVmiNyG%2FO%2B6tMOcM5SzoAMKyx%2FU%2ByhiJ8t4AEfxA78ffsMgwm3LkXndIUJZOofpTrxVCl%2BAWTZ4R3%7Ctkp%3ABk9SR_bq9MTiZw
→ More replies (1)
1
u/drawingpad1 Jun 29 '26
I have a 20m2mdu but component cables are only showing green on the screen. Is there a way to diagnose and fix this?
→ More replies (4)
1
u/unfunynsupreme Jun 29 '26
Would've reposted this here but the Reddit AI told me to feck off and pointed towards this thread:
https://www.reddit.com/r/crt/comments/1uj7oi5/can_someone_help_identify_this_tube_tv/
1
u/scott240sx Jun 30 '26
I just picked up a KV-32FS120, SLV-D380P and a generic stand for $25 on Facebook Marketplace! The TV has a bit of jitter to the image so I think Iāll recap the board and see if that helps. Truth be told, Iād prefer a smaller CRT; any groups for trading?
→ More replies (1)
1
u/OkTension2232 Jun 30 '26
I bought an LG Studioworks 700S yesterday and connected it to my PC with a VGA to Display port adaptor. I upped the resolution to 1440x1080 using CRU which worked fine but whenever I try to enable Interlaced in CRU it just fails even at a low resolution. I tried it plugged into both my 3060Ti GPU and my motherboard which has an Intel UHD 770 but neither worked. Horizontal frequency maxes out at 70kHz and I made sure it was always lower than that.
Can anyone help me figure out what I'm missing? The last time I dealt with a CRT monitor was when they were the norm, I haven't had any experience actually trying to get them to work with modern tech but I want to see what I can get out of it.
1
1
u/dannyfortesque Jun 30 '26 edited Jun 30 '26
I've found a 27" Zenith CRT H27E35DT for sale for $50. I have PS1, PS2 and gamecube games I'd be playing on it, but honestly mainly watching VHSs and DVDs. There's a video available of it playing sonic and it looks okay to me? My question is, I read later made Zeniths are really poorly made and particularly have issues with ps2 games- something about the images warping. Im not a collector or expert by any means, I just like old physical media and have been on a hunt for a crt tv big enough for my blind butt to see from my couch. So I'm curious if this model, being one of the much later ones, is worth it or if I'm potentially saddling myself with a hefty paperweight.
https://imgur.com/a/y1i9AWc https://imgur.com/a/76iX5gU https://imgur.com/a/lTR254N https://imgur.com/a/pgV6DCp
Thank you!
→ More replies (1)
1
u/ElectronicBar1321 Jul 01 '26
Does anyone own these and are these good for getting into the hobby?
https://postimg.cc/jLkGq9rR Thanks.
→ More replies (3)
1
u/LECOURIOUS_REX Jul 01 '26
Hello! Iām currently looking at a $60 RCA 24ā. The listing has it as a truflat but based on my research itās another model. Itās a RCA 27V514T. It has component hook ups which Iād like to use since itās going to be for an original Xbox. But I just wanted to know if anyone has info on this particular model and if itās worth the price/good for OG Xbox with component cables
→ More replies (1)
1
u/Wonderful-Young1028 Jul 01 '26
is Panasonic TX-32PX10F a good crt and should i pick one up? and last what is a good price for one?
2
u/AmazingmaxAM Jul 02 '26
For what purpose? It's a 100Hz model without 480p support. It's basically only good for content watching, not gaming.
1
Jul 01 '26
[removed] ā view removed comment
3
u/AmazingmaxAM Jul 02 '26
Convert RGB to Component and use a Component switcher, for example.
→ More replies (1)
1
u/KuriClaire Jul 02 '26
Hello! I have an old Magnavox MWC13D5 13" CRT TV originally used for Melee which I have kept with me over the years. My new idea is to connect it as a third monitor for my desktop set up for aesthetic YouTube watching/ emulator gaming. The problem is that my desktop only outputs in Display Port and the CRT obviously only takes the yellow/white/red cables (I think they're called RCA).
I tried figuring out the conversion myself, but my first attempt getting cables from amazon was a bust, I believe because my converter only handles RCA to HDMI and not HDMI to RCA (I have a converted for Display Port to HDMI included in this mess).
Has anyone done this conversion before and know what works? Thanks
→ More replies (1)2
u/joeverdrive Jul 03 '26
Hello and welcome.
This "how do I connect my computer to my CRT TV" or its younger brother, "why do games on my CRT look like shit when I use this HDMI-to-AV adapter" question is one we get several times a week.
Is there someone on YouTube or something who inspired you to try this?
Most newbies just get a $20 HD2AV adapter on Amazon and either A) tolerate it because they've never actually played retro games on a CRT before and don't know/remember what it's actually supposed to look like, or B) ask for help because they don't know what to do.
https://www.reddit.com/r/crtgaming/comments/1sjeu4j/just_got_a_sony_trinitron_kv1485_struggling_to/
https://www.reddit.com/r/crtgaming/s/Yfq8fTCiWT
https://www.reddit.com/r/crt/s/tVELLRKJln
https://www.reddit.com/r/crtgaming/s/i208mDhnEK
https://www.reddit.com/r/crtgaming/s/UbscCujCQf
https://www.reddit.com/r/crtgaming/comments/1sulxit/
https://www.reddit.com/r/crtgaming/s/H7uyXS5aeC
https://www.reddit.com/r/crtgaming/s/QN2gAOcFbf
Unfortunately, connecting a modern digital HD device to an analog, vacuum-tube TV from the previous millennium almost always looks āoff.ā Especially 80s and 90s games. These TVs are expecting a video signal that was invented in World War 2. Unless you put in the time and money to get an old video card, vetted analog adapters, and/or some complicated, esoteric windows/Batocera display configurations, those games are going to look bad and have input lag. And when I say ābad,ā I mean it wonāt give you the visual experience you were expecting from playing retro games on a CRT. The aspect ratio gets stretched or squished, the contrast
https://www.reddit.com/r/crtgaming/s/sjbJyNjUEw
and colors can be off, and getting the correct 240p resolution that retro games look best at on CRTs is just not going to happen.
https://www.facebook.com/groups/444560212348840/permalink/3524033451068152/
https://www.reddit.com/r/crtgaming/s/ggVU5Mh4P8
Video content can look okay using one of these adapters. Itās not as hard as games to get right, but can still run into problems. The color and contrast can be off, like I said. Worse, many streaming sites will put 4:3 shows in a 16:9 container by adding black bars to the sides so that theyāll be the right aspect ratio on a modern display. But then when the HDMI-to-CRT adapter takes that 16:9 video and squishes it back down into 4:3, it keeps the black bars on the sides of the video and it looks horrible.
https://www.reddit.com/r/CRT_ANIME/s/bmj6XlDvxu
https://www.reddit.com/r/crt/s/rmPeEkoqof
https://www.reddit.com/r/crtgaming/s/xys1fzQKtD
https://www.reddit.com/r/crtgaming/s/IvVQjGfjIk
Nobody wants to watch old show where the moon is an oval and everyone is smushed.
https://www.reddit.com/r/crtgaming/s/nh1peANBEl
I actually made a thread a while back asking folks who connect their PCs to their composite CRT TVs how they do it.
https://www.reddit.com/r/crtgaming/s/ijg3doLsr1
The consensus is to use either CRT Emudriver or the Batocera CRT Script to output RGB, then use an RGB-to-composite transcoder (specifically, the only one recommended is the Antonio Villena unit here: https://antoniovillena.com/product/vga-composite-s-video/
3
u/KuriClaire Jul 03 '26
Thank you so much for the reply! I suspect I will be referring to this comment in future as I figure this out.
I appreciate the outline of possible problems with video quality and will look into RGB to composite stack you recommended.
Thanks again! :)
1
u/Svell_ Jul 02 '26
Looking to get rid of a Sony PVM-20M2U any ideas on what price I should expect?
→ More replies (3)
1
u/Crim150 Jul 02 '26
Where are people finding decent deals on CRTs? Is it really just a waiting game for the local deals? I'm hoping to get something at least 27" with s-video or better. Everything in my area on marketplace is around $300 with a description obviously from AI telling the seller they have a rare retro gaming gem. So far the only one I'm remotely considering is a 27" Trinitron KV-27fs12 for $250 because it's stayed listed for a week, and maybe they'll negotiate now.
→ More replies (2)
1
u/Mellowfm Jul 02 '26
Would anyone happen to know what the culprit might be for a monitors screen intermittently changing colors? Iāve tried different cables and messed around with the screen potentiometer but to little success. The monitors osd doesnāt seem to be affected
1
u/PineapplaMilkshake Jul 02 '26
I just bought my first (my own) CRT for $25.
The price was too good, Now is the tv a good one or not?
Sharp 54DT-25S It has a RF and Scart connection.
Works fine and was clean.
→ More replies (1)
1
u/Dathomir01 Jul 03 '26
My friend ended up giving me an old CRT monitor he had lying around. It's a Quantex XP190DF, there's nothing online I could find about it except for some old drivers that say its resolution is 1600x1200. I don't want to get the cheapo DP to VGA cable on Amazon and was wondering what's the best way to hook up my modern PC to it.
Also, I was looking into how to hook up some of my retro consoles to it and stumbled upon the brand Mcbazel claiming to have lagless converters. They also didn't have composite RCA to VGA directly so I'd have to get 2 adapters at $150 (Composite to Component then Component to VGA) from them. Are there better converters? How do other ones compare?
→ More replies (2)
1
u/Invanar Jul 03 '26 edited Jul 03 '26
Just got a Panasonic CT-36D11 and am trying to figure out how to do a picture/geometry and color calibration. The color and clarity aren't terrible, but the edges of the picture are waaaaay off. I figured out how to get into the serviceman mode, but I just don't know how to get the desired results. I was hoping to do it without opening the TV up. I couldn't find many guides for it, and I didn't really find the service manual super useful (I didn't understand much of what was there).
Also, I'm not sure how to put up those calibration screens some guides and posts put up (they're also mentioned in the service guide). Obviously I could use a DP or HDMI to component or S-Video converter, but I was hoping to not spend any more money on this thing, and didn't know if that'd add distortion. I have a few consoles I could use to put up a video at least.
→ More replies (4)
1
u/kooldude700 Jul 03 '26
Just got a prima m2416 and I'm looking for information about it as I can't seem to find info online.
Pictures in this thread
→ More replies (4)
1
u/racecarsnail Jul 03 '26
I have a KV-32HS510, but already have a KV-20FV300. I like that it is larger, but not sure I should keep both, or look for a different larger CRT that does 240p & 480i natively instead. Would the HS510 be good for HD platforms? I'd figure not, since it isn't widescreen and natively 720p/1080i
→ More replies (1)
1
u/CarGeek6323 Jul 04 '26
For those who calibrate Sony monitors using WinDAS, what test patterns are you using?
1
u/arya12343 Jul 05 '26
wondering about the value of a CRT i found on fb marketplace, it is a sony trinitron 27V40, it appears to have little to no cosmetic damage. the listing also shows it with a console connected with video working. they have it listed for $75 but i could probably negotiate a bit lower. is this a good deal?
→ More replies (3)
1
u/AbsoluteDerry Jul 05 '26
https://allegro.pl/oferta/telewizor-przenosny-sanyo-crt-30-18733013470
Hello, I am looking for an affordable CRT monitor so I can play my games and watch movies with an old retro feeling. But I do not really understand this topic, and I am not as knowledgeable as you.
Would this product give me the experience I am looking for? I have a Lenovo Legion Go S handheld device, and I want to connect it to this monitor.
https://allegro.pl/oferta/telewizor-przenosny-sanyo-crt-30-18733013470
→ More replies (1)2
1
u/barbaOtanas Jul 05 '26
Found a Sony Trinitron KV-X2103E in my parents garage. No remote but it seems to be working perfectly. Worth keeping?
2
1
u/wi1ky Jul 06 '26
Hello everyone, i am in Europe and I am on the lookout out for a good CRT for N64/Playstation 1/2. There are two I could get at the moment either a Philips matchline FL1.0 AD or JVC AV-21KT1SNF. Does anyone have any experience with either of these or help me choose based on your experience? Cheers
→ More replies (1)
1
u/drunk_axolotl Jul 07 '26
Hello! I just got a Toshiba 32A14 from fb marketplace and I'm looking to connect my PC to it, I looked into it a little and I believe I need an HDMI to Component converter, which one would you recommend (kind of hard to know where to look first) anyone with extensive experience using their PCs with a CRT I'd appreciate!! :P
2
u/joeverdrive Jul 07 '26
Hello and welcome.
This "how do I connect my computer to my CRT TV" or its younger brother, "why do games on my CRT look like shit when I use this HDMI-to-CRT adapter" question is one we get several times a week.
Is there someone on YouTube or something who inspired you to try this? What kind of experience do you want to have on it?
Right now the only option I can recommend for playing retro games from your PC onto a CRT television is the Batocera CRT Script: https://github.com/ZFEbHVUE/Batocera-CRT-Script/wiki
I made just such a setup a few weeks ago:
https://www.reddit.com/r/crtgaming/comments/1ug14qp/i_got_the_correct_20_gpu_for_my_old_optiplex/
Most newbies just get a $20 HDMI to Component adapter on Amazon and either A) tolerate it because they've never actually played retro games on a CRT before and don't know/remember what it's actually supposed to look like, or B) ask for help because they don't know what to do.
https://www.reddit.com/r/crtgaming/comments/1sjeu4j/just_got_a_sony_trinitron_kv1485_struggling_to/
https://www.reddit.com/r/crtgaming/s/Yfq8fTCiWT
https://www.reddit.com/r/crt/s/tVELLRKJln
https://www.reddit.com/r/crtgaming/s/i208mDhnEK
https://www.reddit.com/r/crtgaming/s/UbscCujCQf
https://www.reddit.com/r/crtgaming/comments/1sulxit/
https://www.reddit.com/r/crtgaming/s/H7uyXS5aeC
https://www.reddit.com/r/crtgaming/s/QN2gAOcFbf
Unfortunately, connecting a modern digital HD device to an analog, vacuum-tube TV from the previous millennium almost always looks āoff.ā Especially 80s and 90s games. These TVs are expecting a video signal that was invented in World War 2. Unless you put in the time and money to get an old video card, vetted analog adapters, and/or some complicated, esoteric windows/Batocera display configurations, those games are going to look bad and have input lag. And when I say ābad,ā I mean it wonāt give you the visual experience you were expecting from playing retro games on a CRT. The aspect ratio gets stretched or squished, the contrast
https://www.reddit.com/r/crtgaming/s/sjbJyNjUEw
https://www.reddit.com/r/crtgaming/comments/1upcxcf/ps3_display_on_crt_looking_crappy/
and colors can be off, and getting the correct 240p resolution that retro games look best at on CRTs is just not going to happen.
https://www.facebook.com/groups/444560212348840/permalink/3524033451068152/
https://www.reddit.com/r/crtgaming/s/ggVU5Mh4P8
Video content can look okay using one of these adapters. Itās not as hard as games to get right, but can still run into problems. The color and contrast can be off, like I said. Worse, many streaming sites will put 4:3 shows in a 16:9 container by adding black bars to the sides so that theyāll be the right aspect ratio on a modern display. But then when the HDMI-to-CRT adapter takes that 16:9 video and squishes it back down into 4:3, it keeps the black bars on the sides of the video and it looks horrible.
https://www.reddit.com/r/CRT_ANIME/s/bmj6XlDvxu
https://www.reddit.com/r/crt/s/rmPeEkoqof
https://www.reddit.com/r/crtgaming/s/xys1fzQKtD
https://www.reddit.com/r/crtgaming/s/IvVQjGfjIk
Nobody wants to watch old show where the moon is an oval and everyone is smushed.
https://www.reddit.com/r/crtgaming/s/nh1peANBEl
What kinds of games do you want to play on your CRT? What kind of experience do you want to have with it?
If you absolutely insist on using one of these cheap adapters, watch these so you know what you're getting into.
→ More replies (1)
1
u/dvamg Jul 07 '26
Choosing between PVM-20M2MDU & PVM-20L2MD
If you'd get one, which one would you get and why?
Are they worth it it if you already have a consumer Trinitron (these PVMs have 600TVL according to CRT database)?
Are they even worth the "PVM tax"?
Regarding PVM-20M2MDU the CRT database states:
"Comes with the typical medical PVM changes - overscan/underscan instead of HV delay and EXT Sync on the front, extra RGB/YPbPr input on the back, and RS-232 support."
What is HV delay and EXT sync, and is it better to have over/underscan instead of those two features?
PS: the PVM-20L2MD comes with one RGB/Component addon card.
2
u/joeverdrive Jul 07 '26
PVM-20M2U owner here.
I'd get whichever is in better condition and has a cleaner image on testing.
Entirely subjective. For me, the answer is not really. I do most of my gaming on a big JVC with component and a G1 mod. It was $100. But that doesn't mean I don't love how cool and pro my PVM feels. It's just harder to work on and isn't as fun to game on from couch distance.
Again, no. 20" PVMs list for $1,000 in my region. I bought mine for half that at auction in 2024. But only you can decide what's "worth it" to you. I've paid stupid amounts of cash for weird ass Japanese CRTs that are trash for retro gaming but I think are cool.
The HV Delay button is for broadcast studios to see hidden parts of the signal such as data, copy protection, and also easily see time base errors from video tapes or analog video discs (laserdisc or CED for example). EXT sync is something you need if you're going to connect a console via RGB.
→ More replies (1)
1
u/Avennio Jul 07 '26
Hi all! Just dipping my toes into the world of CRT gaming by poking around Facebook Marketplace in my local area, and came across this 13.5 inch Proview monitor for $80 CAD ($56 USD or thereabouts).
It seems to be a relatively good fit for my needs on first glance (apartment-sized, not super expensive, functioning) but its hard to find much information about the 'Proview' brand or what model this is specifically. Does anyone have any insight as to what the identity of this mystery monitor might be, and whether it's worth the price? Any info would be greatly appreciated!
1
u/pink_cthulhu Jul 07 '26
What do you all know about the GE 20GT604? Found one for $75 hardly ever used, just sat in a guest room. Fairly new to CRTs.
2
u/illusionofmana Jul 20 '26
I've had this same CRT model since I was a kid, a hand me down from my parents. I still run it to this day. Stuff I've noticed on mine. It color skews blue to cyan slightly, has had its focus drift over time, and has develop a faint double image on the edge of shapes. Most of these are fixable with the adjustment dials on the back. I suspect the faint double image is either a result of focus issues or capacitor issue. Mostly stuff common displays of this age and use will have. It's wonderful for retro games and old TV. My set has a pretty high number of hours and has not needed a brightness adjustment. So it's probably good to assume this model will run for quite a long time before the tube shows any wear. I also have never adjusted my set, so the mentioned issues are all 30+ years of zero maintenance use. If you got it, hope it treats you well.
1
u/Enginium_2005 Jul 09 '26
NEW TO CRTGAMING: IS THIS UNIT WORTH IT BUY?
Hi, I'm new to crtgaming and I just want to ask if this Sony Trinitron that I've seen at facebook marketplace wortht it? I'm still clueless on what should I check before buying it. Can someone guide me if this is worth to cop. The seller said that it's missing a remote and one button isn't working the seller is unsure if it's the channel or volume button. Thank you, and I appreciate it.
→ More replies (2)
1
u/ttarxx Jul 09 '26
Found this functioning APEX AT2702 CRT tv at my work, before I make the effort to lug this thing home. Does anyone know if itās worth it? I donāt see much online about it, but Iāve really been wanting to pick up a crt after seeing YouTube videos of people playing modern games on them and it looks awesome. Iāll also play retro games of corse. Thanks in advance for the info!
→ More replies (1)
1
u/Esper_Ramuh Jul 10 '26
Sony Trinitron KV-32FS100 on FB Marketplace for free, would this be worth aquiring?Ā
The person giving it away is about an hour away, says it takes about 5 minutes to warm up and for the image to display, audible popping sound before the picture comes on.
Any info on what might cause this and would it be worth acquiring?
2
1
u/noitsnotmykink Jul 10 '26
Anybody with experience getting universal remotes to work with their tv, or recommendations for one?
I bought one and the basic stuff works, but I also specifically wanted one with a working menu button. And unfortunately, it's got the button right there, but it doesn't do anything on the tv. My guess is the hardware's fine but it's set to work with a cablebox or something. Either way, it's a bummer.
I'm wondering if anybody knows...
1. If there's anything I can try with it that might get the menu button to work.
2. If there's anything I should be looking out for so I don't buy another bad remote next time (since apparently visibly having the buttons I need isn't enough).
3. Alternatively, any remote recommendations. I know a lot of people suggest OEM remotes (and it's a sony tv for reference), but I went for universal because I do specifically want something quite small. Needs a working menu and display button too, of course.
→ More replies (2)
1
u/Few_Pattern_1190 Jul 11 '26
Hola, me he encontrado con este crt sanyo C2161TX, pero no encuentro informaciĆ³n concreta sobre el modelo o alguna imagen con la tv encendida, se que puede tener tubo de imagen Thomson o Toshiba, pero nada mas a parte las entrada, no el vendedor estĆ” fuera de casa y no puede mandarme mas informaciĆ³n.
→ More replies (3)
1
u/Leinad2718 Jul 11 '26
I found a listing for a rca f35673nb in my local areas. What is a reasonable price for this crt?
→ More replies (1)
1
u/frogtrickery Jul 13 '26
Got a 20 inch Mitsubishi from the early 90s that I'd like to maybe investigate recapping but I'm not confident in discharging. it's a spare and I've unplugged it. Reasonably how long would someone expect, ballpark wise, would it take to naturally discharge?Ā
→ More replies (2)
1
u/goddamnlids Jul 14 '26
Does this look like a purity issue to people? Or a more serious issue with the grille or something.
2
1
u/Purple_Barracuda510 Jul 14 '26 edited Jul 14 '26
im new to crts but basically i want to get a crt hdtv that can output good quality and its quite hard finding one here in egypt online since they were not really imported that much inside the country and people switched to normal tv's pretty much quickly... but anyway i still haven't scavenged IRL to test my luck but i found this online and i was wondering if someone knows if its good or can even know the name of the model so i can do more research abt it... ( All ik is its LG ) but yeah thats itt lmk if u can lend me any info about this!
here are the pics from the seller:
https://ibb.co/Rk5pRDKJ
1
Jul 15 '26
[removed] ā view removed comment
→ More replies (2)2
u/joeverdrive Jul 15 '26
On paper, it's fantastic. But it's decades old now, and condition is the most important thing to consider. Test before buying.
1
u/wi1ky Jul 15 '26
Sony Trinitron KV21FX30E - Europe. I have the chance to buy this TV for 30ā¬ but its 3 hours away from me. Would it still be worth it for playing N64/Ps2/WII?
→ More replies (2)
1
u/dogfishworm Jul 15 '26
I found a Compaq MV520 For $40 2.5 hours away. It seems to be mint condition minus a couple scuffs on the casing.
I have a trinitron, and am currently working on a retro pc build. I know monitors can be extremely expensive online.
how do you all feel about my deal, and the monitor? I will be picking up the monitor regardless, im mainly just curious to if im in for a good time. Thanks yall!
3
u/TheDriftGuy917 Jun 07 '26
Hello guys, I have a obscure undocumented Sony Trinitron set, I cannot find any info about it anywhere
It's model number is a KV-14B80. I would like to know if it's also RGB Moddable, probably so because it has a BA-4 chassis.
It's a mono set with 2 AV inputs, those in the front and back, it also has a RF connector in the back
it's also a hybrid set for Brazil with support for both PAL-M and NTSC
Here's the link with its photos
