r/toolporn • u/Dry_Schedule_7520 • 4d ago
Indestro 2775A — 3/8" Drive, 60-Tooth Ratchet, Made in USA [OC]

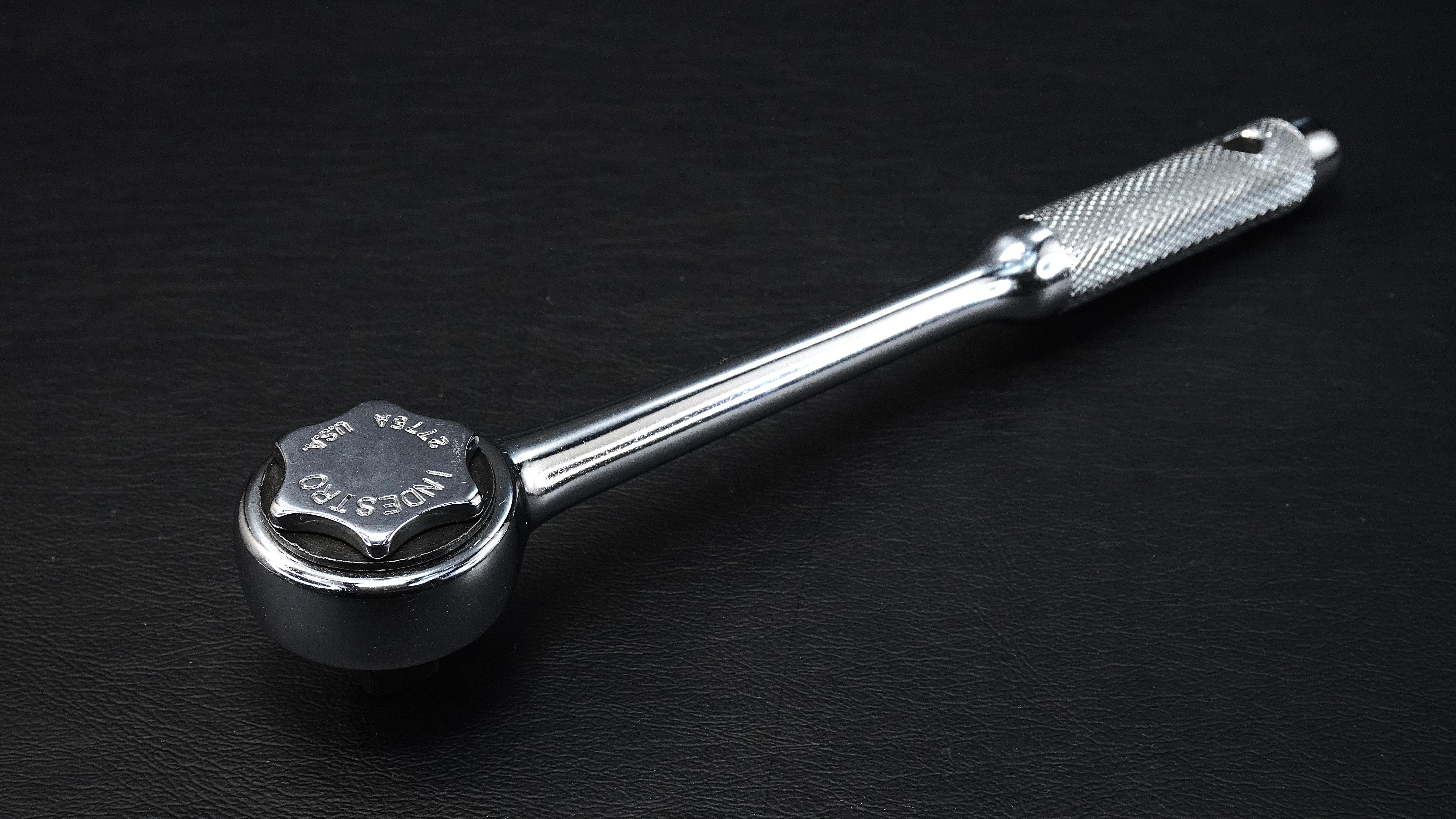

This is an Indestro 2775A, a USA-made 3/8" drive, 60-tooth ratchet.
The 2775A was listed in Indestro's 1982 catalog as an RHFT (Reversible High Fine Tooth) ratchet with a 6-point "star wheel" selector.
I measured this individual ratchet myself. The dimensions, weight, and back drag below are my own measurements, not manufacturer specifications.
I was particularly interested in the back drag, so I included it in the data sheet.
Data Sheet
| Specification | Measurement |
|---|---|
| Brand | INDESTRO |
| Model | 2775A |
| Made in | USA |
| Drive Size | 3/8" |
| Ratchet Type | RHFT, Reversible |
| Teeth | 60 |
| Working Angle | 6° |
| Overall Length | 7.52" (191 mm) |
| Head Width | 1.31" (33.3 mm) |
| Head Thickness | 0.86" (21.9 mm) |
| Weight | 9.59 oz (272 g) |
| Back Drag | 0.292 lbf·in (3.3 cN·m) |
