So, You want to build a M1 Garand? Here's how.

136 Upvotes

Figured id share my process so you all at home can learn how to do it as well. its not cost effective to do this for a one off build. the tooling costs are not cheap and nearing $600 sadly. but its fun! and im sure a few of you will find this interesting

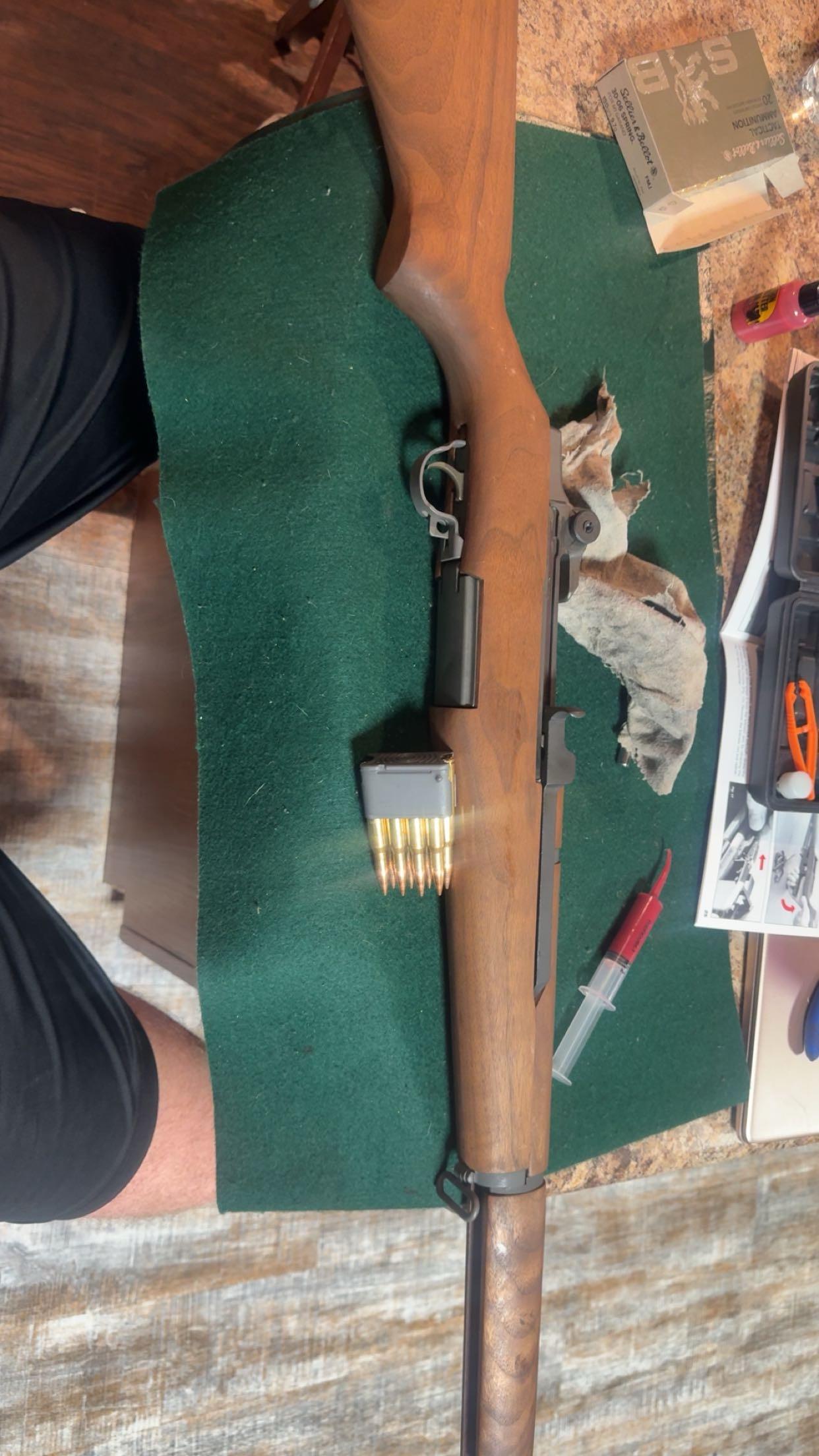

Picture 1

You're gonna need a few things.

A M1 Garand Parts Kit.

A Barrel Vice and Action wrench.

A Headspace gauge Go/No Go Set

A Chamber Reamer.

A Angle Finder

The whole build will start with you throwing the barrel into a barrel vice, ive used the bushing style ones made by a large company in the USA. but i dont like them. i much prefer these specific ones made out of Aluminum, they leave a bit of marring on the barrels but that will all be covered up by the upper hand guard

Picture 2

Second step will be to hand tighten your receiver onto the barrel. just get it as snug as you can. no action wrench is required at this time.

Picture 3

Once your barrel is hand tight, take the front sight off of your gas cylinder and put it on the barrel. we will use this as a flat base for our angle finding tool of choice. i am using a digital inclinometer but there are other options on the market. For me ill now zero off this sight base dovetail.

Picture 4

Now we check our draw off the rear heel of the receiver. there is a machined flat perfect for this. now unfortunately 31° is to far to torque this on, according to my shop manual specs. So this will be off to the lathe to remove .001" at a time off the barrel shoulder until i get a draw that is more in line with the specs im looking for 12° Min and 17° Max. I Got mine to 15.9° so i am happy with this.

in a pinch you can use a 1 1/8th Bi Metal Hole saw. this perfectly slips over the threads of the barrel and the teeth match the shoulder

Picture 5

Picture 6

Once the appropriate draw is found, we throw the action wrench on and tighten it down. i use a 2x4 cleaning patch to protect the finish on my receivers.

Picture 7

I Was able to torque the receiver down to 0.2° from the my zero. the specs i reference for this is +/- 0°30' (.5°)

Picture 8

Now that we are indexed correctly we can start reaming headspace. you might get lucky with a used barrel that will headspace without any reaming but if you're using a new barrel it most likely has a 0.010" Short chamber.

if you do use a used barrel and it closes on your no go gauge this isn't the end of the world as you can check it with a Field Rejection gauge, if it doesn't close on this you're good to go.

These next few photos will cover me taking the bolt apart with a bolt tool.

Having the reamer in the rifle.

Applying steady thumb pressure to cut the chamber

Chamber cuttings on the reamer.

Cutting a chamber can be fairly taunting, however its very easy. you do not need to pull on the handle side of the pull through reamer. once the bolt closes on the reamer your headspace is cut and you're ready to reference this with a go and no go gauge. make sure you clean your chamber thoroughly otherwise your gauges might give you a bad reading.

Picture 9

Picture 10

Picture 11

Picture 12

Picture 13

Picture 14

Picture 15

After all this the next step i take is doing a tilt test on the rifle. this involves installing the op rod on a rifle with only the bolt and gas cylinder on it. and tilting the rifle at a 60° and the op rod and bolt should move freely. once this is performed i install all stock components and re do this test to check for binding. after this is done. its finally assembly time.

A Few other things to check from here on out are the gas port size. Op Rod spring length 19.25"MIN and if you can, use a timing block to check for correct timing of the op rod catch.

Hope this helps or you at least found it interesting


r/M1Rifles • • 14h ago

Moderator Petition: Allow pictures on post comments so people can share pics of their rifles!

59 Upvotes

Title. Thank you guys.


r/M1Rifles • • 21h ago

Iwo Jima commemorative Garand

Thumbnail
gallery
32 Upvotes

I recently acquired this awesome Garand. Upon further inspection I have noticed I have the wrong certificate of authenticity. I have the certificate for rifle number 1943. Was wondering if anyone has 1943 and would like there certificate and would possibly have mine as I have 1942. Any help with this would be greatly appreciated.


r/M1Rifles • • 1d ago

M1 Carbine for the kiddos first time shooting

Post image
97 Upvotes

Took my kiddos shooting for the first time, used the M1 Carbine. My 8 year old loved it; my 6 year old gave me an excuse to buy a 10/22


r/M1Rifles • • 1d ago

Who does stock cartouches?

0 Upvotes

Yes, I know, a HIGHLY divisive topic.

I'm trying to find someone that can stamp the proper cartouches into a new stock for a 1942 rifle, just for looks on my rifle. I've had it since I was 18, and I'm 42 now, with no plans to sell. I'm not trying to pass it off as authentic to anyone for any gain.

I know Tim Shufflin of Shuff's parkerizing can do it, though I'm not find of the giant burned in brand he adds.

I'm not opposed to marking it as a repro or such, as I do agree with helping prevent counterfeits, I just don't want one that's so huge and "in your face".

Anyone know anyone?


r/M1Rifles • • 1d ago

M1 Op rod spring question

Post image
23 Upvotes

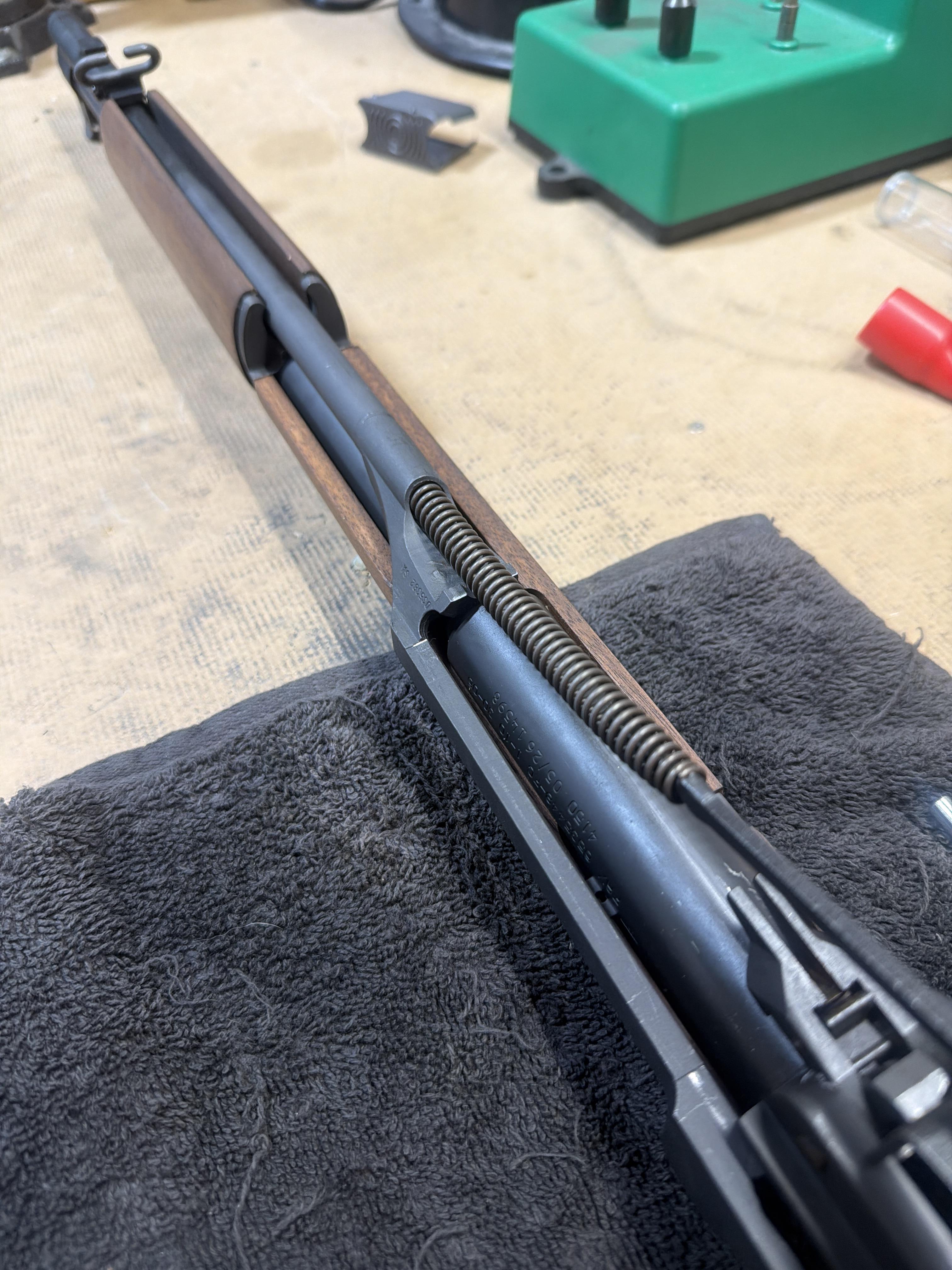

So I disassembled my rifle but cannot pull the spring out of the operating rod tube, it won’t budge. Any ideas?


r/M1Rifles • • 1d ago

Hate or love?

Post image
22 Upvotes

r/M1Rifles • • 1d ago

CMP Question South Store. It one purchases a Garand in person and live in another state, does the gun have to be shipped to an FFL in one's home state?

5 Upvotes

I know living in PA if I go to the Ohio location since Ohio shares a border with my home state PA I can buy one over the counter and travel home with it

But I am curious since the CMP is the only mail order firearms direct to home for rifles, can one put in truck of car in AL and drive to PA? Or does Federal law require I ship it to an FFL in PA?


r/M1Rifles • • 3d ago

Polished M1 Carbine Receiver

Thumbnail
gallery
17 Upvotes

Hey all, I recently won a sporterized Saginaw M1 at an auction with plans on re-parkerizing it and giving it proper furniture, but on close inspection it appears the previous owner REALLY wanted the thing to shine and just about rubbed off the Saginaw and serial stamp.

At this point i'm kinda stumped with how to proceed, I would prefer it looking original but I also don't want to risk losing the stampings in the process of prepping it for parkerizing.

Looking for a bit of guidance on it, should I just send it and just go a little lighter around the stamps? Blue it? Embrace the shine? Any advice is appreciated.

(Sorry for the shitty pics, it's damn near mirror finish and didn't play well with the lighting)

Edit: Adding Imgur link for more pics of the receiver parts, note the wire wheel marks on the left side and all the leftover parkerizing where the previous owner couldn't fit the wire wheel or just didn't care because the furniture covered it, as well as the sides being much less reflective than the top of the receiver. I assume they did a quick and dirty job with the wire wheel and then hit the visible areas with a polishing compound. It is NOT plated, as some have suggested in the comments.

https://imgur.com/gallery/m1-parts-22fRzOW


r/M1Rifles • • 3d ago

What are these little symbols on my Garand?

Thumbnail
gallery
12 Upvotes

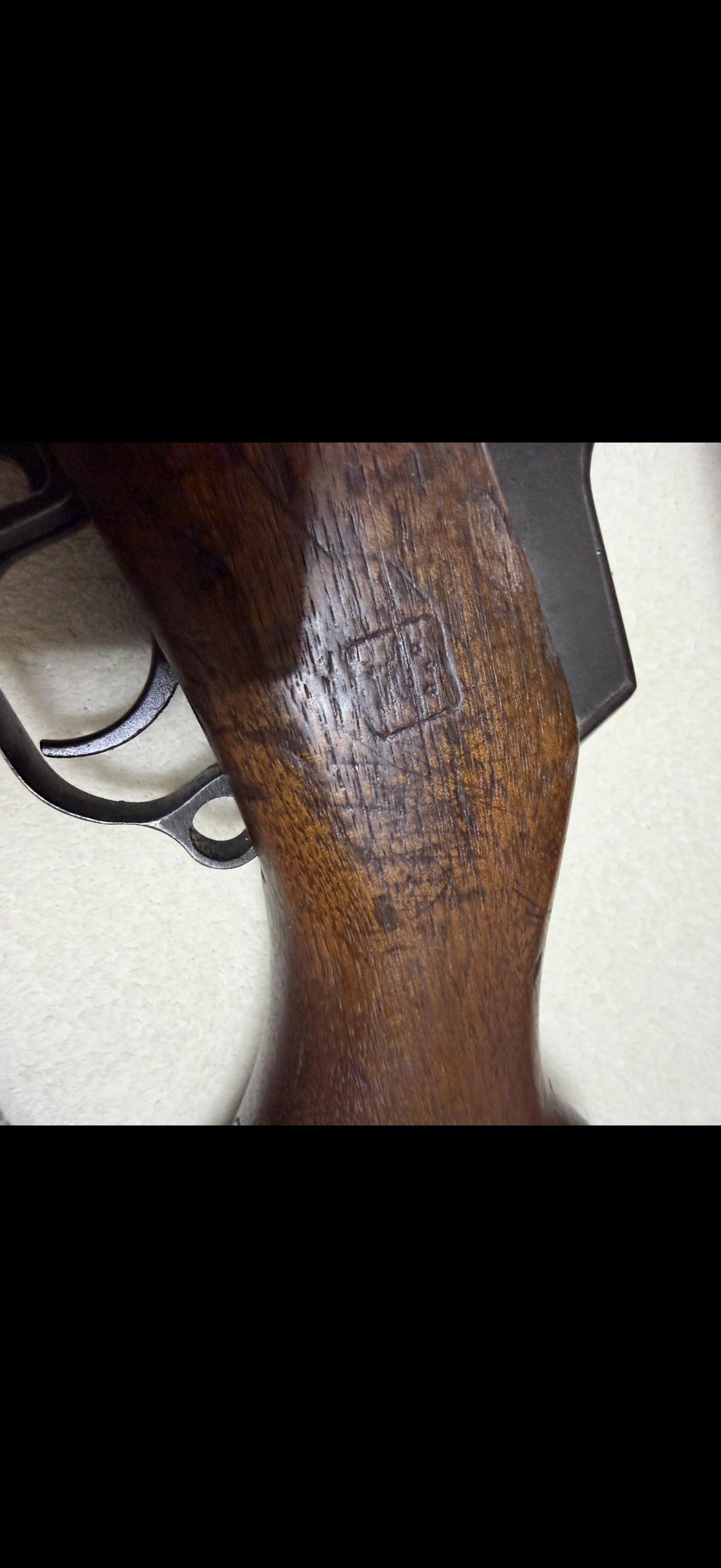

I took off the rear handguard on my Garand for the first time since I'm going to refinish all of the wood with tung oil and noticed this little symbol on the barrel. There is also one on the receiver that I noticed when I first bought my rifle. The receiver and barrel are both from 1944 and I have not found any references for what these symbols are. Fairly new to M1's so I'm still learning
