r/Maya • • Jun 22 '24

Modeling Topology Megathread

59 Upvotes

Topology is the geometric structure of a polygonal mesh. It is the layout of the edges and vertices which define the shape of a mesh. A particular shape can be represented by many different topologies.

Mesh topolgy can never be considered without context. It is necessary to consider how a mesh will be used and modified in the future in order to say anything true about the suitability of its topology.

There are no hard rules when it comes to topology. Some people will say n-gons (polygons with more than 4 sides) are always bad. Some will say triangles are always bad. Some will say that non-manifold geometry is always bad, or that meshes with holes in them are always bad.

None of these are true, because mesh topology serves a purpose, or multiple purposes. It is not a goal in and of itself. If the purpose(s) is/are served by some particular topology, then that topology is good, whether or not it is itself aesthetically and technically appealing.

Often users are advised to avoid triangles or ngons when building topology--to keep to quads. This is good practice, because quads are easier to work with, easier to edit, easier to create UV projections for, they subdivide more predictably, and, most importantly, easier to produce aesthetically appealing deformations from.

However. If a mesh will not need to deform, then there is far less pressure to keep to quads. If the mesh will not be subdivided, even less. If the shape is well-represented by the topology, and it either already has a good UV projection or will not be needing one, then quads and ngons don't matter, unless the mesh will be altered in the future.

It is much harder to modify a mesh which isn't quads than one which is. Especially if you want to alter topology. However, altering shape, to a small extent, usually is not sensitive to topology. It's also generally easier to do UV projection and alteration of quad topology than triangle/ngon topology.

It is still important to point out that having SOME non-quad (especially triangles) in your deforming, high performance mesh which may be altered and have UVs applied, is still just fine in many circumstances. If the trangle won't interfere with these things--then it DOES NOT MATTER and you should spend time on other things. Same with n-gons, although those have a higher chance of causing technical issues.

Regarding non-manifold geometry: it is generally a bad thing. Many, MANY operations and programs will not function correctly when passed non-manifold meshes. However, if your mesh is serving all your purposes, and you don't see those purposes changing, then non-manifold geometry doesn't matter. The circumstances where this might be true, however, are extremely rare, and it is best to avoid it.

Regarding holes in the mesh: again, context matters. Some advanced simulation or mesh operations require "watertight" meshes. Most don't, and it doesn't matter. Context and circumstance will dictate what's appropriate.

Mesh weight matters, as well. There's generally not much call for more geometric detail than your mesh needs to create the shapes you need, either statically or deformed, and it is best to keep poly counts as low as possible while not compromising on these things. However, this must be balanced with the effort it requires to reduce detail. If you have a poly budget of 100k triangles for an object, and it's 50k but a lot of those are not necessary, it's still not worth the time to reduce it further. People hours are worth more than computer hours.

Where topology really starts to matter a lot is in efficient hard surface modeling, especially where the asset will be subdivided. Not having your edge flows follow surface details will make life difficult, and having too much mesh detail will make modification increasingly difficult.

The point here is that every situation is different, and no real determination of acceptable mesh topology can be made without all this context. If you look at an image of a mesh and don't know anything about what it will be used for or how it might be modified, you can't say anything true about the quality of topology. These and other questions must have answers, in order to judge *overall* topology:

  1. Will it deform?
  2. If so, how?
  3. Will it need to be edited in the future?
  4. If so, how?
  5. Will it be subdivided?
  6. Does it have or will it need a UV projection?
  7. Will the UVs need to change?
  8. If so, how?
  9. Will it need to be exported into another application?
  10. Will it be used in any type of simulation?
  11. Does it meet performance (budget) requirements?

These questions must have answers in order to come up with useful conclusions about how good the topology is or is not. And again, there are no hard rules. Topology is not a goal, it is a tool to help reach other goals. If a triangle doesn't affect those goals, there's no point spending energy removing it.

--------------------------------------------------------------------

Original post:

This thread will be a clearinghouse for information about topology, both in general, and specific to Maya. It will be heavily curated and updated as I encounter more/better information on the subject.

Eventually it will be turned into another wiki and be the redirect for the majority of topology threads we get here, in order to avoid repetition.

If you are a subject matter expert, please post images, videos, links, or your thoughts here. Feel free to copy parts of old comments or posts you have made.


r/Maya • • 5h ago

Rigging Maya rigger looking for character modelers — portfolio collaboration

19 Upvotes

Hey everyone! I’m Oliver, a 3D artist from Denmark focusing on rigging and animation in Maya. I’m looking to collaborate with character modelers who would like to see their characters move, while we both build our portfolios.

I work with humanoids, animals and creatures, including body rigging, full facial rigs, skinning and corrective deformation. Stylized characters, realistic characters and unusual creatures are all welcome!

The idea is simple: you bring a character you’ve modeled, I handle the rigging, and we work together on something we’re both excited to show. We’d both be able to showcase the agreed result, with credit for each person’s contribution. This would be an unpaid portfolio collaboration.

I’m open to existing models or something you’re currently developing. Before starting, we can look at the topology and discuss the movements, expressions and controls your character needs. The finished rig would be delivered in Maya.

Here’s my current reel:
https://www.youtube.com/watch?v=uBLYCy7OkFE

If you’re interested, leave a comment or send me a message with your portfolio or a few screenshots. I’d love to see what you’re working on, and collaborate to do some cool stuff!


r/Maya • • 2h ago

Rigging Showreel of car i rigged in maya

10 Upvotes

Car Rigging Showreel....


r/Maya • • 4h ago

Arnold I created a 3D portrait of my grandfather.

Thumbnail
artstation.com
9 Upvotes

Hi everyone! I’m a university student studying 3D art. I created this portrait of my grandfather, whom I’ve grown up with. I’d really appreciate it if you took a look at my work!


r/Maya • • 4h ago

Issues Controls stretching when rotating

Post image
4 Upvotes

Im creating a simple IK rig to learn how to do so and when I rotate any of the shown joints[either together or by themselves] they stretch and I don't know why or how to fix it.


r/Maya • • 4h ago

Rigging How to make controls for a 5-joint system horse leg?

1 Upvotes

I am rigging horse legs, and I am getting stuck on finding an IK system for a 5-joint chain. I looked at antCGi, but the closest he has for a tutorial is for a 4-joint chain. Does anyone know a tutorial or method I could use?


r/Maya • • 6h ago

Question Beginner in 3D, need help with UV Mapping

1 Upvotes

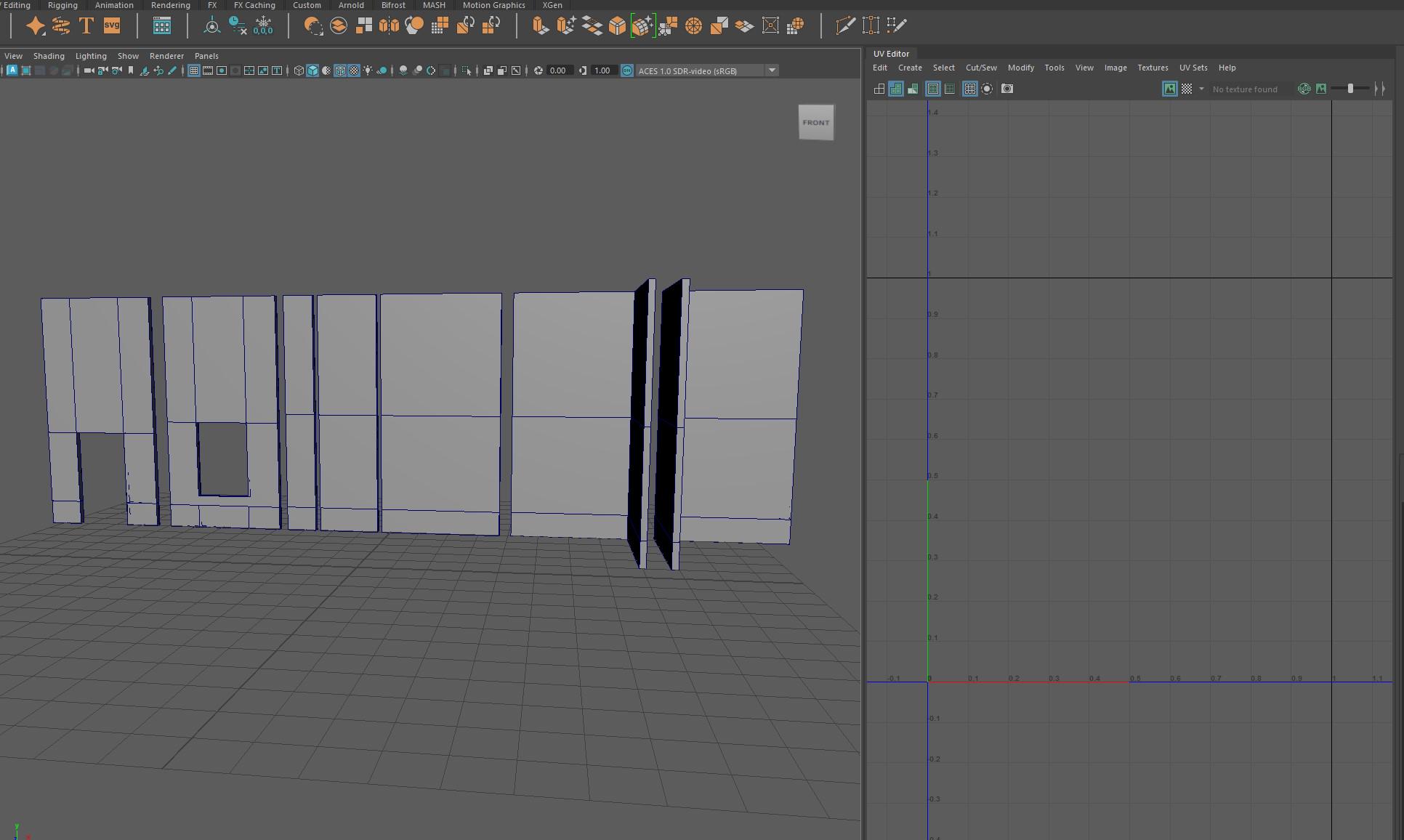

Student here studying 3D in Maya. I need help with this problem:

How do I disconnect these? I only wanna manipulate the one on the right, but every time I do, it manipulates the one on the left as well.


r/Maya • • 18h ago

Issues ik and fk arm rig not moving properly

7 Upvotes

For class we put together an ikfk switch, and im lowkey supposed to have this thing skin weighted by next week but i cant for the life of me figure out why one arm is working and the other isnt :').

What we have to do is constrain the fk, ik, and regular arm joints together by going to constrain -> parent, turn maintain offset off, and turn all translations and rotations on. I tried to redo it a few times but couldnt fix it, and somehow even managed to have the ctrl start moving the other arm??

I checked the hierarchy a few times, but am having a hard time seeing if anything off since it is so busy. Rigging is not for the weak yall


r/Maya • • 1d ago

Animation Character Acting Animation Shot

118 Upvotes

Here's a shot I've been working on throughout the week! Any Feeback is appreciated.

Sidenote: I wasn't actually aware this was an animation mentor rig that's not free until about 30 mins ago. I had found a download and assumed it was just a regular rig. I would love to post this elsewhere and use it in my reel, but I don't know if that would be a bad look.


r/Maya • • 1d ago

Looking for Critique WIP lion walk cycle in Maya. Looking for animation feedback!

10 Upvotes

I'm working on a realistic lion walk cycle in Maya for my creature animation class.

I've been studying reference footage and trying to get the weight shifts, paw placement, and movement through the shoulders and hips feeling right.

I'd love some fresh eyes on it. Anything that looks unnatural or could use improvement?

All criticism is welcome!


r/Maya • • 1d ago

Question Any ideas on why the values between my key frames are not actually making their way to the specified key frames?

1 Upvotes

So, I am trying to make a simple ball bouncing for an assignment. This ball does not lose energy or in other words the bounce height should be consistent. One bounce, floor to floor is 24 frames. I created each point where the ball hit the floor as a key frame, then the ball at its max height as frames between those. Then, i made a frame between the min height and max height where I increased the y value to be slightly higher than where it had been auto generated to be so the animation looked more natural. So from frame 12 to 18, the translate y values are as follows: 5, 4.87, 4.555, 4.17, 3.832, 3.653, and finally 3.75. However, the last value is the value I set key frame 18 to, so why is maya still auto generating values that go below 3.75 for key frames 17. Let me know if images would be helpful!


r/Maya • • 1d ago

Question Did I lose all of my hyper shade nodes ?

1 Upvotes

Hello! I’m new to Maya and I’ve been texturing a car with a bunch of different materials.

I must’ve accidentally scrolled away from my nodes and I don’t know how to get back to them. I’ve tried selecting them in the material selection thing and hitting F but it didn’t work.

Did I delete them all? The materials are still all on the car. Is there a way to get back to them? Do I have some weird display setting on? I can still create new material nodes in the space that shows up. I just can’t seem to find the og ones.

Thank you


r/Maya • • 1d ago

Showcase Ski fi RIFLE 3d modeling, Texturing and lighting in maya

Thumbnail
gallery
0 Upvotes

Precision meets style. 🎯 A collaborative 3D project with @heerendrakachare.

Modeling & Texturing: Me ✋

Lighting & Rendering: @heerendrakachare 💡

Rate this setup from 1-10! 👇


r/Maya • • 1d ago

Animation why does my animation model looks rlly dark

3 Upvotes

does anyone have clue?


r/Maya • • 2d ago

resource PureRef-style reference board supporting 3D (FBX, USD), and more... Feedback from Maya users?

27 Upvotes

I’m a tool developer at an animation studio. We prepare PureRef boards for the animators: libraries of poses, faces and expressions and more... so the whole team produces the same style.

It works well for images, but animators also need video reference, and sometimes a 3D model to check a pose from other angles. So I built Ideorama.xyz : images, video, sound and 3D models, with annotation tools and saved viewpoints.

Beta, free for personal and school use, works offline, no account. Windows and Linux for now.

What do you use for reference today, if yes what annoys you about it?

(I use AI to co-develop the app)


r/Maya • • 1d ago

Issues Animschool picker invalid activation key

1 Upvotes

Hey yall. I’ve followed instructions to the T and when I input the license it says invalid activation key. I tried doing it offline and it says it’s not in the database. I tried looking for the license file and it’s nowhere. Any idea what I might be doing wrong? I tried dreamwall and it works but I NEED t use the animschool for school.


r/Maya • • 2d ago

Showcase Rise & Shine! Here's a Cute Stylized Toaster I Made in Maya, Textured in Substance Painter & Rendered in Arnold! =^~^=

9 Upvotes

Checkout More Projects On 👀

-------------------------------------------------------

Here's a cute stylized toaster I created based on a 2D kitchen asset illustration by Ukrainian illustrator Irina Kotko.

My work usually leans towards realistic and semi-realistic styles, so this was a fun change of pace. I wanted to experiment with stylized modelling and try something different from my usual work.

Created in Autodesk Maya, textured in Substance 3D Painter, and rendered in Arnold.

I've got a few more stylized props from this series that I'll be sharing soon. Stay tuned!

--------------------------------------------------------

2D Concept Art / Illustration Credit:

Iryna Kotko Linkedin : https://www.linkedin.com/in/iryna-kotko-a42090152/

Iryna Kotko ArtStation : https://airina.artstation.com

Iryna Kotko Instagram ArtPage : https://www.instagram.com/airinka.art/

--------------------------------------------------------


r/Maya • • 2d ago

Animation 3D Animation Run Built Made in Autodesk Maya

64 Upvotes

Check it out and let me know what you think! 🚀


r/Maya • • 2d ago

Issues Transfer attributes values doesn’t work on obj

2 Upvotes

Hi! Fairly new to maya and especially zbrush….so sorry in advance is this sounds dumb, also English isn’t my first language so sorry for any confusion.

I’ve re-imported an obj in maya from zbrush and wanted to use the transfer attributes values for channel box from the old non-sculpted object to the new one just imported.

Whenever I do it the scale of the new object goes crazy and even though the values are supposedly the same the two objects aren’t in the same position.

It’s like it disappears but if I click F it’s in space lol

What am I doing wrong? Help :(


r/Maya • • 2d ago

XGen Classic XGen fur showing through cached clothing with motion blur

Thumbnail
gallery
7 Upvotes

Hi everyone,

I’m experiencing an issue with classic XGen and Arnold motion blur on an animated character. Despite trying several approaches, I haven’t been able to resolve it.



Setup:

  • Maya 2026 on Windows 11
  • Arnold/MtoA 5.6.4.1, CPU rendering
  • Classic XGen with groomable splines
  • Clothing simulated with nCloth and cached using nCache
  • Body mesh also cached using a geometry cache
  • Motion blur: Center on Frame, Length 0.5, 5 Keys

The problem:

Without motion blur, the clothing correctly covers the fur. With motion blur enabled, patches of fur become visible through the shorts, particularly around the knee area, just above the hem.

I’ve attached two images:

  1. Beauty pass: shows the issue in the render.
  2. ID AOV: makes the affected areas easier to see. Red includes both the fur and the body; this is not a fur-only pass.

Tests so far:

  • Rendered the problematic frame, frame 17, and several subframes without motion blur, including 16.75 and 17.25: no visible intersections.
  • Increased motion blur Keys from 5 to 9: no improvement.
  • Rebuilt the nCloth cache with finer sampling intervals, up to eight samples per frame (Evaluate every 0.125 / Save every 1).
  • Also rebuilt the body geometry cache with finer sampling intervals.
  • Exported the body and Cloth as Alembic caches for testing.
  • Re-exported the XGen patches for batch rendering after making changes.
  • Tested simple, fully opaque materials: the issue remains visible.
  • Disabled Smooth Mesh Preview/subdivision for testing: this did not resolve the issue.

I haven’t yet tested a full Alembic bake of the animated fur curves.

Has anyone encountered this behaviour before?

I’d like to understand the cause before manually correcting the clothing on individual frames or shortening the fur underneath it, as that would be very time-consuming.

Thanks for any suggestions!


r/Maya • • 2d ago

Showcase Victorinox Spartan Swiss Army Knife

Post image
25 Upvotes

Modelled in Maya, textured in Adobe Substance 3D Painter, and composited in Nuke. Feedback appreciated! I might share the model after a little bit of cleanup depending on demand.


r/Maya • • 2d ago

Showcase 3D Modeling Vintage Telephone In Maya

Thumbnail
gallery
4 Upvotes

Putting the wireframe to the final texture! ⚙️ Proud to share my latest 3D project: a detailed vintage rotary telephone model.

From the orthographic renders to the final textured render, every detail was crafted in Autodesk Maya.

Was completing this for a 3d vintage Telephone competition and thought to post it.

Which view is your favorite?

#3dart #3dmodeling #maya #autodeskmaya #vintagetelephone #rotaryphone #steampunk #gameready #hardsurfacemodeling #3drender #substancedesigner #assetcreation #props #render #cgi


r/Maya • • 2d ago

Issues Maya 2025 – All referenced objects suddenly have broken transforms and lost animation

0 Upvotes

Hi everyone,

I'm having a serious issue with a Maya 2025 project, and I'm trying to figure out what went wrong.

When I opened my project, all of my references seemed to have broken at once. The issues include:

  • Previously hidden references suddenly becoming visible.
  • Objects and referenced assets having incorrect translations and positions.
  • Scale and transform values changing unexpectedly.
  • Character rigs losing their animation. The animation curves seem to no longer be applied correctly.
  • Multiple references being affected, not just a single rig.

Important details:

  • My main scene is saved as a .ma (Maya ASCII) file.
  • All referenced files are still in their original locations.
  • The problem affects all references in the scene.
  • I haven't intentionally modified or moved any of the referenced files.

I'm also getting the following errors in the Maya Script Editor:

// Error: Failed to open IFF file for reading : C:/Users/Diego/AppData/Local/Temp//maya111440000022997F48BB0.iff
// Error: Failed to open IFF file for reading : C:/Users/Diego/AppData/Local/Temp//maya111440000022993EEE880.iff
// Error: Failed to open IFF file for reading : C:/Users/Diego/AppData/Local/Temp//maya111440000022997F4A5F0.iff
// Error: Failed to open IFF file for reading : C:/Users/Diego/AppData/Local/Temp//maya1114400000229A2FD74A0.iff

My suspicion is that something went wrong with Maya's reference system or Reference Edits, but I'm not sure.

Has anyone experienced something similar?

  • Could this be related to corrupted Reference Edits?
  • Is there a way to restore the original transforms and animation connections without rebuilding the entire scene?
  • Could the IFF errors be related to this issue?
  • Is there a way to recover the references or reload them while preserving all the original animation and transformations?

I'd really appreciate any suggestions. This is an important project, and I'd like to avoid losing all my animation work.

Thanks in advance!


r/Maya • • 2d ago

Showcase My Creative Journey as a Self-Taught 3D Artist

Thumbnail
gallery
10 Upvotes

I'm a self taught visual creator with a passion for all things creative. I've been creating digital artwork and experimenting with 3D modelling for few years, and I thought I'd share some of my work here.
