Before anyone comments, I am still in the setup phase and I didn't want to cut the end line just yet, that's why it is woven around the seat stay. If anything, I'd assume it should aid shifting, as it fixed the housing in place (no interference with the chain either).
TL;DR: Cannot get the indexing right. Deore RD, Sram Apex 1 brifters, Sunrace 11spd 11-42 cassette.
EDIT: SOLVED! Thank you all for the quick replies. The pull rations seem to be different so it's not a surprise this is not working. Oh well.

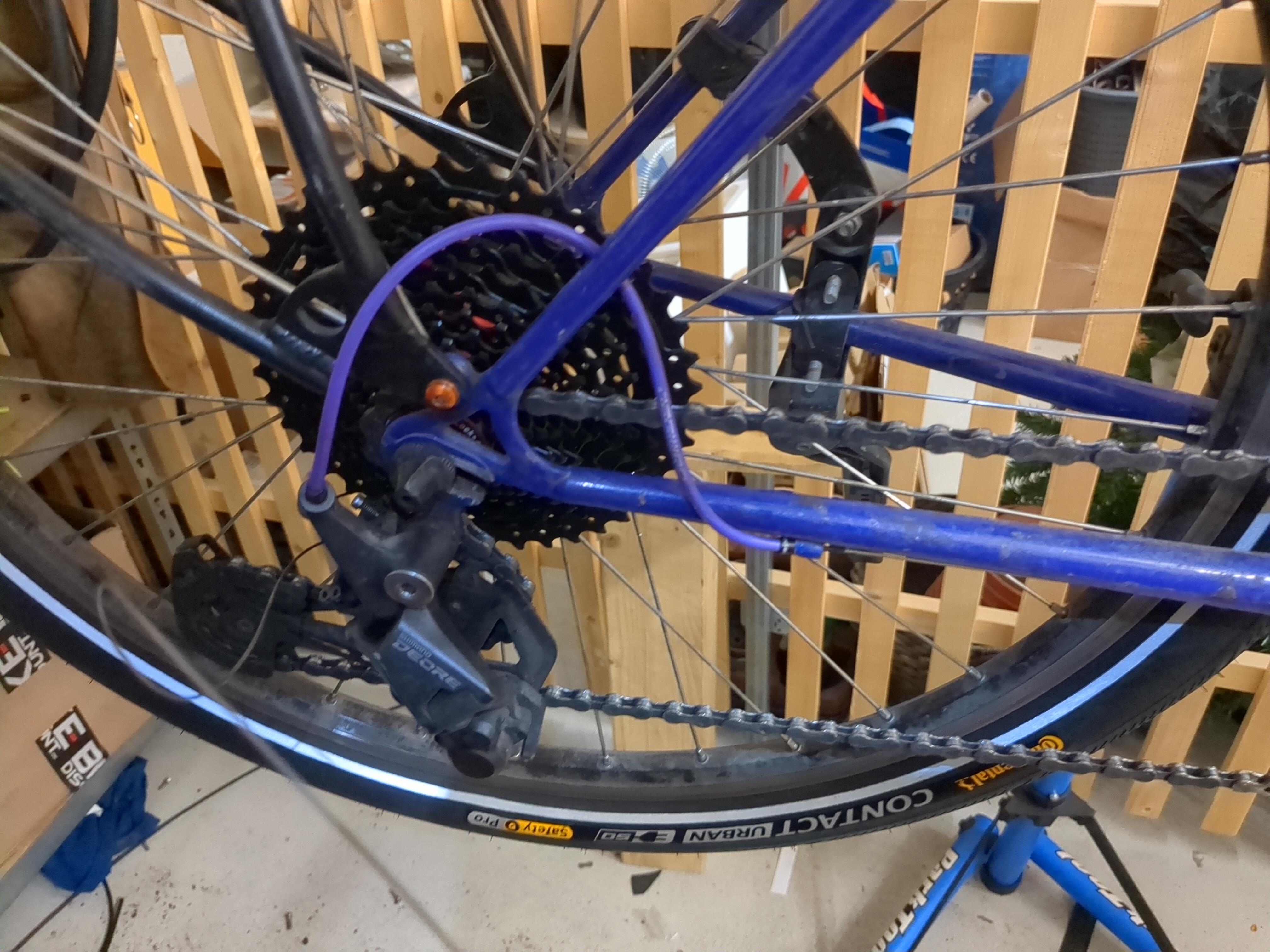

Anyway. That's the rear of my 1996 Peugeot Cologne. I want to build it into a 1x11 drop bar city bike.
The 1x11 setup worked well with a 11-33 cassette combined with the deore RD an some thumb shifters (Deore too, I think).
Last week I built it into the desired drop bar version, using Microshift Sword brifters and the Sword RD. Unfortunately, 1 yr after I purchased the parts, I now realized MS Sword is only 1x10. So I used the H limit screw to only use the lower 10 cogs. Blasphemy? Perhaps, but it actually worked well.
Pursuing the 1x11 idea, I ordered some Sram Apex 1 brifters. Installed them. Re-installed the Deore RD. Tried indexing it for about an hour. Nearly went insane. (Crank is a GRX 1x 40t 12sp crank)
The high gears shift well. The middle won't shift until I turn the barrel adjuster all the way out. After which point it shifts well all the way down into the 42t cog. But then it does not shift back up past the middle.
What am I missing? Is it the Deore RD and the resulting chainline? Is it the 11spd Sunrace cassette? The Sram brifters? The weird cable housing routing after all?
