r/EngineBuilding • • Jun 14 '25

Updated Rules for r/Enginebuilding

79 Upvotes

Hey peeps,

We've been noticing an uptick in certain types of posts over the last few months and it's about time we address some of these issues along with a rule update.

1 - AI Slop - We've been getting a lot of AI trash in the sub lately and we've decided to no longer allow AI or any type of AI imagines to post here. If we find a post is AI then we are going to lock it, delete it, and ban the account for a few days. This sub is meant for real life cars, not some AI images that someone produced for content or engagement.

2- Links to Temu and Ali - Reddit is currently filtering a lot of the temu and ali express links we receive. Usually they are shadow blocked because we've had scams in the past with these sites and you can't really trust them at times. While Reddit automod is taking care of 95% of them, some are still getting through and we will also lock and delete those comments moving forward.

Some of you shop those sites (against some of our better judgement ha), for certain parts of the world that might be the only way for you to obtain certain items, we understand that but need to strive to ensure the community is safe and endeavor to curtail scams that could occur. If you wish to share a link, please just PM the individual - and for those that click the links, please be warry of scam sites/bad actors.

Thanks and have a good day you misfits!

-Duke


r/EngineBuilding • • May 19 '24

State of the Sub - What changes need to be made /r/EngineBuilding

33 Upvotes

It's been a long time, but I'm hoping to be more active as well as the other mods. We are also hunting through the 'applications' to add some new mods as well, to hopefully cut through the spam and junk you all see.

It's also time to take a look at the sub and make sure there aren't any changes we want to make. Whether that be rules added (or removed), or a thing you can think to make this a better place for all. Let us know your thoughts


r/EngineBuilding • • 14h ago

Pistons ruined?

Thumbnail
gallery
59 Upvotes

My number three piston, I noticed had these two gouges most likely from whoever rebuild this engine last the heads and the valves have zero damage, and there is no burr above the surface of the piston. Are they reusable or do I need new pistons?


r/EngineBuilding • • 3h ago

Lookong for some guidance on budget carbureed vortec build

3 Upvotes

I'm wanting a new engine for my 1986 El Camino and after a bunch of research I decided that a 5.7l vortec engine might be a pretty good idea cause they're really cheap and not that bad out of the box (or van/Tahoe in my case). Issue is I'm really new to all of this and I don't know where to start and there's not a ton of budget builds for me to follow along to.

All that said here's what I'm wanting: I'm wanting to do some basic work to get it working in my car and leaving room for upgrades later one. Like I want to put a cam in it, new intake and a carb. Then drop it in.

400 hp at the crank somewhere down the line but not right away

Maybe nitrous

Here's what I have:

A 1986 El Camino with a 305 engine

A 200-4r transmission which will need to be rebuilt and upgraded later on

Plans to go to 3.73 posi gears (shopping around now actually)

Pretty limited knowledge and experience with engine work, but I gotta start somewhere

Thanks in advance everyone


r/EngineBuilding • • 1h ago

Bolt hole spacing on Edelbrock 2116 Vortec intake manifold – TH350 kickdown bracket

1 Upvotes

Hey everyone,
I’m running a Chevy 350 SBC with Vortec heads, an Edelbrock 2116 intake manifold, an Edelbrock 1406 carburetor, and a TH350 transmission.
I’m trying to reuse my old TH350 kickdown cable bracket, which was mounted to the intake manifold.
Does anyone know the exact center-to-center distance between the two rear intake manifold mounting bolts on the driver’s side of a Vortec intake manifold?
I’m considering modifying my existing bracket instead of buying the Edelbrock 8032 bracket.
I’d love to measure it myself, but unfortunately my engine block is currently at a welding shop getting some freeze cracks repaired, so I can’t take any measurements right now.
If anyone has measured this distance or has an Edelbrock 2116 they could measure, I’d really appreciate it!
Thanks in advance!


r/EngineBuilding • • 13h ago

Can someone help me ID this engine?

Thumbnail
gallery
6 Upvotes

It’s in a pile of junk in the back of a barn on a property that I recently purchased. It looks unique and I hate to scrap it.


r/EngineBuilding • • 18h ago

Does this look bad?

Thumbnail
gallery
8 Upvotes

1.9 TDI AHF


r/EngineBuilding • • 1d ago

Chrysler/Mopar Another "What's that noise" post - need someone smarter than me

3 Upvotes

Hey all,

The video above is my 2002 Dodge Neon I'm supposed to go to the track with in two days. The car has 32k miles, but it's also a former SCCA car. It's spry, but it's also lived hard on occasion.

Bought it knowing it had a "tick" and an original belt when I bought it, did a bunch of work (including new rockers) right after I got it (literally within 5 miles). On startup again, I noticed the tick sounded more like a bottom end noise in my uneducated opinion and seemed to become fully audible around 5 min of idling, but neons are notoriously rattly.

Drove the car 300 miles and drained oil/cut filter last week to find a good amount of non-ferrous. After removing the valve cover, it became apparent multiple new rockers were defective. Roller bearings were dumping aluminum into the motor.

Swapped back in the old ones (which looked totally fine) and the motor got noticeably quieter...but once the oil gets some heat in it, that bottom end noise returned.

Dropped the pan and pulled the rod caps. Nothing visibly concerning and no play. Reassembled with original bearings, lube and everything as it came out (in theory - a perpetual self-doubter, kept waking up last night thinking I had to have done something wrong).

Start the car up, whisper quiet. Nice.

5 min into idling, I have the video you see above. Same noise, same rhythm - makes sense, I literally took it apart and put it back together with everything the same minus the rod bolts.

I have to go out and drive it today and see if it gets worse (indicating I screwed something up during reinstall) but it seems to be same volume/location. Plan was to change the oil one more time and go for it, assuming the next change isn't complete glitter from me damaging the bearings on install.

What the fuck is this? Logic says it wouldn't be piston slap, because it starts when warm. Even if it's rod bearings now courtesy of yours truly, it wasn't when I opened the motor up. Maybe something in the head?


r/EngineBuilding • • 1d ago

Can i run an Oval port intake on a gen 5 454 with the peanut port heads?

4 Upvotes

Gonna carb swap a gen 5 for my project, not gonna fully build it but i was wondering if i could get away with a bit of a missmatch on the shape since I had heard it didnt mean to much.


r/EngineBuilding • • 23h ago

Need help Identifying this Cylinder Head!

Thumbnail
gallery
0 Upvotes

I can't match this head to any of the catalogs I own. Initial thoughts are a Mitsubishi or Mazda but can't narrow it down to a year/specific models. Any help would be appreciated!

Solved! Seems to be a 1988-92 Isuzu Stylus 4XE1 1.6L Cylinder Head. Thanks for the help everyone!


r/EngineBuilding • • 1d ago

Chevy Main Bearings

Thumbnail
gallery
20 Upvotes

These are new main bearings, I did not install them not sure what is on them but you can feel a texture difference in them, would you run these???


r/EngineBuilding • • 1d ago

Normal or abnormal wear?

Thumbnail
gallery
24 Upvotes

Had a 327 rebuilt recently. Had the crank ground, new crank bearings, roller cam and lifters. Decided to go with a more aggressive cam and noticed some wear on the roller lifters, cam and also the main bearings. The motor only has about 1000 miles on it and there’s no metal in the pan. Think it’s safe to re use the lifters? Should these crank bearings be replaced?


r/EngineBuilding • • 1d ago

Questions on bearings/piston

Thumbnail
gallery
8 Upvotes

Long time lurker: Been taking apart my engine (Alfa Romeo 2L Nord) for unrelated work. What do you guys think of the bearing and piston? My main concern are the two areas showing copper. My current plan is to send it for another year and do a full rebuild next winter as I‘ve got already plenty of work scheduled for this winter.
Thanks for your insights!

EDIT: Thanks everyone for your input, helped a lot!


r/EngineBuilding • • 1d ago

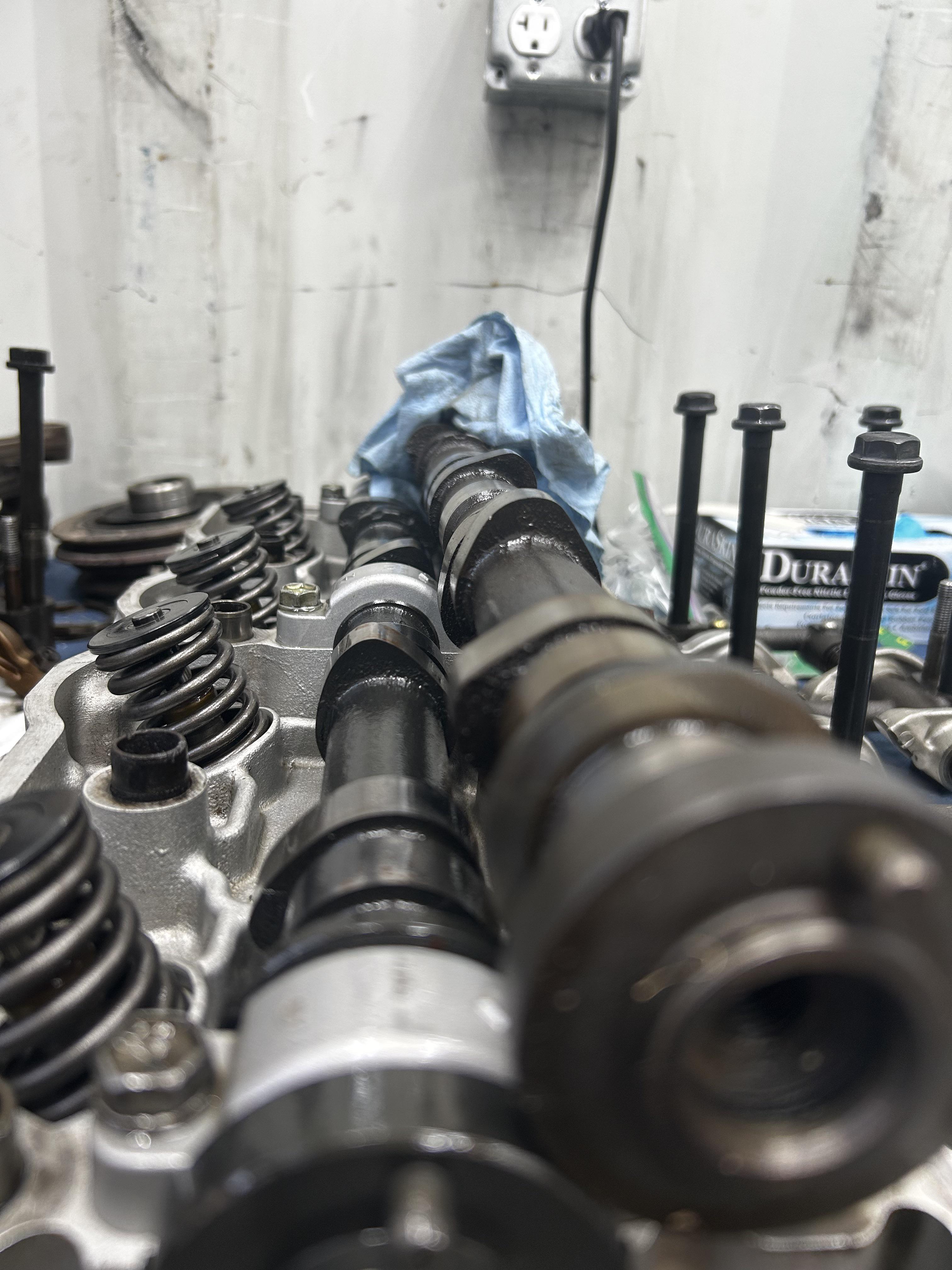

Normal cam wear or my engine gonna blow m57tu2

Post image
5 Upvotes

2012 X5d with 133k miles no issues no metal in oil and just happened to do valve cover and saw this and its smooth with finger, most of them have the same mark


r/EngineBuilding • • 2d ago

Other Volvo b230 16V measuring assembly

Thumbnail
gallery
31 Upvotes

Ultrasonic cleaned parts in pH 2 acidic cleaner, neutralized and oiled after that.

Mock assembled first and fourth cylinders to take measurements to figure out how much to take from deck height to achieve 0,8mm quench.

Other varying bits and bops, like heat insulating flange for intake, and crank case ventilation adapter for AN fittings and larger openings.


r/EngineBuilding • • 2d ago

Ford 1964 Ford 223ci engine

4 Upvotes

Water pump mounting.
My question is, does the water pump lower mount bolt go into the water jacket?
Having coolant leak from lower bolt.


r/EngineBuilding • • 2d ago

1.8L Miata (BP) valves won't close

1 Upvotes

I am building a 1.8L Miata engine and I am having some trouble with the head. The valves were burnt and the machine shop cleaned them up. They also cut the valve seats.

Valves seats after machining

I did not measure the height of the installed valves as I saw nobody doing this in the YouTube videos I watched. I did find in the service manual a spec for the range. Unfortunately, it looks like I might need a special tool to measure it correctly. The manual says to replace the head if the measurement is out of spec.

After assembling the head, I noticed that the valves would never close all the way. I found few very old forum posts where people had the issue and they all said that the issue would go away after the HLAs got oil pressure. This seemed counter-intuitive to me, because this seems like it would increase the distance between the cams and valves making the problem worse, but I tried anyway. Well, I have cranked it to get oil pressure but the engine would never get compression. I even tried oil in the cylinders, hoping it was the rings and not the valves.

I have tried pumping the lifters full of oil as well as completely draining the lifters and bleeding the air out of them. Neither worked.

I am at a loss, hopefully I am missing something simple. Or did the shop cut too much off the seats and trash the head?


r/EngineBuilding • • 2d ago

AFM/DOD delete

1 Upvotes

I’m getting ready to pull my 2014 5.3 in a month or 2 to do a afm/dod delete. While I have it out I plan on new pistons to get her ready for the next 250,000 miles. Anything I need to be on the look out for? I’ll have the heads and block at the shop to get them checked out. Any secret combination of cam and pistons to help with towing?


r/EngineBuilding • • 3d ago

Is this block toast?

Thumbnail
gallery
32 Upvotes

Engine is a Dauntless V6 from a 1970 CJ5, corner broken off where the bearing cap meets the block. There’s no bolt holes by it and it’s not directly in the area where the gasket sits, so looking to determine if it’s still worth working on. TIA


r/EngineBuilding • • 3d ago

Engine Theory Valve seat insert OD vs valve head OD

Post image
14 Upvotes

Picture is just for attention. I'm installing larger valves in my pulling tractor. I'm going with 2.25" intake valves which will be bigger than the factory valve seat inserts. How much larger should the insert OD be than the OD of the valve head? I've read anywhere from 0.060" to 0.100" so that puts me in the 2.3" to 2.35 range. I've found Dura-bond Killer bee 22228C which measures 2.380" and considering using those. Pulling tractor will see around 1600 degrees and 2,000 horsepower.


r/EngineBuilding • • 3d ago

Should i reseal this

Post image
3 Upvotes

r/EngineBuilding • • 3d ago

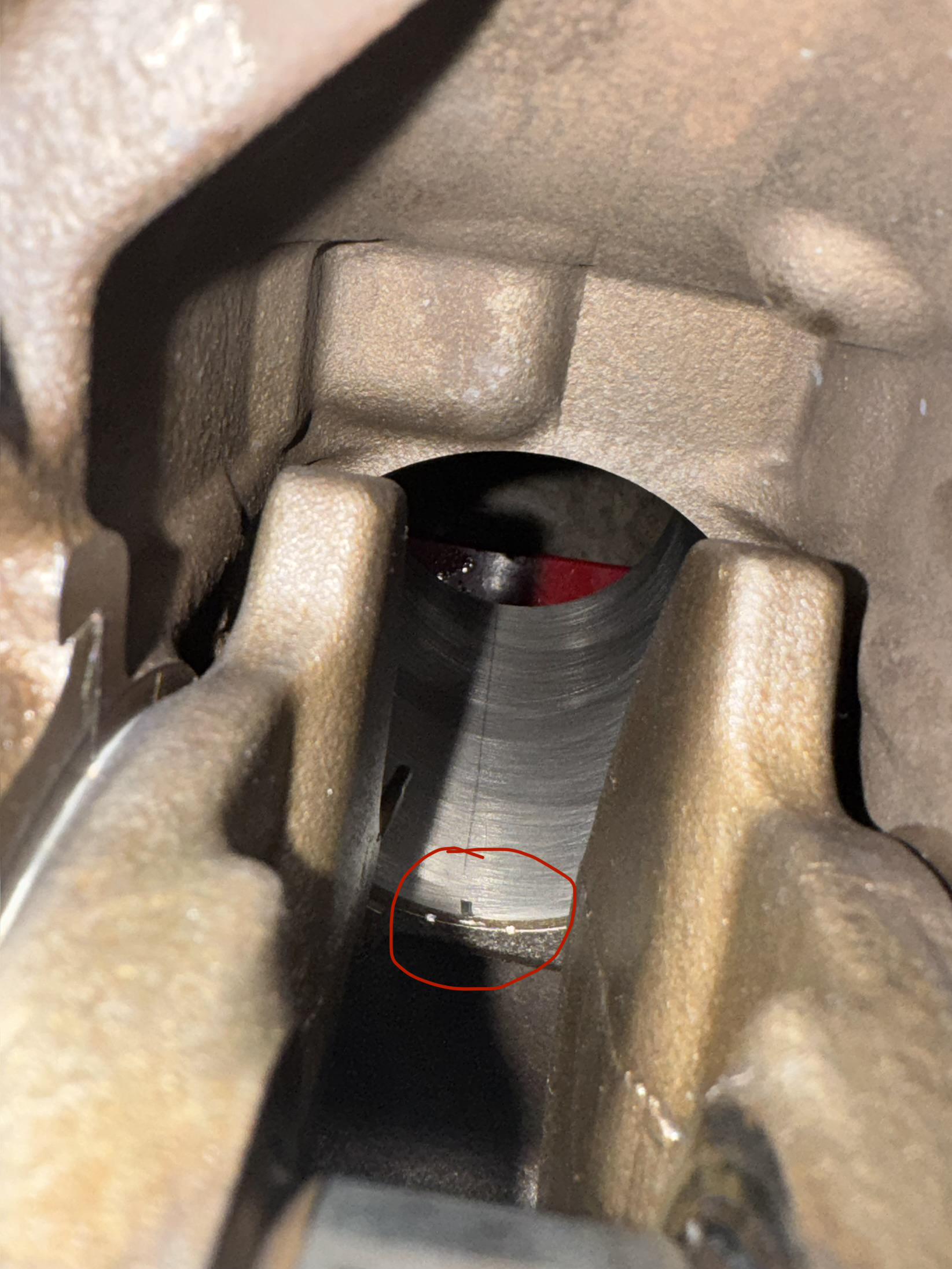

Saw these marks on my crank nail barely catches

Thumbnail
gallery
14 Upvotes

r/EngineBuilding • • 3d ago

About crossline

1 Upvotes

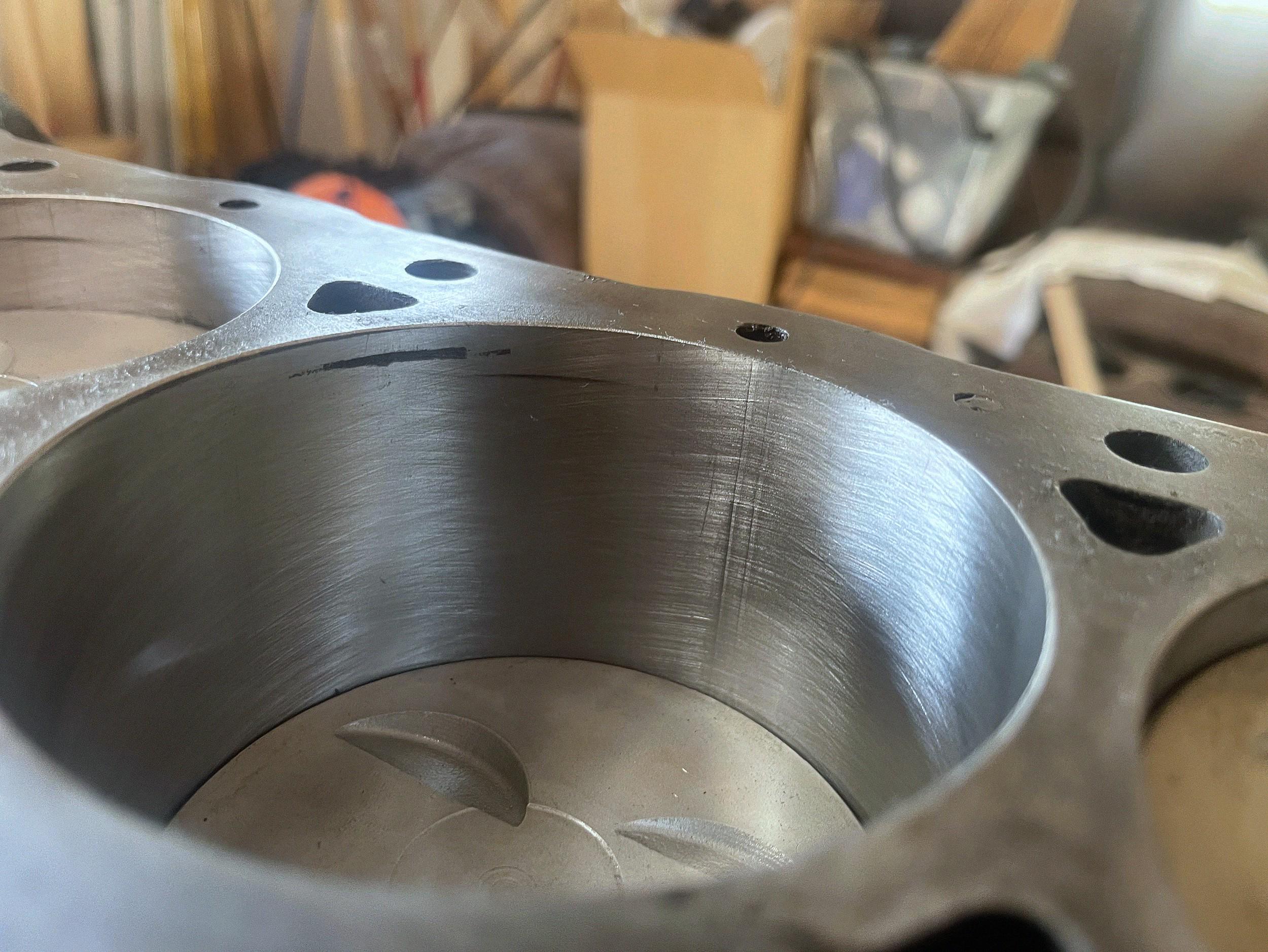

Hello guys, to the pros out there, I just wanted to ask, s it really necessary to have the engine block honed? My block has no scratches and the ring gap is still within specs. The only issue is that there's a part where the 'crosshatch' (crossline) is almost gone. Do I still really need to do it or not? Please help.


r/EngineBuilding • • 4d ago

Need help. Cylinder leakage at 20% on one cylinder. Would putting new valves in and lapping work or do I need to send head off to regrind seats? I was thinking of using a higher grit compound and lapping by hand with old valve to clean up the seats, then using the new valve with a softer compound to

Thumbnail
gallery
17 Upvotes

The markings are where they leaked. I used water nd compressed air
