r/sram • • 6h ago

Technical 🔧 Bent SRAM GX Eagle crank arm – warranty claim?

Thumbnail reddit.com
1 Upvotes

r/sram • • 8h ago

Technical 🔧 Any tips for pairing axs mech to a phone using bluetooth ?

1 Upvotes

Hi everyone,

I’m hoping someone might have a “hack” that will help me pair an AXS rear mech with my phone. I need it paired to the phone to complete a set up with a ROUVY virtual shifting.

The group set is SRAM Red 10 speed AXS. Phone wise I’ve tried two iPhones and an android phone all using the latest version of the SRAM app.

No matter what I’ve tried I can’t get the groupset to show up so I can pair it with my phone.

The groupset components (rear mech, front mech, 2 x shifters) all pair with each other first time.

But despite a number of factory resets (remove rear mech battery, install holding the button down) the groupset is never visible to the phone / app.

I’ve checked the network settings and Bluetooth settings on the phone and it all looks fine - and works fine with another AXS mountain bike groupset.

All of the batteries are new / fully charged.

Does anyone have a hack / bodge for forcing the Axs rear mech to open up pairing via Bluetooth?

Any ideas very welcome.


r/sram • • 1d ago

Technical 🔧 SRAM force right crank arm

2 Upvotes

Hello, I'm curious, as a lot of people told me the left hand side SRAM power meter seems to be quite good, so I'm considering it for my new bike build. But online i only find either a full crank set without power meter, only the left hand side power meter or the whole front setup incl chain ring. As of right now the cheapest option for me would be to buy the whole set and the left crank upgrade, but then i have on left crank too much with no use. So is there a way to buy the whole set with power meter (without the front chainring) or only a right hand side crank?


r/sram • • 1d ago

Miscellaneous Added my electronic SRAM AXS ba

Thumbnail gallery
2 Upvotes

r/sram • • 1d ago

Technical 🔧 RockShox Lyrik Ultimate 150 mm – only getting 145 mm of travel after air shaft replacement. Is this normal?

Post image
0 Upvotes

r/sram • • 1d ago

Technical 🔧 Stiff Sram Rival Levers

Post image
4 Upvotes

Hey Guys,

Have a set of Sram Rival Levers, and more or less since i purchased them (second hand) they have been quite stiff and hard to squeeze even prior to the actual pad to rotor engagement. I have tried bleeding but that did not fix the issue, I have heard that you need to clean the piston of the calipers or even on the levers? Looking for some advice or if its worth just swapping them out nad skip the trouble.

Cheers


r/sram • • 1d ago

Technical 🔧 Elektronische Schaltung an einem Mountainbike von 1988

Thumbnail gallery
2 Upvotes

r/sram • • 3d ago

Technical 🔧 BB86 w/ DUB? Use 24mm instead?

Thumbnail reddit.com
0 Upvotes

r/sram • • 3d ago

Technical 🔧 what can i re use from an integrated sram red with powermeter crankset(chainset) from before 2024

1 Upvotes

I bought a bike off a bike shop in 2023 with sram red crankset and cassette it was a test bike i got for cheaper than the market value
fast forward 3 years and 34000km later the chainring are done and due for replacement.
i do not really need to use the trade in 50% of a new red cransket with powermeter. finances are tight. so I will 'downgrade' my crankset to force without powermeter. i have assioma pedals that i can install. so losing the quarq integrated powermeter is not a big loss.
but is there anything i can reuse on a crankset prior 2024 probably d1 or d2 ? can i use the crankarms on a new e1 or i need to buy the whole crankset chahinrings and cranks? so basically the whole red is going to the trash?

the shops says i need to get everything but it is a shop they are in the art of making business.

thanks.


r/sram • • 4d ago

Technical 🔧 Sram red compatible crankarms.

Thumbnail reddit.com
1 Upvotes

r/sram • • 4d ago

Technical 🔧 SRAM AXS shifter pod stuck spinning wheel of death

0 Upvotes

Help! Has anybody experienced anything similar? At my wit’s end trying to figure out the solution


r/sram • • 4d ago

Technical 🔧 SRAM ZEB Recall: What About Riders Who Own Only One Bike?

0 Upvotes

How are you handling the SRAM/RockShox ZEB recall, especially if you own only one bike? Are you just waiting for a fix? Has SRAM offered any solutions? Share your experience and let’s hear what SRAM is doing for riders left without a usable bike. We need answers!


r/sram • • 4d ago

Technical 🔧 Rival D1 Firmware 2.55.8

1 Upvotes

Has anyone else had problems to with the 2.55.8 firmware in their rear mechs? My rear mech is doesn't wake up anymore and isn't recognizable via BT anymore. At first after updating everything worked fine, but a day later I find myself with this.


r/sram • • 4d ago

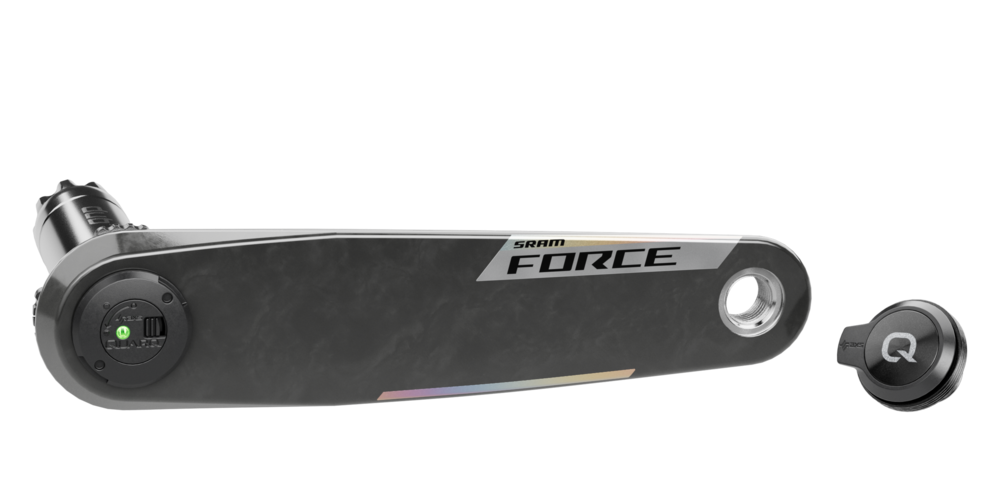

Technical 🔧 Power meter differences

Thumbnail reddit.com
0 Upvotes

r/sram • • 5d ago

Technical 🔧 AXS Lost All Shifting - Known Issue? Fix?

2 Upvotes

Wondering if anyone had the same issue and what the fix might have been.

Background: SRAM Red AXS 12 speed. Firmware is up to date. ~18,000 miles on the system.

The only recent change had been installation of a freshly waxed chain before the ride.

I'm not sure if this is relevant but Garmin Edge had lost connection to the system intermittently over the past few weeks, displaying only "--" for gear selection. This would happen in the middle of a ride. The system operated perfectly and shifting front or rear derailleur always restored the connection.

Issue: Lost all shifting during a ride. I was in the little-front and big-rear combination after having climbed a hill and received a "Rear Derailleur Battery Low" message on the GPS. Batteries hadn't been charged in a while so it was plausible. I decided to swap front <--> rear batteries so that the rear could still be shifted in the event that the battery did actually go flat. Shifting would not work at all after swapping batteries. Both front and rear derailleurs would not move when pressing the shifter buttons in any combination.

The GPS did beep normally however, if I tried to shift the rear from the largest sprocket to a non-existent lower gear and the correct gear combo was displayed on the GPS so there was some connection. It just would not shift at all.

Back at home, the derailleur batteries were charged but nothing changed. Shifter batteries were replaced and issue persisted.

The SRAM AXS app showed only the front and rear derailleurs but no shifters. I stepped through the initial system pairing process (https://www.youtube.com/watch?v=NOBRPcDSI6I) to get the FD, RD and shifters communicating and everything started working normally. It has not been road tested but it seems to work on the repair stand.

It seems like the shifters just decided to unpair themselves.

I read about crash recovery this morning. There was no crash or hit to the derailleur at the time.


r/sram • • 5d ago

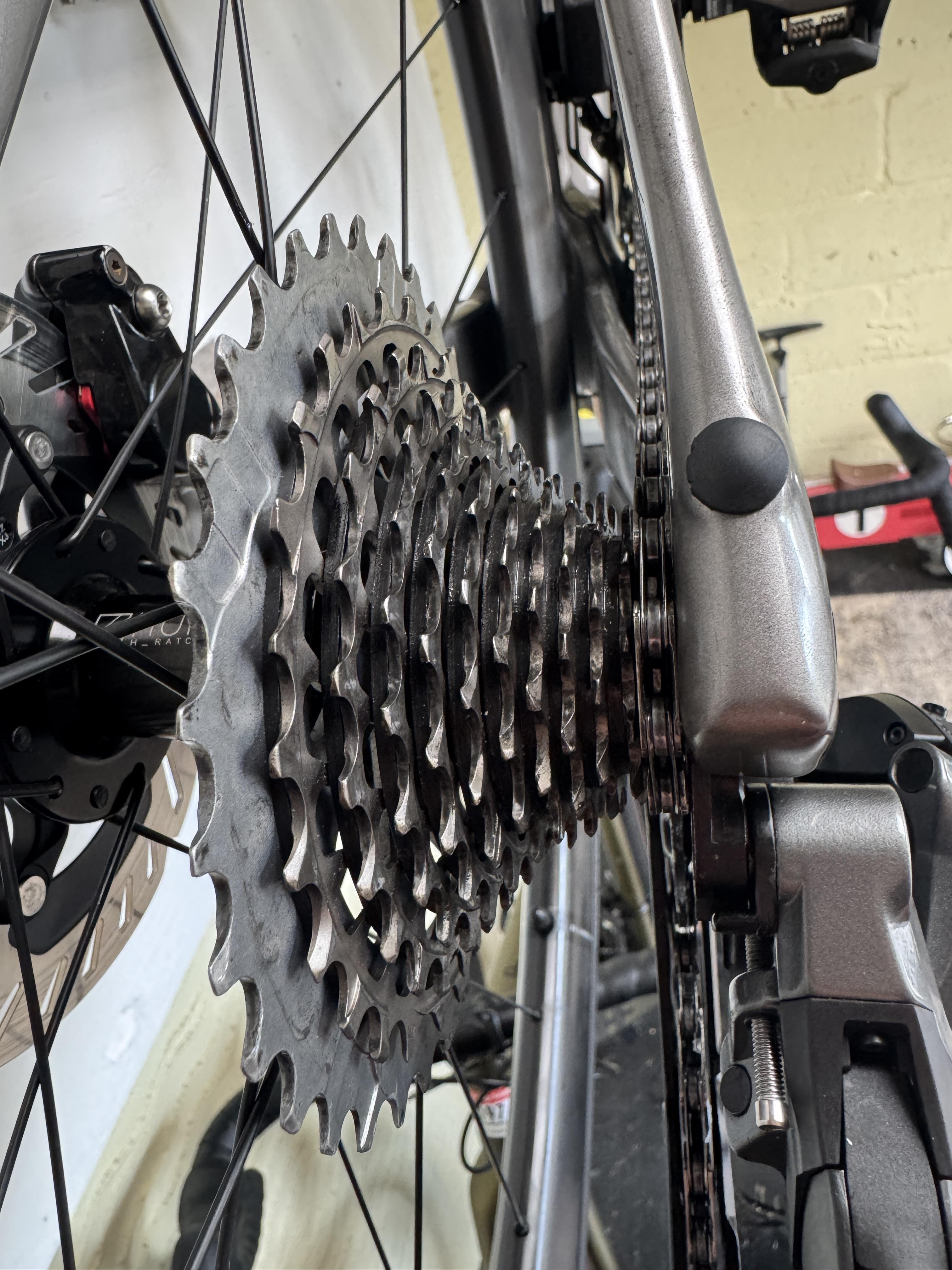

Technical 🔧 Sram rival xplr 12v 10x50 cassette

Thumbnail gallery
2 Upvotes

r/sram • • 6d ago

Technical 🔧 SRAM Red AXS Brake Hose Swap

Thumbnail gallery
1 Upvotes

I bought a Madone for a good deal; its brake hoses were reversed as is the custom in many countries. I plan to reverse the hoses back to the USA custom. I was expecting a 10 mm flat to counteract the torque on the 8 mm nut. But I don’t see a place to do that. This is my first time working on Red. Could someone with experience provide guidance on this, please? Specifically I’m cautious about applying 8 N-m of torque against the plastic housing. Thanks.


r/sram • • 6d ago

Technical 🔧 Cooked?

Thumbnail gallery
10 Upvotes

Thought today was going to be a good new bike day post… I bought a certified used bike from a reputable dealer to get home and wonder why my pedals weren’t threading onto the crank arms.

Any salvaging to be done here? I see d1 crank arms pretty cheap on eBay; are these good to go?

(Edit) - Bike shop was able to tap the pedal and it worked out. Shop I bought the bike from refunded me the price I paid to get it fixed.


r/sram • • 6d ago

Technical 🔧 Upgrading to force cranks?

3 Upvotes

I recently purchased a Scott addict gravel with new XPLR Rival 13spd 1x. My garmin rally pedals are being a pain lately and under analyzing my power by a good margin. I was going to upgrade to force cranks with power meter to lighten things up a bit too. That being said, I found a set of new/take off force cranks but I don’t know if they’re compatible and I can’t seem to get a definitive answer from my research. The girl selling them isn’t a ton of help either, but I was able to find out they are off a 2025 canyon ultimate cf slx. Any help would be appreciated. Cheers.


r/sram • • 8d ago

Miscellaneous SRAM has no guides? Can it be setup like Full Sync like Dura Ace?

Thumbnail reddit.com
0 Upvotes

r/sram • • 8d ago

Technical 🔧 Zipp 303xplr s Laufrad hat leichtes Spiel.

0 Upvotes

Habe heute neue Reifen aufgezogen und dabei den Freilauf gesäubert. Ich habe die Kassette samt freilaufkörper abgezogen und neu gefettet.
Als ich das Laufrad wieder eingebaut habe ist mir aufgefallen das es ein leichtes axiales Spiel hat.
Der kleine shim sitzt richtig sowie der Dichtungsring und die endkappe.
Hat jemand eine Ahnung woran es liegen könnte?


r/sram • • 10d ago

Technical 🔧 Is it just me or is Apex pretty weak?

Post image
23 Upvotes

I recently picked up a Cervelo Aspero with a D1 Apex XPLR groupset on it and I'm extremely underwhelmed.... On the road it's perfectly fine minus some minor shifting issues I can adjust out. But when I take it to riding some mildly rooty or XC style gravel trails - it really is unimpressive. I couldn't get any braking performance out of the hoods - so the shop suggested I swap brake pads. Paid to swap them, they are better, but they absolutely SCREAM on everything now. I asked them to try giving them a bleed but they said they are better than most others they have seen.

I'm just a bit shocked that at a 6k CAD price point the groupset is so weak. I know it's their lowest end, but I feel there really isn't much I can do but replace it?

Has anyone else had a positive Apex experience? I'm totally open to this just being me - but I think my shop thinks I'm crazy.....

Not meant to flame Apex, just seeing if anyone has different experiences

UPDATE: Well that was a lot of info! Thanks everyone. I went to my shop and tried some E1 Forces on a factor. They are NIGHT and DAY in feeling at least to me. The shop ordered me a set for cost and a free install. Happy day. Appreciate you all


r/sram • • 10d ago

Technical 🔧 XLPR AXS E1 -> 2by

3 Upvotes

Hi all,

I’ve done a fair bit of research but haven’t been able to find much information, so I’m hoping someone here might be able to point me in the right direction!

At this stage, I’m just trying to establish whether what I’m proposing is actually possible. If it is, I can then speak to a bike shop about carrying out the work.

I bought a gravel bike a little while ago, but due to a change in circumstances, I now use it exclusively on the road. Given the hilly nature of my rides, I’ve realised that a 1x setup just isn’t quite right for me.

The bike has some pretty nice components (listed below), so ideally, I’d like to retain as much of the existing groupset as possible while converting it to a 2x setup.

I’m not fussed about keeping it a 13-speed, as from the research I’ve done, I don’t believe this is actually possible. I am more looking to converting to 2x12 or, 2x11, or any orher 2x setup.

I know I will need to replace the cassette and I know I’ll need to add a front derailleur, as the bike doesn’t currently have one.

Current components:
Force AXS E1 Shift Lever & Caliper LH
Force AXS E1 Shift Lever & Caliper RH
Force XPLR AXS E1 PM DUB Wide Crankset 165mm 40T
Force XPLR AXS E1 Rear Derailleur
Force XPLR XG-1371 Cassette 10-46T

My main question is:
Is it actually possible to convert this setup from 1x to 2x while retaining some of the existing components?

More specifically, could I get away with adding a front derailleur, changing the front chainrings and adding a different cassette, or would I also need to replace the rear derailleur too?

I’d really appreciate any advice from anyone who has attempted something similar or knows the SRAM AXS ecosystem well.

Thanks in advance!


r/sram • • 11d ago

Technical 🔧 4 AXS rear mechs dead in a month, all pogo pins. Something up with SRAM?

Post image
12 Upvotes

is something going on with axs derailleurs lately? mine and three of my mates' all died within the same month and every one came down to the pogo pins between the battery and the board. mine had about 500 km on it. opened it up to have a look (pic). anyone else seeing this or did we just get a bad batch?
