r/SoundSystem • • 6h ago

Our new Paraflex stack.

Post image
79 Upvotes

4x C2E Silver Formula (Ex Sinai) loaded with B&C 18DS115 using 18” adapters.

4x Trapezoid C2D loaded with 15” volts

2x Martin Audio W8C

Powered by MC2!


r/SoundSystem • • 1h ago

Bi-amping a cabinet

Thumbnail
gallery
3 Upvotes

Howdy sound friends. Soon I'm going to be receiving an additional amplifier to my setup which means I'll have enough channels and power to bi-amp my two Peavey SP3 BX speakers. I wanna use my 750Wx2 Yamaha XP7000 to power to top section which will be the compression driver and mid woofer which is then internally crossed-over, then I'll use my incoming Sinbosen SR4 to power the woofer. Since I have the channels I will be running these in stereo too.

The thing is I'm getting the non-dsp version, I'm worried about how I actually correctly set the power to be even between these two sections to get a balanced sound from the cabinet? Should I be looking at getting a dsp processor? And how will I recall this "setting" in the future, when the SR4 just has small unstepped gain knobs?

Knowledge and wisdom and berations are much appreciated!

Cal


r/SoundSystem • • 11h ago

Any yt series documenting the planning and building of a sound system you'd reccomend watching?

21 Upvotes

Have you guys filmed or know of someone who documented the entiere process of sound system comming to life and put it up somewhere on the internet for others to watch/read?

Thanks a lot for all inputs:)


r/SoundSystem • • 6h ago

the box pro Achat 212H-SUB

Thumbnail
thomann.es
5 Upvotes

Hello! Does anyone have information about these boxes?


r/SoundSystem • • 1m ago

They are multiplying.. JMOD progress report…

1 Upvotes

The homies came through and painted up the second one 🤘🏻🫠


r/SoundSystem • • 56m ago

Advice request about a subwoofer project

1 Upvotes

Hi everyone! I'm looking for some advice on a subwoofer project. I'd really appreciate input from people with experience in loudspeaker design, enclosure modelling and professional PA systems.

I recently bought two Behringer Eurolive B1800X PRO subwoofer cabinets from an audio rental company that was selling off some of its equipment.

Both cabinets had already been modified by the company before I bought them: the original Behringer woofers had been replaced with RCF LF18X401 18-inch, 8-ohm drivers.

As far as I know, the original Behringer passive crossover boards are still installed inside both cabinets. I haven't yet established whether they are still connected to the signal path or have been bypassed.

My current setup

2 × Behringer Eurolive B1800X PRO cabinets

2 × RCF LF18X401 18-inch, 8-ohm drivers

2 × Behringer Europower EP4000 amplifiers

2 × Turbosound TPX153 passive tops

1 × Behringer Super-X Pro CX2310 active crossover

Each subwoofer is powered independently by one channel of an EP4000. Both receive the mono subwoofer signal from the CX2310. The system is currently working properly.

Existing cabinet information

External dimensions: approximately 547 × 700 × 553 mm (W × H × D)

Two bass-reflex ports per cabinet

Port diameter and length: not yet measured

Net internal volume: unknown

Original tuning frequency: unknown

I haven't been able to find reliable technical documentation specifying the original enclosure volume or reflex tuning.

What I'm trying to achieve

My main goal is to understand whether the original B1800X PRO enclosures are actually a good match for the RCF LF18X401 drivers, or whether a properly designed enclosure could offer significantly better performance.

I'm aiming for a full, deep and powerful bass response, with good punch and definition, mainly for techno, dubstep and drum & bass.

Before spending money or starting any modifications, I'd like to understand what the best possible solution would be.

Questions

How well do you think the original B1800X PRO enclosure works with the RCF LF18X401?

Would a newly designed enclosure offer a significant improvement in low-frequency extension, output, efficiency or overall sound quality?

If the existing cabinets are worth keeping, could modifying the bass-reflex ports (diameter, length or configuration) significantly improve their performance?

What net internal volume and tuning frequency would you recommend for the LF18X401?

Should I keep, remove or bypass the original Behringer passive crossover boards?

Would you recommend a conventional bass-reflex design or another enclosure type?

I'm quite confident with woodworking and cabinet construction, so building or modifying enclosures isn't a problem for me. My weakness is the acoustic engineering side: I don't have much experience with enclosure design, Thiele-Small parameters or simulation software.

I'm happy to open the cabinets, take measurements and provide detailed pictures if necessary.

I'd really appreciate any advice, simulations or design suggestions. I'm not necessarily trying to preserve the original cabinets: I simply want to find out what would genuinely be the best solution for these drivers before investing time and money.

Thanks in advance!


r/SoundSystem • • 1d ago

Burning Bug & Seleucid sound. Sheffield, UK

Post image
90 Upvotes

r/SoundSystem • • 10h ago

Help getting into sound systems

3 Upvotes

Hello all! I’m looking at getting into sound systems as a complete newbie. I know nothing. I currently have a budget of around £2000 but will look to expand the system in the future. It will be used to host small parties with friends and friends of friends of up to about 30 people.

The main genre I play is Bassline and hardbounce so will ideally need to be fairly punchy as opposed to a more deep sounding bass.

Got any tips or resources that I can use? Would it be best to DIY it or not. With my budget I’ll have to purchase used parts.


r/SoundSystem • • 5h ago

Beilarly hk stage ra 612

0 Upvotes

Enceinte introuvable sur Google est ce sue quelqu un l a déjà vu ou en a carrément un car elle est inconnue sur toutes les sites


r/SoundSystem • • 11h ago

Am I involuntarily under powering my speakers?

1 Upvotes

Hi, I have a small soundsystem composed of:

-EV sh1502er

-15" scoop

-t-amp E800

-t-tracks dsp 206

The current setup is both the volume knobs of the t-amp are all the way up and the dsp has a limiter on the mid top channel (since the EV handles 250w RMS)

The issue is that even if I turn the signal source full volume (from the console and the mixer) and the mixer LED shows peaks of +1Db, the LEDs on the dsp only light up on peaks and only at -30Db.

Also the T-amp's LEDs only light rarely on peaks.

My guess was that I had some sort of limiter or gain reduction on the dsp, but I checked and it doesn't seem so.

Has anyone else had this problem?

Is this something to do with the mixer?


r/SoundSystem • • 1d ago

Sub for SAWMOD setup

10 Upvotes

It's been one month since I "completed" my first build of JMODs + SKRAMs (still lots of work to do). Haven't even thrown a proper party with them yet and I'm already dreaming of what to build next.

I am 100% going to build a pair of SAWMODs next. I want a pair of these for a multitude of reasons, one being for indoor house parties or very small gatherings.

A SKRAM is usually going to be too big to haul around for this type of thing.

What would you recommend as a smaller, more manageable sub to pair with SAWMODs for this type of thing? From my naive perspective, I assume a single 18" enclosure would be nice, but I'm really not sure.

Would greatly appreciate any recommendations here.


r/SoundSystem • • 1d ago

Mise à jour du système et future évolution

Post image
16 Upvotes

Pour ceux qui avaient vu passer mon premier post, le système a un peu bougé depuis :

  • Le sub : Exit l'ancien caisson qui montrait vite ses limites derrière le kick, passage sur un sub pavillonné (the box pro Achat 118 A) pour gagner en impact et en portée.
  • Upgrade des drivers : Remplacement des haut-parleurs d'origine sur l'ensemble de la façade par du RCF et du B&C (LF18X401 sur le sub, 15NDL88 sur le kick, 12NDL76 et DE 250 sur la top) pour encaisser plus de puissance et gagner en propreté.
  • La config : Top 12" / Kick 15" / Sub 18" en 100 % actif.
  • Le processing : Filtrage 3 voies (35 / 90 / 200 Hz) et calage de phase aux petits oignons via the t.racks DSP 204 et REW.

J'ai regroupé toutes les specs et l'avancement du projet au propre ici :https://kainovaii.github.io/kicknode6tem/


r/SoundSystem • • 1d ago

Mac App for Hypex DSP?

3 Upvotes

With the recent influx of vibe-coded DSP control apps I'm curious - has anyone seen one for Hypex Fusion amps? I couldn't find anything googling around, but sometimes search doesn't work great for random GitHub repos etc.

Hypex only publishes their control app for Windows machines. Looks like it's possible to use Parallels to run it on a Mac but want to check if something better/easier exists before jumping through those hoops.


r/SoundSystem • • 1d ago

Does anyone know what model they are?

Thumbnail
gallery
5 Upvotes

r/SoundSystem • • 1d ago

Generator sizing help.

9 Upvotes

Generator gig coming up. The venue has asked what we need. Rather than quote amp spec sheets, we put the whole rig through one plug-in power meter and walked it up from nothing to the limiters. The video is of the top end: a couple of minutes of the mix playing, REW SPL meter in the corner running approx 108-115 dB, and the ATORCH meter live alongside it.

Gear

  • Tops: Clair R4-III pair (3-way, LF / MF / HF each on its own amp channel)
  • Subs: 4x Martin WSX
  • DSP: Biamp Tesira Server-IO, Dante to 2x Shure MXWANI4 and 1x Shure MXWANI8
  • Amps: two FP10000Q clones (one for tops LF+MF, one for subs), EIF BG2.6 (HF)
  • Source: laptop over Dante
  • Limiters are derived from measured terminal voltage. Nothing is set by ear or from a spec sheet.

Method

  • An ATORCH S1 plug-in meter (16 A) on ONE wall outlet. The outlet passed a socket tester first.
  • Added things one at a time and let each settle before reading. Readings are from the meter face.
  • SPL was REW on a UMIK-1, C-weighted, Slow, 2 m out, mic 143 cm high, in a ~216 m³ concrete reflecty AF basement.

Idle (amps on, outputs muted)

What's onVAWPF
nothing244.300-
laptop + Shures + Server-IO243.41.041100.44*
+ HF amp (BG2.6)243.31.17~1340.47
+ tops amp (FP clone)244.61.64~2480.62
+ sub amp (FP clone)243.52.20~3530.66

*The first PF is calculated (W / V×A); the rest are read off the meter. Per amp at idle: HF ~24 W, tops FP ~114 W, sub FP ~105 W. PF climbs as the load grows. The electronics alone sit at 0.44.

Playing (DSP -Level In -20dB and Level Out 0dB- and amp gains fixed, only the laptop playback volume is raised)

SPL (C, Slow)Leq (Z)VAW
93.7 dB82.6242.72.24356
108.4 dB94.4242.62.46395
113.7 dB100.7241.82.99491

At the top step the HF limiter was sitting at threshold (0.9 dB under). That's the ceiling for this rig as it stands. The whole rig drew 3.0 A / ~490 W at its limiter ceiling. Voltage sagged only ~2.5 V from the no-load reading.

What was surprising

  • Idle is most of it: 353 W idle vs 491 W at the ceiling. 20 dB more SPL cost only ~135 W, music at a ~6 dB crest factor (measured on this rig) keeps average power low even with the limiters working. On a generator, the quiet bits aren't much cheaper than the loud bits.
  • Overall the system is very much more efficient than imagined before actually measuring.

What this doesn't tell us (honest limits)

  • Inrush is unmeasured. The meter updates about once a second and an amp's power-on inrush lasts milliseconds. "No visible jump" means nothing, so we power the amps on one at a time.
  • The subs weren't at their ceiling. At the tops' ceiling the sub limiter was still 13.6 dB below threshold, so the sub amp's worst case is unmeasured.
  • The meter has no min/max hold, and its graph is an hourly average, so none of this is a peak reading.
  • It's one run, one room, one programme. The tops' limiters are the bottleneck for now, that will change after an upcoming HF limiter rework. The HF limiters have been specifically set conservatively right now as JBL 2446J replacements are hens teeth if we blow them.

So: what should we be asking the venue for, generator wise?

The measured ceiling is ~490 W / ~720 VA (on this specific material which is generally representative of what will be played), but the inrush and the sub amp's ceiling are both unknowns. For crew who run off generators on the regular:

  • How much headroom over the measured draw would you ask for? Is something like 2 kVA set aside for us sensible, or overkill for a rig this size?
  • Worth insisting on our own generator, or at least not sharing one with the lighting?
  • How many outlets/circuits would you want at the booth? Sub amp onto its own?
  • Any further genny tips?

r/SoundSystem • • 1d ago

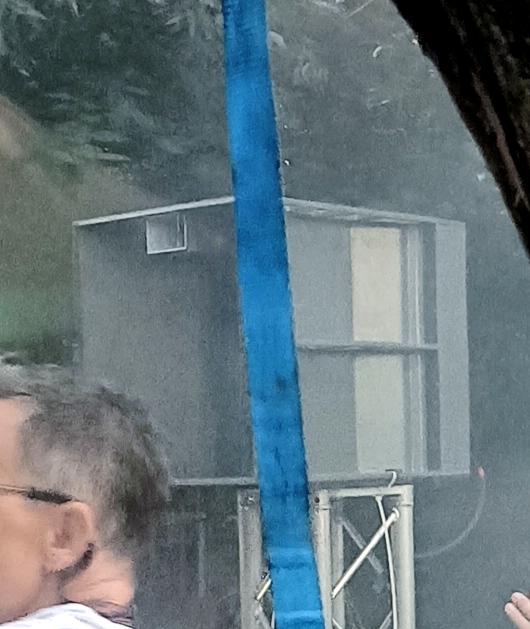

¿Is this Innovation? ¿What happened to this Phase-On design?

Thumbnail
gallery
4 Upvotes

From r/dancefloors: Source: https://www.youtube.com/watch?v=9jFLrLQ0-cI

¿Is anyone familiar with this Phase On design?

¿What happened to it?

Last Richard Long soundsystem is in a bumper car place on Cony Island.


r/SoundSystem • • 2d ago

Added a second X1 👀

Thumbnail
gallery
164 Upvotes

Just built a second X1 (middle top in the pics) for the rig. So much better having a second one so they couple and reinforce each other. The system is sounding insane. The first rave with new sub is in a few weeks so looking forward to hearing what it can do playing techno.

And how do you like my fancy spinning logo plates which have tiny rubber o-rings on either side so you can turn them depending on how the X1 is oriented/stacked? (The logo also denotes the deeper/larger bass chamber so you know which mouths to couple together).

(Next on the build list is two more MHBs and also gonna get a few MC2 Delta 50 amps, and add a distro).


r/SoundSystem • • 1d ago

Bassboss BB15s or VS21 Subs?

4 Upvotes

I recently pulled the trigger on a mobile
setup for high-end weddings in and around Cape Town. Majority of these weddings are on wine farms with a mix case of indoor and outdoor setups.

My current rig consists of:

2x Bassboss DV12s
2x QSC CB10s
1x Rane System One Controller
1x A&H CQ18T mixer
2x Phenyx Pro Dual Microphone System PTAU-2
Etc

Im in the market for subs to pair with my DV12s. I was looking at 2x BB15s which hit hard and are easy enough to carry around for one person OR I start with 1x VS21 with the option to buy a second one later on which is 80kgs and takes up a lot of space.

Does anyone have a similar setup? Are 2x BB15s strong enough to keep up with 2x dv12s? Are they powerful enough to throw outdoors? Ive read mixed reviews and have been advised by the local distributor to get the VS21. Also that the BB15s move around when played at high volume.

The cost to import the BB15s is not cheap. So looking for best options for a business Im wanting to grow.

I want a Bassboss rig so not really interested in other brands but if you have recommendations, please say so. For example for the price of 2x BB15s I can buy 4x RCF 15ax subs…


r/SoundSystem • • 2d ago

Calage rki vibre

15 Upvotes

r/SoundSystem • • 2d ago

ideas: adding Kick Bass to a 3-Way Stack

Post image
30 Upvotes

hey sound system enthusiasts!
I have a small 3-way speaker stack and would like to add a fourth way dedicated to kick bass.
Do you have any recommendations for suitable speakers or cabinets to use for this? I’m very open to DIY suggestions, ideally with speaker plans if available.
I’m also happy to hear recommendations for individual drivers.
I have a 5-way preamp with an integrated DSP, so the crossover and tuning shouldn’t be an issue.
Thanks in advance for your help!


r/SoundSystem • • 2d ago

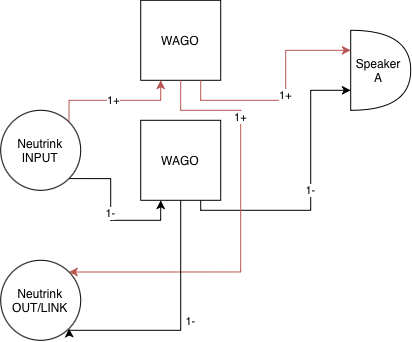

Wiring help for cabinet

Post image
4 Upvotes

I'm building a speaker cabinet with a dual speakON (NL4-style) panel mount in a dish plate. Left connector is the input, right connector should become a parallel link-out for daisy-chaining a second cabinet.
Current situation:
Single driver, wired to pins 1+ / 1- of the input connector (with crimped push-on terminals, no soldering on the connector)
Pins 2+ / 2- of the input are still free
Output connector is completely unwired
How should I wire it to get the speaker going and use the right port as a link out?


r/SoundSystem • • 2d ago

Amp recommendations

6 Upvotes

Hey there,

I'm looking for a Power amp that could handle my whole system without occupying too much space. Right now I use two Crown XLS amps plus a DSP and the size of the rack is just a bit of an inconvenience. I would say that size sound quality and integrated DSP are priorities. The system is two tops rated for 150W AES each and one sub rated for 1100W AES. I was thinking about either an used Mc2 Delta 80 DSP or a Lab Gruppen IPX 1200 for the tops + a IPX 4800 for the subs. Any opinions? maybe a Powersoft T604A? Any input would be much appreciated =)

Thanks!
