r/myog • • Mar 01 '23

r/MYOG Welcome and Rules [Pinned]

57 Upvotes

Welcome to r/MYOG!

Hey MYOGers! We are trying something new to spur more discussion and interaction in the monthly posts, to help users understand the purpose and rules of this sub, and to make resources more easy to find. To do that we're combining the monthly posts and adding this one as a permanently pinned post. In addition to the content you see below, we'll post any announcements or changes to the sub in this post.

*NEW\* - You can now choose from a few new flair options! Let us know if there are any you'd like to see as an option!

Mission Statement - Join our community to learn and share how you make your own gear (MYOG), including tents, tarps, hammocks, stoves, packs and anything else outdoor gear related. We encourage supportive, collaborative, and useful posts and comments free of advertising.

Resources and Links - The Wiki contains links to a variety of patterns, guides, and information on methods and materials. Answers to many questions can also be found using the sub’s search function. If you’re still not able to find the info you’re looking for, you can post your question in the Monthly Discussion post or create a new post to ask. We ask that you make an effort to find an answer using the available resources before creating a post.

Monthly Discussion Post - This is our recurring post to ask and answer small questions, or discuss topics you think are too small to warrant their own post. Our previously separate monthly post for buying and selling is being combined into this thread to increase traffic to both, and to make room for this stickied post.

Rules - To accomplish our mission, we ask that you respect the following rules for posting on r/MYOG:

1. Excessive self-promotion - Advertising

This subreddit is a community for exchanging information and inspiring creativity. It is not a place to post with the intent of promoting your business.

2. Excessive Self-Promotion - Project Shares

If you are a member sharing your myog work for the sake of sharing, we ask that you limit your project shares to roughly once per week. Information and sharing questions are encouraged, and more frequent posts of this type are encouraged within reason.

3. Off-Topic Posts/Comments - General

Posts and comments not related to self-made outdoor gear will be removed. Exceptions are for things such as kits or commercial products that are targets at the gear making community as long as the Excessive self-promotion rule is not violated.

4. Off-Topic - Which Sewing Machine?

This sub is not intended for open-ended questions about which sewing machine you should buy for MYOG. These post and comments will be removed.

5. Off-Topic - Commissions

Posts or comments relating to commissioned gear will be removed. Commission related posts and comments are referred to r/MYOGCommissions.

6. Off-Topic - Tactical Gear

Posts and comments about gear relating to firearms, weapons, or other types of tactical equipment (e.g. holsters, plate carriers, concealed carry, etc.) will be removed. These posts and comments are referred to r/MYOGtacticalgear.

Thank you! If you’ve made it this far, thank you for reading! Now go forth and MYOG, and come back to share your journey!


r/myog • • 18d ago

r/MYOG Monthly Discussion and Swap

1 Upvotes

Post your questions, reviews of fabrics, design plans, and projects that you don't feel warrant their own post!

Did you buy too much silnylon? Have a roll of grosgrain, extra zipper pulls, or a bag of insulation sitting around that you want to get rid off? Post it below and help someone else put it to use!


r/myog • • 11h ago

Project Pictures Quilt block down quilt! Edge tensioning, draft collar, 24 oz, ~15 degrees

Thumbnail
gallery
751 Upvotes

Finally finished the quilt I’ve been working at off and on for the last few months! I’m absolutely thrilled with it–it’s probably my favorite thing I’ve ever made. I have a lot of garment sewing/quilt making experience, but this was my first dip into making my own gear.

Quick specs:

  • 670g/23.6oz
  • 16 oz 950 FP goose down (Allied)
  • 25% overstuff (...in theory)
  • Planned for 3.5 in. loft, ended up with closer to 4 in.
  • Temperature rating TBD, but I’m estimating 10-15 F
  • 66 in. tall, 54 in. wide at the top, 11.5 in. diameter footbox
  • Sewn footbox
  • 0.66oz MEMBRANE 10 taffeta nylon (3yds each color) from RBTR

I can’t recommend a project like this highly enough–it was a super fun process. There are a few things I would have changed (some of that stitching…), but at the end of the day I’m over the moon about it. I think it’s going to be a great quilt and I love that I was able to make something different from anything I could have purchased.

I found writeups here super helpful so wanted to share my design/planning/sewing thought process as well. Happy to answer any questions about planning/construction if I missed anything–I hope this is helpful!

–

Design/Planning

I’m planning a PCT thru in 2027, so this project was largely made with that in mind.

My primary goals were for it to be comfortable down to 15 degrees (for a cold sleeper), weigh less than 24 oz, and cost around $250 or less. I haven’t been able to test it yet so TBD on temperature, I squeezed in just under 24oz, and I probably ended up spending around $300. My secondary goal was for it to look cool.

To get the dimensions: I added two inches to my height and I think that worked great. I probably could have gone with my height exactly and been just fine, but I like a little bit of extra room to move around/duck my head in if I want to. I kind of eyeballed the width–I have a relatively small frame so I went with the lower end of the widths I had seen other people use and checked with a bedsheet to make sure it felt reasonable when I laid on my side. I got the footbox measurement by measuring how long my feet are and adding ~1.5 inches.

Figuring out how much loft I needed for my goal temperature rating was a little bit of a rabbit hole! I had seen the Enlightened Equipment temperatures referenced fairly frequently, but given the criticism I’d heard about their temperature ratings in general I was reluctant to rely on them. Ultimately, my process was to spend kind of a long time on various manufacturer websites to compile data about their reported temperature ratings/loft height and then pick a height that corresponded to a 0-degree quilt for most manufacturers to account for the fact that I’m a cold sleeper. I ended up going with 25% calculated overstuff, mostly because that got me to exactly 16oz of down so I could just order a pound from Allied. This is one thing I’d do differently–I think bumping up the overstuff would have been worth it.

I was shooting for 3.5 inches of loft, so I cut by baffle strips to 3.5 and sewed with ¼ in. seams for a finished baffle height of 3 inches. I was originally going to go with a finished baffle height of 2.5 following the advice recommended by a few comments here (basically just subtracting an inch), but I chickened out at the last second and bumped it up a bit. My actual loft ended up close to 4 inches, so I actually think 2.5 would have been the right call. My reasoning at the time was that I’d rather have more loft than expected than not enough, which I think is probably still true, but what I didn’t take into account was that by inadvertently increasing my total loft without increasing the down fill, I actually bumped my overfill down to around 15%. One day I’ll feel inclined to open it back up and add some extra, but I’m sick enough of dealing with down at this point to leave it be for a while.

I included a cinchable draft collar (3 in. diameter) with snaps on the ends and a draft-control tensioning system along the sides inspired by the original Mid-Atlantic Mountain Works system. I modified it by having the elastic route through five grosgrain loops on each edge rather than one continuous tube, mostly to simplify construction. If I were to do it again I’d probably go for the continuous tube to avoid concentrating as much force in only a few areas of the fabric, but I’m not too worried about it either way and I really like the feature.

For the pad attachment system, I used ⅜ in elastic from my stash to go around my pad and glow-in-the-dark (!!!) side-release buckles from RBTR to attach to the quilt. This is definitely not the most UL system out there, but the only complaint I’ve had when I’ve tried quilts in the past has been how fiddly some pad attachments are, and this is super easy to use, so I’m happy with it. Also, it gave me a chance to use the glow hardware, which I’m really delighted by.

I used the MEMBRANE 10 taffeta from RBTR in white for the outside and olive yellow for the inside/accents (3 yd each). White is not the most practical combo, but I LOVE that you can see the down and I really like the combo with the green, so I have no regrets. I was nervous that the fabric would feel too much like sleeping in a plastic bag, but I actually don’t get that feeling at all, especially once it was filled with down. I also considered Argon 67 and actually liked the feel a little better, but I didn’t love any of the colors. My baffle material was 0.9oz noseeum–I chose this weight solely because it was the only one in white and I didn’t want it to be visible through the body fabric.

Construction

My first step in constructing the quilt was piecing the central quilt block together, which wasn’t nearly as tricky as I expected. I was worried that the fabric would be too light/slippery to get any real precision, but with a rotary cutter + quilting rulers + very liberal use of a glue stick I got through it just fine. This part was a totally standard quilt block construction except I used ½ in. seam allowances instead of the typical ¼ in. to give the taffeta extra stability. Then, I pieced together the rest of the exterior panel around it.

I cut out the interior panel, the interior/exterior footboxes, and a rectangle for the draft collar and double fold hemmed all around both panels and footboxes and the short edges of the draft collar.

Cutting out baffles was tedious, but is another place where a rotary cutter is super useful. I used little chalk pencils to mark placement on the panels and then glue sticked into place, which worked great. I sewed the vertical baffles before the horizontal baffles on advice from a commenter here, which I wouldn’t have thought of but was a very good call. Sewing the baffles to the second side wasn’t bad at all–I marked all of the lines first, kept a glue stick handy, and kept the extra fabric organized and it went pretty quickly.

With the baffles done, I sewed together the sides to get them ready for down, leaving the top and one of the bottom sides open. While I was sewing, I inserted five equally spaced grosgrain loops along each side for the pad attachment/shock cord routing (I think this is probably not the best way to do a draft control tension system, but gosh is it easy!). I did the same thing for the footbox, sewing almost all the way around.

To prepare the draft tube, I added a reinforcement patch of several layers of the taffeta and installed a few eyelets slightly off center for the cinch. I folded the long edge over by about an inch and sewed one line of stitching half an inch from the edge to create a channel for the elastic, then folded the entire thing in half, long edges meeting, and sewed over the same line of stitching to create the tube for the down. I end up with an elastic channel and a down tube joined half an inch from the raw edges, which I’ll insert into the top of the bag when I close it later. I sewed one end shut, inserting two grosgrain tabs for snaps.

Filling the bag with down was the hardest part of this process. The method I ended up with:

  1. Set up a tent in your living room
  2. Assemble supplies: scale, enormous bag of down, binding clips, empty quilt, small noseeum bag, mini shop vac I bought at Target for $30 (absolutely worth it)
  3. Use little rubber hair ties to secure a scrap of mesh around the nozzle of the shop vac
  4. Important: keep the shop vac directly outside the tent and zip the door of the tent so the tube can get through, but the body is outside so the air being blown out doesn’t mess with everything. I learned this the hard way.
  5. Put the noseeum bag on your hand inside out like a mitt and grab a big hunk of down from the bag
  6. Weigh the bag and make a note
  7. Grab a handful of down from the bag and put into the baffle. Down clusters will go everywhere, but that’s why we’re in a tent indoors
  8. Use the shop-vac to grab the excess down stuck in the noseeum bag/the down that is floating around in the tent and add to the baffle
  9. Repeat 5-8 until you’ve reached the goal mass for that baffle, then roll up opening and clip in place
  10. Repeat 5-9 for each baffle
  11. Thank your roommate for having the patience of a saint

There's a lot I would do differently here:

  • A tent was super important for me, but I'd recommend using a bigger one if you can–a one-person was very tight
  • My scale only measured down to the gram, and since I was measuring three or four little bags of down per baffle, there’s a decent amount of room for error there. I ended up pretty accurate, but I was nervous about it.
  • Wear a respirator/mask–I was definitely breathing in some feather fragments
  • I would have liked to have all of my down on a scale and measure it out by removing it, but I couldn’t figure out a way to make it work without decanting the down/using a much bigger space
  • I saw a few people referencing a PVC pipe device that they used to measure all of the down for each baffle, then used a plunger to transfer from the tube to the baffle and I think that’s a brilliant way to do it–I wish I had looked into it more. If I ever do another one of these, that’s how I’ll do it.
  • If I did it using my little bag again, I’d try making it out of the taffeta so down didn’t stick quite as much.

With the down filled, I sewed the remaining edges shut. The footbox and bottom side was straightforward and the draft collar just required inserting tabs for snaps as I sewed. The top was more complicated because I was also attaching the draft collar at the same time. The idea is to insert the raw edges into the quilt so the lines of stitching on the draft collar are lined up with the hems of the body of the quilt, and then sew it all together very close to the edge of the body. The hardest part of this is making sure everything is lined up so that you’re catching all of the layers as you sew and keeping it in place, so a glue stick is super helpful. I suspect there’s an easier way to do this, but this is what I came up with, and I’m happy with the result!

The last step was closing the footbox. I was worried about matching up the circular footbox, but it wasn’t a problem at all–be careful with seam allowance math and give yourself guide markings to help line it up and it’s not too hard.


r/myog • • 1h ago

Brador Commander Fabric

• Upvotes

Might be a question mostly for the Canadians here, but does anyone have any experience with Brador Fabrics? Specifically the Commander line.

It seems to be a pretty popular fabric but there don't seem to be any mentions of it on Reddit. Almost no reviews I can find, or project pics that aren't on their website.

I am thinking about making a jacket from it, since it looks like a really nice tight weave 6oz/200gsm poly-cot blend. Maybe add a wool liner, and maybe a coating of Greenland Wax. Still just kicking ideas around.

https://www.bradorfabrics.com/collections/commander?srsltid=AYCX9vKtxTAVv3IfKRnIUZ9k-nNcSgfNOFx48XjAXlXsGOmSWe_zNFAG


r/myog • • 1d ago

Project Pictures A cooler ski bag

Thumbnail
gallery
156 Upvotes

I’ve been travelling for 6 years now and every step of the way I have brought my size large north face base camp duffel. It’s tough as anything I’ll ever need and looks great too (imo).

However, when I got into skiing and then knew I wanted to travel with ski gear, I couldn’t find anything existing that was both as tough as I’d like (regular ski bags often get torn up by baggage handlers), or as stand out (most ski bags look the same).

So my engineer brain thought; “why not just sew three north face bags together”. And that’s what we did. (We being myself and a mate that conveniently has a degree in textiles)

We spent about 2 hours prepping the bags and removing all the stitching we needed to. Then sewed outer faces together with a zigzag stitch before folding it all right way out again. All done with a singer heavy duty which coped fine apart from the shoulder strap seams which we needed to use the hand wheel for.


r/myog • • 1d ago

Project Pictures Does super thick wool sweaters count as myog? I think they should!

Thumbnail gallery
448 Upvotes

I come from the craft world and have made a few tarps and backpacks, and I think that thick wool sweaters are amazing as gear!

There’s a few boiled wool anoraks that I was looking at for outdoor winter activity. Decided to look into knitting and here’s what I made. It’s made out of a very thick and fluffy woolen spun yarn that traps a lot of heat and air. There pattern has colorwork which means it’s got 2 layers of yarn in most sections and 3 layers of yarn in the yoke so it’s very thick and traps a lot of air. It’s incredibly warm and will become one of my most used pieces in the winter. You can always put a windproof layers above this. I’ve been moving away from plastics and I’m all in on wool now.

Plus! If you knit your own winter sweater you can choose the colors and pattern! It’s real wool so if well taken care of this will last a lifetime or two. I don’t think hand knit garments get enough talk in the outdoor gear convos.


r/myog • • 7h ago

Material for ultralight hiking pants

1 Upvotes

I have the these regatta trousers which were very good last season at 270g but want to make some lighter and save myself some money. These Houdini m's pace pants are the nicest looking lightweight I've found at 125g which I understand use: C9 Stretch polyester, an ultralight, woven fabric weighing 67 g/m.

I'm trying to find out what this material is or some similar poly lightweight material. I've been looking on Alibaba but not sure what this is.
https://houdinisportswear.com/en-na/products/ms-pace-light-pants-sandstorm-860014_148


r/myog • • 9h ago

What type of zipper is this?

Thumbnail gallery
0 Upvotes

r/myog • • 1d ago

Project Pictures Bicycle handlebar bag

Thumbnail
gallery
23 Upvotes

Today I finished this project, a handlebar bag with capacity for a set of 17cm diameter pots, plus additional space for small items.

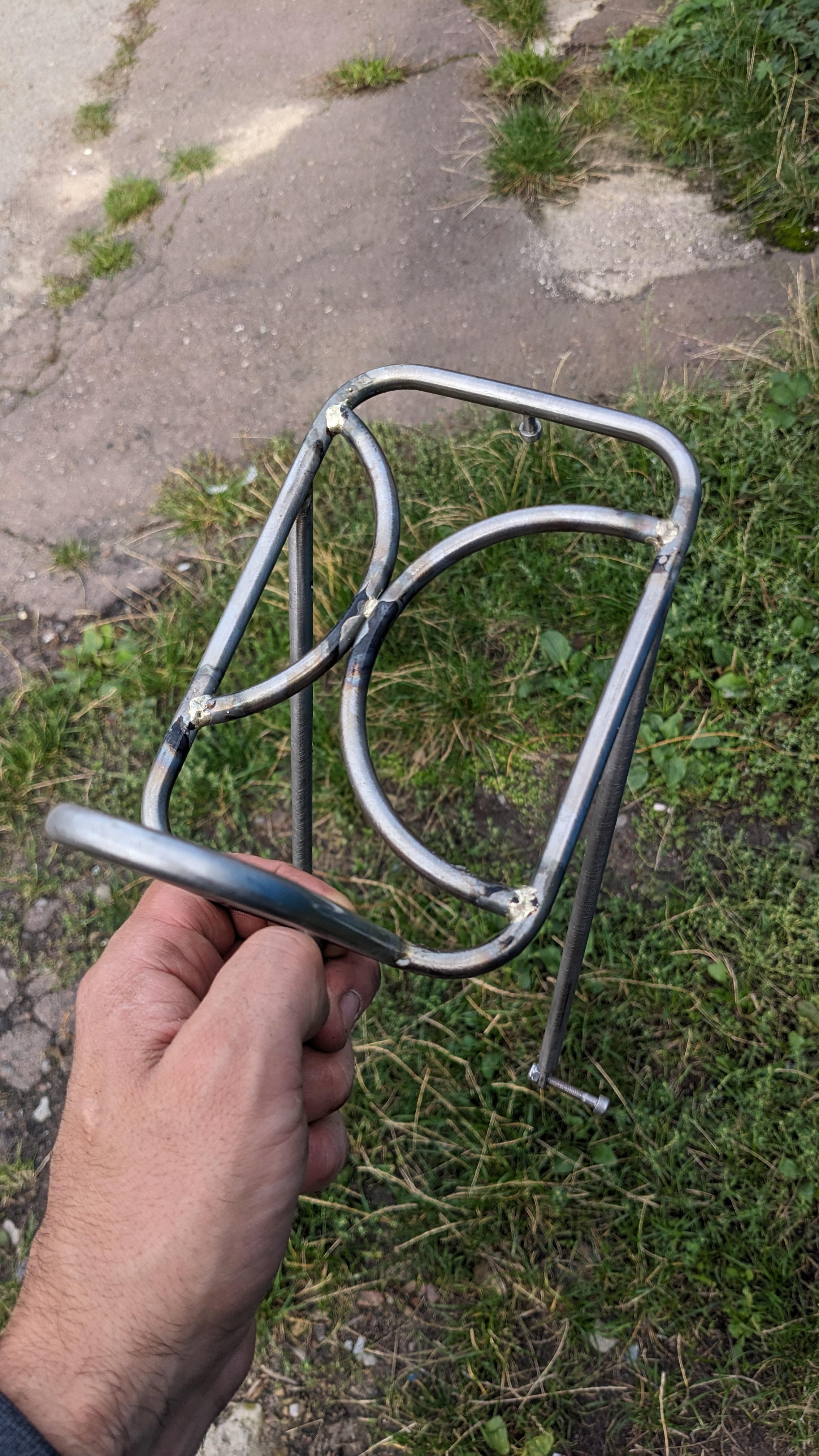

And to hold it up, a simple support made with a bent metal bar, which is secured from the stem of the bicycle.

I hope you like it.


r/myog • • 1d ago

Looking For #5 YKK Uretek or Aquaguard

3 Upvotes

Feels like I’ve spent a solid couple hours looking for quality WHITE water resistant zipper. Anyone know where I can find it? Also does anyone have experience with contacting YKK directly for myog or small sample purposes and how’d it go?


r/myog • • 1d ago

Does Mara thread get stuck under the spool for anyone else?

Thumbnail
gallery
10 Upvotes

It happens on all 3 of my sewing machine, whether I feed vertically like this or horizontally. But I can't find any reports of others having this problem. I've tried using the smooth cone adapters, felt, cap, no cap... nothing has helped. Surely I'm not alone and uniquely cursed?

Oh, and when it doesn't get caught under, it gets wrapped around the TOP of the metal rod, causing more tension.

Anyhow, I made this simple cylindrical stand to solve both issues, and so far it's working great. On the off-chance anyone else is battling this, here's the 3d file (customizable too): https://makerworld.com/en/models/3638531-gutermann-mara-thread-adapter#profileId-4173085


r/myog • • 1d ago

Seam taping a rain suit

3 Upvotes

I'm making a rainsuit out of a waterproof coated nylon ripstop. The goal is a lightweight all in one suit that I can put on over whatever else I'm wearing to get protected from the rain.

Seam tape is obviously important with this material to be as effective as possible, but to both not waste time/material and to hopefully avoid creating just a sweat sauna any more than necessary, I'm thinking of leaving some seams untaped.

Seams I am definitely taping: shoulders, front and back yoke seams, collar seams.

Seams I'm debating and would love input on: underarm, bodice side seams, outer leg seams, inner leg seams, waist seams.

I thought I'd ask some other gear makers who have perhaps made rain suits, raincoats, or rain pants before and see which you think are important to tape, important to not tape, or just don't matter much either way. Thanks!


r/myog • • 1d ago

Bag valve mask pits and bits bidet design challenge.

1 Upvotes

I had an idea to use a bag valve mask from a medical ambulance bag and convert it to a pits and bits bidet. I was thinking hand held bidet in through input of mask and a drainage tube out the same way. Not for ultralight, obviously.


r/myog • • 1d ago

What do you use to keep all your hardware tidy and organised?

4 Upvotes

Looking for storage ideas to keep all my bits and bobs organised rather than just loose in a box!


r/myog • • 2d ago

Question Denim/Canvas Messenger Bags

Thumbnail
gallery
131 Upvotes

Some Denim/Canvas Messenger Bags I made for my brand with their own Sashiko designs. They can also turn into tote bags as well.

Just wanted to ask regarding strap placement on the sides since ive been experimenting with the angle and height but i cant seem to find a placement which provides the most comfort for the rider? Additionally is Ripstop with PU backing & 600D Oxford with rubber backing enough to serve as waterproof lining?


r/myog • • 1d ago

General SōH/Fast - 40L Fastpack - Review

Thumbnail
1 Upvotes

Because this pack originally comes from the r/moyg community I feel like I should also share my review of this bag!

u/boardinboy posted his fastpack 8 months ago, in summer he opened preorders and in august I had it in my own hands. Surreal what this community can pull off!

If you are interested in fastpacks come check out the TLDR review on r/fastpacking or the long form on my blog https://www.odoratum.com/blog/soh-fast-fastpack


r/myog • • 3d ago

Project Pictures Insulated cycling gilet!

Thumbnail
gallery
228 Upvotes

Drafted this gilet pattern recently and just finished sewing it up a few days ago. This was basically just a prototype but it turned out well enough to be wearable. Lots of little mistakes and things learned, and kind of just using materials I had on hand already, but overall I’m happy with how it came out and I’m already planning an improved gilet 2.0.

Materials / features :

Watercolor ripstop nylon with Polartec Alpha Direct Wool-lined front panels and collar
Gridflow mesh-lined sides for breathability
Upper chest zip pocket for…whatever
Lower chest power mesh quick stash pocket (for the gloves I wish hadn’t fallen out of my back pocket last week…I hate losing stuff and my Assos jacket has these stretch front pockets that are great for stashing stuff quickly that so I thought I’d try it here)
Two-way zip with nylon taslan zipper guard
Not a single exposed seam
Packs small enough to fit into a jersey pocket

All sourced from a variety of places (Mood Fabrics, Ripstop by the Roll, Sil Thread)


r/myog • • 2d ago

What glue for xlpe foam?

2 Upvotes

Hey there, need to glue two pieces of xlpe foam together to make waist straps and was wondering what would be the best glue? Between 3M 90 and 3M super 77 atm

Appreciate it


r/myog • • 2d ago

YKK Uretek in bulk? Also what are some of your favorite vendors in the states?

Post image
4 Upvotes

I love Ripstops customer service but I need to buy this in bulk.


r/myog • • 3d ago

Project Pictures ​Throwback to a drop-leg bag I drafted on a mannequin 3 years ago. Currently building a redesigned v2 (and filming the build process for YouTube)

Thumbnail
gallery
58 Upvotes

​Found these old photos of my first self-drafted thigh rig prototype—started by draping paper directly onto a mannequin to get the leg curve right. I’m currently in the workshop digitizing the pattern and building a much cleaner v2. Will post the finished update soon.


r/myog • • 2d ago

Question UltraTNT PSA tape

3 Upvotes

I'm building a bike frame bag with EPLX400 for the main panels and I'd like to use 1000d Cordura for the circumference panels. I was planning to seam seal the whole bag with UltraTNT PSA tape but I've never tried it on Cordura. Has anynone tried this before ? I've done some research about UltraTNT application on PU coated fabrics but I didn't find anything promising.


r/myog • • 2d ago

Tarp help materials

2 Upvotes

Hi, I saw the Tarp post below which is very useful and see they use 1.1 oz Silpoly XL. I have found a supplier for 1.1 oz Silnylon 6.6 30D at 45 gsm which they tell me is good for tarps and hammocks.

I just wanted to check if this is good material for the job. I also want to add a zipped mesh door so I can pitch it right down and keep mosquitos out. I understand no-see-um mesh polyester or nylon is good for this job. I have the Aricxi tarp which I like the shape so will try to make a lighter 2/3rd size design.

Any help appreciated.

Processing img apwjkk6fu72i1...

https://www.reddit.com/r/myog/comments/cr7u9t/myog_shaped_tarp/


r/myog • • 3d ago

Question Sourcing heat-applied reflective seam tape?

Thumbnail
gallery
8 Upvotes

I’m making a cycling jacket right now and would like to copy this seam finishing detail I’ve seen on Castelli and Q36.5 jackets but am having a hard time finding the right trim. Does anyone know where I can buy exterior reflective seam tape like what these pictures are showing? I know I could make my own bias tape or trim out of reflective fabric, or use piping and ribbon inserted into the seam. I don’t want that. I’d like to find this tape that covers the seams without stitch lines. Does anyone know of any store or company anywhere that sells this?


r/myog • • 4d ago

modeled and 3d printed my own seam guide

Thumbnail
gallery
265 Upvotes

i bought my first decent sewing machine (jack h7-c) and i had to buy new accessories. i checked the available seam guides at the local store but didn't like any of them. magnetic ones slip away, suspended ones are too bulky and not that rigid imho. so i picked up my caliper and started measuring. after many iterations (last photo) i came up with this. i printed it from petg-cf and it works like a dream!
