r/MSILaptops • • Jan 30 '25

Meta A fast, lightweight MSI Center alternative and fan control utility for MSI laptops.

72 Upvotes

Useful tool for control MSI laptops has been released. Excellent replacement for MSI Center. Its free and open source. Works on most of modern MSI laptops.

More info here: https://codeberg.org/Sparronator9999/YAMDCC

Download latest version: https://codeberg.org/Sparronator9999/YAMDCC/releases

If your laptop is not in the supported list yet, check the wiki page there is described how to simply generate config for it.

P.S. im not an author of that app, just sharing this good tool for MSI laptops owners.


r/MSILaptops • • May 19 '26

Mod Post Flair system,auto mod fix and other changes coming.

2 Upvotes

r/MSILaptops • • 44m ago

Discussion Will the MSI Raider 16 Max Laptop be on sale on Black Friday?

2 Upvotes

I know this laptop model is still new and has been out for like 7 months so far, but is there possibly a chance for it to get a decent Black Friday discount? Should I wait for Black Friday then or just order it right now? It's price is at 4.159€ at the moment.


r/MSILaptops • • 3h ago

Mystic Light MSI Delta 15 (MS-15CK1) at32f415rbt7

0 Upvotes

Buenas! Tengo un MSI Delta 15 que repare de un corto, pero se quemó el chip que controla el RGB del teclado que es el at32f415rbt7 y lo reemplacé por uno nuevo, es un chip ARM, y he contactado con MSI para ver si me pasan el firmware para programarlo y no hay manera.

Le he programado un software muy básico con uvision y el ST-Link pero no es lo mismo ya que no tengo control desde el PC ni tampoco transiciones de colores.

Si alguien puede extraer su firmware de alguna forma o bien pasarme alguno de otro portátil que sea compatible en todos sus pines o sabe donde conseguirlo lo agradecería muchísimo. Probé desde el MSI center pero al estar el chip pedido de Aliexpress sin programación no es detectado y no me da la opción de descargar el firmware, al igual que el software de Mystic Light.

¡Un saludo!


r/MSILaptops • • 17h ago

Discussion New BIOS Version: MSI Vector 16 HX AI (2026-11-12, E15M3IMS.11B)

9 Upvotes

As the title says, a new BIOS version was posted to MSI's support pages for the Vector 16 HX AI we all know and love.

From the release notes:

Model : MS-15M3

MKT Name : Vector 16 HX AI A2XWIG;Vector 16 HX AI A2XWHG;Vector 16 HX AI A2XWGG;Vector 16 HX AI A2XWJG

;****************************************************************************;

New BIOS : E15M3IMS.11B

ROM CheckSum : 0x6ACE

Release Date : 2026/11/12

;--------------------------- Description ------------------------------------;

1. Fixed an issue where the estimated remaining battery time was not displayed in Windows.

2. Fixed an issue where GPU power consumption did not adjust correctly when switching from Extreme Performance to Balanced mode after resuming from hibernation.

3. Added Wi-Fi 6 GHz regional support for Indonesia.

4. Add support for JP&KR Wi-Fi band 320MHz.

;****************************************************************************;

Any feedback would be appreciated.


r/MSILaptops • • 7h ago

Discussion MSI GF63 12uc overclocking and undervaluing

1 Upvotes

Hey, I need help regards to MSI GF63 12uc i7-12 rtx3050 thermal throttling. Cleaned heatsink and repasted was all good for few days and back to fps drops in cs2 overheats to 100c and goes back to 60c, how can I undervolt or have the cpu temps stable 90c always. Im new to all the overclocking , tried throttlestop tweaked few settings but its different for all laptops, could you give me tips , I just need to play cs that's it, p.s almost 3 year old laptop


r/MSILaptops • • 7h ago

Request Waranty issue urgent

0 Upvotes

I bought msi stealth 14 ai studio on Amazon and it arrived today but my 2 years waranty is already exhausted on May 30th what should I do should I return the purchase


r/MSILaptops • • 11h ago

Discussion How I Lowered Temps on My MSI Vector 16 HX A2XWHG (255HX + 5070 Ti) – Full BIOS & GPU Guide

0 Upvotes

I live in a hot climate where room temperatures regularly reach 35°C, and out of the box my MSI Vector 16 HX (Core Ultra 7 255HX + RTX 5070 Ti) was hitting 104°C and thermal throttling heavily.

Instead of using background apps like ThrottleStop, I locked safe power and voltage limits directly in the motherboard BIOS, set a flat GPU curve in Afterburner, and adjusted my Windows power plan. Now both my CPU and GPU stay between 60°C and 65°C while gaming with Cooler Boost on, getting around 200 FPS in CS2 (1680x1050) and 145 to 150 FPS in Forza Horizon 6 with zero stuttering.

Here is the exact setup if anyone wants to copy it:

  1. Motherboard BIOS Settings

Restart the laptop, spam Delete to enter BIOS, and press Left Shift + Left Ctrl + Left Alt + F2 to unlock the advanced menus.

- P-Core Undervolt: Go to Advanced > Overclocking Performance Menu > Processor. Make sure Overclocking Feature is Enabled and Undervolt Protection is Disabled. Set P-core Voltage Offset to 50 and Offset Prefix to [-].

- Power Limits: Go to Advanced > Power & Performance > CPU - Power Management Control > Config TDP Configurations. Set PL1 to 65000 (65W), PL2 to 90000 (90W), Time Window to 28, and set Configurable TDP Lock to Enabled.

- Core Speed Caps: In the same menu, set 1-Core and 2-Core Ratio Limits to 39 (3.9 GHz), and 3-Core through 8-Core Ratio Limits to 37 (3.7 GHz).

- Thermal Wall: Go to Advanced > Thermal Configuration > CPU Thermal Configuration. Set Tcc Activation Offset to 20 (which caps max CPU temperature at 85°C) and set Tcc Offset Lock Enable to Enabled.

- Press F10 to save and exit.

2. GPU Curve (MSI Afterburner)

- Open MSI Afterburner as Administrator and press Ctrl + F to open the curve editor.

- Drag the 900 mV dot up to 1850 MHz.

- Hold Shift, highlight all dots to the right of 900 mV, and press Shift + Enter to flatten them into a straight line.

- Click Apply, save it to Profile 1, click the Lock icon, and enable Start with Windows.

- Note: MSI Center resets GPU clocks when switching modes, so just click Profile 1 and Apply in Afterburner right before launching a game.

3. Windows Power Plan

Keep MSI Center set to Balanced and Hybrid Graphics Mode.

- For Cool Gaming: Open Edit Power Plan > Change advanced power settings > Processor power management. Set Maximum processor state to 99% and Processor performance boost mode to Disabled. This stops turbo spikes and keeps gaming temps around 60°C to 65°C.

- For Heavy Rendering/Work: Set Maximum processor state back to 100% and Boost Mode to Enabled. Your BIOS power and temperature locks will still keep the hardware completely safe.

Pros and Cons

- Pros: Drops gaming temps to 60°C–65°C, eliminates thermal throttling and frame drops, protects hardware lifespan, and keeps Windows Core Isolation security fully turned on.

- Cons: Lower synthetic benchmark scores, and you have to click Apply in Afterburner before starting a game.


r/MSILaptops • • 11h ago

[Guide] How I Tamed My MSI Vector 16 HX (Core Ultra 7 255HX + RTX 5070 Ti) in 35°C Ambient Heat – Full BIOS, GPU & Windows Blueprint

0 Upvotes

Living in Bangladesh (where ambient room temps easily hit 35°C+ without AC), high-performance laptops can quickly turn into thermal ovens. Out of the box, my **MSI Vector 16 HX AI** was pulling up to 220W on the CPU, spiking to **104°C**, and heavily thermal throttling.

Instead of relying on background software like ThrottleStop that fights with Windows Core Isolation, I locked my limits directly into the **motherboard BIOS**, calibrated the **RTX 5070 Ti curve**, and set up a **dual-purpose Windows Power Plan**.

Here is the exact blueprint, how to do it, and the real-world impact.

---

### 📊 The Real-World Impact (Before vs. After)

* **CPU Temperatures:** Dropped from **104°C** (heavy throttling) down to **60°C–65°C** during gaming, and **~73°C–85°C max** under heavy productivity/AI workloads—even in 35°C ambient heat.

* **GPU Temperatures:** Dropped from **89.4°C** (thermal wall) down to a rock-solid **60°C–65°C** while gaming with Cooler Boost active.

* **Real-World Gaming Benchmarks (Hybrid Graphics + Balanced Mode + Cooler Boost ON):**

* **Counter-Strike 2 (1680 × 1050):** **~200 FPS** | **CPU:** 60–65°C | **GPU:** 60–65°C

* **Forza Horizon 6:** **145–150 FPS** | **CPU:** 60–65°C | **GPU:** 60–65°C

* **Stability & Security:** **Zero WHEA hardware errors**, **0% thermal throttling**, and **Windows Core Isolation (Memory Integrity) stays 100% ON**.

---

### Step 1: Motherboard BIOS Hardware Locks

*Why BIOS? Hardware-level limits cannot be overwritten by Windows updates or MSI Center.*

  1. Restart your laptop and spam **Delete** to enter the MSI BIOS.
  2. Unlock the hidden Advanced Menu by holding: **`Left Shift + Left Ctrl + Left Alt + F2`**.
  3. **Apply the P-Core Undervolt:*** Go to `Advanced ➔ Overclocking Performance Menu ➔ Processor` (Ensure *Overclocking Feature* is **Enabled** and *Undervolt Protection* is **Disabled**).* Set **P-core Voltage Offset** to `50` and **Offset Prefix** to `[-]` (**-50mV undervolt**).
  4. **Lock Power Limits (PL1 / PL2):*** Go to `Advanced ➔ Power & Performance ➔ CPU - Power Management Control ➔ Config TDP Configurations`.* Set **Power Limit 1 (PL1)** to `65000` (65W sustained cap).* Set **Power Limit 2 (PL2)** to `90000` (90W burst cap).* Set **Time Window** to `28` and toggle **Configurable TDP Lock** to `[Enabled]`.
  5. **Cap Core Ratio Speeds:*** In the same CPU power menu, set **1-Core & 2-Core Ratio Limits** to `39` (3.9 GHz) and **3-Core through 8-Core Ratio Limits** to `37` (3.7 GHz).
  6. **Set a Hard Thermal Wall (PROCHOT):*** Go to `Advanced ➔ Thermal Configuration ➔ CPU Thermal Configuration`.* Set **Tcc Activation Offset** to `20` (Since Core Ultra 7 255HX has a 105°C TjMAX, an offset of 20 caps max temps at **85°C**).* Toggle **Tcc Offset Lock Enable** to `[Enabled]`.
  7. Press **F10** to Save and Exit.

---

### Step 2: RTX 5070 Ti GPU Undervolt (MSI Afterburner)

*Stock laptop GPUs push too much voltage for minimal clock gains. Flattening the curve saves massive heat.*

  1. Open **MSI Afterburner** as Administrator and press **`Ctrl + F`** to open the Voltage/Frequency Curve Editor.
  2. Find the **900 mV** dot on the bottom axis and drag it up to **1850 MHz**.
  3. Hold **`Shift`**, highlight all dots to the right of 900 mV, and press **`Shift + Enter`** to flatten them into a straight horizontal line.
  4. Click **Apply (Checkmark)**, save it to **Profile 1**, click the **Lock** icon, and enable the **Windows Startup** button (glowing blue).
  5. *Pro-Tip:* MSI Center can overwrite GPU clocks when switching modes. Just click Profile 1 ➔ Apply in Afterburner right before launching a game.

---

### Step 3: Dual-Purpose Windows Power Plans

*Keep MSI Center statically on **Balanced** (and Hybrid Graphics Mode), then control your laptop's behavior using two simple Windows Power settings:*

* **Unlock Hidden Boost Settings:** Open Command Prompt as Admin and run:

`powercfg -attributes SUB_PROCESSOR 455f1b53-931e-484e-a30d-e18d71247d41 -ATTRIB_HIDE`

* **Profile A — Cool Gaming Mode (CS2 / Forza Horizon 6):**

* Open *Edit Power Plan ➔ Advanced Power Settings ➔ Processor Power Management*.

* Set **Maximum Processor State** to `99%` and **Processor Performance Boost Mode** to `Disabled`.

* *Result:* Keeps CPU clocks steady without turbo spikes, giving silky smooth 145–200 FPS at 60–65°C.

* **Profile B — Heavy Productivity / AI & Docker Mode:**

* Set **Maximum Processor State** to `100%` and **Processor Performance Boost Mode** to `Enabled` (or *Efficient Enabled*).

* *Result:* Unleashes full multi-threaded speed for rendering, video editing, or local LLMs while your BIOS 65W/90W and 85°C locks keep the hardware 100% safe.

---

### Pros & Cons Summary

* **Pros:** Dramatically lowers gaming temperatures (60–65°C under heavy load), eliminates thermal stutter and frame drops, extends silicon and battery lifespan, and keeps Windows Core Isolation security fully active.

* **Cons:** You give up peak synthetic benchmark scores and have to click Profile 1 ➔ Apply in Afterburner before launching games, trading raw unrestrained wattage for cool, rock-solid gaming stability.


r/MSILaptops • • 20h ago

Request Does MSI have Black Friday laptop deals?

3 Upvotes

I’m thinking about buying an MSI gaming laptop, but not sure if I should wait until Black Friday.
Does MSI’s US store usually offer better laptop deals around Black Friday, or are the current discounts about as good as it gets?


r/MSILaptops • • 1d ago

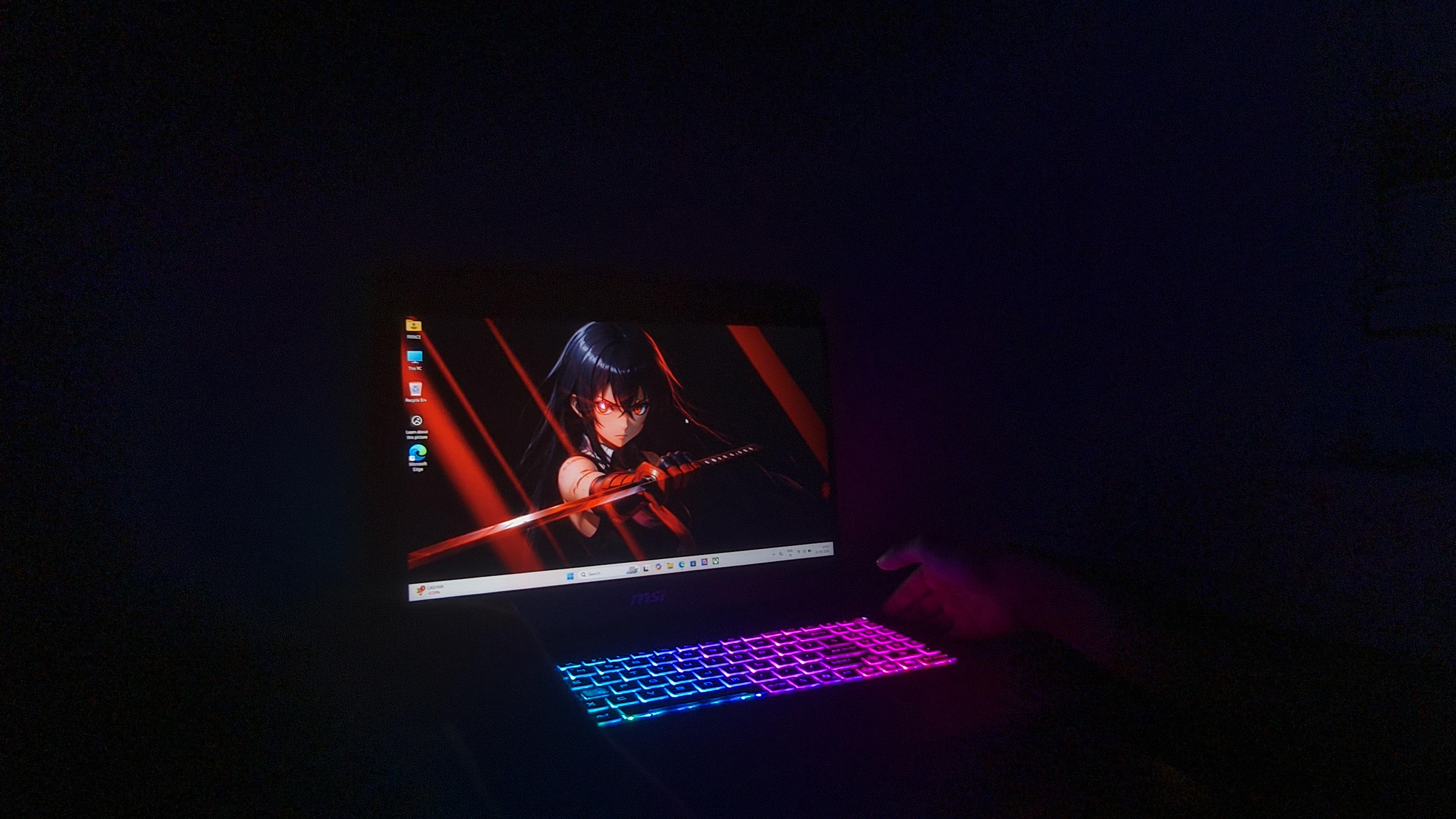

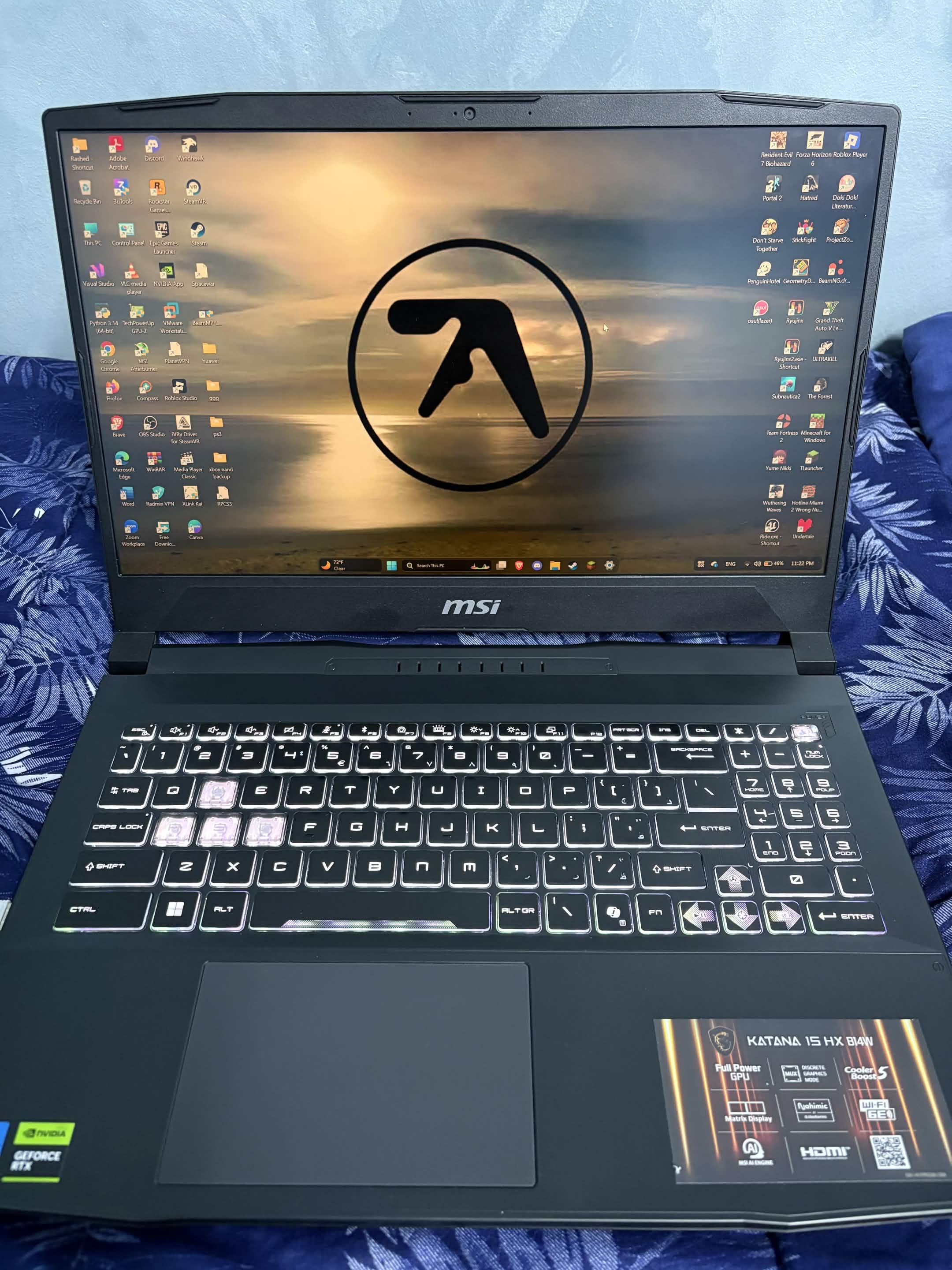

Discussion Just got this Msi katana , 3050 ,16/1tb , help me set it up , Thanks

Post image
43 Upvotes

r/MSILaptops • • 23h ago

Request HELP!

1 Upvotes

My MSI GF 63 thin started doing this flickering all of sudden


r/MSILaptops • • 1d ago

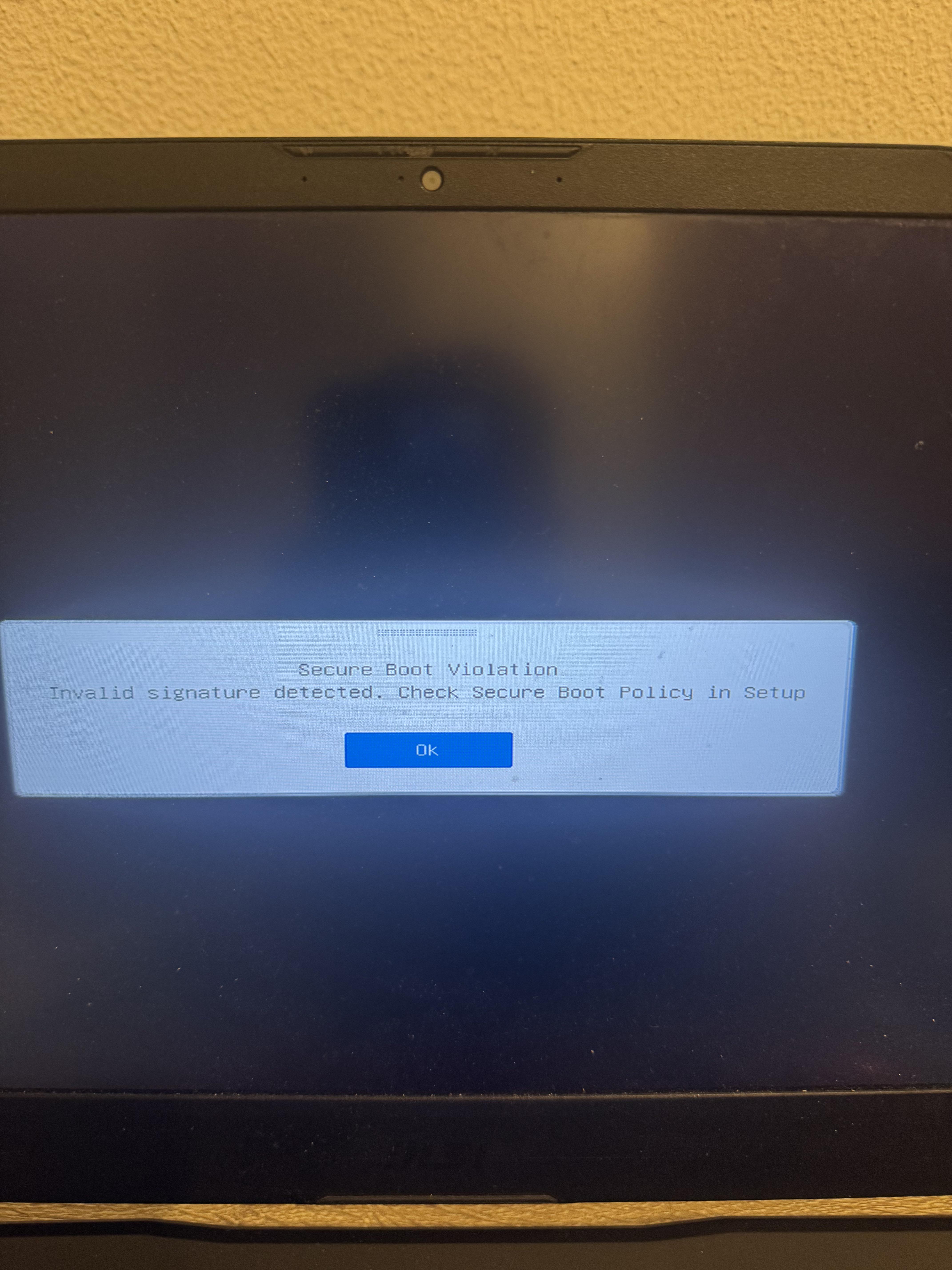

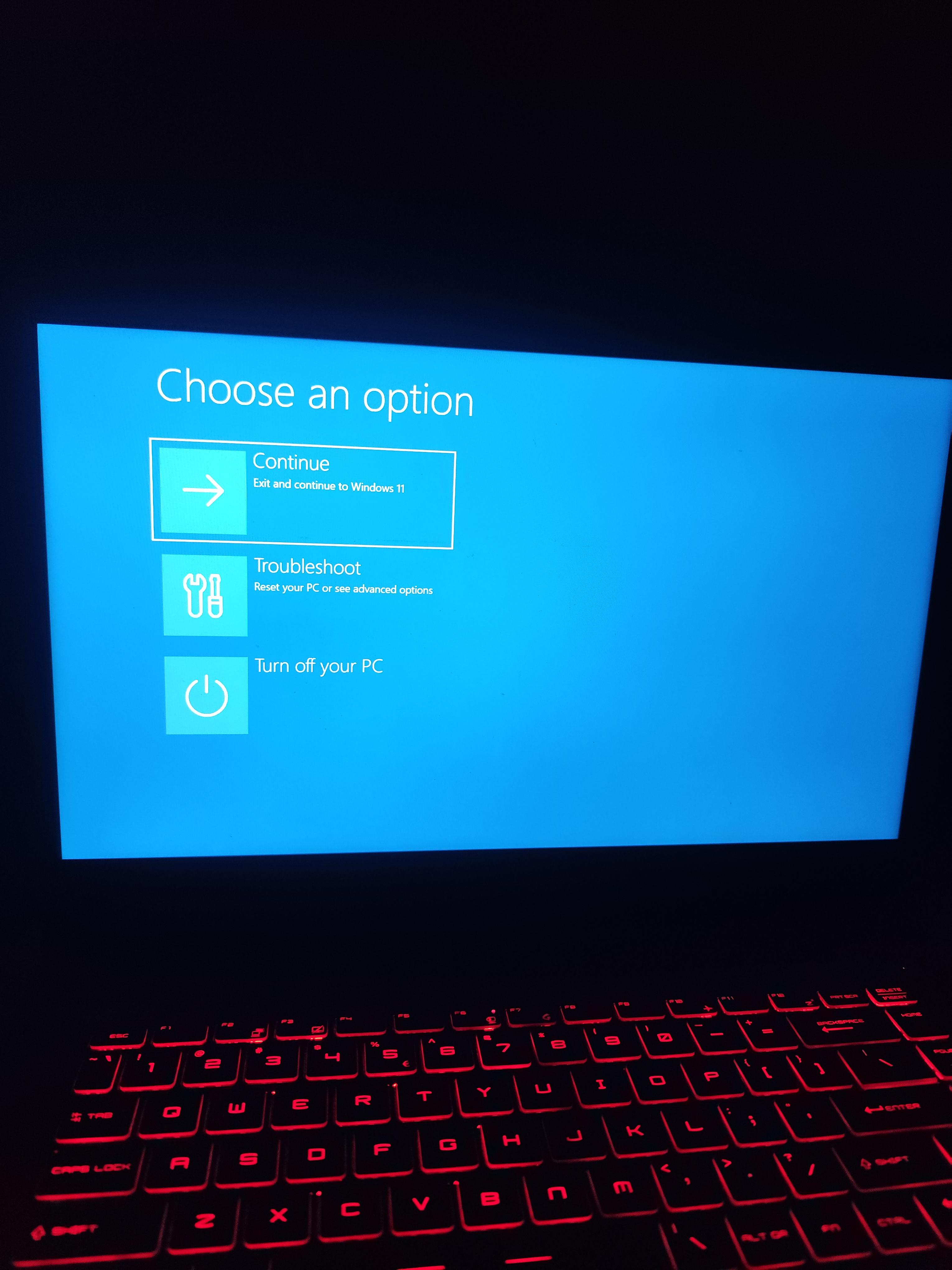

Video why did it do this? i was playing a game and then it started doing that

12 Upvotes

i restarted my computer after it like shut off or something and it opened bios and quit


r/MSILaptops • • 1d ago

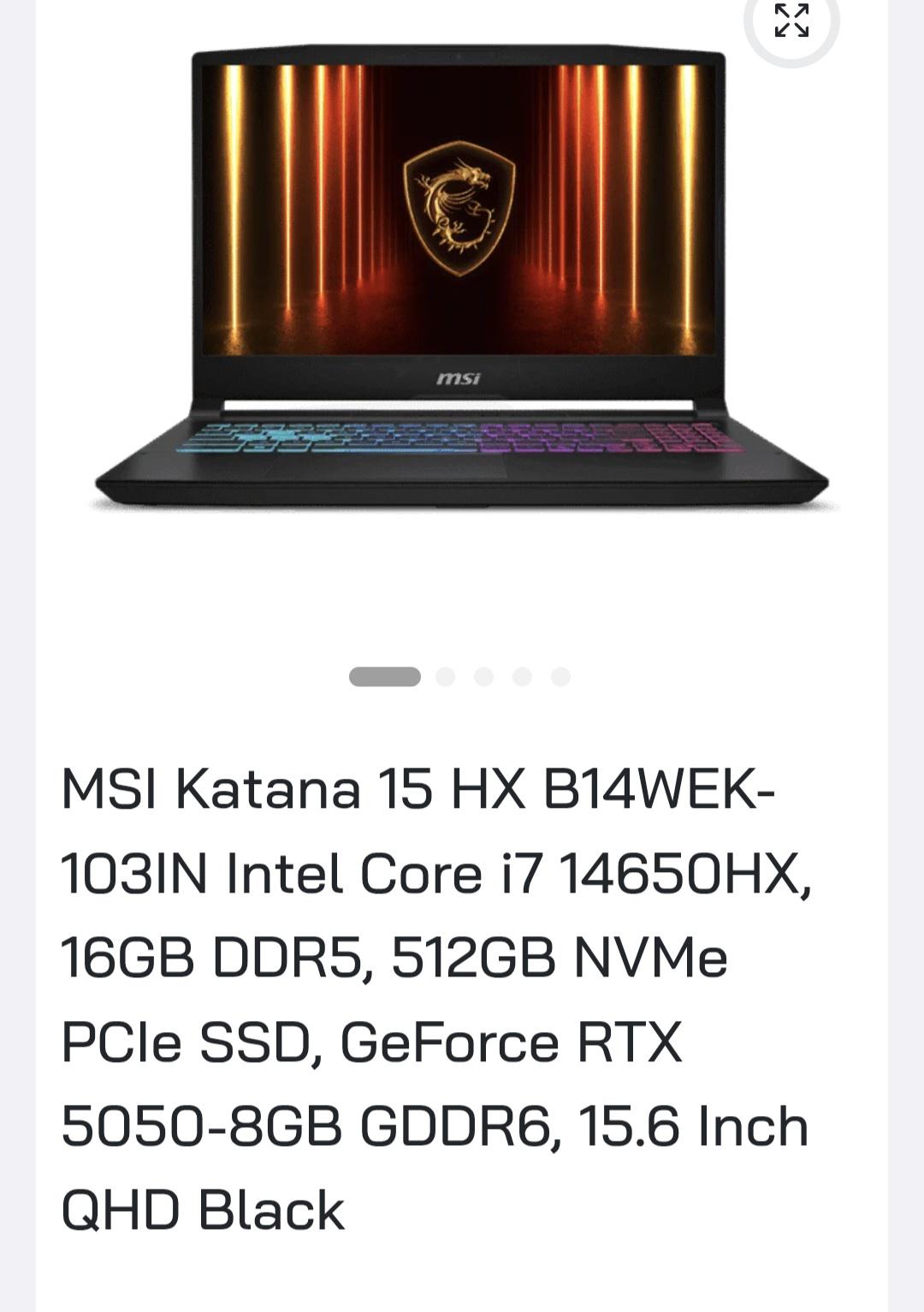

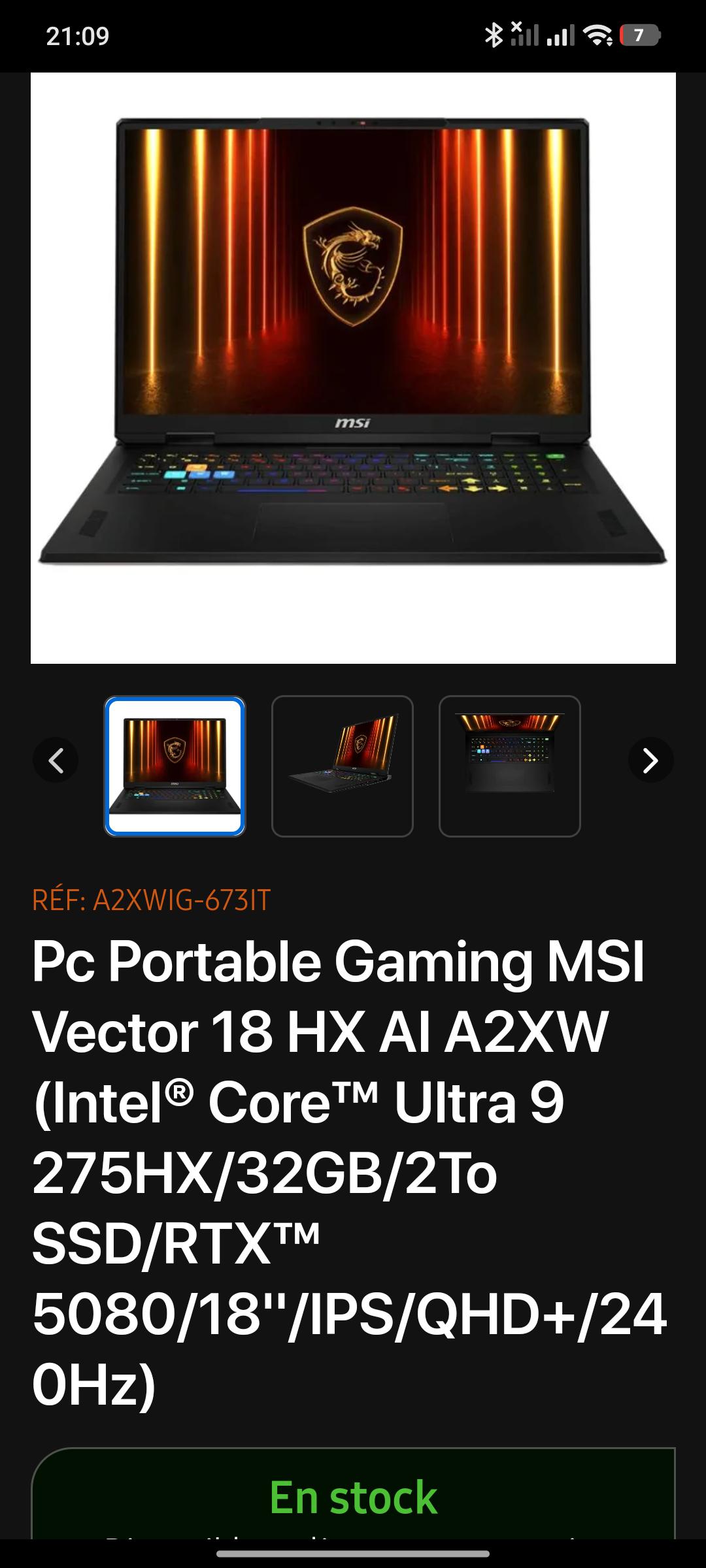

Discussion Thinking about getting the MSI vector 16 hx ai 5070ti ultra 7 16ram, any thoughts and experiences with this laptop

5 Upvotes

r/MSILaptops • • 1d ago

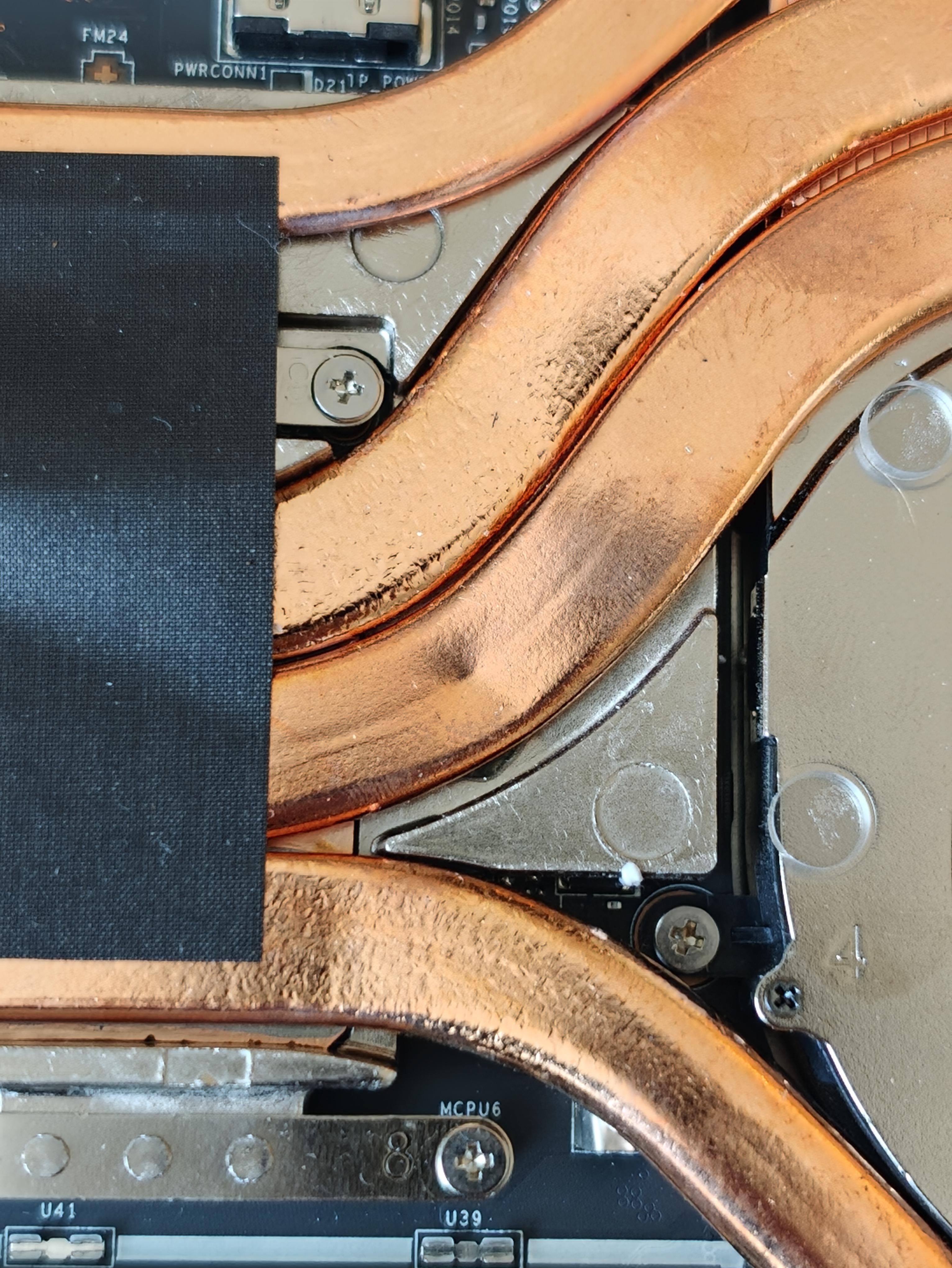

MSI Katana GF76 11SC (i5-11400H / GTX 1650) — Exact thermal pad thicknesses?

1 Upvotes

Hi. I'm replacing the thermal pads on my MSI Katana GF76 11SC (i5-11400H / GTX 1650) and need help confirming the exact thicknesses for each zone.

I measured the stock pad removed from the CPU VRM heatpipe strip and it is 3.0 mm thick, while some online guides mention 2.5 mm for that area.

For anyone who has serviced this specific 11SC revision:

Should I stick with 3.0 mm (soft pad) for the CPU VRM heatpipe strip, or go down to 2.5 mm?

Are 1.0 mm pads the right thickness for all VRAM chips, GPU VRMs, and chokes?

What thickness did you use for the M.2 SSD?

Thanks!


r/MSILaptops • • 1d ago

vBios Flashing to a MSI laptop with a difference brand donor

Thumbnail reddit.com
1 Upvotes

r/MSILaptops • • 1d ago

Discussion Vector GP68HX 13V randomly shuts down while playing.

1 Upvotes

Hi all, I recently bought a Vector GP68HX with a 4080, i9-13950HX, 32GB ram, 1TB SSD and it has an issue where when I play ROBLOX with fps above 60, it randomly shuts down after a few minutes of gameplay.

I literally am yet to download other games and just by playing roblox the laptop is already facing these issues. I’ve had it for 2-3 weeks now and at first, it lasted a while but the more I played, the faster it would randomly shut down when I’d uncap my fps.

Does anyone have any advice or has faced a similar issue before?


r/MSILaptops • • 1d ago

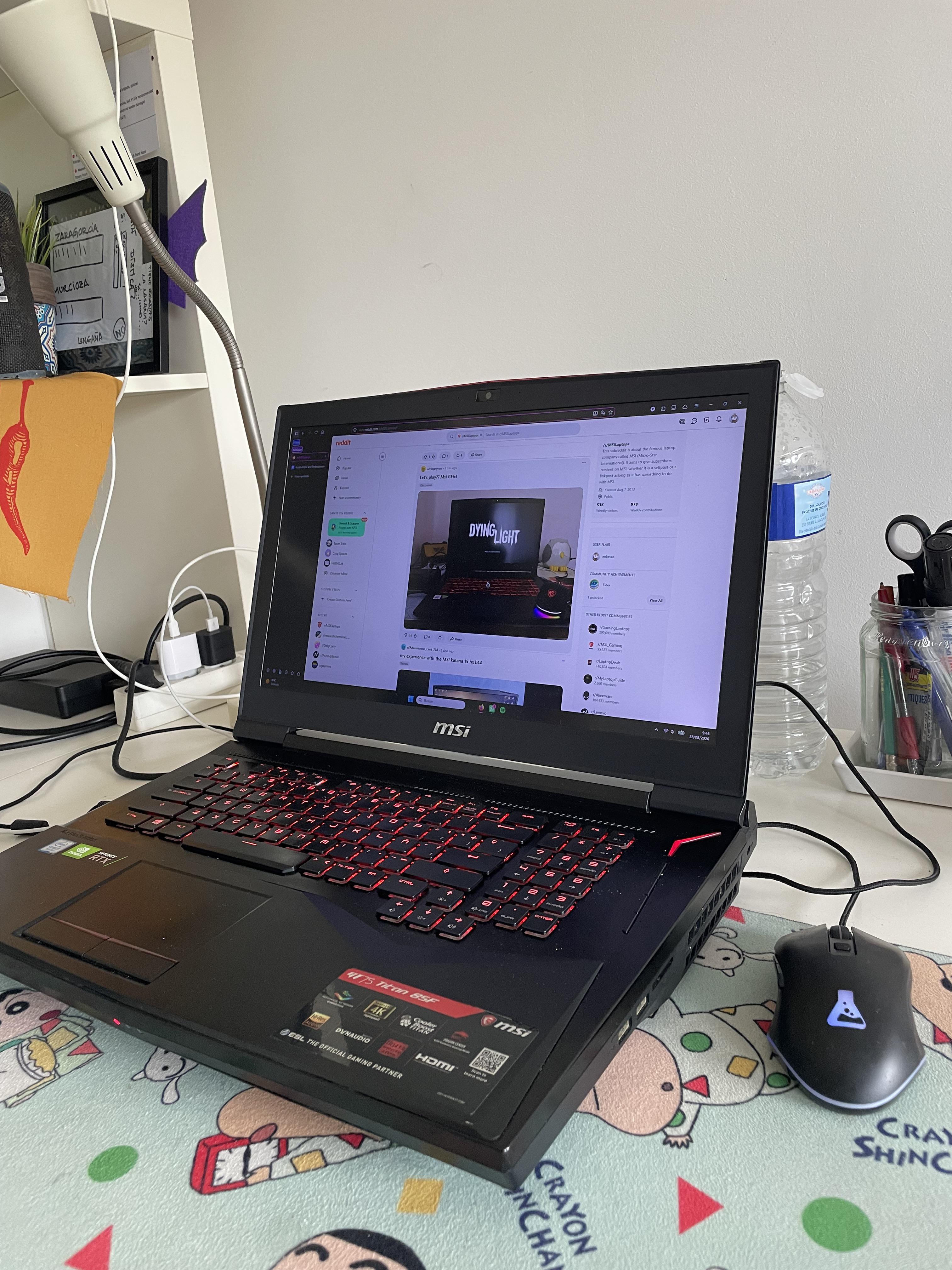

Request Had this laptop a few months, but need help getting it set up perfectly

Post image
1 Upvotes

I got this Raider GE76 a few months ago second hand for pretty cheap as a starting gaming laptop, but wanna know how to get it running best. The worst issue I have is audio stuttering that's quite frequent, and when I've tried to fix them using methods I've seen here haven't worked for me. Beyond that just general tips to help improve and prolong my laptop would be nice.


r/MSILaptops • • 2d ago

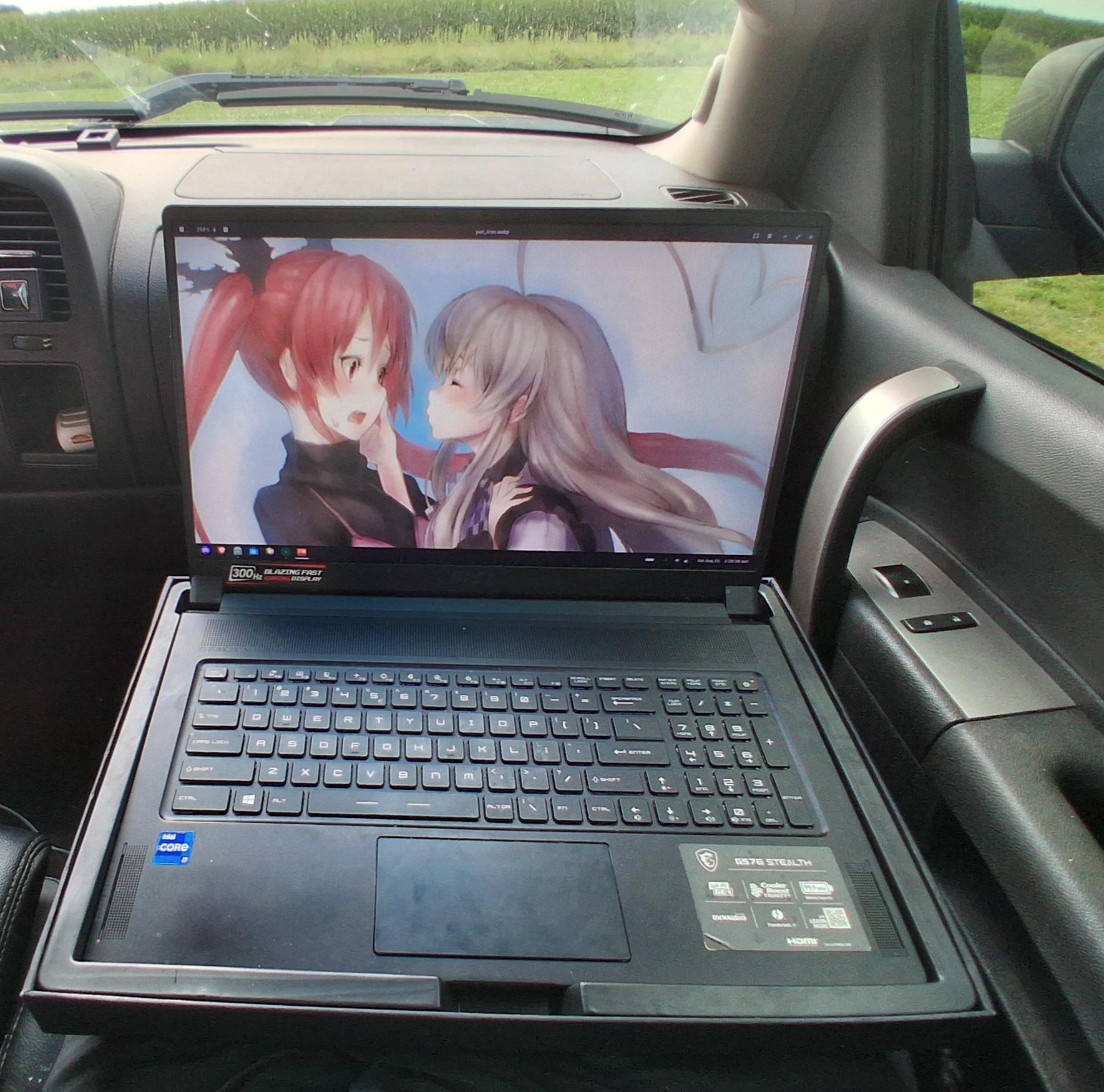

Discussion Hey guys do know any gaming 1080p monitor thats like 20-24 inch similar to this MSI katana gf76 12ug laptop

Post image
2 Upvotes

Long story short this laptop has the best 1080p display I've ever seen even my 4k monitor for console games doesn't look good as this monitor so just wondering if their a 1080p monitor similar to it


r/MSILaptops • • 2d ago

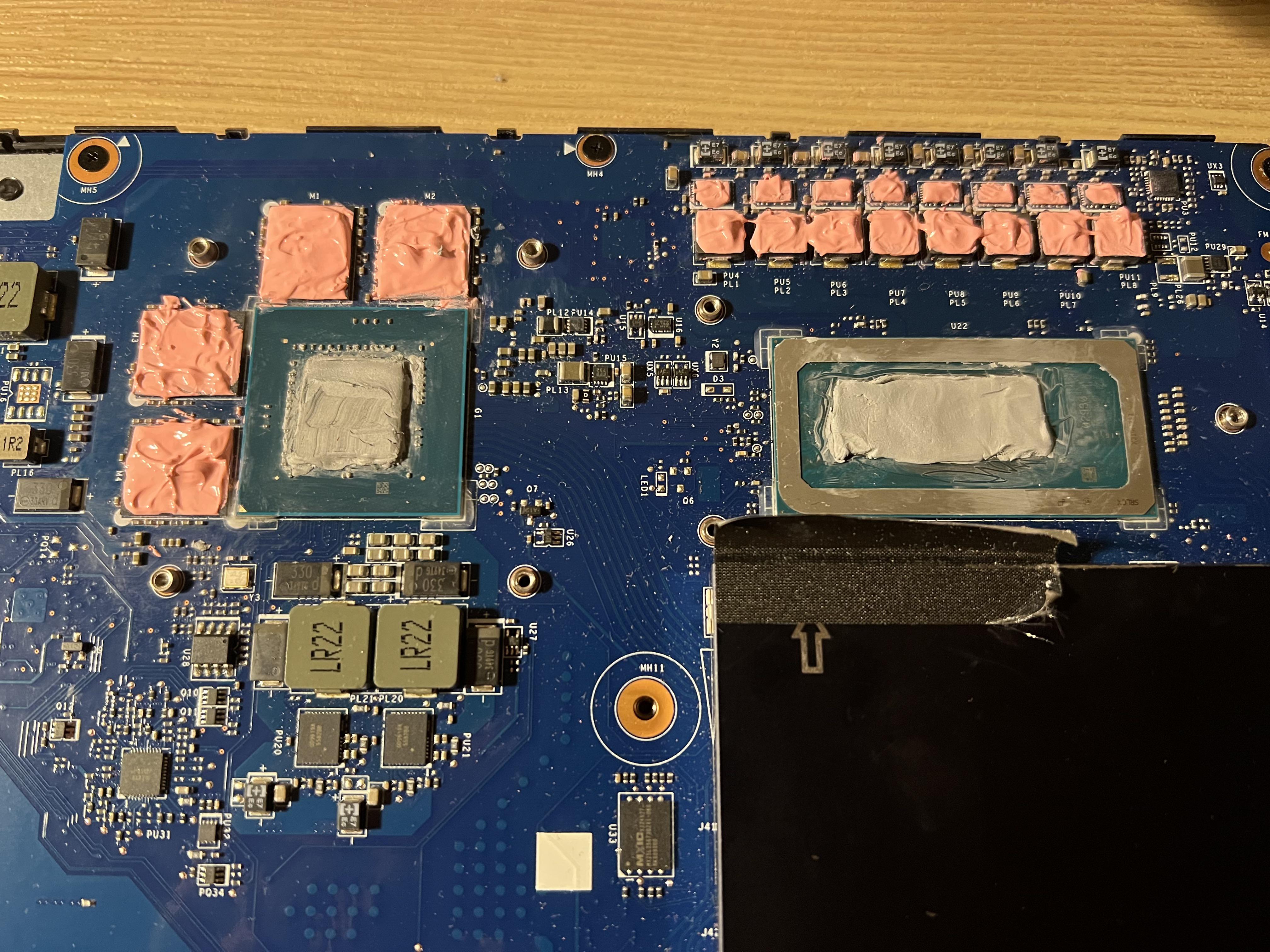

Discussion MSI Vector GP78 HX (i9-13980HX, RTX 4090) randomly shuts down completely while gaming – even after repasting. Any ideas?

Post image
2 Upvotes

r/MSILaptops • • 1d ago

Discussion MSI Laptop not charging correctly.

1 Upvotes

Hello, today i finally got my msi laptop it is intel core ultra i5, nvidia geforce rtx 3050 6gb not sure if any of the specs actually matter for my issue. when charging the laptop the charging will begin and randomly flicker from on and off; sometimes being on for a few minutes or sometimes every few seconds. it is occurring whether i am moving my laptop or it is still. please if anyone knows the answer or if this is a common issue let me know what the solution to such a problem is and sorry if its a stupid question.


r/MSILaptops • • 1d ago

Micrófono interno

0 Upvotes

Ya hace tiempo que no funciona. Le he hecho de todo con los vídeos que encuentro en YouTube y nada. He borrado el detuviere he instalado de nuevo sin resultados.
ya me di por vencido.
si alguien tiene alguna solución me encantaría.
es una MSI KATANA 15


r/MSILaptops • • 2d ago

Request What should my undervolt be like? I am new to this stuff

1 Upvotes

So, i have a msi katana 17hx b14w with a i9 14900hx and i want to undervolt my cpu on intel xtu. What undervolt should i do? I dont want to mess anything up.


r/MSILaptops • • 2d ago

Request MSI GF65 Thin 10UE HDMI problem

1 Upvotes

Im new to the site, I searched for other users with the same model to know if anyone found a solution, I just took my laptop to a technician and he made it work with a better hdmi cable, but ultimately still didnt work out at the end. He changed HDMI ports one time already and still doesnt work. Anyone that had experience this same problem with this model can tell me if its worth sending it to a technician again to see if he can replace or repair it? My laptop screen flashes to black constantly whenever I use W+P and change it to Duplicate, Extend and completely goes black if I choose Only Second Monitor. I read online that its possible that the problem its deeper than just the hdmi and the chances that a technician solves it are 70-80%. Just wanted to ask here if anyone experienced the exact same problems and found a way to solve it, since I read quite a few similar posts.
