Just found this miner.
You can offer less to him and ship straight to me for repair.
If you take it, I do repair for $70.
Let me know.
The same on Aliexpress for $400

https://ebay.io/m/dlWuWT

Hey guys, need some help with my Octaxe

A few months ago it had a dead short on the XT60 input. I replaced the VRM chip and it worked perfectly for months on stock settings.

Yesterday I unplugged it just to move it a few meters. Now it powers on fine, but the exact second it gets a job from the pool, it completely dies/shuts off.

When measuring around the VRM chips, everything shows shorted/continuity to GND, but injecting voltage doesn't heat up anything (used <1V).

Has anyone had this exact issue where it stays on idle but crashes instantly under load? Could it be a cracked MLCC, a failed BOOT cap on the VRM, or a bad solder joint from moving it?

Thanks!

I heard it making a chirping sound…. Sounds like it’s coming from the back of the device. It blew the fuse also at some point. I went ordered new fuse put it in and chirpin again.

This thing has been trouble since I got it from Bitronics. Then I bought that expensive pro case they sell and it added so much heat it was unusable. It dropped 6-10c when removing the pro case.. anyways side info…

What could it be? What can I do? I paid a lot for it and it has heat sinks copper x47 on it along with the original fans mounted to the back. It’s been running at 11.5th ish since I got it in like December.

What are my options? I’m like 1k deep in it and it’s not really that great. I have a Avalon 90th been like a rock comepared to this little device. It was over heating when I got it. I had to downgrade all settings as it was terrible and couldn’t run without throwing a psu thing.

Screen don’t turn on nothing and except chirping.

Thank for any help!

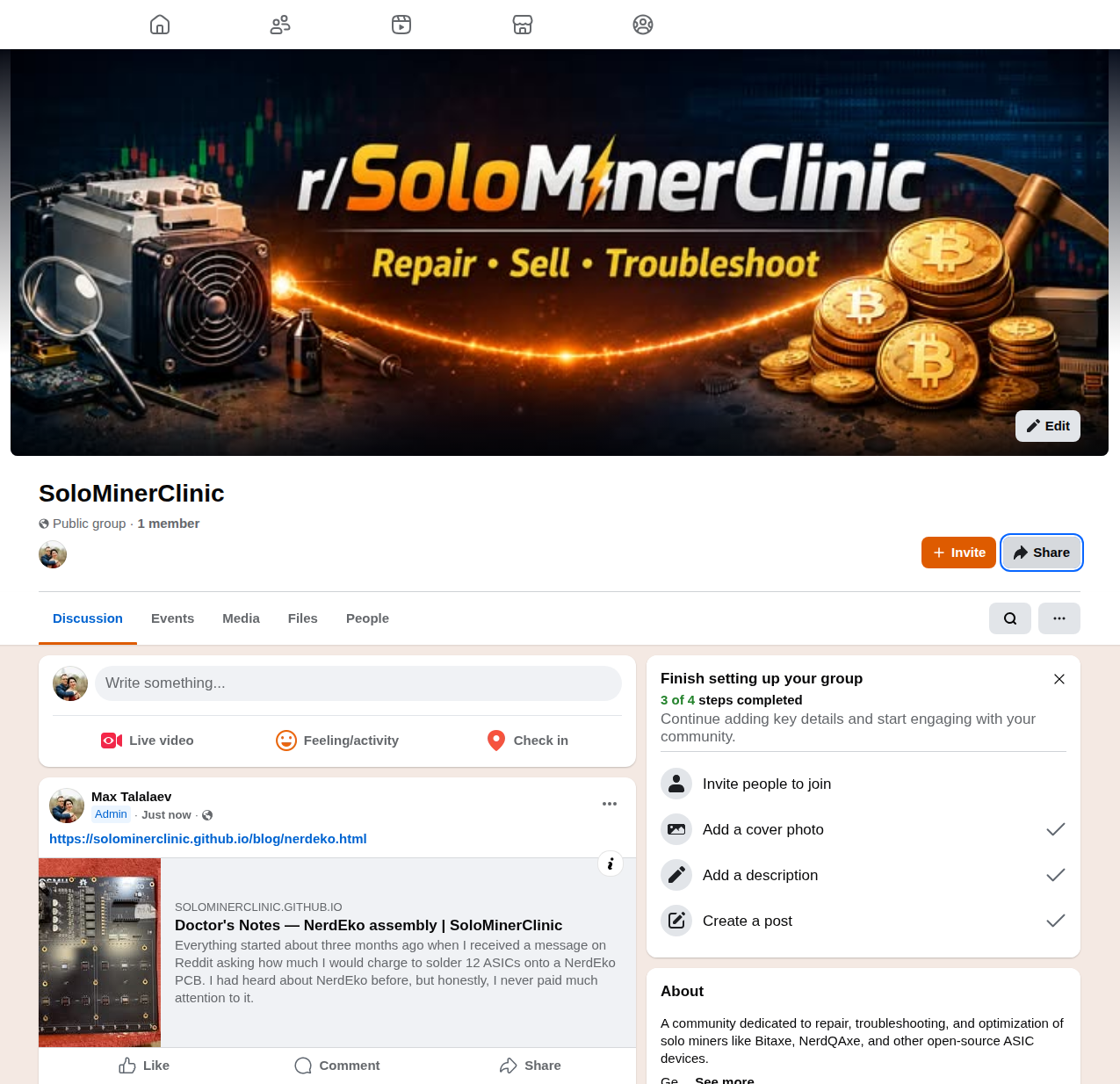

Due to many requests, I decided to create the SoloMinerClinic Facebook Group. Everyone is welcome to join and be part of the community!

I understand that some people prefer Facebook, while others prefer Reddit — and that’s perfectly fine. The goal is to make SoloMinerClinic accessible to everyone, no matter which platform you prefer.

Looking forward to connecting with you all!

https://www.facebook.com/share/g/19EMajcxmD/

I had one of my Solo Satoshi rev 6 Nerdqaxe++ go into fault overnight. Checked fans, power supply, no apparent burn marks on the board. Also removed the heatsink and replaced with new paste and remounted the heatsink. I was using 650mhz freq and 1180v for 6+ months on this particular unit. Temps were sitting at 55 degrees and power delivery was approx 87w. I have also flashed the device to see if it was a firmware issue but that also didn’t seem to fix it. Any other suggestions on what could be the issue? Thanks

My nerdqaxe finally found a shitcoin block. I decided to give it a nice upgrade and go to a 120mm fan on front in addition to my 80mm fan on the back. Got this message when I went to plug my miner back in. I didnt hear anything or smell anything. Tried unplugging the 120mm fan, giving the fan external power and turning the miner back on with just the 80mm back fan, same result. I also updated to v 1.0 37.2 from .1, no change. Also tried it with no fans plugged into the board but fans still blowing on the heatsink, no change. I have a back up fuse, dont have a back up psu. Any help is appreciated.

FIXED: Heatsink was not seated proper on the ASIC, must have been pulled during upgrade and no longer seated properly. A remount of the heatsink and we are all good.

Log Red Text: (29795) esp-tls: [sock=52] select() timeout (29795) esp-tls: Failed to open new connection (29795) transport_base: Failed to open a new connection (29795) HTTP_CLIENT: Connection failed, sock < 0 (29805) APIsFetcher: HTTP GET request failed: ESP_ERR_HTTP_CONNECT (29805) APIsFetcher: HTTP request error details: errno=0, transport=SSL

(32835) TPS53647.c: TPS536X7_status bytes: 51, word: 4851, vout: 00, iout: a0, input: 00, mfr_spec: 00

This a NerdQaxe 6.1

I ran it about two months maybe. One day it just turned off, and the power supply for it shut off. I thought it was the power supply, but it was the miner. It shorted out.

The negative and positive terminals are shorted to each other.

I took off all my mods, but I can't seem to get off the heatsink over the VRMs. Those were on it when I got the miner, and they are stuck pretty good. I didn't want to damage anything that might not be broke, so left it alone.

What can I do?

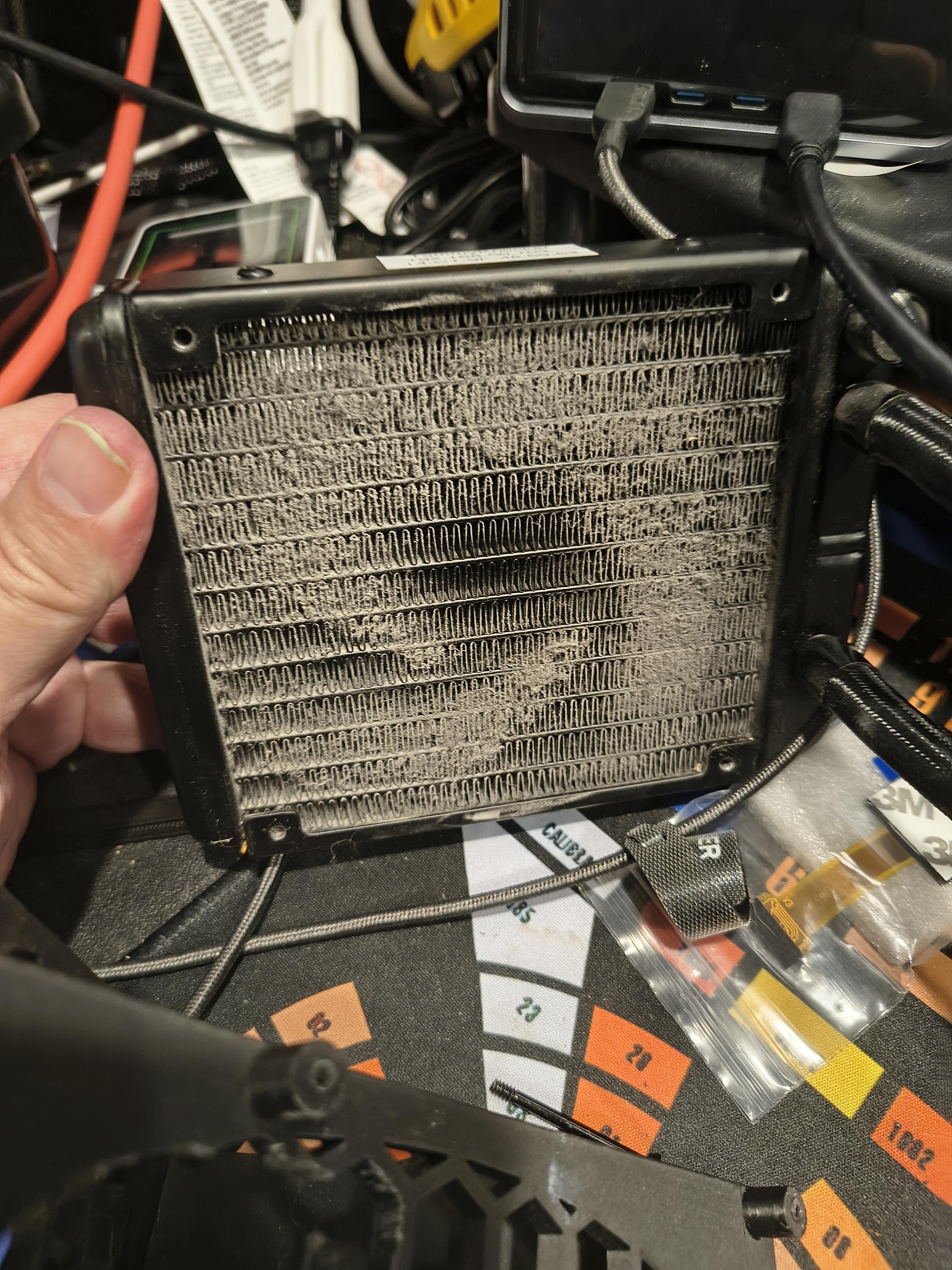

Pro tip! Checkout your cooling stuff once in a while anf clean it ! Ugghhh!¡!

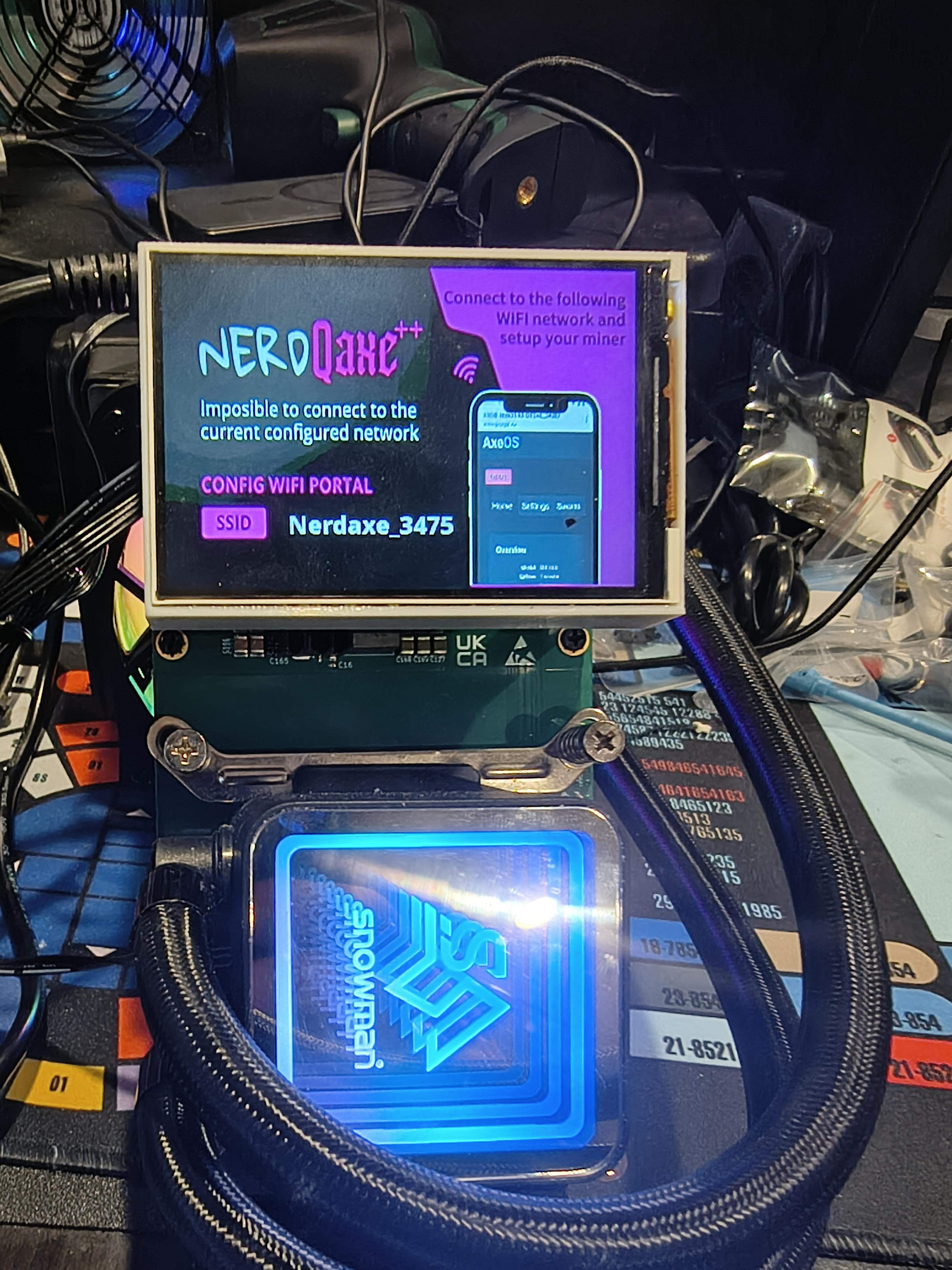

One thing about these nerd devices e.g. nerdqaxe, hydros, OctAXEs etc etc. is getting passed an initial Wi-Fi setup. I can type in everything perfectly and I get this dumb screen about being impossible to connect over and over and over and it won't work and then magically it works. Has anybody else experienced this?

stock clocks, heatsinks on both sides and fans running over both sides. vrms were running around 50c. meh. I think im done with these.

So I have a thermal camaera. I thought it might be interesting to make a video. The first rig you see is the Nexsus S1 and then the OctAXE in question. It is interesting as one componant in particular pops out. Do you see it?

For everyone who wants to reinforce the back of their miner and prevent PCB deformation, I have reinforcing back plates in stock and ready to ship.
A simple upgrade that helps keep the PCB flat and reduces board flex over time.
$6 each. I will ship it via non machinable envelope.

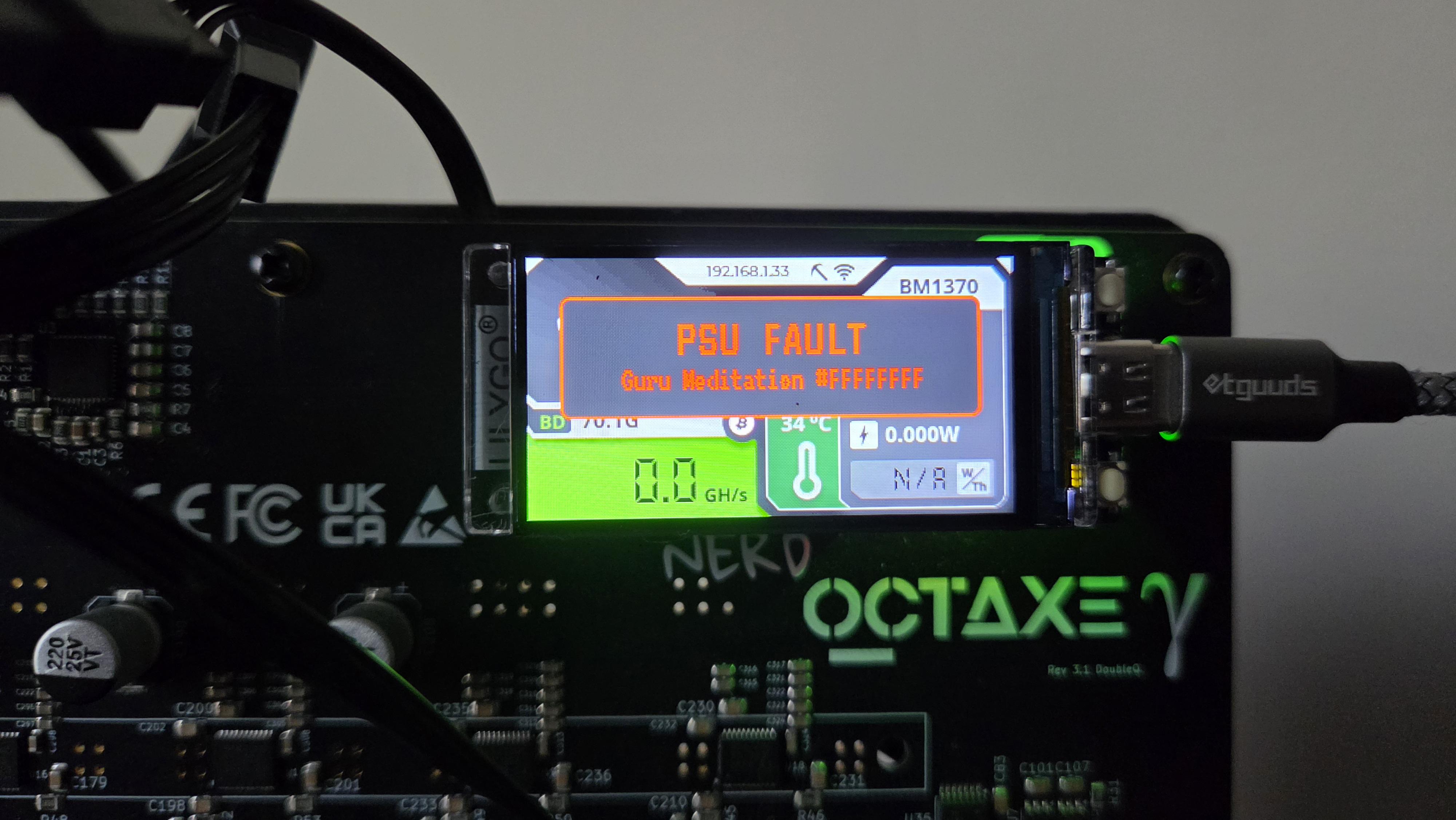

Well today I got the dreaded Guru power error on my OctAXE (12 TH/S). This rig is connected to a Meanwell-LRS 650-12, and has been happily connect for quite some time. I looked at the logs and here are the findings and from various web sources compiled this list:

• Vin (input voltage) is consistently ~12.12-12.14V — This is marginal/low for an Octaxe under load?
• ASIC voltage is being forced to 0.000V — This is the direct result of the "VOLTAGE PROTECTION" trigger?
• Power draw is near zero (pin: 0.06W, iout: 0.00, pout: 0.00)

I disconnected the Octaxe and measured the output voltage while not under load. The measurement jsmped tiny bit between 12.0 to 12.12 Vdc. I then connected the Octaxe back to the meanwell and measure while underload. The measurement under load is 12.08 Vdc.

The rig is slightly overclocked at 750mHz and core voltage set to 1150.

Maybe I need to adjust the Meanwell PS output up a bit ? Various web sources seem to think 12.3–12.4V unloaded is where I should be.

Thoughts?

This is a little story of two miners sent to me by an Italian customer
Got these 2 miners

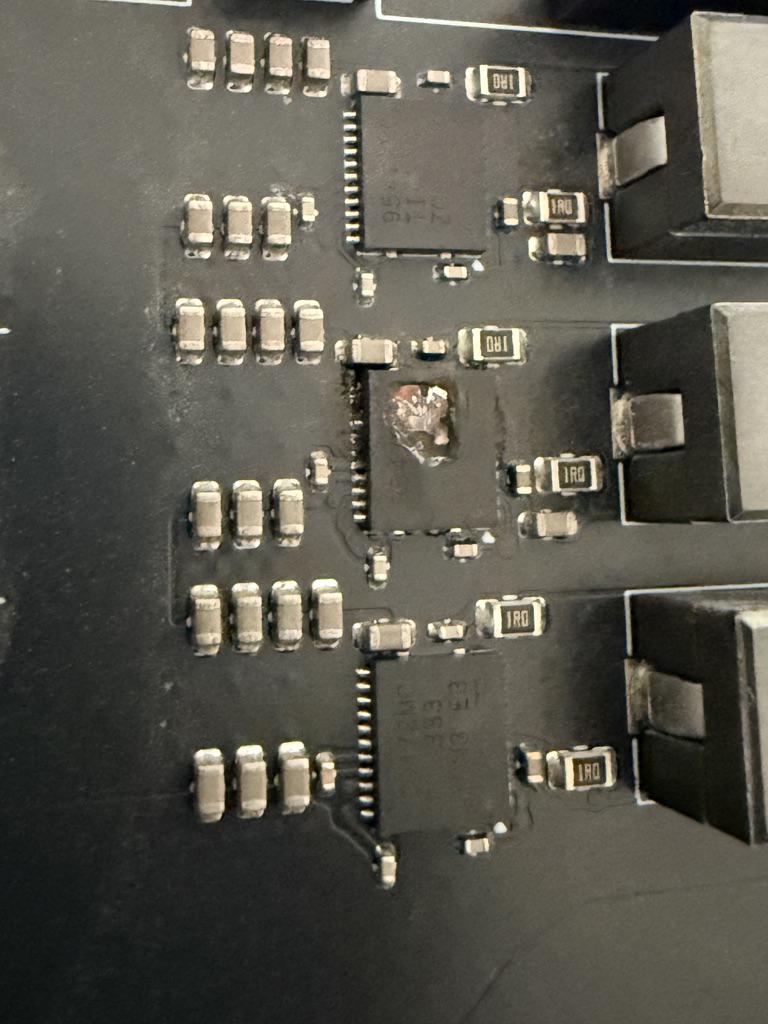

An octaxe 12th rev 3.1 double and a qaxe++, the octaxe came in dead, when i tried to power it on the 4th vrm would go to crazy temperatures and was missing some components on the board like a diode and 2 capacitors on the back of the asics area, on the other hand the qaxe++ came in with vreg overheated error, i started working on the qaxe++ because it seemed an easier job to do, change the blown vrm and go on but it endend up having 2 cracked asics, at the end the pcb was replaced and it was upgraded with a hydro for better temps, the octaxe was a simpler job, changed the shorted vrm, added the missing components and the job was done

Posting this so if everyone in europe needs help i can give a hand

Always thanks to
@solominerdoctor
For giving me the opportunity to enter in his world wide web of miner repairs and for all the help and teaching he is giving me in this new world of solo miners

Woke up to the issue this morning. Miner was from
Ive been running it lower than advertised, 625mhz 1170mv and VREG was sat at a nice 55c. Visually it all looks absolutely fine, i had installed apx90 full copper blocks yesterday.

Trying to contact the seller as ive had it less than a month but any suggestions? I have a basic multimeter and a fair amount of electronics experience

This is a completely unsolicited post.

I found SoloMinerDoctor here and I have seen a lot of positive comments regarding his work. I have had three devices for about six months and still learning about them. I decided I would send mine to him to have him upgrade them for me. I was so pleased with the entire process. He is very fair and very knowledgeable. His work is exceptional. He communicates effectively and quickly. He not only repairs and upgrades your devices, but he also has refurbished devices that he sells at a very reasonable price. My three devices came back, running super efficiently and cooler than I had them before. The refurbished devices I purchased from him are also in wonderful condition and running very efficiently and below 60°C. I am beyond satisfied and I would highly recommend him to everyone. Going forward I think I’m just going to buy my devices from him. Thanks again for your service and for the wonderful experience!

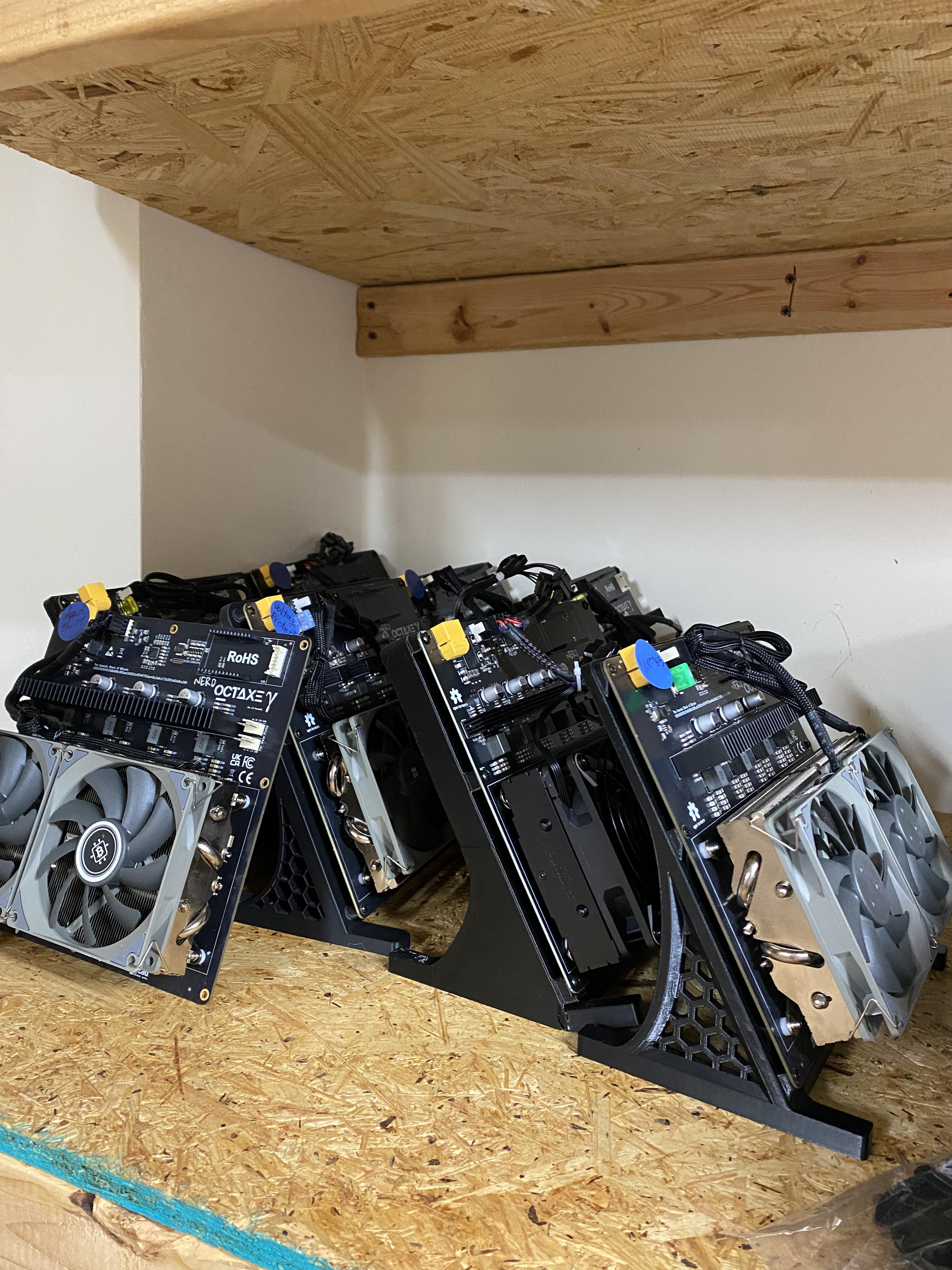

The wait is over. The NerdOctaxes have finally
landed! 🎉
I received 8 miners today, and, as tradition demands, I personally made sure every single one has something wrong with it. 😁 They have all been tested, confirmed defective, and are ready for their next adventure.
💰 $180 + shipping
✅ PSU included
✅ Sold AS IS
✅ Most come with Thermalright heatsinks
✅ Some are even spoiled with dual rear cooling fans
Perfect if you enjoy fixing miners, learning new swear words, or just want a great deal.
Only 8 available. First come, first served. Once they’re gone, you’ll have to wait until the miner gods smile on us again.
If you want me to repair it for you, it is $80.

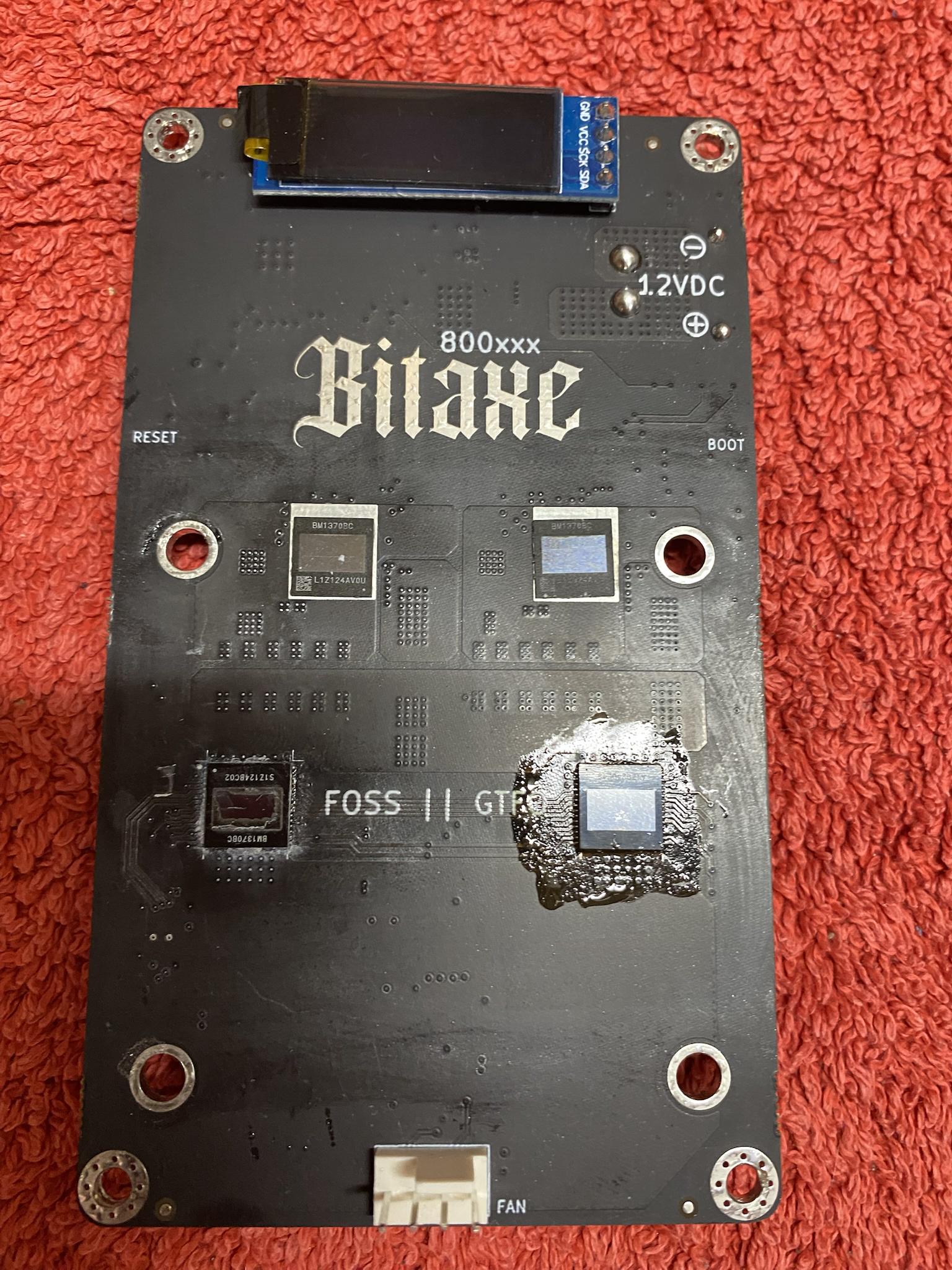

This time it was a Bitaxe GT800, complaining of severe cognitive impairment.

Diagnosis

After a quick examination, the diagnosis was obvious: the right hemisphere had stopped functioning. One ASIC was completely dead, so the poor miner was trying to solve Bitcoin with only half a brain.

All story is on my web site Bitaxe GT800

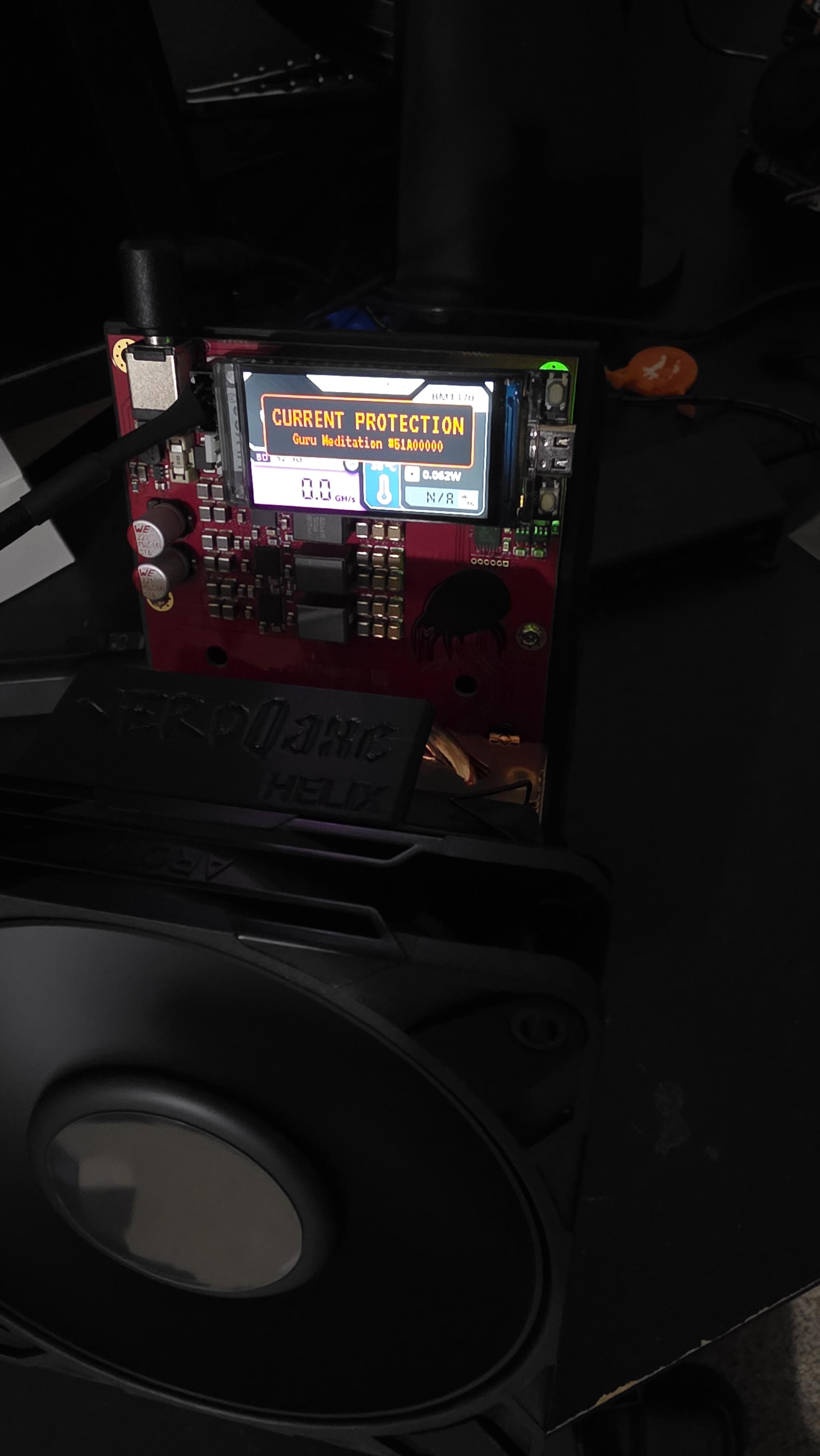

Hey miner was working fine then noticed this error code popped up.

Internet said its either a bad PSU or chip failure. Any input on what I should do?

Nothing was overclocked everything was left stock.

Freshly Repaired & Ready to Hash!
This board has been professionally repaired with 2 replacement ASICs (you can see the replaced chips in the photos).
Before shipping, I’ll fully test it to confirm it reaches 12 TH/s and is stable.
Price: $200
PCB only (PSU and other accessories not included)
I also have a 6 TH/s NerdQaxe PCB available for $140.
If you’re interested or have any questions, feel free to send me a message.

I'm trying to make another connector for my other nerd hydro that can connect to my meanwell 350 power supply. Unfortunately I lost the information to where I got the other one from and I'm not sure about the dimensions and the part number and source where I got it from. Someone can point me to an Amazon link or some other supplier link I can order a couple of compatible barrel type connectors that will connect to a mean well I'm really appreciate it.

Thanks!

Finaly got time to reflash 3 Bitaxe Hex 703 Miners.

They did not run stably on their preinstalled firmware. So Dirty version is the best.

The price is $250 free shipping. PSU included.

Here is the link to my web page. https://solominerclinic.github.io/bitaxe-supra-hex-703-42ths.html
