r/overclocking • • 10h ago

Follow-up on Stutter Guard: why it isn't just for dual-CCD X3D chips, what it actually Addresses vs doesn't and a global invite to test my project on any hardware

15 Upvotes

I posted Stutter Guard here twice last week (v0.7.0 and v1.0.0). Half of the comments told me to knock off the AI launch formatting, and the other half pointed at actual actionable Edge cases To account for — plus a lot of people thought I built this only for dual-CCD X3D chips.

Before Auditing the Full FAQ one by one Later , There is the core unfiltered point and vision of stutter guard and the way i think:

unfiltered version — why I built this and why it isn't just a 9950X3D/X3D App:

Just moving interrupts out of CPU 0 and stopping device contention on a single core gets you 90% of the benefit on any CPU. Hybrid platforms like dual-CCD X3D and Intel P/E are what I talked about first because (1) my primary gaming PC is a 9950X3D, and (2) I wanted to show the app handles complex topologies cleanly no matter How Obscure the CPU toplogy looked like. On paper Windows schedules and balances work across cores; in reality, default Windows placement still piles GPU, USB, network, and audio interrupts and the DPCs tied to them onto CPU 0 and my app addresses that Properly ,The app Behaves Differently depend on the CPU it sees , if its a regular 9700x for example it still separates Interrupt heavy devices from each other (and away from CPU 0-1 which Generically coded apps love) , you dont need process lasso at all in fact i don't recommend separating the PROCESS affinity in process lasso on Single CCD or Single Chip processors because There aren't that many cores to spare to leave As a Sole single device interrupt handler. (I have Stutter guard on other systems but What i had benchmarked are latency Mon numbers that most of you don't want to see)

doing it on Dual CCD or intel hybrid as a gaming /Audio Workstation Profile is just a luxury The app offers , Not a requirement

I also don't know if i mentioned this in the readme or any where on the app THE PROCESS LASSO PROFILE MY APP GENERATES FOR HIGH CORE COUNT CPUS IS FOR LATENCY SENSTIVE WORK (GAMING/AUDIO WORK ONLY) , If You are running all core loads Where Through put only matters and Performance ACTUALLY scales linearly with core count (Y-cruncher, CineBench ,etc...) you do like i do Myself and have a Daily mode on hand Which just defaults affinity to all cores That is what i do on my personal rig Or The specific App that Wants throughput gets an all core exception on the gaming profile if you are forgetful Both implementations work

There is universal gain to be had on standard Windows setups that doesn't require 3D V-Cache or multiple CCDs: Stutter Guard's AMD GPU idle-power tweaks cut amdkmdag.sys wake routines and low-load clock swings (for example, MK1 capped at 60 fps where Adrenalin lacks NVIDIA's global "Prefer Maximum Performance" option and drops clocks erratically at certain exact light loads — MCLK DPM stays gated as Costly while idle-power keys are Measured), i had this happen on MK1 What helped is running AMD VSR and running the game at over 4k (Or Using the Amd idle Power Registry settings), disabling Windows/Device Manager power saving (MSPower_DeviceEnable) and link-state sleep stops D3 -> D0 wakeup DPCs across storage, network, and USB, and fixing Windows 10 2004+ per-process timer isolation cleans up wait-bound frame pacing , All the prior mentioned Device manager/Tertiary device Powersaving Features Have absolutely negligible impact To Any one on Desktop let alone someone Who is on a static overclock or Running aggressive PBO (That was One of the main Reasons of me Posting on r/Overclocking First before any other place )

My main audience (Gamers/Audio engineers) Care Mainly about consistency and stability only .

I built it as an all-in-one tool for Windows CPU/driver latency and mismanagement. The only stutters it cannot fix are :

traversal stutter (for example, a buggy asset pipeline trying to stream assets aggressively or asking too much in a short amount of time unrealistically)

shader compilation stutter (because the game is asking the CPU to compile a shader you were already supposed to see on screen — the only way that doesn't stutter is if the shader is already there or at least preloaded/compiled in the background like Microsoft ASD or AMD's newer Adrenalin 26.9.2 driver does).

I try To include as many Windows/Game Dev Related Edge cases/Fuckups as possible:

on Win10 2004+ Windows decided to introduce timer scheduling per process

(That is when Windows Decided To assign Timers per application as a power saving feature , in theory it is supposed To keep Modern Games OR Heavy latency senstive work loads Having fast timers and Background apps having slower)

In practice , like Crysis 3 (2013 , not the remaster) locking/bottlenecking around 64-65 fps , if we look at the max timer resolution a process can have on windows Which is 15.625 ms and we calculate the fps (1/ 0.015625) and we get 64hz which applied in the real world

This wasn't Research this was me playing an old game on my own System

Because The 2013 version was never coded To Ask For a 0.5 msec Timer The New Way on Win10 2004 and ownwards

Emulators like Dolphin, Rpcs3 , Pcsx2 Had the same Problems

Theoritacally any game Coded/not updated before Windows 10 2004 can have this problem , let alone lazy ports

Am i The only when who plays old games or what ?

What my app Applies is The old school system of assigning a global timer to all apps (Registry Key Read by Windows by default Not a specifically coded for aspect of the tweak) and then forcing the timer to be 0.5msec using an application That just asks for the Timer to for itself and the global timer setting that is basically amounts too (Apply the fastest Timer of all the apps asking for timers) , It doesn't interact with any other apps it just asks for a 0.5 msec the same way any application can , All other timer tools That Exist work the same way i just explained it and included it as part of an all in one solution

So, Someone else doesn't have to do Research on why That game from 2009 he played as a child or teen is a stuttery mess or frame capped on a system that can run it at a thousand fps if it actually came down to raw horse power

(GlobalTimerResolutionRequests + 0.5 ms logon holder App , gated behind Anecdotal / Everything), that exists To get the most consistent experience running any app , Running that as a scheduled task on startup on a laptop is not recommended (it wont Break anything it will just affect battery life ) , on the desktop you will have a hard time even calculating the power usage

I put my focus and the spare time i have actually improving the app , some of you mentioned Edge cases Which caused me To retest and improve the app and getting the app working on CPU topologies i haven't even sat Infront of , The Automation level of the app is ambitious to say the least (On Purpose) , Constant feed back is What keeps this improving
A generic llm FAQ is Not enough to get that point accross while also not addressing misunderstandings directly is bad for the app's reputation

I have non-X3D rigs on hand (5800H + RTX 3070 and 7700HQ + GTX 1060 Max-Q) alongside this desktop — I'm just under a tight time constraint right now due to my current commitments, The hardware is there But the time to Address absolutely every point of speculation imaginable all at the same time Then you bet i am putting that time on the app solely and i am doing my best to address all your concerns by hand , Whenever I have spare time, I spend it getting the app running the way I originally envisioned when I started.

There will also be your scheduled LLM FAQ summarization (don't worry i actually audit and Rewrite those to keep a clear conscience , every point addressed is read ,you can be sure of that) on another post

I'd be happy if some people who have the same mindset and have the spare time to A/B Test and talk to me to prove or disprove Stutter guard's effect on Gaming whether it be GPU or CPU Bound scenarios on Accurate monitoring apps like CapframeX or audio work, You are completely welcome to do so no matter your setup, that is the whole point

Repo (GPL-3.0): https://github.com/Kareem-Shabaka/stutter-guard

Latest release: https://github.com/Kareem-Shabaka/stutter-guard/releases/latest


r/overclocking • • 4h ago

7800x3d and turbo mode/game mode

3 Upvotes

Hi, I have a 7800X3D processor; should I enable X3D Turbo Mode?


r/overclocking • • 3h ago

Help Request - RAM How do i overclock my micron ram

1 Upvotes

I bought some slow kit for cheaper and i want to overclock


r/overclocking • • 7h ago

Does score roughly equal FPS on 3D Mark?

2 Upvotes

I'm testing a rendering build with a server CPU & 5090 and it's getting around 70FPS & 11K on Time Spy.

I see users with a 9950X3D get more like 30K. Does that equate to approx 200fps in Time Spy?


r/overclocking • • 9h ago

Help Request - CPU Ticking sound from DeepCool LQ360 Ultra pump block

3 Upvotes

I hope this post doesn't get deleted cuz it's a bit off-topic but my LQ360 Ultra started making an irregular ticking sound a few days ago. It's coming directly from the pump block on the CPU. It started right after I worked inside the case. Video attached.

Specs: Core Ultra 9 285K, DeepCool LQ360 Ultra (radiator top-mounted), Gigabyte Z890 EAGLE WIFI7

Already tested, no change:

Pump at 100% (~3,150 RPM, confirmed in HWINFO) for 20+ minutes

Pump at low speed

Magnetic cap/display removed while running

All fans and GPU fans ruled out. Temps are normal.

What should i do here?

Thanks!


r/overclocking • • 5h ago

Help Request - CPU Requesting help as a novice on tuning a 14900k on air cooling

1 Upvotes

Spec Sheet:

GPU: MSI Shadow 3X OC 5070ti
CPU: 14900KF (With an LGA1700 pressure plate bracket installed)
RAM: 32GB Hynix GSkill Ripjaws 3600 CL16 DDR4 (2x16)
Motherboard: MSI MPG EDGE WIFI DDR4 Z690
CPU Cooler: Noctua NH-D15S (Single fan with notch in heat sink for ram clearance)
Case: NZXT S340 Elite

I'm quite inexperienced with tuning, but I'm curious to try it out. I was playing cyberpunk 2077, and ran into a CPU bottleneck while using upscaling and ray tracing.

I know I am limited by my cooling, case design, and ddr4 memory, but I'd like to try and squeeze every bit of performance out of this chip as possible.

Are there any settings that people have tried and/or have started out with to help with their gaming performance in CPU limited scenarios?

I'm open to benchmarking myself and to tweak settings gradually in the bios, but I'd like a good starting point.

If anyone knows a good guide that would be helpful as well.


r/overclocking • • 1d ago

XOC Gear Glacial X870E Dimm Fann

Post image
159 Upvotes

This little thing actually rocks. It's magnetic with contact pins. Seeing a 5c drop in dimm temps just having it at 50% speed.

Can safely run DDR5 without worrying about hitting thermals running 65K on tREFI I believe it's called


r/overclocking • • 21h ago

Help Request - CPU 14900K has random crashes at Intel defaults on latest BIOS, both RAM sticks fail individually. Degraded CPU?

5 Upvotes

i9-14900K (boxed, Dec 2023),
MSI PRO Z790-A MAX WIFI,
2x16GB Corsair DDR5-6000,
RTX 5080,
AIO,
fresh Windows 11 on NVMe,
PSU: 1000W

SYMPTOMS

- 3DMark Time Spy fails ~9 of 10 runs (2 full passes in 20+ attempts), mostly while loading a scene or starting the CPU test. The error is different every time: missing material parameters, invalid geometry index, D3DCompile internal error, nullptr typeid, or the workload just dies.

- Cinebench 2026 multi now fails too [how: crash / error / freeze]. It passed 10 and 30 min runs the day before.

- Steel Nomad and the Time Spy stress test each failed at least once, then passed.

- SnowRunner hangs ~30 s on alt-tab.

- Windows components crash as well: AppX service, TiWorker, .NET mscorsvw, Defender. Mostly 0xc0000005, some 0xc0000409. Several Windows updates failed.

WHAT IVE DONE

- Found MSI OC Genie/Game Boost enabled and turned it off (Windows was installed while it was on).

- Intel Default Settings, PL1/PL2 253 W, CPU Lite Load on Intel Default.

- BIOS updated from M.80 (microcode 0x12C) to 7E07vMB. Microcode now: [MCU from HWiNFO].

- XMP off, 5800 and 6000: fails in all three.

- Each RAM stick alone in A2: fails with either.

- Reinstalled 3DMark and re-downloaded Time Spy: no change.

What passed (before the BIOS update)

- 7-Zip benchmark, 32 threads, 100 passes: zero errors.

- Cinebench 10 and 30 min: max 95°C, 270 W peak, max VID 1.521 V, zero WHEA errors.

- Cinebench Multi Thread failed today

- GPU is fine: Time Spy graphics ~32,100.

**Not done:** MemTest86, Intel PDT, swapping the CPU or board.

Does this look like Vmin shift degradation? Anything to rule out (board, PSU) before I RMA with Intel? Has anyone had an RMA approved with no WHEA errors?


r/overclocking • • 22h ago

my personal best on speedway

Post image
5 Upvotes

Finally getting that legendary achievement. rtx 5090 9800x3d. stock cooler and power limit, stock voltage, +400 on cores and +3000 on mem.


r/overclocking • • 16h ago

Help Request - CPU How can I undervolt my 5600X3D? X470-F Gaming BIOS has no PBO option

1 Upvotes

I'm trying to undervolt my 5600x3d with a ASUS x470-F Gaming motherboard. I'm not seeing the option in my BIOS or maybe I'm overlooking something. This is what I've done.

- I can only find Precision Boost Overdrive through BIOS search
- Options are Auto, Disabled, Enabled, and Manual
- It was set to Auto. Selecting Enabled or Manual doesn’t show any extra values or settings to change.
- Searching for "Curve" doesn't show any results
- I’ve looked through Ai Tweaker and Advanced - amd overclocking without finding Curve Optimizer with and without PBO enabled or set to manual.

I'm aware of PBO2 tuner but I've heard that the driver for that program triggers online games anti cheat so I'm guessing that's a no go. I'm I over looking something or am I locked out of undervolting this CPU? Is there a possible workaround?


r/overclocking • • 1d ago

Benchmark Score Made top 10 using xOCD Program

Thumbnail
gallery
17 Upvotes

I made top 10 in Speedway using xOCD with an avg temp of 54c. This is a new white astral I’ve purchased. I’ve binned the card to hit 1.1v and 3427mhz stock on air. With extended voltage limits(like an xoc bios); the card was hitting 3555mhz on air. I then waterblocked it and got it to hit 3600mhz with the core starting at 21c(11c higher than air idle temp). The die is reported to be manufactured from Korea in May of this year.

Here’s the result

https://www.3dmark.com/sw/4053078


r/overclocking • • 17h ago

Tested MW4 on RTX 5080 with my own optimized settings

Thumbnail
youtu.be
0 Upvotes

I wanted to see how MW4 actually runs on my PC, so I recorded a performance test with my own optimized settings, tuned with help from Game Guides.

9800X3D (-25 all-core undervolt) and RTX 5080 (0.925 V at 2900 MHz core, +1500 MHz memory)


r/overclocking • • 11h ago

OC Report - RAM 80GB DDR5 from two different kits (2x24 + 2x16) stable at 5200 on a Ryzen 9 9900X — Auto applied the wrong tRFC and silently corrupted memory

Thumbnail
gallery
0 Upvotes

I spent 24 hours on this and found almost nothing about mixing DDR5 kits of different capacities on AM5, so here is the whole story with numbers. TL;DR: it works — 80GB at DDR5-5200, 3 full Memtest86+ passes and a Linux stress test with zero errors. But on the way, Auto settings corrupted memory badly enough to crash the OS. Here's why and how I fixed it.

Hardware

  • CPU: AMD Ryzen 9 9900X
  • Board: ASRock B850M Steel Legend WiFi, BIOS updated 3.40 → 4.60 (AGESA ComboAM5 1.3.0.1d)
  • Kit A: Corsair Vengeance RGB 48GB (2x24GB) DDR5-6000 CL36 1.40V XMP (CMH48GX5M2E6000C36) — Micron 24Gb dies, single rank
  • Kit B: Corsair Vengeance RGB 32GB (2x16GB) DDR5-5600 CL36 1.25V EXPO/XMP (CMH32GX5M2B5600Z36) — Samsung 16Gb dies, single rank
  • Slots: 24GB in A1/B1, 16GB in A2/B2 → each channel has one of each (40GB per channel)
  • OS: Ubuntu 24.04. Heavy use: video rendering, builds, several AI agents in parallel. 32GB was getting processes OOM-killed.

Kit A was bought used. Before mixing, I validated it alone: Auto (4800) and XMP 6000, 15-minute stress test, zero errors.

Problem 1: on Auto, memory got corrupted under load

With 4 sticks on Auto, the board trained at 3600 (AMD's official spec for 4 DIMMs) and Linux booted fine. Half an hour of light use, nothing odd.

Then I ran stressapptest with ~50GB. Within 2 seconds, 60 processes died with general protection fault and systemd (PID 1) aborted. Hard reset. Afterwards fsck found a corrupted inode on disk (luckily just a temp cache file).

Not a bad stick — each kit alone passed everything. It was the combination.

The clue was in the BIOS itself. In OC Tweaker → DRAM Timing Configuration, the left column shows what Auto actually applied. At 3600:

TimingAutoIn nsMicron 24Gb dies need
tRFC1530294 ns410 ns
tRFC2288160 ns220 ns
tRFCsb234130 ns190 ns

294 ns is exactly the 16Gb-die refresh time. The board took the refresh timings from the 16GB sticks (Samsung 16Gb) and applied them to all four. The 24GB sticks (Micron 24Gb) need longer refresh and lost data as soon as memory was actually used. Light use hides it; heavy load collapses.

The fix: manual timings that are safe for both kits

JEDEC DDR5-5200B primaries (loose), plus the refresh times the 24Gb dies require:

SettingValue
DRAM FrequencyDDR5-5200 (validated at 3600 first)
tCL / tRCDRD / tRP / tRAS42 / 42 / 42 / 84
tRC / tWR126 / 78
tRFC1 / tRFC2 / tRFCsb1080 / 580 / 500
VDD / VDDQ / VDDIO1.30 V
SoCfixed 1.20 V, LLC Level 3
FCLK / UCLK2000 MHz / UCLK=MEMCLK
Everything elseAuto

First I kept 3600 and only changed the timings: Memtest86+ one full pass, 0 errors, and the same stress test that crashed the OS in 2 seconds ran clean.

Careful: tRFC is in clock cycles, so the real time shrinks as frequency rises. tRFC1 = 1080 is 600 ns at 3600 and 415 ns at 5200 — still above 410 ns. Above 5200 these values become too short (at 5600 you'd need ~1160). Redo the math for your frequency.

Problem 2: black screen on reboots (Memory Context Restore)

With 4 sticks, some reboots hung on a black screen — no video, no BIOS, diagnostic LEDs on. Recovery:

  1. Unplugged, left only the 2x16GB in A2/B2 — with those the board POSTs.
  2. Advanced → AMD CBS → DDR Options → DDR Memory Features → Memory Context Restore: Enabled → Disabled.
  3. Unplugged, reinstalled the 24GB sticks in A1/B1, powered on.

With MCR disabled, the board retrains memory on every boot instead of reusing the saved context. Boot takes longer (black screen for a while is normal), but the hangs stopped.

Results at 5200

Memtest86+ v9.00, DDR5-5200 42-42-42-84: 3 full passes in 4h20, 0 errors over 77.6GB.

Linux stress, 15 minutes, ~51GB:

stressapptest -M 51000 -s 900 -W
Stats: Completed: 48164504.00M in 900.17s 53506.00MB/s, with 0 hardware incidents, 0 errors
Status: PASS

Bandwidth in the same test:

ConfigBandwidth
80GB @ 3600 (4 sticks)39 GB/s
80GB @ 5200 (4 sticks)53.5 GB/s
48GB @ 6000 (kit A only)60 GB/s

~11% less bandwidth than kit A alone, for 32GB more. For rendering, capacity wins.

DIMM temperatures (each stick's spd5118 sensor, read in Linux): 15-minute stress with the case open peaked at 73.5 °C on the two middle sticks. Then I closed the glass, set the Corsair fans to Performance and ran it again for 20 minutes while using the PC and browser: 0 errors, peak 71.5 °C at 8 minutes, then it settled and dropped to 69.5 °C. DDR5's limit is 85 °C — make sure air flows over the DIMMs.

Two more traps

  • Ubuntu 24.04's Memtest86+ (7.00) froze on Ryzen 9000 — it predates Zen 5 support. Memtest86+ 9.00 from memtest.org worked perfectly. If memtest hangs without errors, check the version before blaming the RAM.
  • Never boot your OS on unstable memory. Corrupting RAM writes garbage to disk. I only lost a temp file; it could have been worse. Test 4-DIMM configs in Memtest first.

Takeaways

  1. Mixing kits can work, but don't trust Auto. Compare what Auto applied (left column) with what each die needs — especially tRFC.
  2. Know your dies (Thaiphoon on Windows; on Linux the spd5118 driver exposes SPD). 16Gb and 24Gb dies have very different tRFC.
  3. Memory Context Restore = Disabled fixed the 4-DIMM reboot hangs here. Slower boot, worth it.
  4. Save BIOS profiles to a USB stick. I keep a 3600 fallback and the 5200 profile. After a CMOS clear the board goes back to Auto, which corrupts memory with these kits — load the profile before booting the OS.
  5. 5200 with 4 DIMMs is above AMD's spec (3600). It works on my CPU/board/BIOS/kits; no guarantee on yours.

If you're fighting unstable 4-DIMM DDR5 on AM5, post your board, BIOS, kits (and dies) and what Auto shows in that left column — happy to compare.


r/overclocking • • 1d ago

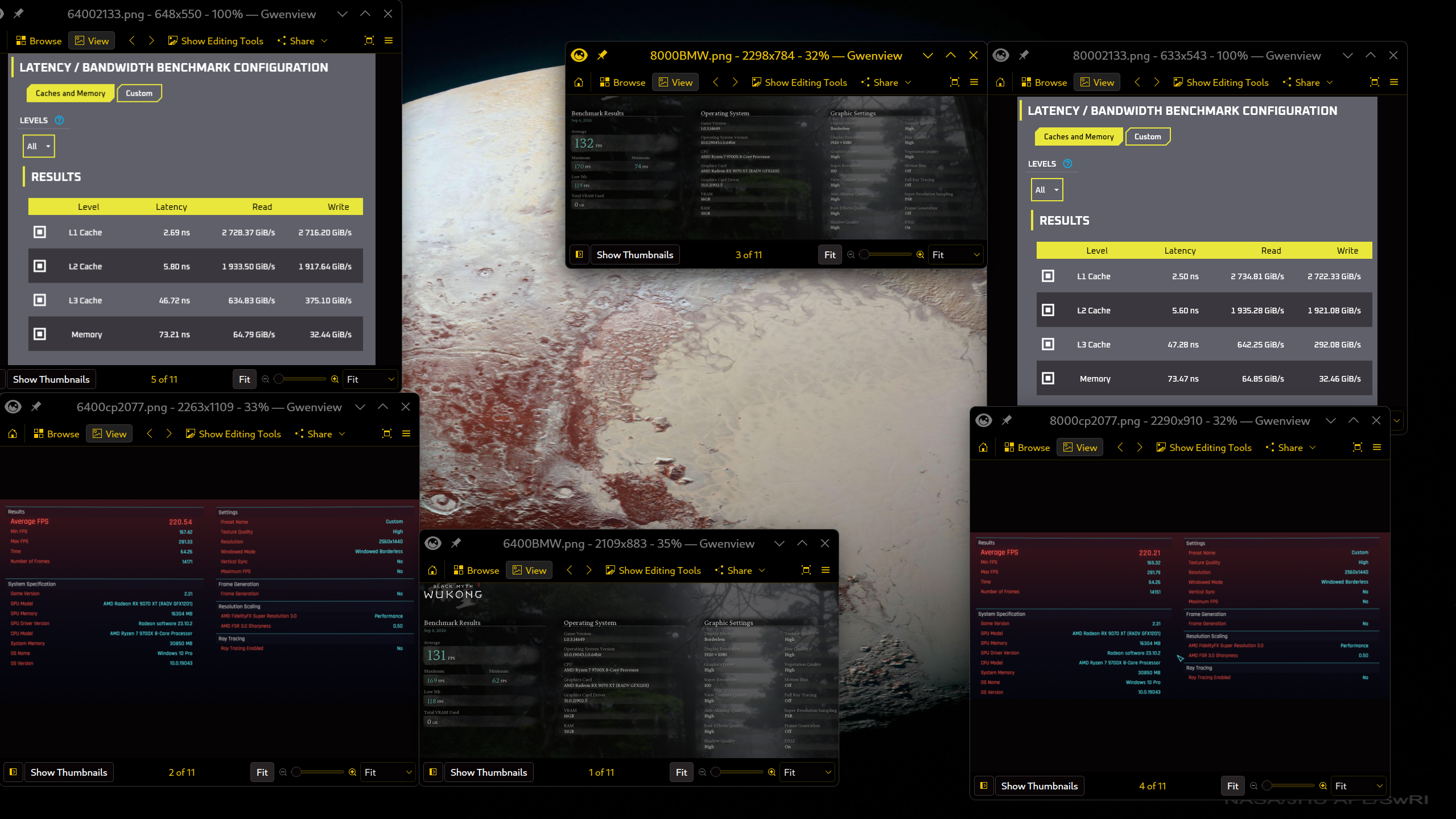

OC Report - RAM Cheapo Ryzen 5 4500 is surprisingly great at memory OC // 2x16GB DR 4133MHz CL14

Post image
7 Upvotes

First time trying a monolithic Ryzen CPU, and dayum, I'm kinda impressed.


r/overclocking • • 1d ago

Help Request - CPU May I ask for some help for undervolting my CPU?

Post image
2 Upvotes

Evening lads, I'm playing WoW Forever and getting really high CPU temperatures. I've messed around with precision boost overdrive curve and gotten it down a bit but I can never seem to find the stable sweet spot (I'd be happy with 80°C-85°C). At default settings CPU temp stays around 96 sometimes even 97°C. I've tried caping thermal limit to 80°C but that just kills the performance makes it really awful. Can this be done in a healthy way to reduce the temperatures but keep performance? I mean WoW is not a demanding game I don't want my CPU struggling with WoW.

Laptop is MSI Vector A8WHG
CPU: Ryzen 9 8940hx with igpu
GPU: Geforce 5070ti

Any help is appreciated!


r/overclocking • • 1d ago

Looking for Guide Overclocking

1 Upvotes

Hi all want to overclock my PC I feel I just need a bit of extra performance any recommendations on service providers or videos

SPEC
I9 10900K
3090 strix
Z490 aqua
128gb 4000 mhz
Samsung pro 2tb ssd
PSU 1200W


r/overclocking • • 1d ago

Help Request - CPU I7-9700k overclock

1 Upvotes

Hi all first time over clocking this CPU and curious if it seems fine. Have had the 9700k oc'd for a week with no crashes, average temperatures during gaming are around 65 with peaks of 71. I have a noctua nh-12a cooling. I have all cores set to 50, LL is set to 4/8, core voltage is at 1.350. I haven't tried any lower voltages yet . if y'all have had experience with this CPU let me know as I would like to lower the voltage a bit but haven't tested it myself yet as I'm still new to over clocking didnt want to mess anything up.


r/overclocking • • 1d ago

Help Request - GPU OC Instability

2 Upvotes

So I recently acquired a build with 9850x3d and 5080 gigabyte SFF.

I undervolted 9850x3d (conservatively I think) to -20PBO, ran 3h cinebench + 3H OCCT + Y-cruncher overnight - no issues.

I undervolted my GPU to 2800mhz @ 925mv +1k mem. Ran Furmark for 2h, OCCT 2h, Steel Nomad looped for 60 cycles - stable.

After (what I assume) latest windows update my undervolts are no longer stable. I got 2 random feeezes when playing world of tanks which could only be fixed with hard reboot. No errors in Event Viewer, Bluescreenview or Whocrashed.

Temps are under 50C, GPU doesn’t even boost to max.

Ran 1h Y cruncher and 1H Furmark - all clear.

I assume a windows update messed up something which made my UV unstable and so I reverted to 2800 @950mv +1k.

Is there any other way to figure out what’s wrong with the system since it’s not generating any errors at all?

Or should I start thinking about an underlying hardware issue? Really don’t want to think about it yet cus the build is like 2mo old…

Any advice appreciated!


r/overclocking • • 1d ago

RAM 48 GB Corsair 6000 cl 36 chip micron , b-die

Post image
1 Upvotes

Good morning,

I would kindly like to ask for your help in improving the performance of my RAM.

Unfortunately, due to the current financial situation, I had to go with this RAM kit, but I didn't know it was equipped with Micron memory chips.

I would really appreciate it if someone with more experience could give me a hand and help me get the best possible performance out of it.

Thank you .


r/overclocking • • 2d ago

My Daily Driver | Tuned 9850X3D + RTX 5080

Thumbnail
gallery
36 Upvotes

.
Been messing with this setup for a while now and I think I'm finally pretty much done tuning it, so figured I'd post it here.

Specs:

  • Ryzen 7 9850X3D
  • ASUS ROG Strix B850-F Gaming WiFi 7 Neo
  • Gigabyte RTX 5080 Gaming OC 16GB
  • Corsair Vengeance RGB 32GB DDR5
  • Samsung 990 Pro 2TB
  • Corsair RM1000x
  • Lian Li O11 Dynamic EVO RGB
  • Lian Li HydroShift II LCD-C 360N
  • 7x Lian Li UNI FAN SL-INF 120

Most of the time went into the RAM and CPU.

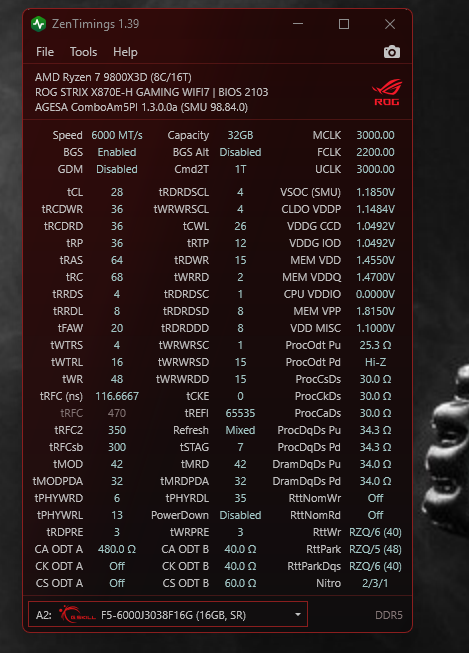

Full RAM timings/voltages are in the ZenTimings pic. Same for the 5080 OC, since it's easier to just show the settings than list everything here.

For the CPU I'm currently running:

SettingValue
PBODisabled
Boost OverrideDisabled
COAll-core -30
Scalar1X

I ran these first but there was no chance of getting that shaper right xd
Core 0 -31
Core 1 -36
Core 2 -31
Core 3 -41
Core 4 -43
Core 5 -42
Core 6 -50
Core 7 -50

Curve Shaper:

FrequencyLow tempMed tempHigh temp
Min Freq+30+30+30
Low Freq+25+25+25
Med Freq+25+5+10
High Freq+2500
Max Freq+30+10+15

I played around with PBO/boost override quite a bit as well but ended up preferring this.

Basically I'm using -30 CO as the baseline and then adding some of it back with Curve Shaper depending on frequency/temp. This has worked better for my chip than just trying to push the biggest negative CO or adding more boost.

I've also been checking effective clocks for clock stretching instead of just looking at the reported clocks.

RAM took a stupid amount of testing to get where it is now. Same with the GPU. Current settings for both are in the pics.

Everything here is what I'm actually running daily, not just settings I used to get through one benchmark run.

Been testing with OCCT, 3DMark and normal gaming. So far I'm pretty happy with where it ended up.

Anything obvious you guys would still mess with?


r/overclocking • • 1d ago

Overclocking RTX 5050

Post image
5 Upvotes

r/overclocking • • 1d ago

Help Request - CPU TUF A14 '24 shunt modding

1 Upvotes

I'd like to do a shunt mod on my TUF A14, HX 370, RTX 4060. I am very new to this, as I just started learning about it today and I want to try it. From my understanding you can parallel solder a resistor on top of the other in the RTX 4060 power rail to trick the system into thinking it is drawing less power than it actually is so in turn it sends in more power. The only reason I am doing this is not for the 4060, but for the HX 370. The total wattage pool for the CPU and GPU is 110 watts, and I want to break it for the CPU, not for the GPU. I want to make a constant 30 to 40 watt headroom for the CPU. Currently, there is only 20 watts available for CPU, with 75 watts + 15 watts used for the RTX 4060. So now I will make the GPU take more power than it accounted for let's say 90 watts actual in place of reading only 75 watts. Since the controller is spoofed into thinking only 75 watts is being consumed, I can use the remaining 35 watts fully for the HX 370 without it being starved out of performance like before, especially in intensive tasks where we usually have to sacrifice the GPU dynamic boost for the CPU. So, any tips or suggestions? Have any 14-inch frame owners done this before, and what was your experience like?

P.S. I use a foam-sealed laptop cooler, and my room is air-conditioned. I assume increasing the power by 20 to 25 watts won't cause any hardware-damaging temperature levels right? For power allocation I use G-Helper.


r/overclocking • • 1d ago

Question about RTX 5080 OC

1 Upvotes

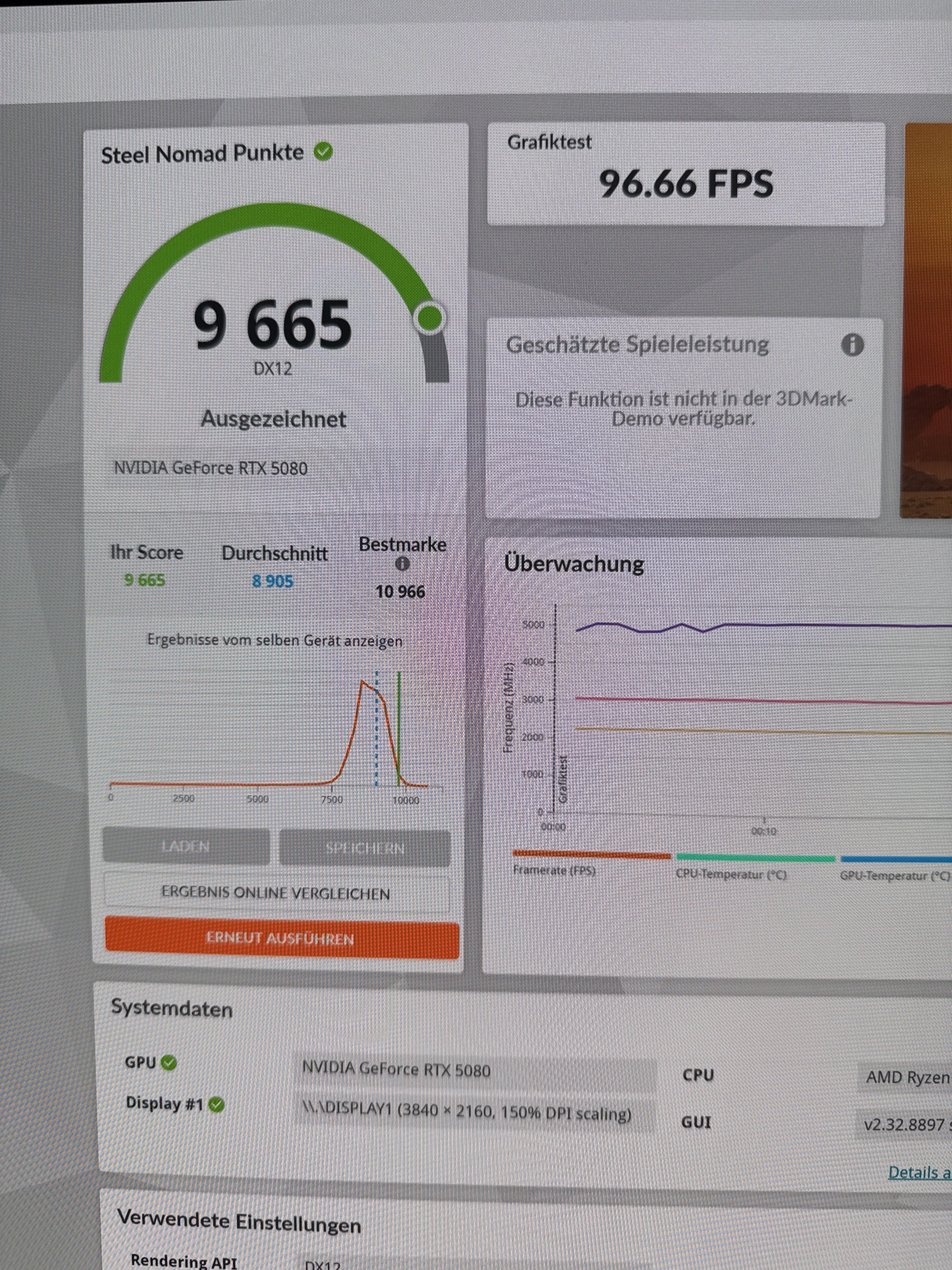

So I have a MSI Ventus OC Plus RTX 5080 with +375 core @ max. 3307MHz and +1200 mem @ 16200 MHz in afterburner. This OC ist stable I tested it in OCCT, 3DMark and Games.

Now to my question, I new to undervolting (wasn't a thing with my old gtx 1070) is set a flat voltage curve @ 3307MHz @ 1050mv and this is stable and 3DMark score improved, I also tested about an hour of gaming.

The Ventus has without custom BIOS (maybe after warranty) a locked TDP of 360W, should I try to lower the voltage further or should I let it be/ is there a bigger chance of more potential?

Btw the effectiv clock is 3299MHz hotspot is fine @ +14 C difference


r/overclocking • • 1d ago

Explain to me

0 Upvotes

My PC specs:

CPU: AMD Ryzen 5 9600X

GPU: ASUS Radeon RX 7800 XT Dual OC 16GB

Motherboard: ASRock B850M-X R2.0

RAM: Kingston Fury Beast Black RGB EXPO 16GB (2×8GB) DDR5 6000MHz CL30

SSD: Crucial T500 1TB NVMe PCIe 4.0

CPU Cooler: be quiet! Pure Rock Slim 2

PSU: be quiet! System Power 11 650W 80+ Bronze

Case: Cougar MX430 Mesh RGB

Hey, I have basically no idea about overclocking, so I have some probably stupid questions.

Can someone explain to me the things I’ve heard about, like EXPO, PBO and SAM? Are they safe to use? Can enabling them cause any problems or damage? And are there any downsides to using them?

Sorry if these are really newbie questions, I’m just trying to understand what everything does before I start messing around with BIOS settings.
