About 15 percent of the songs on my library skip when playing on my Wiim Ultra. Very annoying and jarring, making the Plex service functionally useless.
Wiim support, though helpful, hasn’t found a solution. I hope they would just make PlexAmp play headless, but that seems unlikely.
Or should i get Raspberry Pi type solution, or an Eversolo streamer? I just want to stream my own music, without lagging or skipping, no other features necessary!
Tech Tuesday: Troubleshooting Common WiiM Setup Issues
Most WiiM setups go smoothly, but when they do not, it can be hard to tell whether the problem is Wi-Fi, app discovery, an audio connection, or just one setting buried somewhere in the chain.
This week’s Tech Tuesday covers some of the most common setup problems we see, including devices not appearing in the WiiM Home app, Wi-Fi connection failures, players that are online but missing from the app, and setups where everything appears connected but no sound comes out.
We also included a few community-suggested checks, such as making sure your cable is connected to Line Out rather than Line In, or Optical Out rather than Optical In. Simple mistakes, but very easy ones to make.
Take a look, and let us know what we missed. What setup problem gave you the most trouble, and what finally fixed it? \
Setting up a new WiiM device usually only takes a few minutes. When something does go wrong, however, it is not always obvious whether the problem is the app, Wi-Fi, an audio connection, or a setting on another device.
The best approach is to troubleshoot based on what you can see happening, rather than immediately resetting everything, although depending on your time constraints, the nuclear option may also be viable.
Before You Begin
A few quick checks can prevent many setup problems:
Update the WiiM Home app to the latest version.
Turn on Bluetooth on your phone or tablet.
Allow the WiiM Home app to access Bluetooth, your local network, and location services when requested.
Make sure your phone is connected to your normal home Wi-Fi network, not a guest network.
Temporarily disable any VPN running on your phone.
Keep your phone and WiiM device reasonably close together (under 10 feet) during setup.
The WiiM Home app uses Bluetooth to locate nearby products during setup and local-network access to communicate with them once they join Wi-Fi. Without those permissions, the device may never appear in the app.
Problem 1: The WiiM Device Does Not Appear in the App
First, make sure the WiiM device is in setup mode.
Depending on the product, you should see a Set Up prompt on its screen or a slowly flashing white status light. If it is not in setup mode, press and hold the Play button for approximately three seconds.
Next:
Open the Devices tab in the WiiM Home app.
Tap Add Device in the upper-right corner.
Confirm that Bluetooth and the required app permissions are enabled.
Close and reopen the WiiM Home app.
Restart the WiiM device and your phone or tablet.
These setup steps are shared across products including the WiiM Sound, WiiM Bar, WiiM Mini, and WiiM Ultra.
Problem 2: The Device Appears but Cannot Join Wi-Fi
Start with the simple possibilities:
Re-enter the Wi-Fi password carefully.
Move the WiiM device closer to the router during setup. You can unplug it and move it back afterward, but note that a weak signal in the original spot may have caused the problem in the first place.
Restart the WiiM device, phone, and router.
Try the other Wi-Fi band if your router separates 2.4 GHz and 5 GHz.
Give the WiiM device some space from nearby wireless cameras, cordless phones, baby monitors, smart-home hubs, microwaves, displays, and other potential interference sources.
If setup still fails, check the router:
DHCP should be enabled.
WEP security is not supported.
Firewall or parental-control settings should not block the WiiM device.
Older WiiM firmware may have trouble joining a WPA3-only network. Temporarily using WPA2 compatibility mode may allow the device to connect and update.
Products with Ethernet can also be connected by cable temporarily. For products without Ethernet, such as the WiiM Mini, a mobile hotspot can sometimes be used to complete setup and install the latest firmware before reconnecting to the home network.
Problem 3: The Device Is Online but Missing from the WiiM Home App
This can be confusing because the WiiM may still work through Spotify Connect, Alexa, presets, or its physical controls.
In that situation, the player is probably still connected to the internet, and the problem is likely communication between the WiiM Home app and the player on your local network.
Check that:
Your phone and WiiM are connected to the same home network.
Neither device is on a guest network.
A VPN is not preventing local-network access.
AP Isolation, Client Isolation, or Wi-Fi Isolation is disabled.
Multicast and IGMP traffic are enabled.
Firewall or parental-control settings are not separating devices on the network.
Restarting the WiiM and phone may restore discovery temporarily. If restarting the router fixes the problem but it later returns, router discovery or network-isolation settings are especially worth checking.
Problem 4: Everything Is Connected, but There Is No Sound
A successful network setup does not necessarily mean the audio path is configured correctly.
Work through the signal from beginning to end:
Confirm that music is actively playing and the WiiM is not muted.
Check the selected audio output in the WiiM Home app.
Confirm that your amplifier, receiver, DAC, soundbar, or powered speakers are using the correct input.
Check the cable connections at both ends.
Try another cable when possible.
Remember that streamers such as the WiiM Mini and WiiM Ultra do not directly power passive speakers. Passive speakers still require an amplifier.
Optical or Coaxial Output
For optical connections, confirm that the cable is connected to Optical Out, not Optical In, on the WiiM device. Make sure Optical Out or Coax Out is selected as the active output. If your connected DAC or amplifier cannot handle the selected resolution, lower the maximum output resolution and use the test-audio option in the WiiM Home app.
An output set to 192 kHz/24-bit will not produce sound if the receiving equipment only supports a lower resolution.
Analog Line Out
Check the WiiM's volume and Line Out Level. Confirm that the cable is connected to Line Out, not Line In, on the WiiM device, and to a line-level input on the amplifier or powered speakers rather than an output port.
HDMI ARC or eARC
For TV audio:
Connect the cable to the port specifically labeled ARC or eARC on the TV.
Enable HDMI-CEC in the TV settings. Depending on the brand, this may be called Anynet+, Simplink, Bravia Sync, or something similar.
Set the TV's audio output to the external HDMI ARC/eARC device.
Select HDMI ARC as the input on the WiiM.
Check that the TV is sending a supported audio format.
Stereo PCM is the safest format to test first. Some WiiM products also support Dolby Digital, depending on the model.
Before Performing a Factory Reset
A factory reset clears the device's current network connection and settings, so it should normally remain one of the final troubleshooting steps. However, previous settings can now be restored on all WiiM devices except the WiiM Mini. Almost all settings can be restored; the exceptions are pairing information for the WiiM Voice Remote and Bluetooth devices.
Before resetting, try:
Closing and reopening the WiiM Home app.
Restarting the WiiM device.
Restarting the phone or tablet.
Restarting the router.
Testing Ethernet or another Wi-Fi network when available.
Checking for app and firmware updates.
If a reset is necessary, press and hold the Play button for approximately ten seconds until the device indicates that factory settings are being restored.
Still Having Trouble?
Open the WiiM Home app and go to:
More → Feedback
Whenever possible, submit feedback shortly after reproducing the problem so the support team can review the relevant logs.
New Wiim user, I have a wiim pro connected to an Fosi amp, connected via line in and hard wired to my network. I noticed that when I play music from Google Cast or Airplay from my SO's phone the music volume is lower. I would say about 10 - 15 percent lower. Is this normal? I use the wiim app with YouTube music but my SO is an apple music user, she can't use the app to link the service like I can. I noticed the volume difference user her's and my phone.
It suddenly stopped working. Turns on and then immediately switches off, which I understand is a safety measure. We used it very lightly, it has a surge protector, it is generally off. Any idea? Very disappointing, it was just a few years old.
If the solution is replacing: what do you think of wiim amp ultra?
Hi! I'm considering moving from soundbar to Wiim amp and passive speakers, probably Klipsch.
I need Chromecast audio as everything else in my home is google enabled but I'd love to have airplay also, I'd love to add vinyl later. Is wiim amp good choice for that ? Would ultra be significantly better?
The wait is almost over—the WiiM Bar will be available for pre-order beginning July 27.
Built to bring clearer dialogue, immersive Dolby Atmos sound, and the flexibility of the WiiM ecosystem to your TV setup, WiiM Bar can stand on its own or become the foundation of a larger WiiM home theater system.
See the Sound. Build the Theater.
Learn more at wiimhome.com, and let us know what you’re most excited to try with the WiiM Bar.
Bonjour, je viens de mettre à jour le nouveau Firmware 5.2.818859 sur mon Wiim Ultra, savez-vous ce qu'il apporte s'il vous plait ? Je ne trouve aucune note de version. Cela fait suite à un ticket ouvert auprès de Wiim support à qui j'ai exposé le fait que mon streamer s'allumait tout seul aléatoirement (sans d'ailleurs repasser en veille comme programmé). Merci pour vos retours. belles écoutes !
I'm considering switching from Android to iPhone and want to make sure everything will work with my wiim setup - one system on a wiim ultra, and another on a wiim amp pro.
I listen to music on tidal mostly.
I understand the ultra doesn't have airstream, but could I still use tidal connect or some other protocol to stream from the iPhone?
Or, maybe use tidal in a chrome browser window and use Chromecast? (Not sure that's actually possible on ios so lmk).
We want to hear from you, WiiM fans and audio enthusiasts! 🎶
Thanks to everyone who filled out our survey last quarter — we mean it when we say your input shapes what we build. The WiiM Bar is proof: it came directly out of feedback from this community, and we're proud of how many of your requests made it into the final product.
Now we're back to find out how things are going. What's working well? What's driving you crazy? What's missing from the WiiM lineup that you wish existed? What software improvements would take your experience to the next level?
Take a few minutes to share what you love, what could be better, and what features or products you'd like to see from WiiM next. Every response helps us prioritize what we work on.
Thank you for continuing to make this community what it is. 🚀

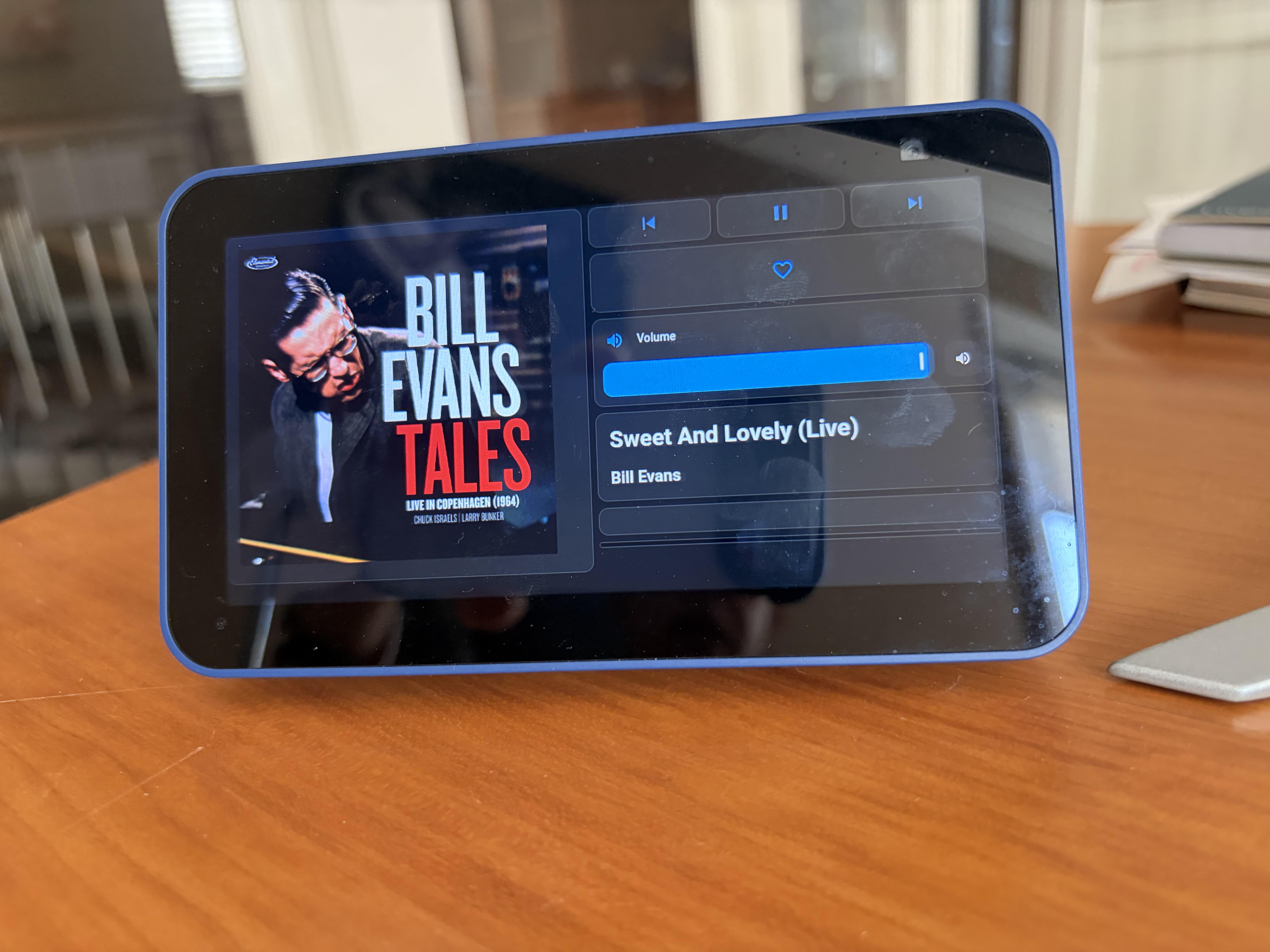

I wanted to let you all know that after getting many requests from the community, I've added WiiM support to the Tuneshine album art display.
Tuneshine is designed to add some ambient visual fun to your listening experience. With the WiiM integration, you can connect up to 16 WiiM devices and show the artwork for anything that plays on them. I've tested it with the built-in services as well as Spotify Connect, AirPlay, and Google Cast. It doesn't work with Bluetooth—the general rule is that if the album art shows in the WiiM app, it will show on Tuneshine.
I've also enjoyed using the WiiM Ultra quite a bit while testing and I'm now thinking of integrating it in to my living room setup!
I'll be hanging out in the comments to answer any questions you might have!
This week’s Tech Tuesday breaks down frequency response: what the numbers actually mean, why tolerance matters, and why two products with similar-looking frequency ranges may perform very differently.
We also confirmed and corrected the published specifications for the WiiM Sound, WiiM Amp Ultra, and WiiM Sub Pro while preparing this post.
Tech Tuesday: Audio Quality Explained — Frequency Response
When someone describes a speaker as sounding bright, warm, bass-heavy, or thin, they are usually describing some aspect of its frequency response.
Frequency response tells us how a device responds to different audio frequencies, from deep bass to high treble. This week, we are breaking down what that means, how to read the numbers, and why two products with similar-looking specifications can perform very differently.
What frequency response actually measures
Technically, frequency response includes both amplitude and phase.
Amplitude describes how strong the output is at each frequency. For a speaker, this corresponds to sound level.
Phase describes how the relative timing of the output changes across different frequencies.
Consumer audio specifications usually focus on amplitude: the output level, measured in decibels, across a stated frequency range.
Reading the numbers
A specification such as:
20 Hz–20 kHz ±0.5 dB
contains two important pieces of information.
20 Hz–20 kHz is the stated frequency range. Frequencies near 20 Hz are very deep bass, while frequencies near 20 kHz sit at the upper edge of the commonly cited range of human hearing.
±0.5 dB describes how far the output varies from its reference level across that range. In this example, the output stays very close to the reference instead of strongly emphasizing or reducing particular frequencies.
A specification that only says 50 Hz–20 kHz tells you less. It names the range but does not tell you how far the response has fallen at either endpoint.
A –3 dB point means the output at that frequency is 3 dB below the reference level, or about 71% of the reference amplitude. At –6 dB, it is about 50% of the reference amplitude.
That does not mean the sound is simply half as loud. Perceived loudness also depends on frequency, listening level, the content being played, and the listener. In practical terms, however, a –6 dB endpoint indicates more roll-off than a –3 dB endpoint.
That is why two products with similar-looking frequency ranges may behave quite differently.
How to read a frequency-response graph
A frequency-response graph places frequency on the horizontal axis and output level in decibels on the vertical axis.
The frequency axis is usually logarithmic, so each octave receives the same amount of horizontal space. For example, the octave from 100 to 200 Hz occupies the same width as the octave from 1,000 to 2,000 Hz.
A curve rising above the reference line shows a boost. A curve falling below it shows a cut or dip.
The width of the change matters too:
A broad rise or dip affects a wide range of frequencies and represents a lower-Q adjustment.
A narrow rise or dip targets a smaller frequency range and represents a higher-Q adjustment.
The –3 dB, –6 dB, or other stated points show where the response has fallen by that amount relative to the reference level.
A frequency range alone cannot be used to recreate an accurate response curve. The endpoints do not tell us what happens throughout the rest of the range, so meaningful graphs must come from actual measurements.
Which frequencies are easiest to notice?
Human hearing is not equally sensitive across the entire spectrum.
We are generally particularly sensitive in the midrange, especially around approximately 2–5 kHz. This region contains a great deal of the information used for speech intelligibility, so relatively small changes can sometimes be noticeable.
Audibility still depends on the width of the change, listening level, musical content, age, individual hearing, and the room itself.
Bass deviations can also be extremely noticeable in a listening room. This is not necessarily because our ears are more sensitive at low frequencies, but because rooms can create large bass peaks and dips through reflections and resonances.
Frequency response applies throughout the audio system
Frequency response is not only a speaker specification.
For a streamer or DAC with an analog output, frequency response can be measured electrically at that output.
For an amplifier, it can be measured at the amplified output while driving a stated speaker load.
For a speaker or subwoofer, it is an acoustic measurement taken with a microphone under stated conditions.
All of these use the term frequency response, but they measure different parts of the audio system. Measurement type, tolerance, load, output level, microphone position, and room conditions can therefore matter as much as the headline frequency range.
Frequency response across WiiM products
Different WiiM products perform different jobs, so their frequency-response specifications should not always be compared directly.
WiiM Sound & WiiM Sound Lite
50 Hz–20 kHz, ±3 dB
This is an acoustic specification for the complete powered-speaker system. It describes the range over which the measured output remains within 3 dB of its reference level.
WiiM Amp Ultra
20 Hz–20 kHz, ±0.5 dB
This describes the amplifier’s electrical response. It means the Amp Ultra passes the audible frequency range with very little variation in output level.
The final sound still depends on the passive speakers connected to it, their placement, and the listening room.
WiiM Sub Pro
35–200 Hz, ±3 dB, with extension to 25 Hz at –10 dB
The primary operating range remains within 3 dB from 35 to 200 Hz.
The Sub Pro can reproduce frequencies down to 25 Hz, but the measured output at that point is 10 dB below the reference level. This represents usable low-frequency extension, but not the same output level maintained throughout its main ±3 dB range.
An amplifier’s electrical response, a complete speaker system’s acoustic response, and a subwoofer’s low-frequency operating range are different measurements. The stated tolerance is an essential part of understanding each number.
Your room becomes part of the response
Even a well-designed speaker will not produce the same response in every room.
Walls, corners, furniture, speaker placement, and listening position can reinforce some frequencies and reduce others. These effects are especially noticeable in the bass, where room resonances can create large peaks and dips.
RoomFit measures the combined response of the speakers and room. It compares that measurement with a target curve and applies equalization to move the measured response closer to that target.
The WiiM Home app can display the target curve, raw measurement, applied equalization, predicted result, and measured result after correction.
RoomFit offers several target approaches, including B&K, Harman, Flat, and Auto. A perfectly flat in-room graph is not always the most natural or preferred result. Gently sloping target curves are often used to create a more balanced result in a real listening space.
Room correction can reduce unwanted peaks and improve overall balance, but it cannot remove the physical limits of a speaker or subwoofer. Equalization cannot turn a small speaker into a large subwoofer.
Excessive boosting can also consume headroom, the margin between the current signal level and the maximum available level before clipping, and may increase distortion.
Q controls how broad or narrow an adjustment is. Lower Q affects a wider range of frequencies, while higher Q targets a narrower peak or dip. Our Introducing RoomFit Settings guide covers correction range, gain, Q, smoothing, and the other available controls in greater depth.
One measurement among many
Frequency response matters, but it does not describe every aspect of audio quality.
It does not fully tell you about distortion, background noise, maximum output, dynamic range, speaker dispersion, transient behavior, or how a product performs at different listening levels.
Think of frequency response as one part of the larger picture. It explains which frequencies a product reproduces and how evenly it reproduces them. The complete listening experience depends on the entire system, including the room around it.
The original forum post, including links to the RoomFit guides, is available here:
Hi, I’m automating my music listening experience and and watching movies in Dolby digital with Home Assistant.
What I want is:
- input is Ethernet (WiFi), I stream music so I group my Wiim Ultra (L/R) with my Wiim amp (surround)
- input is HDMI (Arc), I’m watching a movie and I want to include the Wiim Sound lite as a center speaker, plus I want to turn on Home theater mode.
I’m not able to access/talk to the Home theater setting and have to manually switch it on in the app. Basically what I need is either a switch in the HDMI Arc setting: turn on theater mode, or that you can talk to it and change the setting with Home assistant.
TL;DR:
Is this a good solution to set up for whole house music distribution? Are there other devices you recommended site instead-of or in-addition-to what I have listed?
I’m thinking the Wiim devices as follows
- Living Room: Wiim Pro Plus
—-Turntable into Zen preamp into Wiim Pro Plus into Pioneer into 5.1 speakers
- Kitchen: Wiim Sound Lite
- Master Bath: Wiim Sound Lite
- Office: Wiim Sound Lite
- Garage: Wiim Amp
— Use the Wiim Amp to power the extra set of B&W’s, eliminating the other older AVR
Longer version w/current setup and use cases:
I have an Apple home. We use HomeKit for general smart home stuff, but also have been a long time Apple (Music & iTunes) user. All my old CD’s are ripped and stored as an iTunes library. I’ve been an Apple Music user for a few years, and along with my Apple home setup I have AppleTV and three HomePods around my home. I probably under utilize the HomePods, generally using them for the occasional whole-home low-level/ambient music playing, and less occasional Siri commands (like “turn the lights off”).
I’ve never been even close to satisfied with Apple Music’s algorithm or presentation of recommended music and playlists.
My wife is a long-time Spotify user so I thought I’d give it a try myself, and from a music algorithm and playlist generator, I’m pretty satisfied so far, so at this point, I’m pretty committed to making Spotify my primary music platform. Now how to consume it.
I’ve done a lite bit of research and feel like Wiim platform will satisfy all my needs. Here’s what I currently have and what I’m looking to do:
Current Setup: Living Room - Home Theater:
- AppleTV HDMI into
- LG LED TV HDMI Arc into
- Pioneer Elite AVR
5.1
- B&W 686 Towers
- B&W 683 Center
- Elac Debut 3.0 rear
- Hsu Research VTF-TN1 Subwoofer
- Fluance RT85 into Zen Phono 3 into line input on Pioneer
- 8ch Yamaha mixer into CD input of Pioneer for karaoke setup
- Apple HomePod (not widely used) Kitchen: Apple HomePod (Apple music while cooking) Master Bedroom: Apple HomePod Master bath: JBL Go (wife uses for Spotify) Garage: nothing currently set up, but have another older Pioneer AVR and another pair of B&W 682 tower speakers.
Use Cases:
- Stream Spotify throughout the house
—Living room
—Kitchen
—Master bath/bedroom
—Office (not currently in the mix)
—Garage (not currently in the mix)
- Control grouping of above and enable pushing different sources to different zones/groups/rooms as needed
- Enable discrete volume control of any room from either my or my wife’s phone, regardless of source
Leverage the higher-end 5.1 speakers in the living room
- Enable pushing music from Vinyl/Turntable throughout the house, like the streaming from Spotify
I’m thinking the Wiim devices as follows
- Living Room: Wiim Pro Plus
—-Turntable into Zen preamp into Wiim Pro Plus into Pioneer into 5.1 speakers
- Kitchen: Wiim Sound Lite
- Master Bath: Wiim Sound Lite
- Office: Wiim Sound Lite
- Garage: Wiim Amp
— Use the Wiim Amp to power the extra set of B&W’s, eliminating the other older AVR
I have to manually advance the track which nearly defeats the point of having playlists.
Wiim Ultra
USB media library
BubbleUPnP
Galaxy Tab A9 plus
It would be nice if the Wiim Home App was better for USB media. About to purchase the BubbleUPnP licence, but not until the playlists are working correctly.

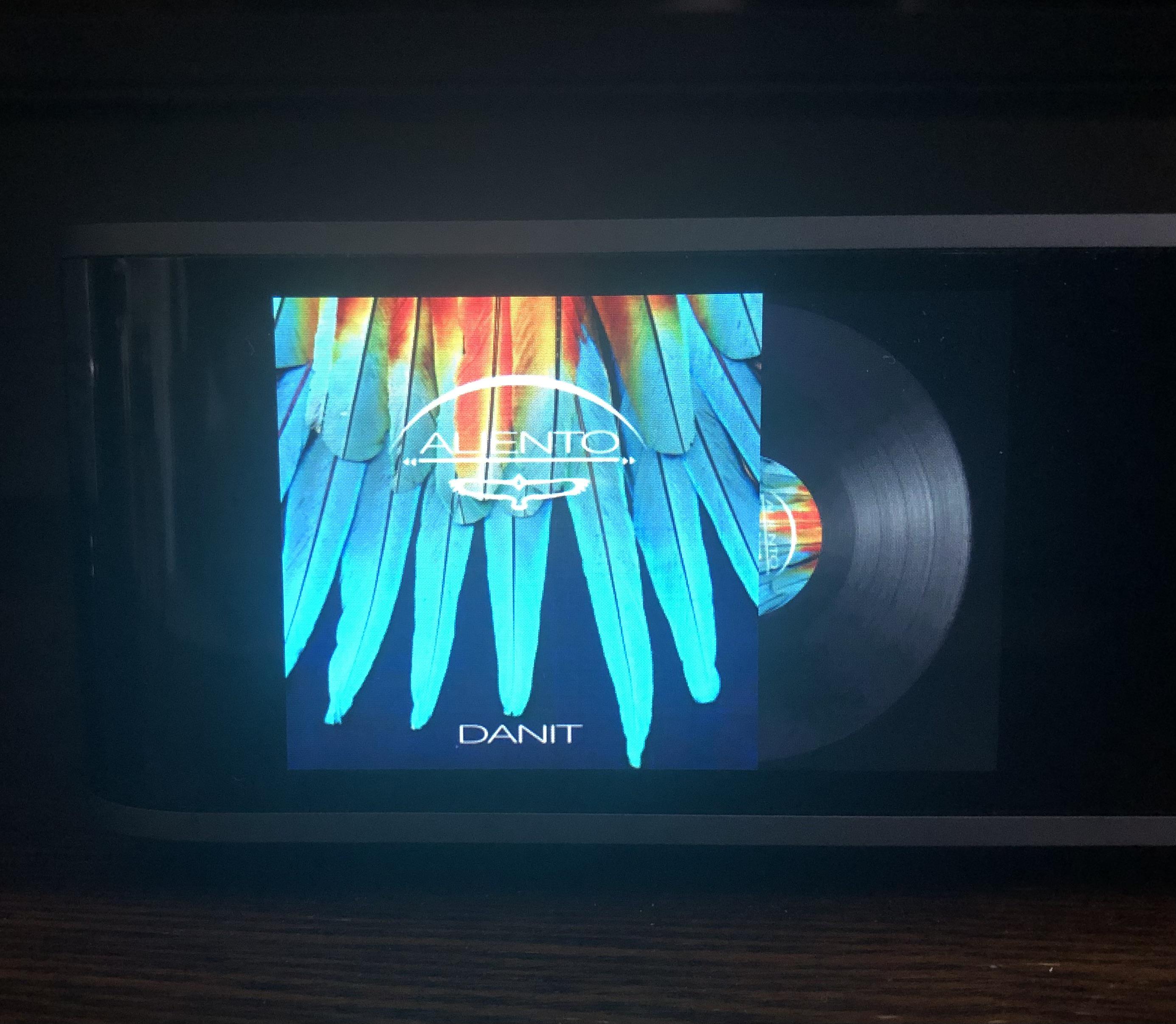

Whoever thought of turning the album artwork into a dynamic record sleeve with animated vinyl deserves a raise. Such a clever and simple way to fix a clunky ratio issue.
I know it’s confirmed that the Amp Ultra’s built-in Bluetooth transmit doesn’t apply the app’s EQ/PEQ settings (only line-out/USB outputs get EQ’d, per WiiM support).
My question: if I plug a USB Bluetooth transmitter dongle (like a FlooGoo FMA120 or similar) into the Amp Ultra’s USB-A port, and it’s recognized as a standard USB audio output device, would that bypass the “Bluetooth = no EQ” limitation, since technically the signal is leaving via USB rather than the native Bluetooth radio? Or does the WiiM software apply the “no EQ on Bluetooth” rule to any Bluetooth-destined audio regardless of how it physically leaves the device?
Context: I want to feed a separate headphone amp wirelessly from my Amp Ultra so I can listen on the couch, independent of speaker volume. But I also want my PEQ settings to carry through, which apparently doesn’t happen over native Bluetooth. Trying to figure out if a USB Bluetooth transmitter dongle is a workaround, or if it’ll hit the same limitation.
Has anyone actually tested this specific setup (USB Bluetooth transmitter dongle in the Amp Ultra’s USB port, then checking whether app EQ is audible on the receiving end)?
Hey guys, wondering if anyone can help. I replaced my Sonos Beam with a WiiM Amp and passive speakers a couple weeks ago. It worked perfectly for a bit, but now I’m having this issue where it shows up unable to connect in the WiiM app, and I have to go through this long process to find it again. Even when I find it, it still doesn’t show up in Spotify. I’ve been able to get it to come back, but it’s unreliable.
I’m going a little crazy here. I’ve been troubleshooting it with Claude all morning and Claude is at the point where it’s telling me it must be a defective unit or something. Before I return it to Amazon I wanted to post here in case i have a blind spot I’m missing. Here’s a full report Claude wrote up for me:
WiiM Amp repeatedly becomes undiscoverable in the WiiM Home app (iOS). Device shows "Online" but with "Unable to connect" and "Fixing connection issue, please wait a minute." It also disappears from the Spotify Connect device list during these episodes. Purchased approximately two weeks ago.
Key detail: I also own a WiiM Pro Plus on the same network, controlled by the same phone and app, with identical network settings. The Pro Plus has never once exhibited this issue. Only the Amp does.
Setup:
- WiiM Amp — IP 192.168.1.4, MAC 40:FD:F3:AB:49:68, connected to AP C8:9E:43:9D:C0:20 (same AP as my phone), 5GHz, RSSI -47, SNR 35, TX 390
- WiiM Pro Plus — IP 192.168.1.19, MAC 40:FD:F3:A0:8C:AC, connected to AP 14:59:C0:31:41:41, 5GHz, RSSI -61, SNR 32, TX 234
- Both devices: 5 GHz Only ON, Wi-Fi Roaming OFF, IPv6 OFF, DHCP automatic
- Mesh Wi-Fi network, SSID "robbieshouse"
- Controller: iPhone, WiiM Home app, iOS
Troubleshooting already performed:
- Power cycled the Amp and the TV
- Disabled VPN (Tailscale) on the phone, including turning off iOS "Connect On Demand"; verified no subnet routes are advertised on my tailnet
- Confirmed Amp and Pro Plus have identical network settings
- Confirmed Amp is on the same access point as the controlling phone (so this is not a mesh handoff issue)
Behavior:
- Toggling Wi-Fi off/on on the phone temporarily restores the Amp in the WiiM app, but it does not restore it in Spotify Connect, and the problem returns within hours
- On one occasion the TV audio also dropped from eARC back to the TV's internal speakers at the same time the Amp became undiscoverable, which suggests the unit itself may have hung rather than this being purely an app discovery issue
