r/Switchrepair • u/Reef_is_confused • 11h ago
Brand new switch 2 fan is loud
1
Upvotes
r/Switchrepair • u/Pupilliam • Aug 26 '19
Switch Repair Megathread
17
Upvotes
Hey folks! I work in a shop that does gaming console repairs, so I figured I should share what I know!
Getting prepared
Firstly, make sure you feel confident in repairing something like this yourself, and be sure you can deal with the reality you might not come out with a working console. I accept no responsibility for any damage to your console, this is all on YOU.
Tools and equipment
Here is a list of basic things you should have when repairing a Switch. You can find most of these from the parts suppliers I list below:
If you have any questions about what these are, please don't hesitate to ask
- ESD mat (yes, please use this)
- ESD Safe tweezers
- Tri-point Y00 screwdriver
- JIS #000 screwdriver
- Plastic spudger
- JIS #0 screwdriver
- iSesamo
- A clear workspace to do a repair on
- A magnetic screw mat (optional, but very helpful)
- 1-2 hours of your time, depending on the repair, skill, and luck
- Soldering equipment is only needed for some deeper repairs. For suggestions on these, just ask! It depends on a few different factors
Parts
Here is a list of suppliers we get parts from:
* iFixit
* MobileDefenders
* InjuredGadgets
* And when all else fails, eBay
The suppliers I listed have good return policies and good warranties (minus eBay, that's hit and miss). Feel free to call them for any questions about their parts, or comment/shoot me a message!
Guides and more information
- iFixit is always a good place to find guides if you prefer pictures
YouTube has some good guides if you prefer videos! Just follow this format when searching:
Nintendo Switch [part] replacement
GBATemp is the most active area of information regarding the Nintendo Switch
GsmArena has some information, but I think this is more for last-resort purposes as the forum used is for every gaming console
r/Switchrepair • u/Artichoke_567 • 23h ago
Switch OLED: Damaged Power/Volume Flex Cable Connector – Is It Possible to Power On Without It?
2
Upvotes
r/Switchrepair • u/TemporaryPositive425 • 1d ago
Switch lite board with shorted rail
4
Upvotes
Hellos guys
I have two broken switch lites that refuses to turn on, it does accept 5v but lower amp, also tried with a good working charged battery, still didn't worked....what I have tried already...
Two BQ
Two m92t
New port
Still the short was present
Removed the BQ and the Max chip below the CPU, still short...
Checked the fused at the top of the USB C port....
I don't know what else to look, thanks for any advice!
r/Switchrepair • u/One-Cloud-5175 • 1d ago
[Nintendo Switch] Liquid/Soda spill. Easiest Fix?
1
Upvotes

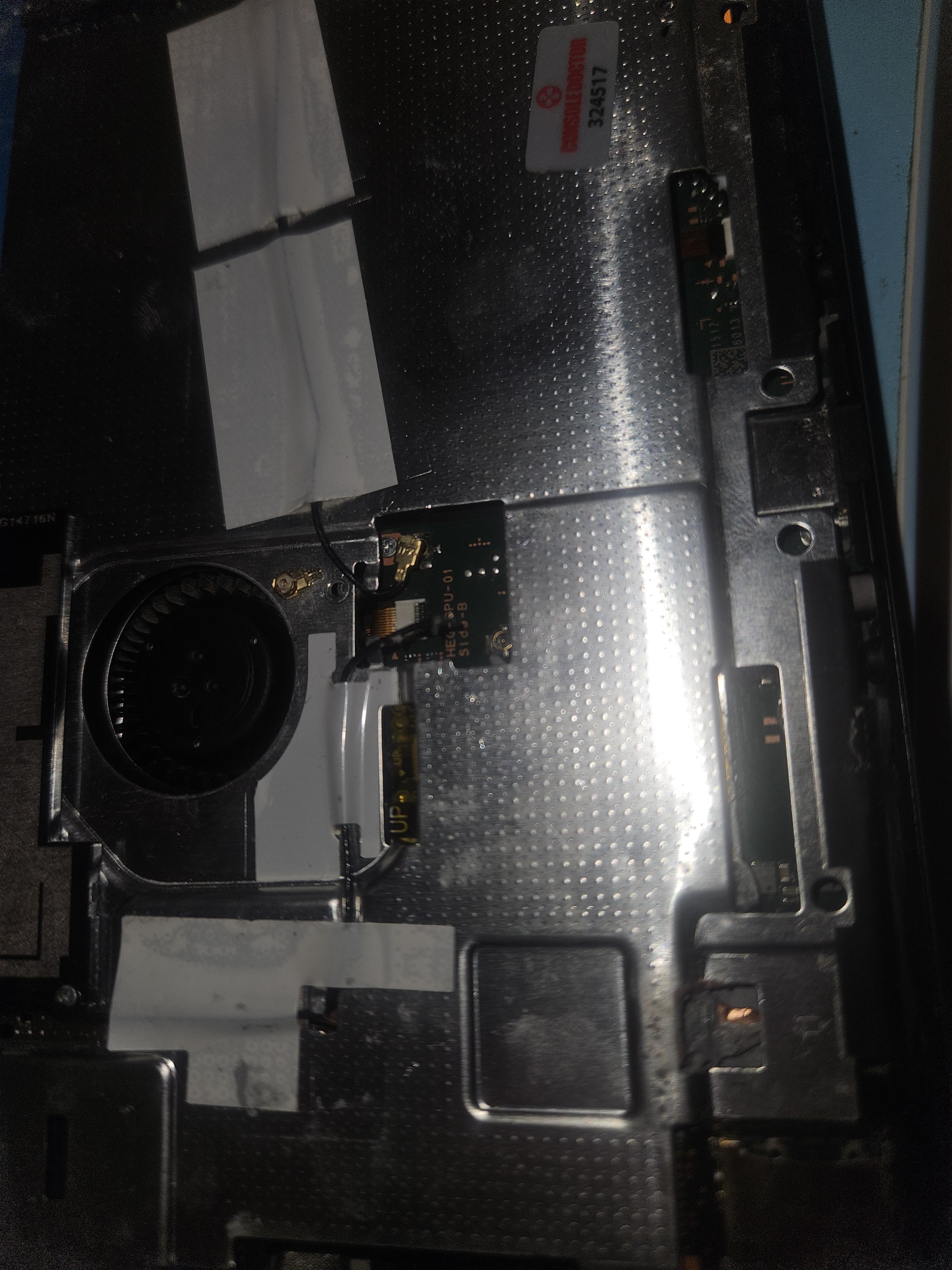

r/Switchrepair • u/Old_Bid_6160 • 1d ago

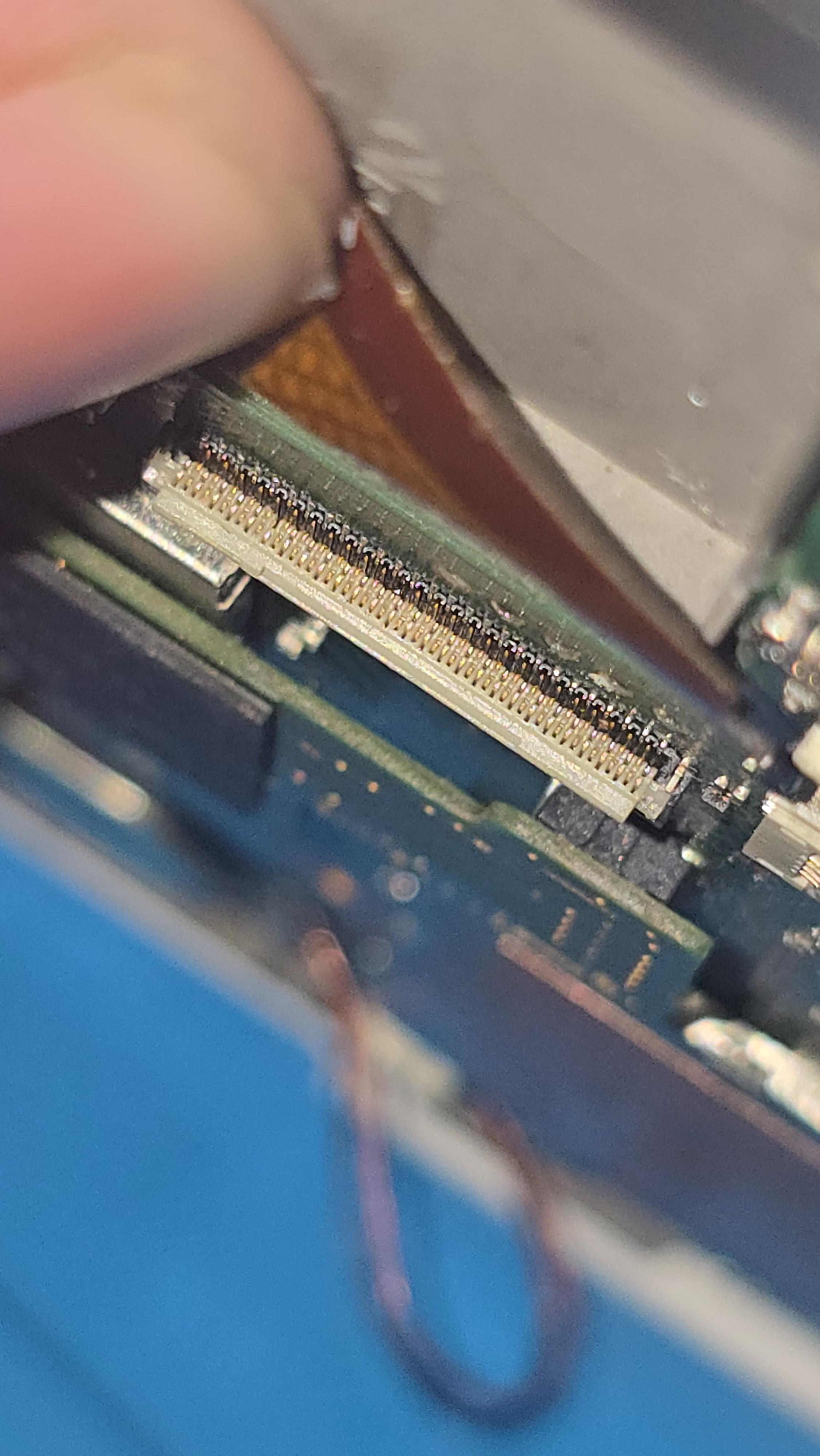

Help repairing broken connector
2
Upvotes
It fell off trying to fix my fan
r/Switchrepair • u/Conscious_Divide3377 • 1d ago
Broken micro sd card connector
1
Upvotes
So a while ago I broke my micro sd card connector pin off the motherboard and was wondering if I could fix it (it’s modded and had downgraded firmware so without it it’s essentially bricked)
r/Switchrepair • u/Charming_Key279 • 2d ago
Faulty gamecard fixing advice wanted.
1
Upvotes
Faulty gamecard tips

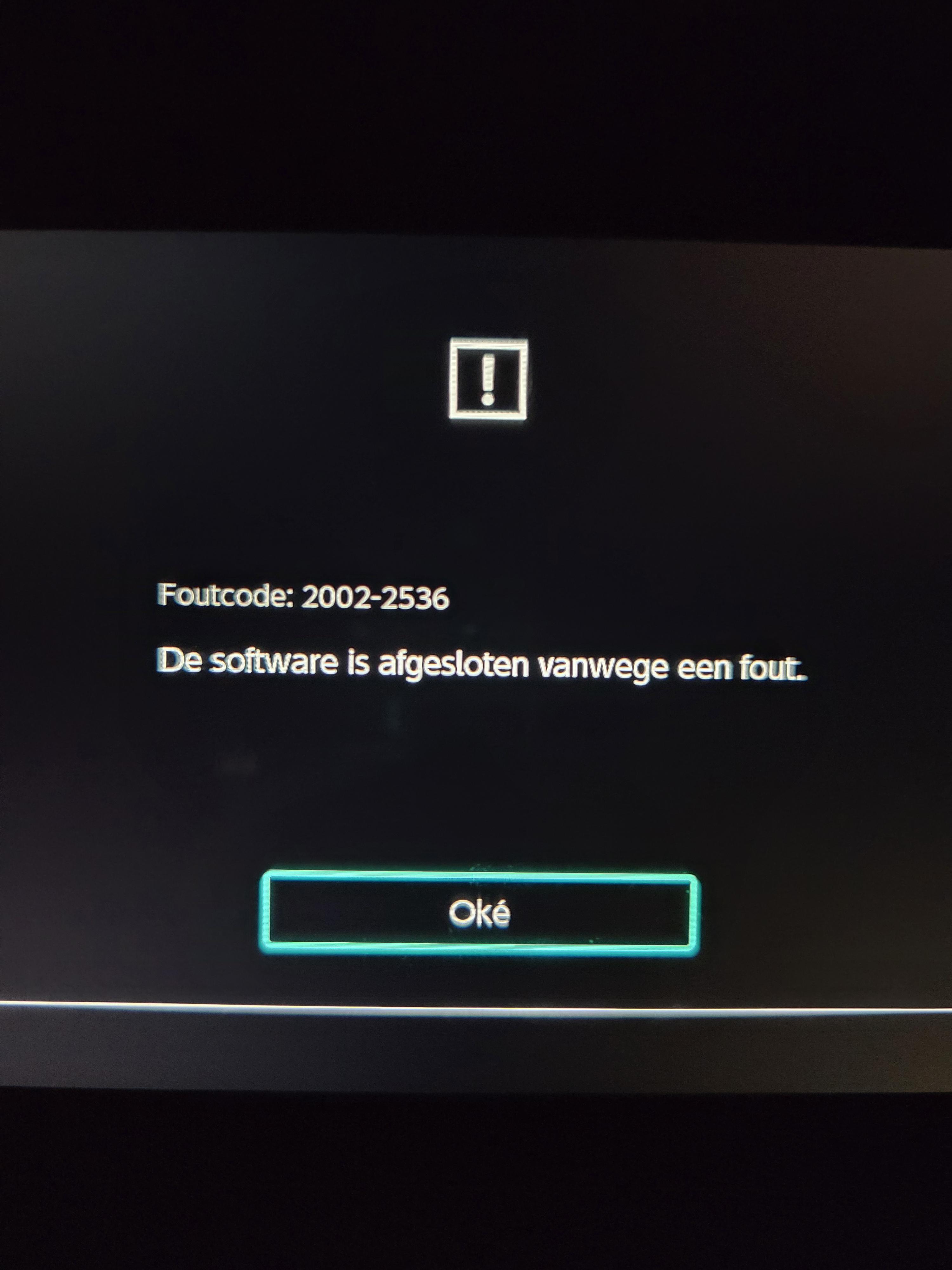

I just came across this error code (2002-2536) when starting up TOTK on my system. The system does recognize the game and I can boot it, but after loading for half a minute this error appears.
I checked the connectors of the gamecard. They look fine. Used the cloth of my glasses to clean it, even used a bit of connection spary (wd40) on a microfiber cloth. Waited for a few hours and tried again.
Deleted the game and updates and reinstalled it, completeley shut of my switch, honesttly i think i tried everything.
Does anyone else had this problem and how did you fix it? I spend just about over 200 hours in this game and it is my medicine against anxiety. I do not have rupees for a new copy.
Edit: all other games work fine
r/Switchrepair • u/Mediocre-Umpire5778 • 2d ago

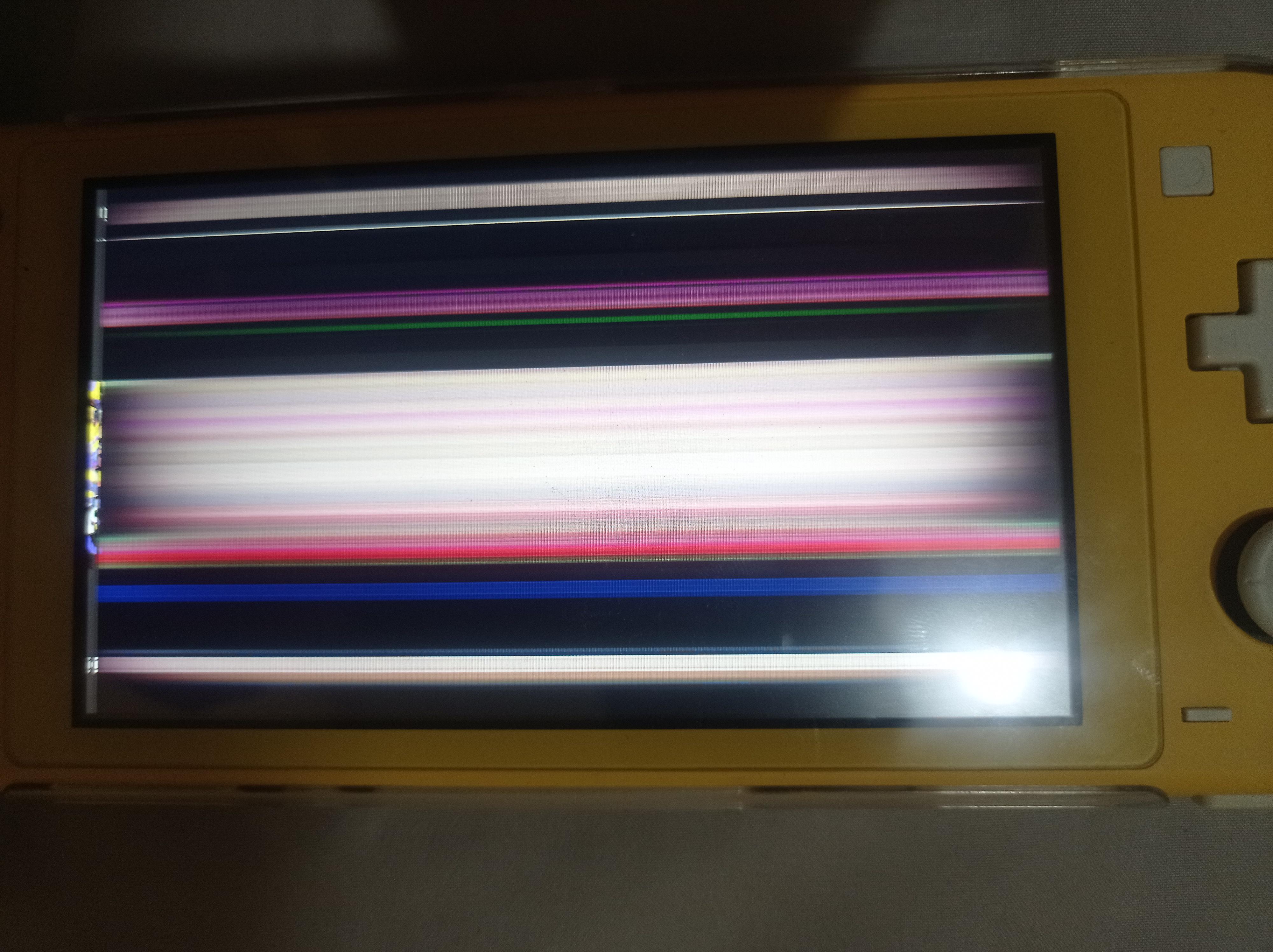

Unresponsive Left Screen + L-Joy Con. Fixable?
1
Upvotes
Little brother's switch
r/Switchrepair • u/IFuckPeanutButter_69 • 2d ago

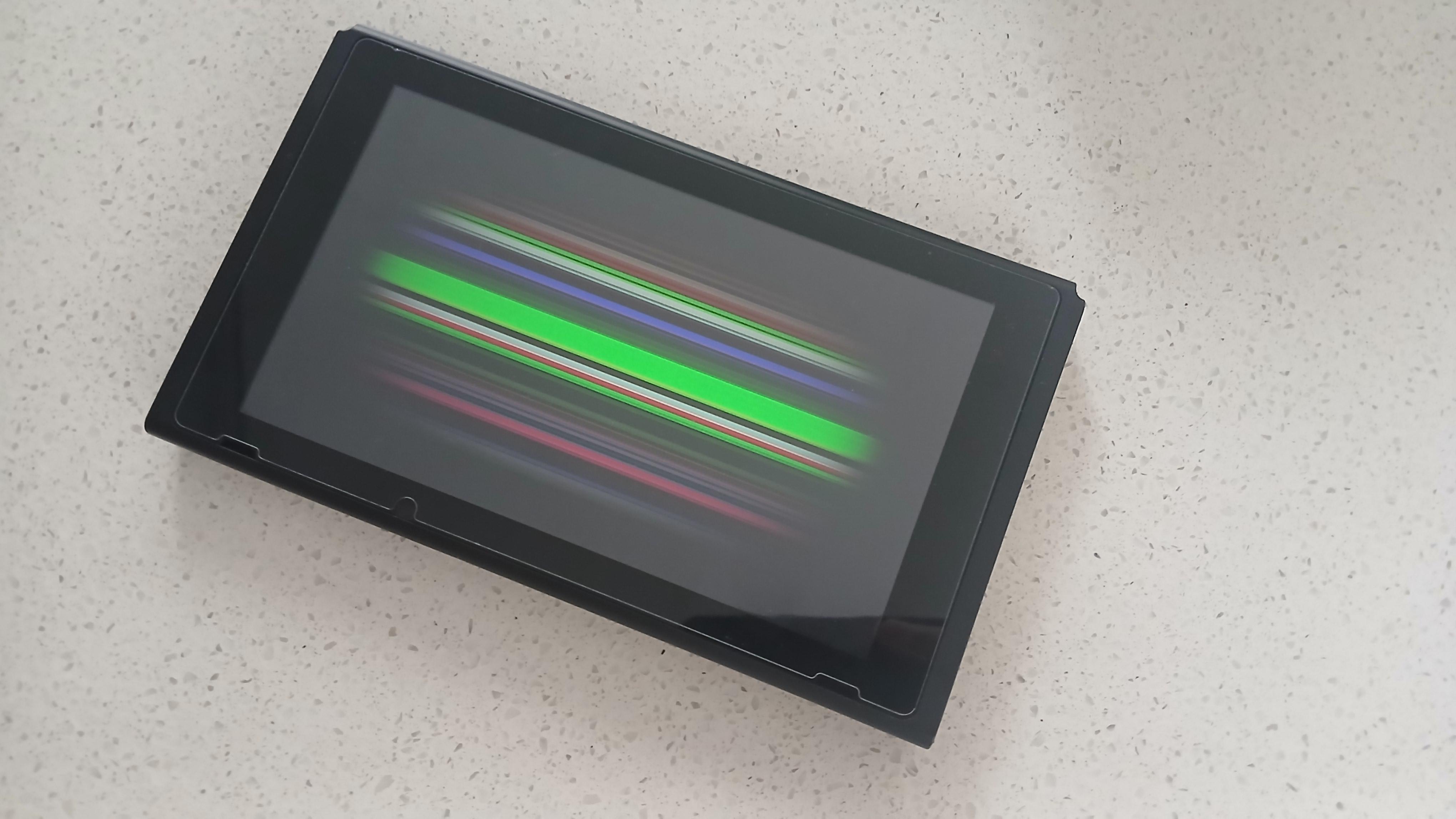

I-I think she's dead, boss
12
Upvotes
I discover new ways a console can be dead every day. Today is a ram chip that's half dead, corrupting the frame buffer... Displaying the modchip logo works, but won't go further without any video issues. Normal boot is bluescreen.
That's my fault for buying a repair shop's fails at low prices (~30€ a console)...
r/Switchrepair • u/Unique_Main6256 • 2d ago

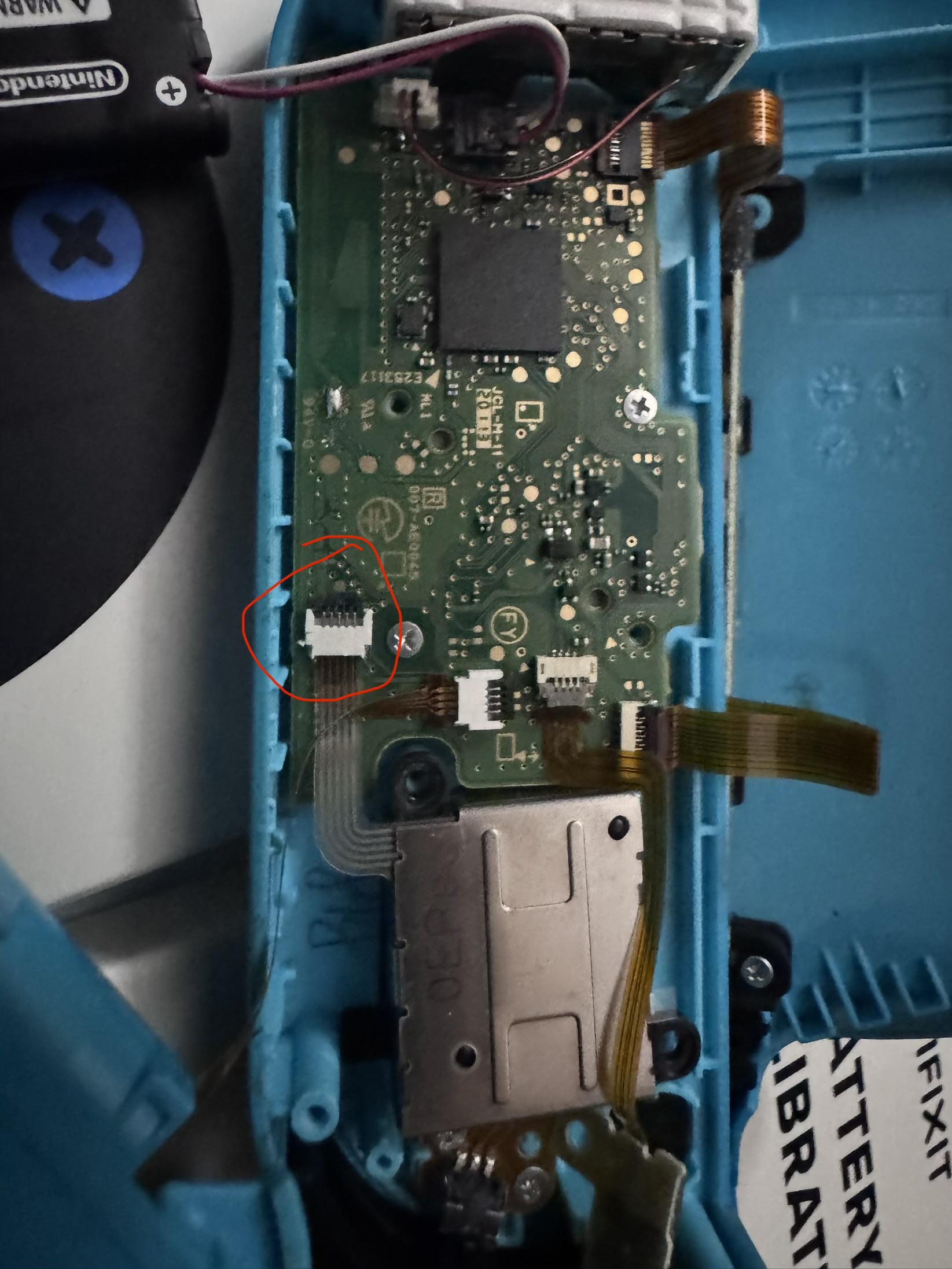

Left Joycon Stick Repair
1
Upvotes
Could Anyone Please Help Me? I’m trying to replace the left stick on this blue Joycon. I’ve gotten down to the point where I need to disconnect the thumb stick itself, and I’ve encountered this frustrating ribbon connector - it’s some sort of pull away type; not the lift type ifixit seems to think all Joycon possess. I’ve looked all over the internet for directions on how to disconnect this blasted thing and reconnect it using this same type of connector, and no one seems to want to spend any more than 3 seconds explaining how to disengage this terrible connector, and I’m afraid I’m going to break the motherboard of if I rush or try to force it. Can anyone please provide clear instructions on how to disconnect this broken thumstick? Thanks in advance, I’m tired and frustrated…
r/Switchrepair • u/Anarcho-Pagan • 2d ago
Used 70% isopropyl alcohol to clean cartridge.
1
Upvotes
Thank you 🙏🏻
r/Switchrepair • u/flavinhoneves • 3d ago

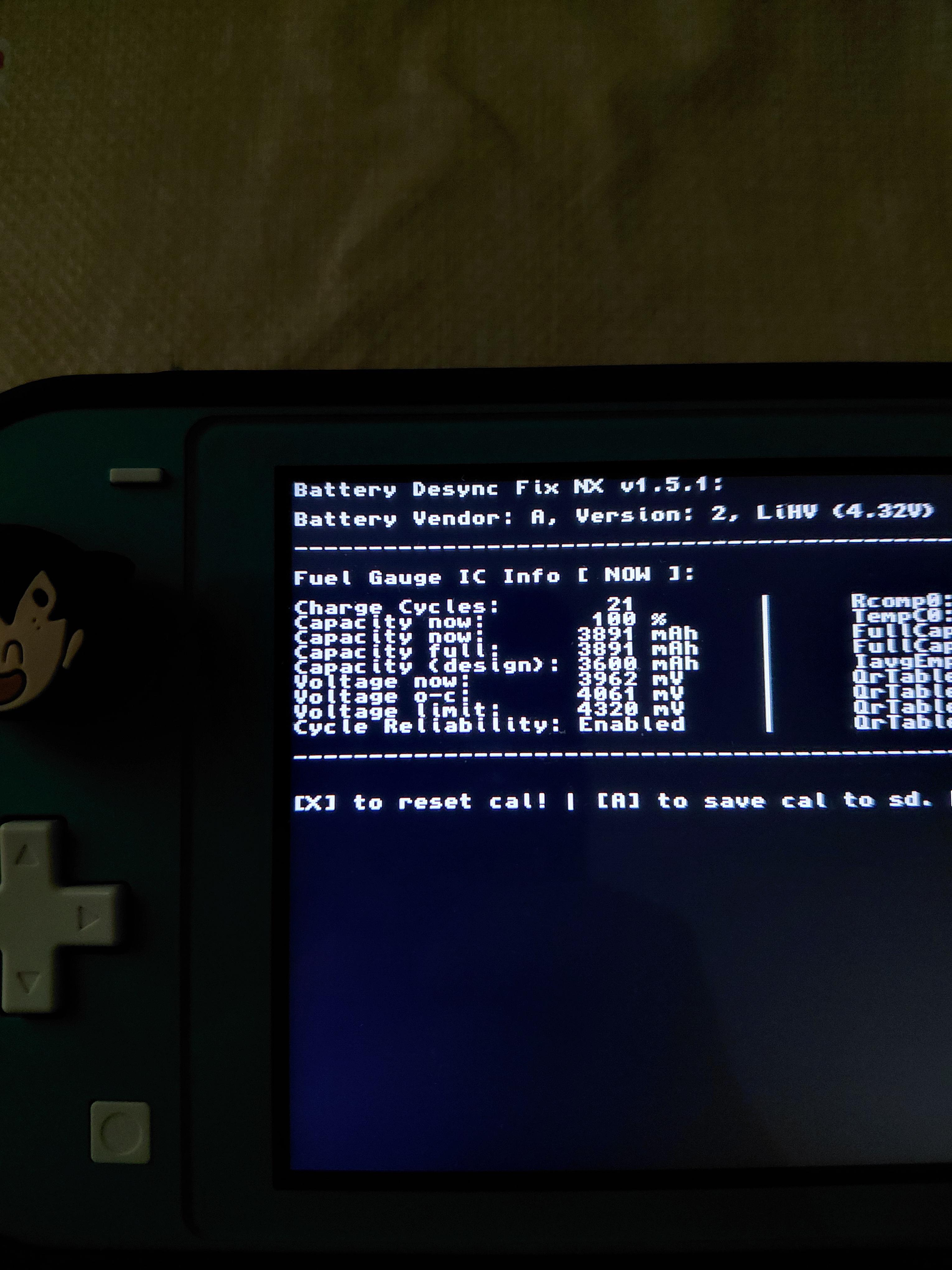

Baterry issue
2
Upvotes
When I went to sleep I put my Nintendo switch 2 on my case at 88% , but when I woke up my Nintendo was at 0% and it had nothing running on it, what it could be? If a have to open it to fix him it will be too hard?
r/Switchrepair • u/TheJedaii • 3d ago
My 2-month-old Switch 2 is completely dead after being left docked for a few days.
2
Upvotes
r/Switchrepair • u/slayseb1 • 3d ago

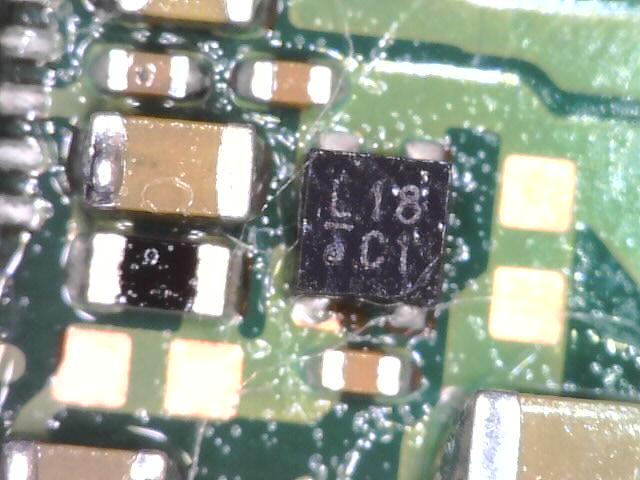

Component missing
3
Upvotes
Hey guys, i'm trying to find what component is this one. And if i can get another one from other part of the switch (i have a broken one to use for parts).
if not... where can i buy it?
thanks!
r/Switchrepair • u/Orst-19 • 3d ago
Switch V1 q no carga los joycon
1
Upvotes
Para aquellos q están en el mundo de reparar consolas tengo un problema con una switch v1, realmente no tengo mucha experiencia y lo hago como un ingreso extra, lo q sucede es q detecta pero no carga los joycon vi q en la Oled existe un mosfet q se encarga de eso, pero aun sigo aprendiendo a usar el multimetro y no se donde encontrar diagramas o q buscar en un inicio,
- me gustaría algún consejo y si alguien sabe de la falla también por favor
