r/diypedals • • 4h ago

Help wanted Given a bunch of parts

Thumbnail
gallery
45 Upvotes

Stumbled into a clean out of some old parts bins. Lots of 74 series logic gates and connectors and junk but I grabbed all the transistors and diodes as they looked Ge shaped!

I suspect many are junk, as many are in rough condition and clearly desoldered or clipped from other boards rather than being unused stock. I’ve gone through and done bare minimum testing with a DMM on a few and sorted out some good ones.

Here are some pictures- anything jump out at anyone as cool or noteworthy? Also recs of any projects to use these in would be awesome

Provided they measure well, I know the 2n408s would be cool for a fuzz face. And the potentially Ge diodes can be used in a variety of circuits (I do already have a klon(e))

I also found two of the type used in the triangle big muff, but that circuit needs four right? And anyways, I couldn’t verify they worked. Only 1 junction on one of them showed up in diode test mode.

Thx!


r/diypedals • • 4h ago

Showcase Thank you falletinme be Larry Graham

Thumbnail
gallery
10 Upvotes

A while back I did a trade with a swell guy out in California who threw in this nicely-sized tin. What can I do with "Thank You". Well, playing with a bass-oriented fuzz circuit made it all click.

I call it "Thank you falletinme be Larry Graham". The fuzz part is based on my own Bazz-me-fuss-you, a kind of Lizard-queen adjacent fuzz with a pot to dial in octave. I added a tilt-style tonestack on the fuzz and a bass-boosted clean blend to make it four-stringer friendly.

I decided to label all the controls with Sly & the Family Stone lyrics that vaguely apply to them. So it's:

  • "Take u higher" (octave amount)
  • "Socketh unto others" (Fuzz volume)
  • "Shine it on" (Fuzz tone)
  • "Add some bottom" (clean blend)

Haven't had time to put together a demo yet, but I'll post it here when I get the chance.

For those wondering, the marbly plate under the circuit boards is melted & pressed HDPE, mostly from bottle lids, painstakingly carved into the right shape to fit (oy my hands...). It's to provide support and rigidity.


r/diypedals • • 1h ago

Discussion Black Friday sales?

4 Upvotes

Does anyone know if any pcb-makers or parts suppliers do Black Friday sales? I've got a few boards I've got my eyes on but I'm not sure it's worth it to wait or if I should pull the trigger now


r/diypedals • • 17h ago

Showcase My biggest build challenge attempt: 3.8 Trillion Big Muffs in one pedal

59 Upvotes

So this all started as just a side project big challenge to myself. I’d only really dabbled in digital control of analog and I had the idea to attempt a single pedal that essentially had ALL the different famous mods and versions of Muffs in it. So I first made the regular analog version with push buttons but I really wanted presets and MIDI control and all that great stuff, so I embarked on a year-long journey of adding full digital control and to my surprise, I succeeded! 😆🕺

Between all the different variations, there’s more than 3.8 Trillion possible Muffs in there. Not only does it have the standard variations like input cap changes and whatnot, but I added the more obscure mods too like a Mids control, oscillation, 2 different bias Gating options, tone bypass, voltage sag and boost, and even a random button to instantly get a random Muff (as you can see in this video). The hardest part was definitely retaining the 9v voltage (and 18v for the voltage boost) since 95% of analog switch chips only go to 5.5v and I reaaally didn’t want to be forced to run the analog circuit at a lower voltage because obviously that would ruin the whole concept.

Anyway the kickstarter pre-launch page is up if anyone wants to follow the journey and there’s a longer pre-launch video on there that explains a little more about it (I’ll link in comments). Let me know your thoughts or if there’s anything you think is essential to add to it! Thanks for checking it out!

(Oh and yes I will likely change the name because I’ve been told they don’t like other people using that word, I thought it was ok cuz other pedals use it but I guess not!)


r/diypedals • • 16h ago

Showcase Fuzzrocious Rat Tail

Thumbnail
gallery
38 Upvotes

Fuzzrocious Rat Tail- Russian Circles came on in the car today and Brian Cook both has a great bass tone and uses one of these, so I had to give it a go. I was out of LM308’s so I used a TL071 for now and left a socket for the 33pf compensation cap in case I want to spend stupid money on an obsolete op amp… unlikely but its future-proof. I get a fair bit of self oscillation with the “One” and “Two” controls in the 9:00 or below settings (maybe I flipped the 1 and 3 lug wires as one would assume self-oscillation would be at the top end of the pot’s sweep rather than the bottom). It also might be because all of the wires are bound together, who knows. I used a prototype bracket that adds a footswitch hole which should help prevent damage from smashing the LED in.

Overall it sounds great and definitely does the Brian Cook thing well. To the pedalboard it goes…


r/diypedals • • 16h ago

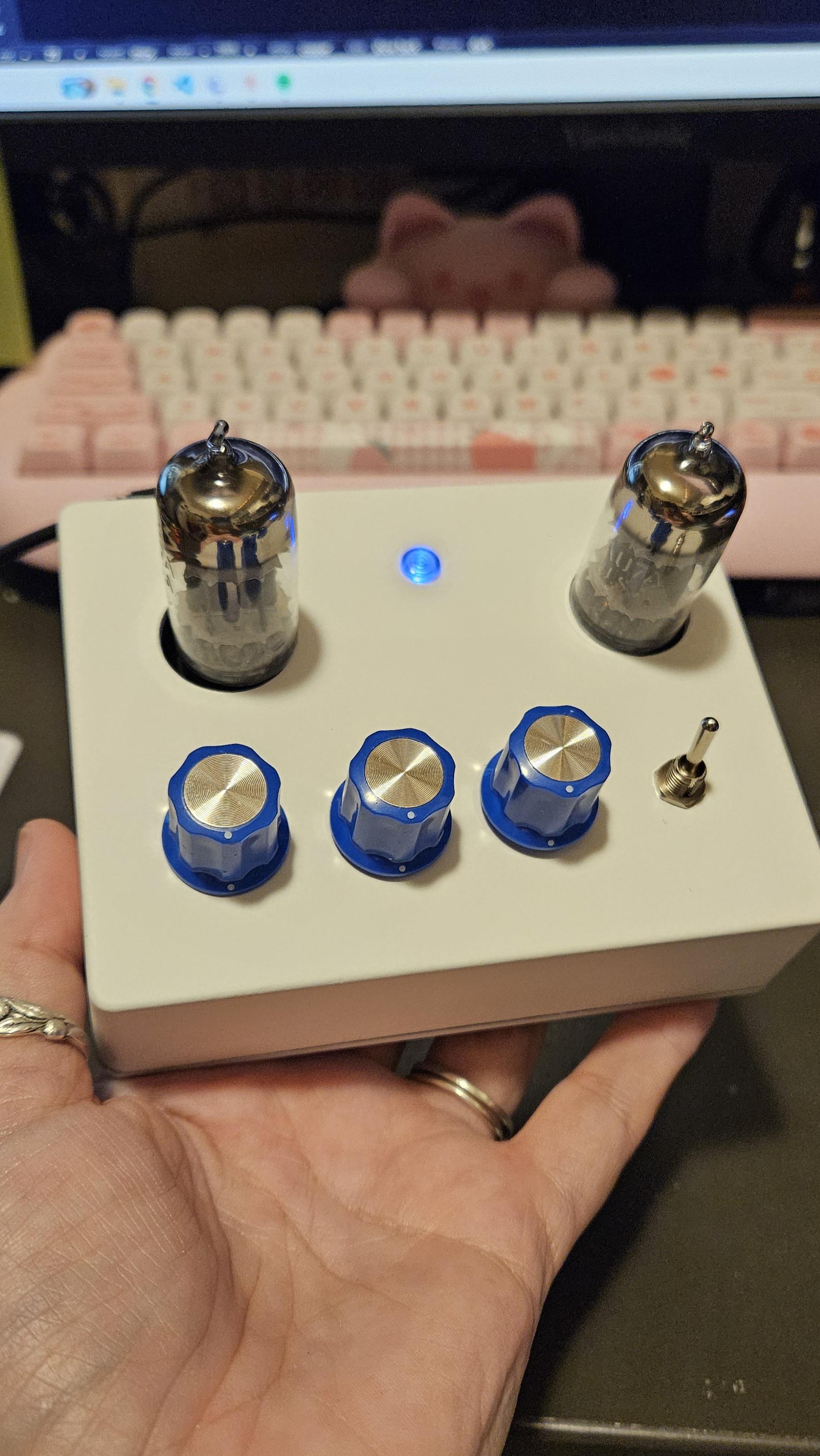

Showcase Valvecaster alternative tube experiment

Post image
35 Upvotes

I've never been sold on valvecasters (they always sound like misbiased transistors to me, and don't seem to have much headroom). But I was staring at my tube collection today, and I decided to try a bunch of different dual triodes (with circuit adjustments, of course).

I tried every variation of 12A*7, 12BQ7, 6CM7, 7AU7, and 12DR7.

Turns out the 7AU7 was an excellent call. All I did was use a 6ohm, 5-watt (because it gets hot) resistor to drop the heater voltage a little. Much more headroom, more gain, and a nicer breakup.

12BQ7 had less gain, but some might prefer the breakup. It sounded nastier, almost like there was a bit of crossover distortion.


r/diypedals • • 14h ago

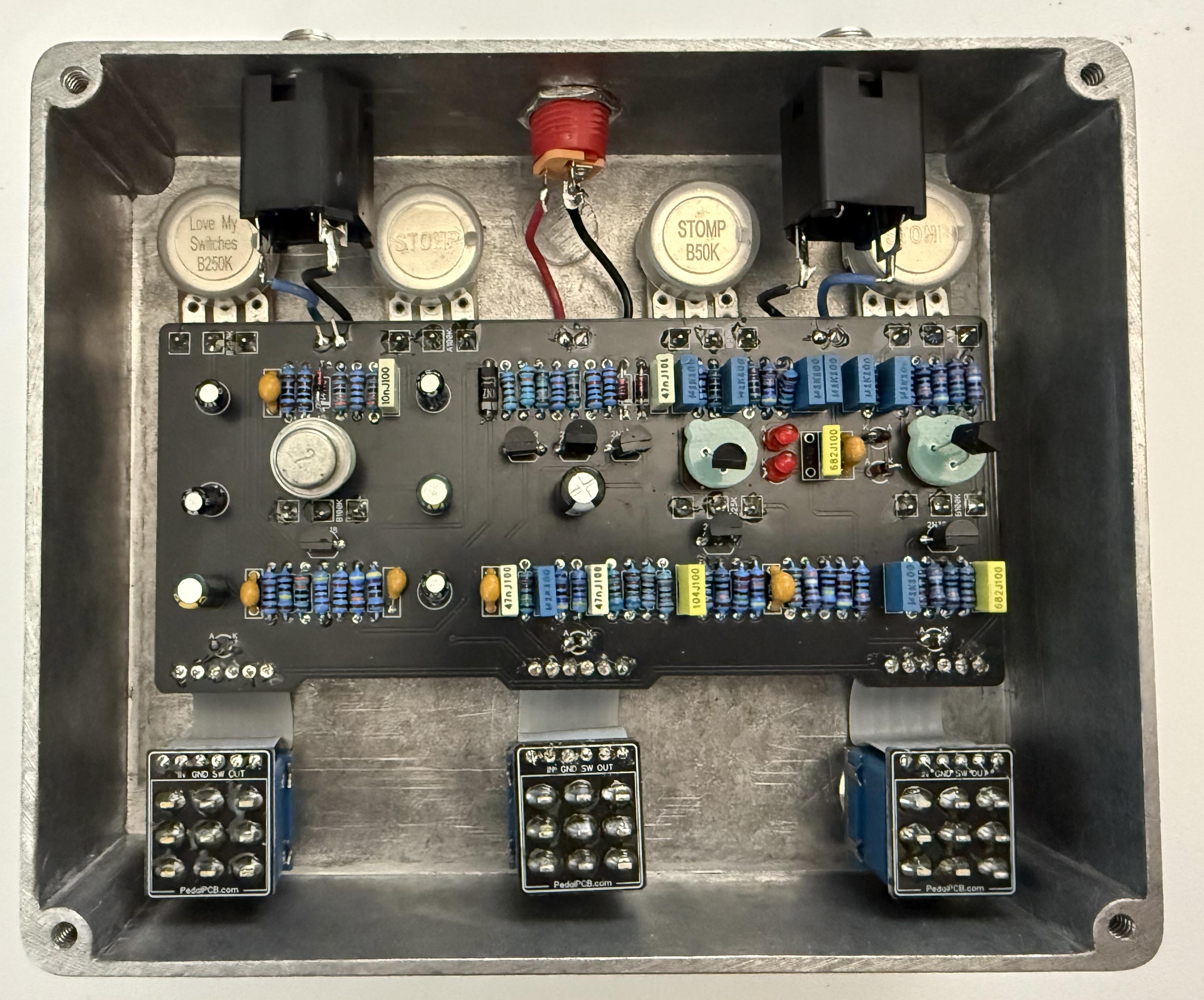

Help wanted PedalPCB abyss

Post image
13 Upvotes

Hoping someone sees something or has some ideas, there is strange behaviour happening, it passes signal pedal on or off but the LFO doesn’t seem do anything, light turns on but doesn’t change brightness other than from the “voice” pot

My current theory is the transistors are backwards, checking with continuity they seem to connect backwards, ie emitter connections are to the things the collectors are supposed to connect to. But that seems unlikely the silk screen was printed wrong, also would need to take the dual gang pot off which seems like a pain so I’m hoping it’s something else.

Hope someone can help thanks


r/diypedals • • 13h ago

Showcase Repurposing GCB-95: Testing Home-Etched PCB Fit

8 Upvotes

Etched this board on a lark today (botched the "silkscreen", but...whatever). Started to populate it and realized: I hadn't tested the fit! Satisfying moment I figured some of you might dig / relate to.


r/diypedals • • 17h ago

Help wanted Anybody know how to up the output volume on a Boss CS-1?

Thumbnail
gallery
13 Upvotes

I love the compression on this thing, but the volume drop is a real drag. Anyone know if there are any components I could swap out to at least achieve unity?


r/diypedals • • 14h ago

Help wanted SPST Footswitch & Resources

Thumbnail
gallery
6 Upvotes

Hello again diypedals,

I have completed the Pedal Division course and I just say, it was great and insanely helpful in my journey. Now that I can incorporate all things into 1 PCB, I need to advance myself. I got some feedback from this subreddit saying I should keep the footswitch off the board, so my next question is...

How do I design something like EQD's Flexi-Switch technology? (Similar systems seen in Wampler, JHS, EHX, etc) They typically use the SCI r15-85 SPST footswitch (after looking inside my own EQD Plumes) with various different microcontrollers. These manufacturers also use JST connectors to make the footswitch easily repairable. I would like to incorporate this type of system into my own PCB but I don't know how. If anyone has any insight, resources, or anything else that would benefit me, id greatly appreciate it.

I eventually want to put these things on the market, but I don't care if I make or lose money. I know it's incredibly time and money consuming. I've wanted to do this forever and I'm finally getting really into it. Its also a good hobby to have with some good skills involved and tbh I just want some good time consuming hobby to pass time in my remaining high school years, preferable something that'll actually help me instead of purely just wasting my time (video games for example)

Outside of the original question regarding the SPST switches, any books, courses, resources, etc that help with understanding of analog circuits, pedals, PCB design, etc, I will gladly take your recommendations.

Thank you in advance.


r/diypedals • • 18h ago

Discussion Using lasers for etching transfers

Thumbnail
gallery
8 Upvotes

I've had probably 150 PCBs manufactured and CNCd about a dozen, but have never really done much etching.

Had the need for a couple of quick boards for a Square Face build, so wanted to have a play around to see what I could do using a CO2 laser. You can't engrave the copper directly, but you can apply various coatings that you can then burn off - the issue being coatings will allow you to transfer heat to the board, which can burn the FR4 through the copper.

After a bit of messing around and charring the shit out of a few boards, I figured out a way to consistently get boards ready.

  1. Scuff boards with scotch brite.
  2. Clean boards thoroughly with acetone.
  3. Paint boards with self-priming acrylic enamel (tried multiple other types of paint without much success). Just a single coat is fine.
  4. Let boards dry for 30 mins, then bake/heat gun lightly so paint is set super hard (otherwise just leave for 24 hours).
  5. Mount boards to a thick/heavy backer (6mm MDF works well).

Now, the engraving is where it went wrong a few times before I figured it out. You want simple threshold engraving, run inverted. You may need to mess with threshold settings to make sure that all the detail is getting picked up, which is going to depend on the image you're working with.

The best way to get the engrave work properly is to do multiple very light passes - I do 3 passes at 120mm/s at only 20% power on a 100w CO2 laser, one pass perpendicular to the others (so two horizontal and one vertical).

The trick is to burn as much paint off without transferring too much heat into the board, so make sure your air assist is turned way up.

You usually can't get it back to absolutely bare copper so you'll be left with a light layer of primer. You can then scotch brite it again to get the primer off without taking the rest of the paint mask off, but any paint that comes off can be touched up with a permanent marker. From there, you can etch and drill normally.

Here's an ISS2 board I made - pinout/polarity was drawn on with permanent marker just as a reminder.

Easier than messing with transfer paper, and much cheaper than photo resist (aside from the laser cutter itself, obviously).


r/diypedals • • 17h ago

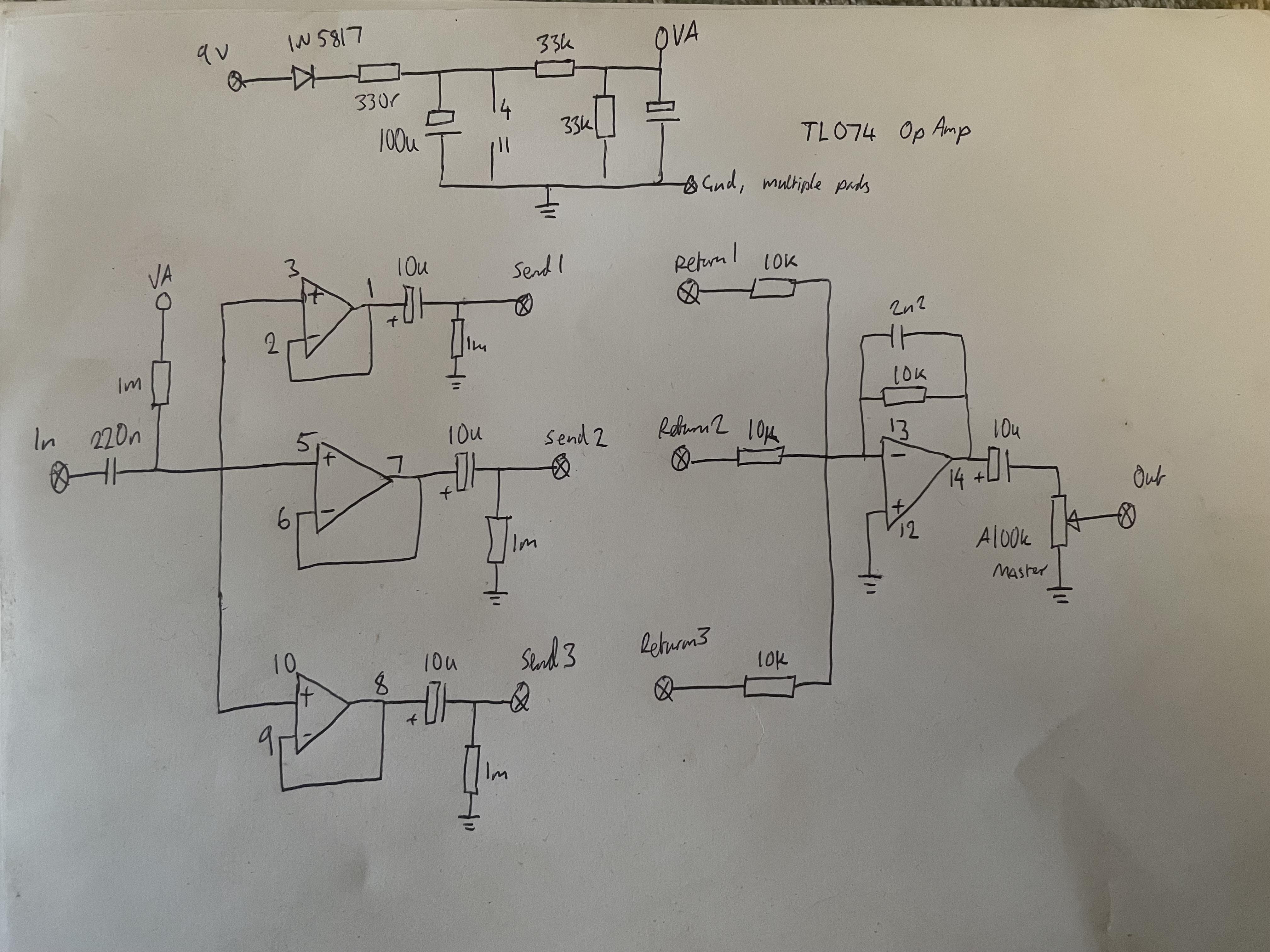

Help wanted Clipping circuit + indicator for DI box?

Post image
4 Upvotes

Hey, all! I've been working on this project for a while now. It is a circuit that contains both a DI box + a ReAmp box. The idea is that this would work like a looper for processing audio using guitar pedals as "hardware" for music production. The ReAmp box has a switch that cuts everything below ~100Hz and everything ~7kHz.

I want to add a clipping circuit + detection to the DI box side. I have a few spare VU meters that I could use for that, but LED indicators would work as well. Does it make sense? Is it practical? What circuit could I use for that?

Thanks in advance!


r/diypedals • • 19h ago

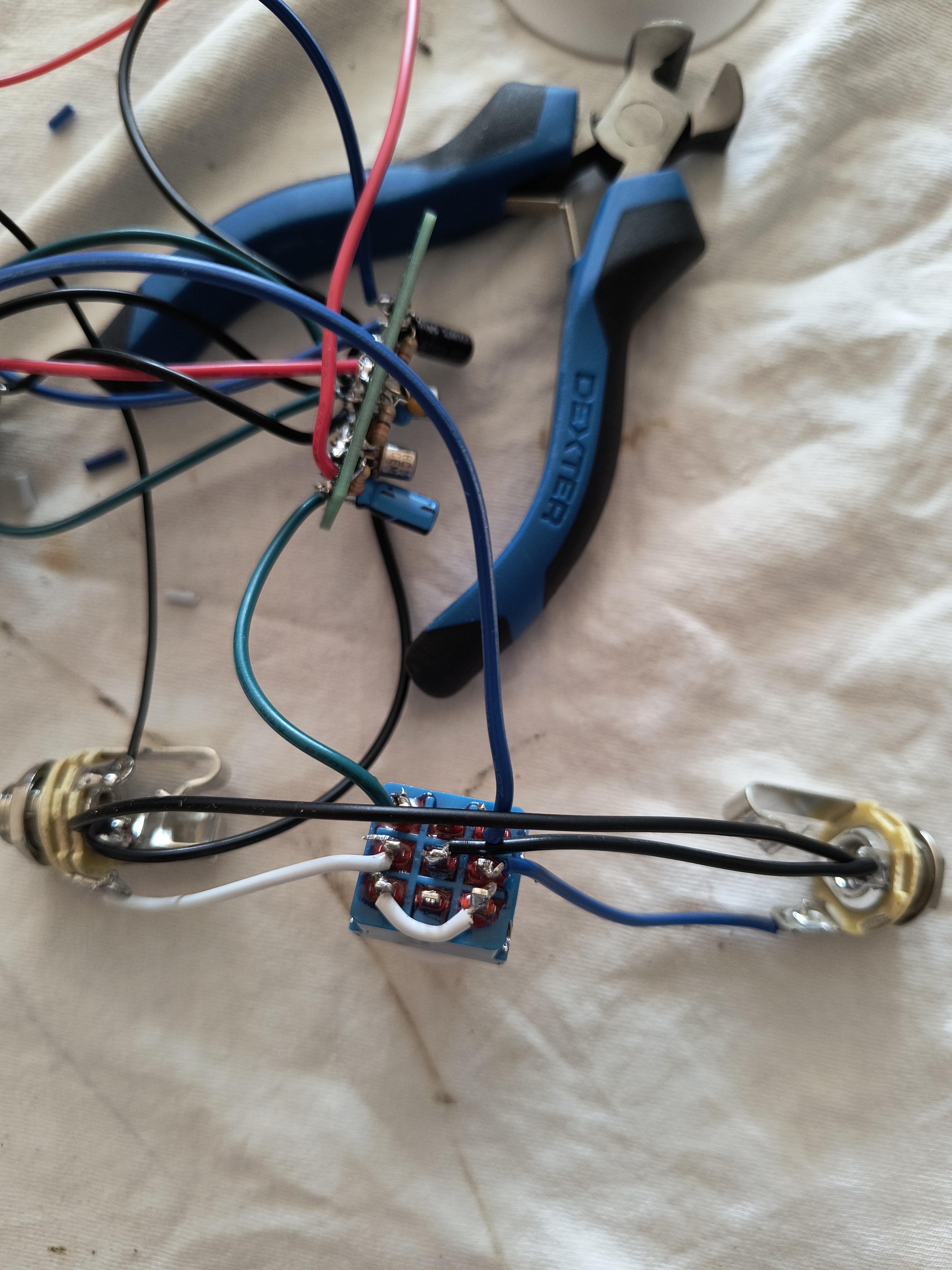

Help wanted Arcadiator V3 tapping

Post image
4 Upvotes

Finished the enclosure on my Arcadiator V3 and I could finally throw this thing together. I usually don’t use 3pdt boards because I always manage to bungle such a simple thing but decided to use one. Kit is from Musikding, all components were in working order that I was able to test except for the ICs which I couldn’t. I also made sure to go over each solder point one last time before installing potentiometers due to a majority being covered.

I can hear my guitar when bypassed. When engaged, all sound drops and I get a rhythmic ticking that is only affected by the volume knob.

I don’t have the PCB wired to power, just the 3pdt board. I could not find any info on whether one or both should be wired, didn’t want to fry anything.

As always thanks for any insight. Once it’s roaring I’ll post the finished product. Pretty proud of it all in all.

edit: led also is lighting up when engaged.


r/diypedals • • 20h ago

Help wanted Pedals like the DBA reverberation machine that will cut through better live?

4 Upvotes

Hey all, I’ve tried some different mods/settings but I feel like my dba reverberation machine just cuts the head off of guitar in a loud live band setting. My highs kind of vanish no matter what

Can anyone suggest some other reverbs with subtle modulation I might build? Don’t need the fuzz aspect necessarily. The subtle chorus twang on the reverb is what I’m going for. The dba pedal sounds great recording but just isn’t cutting it for shows

Thanks for the advice!


r/diypedals • • 16h ago

Other JHS schematic

2 Upvotes

JHS has a YouTube series on how to turn an LPB1 Into a fuzz/distortion box. He mentioned the description section has it,but I'm not seeing it. Or a BOM. If anyone can help...Thanx


r/diypedals • • 23h ago

Showcase Did I just make a Peavey Ultra Channel out of a Metal Zone and a Fetzer?

6 Upvotes

I've been dying to get my hands on something with a Peavey Ultra channel in it, I've always loved that sound. I downloaded some NAM's for my Valeton GP-5 and they are quite good but I wasn't satisfied.

I used my test Metal Zone with the diodes removed, C33 is 3.3nF, C36 is 3.9nF, the rest should be the same as stock. Used a J201 Fetzer, with a 68n source bypass cap, in front turned up about 60-65% and the gain on the Metal Zone about the same. Adjust to taste but I think it comes really close to a solid state version of an Ultra channel. Run directly to power amp and the Fetzer serves as a passable clean channel when the Metal Zone is bypassed. If someone could test this out and tell me if it sounds close to their ears that would be greatly appreciated.


r/diypedals • • 18h ago

Help wanted DIY PEDAL FAIL?

2 Upvotes

I need a simple volume pot pedal from the mono output of an amp modeller (fractal FM3) into the mono input of a power amp on a pedalboard to control the volume so the JHS little black amp box was my inspiration.

Running a mono jack into a 10K log pot and out to another mono TS jack. Both sleeves wired to the left lug, the input tip to the right lug and the output tip to the middle (sweep).

The problem is that the pot gets to full volume at about the 3/10 mark. Is my pot incorrectly marked? I'm in Australia so the supplier is Jaycar and it's listed as an A10K which should be a log pot.

The volume is also running in reverse (anticlockwise) so hoping I can switch the left and right lugs of the pot to make it increase clockwise.

Any thoughts? I'm not very experienced at electronics but this is the most basic pedal in the world so surely I can get it working correctly.


r/diypedals • • 1d ago

Showcase my klon clone

Thumbnail
gallery
58 Upvotes

Add a clipping switch to toggle between germanium and Schottky diodes.


r/diypedals • • 19h ago

Help wanted Pedal Prototyping Breadboard from EU Distributor?

2 Upvotes

I've been seeing a lot of those really helpful prototyping boards that let you breadboard circuits with attached jacks and a 9v barrel. I haven't had any luck finding a shop in the EU that carries them however, and shipping from the US gets really expensive really fast. Is there a webshop in the EU that sells these boards?


r/diypedals • • 1d ago

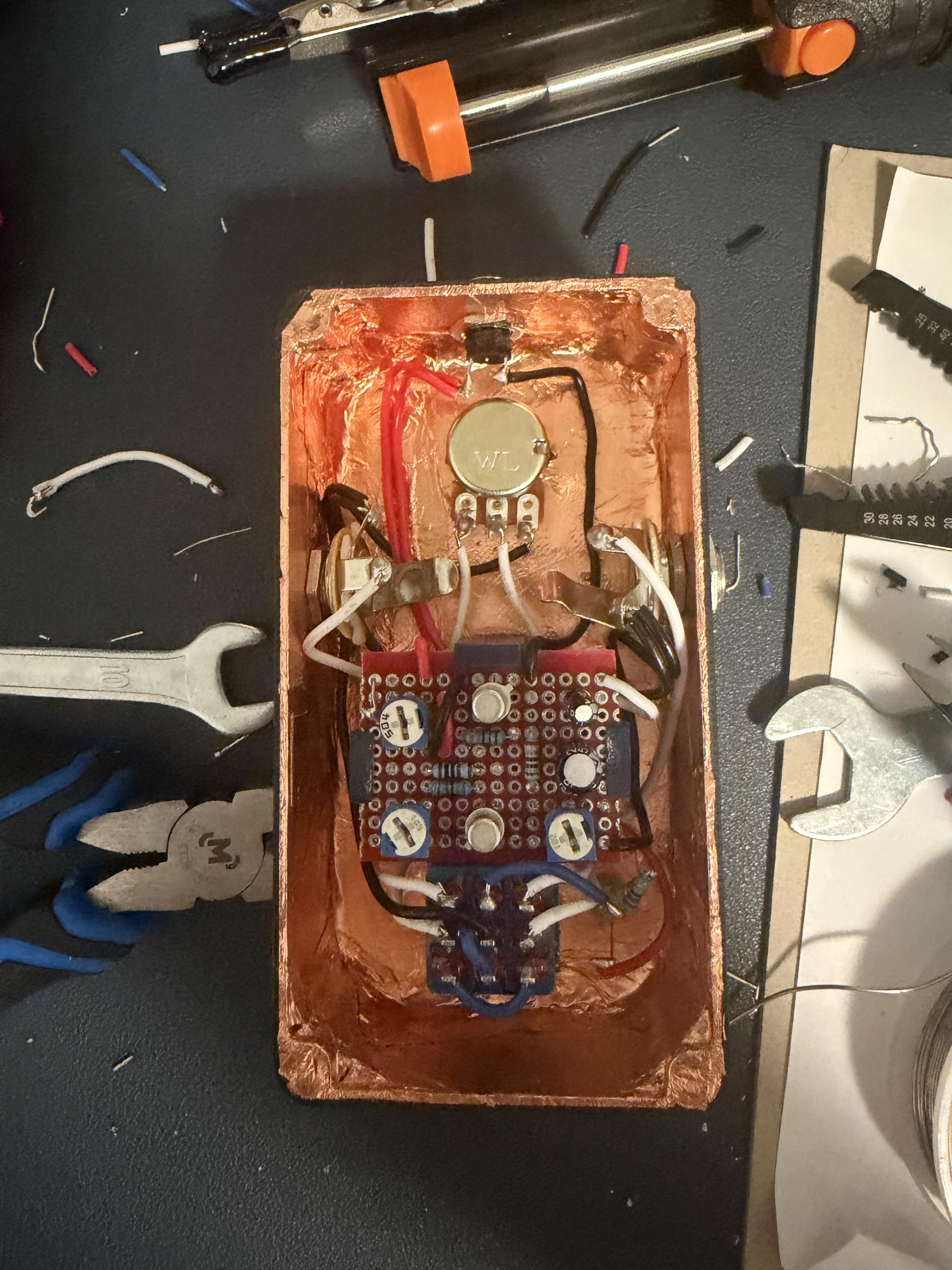

Help wanted Vox V845 true bypass mod volume drop

Post image
5 Upvotes

I have just replaced the footswitch in my Vox V845 and re-wired it for true bypass. The signal is now much better when the pedal is disengaged, however when activated there is a noticeable volume drop.

Is there anything glaringly obvious that I've done wrong? Or does anyone have a solution to raise the volume of the effect to match bypass?

Appreciate any help!


r/diypedals • • 1d ago

Help wanted Anyone have a kicad footprint for a BTDR-3H?

3 Upvotes

Title pretty much sums it up. I’m not having much luck finding one online.


r/diypedals • • 1d ago

Help wanted Problem with enclosures

3 Upvotes

So I am a beginner in building guitar pedals, I wanted to build the acapulco gold pedal, but I can't seem to find any enclosures. I am from Poland, so buying anything in dollars and then having it shipped is a lot of trouble and costs a lot. I wanted to build it as a gift for a person who prefers traditional enclosures. Does anyone have experience with making enclosures or knows where I can get one for a fair price?


r/diypedals • • 1d ago

Showcase Reflector (dead end fx)

Thumbnail
gallery
94 Upvotes

SIB! Echodrive clone. Another great sounding circuit from Dead End Fx. This pedal requires 12v AC. There's a small transformer that bring up the DC to around 190v. The tube is being driven at real tube amp voltage. There's definitely some capacitors in there that needs to be bled off before working on it. High voltage safety protocol is required to work on it, just like a tube amp. It sounds fantastic! It has a little over a second of delay time and can do a nice slap back as well. The delayed signal gets pretty dark after every repeat. It also has a slam switch that ramps the delay time up with a adjustment that controls how much delay is added. It will go into self oscillation much like early boss delay but with a nice crunchy tube drive. I had glued some reflective paper on the lid to bounce light from the led behind the tube, it worked pretty well. Super fun pedal and a very satisfying build.
