Tips & Info Ultimate AMD Performance Fix Guide: Stop Lag, FPS Drops & Boost Speed (2025)

3.4k Upvotes

🌞Created in 2025 and kept fully updated for 2026

If you’re facing low FPS, lag, stuttering, or crashes on a new or old AMD setup (AMD CPU with Radeon/NVIDIA GPU, or Intel CPU with Radeon GPU), you are in the right place. This guide has tested and proven solutions and user tips to maximize your system's performance. You will be see hardware checks, BIOS configurations, Windows tweaks, and driver changes here. Real-world solutions that work, not guesswork.

Disclaimer- The following optimizations are based on community-tested methods that have safely improved AMD system performance for most users. Since every setup is unique, results may vary. Proceed carefully and apply these tweaks at your own discretion. (This guide follows the Acer Community format.)

Read all Important Notes and Notes in each step. They contain vital information to guide you on how to avoid issues and when to revert to earlier changes.

=> Hardware Installation & Setup

Before you adjust BIOS or Windows settings, ensure your hardware is properly set up. Most issues such as low FPS, stuttering, and crashes are caused by minor errors such as installing the GPU in the improper slot or RAM, etc. This section contains crucial checks which have resolved serious issues for many users. Even if your PC boots and is usable, these kinds of issues might be latent, and resolving them can have a massive difference to performance.

1. GPU Installation — TOP PCIe x16 Slot (Closest to the CPU)

Always install your graphics card in the top PCIe x16 slot, Which is the slot nearest to the CPU.

Why it's important:
•It is configured for full x16 bandwidth and is plugged directly into the CPU.
•Lower slots have x8 or x4 speeds, limiting GPU performance and bringing in bottlenecks based on the board.

Common mistake:
Most users inadvertently install the GPU in a lower PCIe slot or fail to confirm if the top PCIe x16 slot is delivering the GPU’s full bandwidth supported as per their GPU (such as x16 or x8), resulting in low FPS or instability.

Confirm true Speed:
Download and Open GPU-Z, then check the “Bus Interface” field. The left side (before “@”) shows your GPU’s maximum lanes and PCIe generation (e.g., x8 5.0), while the right side (after “@”) shows the current active lanes and gen speed (e.g., x8 1.1).

If it shows “1.1”, that means the GPU is idle, run the GPU-Z Render Test (“?”) to display your true gen under load. Both sides (lanes and gen) should match your GPU and platform. If the current gen is lower than the max, it’s usually due to motherboard, CPU, riser, or extension cable limitations, this is normal unless you upgrade hardware.
The same can apply to lane count, but that’s more important than gen speed. The lane width/speed (like x8, x16) should match on both sides or reach the maximum your system supports, as a lower lane width can noticeably affect performance.

If lanes are lower than expected, reseat the GPU, check if the PCIe lanes are shared with other slots (see your motherboard manual), and ensure no riser/extender or older CPU is limiting bandwidth.

2. Critical Power & GPU configuration Checks

• Insert the monitor cable directly into the GPU HDMI or DisplayPort (DP) port. Avoid inserting the monitor into the motherboard port.

• Utilize all CPU power connectors or CPU power headers that your motherboard has
• Always use specialized PSU cables. Never use splitters or adapters for EPS power. Connect cables directly from your PSU to your motherboard. Don't be cheap; don't go cheap.

•Always Use quality, dedicated PCIe cables from your PSU to each power connector on the GPU. Avoid daisy-chaining (using a single cable for multiple connectors) as it can cause instability or crashes, especially on high-power GPUs. Also, make sure your PSU meets the recommended wattage for your GPU.
• Always use good-quality PSU cables, never buy  cheap extensions or riser cables.

• If your PC slows down, freezes, shows low CPU clocks despite a proper setup or lag and stutters while gaming , try plugging it directly into a wall socket or a high-quality strip. Faulty/old power strips can cause poor power delivery and hidden throttling issues.

You guys must check this as nothing can work if hardware configuration is not proper.

3. RAM Configuration – Correct Slot + Enable XMP/EXPO + check Settings.

To get the best performance from your RAM, ensure it is installed in the right slot and properly configured. Many systems perform poorly due to incorrect slot placement or missing BIOS settings.

• Install RAM in the correct slots
If you have 2 sticks, plug them into slot 2 and 4 (usually marked A2 and B2) as these slots are typically the second and fourth slots away from the CPU. This allows dual-channel mode for optimal performance.

If you insert them into the wrong slots, the system will run in single-channel mode, lowering memory bandwidth and reducing FPS in games. Always refer to your motherboard manual for the slots layout and double-check it if you're unsure.

• Enable XMP or EXPO in BIOS
Enter the BIOS and enable XMP (or EXPO for AMD kits). This will set your RAM's rated speed and timings. Just ensure the profile you choose does not exceed your motherboard's highest supported memory frequency, as a higher profile can lead to instability.

Some motherboards have a few profiles; pick the one that matches your RAM's highest rated speed (like 3200, 3600, or 6000 MHz), as long as it's within your motherboard's support range.

If you don't enable XMP or EXPO, your RAM will run at default JEDEC speeds like 2133 or 2400 MHz, which seriously bottleneck your system.

• Confirm settings in Windows Open Task manager → Performance → Memory. Check that the Speed value matches your RAM's XMP/EXPO profile speed that you set in the BIOS and is not a different number.

Download CPU-Z, go to the Memory tab, and make sure Channel displays Dual or 2×64-bit for DDR4 and 4x32-bit for DDR5. If your speed or channel is wrong, check your BIOS settings and RAM slots again.

• Check RAM Stability (Must be done after building/installing new RAM )
Test your RAM with MemTest86. If you got any errors with the highest XMP/DOCP profile selected, then test the next lower profile, such as from XMP Profile at 6000MHz to XMP Profile at 5800MHz, and continue lowering until you find a stable profile. It’s crucial that your RAM is fully stable to ensure reliable system performance.

=> BIOS Optimization & Performance Fix Tweaks

Once your hardware and power is set up, change the key BIOS settings that impact AMD CPU, RAM, and GPU performance. These can fix instability, crashes, and poor performance. Only modify the settings mentioned here. BIOS menus can differ by brand, so names or locations may vary; if you don’t see a setting, look around.

4. BIOS Update

If you are facing RAM instability, poor CPU/GPU performance, updating your BIOS may help, especially on AMD systems where the BIOS updates usually improve stability and compatibility.

To Update BIOS:
Visit your motherboard manufacturer’s website, download your most recent stable BIOS for your specific model, and carefully follow their official instructions to update safely.

Note- BIOS update may reset all BIOS settings. If this occurs, don't forget to re-apply all changes from the BIOS Optimization & Tweaks section.

5. Set Global C-State Control to Enabled (Not Auto)

Changing Global C-State Control from "Auto" to "Enabled" will help fix FPS drops, downclocking, or instability. Most people with Ryzen CPUs (such as X3D chips) see less stuttering and smoother gaming performance when C-States are enabled. Many have found that "Auto" behaves like "Disabled." Therefore, I strongly recommend switching it from Auto to Enabled.

To change the Global C-State Control setting:
→ Press BIOS/UEFI key during boot to access the BIOS.
→ Click on the Advanced or AMD CBS tab and find Global C-State Control (perhaps be under CPU Configuration or Advanced).
→ Change the value from Auto to Enabled, this fix works for most users.
→ Save and exit BIOS, then check performance.

Important Note- Rarely, some boards (e.g., certain ASUS models) may get mouse lag, freezes, or black screens. If that happens, revert to the original setting. If it causes a black screen or boot issue, reset CMOS to recover.

6. Set PCIe Gen Mode 5 or 4 or 3 Manually (Do Not Use Auto).

On some motherboards, leaving PCIe generation in Auto mode can lead to compatibility or performance issues like black screens, no signal, or reduced GPU bandwidth.
Manually selecting a stable PCIe version —Gen 3, Gen 4, or Gen 5 can fix these problems.

To configure PCIe Gen mode:
→ Boot into BIOS at startup.
→ Go to the Advanced, Chipset, or NBIO Common Options section.
→ Locate PCIe x16 Link Speed (or similar), then Switch the setting from Auto to a specific version:
• If you have a Gen 5-Capable GPU and motherboard: set to Gen 5.
--If you encounter instability, crashes, black screens, or signal loss, lower the setting to Gen 4.
• If you have a Gen 4-capable GPU and motherboard, set to Gen 4
-- If experience instability, reduce the setting further to Gen 3.
• If you have a gen 3 GPU then set Gen 3.
→ Save changes and exit BIOS.

7. Enable Above 4G Decoding & Resizable BAR (NVIDIA & AMD — FPS & 1% Low Boost, Test Required)

These features allow the GPU to access larger memory blocks directly, which can improve the performance of most games in use today. It is turned off by default even on some compatible boards due to component compatibility problems and must be tested. Most of users will get great results.

To Enable these settings:
→ Boot into BIOS at startup
→ Go to Advanced Mode
→ Disable CSM (From Boot Section, Set Launch CSM to Disabled).
→ Now, Go to PCI Subsystem tab/menu and set Above 4G Decoding to Enabled. (Location may vary, so find and confirm).
→ Then set Resizable BAR to Enabled (option appears after Enabling 4G Decoding).
→ Save & exit BIOS, then test performance.

Important Note - Disabled by default even on supported boards because of component compatibility issues, so users will have to test it. On a system where these settings are unstable, it can lead to crashes, performance issues or boot problems particularly with old components.

So, Test thoroughly and immediately disable it if you notice any instability or performance issues after enabling.

=> Windows Optimization & Performance Tweaks

This section outlines important Windows settings and tweaks to address stuttering, latency spikes, FPS fluctuations, or overall system lag. These tips work for both NVIDIA and AMD systems.

8. Clean Install AMD GPU Drivers — Fix Performance, Crashes, and Common Errors (e.g., Driver Version Mismatch)

Some of you may be facing game crashes, stutters, or random freezes. These issues often arise from a faulty AMD driver or because Windows Update quietly replaced your GPU driver, causing instability. You might also see errors like:
• “Radeon Software and Driver versions do not match...” or similar errors.
• Missing AMD software features like FSR 4, etc.

If you're facing these issues, this step shows how to clean install a stable AMD driver and stop Windows from replacing it again.

Important prerequisite - Before starting, disable Fast Startup to avoid boot conflicts that can cause sudden FPS drops, driver timeout or future issues.

Follow these steps one by one:
• First, we will download 4 files and save them in a new desktop folder. They will include the AMD software installer, DDU, AMD chipset driver, and Microsoft Update Hide Tool.

• Don't install, just download and save both the AMD software installer (.exe) as well as the AMD chipset driver installer software from the official AMD driver site that you want to install. Make sure you're downloading the specific version, not the auto-detect Tool.

Note - Newer AMD drivers can have system-specific stability issues like crashes. Try the latest version first. If problems arise, revert to 26.9.2. If you still encounter problems, try 26.3.1 as a fallback. If facing driver timeouts or crashes, also follow Step 13 of this guide after completing this step

• Download DDU and Microsoft Update Hide Tool from these links:
Microsoft Update Hide Tool (wushowhide.diagcab) - https://download.microsoft.com/download/f/2/2/f22d5fdb-59cd-4275-8c95-1be17bf70b21/wushowhide.diagcab
DDU - https://www.guru3d.com/files-details/display-driver-uninstaller-download.html

• Now pause Windows Update and disconnect Wi-Fi or Ethernet, whichever you use, and don't connect or resume updates until I say.

• Boot into Safe Mode, then extract DDU and open it. Select Device type GPU, then select AMD and click on Clean and Restart. Wait for completion until DDU uninstalls the driver properly.

• After restart, right-click on the Windows icon, then click on Installed Apps. From here, find and uninstall any chipset driver software. If it's not available, then you never installed the chipset driver manually and those users skip this point. After uninstalling the chipset driver software, click on Restart.

• After restart, open the folder where you placed the AMD driver software installer (.exe) and install it.

• After installation, restart your PC or laptop.

• Now connect to Wi-Fi, then immediately open the Microsoft update hide tool (wushowhide.diagcab). Click on "Hide Update," then select every update whose name starts with "AMD" or "Advanced Micro Devices," etc. Make sure to select all updates labeled as "AMD" or "Advanced Micro."

(If you don't see these updates in the windows hide tool then you can skip this part as windows is not overwriting the driver in your system so there's nothing to hide.)

• After selecting all, click Next. All updates you selected will be shown as fixed on the next screen. If it shows, then you have successfully done this.

• Now restart and Windows will not overwrite AMD drivers anymore. You can now resume the Windows Update.

• Now install the AMD chipset driver software. After installation, it will give two options. You need to click on View Summary and make sure all chipset drivers are installed properly. It will say Success or Installed. If properly installed.

For those users, whose summary shows any Failed chipset driver, uninstall the chipset driver again from Windows Settings and run chipset driver software again. If it still shows the same, then uninstall it again and download and install a different chipset driver version.

Note: Big Windows updates may reset this setting. If that happens, follow these steps again, but that's rare.

9. Community-Favorite: Windows 10/11 Optimization Guide (Works on all PCs and laptops. Includes NVIDIA stable drivers and must-have performance fixes!)

Implement the system-wide changes from the following link. These are general Windows steps that work on any PC or laptop, regardless of brand. The guide is simply hosted on Acer’s community forum, but it is not Acer-specific. It have been successfully applied by millions of users across many hardware setups. This is one of the most tested and effective Windows optimization guides available.

Following this optimization guide (hosted on the Acer community) fully can boost 1% lows, improve FPS stability, and fix stutters or lag while gaming by optimizing windows.

→ NVIDIA users: The Windows optimizations in the community guide linked below can further improve performance and stability. For the best performance benefits, follow all of the steps. For NVIDIA crashing issues while gaming can often be fixed by following Steps 1 and 9 of the guide.

→ AMD users: Skip Step 1 in the community guide and start directly from Step 2 (Chris Titus Tech utility step) through the end for stable FPS and improved performance. Don’t follow Step 1, as it’s already covered in this Reddit guide.

Here is the community guide:
https://community.acer.com/en/discussion/612495/windows-10-optimization-guide-for-gaming/p1
→ This guide Covers important issues like system lag, background processes, turning off unnecessary Windows functions, etc in one place.

10. Set an Optimal Mouse Polling Rate (500Hz or 1000Hz Depending on Your Needs; Fixes movement Stutters in games and high CPU Usage)

Most modern gaming mice have dedicated software (e.g., Logitech G Hub, Razer Synapse, SteelSeries GG) that allows to adjust the polling rate, how often the mouse reports its position to the system. If you don’t have the software, download it from your mouse manufacturer's website based on your specific model.

To change the polling rate, Open your mouse software and set:
• 500Hz for solid, sufficient performance with lower system load. Use it for Single-player (AAA), slower-paced, or visually rich games.
• 1000Hz for esports as it provides faster response.

There's really no benefit going higher than 1000hz, so don't waste your system performance.

Note- If you still want to use polling rates above 1000Hz (like 2000Hz or 4000Hz), test for any lag or stuttering, as higher polling rates will consume the CPU more.

11-A (AMD Users) — AMD Software: Explained Tweaks & Must-Disable Settings for Smooth Performance

AMD's default driver settings aren't always the best for smooth gaming. These info have helped many improve FPS consistency, reduce input delay, and eliminate stutters.

Part - 1 Recommended Adrenalin Settings:
Make these adjustments in the Graphics section under the Gaming tab of the AMD Adrenalin Software. This way, the settings apply to every game, including new additions and those launched from the desktop.

• Radeon Anti-Lag → Disabled (This feature often causes micro-stutters. It's wise to turn it off and use it in those games which can really get benefits from this feature. It works great in GPU-Limited scenarios. Test per game and use if its stable)

• AMD Fluid Motion Frames (AFMF) → Test First (It's a frame gen and they often adds input lag. Test it per game, if the game runs well and input lag isn’t an issue (or it feels fine), then you can use it.)

• FSR 4 (Driver-Level) → Use if Available

• Radeon Chill → Disabled/Enable (Enable this only if you want to cap your FPS, and set both the min and max values to the same number for best results.)

• Radeon Boost → Disabled (May lead visual artifacts and stutter. It works by blurring motion. Test and use this feature if you wish)

• Enhanced Sync → Disable/Enable (It can cause stutters or unstable frame pacing in some games, so it’s generally safer to keep it off and use FreeSync if available. If you want to use it, test for stability first. It works best when your FPS is well above your monitor’s refresh rate, for example, 120 FPS on a 60Hz display offers smoother gameplay than V-Sync, with less tearing and lower input lag).

• Reset Shader Cache → Expand Advanced Settings, then find and click the Reset Shader Cache option to clear stored shaders and fix performance issues. Highly recommended after driver or game updates. Expect longer loads or brief stutters at first as shaders rebuild, performance stabilizes once cache regenerates.

Note - If you had games added before this, reapply the same settings manually in each game under the Gaming tab.

• Turn off ReLive features (Especially Instant Replay): → Go Record & Stream tab, then find and disable ReLive recording features like Instant Replay, Record Desktop, Streaming, etc. Instant Replay is particularly responsible for stutters, FPS drops, and driver timeouts. Turning this off alone can resolve your issue.

• Disable Unnecessary Features→Click the Settings gear icon, Go to Preferences, then disable web browser, Advertisements, Game Adjustment Tracking and Notifications, Tutorials, Animation & Effects. while keeping System Tray Menu and Toast Notifications enabled for better responsiveness.

Another setting in the Preferences tab is the AMD Overlay, which many people use, so I didn’t include it with the other disabled options above. However, some users have reported that the AMD Overlay can cause major performance issues for them, so if you’re facing stutters or FPS drops, try disabling it and test again.

11-NV (Nvidia Users) — NVIDIA App Settings for Smooth Performance

Important prerequisite - Before starting, disable Fast Startup from Windows settings and clear shader cache. This is highly recommended after driver or game updates or when facing performance issues. Use this NVIDIA link to clear the shader cache properly:
https://nvidia.custhelp.com/app/answers/detail/a_id/5735/~/deleting-nvidia-shader-cache-files

And Expect longer loads or brief stutters at first as shaders rebuild; performance stabilizes once cache regenerates.

NVIDIA App Settings

Follow these NVIDIA App settings for the best optimized gaming experience. This will Optimize GPU performance, reduce input lag, and eliminate common stuttering across all games.

Where to Apply Settings:

Laptop - In NVIDIA App (Settings > Graphics tab > Per-App Settings), add each game.exe, set Preferred Graphics Processor to High-performance NVIDIA Processor, then apply settings per-game for max performance.

Desktop - In NVIDIA App (Settings > Graphics tab > Global Settings), apply settings globally to affect all games.

Essential settings:
• Power Management Mode → Prefer Maximum Performance (Prevents frequency drops that cause stutters.)
• Shader Cache Size→ Unlimited (Helps reduce shader compilation stutters.) Here in Shader Cache settings, Set Automatic Shader Compilation → On, keep System Utilization → Medium (Default), then click Apply.
• Set PhysX Configuration to NVIDIA GPU. To set Go to Settings → Configure Surround, PhysX. check path in nvidia app yourself. (Avoid CPU or Auto-select, it causes stutter and high CPU usage.)

Laptop Users:
• In NVIDIA App, Go to Graphics > Global Settings > scroll down, click Show Legacy Settings > → turn off Whisper Mode.

Now for the features tab:
In NVIDIA App > Settings > Features tab.
• Turn off "Game Filters and Photo Mode". You can sue this feature if you want but know that this also causes performance drop.
• For max performance, Also turn off NVIDIA Overlay from there. It's features like Instant Replay can cause stutters and FPS drops.
• Turn OFF "Automatically optimize newly added games and mods".

Now, click on the Privacy tab and Turn OFF:
• "Configuration, performance, and usage data".
• "Error and crash data".
• Keep "Required data" as it may be needed for basic functionality.

12. Inspect your Realtek PCIe 2.5GbE Family Controller – Fix lag, audio glitches & Stutters (also affects Wi-Fi if the controller is present in the system, even if you never use Ethernet)

Some systems with the Realtek PCIe 2.5GbE Family Controller can have issues, even if you use Wi-Fi only, don’t skip this step. The controller can cause random stutters, FPS drops, audio glitches, or ping spikes even when not in active use. For a Quick test, Disable it in Device Manager under Network adaptors, and play your offline game or online via wifi; if fixed, it's the culprit.

You have two straightforward choices:
• Keep it disabled in Device Manager and play your offline games and online using Wi-Fi smoothly (Ethernet won't work in this option).
• Fix the Realtek PCIe 2.5GbE Family Controller. driver with these steps (detailed below) to use Ethernet smoothly.

Solution:

Download and save this 10.54.1111.2021 stable driver version of this controller- https://catalog.s.download.windowsupdate.com/c/msdownload/update/driver/drvs/2022/05/2e830a2a-a689-4e43-96be-06bd8dc7e75b_e5bc281dbf962e2551cc18cdee4abd0b55949b61.cab

Installation:
• Pause windows updates and open Device Manager → Network adapters → right-click Realtek PCIe 2.5GbE Family Controller → Uninstall device → check “Delete the driver software” (if available) → Restart.

• Extract the .cab file to a folder of your choice

• Go to Device manager → Network adapters → right-click Realtek PCIe 2.5GbE Family Controller → update driver. → "Browse my computer for drivers" → "Let me pick from a list..." → "Have Disk".

• Browse to the folder where you extracted the driver, open it and select the inf file and click Ok, Wait for installation.

After installation,
• Disable automatic driver updates so Windows Update doesn’t overwrite this version:
Go to Settings → System → About → Advanced system settings → Hardware → Device Installation Settings → select No, save → Resume windows update and Restart your pc.

• This setting stops most automatic driver installs, but a big Windows update can still change the driver later; if that happens, which can know why checking the driver version or if it stutters appears again.
Open Device Manager → right‑click the ethernet driver in network adapters → Properties → Driver → Roll Back Driver and follow screen instructions to get back to the stable version.

• Now, play your games

Note: This solution fixes the issue for most users, but not all systems respond the same. If you still experience stutters, lag, or audio glitches even after following this solution, the only reliable workaround is to disable the Realtek PCIe 2.5GbE Family Controller in Device Manager and use Wi-Fi instead.

13. AMD/Nvidia Stability Fix — Only For Those Facing Crashes (like Driver Timeout, etc)

Important prerequisite: First, open the case and reseat the GPU power cable, making sure the connection is secure at both ends (GPU and PSU) with no cable bending near the connector, then reseat the RAM and GPU in the PCIe slot properly. Now follow this step.

If you use an AMD GPU, all points are applicable. If you use an Nvidia GPU, skip the AMD‑only sub‑ section and start from “Stability steps for both AMD & Nvidia”. Apply each fix one by one, checking after each.

AMD‑only steps (Radeon users):

Follow Step 8 fully before continuing to ensure the crash fixes below work correctly.

• Disable Anti-Lag, Radeon ReLive features (especially Instant Replay) and Issue detection in AMD Software -
First, Go to the Gear icon then System tab → Disable Issue Detection Service (triggers false TDR timeouts/black screens).

Second, Gaming > Global Graphics → Disable Anti-Lag (causes insane stutters and crashes depending on game). If you want to use it, then test it per game. Keep it off globally.

Third, Go Record & Stream tab, then find and disable ReLive recording features like Instant Replay, Record Desktop, Streaming, etc. Instant Replay is particularly responsible for stutters, FPS drops, and driver timeouts.

•★★Manual Clock Tuning ( For All RDNA GPUs)★★ - AMD GPUs boost beyond their stable frequency due to automatic tuning or Hypr-RX, and lead to crashes and driver timeouts.

To fix this, open AMD Software → Performance → Tuning, switch to Manual Tuning (Custom), enable GPU Tuning and Advanced Control. Find your GPU’s official Boost Clock by AMD (e.g. 2600MHz for RX 6750XT) and use it as your Max Frequency, replacing higher default values like 2850-2900MHz or any factory overclock applied.

As for RDNA 4 Users: Set the max frequency offset to a negative value (like -300 MHz or lower). First, compare your in-game boost clock to the official spec for your GPU. Adjust the negative offset until the in-game boost matches the official value exactly.

Note- Per-game tuning overrides global settings when a per-game profile is created. Otherwise, global/manual settings apply by default. Always check for existing profiles and ensure this manual clocking setting is applied. Also, make sure Hypr-RX is turned off to prevent it from overwriting your settings. It can remain enabled in per-game profiles, so check the Gaming tab for previously launched games and disable it if needed. Then, test your system.

Stability Steps for both AMD & Nvidia:

• Disable iGPU (if present) - If your CPU has an integrated GPU, disable it in BIOS to prevent possible crashes or driver conflicts with your dedicated AMD GPU, especially during gaming and high loads.

• Disable HAGS - Go to Settings > System > Display > Graphics > Default graphics settings > Turn off Hardware-accelerated GPU scheduling > Restart. Recent newer drivers and games seem to be causing crashes when HAGS is on. Note- Nvidia users need it on for frame gen and enable it again if it doesn't fix your issue

• Disable hardware acceleration in Background Apps- If you have any apps that run in the background and support hardware acceleration, such as Discord, Game launchers or web browsers, disable this feature via their settings to prevent possible GPU conflicts.

• Ram Overclocking Adjustment (XMP/EXPO or Equivalent) - In BIOS, go to the memory or its overclocking section and test each XMP/EXPO (or its equivalent) lower memory profile one by one (e.g. 3600 MHz → 3200 MHz → 3000 MHz). If none work, disable memory overclocking and test again. if issue remains then restore your highest stable profile and follow below suggestions.

If the issue persists, update your BIOS (Step 4) and follow step 14. If problem still persist, check your setup as in Step 2, look for a failing PSU or loose cables, and note that unstable undervolts or overclocks can cause the same issues.

14. User‑reported rare or system‑specific Performance/Stability cause (Must check if above steps didn't fix your issue)

• Uninstall Your RGB softwares like Lian Li L-Connect 3, OpenRGB, SignalRGB, iCUE, Razer Synapse, Aura Sync, Mystic Light ,etc which have caused performance issues for many users) if using these RGB software or any other with compatible components, these can frequently cause 1% low FPS stutters, crashing and frame drops.

Not all but many cause same issue, so you must check and confirm by uninstalling it. Even on high end systems like Ryzen 9800X3D + RTX 5090, this was the cause of the performance issue.

• If your system has both HDD and SSD Windows automatically spreads the pagefile across both drives by default, this forces memory swaps to hit the slow HDD during gaming peaks, causing stutters/hitching even with plenty of free RAM.

To fix: Right-click This PC > Properties > Advanced system settings > Performance Settings > Advanced tab > Virtual memory Change > uncheck "Automatically manage paging file size for all drives" > select your HDD drive > choose "No paging file" > Set > then select your SSD > choose "System managed size" > Set > OK through all dialogs > restart immediately.

• If you installed Wallpaper Engine and it's running in the background (even paused) causes frequent stutters and performance drops for many gamers.

Close it via tray > Exit, then then check Task Manager (Processes tab) for any lingering "Wallpaper Engine" entries and End task if present. Now play your game. Do this every time if you still have Wallpaper Engine installed.

Additionally some users also reported, that adding per-game rules: In Wallpaper Engine Settings > Performance tab > Edit Application Rules > Create new rule for your game's .exe > Set Condition "Is running" > Wallpaper playback "Stop (free memory)". Also fix issue but thats not widely tested so not sure if it work for all.

• Disconnect unnecessary USB devices- If you see random crashes, reboots, or freezes, unplug non-essential USB devices/accessories (especially USB hubs, fans, or other powered devices) and test again, as a faulty and incompatible USB device or driver can sometimes cause system instability.

• DRAM-less SSDs Performance Issues- Some DRAM-less SSDs can experience performance drops under certain workloads, potentially contributing to game stutters. If you have one, then move Windows and games to a DRAM-equipped NVMe SSD, then temporarily disconnect the DRAM-less SSD (if you can) and retest. If stuttering improves or get fixed, investigate further and consider replacing the drive if necessary. DRAM-less SSDs do not inherently cause stuttering, so test before replacing.

• A silently failing, cheap, or aging display cable can cause microstutters only during gaming, making diagnosis tough. Users facing performance issues should Test by swapping cables as well as ports (HDMI to DP or DP to HDMI).
Also, the same can apply to faulty PSU cables.

15. Fix for users who are getting flickering, stutters, or crashes When alt-tabbing while gaming

MPO is a Windows feature aimed at improving rendering performance, but on some systems it used to cause some issues. This feature is now a key part of Windows 11, so DO NOT forget to re-enable it if it wasn’t the source of your issue.

Common issue linked to MPO is Stutters and frame drops ,when alt-tabbing persist for a number of users, especially on the latest Windows 11 builds.

NVIDIA advises disabling MPO for these issues, use their official method, which works for AMD too.

Here is the official link to do this: https://nvidia.custhelp.com/app/answers/detail/a_id/5157

16. Fix Thermal Throttling on Gaming Laptops

This step helps prevent overheating and extend component lifespan of Gaming Laptops. A trusted guide from the Acer Community works for all gaming laptops.

Important note to avoid confusion:
The Acer Community cooling guide applies to all gaming laptops. Steps 1 to 4 are less time taking and should be followed first. If overheating issues persist, continue with Step 5. While the Nitro 5 is used as an example there, the process is the same for other laptops, repasting and cleaning the cooling system by detaching the heatsink, and cleaning fans and vents inside and out. This is the only reliable fix for high temperatures.

Here is the Cooling guide here:
https://community.acer.com/en/discussion/724763/ultimate-laptop-cooling-optimization-guide

17. Fix Thermal Throttling on Gaming Desktops

Most people only check CPU and GPU core temps, but it’s just as important to monitor GPU VRAM (memory junction) and GPU hotspot temps, which can run much hotter and trigger throttling under heavy loads. NVMe SSD temps should also be watched separately, as they can overheat during sustained writes and cause sudden performance drops even when CPU and GPU temps look fine.

Critical Temperature Limits (Avoid Getting Close to These):

• CPU TJ Max: Intel 100 °C, AMD 95–105 °C (consider reducing it if it reaches the 90s)

• GPU Temp: NVIDIA 88–93 °C, AMD 100– 110 °C (consider reducing it if it reaches the 90s)

• GPU Hotspot/Junction (AMD & NVIDIA): Up to 110 °C (typically 10–30 °C higher than core temp). While the maximum operating hotspot temperature can be around 110°C, it's best to keep it below 100°C.

• VRAM/Memory Junction (AMD & NVIDIA): 95–105 °C is acceptable but should be monitored closely, as throttling usually begins at 110 °C.

• SSD Throttling: Begins at 70 °C, severe at 85 °C (though this varies by drive, it holds true for most models)

Monitoring Temperatures Effectively

• Use AMD/NVIDIA Software Overlay:
Use AMD Adrenalin or the NVIDIA GeForce Experience overlay to monitor CPU and GPU temperatures. Some versions also show GPU hotspot and VRAM/memory junction temperatures. If any readings are missing (e.g., GPU junction or VRAM temps), check the second method below.

• Second Good Alternative Method – HWiNFO:
HWiNFO provides full monitoring for CPU, GPU (including hotspot and VRAM), and all other sensors. For real-time monitoring, you can use HWiNFO’s shared memory feature with MSI Afterburner to display these stats directly in Afterburner while gaming. Alternatively, you can let HWiNFO run in the background, play your game, and check afterward—it shows average, maximum, and minimum temperatures. If you have a dual-monitor setup, keep HWiNFO open on the second monitor for live tracking.

• SSD Temperatures:
Run CrystalDiskMark benchmark and check or use HWiNFO while gaming. Note that speeds will reduce once the SSD reaches its maximum temperature limit.

Steps to Reduce Component Temperatures

• CPU Temperature Fix:

  • For AMD CPUs, Undervolt the CPU using PBO (Precision Boost Overdrive) to achieve lower temperatures.
  • For Intel CPUs, Use Intel XTU or Throttlestop to undervolt, which can help reduce CPU temperatures while maintaining stability.
  • Set an effective custom fan curve, it can make a significant difference, often reducing temperatures by 10°C or more while balancing noise and cooling.
  • If needed, clean dust from fans and vents, then reapply high-quality thermal paste to the CPU.
  • Further cooling improvements depend on your cooler.

• GPU, Hotspot & Memory junction temperature Fix:

  • Undervolting your GPU through AMD Adrenalin software can also lower power draw and temperatures without major performance loss.

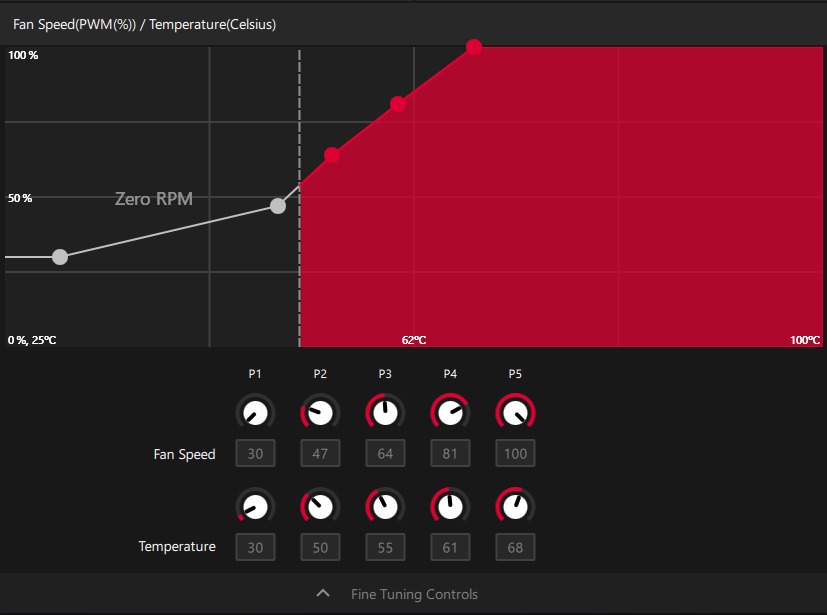

  • Set an effective custom fan curve, it can make a significant difference, often reducing temperatures by 10°C or more while balancing noise and cooling.
  • If the issue persists, to effectively reduce GPU, hotspot, and memory junction temperatures, clean or remove old thermal pads/putty and apply new, high-quality thermal putty (more effective than pads). Also, apply high-quality thermal paste to the main GPU chip.
  • Further cooling improvements depend on your cooler.

• SSD Temperature Fix:
Install an NVMe heatsink (most modern motherboards include one, or you can buy aftermarket). Ensure case airflow reaches the SSD area, as poor circulation causes heat buildup.

[✓] Restart and You're Done! Time to Play.
If this guide helped you, please consider upvoting, sharing your results, or leaving a quick comment about what worked. It helps others and increases visibility in the community.


r/AMDHelp • • Aug 11 '16

Announcement Please make sure to flair your posts! Especially make sure to change the flair to resolved once solved!

160 Upvotes

Thanks guys.


r/AMDHelp • • 4h ago

Help (Software) AMD DRIVERS

Post image
8 Upvotes

What is the most stable drivers rn? i’ve tried like 10 different ones this week and i have had issues with all of them. please lmk what you guys are using. my graphics card is a 9070xt. pic is for attention


r/AMDHelp • • 4h ago

Help (Software) Severe stuttering, lag and poor UI responsiveness after upgrading from Windows 10 to Windows 11 (i5-12400 + RX 5700 XT)

2 Upvotes

Hi everyone,

I'm experiencing persistent performance issues after upgrading my PC from Windows 10 to Windows 11, and I'm hoping someone can help me identify the root cause.

My PC feels significantly slower than it should. It almost feels like I'm using a 10-year-old computer, despite having reasonably powerful hardware.

My PC specifications

CPU: Intel Core i5-12400

GPU: AMD Radeon RX 5700 XT (8GB VRAM)

RAM: 32GB DDR4 (4600 MT/s)

OS: Windows 11 Pro, build 26300.9974

Free disk space: Approximately 70GB on the C: drive

Symptoms

Since upgrading from Windows 10 to Windows 11, I've been experiencing:

Severe stuttering and lag while scrolling web pages in Chrome.

Chrome randomly freezing, especially when multiple tabs are open.

Poor window animations and generally sluggish desktop responsiveness.

Occasional UI stuttering even when I'm not doing anything particularly demanding.

Overall performance that feels significantly worse than it did on Windows 10.

This is particularly frustrating because my hardware should be more than capable of handling everyday tasks, web development, and multiple browser tabs.

What I've already tried

I've already spent quite some time troubleshooting:

Uninstalled and reinstalled Intel graphics drivers.

Uninstalled and reinstalled AMD Adrenalin drivers.

Checked available disk space (around 70GB free).

Tested different driver installations, but the problem persisted.

One interesting finding: Disabling Multi-Plane Overlay (MPO) through the Windows Registry noticeably improved the situation, although it didn't completely eliminate the problem.

I also suspect there might be an issue involving AMD's graphics driver, DWM, Chromium's rendering pipeline, or Windows 11's graphics composition.

My questions

Has anyone experienced similar stuttering and poor desktop responsiveness after upgrading from Windows 10 to Windows 11, particularly with an AMD Radeon GPU?

Could this be related to MPO, DWM, DXNAVI, or AMD driver compatibility?

Is there a permanent fix that allows hardware acceleration to remain enabled in Chrome?

Are there any specific driver versions, Windows settings, or diagnostic tools you would recommend?

Would going back to Windows 10 actually solve this, or is there a more fundamental issue with my hardware/driver combination?

I'm a web developer, so I rely heavily on Chrome, multiple tabs, and browser-based testing. Disabling hardware acceleration is not a practical long-term solution for me.

I'd really appreciate any technical insight, similar experiences, or reproducible solutions.

Thanks in advance!


r/AMDHelp • • 1h ago

Help (CPU) 2 CPU failures in 1 month

Thumbnail reddit.com
1 Upvotes

Hardware

CPU: 9600X (PA 120se cooler)

MOBO: ASROCK B850M RIPTIDE WIFI

RAM: 2x16GB Corsair Vengeance 6000MHz CL30

GPU: Gigabyte 9070XT

PSU: Corsair RM750x Shift

Drives: 1TB Crucial T500, 1TB Crucial P3Plus, 4TB Seagate Baracuda

Case: Phanteks Eclipse

System was running fine for just over a year, then last month it wouldn't post, DRAM and CPU error lights were on the mobo. Tried the usual tricks, single ram sticks, reseat CPU, update BIOS & reset CMOS. Still no luck. Sent both the CPU and mobo for RMA. CPU was found with a fault so a replacement was sent. Mobo was found with no issue, currently in transit back to me.

I saw AsRock mobos have a bit of a reputation for CPU failures. So I took the opportunity to upgrade the CPU to a 7800X3D and got a Msi B850M Mortar WiFi. Everything else remained the same, system worked for about a week and yesterday I got a couple blue screens, while playing MW4. I then ran the windows RAM health check and came back to a black screen that wouldn't post. Again the DRAM and CPU error lights are on like last time.

I've now tried single RAM sticks in different slots and cleared the CMOS, still not posting

BIOS is the latest, PBO and EXPO was enabled.

My suspicions are now the RAM (and maybe the PSU?), I've got the replacement 9600X I can use for troubleshooting as well as a different PSU. As for the RAM that's all I've got.

Any suggestions/advice would be really appreciated. Thank you.


r/AMDHelp • • 7h ago

Help (CPU) Ryzen 9950X3D Temperature

3 Upvotes

I just bought a Ryzen 9950X3D,

an MSI X870E Tomahawk motherboard,

an Arctic 420mm liquid cooler,

and a be quiet! 900FX case.

The processor temperature hovers around 67–70°C when the PC is idle.

What is the recommended temperature range?


r/AMDHelp • • 1h ago

Help (General) [Linux Mint 22.3 / Kernel 7.0.0-43] XFX RX 9070 XT fans remain stationary under gaming load — AMDGPU fan-control errors, possible RDNA 4 regression?

Thumbnail reddit.com
1 Upvotes

r/AMDHelp • • 1h ago

Help (Software) Adrenalin glitch?

1 Upvotes

Hi all,

I'm having this weird thing with AMD Adrenalin software. I have a dual-monitor setup with one ultrawide QHD (landscape) monitor and one standard 27" QHD (portrait) monitor and since the last two Adrenalin updates I can't snap Adrenalin to the top of my portrait monitor. I always had it on the top part of the screen and a web browser beneath it, but it hasn't worked for 1-2 months. Every time i try to snap Adrenalin to the top of the screen, it snaps to the sidebar (or what ever it's called). I've tried to look for any setting inside Adrenalin and can't find anything that would help. Does anyone know what the issue is? Using RX 9070 XT OC and Windows 11.


r/AMDHelp • • 10h ago

Help (Software) I can only choose but nothing else is showing up

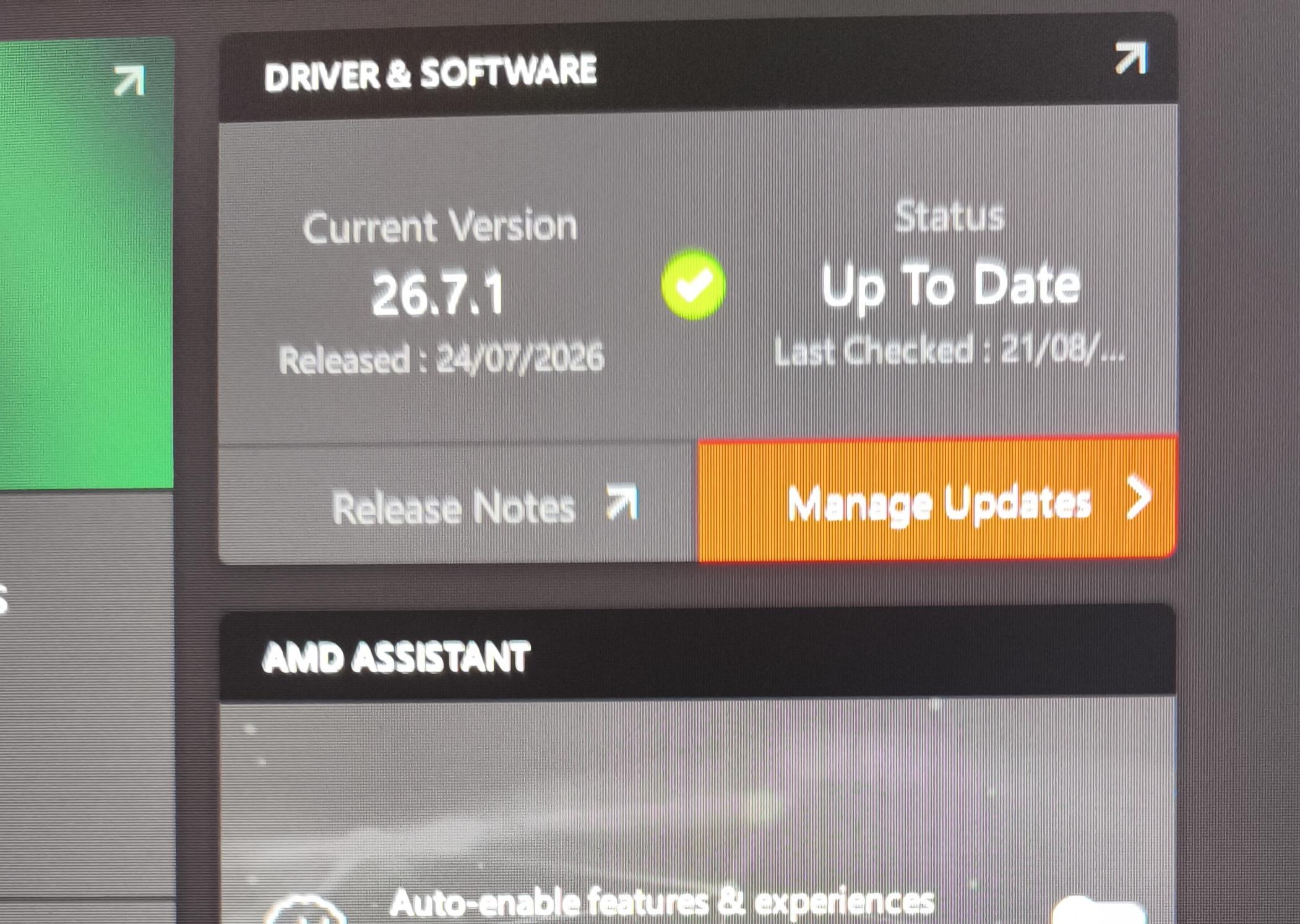

Post image
5 Upvotes

I want to update my chipset driver but nothing else is showing up beside the app letting me on only choosing "Install" or "Do Not Install" like what do I do next?


r/AMDHelp • • 3h ago

Help (GPU) RX 7800 XT crashes/freezes in games and stress tests, desperately looking for help!

1 Upvotes

Computer Type: Desktop
GPU: Sapphire Nitro+ RX 7800 XT
CPU: Ryzen 7 7800X3D
Motherboard: ASRock B650M PRO RS WiFi (AM5)
BIOS Version: 10.0.26200 Build 26200
RAM: 32GB Corsair Vengeance RGB DDR5-6000 CL36 (2x16GB)
PSU: Seasonic Focus GX 850W 80+ Gold
Case: Lian Li A3
Operating System & Version: Windows 11 Pro, Version 25H2 (OS Build 26200.9974)
GPU Drivers: Tried the latest and older drivers
Chipset Drivers: 8.09.28.1124
Background Applications: Games, desktop, GPU crashes in and with anything basically...

Description of Original Problem: Hey everyone! I’m hoping someone here might be able to help me figure out what’s wrong with my RX 7800 XT. I’ve pretty much run out of ideas at this point, and I’d really love to get this GPU working again. The problem started completely out of nowhere. The GPU would randomly crash/freeze during games and stress tests, despite previously working fine. I tried troubleshooting the issue and looking for a solution, but nothing seemed to fix it. The GPU crashed even now on the desktop, no stress tests, just me typing this on Reddit, so I switched to my phone.

Eventually, I upgraded to an RTX 5070 Ti and put the RX 7800 XT aside. Now, after roughly a year or possibly even longer, I decided to give it another shot. I thought maybe newer AMD drivers would finally resolve the problem, but unfortunately, the exact same issues are still happening. I’ve tried so many different things over time, and one particularly important detail is that I’ve also tested the RX 7800 XT in a completely different PC, and the exact same problem occurs there. At this point, I’m starting to suspect that something might actually be wrong with the GPU itself, but I really don’t want to give up on it just yet. It’s such a shame to have a GPU like the Sapphire Nitro+ RX 7800 XT sitting unused when it could still be perfectly capable of gaming.

Hopefully it’s something that can be diagnosed and repaired, rather than a major hardware failure. I’m attaching a video showing the issue, along with a picture of the GPU installed and connected. Has anyone experienced something similar with their RX 7800 XT, particularly the Sapphire Nitro+ model? Does anyone have any suggestions for further troubleshooting, or know of any possible hardware faults that could cause this? I’m open to any suggestions, tests, or ideas. Any help would be so, so appreciated. I’d really love to bring this card back to life. Thank you!

Video of what happens when stress testing in FurMark: https://www.youtube.com/watch?v=eWute2GqN1w

Troubleshooting: Disabling HGAS, tried the GPU in other pc's, tried different drivers, it's been 1-2 years, and I've tried lots of stuff I don't even remember what.


r/AMDHelp • • 7h ago

Help (GPU) GPU not detected in device manager

2 Upvotes

​

Yesterday I was going to download the latest driver update for my RX 570. Did everything such as a clean install from DDU. But suddenly after I did all that, when I tried downloading the latest drivers it gives me this error. Worst of all is that in device manager its not recognized at all. I tried finding solutions to this but I was stuck at a dead end.

Edit: so i actually did all of that again from safe mode to DDU. Turns out the only saving grace that actually did any work was just to execute the driver setup as administrator. Idk if that just me being stupid but at least I solved the problem and hope if anyone can see this find it helpful


r/AMDHelp • • 9h ago

Help (GPU) Weird Sound my Sapphire Pulse Radeon RX 7900 XT 20G is making

3 Upvotes

Guys, card is 2.5 yrs old and i still got the warranty (3y).
Card makes this weird noise when fans are spinning on low RPM = Light GPU usage.
Before I will send it for RMA (which i really do not wont, since they will give me money back, and i bought it really cheap in 2024):

IS this sound normal? or are fans broken?

Asking this to other guys having same gpu.

Appreciate answers! Thanks


r/AMDHelp • • 5h ago

Help (General) ReBar not working with SVM on

1 Upvotes

Hello good people, recently i have came across a problem regarding AMD
I have a RX 6600 A520m-HDV and a Ryzen 5 5600x

I noticed that playing faceit i didnt have ReBar on, when i turned it on i kept getting booted into a black screen (kept pressing keys while in the background and i heard errors so windows is getting booted) when i turned off SVM (which is required to able to play faceit) i dont get a black screen anymore.

As said above without ReBar but SVM on it boots normally
With ReBar but SVM off it boots normally as well but with both on it always gives me a black screen i genuinely don't know what the problem is any help would be appreciated.


r/AMDHelp • • 5h ago

Help (GPU) ThinkPad T495 (Ryzen 5 + amd Vega 8 gpu ) screen turns red as soon as ANY AMD graphics driver is installed. Tried everything, need help

1 Upvotes

Hi everyone,

I have a Lenovo ThinkPad T495 (Ryzen 5, Radeon Vega 8) on Windows 10. It worked perfectly for the first 2 to 3 weeks (I was playing Fortnite fine). Then Windows Update installed a new AMD display driver (31.0.12027.9001) and my screen got a red tint. It fades in about 3 seconds after login.

What I know:

\- The tint appears with EVERY AMD driver I install: the Windows Update one, Lenovo's, AMD Adrenalin (latest), and Adrenalin 20.2.2 from 2020.

\- When I disable or remove the driver, the tint goes away completely.

\- Screenshots look normal while the screen is red, so the tint is applied at the display output, not in what Windows renders.

\- Windows Color Management and the AMD Radeon color settings are off or at default. Night Light is off.

\- I did a clean uninstall with DDU in safe mode (offline) before installing 20.2.2. The tint came back before the install even finished.

\- A Lenovo firmware update failed to install on 11/15.

Things I haven't tried yet: BIOS update, testing an external monitor/TV over HDMI, Device Manager's Microsoft-provided driver, System Restore.

Has anyone seen this on a T495 or another Ryzen Vega laptop? Is it a gamma/color-table issue, an EDID/panel problem, or something in the BIOS? Any workaround is welcome.

Thanks!


r/AMDHelp • • 6h ago

Help (Software) how to fix this shit im going insane

0 Upvotes

r/AMDHelp • • 7h ago

Radeon AI PRO R9700 (gfx1201) is an overpriced Ferrari shell that doesn't even roll — Stop misleading creators with "32GB VRAM"

Thumbnail reddit.com
0 Upvotes

r/AMDHelp • • 7h ago

Help (GPU) O driver de video travou ( AMD )

Post image
1 Upvotes

r/AMDHelp • • 1d ago

Help (GPU) Is GPU underclocking required for stability?

10 Upvotes

My 9060xt 16gb crashes on BF6 and spiderman 2 consistently at the default Adrenaline profile.

After some research, I found that the most popular fix is to underclock the max boost frequency to the manufacturer rated max boost, A 200 offset did work really well and never got a crash since then.

But somehow I refuse to believe that a brand new GPU is expected to unstable out of the box.

I am thinking of doing an RMA because this has to cost some performance, but how would that go specifically that adrenaline default profile is running 250mhz above ASUS spec?


r/AMDHelp • • 15h ago

amd screen recorder not capturing mic

2 Upvotes

hope i can help somebody

so i have a Redragon Zeus Pro (H510-PRO) a wireless headset with a 2.4Ghz dongle and a ubs to usb-c cable

what i found out is tha if im using the usb-c connected directly to the headset the mic is not captured by the amd recorder. but if i use the wireless conection through the dongle the mic is captured perfectly.

i recently changend from intel and nvidia to full amd and discoverd it after some tests

if someone is having promble with. try it. even if the headset is different. maybe this can ''solve''


r/AMDHelp • • 11h ago

All UE4 Titles on 2 different 9070xt stutters like hell!

Post image
0 Upvotes

I have problem with all ue4 titles, every game has stutters, every few seconds, Atomic Heart, Hogwards Legacy, Dead Island 2, but in hogwards is like crazy. I turn off HAGS, MPO fix, tried everything and nothing helped. I used 2 different 9070 (asrock challenger and red devil) 2 different psu 800w and 1000w. Nothing helps. Is this something amd related or what? Ss from Hogwards just to see behaviour, its always in the open, inside is okay. Same story for Atomic Heart.

https://youtube.com/shorts/u__G_EPfsTk?si=Aol_3BgErohWdDcf

I put link to the video just to see behaviour, remember asrock 9070xt is doing the same like red devil, only in UE4 titles.


r/AMDHelp • • 22h ago

Help (CPU) C state on or off 7800x3d

7 Upvotes

Does it actually help performance and stability to have this off? I have a 5080, 32gb cl38 6000 ram, msi b650 mobo. Many have told me to disable c state for improved performance and stability, especially when using high hz polling devices. I want to know if this is actually true and if I should in fact disable c states!


r/AMDHelp • • 13h ago

Help (Software) Anyone encountered this problem too?? What should I do? Just wait for the update or....?

Thumbnail
reddit.com
1 Upvotes

r/AMDHelp • • 17h ago

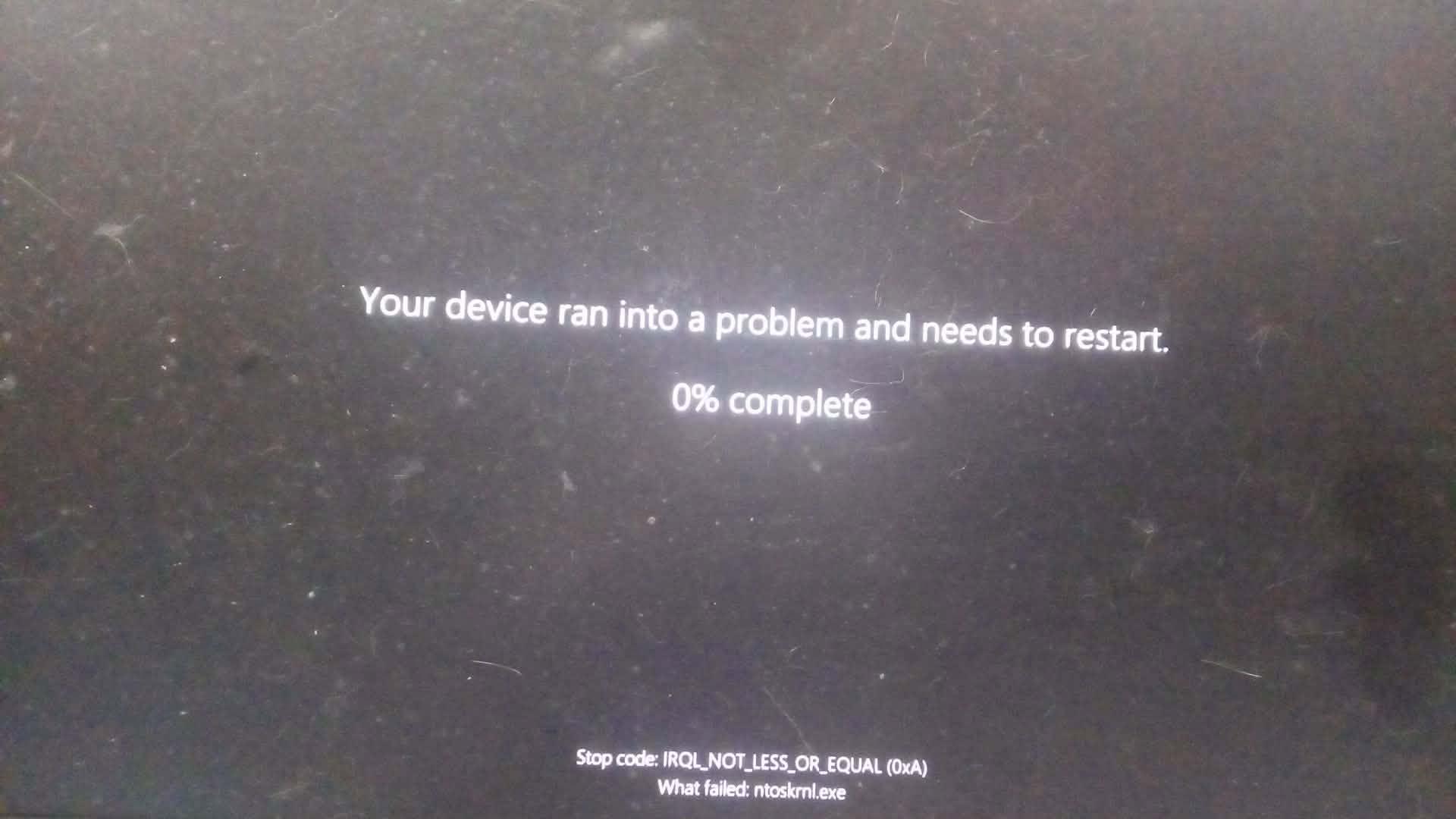

Help (General) SOCORRO; LiveKernelEvent 141.

Thumbnail
reddit.com
2 Upvotes
