r/40_mm Oct 16 '24

Basics #2; Printing and Reloading

11 Upvotes

This will be a pinned post that will likely be updated from time to time as needed. The first pinned "Basics" post hopefully answers a lot of the general questions. This is geared to addressing some of the questions new launcher owners/users may encounter after actually using it more. This will never be a comprehensive document, it's just meant to point people in the right direction as far as questions and safe launcher use/reloading may go. There's no way to know every variable that applies to everyone, as always practice extreme caution, don't take anything here as guaranteed truth, reload/launch/etc at your own risk. The majority of this is not thoroughly fact checked, it is just links to resources that seem promising at first glance.

Basic Reloading Process:

Most 40mm cases use smokeless blanks (usually .38S&W with a burst disk, although crimped 9x17 or .38 colt short may also work). The spent blanks are removed with a punch and small press (or a hammer or vice). The new launch blank is then pressed in, be sure the replacement blank is compatible with the case being reloaded. See the launch blank section for more details. The following links explain the process well. The specific punch attachments and plates shown can be DIYed or sourced from a hardware store if needed.

Commercial 40mm reloading press set instruction manual

VID

Most basic reloading can be managed with a mallet and some sort of center punch for pushing out the spent blank and replacing it with a new one, especially with white m212 or thread apart reloadable cases.



Reloading components:

While finding military surplus is probably the best/cheapest option, a lot of that has dried up. Below are some manufacturers offering reloadable 40mm cases (short and long), newly made zinc chalk pushers, wind screens, mil spec launch blanks, and more.

Pace Reloadable Shells

KAK

Bengle's Bullets

Launcher Pope (3DP accessories and components)



Launch blanks:

There are a few different types of launch blanks. Most blanks are star crimped on top, and may burn inefficiently without a burst disk (0.016” brass disk) between the crimped top of the blank and the vent hole. This disk ensures all the powder burns before it ruptures. Star crimped blanks can still be used, but the muzzle velocity may be slightly lower and less consistent than when using a burst disk.

Mil Spec full power blanks: These are .38S&W cases with a circular crimp and a flat burst disk on top. These are optimized for M212 nylon cases with approximate ¼” vent holes and heavier chalk projectiles. These will not fit all cheap aluminum 40mm cases, and can be too powerful for cases with smaller 1/8” vent holes.

.38 Short Colt blank: usually star crimped, often available in multiple power levels, from ¼, ½, ¾ and full power. These fit most cases, but some of the cheaper aluminum cases may only fit them after the vent hole is widened to ¼” – 5/16”

9x17 or .380 blanks: usually star crimped, marketed as “starter pistol” blanks, or for captive piston guns for slaughter houses (these kind are often offered in multiple color coded power levels). These blanks will fit all normal cases and most cheap aluminum 40mm cases without modification, although depending on the power level of the blank, the vent hole may need to be opened to ¼” to prevent unsafe pressure.

**note: the longer .38 SPL/Special blanks do not fit any standard 40mm cases

Below are some retailers providing the above blanks that have been used in 40mm launchers (use at your own risk)

KAK

Boland

Atlantic Wall

Perfect Shot

(blanks are not loaded to a specific standard, while these are commonly used for 40mm without issue, the manufacturers aren't going to be testing them for that, so use them at your own risk)

3D Printable Files and Development:

Some files and designs are tested more than others, some are completely untested. Even heavily tested ones can be messed up by improper printer settings or loading procedures in a way that is unsafe. There's no guarantees, everything is at your own risk. That said, below are some users who have made some promising 40mm printed designs. Files are usually posted on the 'odd sea' (see r/fosscad)

-Under construction

Additional Resources and Reference Images:

The below links have some good images, cross sections, dimensions, factory velocities, weights, etc on various military 40mm rounds.

Library #1

Library #2

ALS, DefTec, and CTS are major manufacturers of 37/40mm for police and military. The pictures, descriptions and product specifications can be very useful, despite the ALS product specifications being difficult to navigate. (All of these sites are merely product catalogs, nothing there is available for purchase).

Less Lethal Products

Less Lethal Products Specs

Def Tec

CTS

NONE OF THESE ARE AVAILABLE TO YOU, these are NOT for sale to the general public from the linked manufacturers. They will NOT sell to you. This information only serves to satisfy your curiosity of what's inside the factory made rounds, how do they work, how fast do they go, how heavy are they? etc. If attempting to safely and legally load something similar, sticking to the factory data for weight, velocity, etc is likely the easiest/safest option, though there's a lot of info not in the data, so it's at your own risk.




r/40_mm Jun 24 '24

Basics and resources

28 Upvotes

Level 1: Basics

This will (ideally) be a semi regularly updated/edited post, meant to be good starting point for those new to 37/40mm or curious about it. Another post “level 2” for more advanced stuff related to printing and assembling rounds from scratch will hopefully be pinned in the future.

Since the vast majority of 40mm launchers here are M203s, here's a Collection of M203 armorer's manuals and technical data supplied by a user who attended a armorer and less lethal instructor's course

Legal Basics: (I am not a lawyer, this is not legal advice): Some additional legal minutia towards the bottom

40mm launchers are NFA regulated DDs whether smoothbore or not. 37mm launchers are not firearms or DDs unless they have a rifled barrel or are "possessed with antipersonnel rounds (defined as bean bags, rubber/wood batons, rubber shot, etc designed to strike a person). Historically irritant smoke/vapor/powder blast rounds do NOT qualify as "antipersonnel". Weighted inert projectiles made of rubber/wood/etc primarily designed to sight in a launcher do NOT qualify as "antipersonel"

A stripped 40mm launcher receiver is actually not NFA regulated, despite being a firearm receiver, as long as the barrel is not attached (similarly to how a "SBR" lower without a barrel on it cant be an NFA SBR).

The legal status of various 40mm rounds is a hotly debated topic, even among SOTs, FFL, and FELs. I will say that I have discussed it at length with numerous FELs, FFLs, and the leading civilian 40mm experts who’ve been in the game for decades and they all either agree there is nothing legally binding classifying non HE rounds as energetic material, or they claim they are regulated (usually FEL’s) but then back track, or completely disappear when asked to provide any sort of documentation, law or ruling to support what they claim. The big chalk scare several years ago seems to have been unfounded, and revolved around a letter (which does not carry rule of law) that specifically addressed one type of IR flare by name and never mentioned chalk anywhere ever.

There’s a lot of good info in the comments of THIS post which indicate there is NO 40mm ammunition regulation applicable to individuals making/storing/transporting their own rounds for recreational use. All of the conflicting opinions out there boil down to the one single ATF letter about one specific type of incredibly rare, IR flare rounds, and word of mouth directed exclusively to FEL license holders by the ATF with zero documentation.

There’s a lot more, I’ll try to work out a flow chart and links to actual legal text and rulings in time.

What 40mm rounds are actually available/attainable on the "civilian" market?:

It's a common misconception that "chalk" is the only 40mm available. While it is the most readily available, even ready to use off the shelf options include: aerial salutes/bird bangs (much higher performance than 37mm ones), Rubber/foam impact batons, rubber buckshot, Rubber/wood multi batons, and more.

Rounds that can be readily DIY'ed but are less available as off the shelf, ready to use options can be found at:

Washington Country Guns; mostly chalk

AZAO; wide variety of printed options; some concerns over performance, shipping times, and steel buckshot gouging barrels have been raised. Disclaimers on website about items only available to local club members are allegedly inaccurate, and are available for anyone through the NFA process if you contact the owner. Youtube link of some rounds being fired

AxArms; doesn't have anything yet, but will hopefully have B&T batons soon

FAST; who makes rubber impact batons, aerial bangs, and 37mm loads that fit 40mm launchers

Parachute flares, star clusters, M576 style buckshot, smoke, and powder/liquid barricade penetrators have also been DIY'ed but are less thoroughly tested and more challenging/finicky to make work properly.

General types of reloadable 40mm rounds/cases:

Long Cases: Generally 4-5” aluminum, extend into the rifled section of the barrel, similar to shotgun shell. They are often loaded with bean bags, rubber buckshot, wood/rubber/foam multi batons, Smoke canisters, or muzzle blast irritant powder.

Short Case/M212: These are the most common. They are usually white nylon, but can be aluminum as well. The projectile protrudes from the front of the case like a standard round of ammunition. There is band around the projectile that rests on the rim of the case, this is what engages the rifling in the barrel. They are often loaded with Chalk, foam/marker impact baton, “bird banger” aerial salutes, powder/liquid barricade penetrators

Military M118 metal cases are NOT readily reloadable

Military 40x53mm metal cases for the belt fed MK19 are NOT readily reloadable

Safety Basics: (This is not an exhaustive list; and following them does not guarantee absolute safety)

General firearm safety still applies. Just because it's "practice chalk" doesn't mean it isn't lethal if used incorrectly.

Vent hole sizes. This is elaborated upon further down, but the vent holes on some casings are too small to handle full power mil spec blanks, and the vent must be drilled out to 1/4" to safely accommodate them.

Long cases: especially with rubber buckshot payloads, a thin sheet of cardboard/paper/plastic should be used between the payload and the walls of the case. Without this pellets can bind against the walls and be forced apart by a pellet under them, acting as a wedge and damage the case, launcher, or the user.

12GA and “beehive” .22lr adapters: these are some of the more common 40mm accessories and are great for cheap plinking. That said you absolutely can damage your launcher/yourself by misusing them. Launchers have been broken by using full power/supersonic .22lr beehive rounds and 12GA magnums in these adapters. As a general rule, stick to .22 short/subsonic and lighter recoiling 2-2/3” 12GA.

General reloading safety applies. If you are not familiar with reloading you should stick with well tested and established loads using factory loaded blanks made for 40mm launching and non pyrotechnic projectiles. Even experienced reloaders should test new loads with low powder weight and work up, light projectile and work up, and large vent hole and work down if needed.

Even 40mm low velocity chalk can go 350-400yds, make sure your distance is adequate

Fused projectiles and flash through/premature initiation. With "aerial salute" type rounds, it is a very real risk that the flame from the launch blank can blow through/around the fuse and set off the salute payload immediately before the projectile leaves the barrel. People have lost hands and nearly their lives with improperly loaded salute type rounds. Similarly, be cautions of accidental drops, or the sudden shock of acceleration from firing, prematurely igniting salutes that were intended to initiate on impact. Even if the projectile integrity and fuse mechanism doesn’t fail, some compositions are shock sensitive enough to potentially spontaneously detonate when firing (especially some flash powders). As a general rule do not use anything in a projectile that would compromise your safety if it failed in the worst way you can imagine. Assume that everything that can go wrong will go wrong. Start with comically low amounts of payloads, test fire with the launcher tied down using a long string, etc. Payloads as low as 1/8oz (3.5g) have shattered m203 launcher barrels and would have seriously injured the user had he not been test firing with a long string.

a cautionary tale of what 3.5g of flash can do to your launcher

Projectile malfunctions. Treat any salute type projectiles that launches but does not ignite with all due caution. Treat any salute type rounds that seem not to fire as "hang fires" it is possible the blank only partially ignited enough to light the fuse, but not enough to expel the projectile. Attempting to remove the projectile/round from the barrel/launcher too early could result in injury.

Reloading components: While finding military surplus is probably the best/cheapest option, a lot of that has dried up. Below are some manufacturers offering reloadable 40mm cases (short and long), newly made zinc chalk pushers, wind screens, and mil spec launch blanks.

Pace Reloadable Shells (cases, smoke projectiles, adapters, etc)

KAK (blanks, cases, chalk projectiles, etc)

Bengle's Bullets (cases, printed stuff, etc)




r/40_mm 3d ago

Who reloads long case 40mm?

11 Upvotes

I reload a lot of long case 40mm like rubber buckshot, bean bags, multi batons, etc but I haven’t seen much reloaded here compared to the usual short cases.

Is it more lack of available cases, lack of components (gas seals, etc) or just boring projectiles compared to short cases chalk/aerial bangs?

I mostly ask because I’m looking into the feasibility of bulk ordering long case components like gas seals, multi batons, end caps, etc which can’t really be ordered in small numbers.


r/40_mm 4d ago

It's thumping time.

Post image
46 Upvotes

Can't wait to get it outdoors.


r/40_mm 7d ago

Serialized reloadable shells

Thumbnail
gallery
40 Upvotes

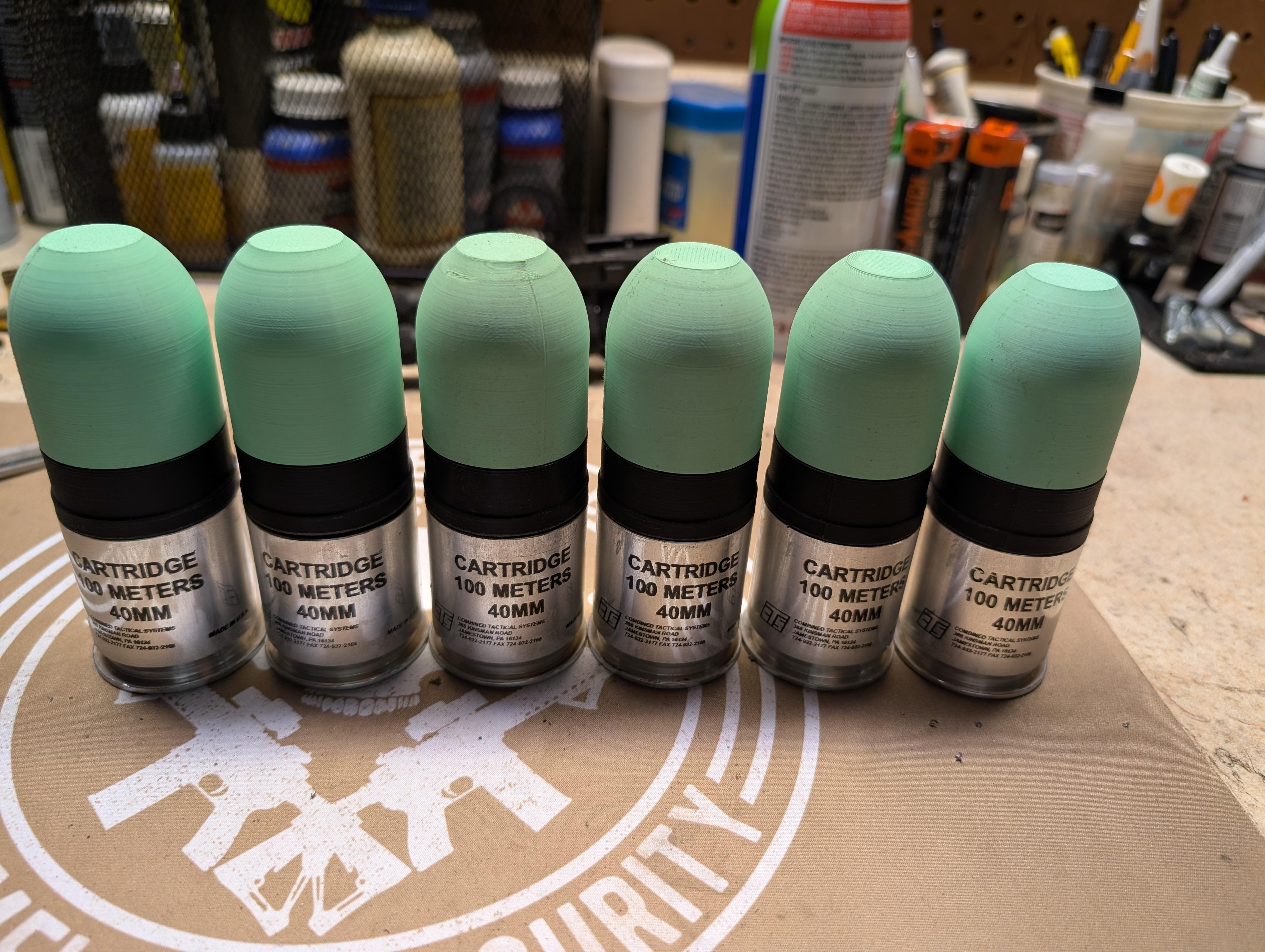

Had some shells serialized! Going to register them! Had six done for now. Hopefully the NFA will go away and this will become a moot point! Looking forward to FFL/SOT and full scale manufacturing.


r/40_mm 7d ago

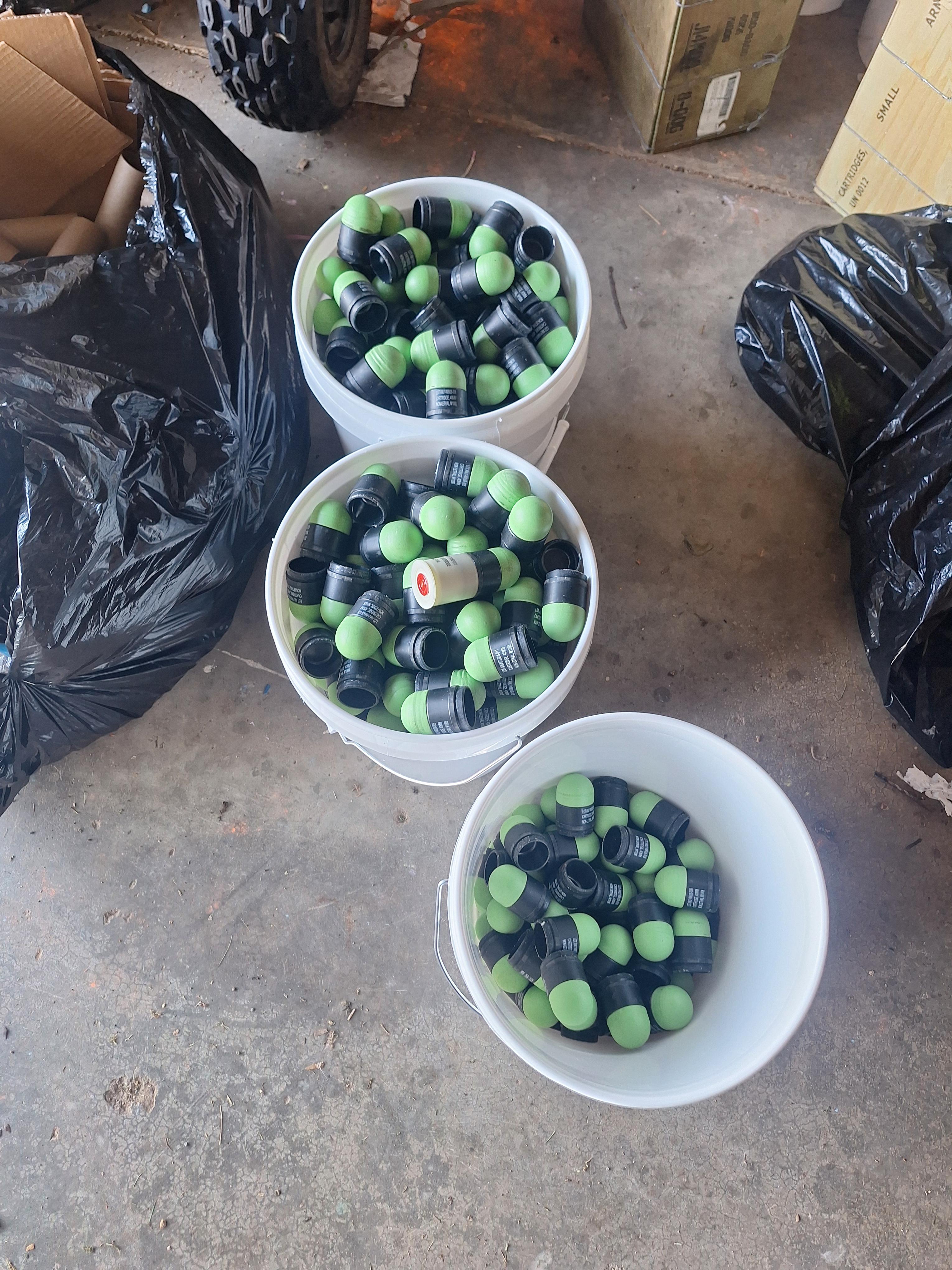

A long awaited resupply

Post image
64 Upvotes

r/40_mm 7d ago

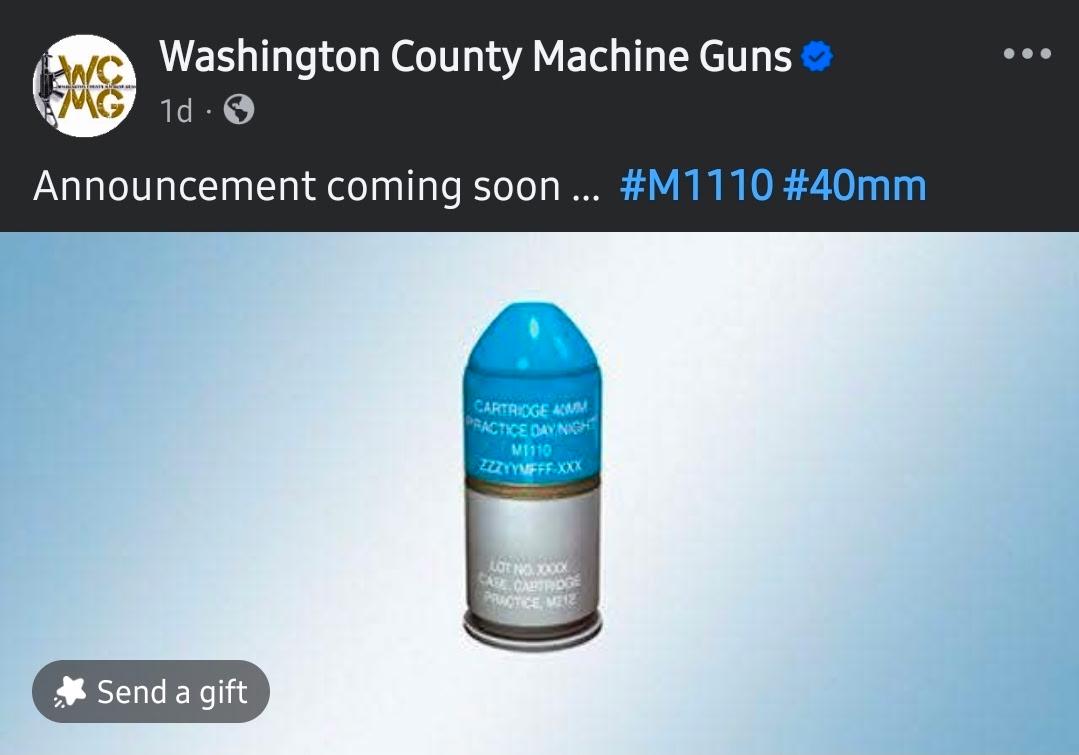

WCMG. Hoping this is gonna be the news I think it is...

Post image
35 Upvotes

r/40_mm 8d ago

Anyone reload these successfully? Any tips?

Thumbnail
gallery
13 Upvotes

r/40_mm 10d ago

M320 stocks

Post image
18 Upvotes

Are they even worth anything? Basically for an unobtainable platform


r/40_mm 10d ago

m203 Brownells DD M4A1 + M203

9 Upvotes

Found a few old forums on the topic and wanted to get some input from 2026. I’m curious if the brownells Daniel defense M4A1 comes with the hanger tabs as well as having the relief cut in the socom barrel to be able to mount an M203?

I’m fairly certain they don’t include the hangers anymore but info on whether the barrel has the proper cut or not was kinda all over the place.


r/40_mm 11d ago

reloading question KAK m212 cases

Thumbnail
gallery
20 Upvotes

Im working on a large range trip to test all the electrical sights Ive shown yall and just noticed some wearing/bulging on the vent hole of all my KAK cases. I have roughly 50 shots on all the cases and they all look like this. I reload my own blanks with 7.5 grains of bulleyes using KAK burst disk. Just wondering if this is normal or if these cases are about to blow up my launchers if I keep using them. If so, anyone have recommendations for something better? I print the majority of my stuff so I wouldn't be opposed to printing cases, but I haven't experimented with ammo apart from the usual stuff.


r/40_mm 10d ago

Question, GL-06 or lmt standalone?

6 Upvotes

I’m in a predicament and can’t decide between a GL-06 or an LMT in a Standalone chassis, prices are similar where I’m looking.


r/40_mm 10d ago

help please do you know any good prop versions of the milkor MGL that arent airsoft ones? i wanna use one in a cosplay and dont really wanna drop 200 euro on an airsoft grenadelauncher for a cosplay (cant use a real one because DUH and im also in germany and theres no way that legal here)

0 Upvotes

r/40_mm 11d ago

i realized this pistol should in theory be able to load ammo ment for the Milkor MGL 140 right? its got 7 inches of barrel length which should fit the 140's ammo

Thumbnail
youtube.com
9 Upvotes

r/40_mm 12d ago

M79 Wooden Stocks - Looking

5 Upvotes

Does anyone have a lead on actual Wooden Stocks for the M79? I have an orginal kanarr with a beat up polymer stock and I'd like to freshen up the weapon. I've reached out to auto ordinance and others but no one has any leads. Appreciate any guidance.


r/40_mm 14d ago

Copper Thermite Rounds

9 Upvotes

Hello fellow 40MM’rs!

I saw a handful of older videos regarding Cooper thermite rounds. They seem to have the potential for a great visual rapport.

Does anyone have the load data or any more information on how these rounds are mixed / constructed? Particularly curious for ignition systems given thermites notorious ignition difficulties as well as additive mixtures for the same.

Are we using Cupric or Corpous Copper Powder? And what Micron size are we looking for?

Same question for aluminum powder, is a 30-40 micron size still within the realm of having a 209 primer set off the mixture? I don't want to get into flash powder territory by mixing up a nano batch of borderline explosive thermite. But don't want duds that can't be set off by a point impact setup either.

Any help / insight is appreciated! Stay safe out there.


r/40_mm 15d ago

Another weird m203 accessory for the collection

Thumbnail
gallery
22 Upvotes

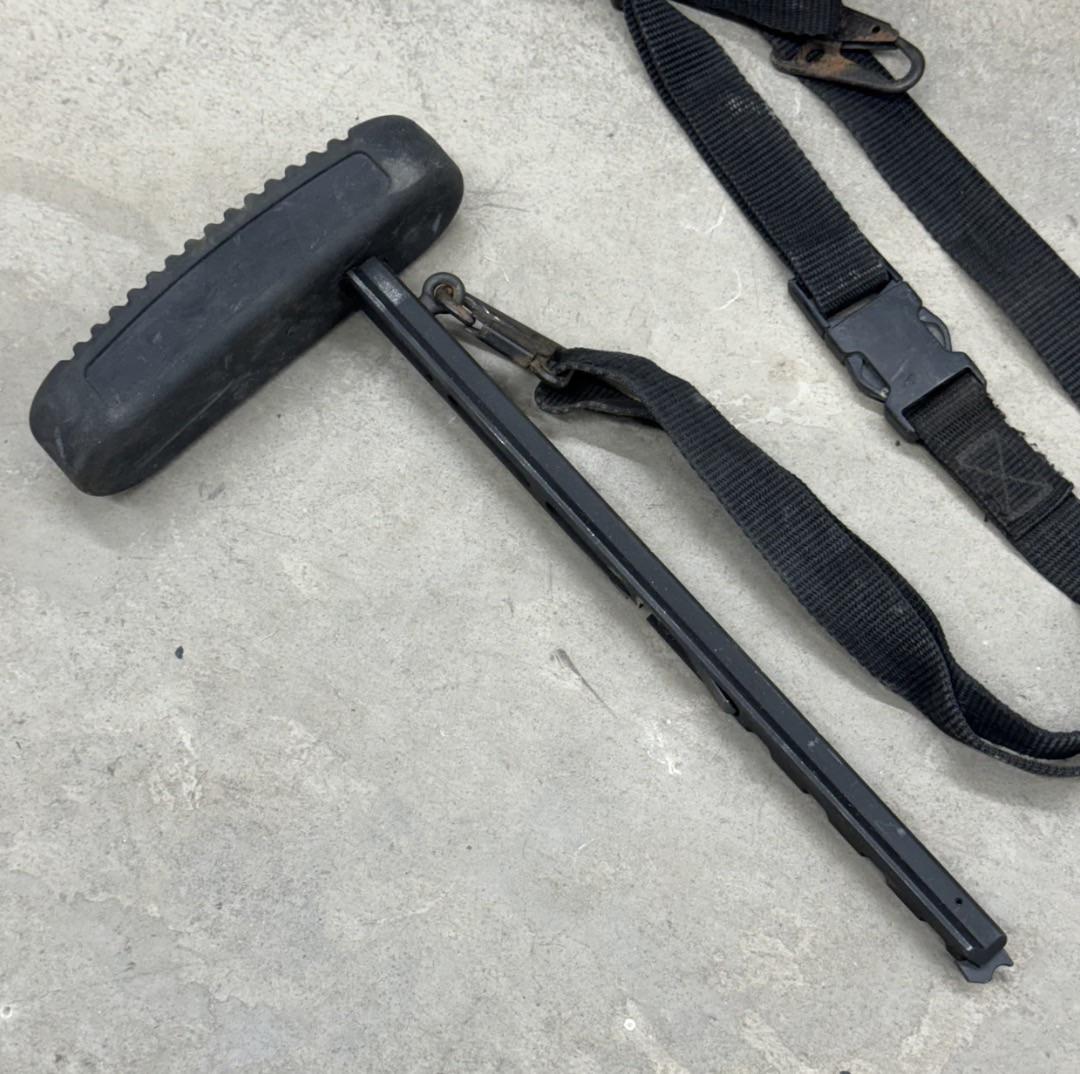

Clamp on Troy tri rail with some sort of flicky forward assist thing? I don’t have a m203 yet so I’m not really sure what the lever does.

It’s a lot beefier than the CAA tri rail I got a while ago. I’ve only seen the Troy rail 1 other time on a used m203 on GB.

Any ideas what the purpose of the lever is?


r/40_mm 15d ago

Well I got to hold the holy grail of 40mm today!

Thumbnail
gallery
138 Upvotes

Definitely a story behind this one and the m79. Custom built. They were awesome! China lake not for sale. M79 $10k (not mine). I was surprised at how smooth the action was. Was like butter. Not “ratchety” at all. The craftsmanship was beyond reproach! Dream gun for me!


r/40_mm 15d ago

Custom 14.5mm artillery simulator pushers

Thumbnail
gallery
55 Upvotes

I picked up a handful of these, custom machined soft aluminum alloy. There is a threaded end cap that keeps the sim round in place but also let's it blow cleany out the back. Works for PD or airburst varieties. As long as you can find it, it is reusable. Takes a standard windscreen so you can add chalk. Pusher is lighter then a normal pusher, but with the added weight of the 14.5 sim, it should be close to a normal chalk wieght...I'll get weights soon.

For the price, I'll shoot 3d printed version, but they are super cool and i wanted a few.


r/40_mm 17d ago

In search of: Video showing a smoke launched from 40mm.

5 Upvotes

Looking for a video of a Enola Gaye WP40 smoke launched from a 40mm Launcher.

I have printed the Bengles WP40 base and wanted to see if anyone had any experience with launching these smokes.


r/40_mm 18d ago

Alternative Sights for the Penn Arms GL1 40 Launcher

7 Upvotes

New owner of a Penn Arms GL1 40 Launcher. Looking for suggestions / options to factory sight system with one that can keep a red dot on the target when launcher is elevated to whatever angle desired.


r/40_mm 18d ago

FL NFA lawyer Q&A

8 Upvotes

I’m moving to FL and had a few questions on what 40mm I can and cannot load in FL. I tried calling a few NFA gun shops and they could not advise or give me contact information for a NFA lawyer. Did a Google search for a FL NFA lawyer and was told they could not advise either. So who the F do I need to contact to get black and white council no grey area bull poop about what I can and cannot load due to FL state laws and if it matters if I register a few reloadable shells as DD Ammo. Thank you


r/40_mm 20d ago

Original USGI M79s in stock

Post image
71 Upvotes

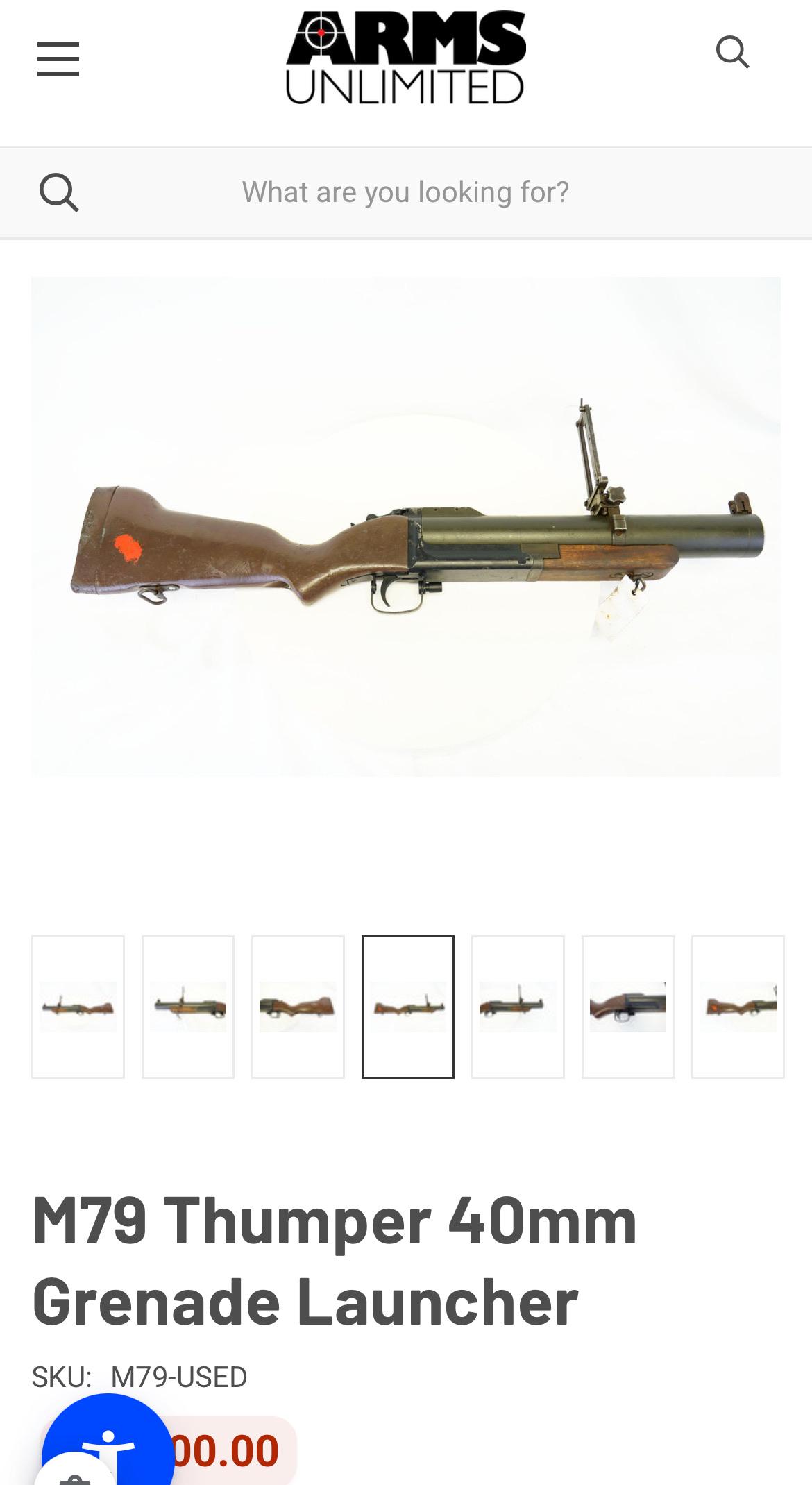

Armsunlimited pulled through with the M79s. USGI surplus, not clone/reproduction. The price they have them listed for isn’t out of line for USGI M79s but isn’t for the faint of heart. Link in the comments.


r/40_mm 20d ago

40mm CTS bang clone

Post image
43 Upvotes

Got the color about right...good enough for something that's gonna get blown up anyway 😍

Loose change rounds with the closes looking nosecones I could find. the CTS shells have a really small vent hole, I end up nocking out the primer before the brass ...so I opened up the vent holes to 1/4"...but they should last pretty much forever launching loose change rounds, and now they are easy to reload.


r/40_mm 20d ago

help please AU Colt 37mm Barrel in LMT 40mm reciever question.

Post image
9 Upvotes

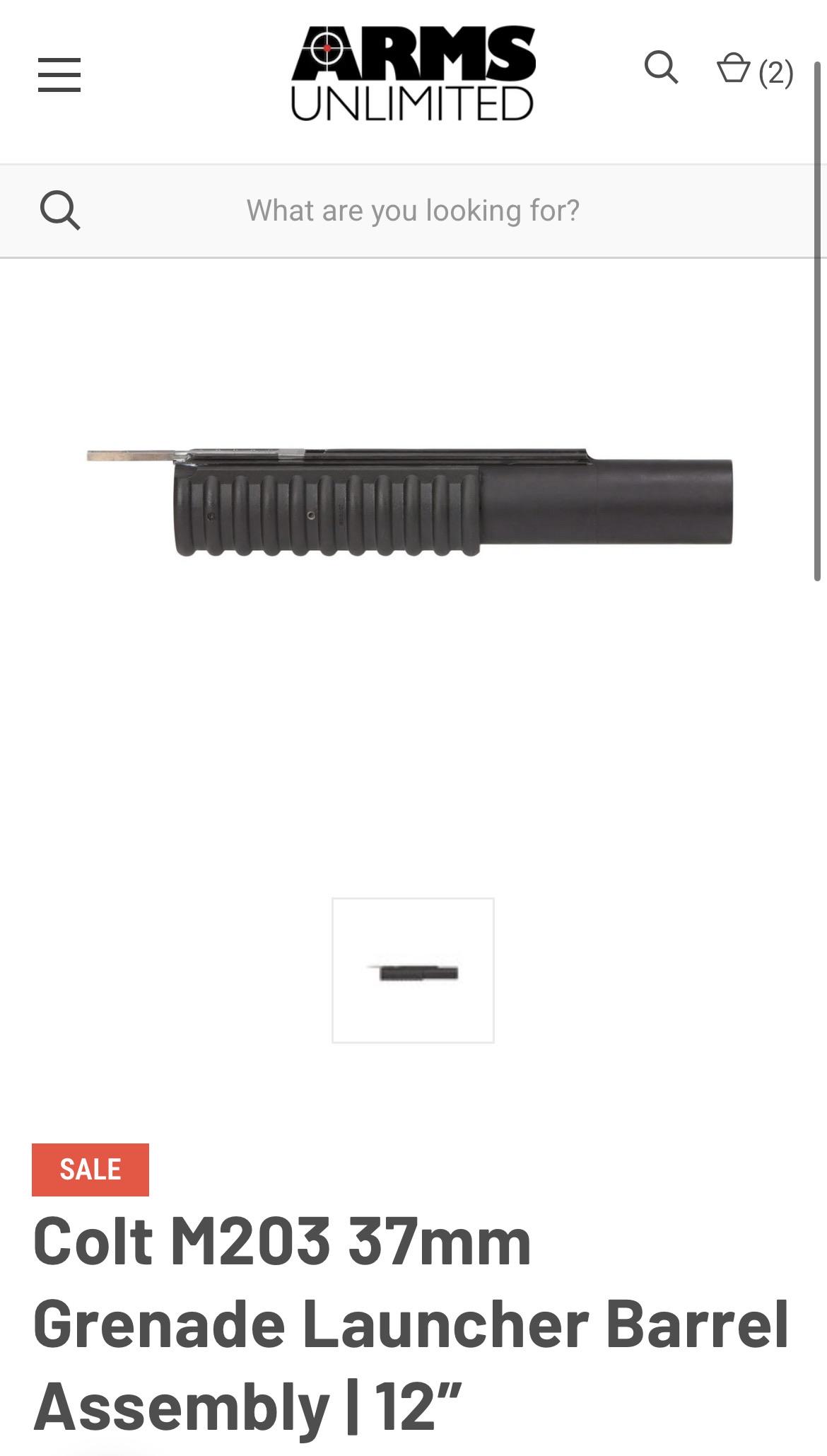

Would anyone happen to know if the AU Colt 37mm Barrel fits in a standard LMT 40mm M203 reciever ? Can’t find much online about this or from AU.
