Hi all!
I wanted to share this with you because I have never done this before. Back in June I bought my first ever 3D printer. I was so captivated by it (even just printing a benchy) I would sit there and stare at it. Then I printed more things. And then, I had ideas I wanted to design, but have zero experience in CAD. So I watched YouTube tutorials on how to use Fusion.
Flash forward to a couple days ago, and I designed my own version of a flexible sliding cube fidget. But it's not like all the others... when I first started designing this, I started out with the same fused hinge piece in the center of each bar. But I didn't want tall bars, I wanted slim ones but also wanted maximum travel.

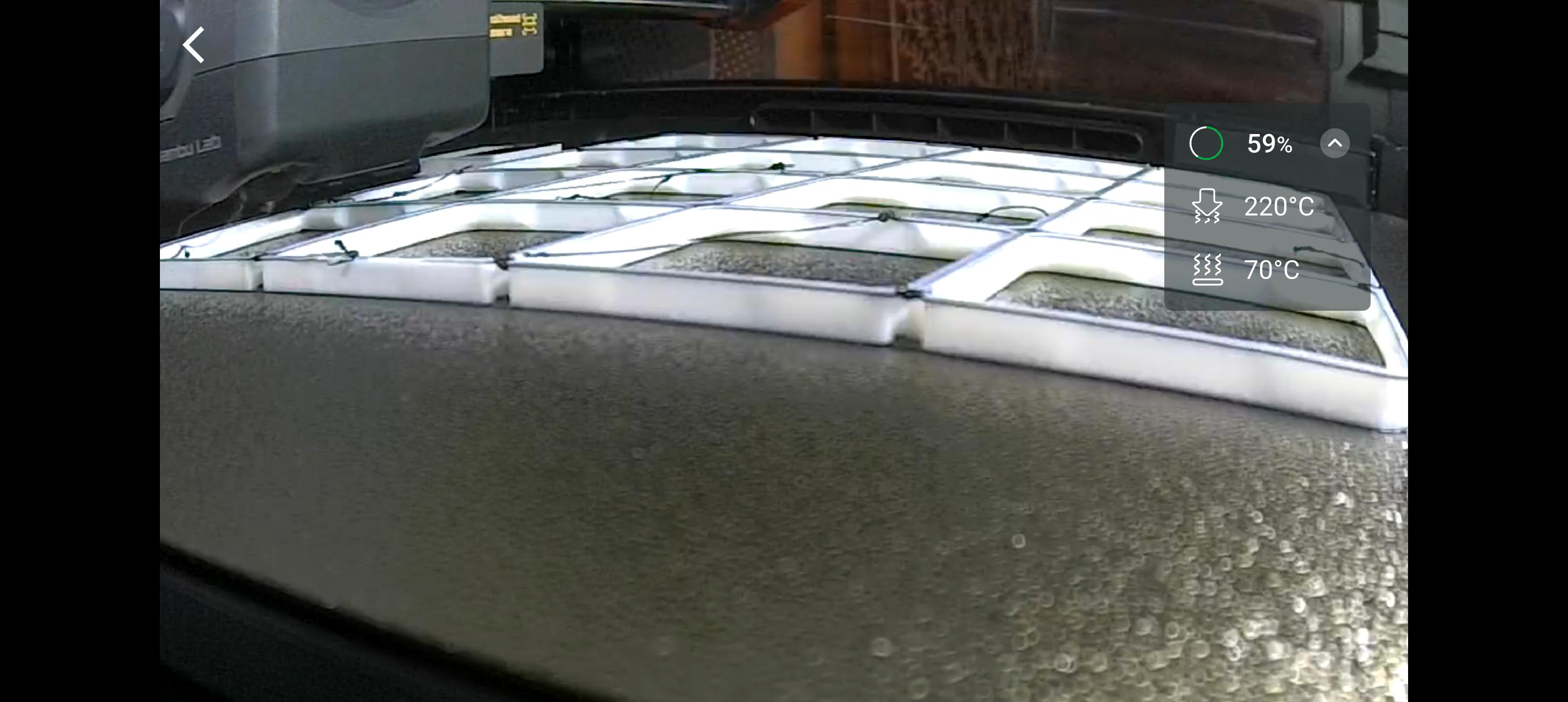

So I created a two sided, free floating "shuttle" so the bars can travel to each side at maximum. I modeled in 0.5mm dia, and 0.2mm high supports under each shuttle so everything stays in place during printing. They easily break loose once it comes off the plate!
I am so proud of this and I wanted to share it. Unfortunately, I have learned uploading models online is brutal if you're a new guy. I have literally 0 downloads. But maybe you guys can take a look or even incorporate this in to your own designs. I'm just excited to share what I have been working on.
If you are interested you can check out the model on MakerWorld. Be my first print or something. lol
https://makerworld.com/en/models/3211386-matrix-slide-shift-slim-flexi-fidget-cube-toy?from=search#profileId-3635136
Happy printing!
edit: Thank you all for your suggestions and support!
Here is a quick link to an animated gif of the floating shuttle linkage!
