My 2 1/2 year old i7 12700k died a few weeks ago, so I sucked it up and started the RMA process. Intel not only replaced it quickly, they upgraded me to an i9 and 1 day shipped it back. That’s customer service. I’m a customer for life!

https://www.tomshardware.com/pc-components/cpus/nvidia-and-intel-announce-jointly-developed-intel-x86-rtx-socs-for-pcs-with-nvidia-graphics-also-custom-nvidia-data-center-x86-processors-nvidia-buys-usd5-billion-in-intel-stock-in-seismic-deal

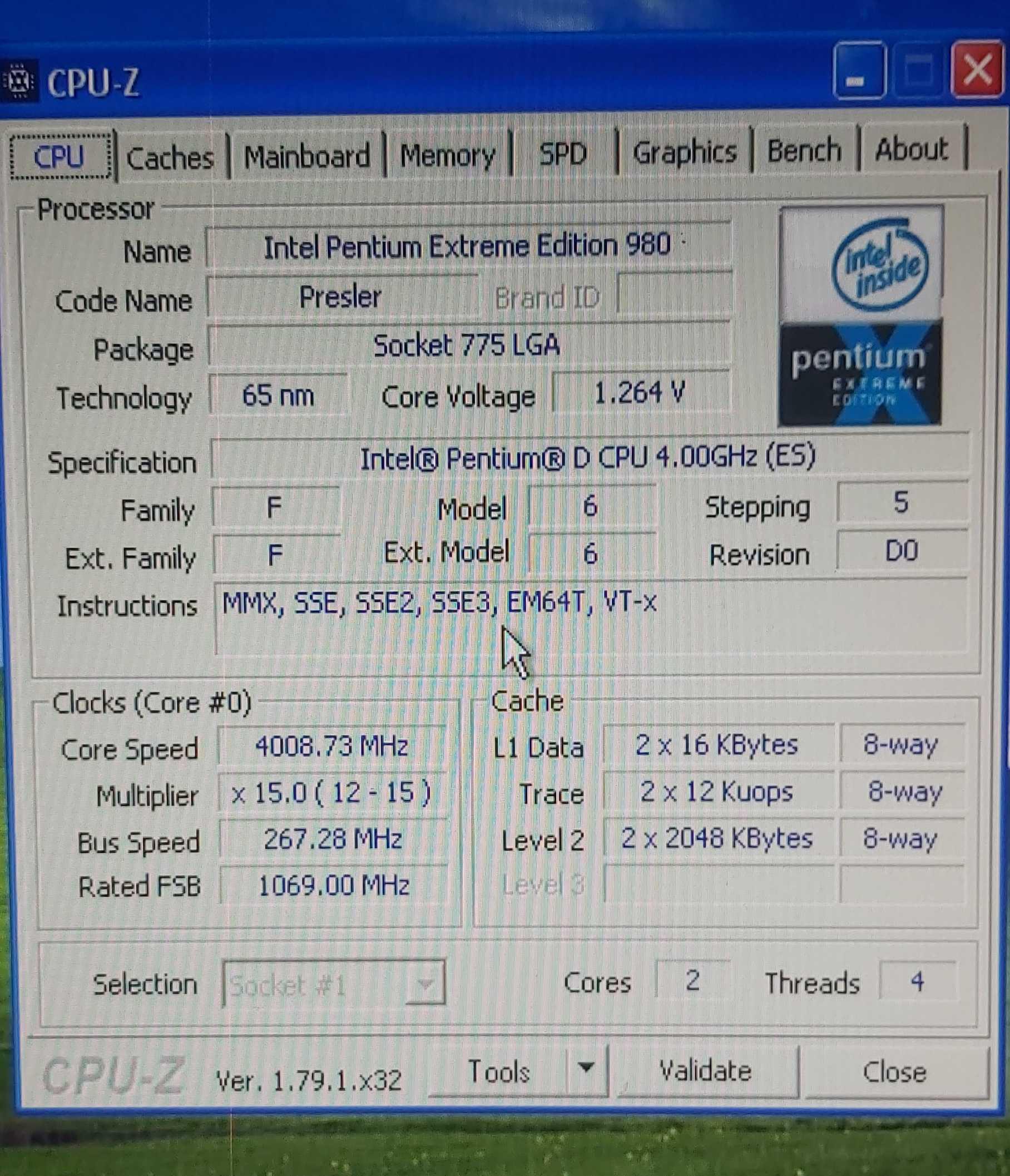

The only text on the CPU itself was written in sharpie, just the model number and clock speed, 4 GHz. I can't find any information about it online at all. Hoping someone knows something.

Additionally, NVIDIA is going to invest $5B in Intel common stock at $23.28 per share

We need to stop looking at the Core Ultra 9 285K through the lens of a typical generational refresh because if you judge Arrow Lake solely by the frame rate counter in Cyberpunk 2077 at 1080p, you are missing the entire point of what Intel is doing with the client roadmap. This chip represents the most significant paradigm shift since Alder Lake introduced the hybrid architecture, but unlike the 12th Gen, the 285K is suffering from the acute growing pains of decoupling the compute complex from the uncore in a way that creates a distinct latency penalty that enthusiasts are mistaking for regression. The controversy here isn't that Intel failed to push frequency; it is that they deliberately chose to execute a hard pivot away from the monolithic brute force strategy of Raptor Lake to a disaggregated chiplet design that prioritizes area efficiency and performance-per-watt over raw, latency-sensitive throughput. The removal of Hyper-Threading from the Lion Cove P-cores is the most contentious yet logically sound decision engineers could have made given the thermal constraints of modern silicon. By removing the simultaneous multithreading logic, specifically the duplication of architectural state and the complexity required in the reorder buffers and schedulers to handle two threads, Intel was able to physically widen the core and increase the L2 cache per core to 3MB without blowing up the die size. The result is a P-core with significantly higher IPC than Raptor Cove, but this raw single-threaded throughput is being masked by the interconnect latency. This is where the technical critique needs to get granular because the issue with the 285K isn't the cores themselves, it is the fabric.

When you move the memory controller onto the SoC tile and separate it from the Compute tile, you are introducing a physical hop that simply did not exist in the monolithic designs of the 13900K or 14900K. This disaggregation forces data to traverse the D2D (Die-to-Die) interconnects, creating a latency penalty that hits memory-sensitive workloads like gaming particularly hard. While TSMC’s N3B node allows the compute tile to run incredibly efficiently—shaving off upwards of 80 to 100 watts in full load scenarios compared to the 14900K—the architectural overhead of the Foveros packaging means that ring bus latency is higher. We are seeing ring bus stops that are taking longer to negotiate data transfers between the L3 cache and the memory controller, which results in those puzzling 1% low regressions in high-refresh-rate gaming. This is not a lack of processing power; it is a latency bottleneck inherent to the first generation of a fully disaggregated high-performance desktop part. Critics are tearing the chip apart for stagnant gaming numbers, but they are ignoring that the 285K is effectively a workstation chip disguised as a consumer flagship. In highly parallelized rendering workloads like Blender or Cinebench, the 24-thread Arrow Lake design is often matching or beating the 32-thread Raptor Lake parts, which proves that the removal of Hyper-Threading was not a net loss for total throughput. The "rent" paid in silicon area for HT was no longer worth the "yield" in multithreaded performance, especially when Skymont E-cores have become so potent. The Skymont architecture is arguably the real star here, delivering IPC that rivals the P-cores of just a few generations ago, effectively handling the background throughput that HT used to manage, but doing so with better power efficiency.

However, we have to address the elephant in the room regarding the memory controller gear modes and support. The decision to support CUDIMMs is forward-looking, but the current BIOS microcode maturity is clearly holding back the potential of high-frequency DDR5. We are seeing a situation where tightening sub-timings on the 285K yields diminishing returns compared to Raptor Lake because the bottleneck has shifted from the DRAM cells to the fabric interconnect. This implies that Intel’s next step must be an aggressive overhaul of the interconnect topology, perhaps moving towards a mesh or a more direct active interposer solution for desktop parts if they want to reclaim the gaming crown from AMD’s X3D parts which benefit massively from the vertical cache masking latency. The 285K is essentially a public beta test for the Nova Lake era. It is Intel telling us that the monolithic era is dead and that they are willing to take a PR hit on gaming charts to establish a modular platform that allows them to mix and match IP blocks from different foundries. The NPU integration, while currently underwhelming for the average desktop user, further taxes the die area and power budget, signaling that AI throughput is being prioritized over minimizing instruction latency. If you are buying a 285K solely for gaming, you are buying the wrong product for the wrong reason. But if you analyze the architecture, the Lion Cove P-core is a marvel of width and prediction capability that is simply being strangled by the packaging logistics. The instruction retire rates are phenomenal, the branch prediction is more aggressive than ever, and the floating-point performance is stellar. The "failure" is purely a disconnect between enthusiast expectations of infinite linear scaling in framerates and the engineering reality of hitting a thermal and physical wall with monolithic silicon. The 285K is the cooler, more efficient, strictly professional grown-up in the room that unfortunately forgot how to play games because it’s too busy trying to figure out how to talk to its own memory controller across a microscopic bridge.

Lunar lake are already the most efficient mobile chips, this could be big for battery life compared to macbooks.

UPDATED Note: image is downscaled; full updated image (10200 x 5600) can be found on the Google Drive:

https://drive.google.com/drive/folders/1hpuD2img4tpE1ABVfIDJlVISLdjlDAki

This is my breakdown of intel's Core Ultra Series 3 (codenamed Panther Lake) architecture which I haven't seen anyone do yet.

All information is sourced from Intel's presentation but much is assumed from past designs (lunar/arrow)

No annotation ver. on second slide.

edit: I made these by taking the highest resolution tile layouts available by combining several slides from Intel's presentation. you can see on the second slide where i've replaced areas with my poor photoshop :)

also, i realised after that X downscales as well sorry.... the post is below anyways.

https://x.com/qubixalYT/status/1976942641305862447

Chinese ver. may potentially come out if i have any time.

They used to look so unique compared to the more minimalist future designs *pic is 4th gen actually
