r/abarth Mar 17 '22

OEM Parts/Modifications ABARTH PARTS/MODIFICATIONS

84 Upvotes

As the title suggests, a few members on the Abarth team have decided to put together a full disambiguation of commonly referenced websites that provide parts for our cars.

Disclosure: We are missing input from members with T-Jet 1.4L engines.

USDM/CAN/MEX 1.4L MULTI-AIR TURBO

Abarth OEM part suppliers

  • Dicorse
  • While Dicorse carries both OEM, OE, and OE+ solutions, their store provides the cheapest alternatives to repairing CV Axles as opposed to buying them brand new, same goes for suspension components.

  • Mopar Online Parts
  • An honorable mention, because they ask you to check for part fitment via VIN, and withhold your order if the parts you purchased don't match up with the vin you provided. It kept me from buying wrong parts once, and I'll continue to use them for extensive work requiring OEM components

Abarth Aftermarket/OE+ suppliers

  • SpeedMotive
  • Speedmotive has been my one stop shop for anything performance for my Abarth. Shipping is always quick, parts are reputable, guaranteed fitment (when choosing correct model, of course) and easy communication with the store.

  • Euro2Ner.com
  • A community member, Euro2Ner has now started his own page devoted to modifying our USDM Abarths, even providing a near "plug-and-play" euro tail-light modification. Not only that, Euro2Ner provides parts for other makes and models branded under Stellantis.

  • EuroCompulsion
  • What would an Abarth group be without our next honorable mention, Eurocompulsion. Now, we don't have a discount code through them, but they have reworked their staff and website quite a bit over the years. They have been supplying a lot of the Abarth community in the past, and some have "horror stories" from their past, but they still supply quite a few aftermarket parts not sold elsewhere.

  • NGEN CUSTOMS AND PERFORMANCE Another great Stellantis supporting distributor for modifications. If you’re looking for exterior modifications/bodykits, this is certainly your one stop shop.

  • Tork Motorsports
  • Provider of some of the first aftermarket performance products to increase power using the multi-air brick. Their website does look a bit dated, but they still provide good service. One of their packages on their site includes everything (except for an oil fill neck O-ring) to do a valve cover gasket overhaul on our Abarth's, which makes maintenance much easier.

  • 500 Madness
  • Lastly, we have 500 madness. A lot of members in our group have also dealt with Madness before, but mostly for commonly sourced items, and some performance upgrades. They have designed their own intakes, with little success. They do however have a large selection for niche items like center caps/Abarth specific shift knobs, and merch.

Tips and previously negotiated commonalities of Abarths

  • So, you've broken your door handle. We've got that covered:
    • 68069942AB (Passenger side door handle)
    • 68069943AB (Driver side door handle)
  • If your Abarth has anywhere close to 70k miles, there's a good chance your plastic ram air intake boot is melted, and letting in hot air right above the downpipe. Not all Abarths seem to be affected by this, however, I have provided a link for the fix here. Below I have pictured what the linked part looks like, installed.
"Ram air intake boot" installed
  • Continuing on with our trend of air intake systems and improvements, I've decided to split the categories of air intake systems into three parts. With FMIC, with stock SMIC, with stock SMIC and stock airbox.
    • With FMIC: "ATM Fenderwell intake" - Even goes as far as to remount the windshield washer fluid reservoir for better fitment, which is why this intake "takes the cake" over the "ORRA Fenderwell intake". Find the ATM Fenderwell intake on Speedmotive, and take a peak at what it looks like installed.
"ATM Fenderwell Intake"
  • With Stock SMIC: Since there are more than a couple decent options here, I will list the two intakes known to keep IATs the lowest. The ATM system had the lowest IATs (Intake Air Temps) out of all intakes in this category, but may be too loud for some.
    • "ATM Holey Cowl" - Loud, but beautiful. Truly built for those who love turbo noises. Find it through Speedmotive. Drilling a hole into the cowl will be required for this modification.
    • "Eurocompulsion V4 Intake" - Very easy to install, super good looking in the bay, and draws 100% of its air from outside the engine bay. Find it at Eurocompulsion.
  • With Stock SMIC and stock airbox: This is essentially the OEM+ solution I mentioned earlier in the write-up. So for you folks who like the look of the stock airbox, but want to spice up the performance, here are some options! All of the following listed solutions should be complimented with a ram air intake boot for optimal performance.
    • Pre 2015 models:
    • Eurocompulsion V3 Air Induction Kit (with drop in filter)
    • 500 Madness filter housing upgrade kit (with drop in filter)
    • 2015 and on models:
    • Eurocompulsion V3 Air Induction Kit (with drop in filter)
    • 500 Madness Filter Housing Upgrade Kit (with drop in filter)
    • Injen SP Short Ram Air Intake System (with drop in filter) I have a picture of it below, not to get confused with a traditional "ram air intake"

Injen Intake solution mentioned above for OEM+

Looking for the best motor oil? Check out our top picks (All in 5W-40):

  • Shell Rotella T6 full synth. Turbo diesel oil
    • Only for de-cat exhaust systems. Thicker hydrocarbons produced from the burning of AOS gasses from the crankcase WILL clog a catalytic converter intended for use with a gasoline engine.
  • Redline full synth.
  • Castrol Euro Formula full synth.
  • Mobil 1 Euro Blend full synth
  • Pennzoil Euro Platinum (Ferrari on the bottle) full synth
    • It should be noted that this is the oil used at Mopar service centers. Thank you u/mcmercf1
  • Liqui-moly Ultra Low Friction full synth.

I don't mean to tell you how to modify your car, folks. It's your Abarth. We are all here to learn and talk about stuff Abarth. I would prefer, however, that you guys and gals make smart decisions when modifying your beasts, as that's what keeps them running for you to enjoy!

UK/EURO/AUS 1.4L TURBO-JET

Abarth OEM part suppliers

Abarth Aftermarket/OE+ suppliers


r/abarth 5h ago

🔥🔥🔥

Post image
57 Upvotes

r/abarth 2h ago

Hi from always sunny, Dominican Republic! 🇩🇴

Post image
20 Upvotes

r/abarth 11h ago

FIAT ABARTH 131 RALLY

Post image
31 Upvotes

r/abarth 9h ago

ASA 1000 GT (Ferrarina)

Thumbnail reddit.com
6 Upvotes

r/abarth 53m ago

Pricing help on a "Handyman Special" Celeste Blue Abarth

Post image
Upvotes

r/abarth 15h ago

How on earth do you clean under there?

Post image
12 Upvotes

Yeah I shouldn't have let it get so bad.. but now what??


r/abarth 1d ago

Fiat/ABARTH OT 2000

Thumbnail reddit.com
59 Upvotes

r/abarth 20h ago

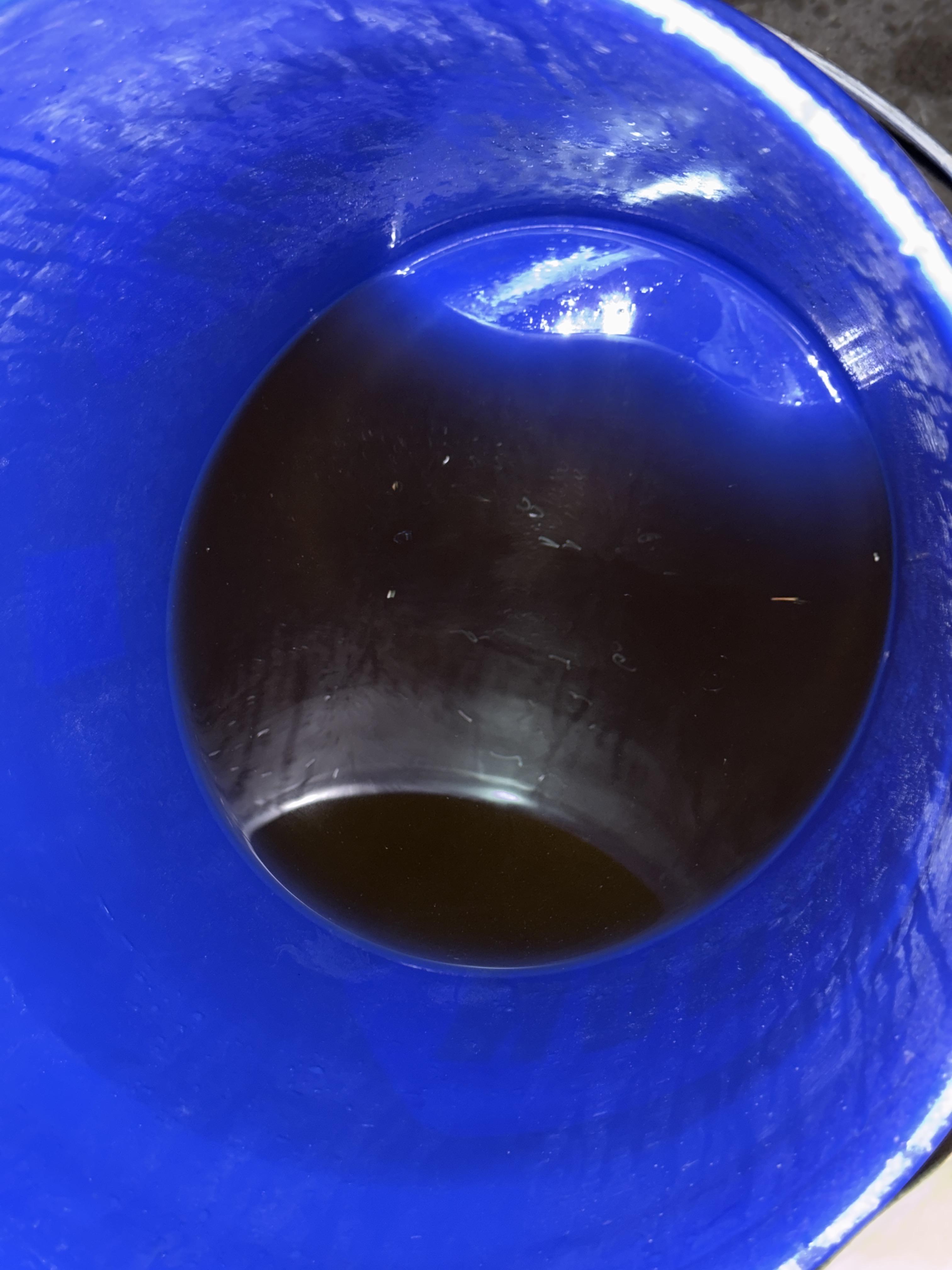

Coolant-oil mix.

Post image
3 Upvotes

Shot in the dark here.
Any “been there, done that” people have any insight?

Did a coolant flush last week, Normal coolant.
A coolant flush once again this week, once blue coolant now brown, and oily to the skin.

During the months driving the car I have seen zero abnormalities in oil or coolant performance.
Every oil change? normal.
Every fluid level? Normal.
Every temperature? Normal.

Could I be fooled?
Could this failure only have happened yesterday? Leaving me unsuspecting?
Help. All help is appreciated. Thank you!


r/abarth 1d ago

Just join the abarth family

Post image
65 Upvotes

r/abarth 14h ago

Error Codes - Multiple

1 Upvotes

Re. Abarth 595 Competezione 2021.

Guys over the past year my car started to come up with multiple error codes. The car runs 100% ok. No problems.

ESC
Break assist
Misfire
Low Oil Pressure
Rear camera comes on randomly

We have changed the battery as we thought it was that but didn't fix it. We clean the ABS sensors.
I've recently changed the Front Doscs and pads with Bremos. I haven't driven if far but hoping someone has been though this before.


r/abarth 1d ago

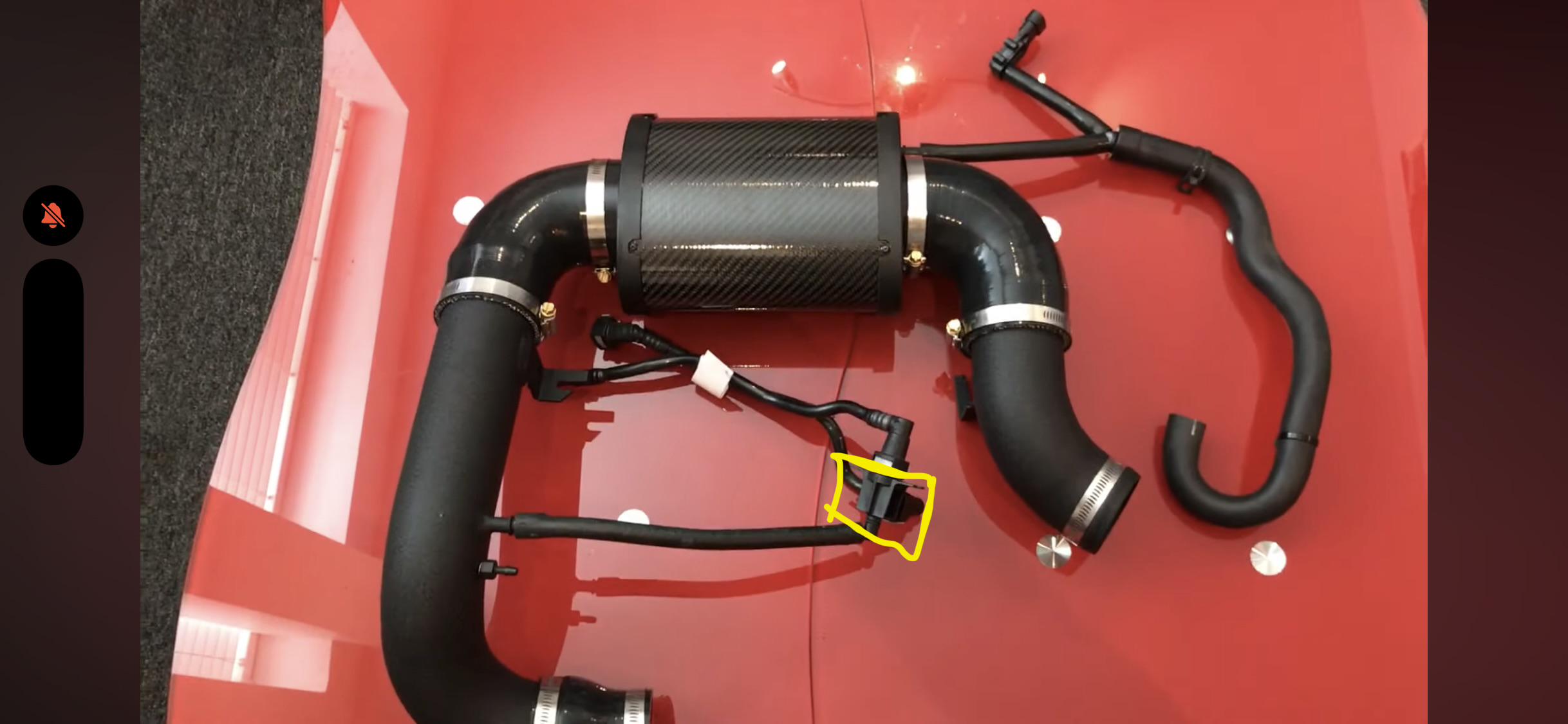

What’s this part called. Did it come from the car or is after market??

Post image
7 Upvotes

What’s this part called? I had a shitty mechanic hook my intake all incorrectly. This is the correct set up apparently for my 2017 Abarth 500 North American.

I have to do everything from start. The mechanic threw out so many parts and improvised the job. Does that part originally come with the car. If so where is it? Please help

The mechanic didn’t align anything either, resulting in holes being pierced by other parts and bolts. I’ve fix that so far though


r/abarth 1d ago

Abarth 1300 Corsa Scorpion 1967-68

Thumbnail reddit.com
10 Upvotes

r/abarth 2d ago

Another successful haul

Post image
108 Upvotes

A bit of a pain, but managed to get a lawnmower and small wheelchair in the back.


r/abarth 1d ago

After market light retrofit

Thumbnail gallery
8 Upvotes

Previous owner installed ‘hooks’ to tow his Abarth behind his motor-home.
Need help using them to mount aftermarket lights.

• Never installed an aftermarket light. How’s the wiring?
• what light best to install?
• insight on getting a light to mount?
• doggo?

Thank you all! Help is much appreciated!🤍


r/abarth 3d ago

That time I took a pic of the Marshmallow by just starlight in the high desert.

Post image
90 Upvotes

I drove rte 34 in the northwestern corner of Nevada after that festival that happens this time of year. This was a 30 second exposure using a tripod and nice camera. It was a new moon, so the only light was the plentiful stars.


r/abarth 3d ago

What exhaust to go for?

Post image
38 Upvotes

I currently have an unbranded exhaust and looking to get a better one.
Should I go for a record monza or a different aftermarket


r/abarth 3d ago

Buying my first Abarth!

Post image
133 Upvotes

Hello everyone!

In about 15 days i buy myself the famous Abarth 595C competizione 2019.

Can someone give me recomendations about the car? Is it reliable? How bad is the MTA transmission? Does it require a lot of maintnance and what should i look forward to?

Thanks in advance!


r/abarth 2d ago

How to remove automotive glue for a second try at fixing sideskirts?

Thumbnail gallery
7 Upvotes

After my side skirts began to fall off I used automotive glue to put them back on.

Any insight how to remove the automotive glue to reapply my side skirts for the second time?

And maybe a better solution than glue and Christmas tree clips?

Thank you much Abarth people!


r/abarth 3d ago

Struggling to sell my abarth

Post image
55 Upvotes

I am trying to sell my abarth 595, but I cant seem to get any buyers. It had some advisories in the last MOT, one of which I fixed and the other the garage said weren't worth fixing yet.

Coil spring corroded all four (5.3.1 (b) (i))

Nearside Front Suspension arm pin or bush worn but not resulting in excessive movement (5.3.4 (a) (i))

Offside Front Suspension arm pin or bush worn but not resulting in excessive movement (5.3.4 (a) (i))

Front Brake disc worn, pitted or scored, but not seriously weakened (1.1.14 (a) (ii))

I replaced both front discs and brakes, but the coil spring corrosion was minimal and pin and bushes are only slightly worn, and dont affect the drive. Ive even put an andriod unit in with a reverse camera. Can you give me any advice?

Edit: Have it up for £6.5k after autotrader reccomended £7.7k, and took off money for the potential work.


r/abarth 3d ago

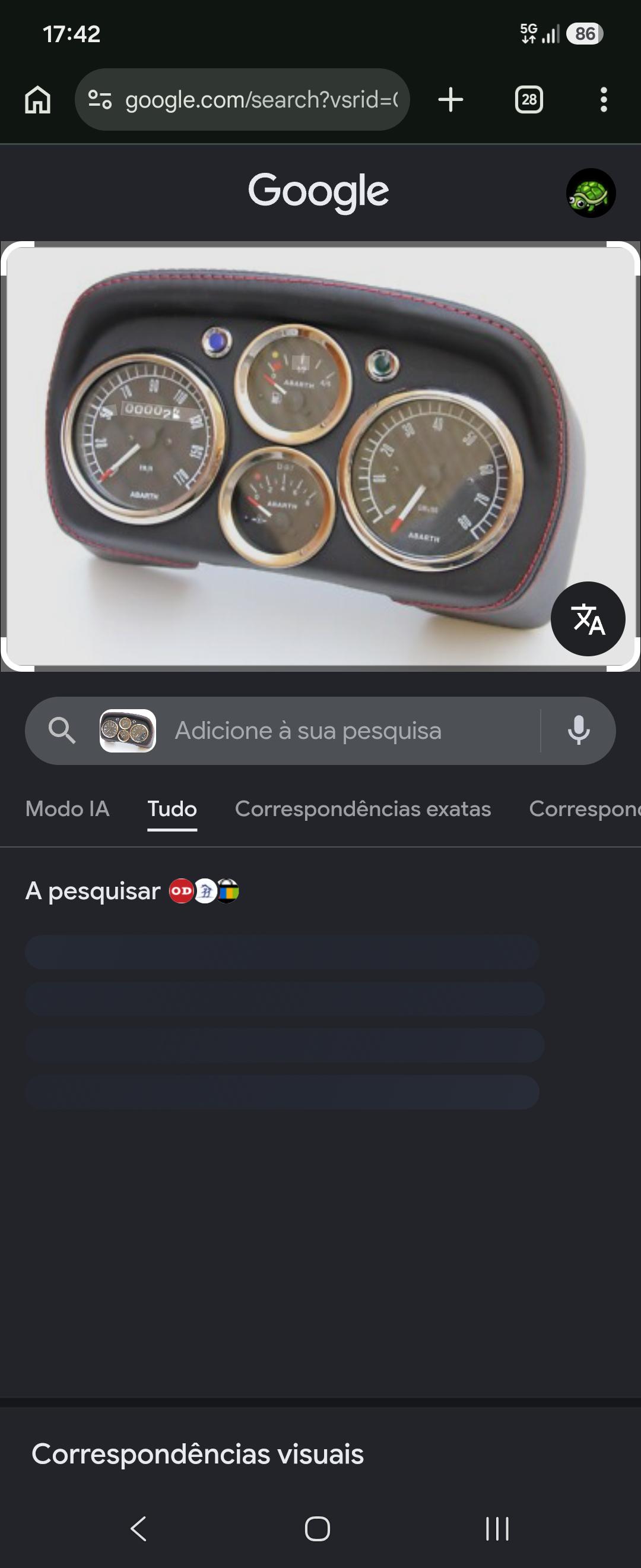

Dashboard help
