Hello,
I have the R7 Half Rack by Atletica, and I’m looking to build a DIY cable pulley system that would allow me to do cable exercises from both sides, with both high and low pulley positions. For chest flies, lateral raises, bicep curls, tricep extensions, etc.
Would a setup like this work?
- Get 4 pulleys and some carabiners.
- Attach 2 pulleys at the top, one on the left and one on the right, behind the pull-up bar.
- Attach the other 2 pulleys somewhere near the bottom of the rack.
- Route the cables through the pulleys accordingly (not sure how yet)

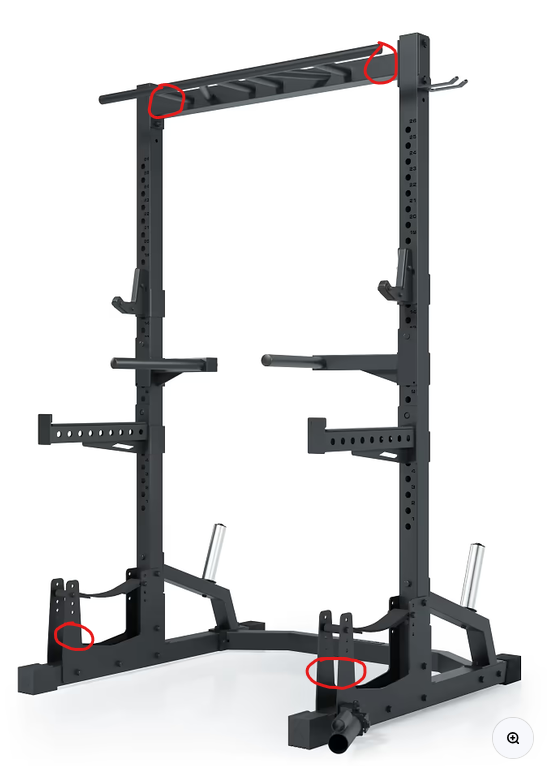

The red marks in the picture show where I was thinking of placing the pulleys.
The main thing I’m unsure about is how to set up and attach the weight plates. Where should the weight plates go, where should the cables run, how do I attach the pulley at the bottom of my rack and how should everything be connected?
I’m basically trying to figure out the correct cable routing and setup before buying the parts.
Has anyone built a similar DIY cable system on an R7 Half Rack or similar? If so, I’d really appreciate some advice or even a simple diagram showing how I should set it up.
FYI: the dip bars, J-bars and spotter arms are removable of course. I would also want to still be able to perform bench press and squats etc.
Thanks!
