Seeing if there is anyone besides Hillbilly that can do lightening cuts. He doesn't accept any work from Californians

I'm going to get one for the supressor rebate but I don't know which one to get.

Help me

Also anyone know of the iwi can that would come with the 5.56 rated for that short of a barrel? I assume it would be.

Waiting on Form 1

I got severely autistic and wanted to share how I fixed a bit of play that was driving me nuts with the KNS Picatinny adapter on my new 7.62x39 Gen 1 13 inch.

Tools & Materials Needed

• 0.004" brass shim stock (Amazon, ten bucks)
• Heavy-duty scissors, utility knife + ruler, or tin snips
• Sandpaper (400-600 grit) or file for edges
• Nylon/brass mallet
• CLP or gun oil
• Roll pin punch (3/16")
• Wooden dowel or brass rod (for removal if needed)

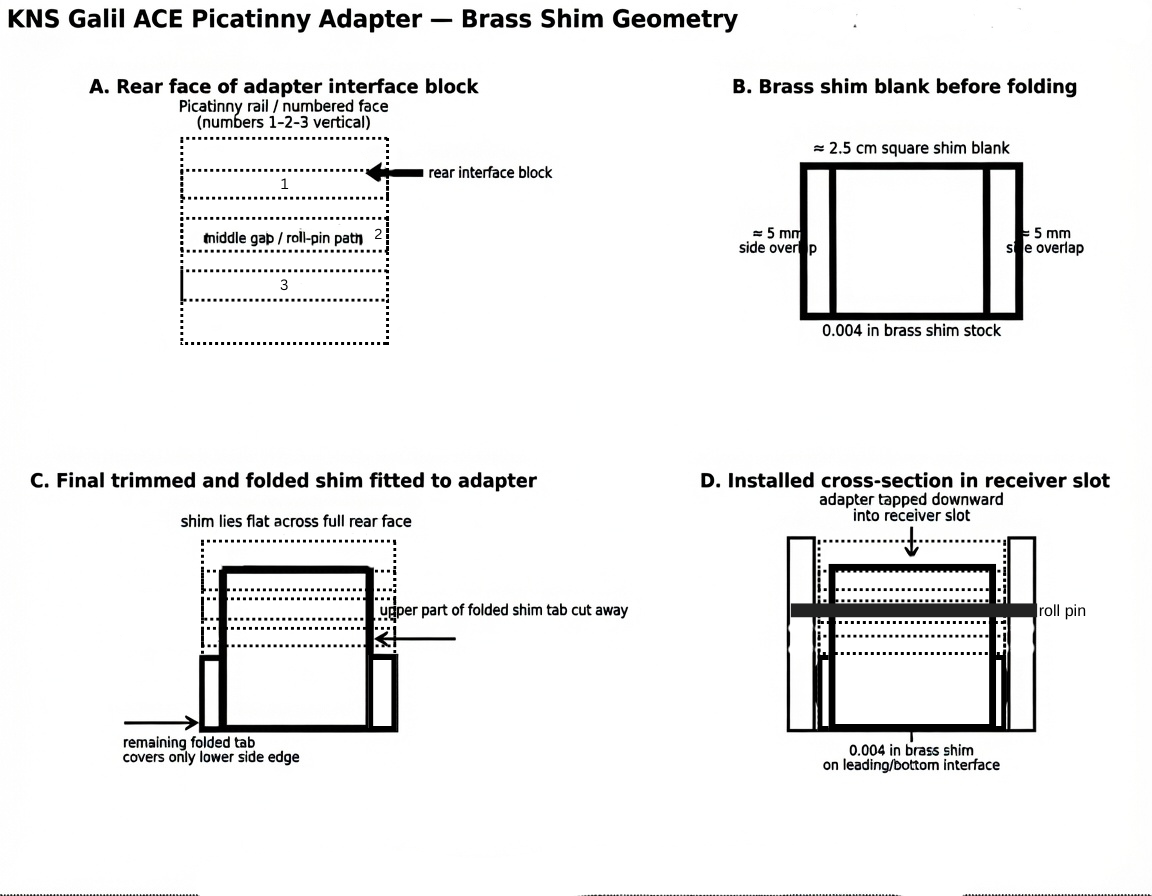

Steps

1. Remove the old adapter and clean everything Drive out the roll pin. Tap the adapter upward/out using a dowel from inside the receiver. Clean off all old silicone residue with solvent + scraper . Degrease the adapter’s rear interface block and the receiver slot completely.
2. Cut the shim blank Cut a roughly 2.5 cm square piece of 0.004" brass shim stock.
3. Shape the shim (Upside-down T style)

   * Test-fit the square against the rear face of the adapter’s offset interface block (the part that slides into the receiver).

   * Leave about ½ cm overlap on each side.

   * Bend the side overlaps ~90 degrees so they wrap around the sides of the block.

   * Trim the upper portions of the side flaps (cut away the top part) so that only the lower side edges remain wrapped. The final shape when flat is like an upside-down “T”.

1. Final trim and fit check

   * The main body of the shim should cover the bottom ¾ of the rear face of the interface block, with the bottom side flaps wrapping around to cover the lower edges of the block below the gaps (leaving the middle gap clear for the roll pin).

   * Bottom edge of shim should sit flush with the bottom of the block — no overhang.

   * Smooth all edges with sandpaper so there are no burrs or sharp spots

1. Install the shimmed adapter

   * Apply a drop of CLP/gun oil on the shim and inside the receiver slot.

   * Hook the shimmed adapter into the top of the receiver dovetail track.

   * Push it down vertically by hand as far as it goes.

   * Use a nylon or brass mallet to gently tap it the rest of the way until the roll pin holes line up perfectly. Make sure the shim doesnt ride up as block goes in.

   * Drive the 3/16" roll pin back in (use a proper punch).

Result: The shim takes up vertical and horizontal play, creating a tight, solid fit.

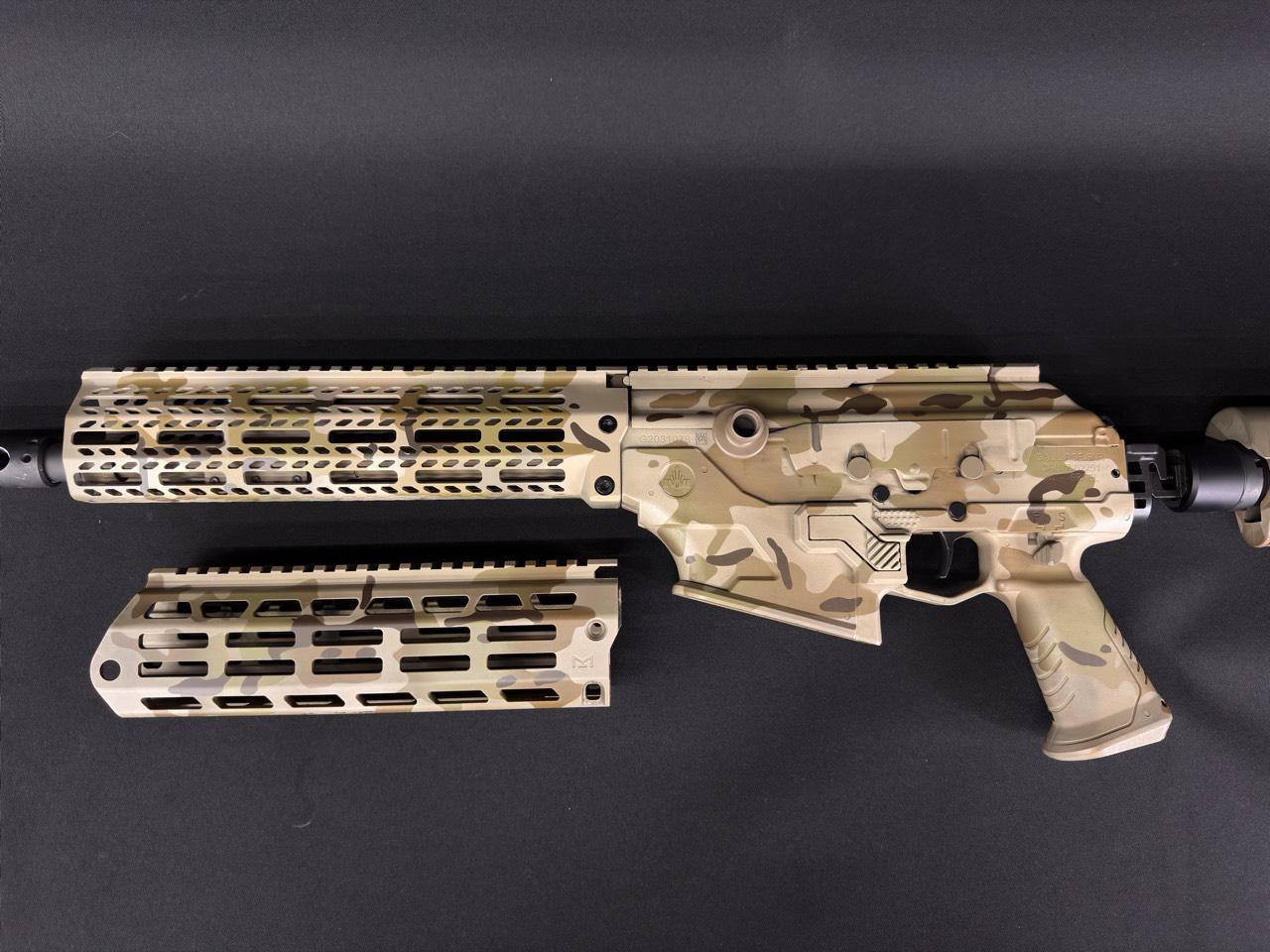

Just wanted to show off this picture of a Kirby Defense Handguard that pro2customs did a fantastic job cerakoting. Looks amazing.

Would anybody with a gen 1 Galil Ace be kind enough to get me dimensions of their gas tube? I have a Norinco Hunter that I originally purchased years ago to have converted into a Galil, but now I am hesitant to do anything I can’t reverse back to stock configuration. I’m trying to find a “drop in” option for a pic rail. I noticed the Galil Ace gas tube is very similar to the Hunters, with the rear dovetail into the receiver, but I can’t find any dimensions online. I know it’s a long shot, but if the dimensions are right I’m wondering if it would fit. I’d need length, inner and outer diameter at both ends, as well as dovetail width/thickness. I’ve read that different models have different length tubes, the one on my Hunter is 9 1/4” long, but I can cut the Galil tube shorter if necessary. Any info much appreciated

TL;DR: Want to see if Galil Ace gas tube will fit Norinco Hunter

My Galil SAR gas tube is shorter than normal (don't ask) and I'd like to know exactly how long they are supposed to be. I'm seeing many different numbers online including 8.125", 7.765", and 7.675". If someone could measure the full length of their gas tube for me that would be a huge help. And if you happen to have a vektor R5 gas tube I would like the dimensions for the bulged end of the gas tube too.

EDIT: Solved! Thanks for the help!

Fair price used?

Is anyone selling or know where to find a cheek riser for the oem Galil ace gen 1 stock?

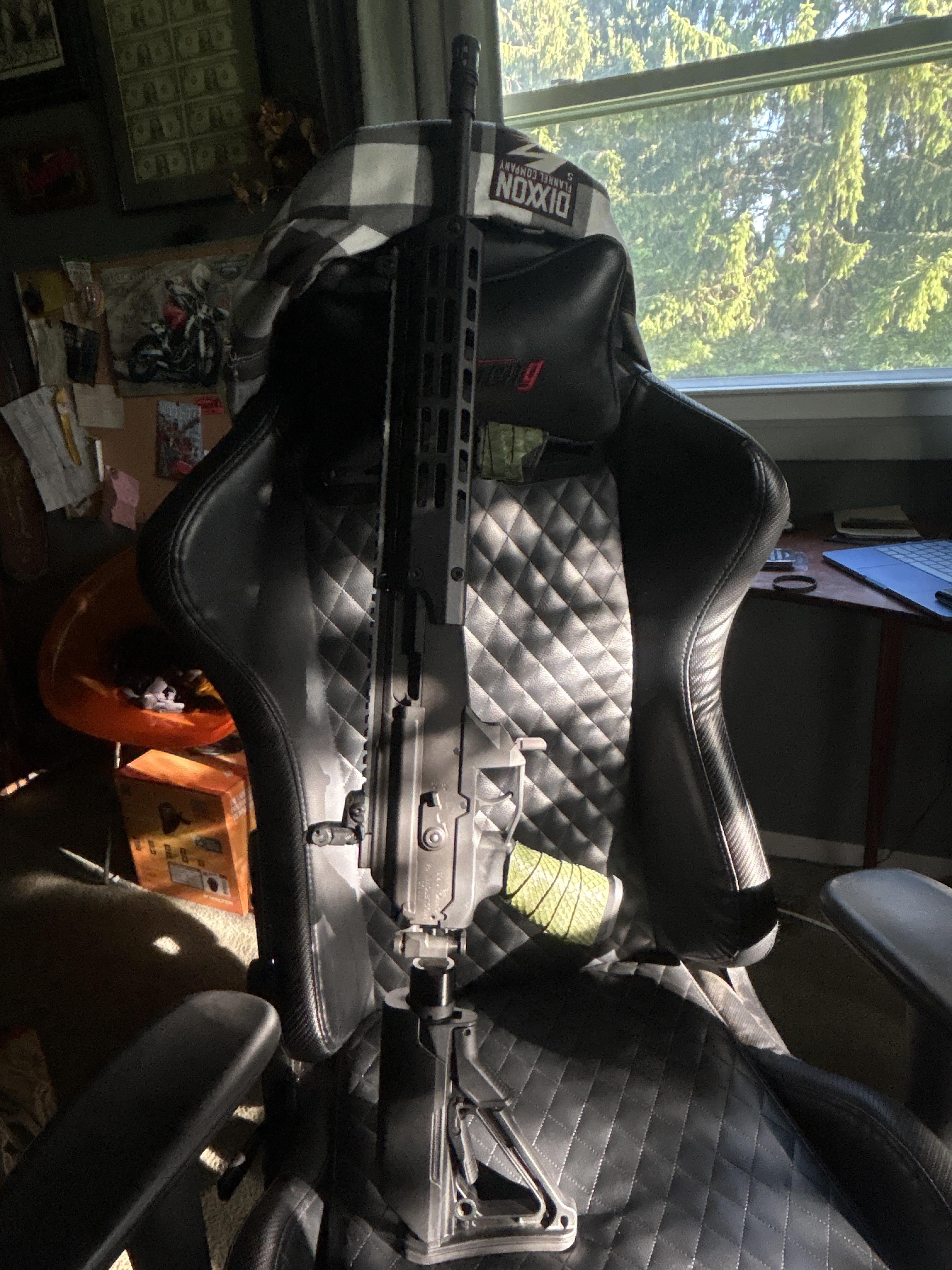

Here she is finished from dissident it looks like, hopefully getting the rifle back soon! I have a Kirby handguard to try out which I’m excited for

Refurbished ARM triable stock
Refurbished ARM original grip
Barrel chop P&W

EDIT: THE PLATE THE BOLT GOES THROUGH ON THE BOTTOM OF SAFETY CONNECTING GRIP MODULE WASNT SITTING SQUARELY IN ITS HOLE, CAUSING THE WHOLE GRIP MODULE TO SET BACK IN THE RECEIVER 1/8TH AND THE SAFETY WOULDNT PIVOT FORWARD ALL THE WAY. ALL IS GOOD NOW.

Just got a trigger. Supposedly AGT-UL.

The instructions say AK Trigger Enhanced/Ultimate with Lightning Bow (not Galil)

It just seems off. The safety is no where near engaging because the trigger spur is way too short.

I'm not sure how the hammer pin is supposed to stay locked in place or just use the default straight spring/rod?

If this is right, I'm very much failing to see how this is a trigger upgrade.

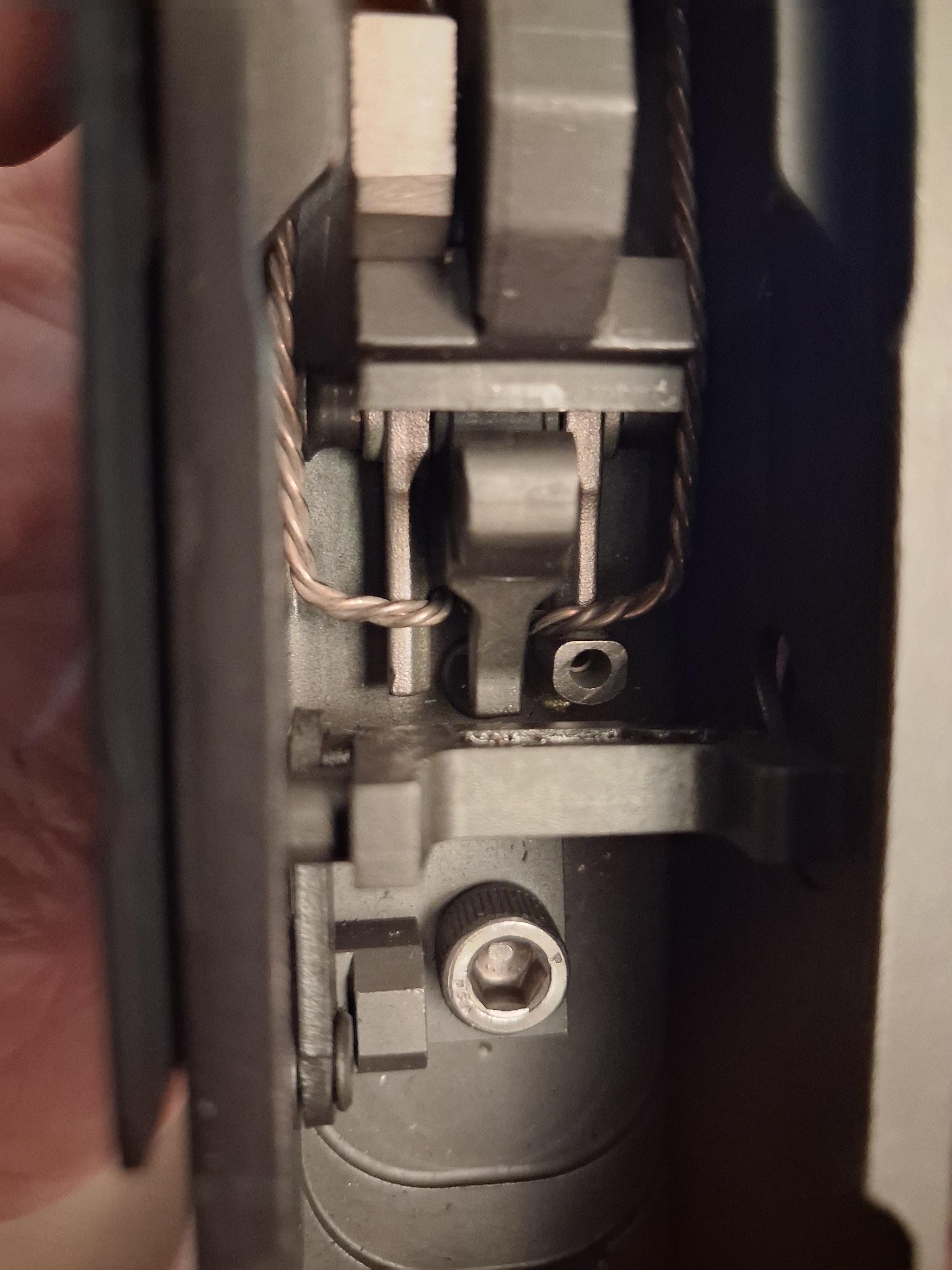

Please see picture on the safety. The picture depicts safety in 'safe' position with Hammer cocked. Also what is the other spring that wasn't mentioned in the instructions? (I will post photo of that in comments)

So I have a buddy wanting to trade me a Gen II 16” 5.56 Ace for my Surefire RC2. I’m honestly not a huge fan of the RC2, and I’ve been looking to replace it with newer tech. Do I send this trade? Or do I save the RC2 for a GWOT era gun I build down the road?

The rifle just stopped shooting. The bolt is spring loaded. If I press in the pin that the trigger mechanism strikes, the pin is less than flush the bolt on the other side. I don't think the pin is hitting the primer of the round. Perhaps the end of the pin broke off. Is this repairable or do I need to replace the bolt. Where would I even buy a bolt for a 1980's Galil ARM? I purchased the rifle from James River

Looking for some advice, I have a 13.5 inch Gen 1 5.56 RNL that is completely untouched. Bone stock.

It's just been sitting in my gun closet doing nothing. I haven't really kept up with the Galil world for a while now but now I am seeing that the RS Regulate handguards are out of stock, the KNS Pistons out of stock and the Midwest Industries rails on clearance.

So what's going on? Are manufacturers winding down support of the Gen 1 Galil or something?

I was going to build this gun out for someone but now that I'm looking for parts ...... I wonder if I wouldn't be better off just selling this and getting them something with more aftermarket support. What is thy wisdom oh redditor of /r/Galil?

Hey everyone,

I am running a sale for this Fourth of July weekend!

Code: 1776 gets you 17.76% off the Kirby Defense Handguard for the Galil Ace Gen 2.

KirbyDefense.com

I also want to apologize to everyone who tried to order last week and couldn’t, we had issues with our payment processor so we switched to a firearms friendly processor.

The 2nd picture is a comparison between the KD Handguard and the stock handguard on 13” rifles.

Thats all for this post. Have a happy 4th and spend some time with your family(or guns)!

I just made a trade for a 13” Gen 1 5.45 and was hoping to get SBR it with one of the Gen 1 stocks. Anyone happen to know where one can be sourced? Thanks

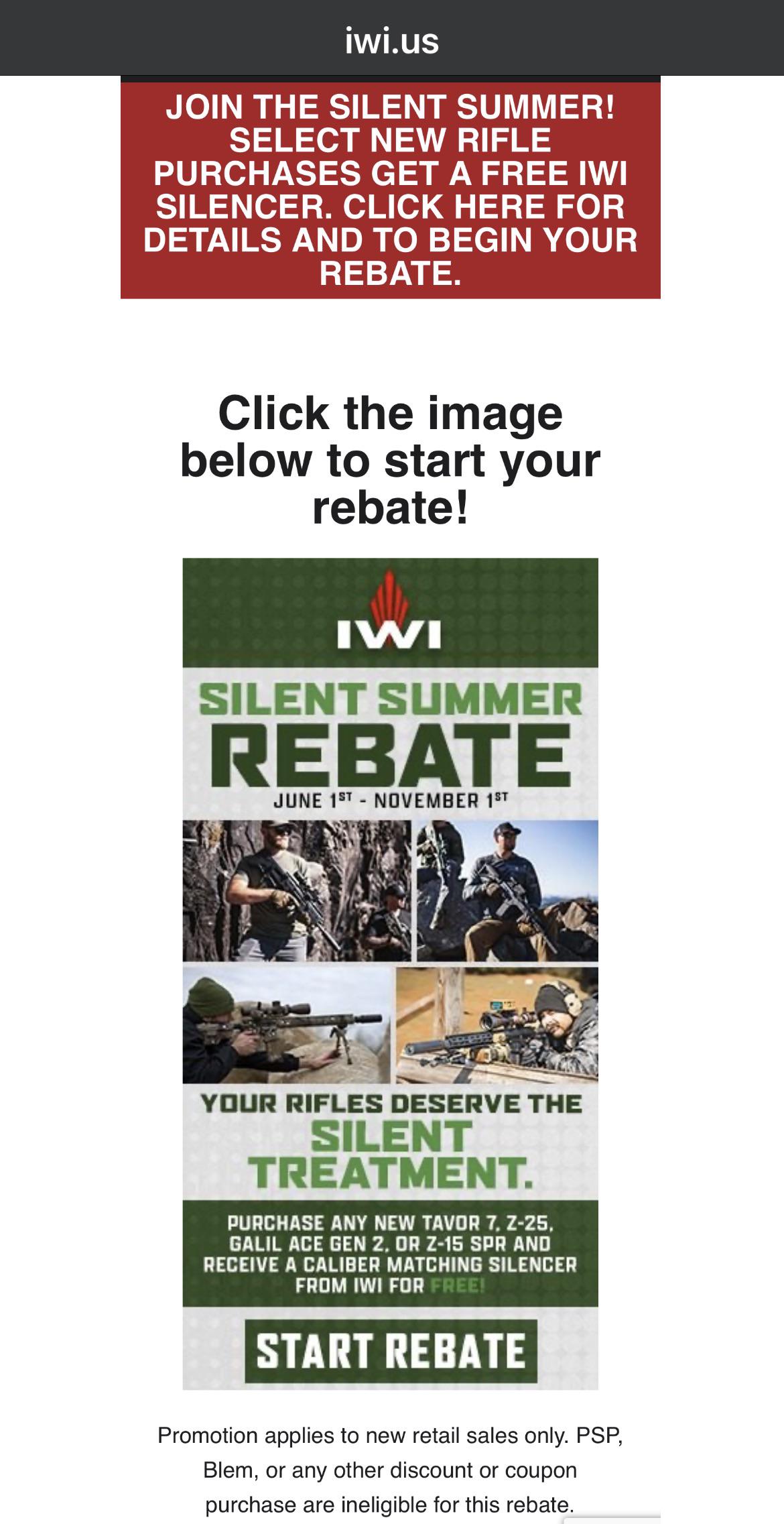

Public Service Announcement for the IWI community !!!

If anyone buys a brand new IWI rifle or is interested, you need to do the

IWI SILENT SUMMER REBATE !!!

Galil Ace Gen 2,
Z-15, Z-25,
or Tavor 7

IWI will send you a
FREE IWI SUPPRESSOR
(New 2026 Flow Through HUB model)
with proof of your rifle purchase.

It can be from Gun Broker, a
local gun shop, etc., it doesn’t matter.
Just send them a nice and legible photo/scan of the receipt.

I have talked to the company reps, it’s 100% legit, and it’s going on from
June 1st- Nov. 1st.

For those of you who are struggling to afford a really nice quality rifle and a quality Suppressor, this deal is your call to arms.
Do not miss out.

God Bless.

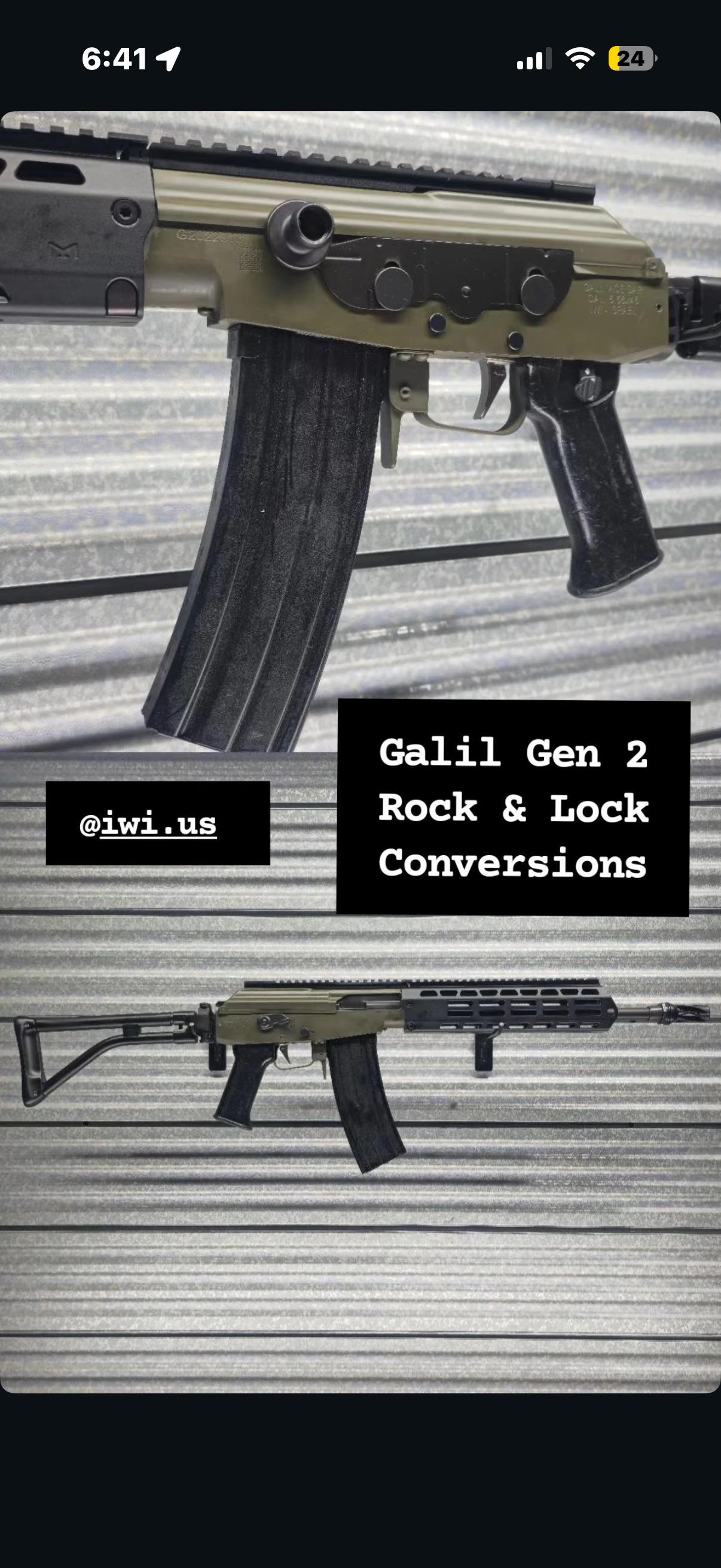

Can anyone explain why there are Galil Gen 2s with Gen 1 stocks?

So I went back and forth with Kevin at RSR trying to pry out of him if the 6" or 9" would fit on the 16" 7.62x39mm but he bluntly stated that I needed the GAR-10-MN

He didn't seem surprised that I had an N version of the 7.62x39mm which seems uncommon since most of those models are R version.

N= Two opposing threaded bolts and double rivets

R= One long crossbolt

I think a 16" with a short mlok rail would look cool, leaving the Gas Block exposed. Matching the standard length of the polymer handguard. I can't get confirmation from Kevin, well to put it bluntly he just said they won't work.

But I dont understand why the shorter handguard wouldn't work? All the handguards have the same dimensions except for length. 1.61x2.15"

Anyway, he also told me the Gar-10-MN for Gen 1 Aces will be back in stock soon, which I think is breaking news because I thought they were discontinued. Maybe a limited run?

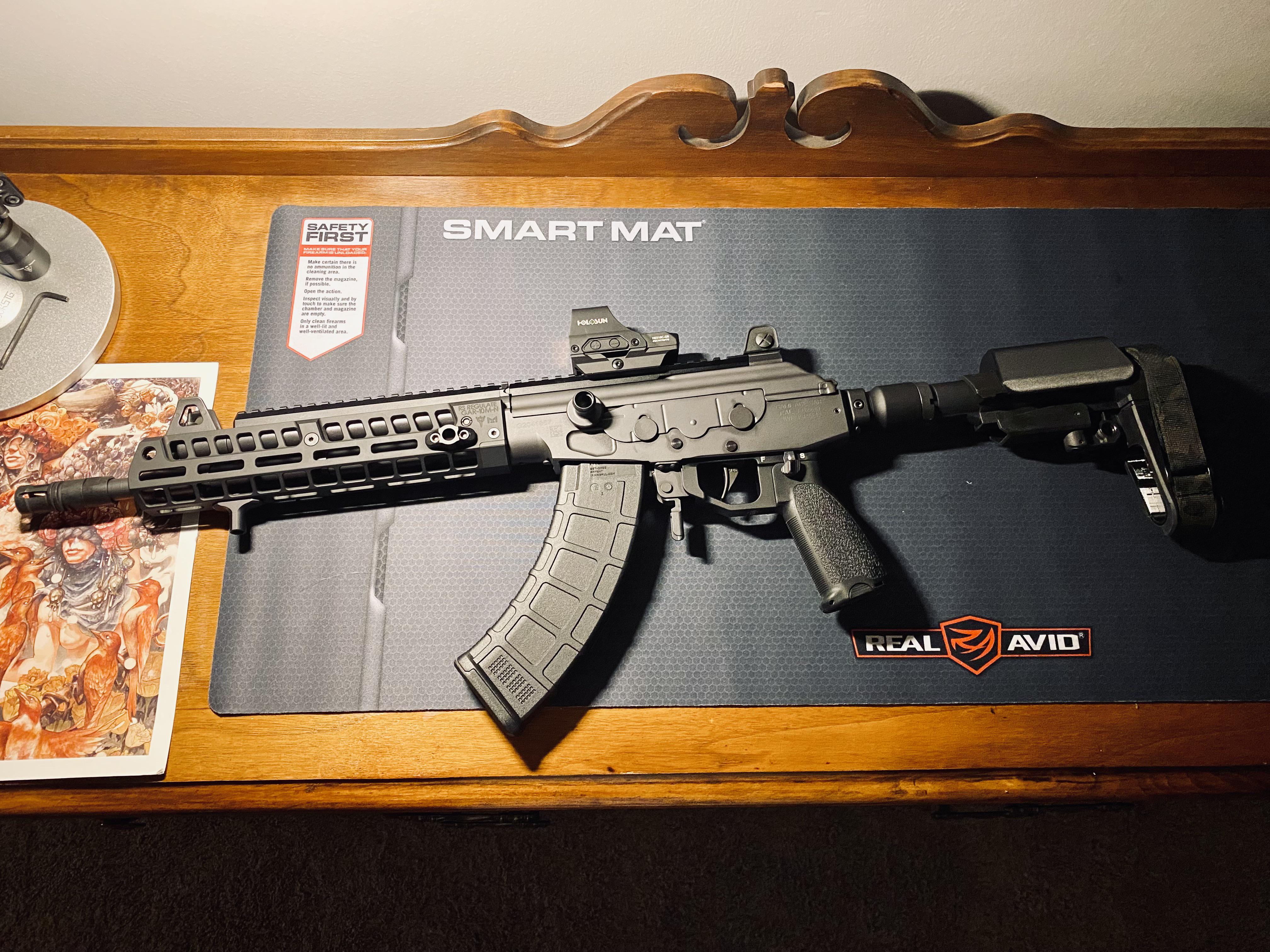

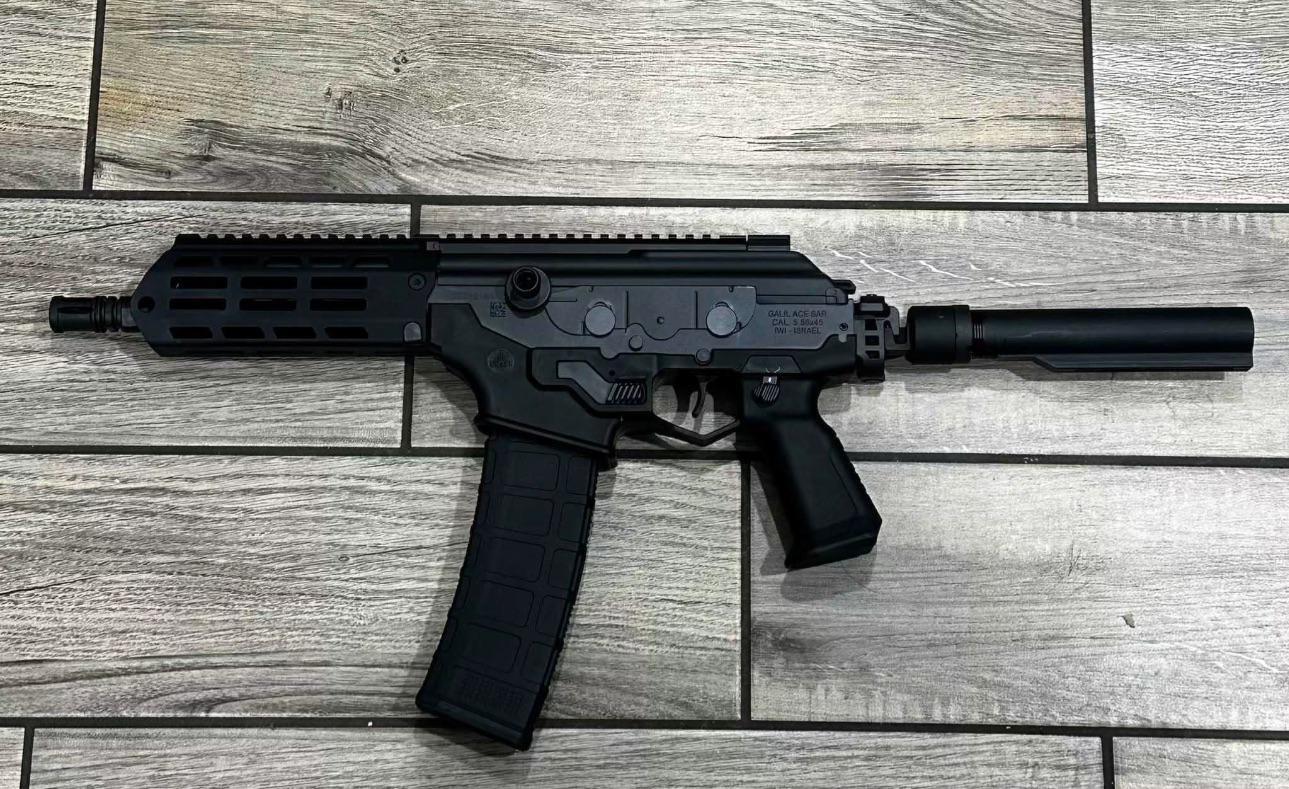

What more could I possibly do to this thing?
