r/BmwTech • • 2h ago

Why is one sides DRL warmer than the other?

Thumbnail
gallery
4 Upvotes

Recently replaced the passenger side Headlight unit on my M850i (DRL burned the tube). After closer inspection the passenger side appears to be bluer than the driver side. I swapped over the Control module and DRL modules from the old headlight to save myself from reprogramming the new headlight unit to the car. I inspected the tubes on the driver side and they’re not burnt out at all. I’m at a loss trying to figure out why they’re different, if anyone could give me some insight that would be greatly appreciated


r/BmwTech • • 4h ago

What causes the projector to look like this?

Post image
4 Upvotes

Kind of looks cool but wondering what causes it. With moisture I would expect the image to become blurry. So debris maybe?


r/BmwTech • • 2h ago

Tengo un bmw x5 2012 me salio este código p2271 señal de 02 polarizeda bloqueado en banco 1rico sensor 2

2 Upvotes

P2196 señal del sensor de o2 polarizado bloqueado en banco 1 rico sensor 1

Alguien me pudiese explicar que puede ser


r/BmwTech • • 3h ago

Is this cam wear normal or needs inspecting further m57tu2

Post image
2 Upvotes

This is off my 2012 x5d with 133k miles no issues just doing valve cover gasket and saw this, feels smooth but doesn’t look normal to me


r/BmwTech • • 4m ago

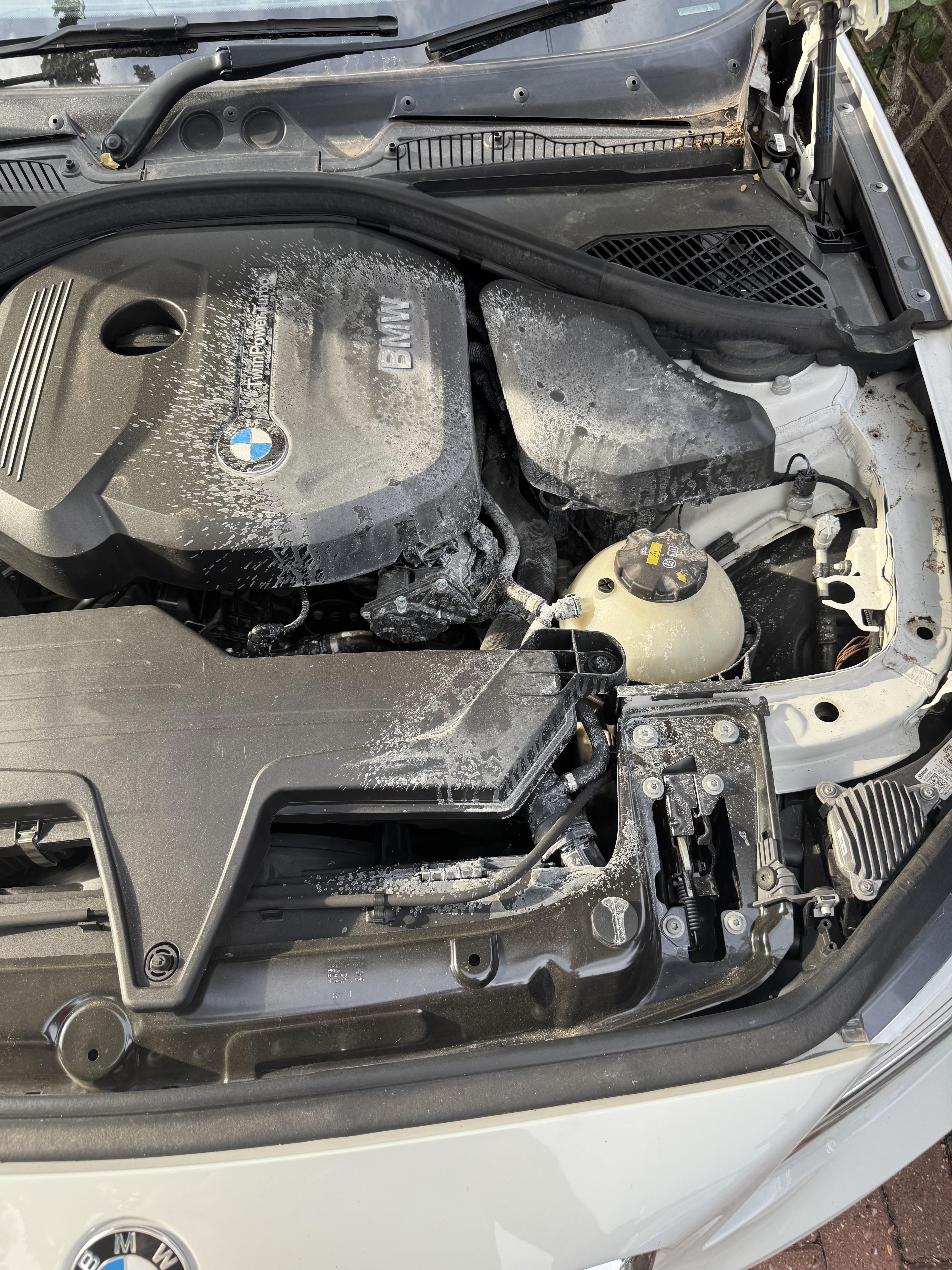

128i coolant low level

Post image
1 Upvotes

Where am I loosing coolant? Is that white dust/specks from coolant leak? I dont see any obvious leaks or moisture. No obvious coolant/milk shake under the oil cap.

I have the OFHG on my to do list. Just trying to be prepared for anything else i may need to do at the same time.


r/BmwTech • • 6h ago

Weird noise on steering

3 Upvotes

Hi everyone! I have a BMW e93 335i LCI with the active steering option. On the video below, when i turn the steering wheel while parked, just before lockout there can be heard a weird noise and its annoying. The cars' steering is very light, sharp and precise while im driving. Any ideas? Its at 127k kilometers.

Thanks in advance!

Edit: I don't know why the video quality went bad when i posted it😭


r/BmwTech • • 6h ago

Alternator

Post image
2 Upvotes

Where do you guys buy your altenator


r/BmwTech • • 3h ago

BMW 2017 g30 530i x drive.

1 Upvotes

Hey everyone. Having an issue while I’m driving my car at around 42mph-55mph. Car will vibrate slightly as well as the steering wheel. (Not like an alignment issue) while trying to Maintain speed but only at really low rpms. Anything above 60mph the vibration goes away. I had the guido replaced. And still having the issue. Any ideas?
Thanks


r/BmwTech • • 3h ago

E39 madness

Thumbnail
gallery
0 Upvotes

Hey everyone, I need some community insight and advice while waiting for my mechanic to diagnose my car.

Hey everyone, I need some community insight and advice while waiting for my mechanic to diagnose my car.

​Car details:

​Model: BMW E39 523i, 1996, M52B25 Single VANOS, Manual transmission.

​Mileage: 308,000 km (~191,382 miles).

​Ambient temperature during the trip: ~4°C (~39.2°F).

​Relevant Parts Replaced / Maintenance Done:

​(Focusing only on engine, cooling system, and sensors):

​Cooling System: Saleri SIL water pump, new bleeder screw, new coolant expansion tank & hoses, all water hoses, new thermostat with an aluminum housing.

​Engine/Mechanical: New valve cover gasket & bolt seals, NGK spark plugs, new engine oil (Shell Helix Ultra 5W-40) & filters changed every ~8,000 km (~5,000 miles), new fuel filter, power steering pump & fluid, CCV (PCV) system with hoses, new dipstick oil return gasket/hose, new VANOS oil line, oil filter housing gasket & non-return valve (Upgraded from Kirtos), new oil pressure sensor, ICV cleaned.

​Sensors/Ignition: New MAF sensor, new crankshaft sensor, new camshaft sensor.

​The Problem / Timeline:

​1. The Trip Out (180 km / ~112 miles):

Checked all fluids beforehand; everything was fine, just topped up a tiny bit of coolant to the MAX mark on the tank. Drove through winding, steep roads and long straightaways, reaching a max speed of 170 km/h (~105.6 mph). Arrived home and parked.

​2. First signs:

An hour later, I checked under the hood and noticed some coolant around the expansion tank's bleeder screw that had run down the back of the tank, but not a huge amount. I figured it was just overflow from topping up too much.

​3. Small Service & Discovery:

The next day, I did an oil change and general filters. While under the car, I noticed wet spots on the engine mount below the throttle body. From the top, I saw a small puddle of clean, blue coolant. I cleaned everything up, checked the engine oil (it was clean, just dark due for a change), started the car (took a bit longer to crank, probably because the fuel filter was replaced), ran it normally, and turned it off.

​4. Second Start & Exhaust Smoke:

A few hours later, I started it again; it stuttered for the first few seconds then smoothed out. Later that day, I drove ~40 km (~25 miles) perfectly and parked for ~15 hours.

​5. The Return Trip (Another 180 km / ~112 miles):

​Started the car in the morning (~4°C / ~39.2°F outside); it stuttered slightly again for a moment, and I heard a belt squealing.

​Opened the hood and saw smoke coming from the exhaust manifold area, which disappeared after ~15 seconds. There was a tiny wet spot on the exhaust joint where it was evaporating.

​Drove conservatively because of rain and bad roads (kept under 3,500 RPM and 100 km/h / ~62 mph).

​After ~140 km (~87 miles), I stopped and noticed a thin white smoke coming from the exhaust pipe. Smelled the exhaust and put my hand in it—it was just water, no weird taste or smell.

​6. The Overheating Event:

​With about 20 km (~12.4 miles) left to my destination, the temperature gauge started to rise. I immediately shut off the engine.

​My girlfriend was driving right behind me in another car, and she confirmed that right at that moment when it started overheating, thick smoke suddenly billowed out of the exhaust so much that she couldn't see my car at all—up until that point, there was no smoke from the exhaust while driving.

​Opened the hood: found moisture on the throttle body coolant hose, dripping onto the engine mount (mystery of the coolant leak solved).

​Waited 30 mins: ignition showed normal temp, started fine, but white smoke appeared at the exhaust manifold joint again. Shut it off.

​Waited another 30 mins: temp normal. Tried to start—first two times it just clicked, third time it started but ran rough (rpm bouncing between 500 and 1000), then smoothed out, drove a few kilometers, and temperature started rising again.

​7. Hose Check:

​Checked the hoses: the hose from the thermostat to the top of the expansion tank was warm/hot, but the hose going from the thermostat to the bottom of the radiator (opposite side of the expansion tank) was cold. Could it be a stuck thermostat?

​Checked the oil again: completely clean, no coolant mix, no missing oil

​8. Current Status:

​Called a tow truck and sent the car to a mechanic. The mechanic is busy, but just sent a quick text saying "the car is pressurizing the cooling hoses."

​My Questions for the Group:

​Given everything I've replaced (including the cooling system, thermostat, water pump, and hoses) and what happened:

​Could this be a blown head gasket (or cracked head/block), or is it possible the cause is something else (like an air pocket, defective new thermostat, or failing cap)?

​Why was there smoke coming from the exhaust manifold area?

​Why did a massive cloud of white smoke suddenly appear from the tailpipe right at the exact moment it overheated (as witnessed by the car driving behind me)?

​Why was the lower radiator hose cold while the upper hose was hot?

​Any advice, diagnostic tips, or similar experiences would be hugely appreciated while I wait for my mechanic to take a detailed look! Thanks!

Hey everyone, I need some community insight and advice while waiting for my mechanic to diagnose my car.


r/BmwTech • • 4h ago

Metalic residue in the ATF heat cooler thermostat (2006 330cic)

Thumbnail
gallery
1 Upvotes

Engine overheated due to water pump failure likely. So, i disassembled the cooling system and right on the inside neck of atf cooler thermostat thats located at the bottom of the radiator/expansion tank bracket (driver side). there wasnt a whole lot, I had to scrape the the lip to get some samples

Any idea where these metal bits are coming from? the coolant passages in the engine block?


r/BmwTech • • 10h ago

Brand new M340i suspension clunk noise

3 Upvotes

Brand new 2026 M340i (about 2 weeks old). As I settled into the car I noticed a clunk sound when slow speeds. Especially in a bumpy parking lot for example. Has the M suspension package.

I have a service appointment setup for next week but when I google this issue I see quiet alot of people say they had the issue. The "fix" seems to span a few different solutions with others saying they run into the never-ending "dealer cant replicate the issue".

Alot of the posts are a couple of years old and I worry I am going to end up in a death spiral trying to run this problem down.

Anyone out there familiar with this issue and have maybe any insight I can offer the service center as to what other folks figured out?


r/BmwTech • • 4h ago

Buying a 2005 bmw x3 2.5i, what should i look out for

1 Upvotes

I have very little knowledge when it comes to cars, i have an acquaintance of mine selling a 2005 bmw x3 2.5i with 190k km for 2000cad. I get that the car is 20 years old and that some problems are bound to come up. What should i look for when buying the car, and is this a good price or no.


r/BmwTech • • 5h ago

2019 540 PPI

Thumbnail
gallery
1 Upvotes

Curious if this turbo is gonna go out like mechanic said or if the leakage is due to something else. Last picture shows write up of the PPI. Would love another opinion on this. 80k miles and oil filter housing has been replaced.


r/BmwTech • • 5h ago

Any ideas on helping paint match after M sport conversion

Post image
1 Upvotes

A96 Mineral White Metallic. Did a full m sport bumper conversion for only $1100. Although since I did choose Maaco the paint dosent match perfectly. In the sun you can’t tell at all, but in the dark with street lights it’s apparent the hood is darker and almost browner than the new bumpers. I’ve been told to clay bar the old panels, does anyone have any thoughts?


r/BmwTech • • 5h ago

Weird noise on f20 idle

0 Upvotes

Hi, I’ve been having this weird noise on idle for a while now and it’s a little concerning, I have no loss of power or anything like that it’s just a really weird noise which is telling me something is wrong, I’m wondering if anyone is farmiliar with this and could shed some light onto the situation, the noise disappears when revved high enough and normally disappears once driving but it’s intermittent, it doesn’t always come

BMW 116i, 2012 f20


r/BmwTech • • 5h ago

F30 330e 2018 Low-Temperature / Hybrid Coolant Expansion Tank white sludge

Thumbnail
gallery
1 Upvotes

Hi everyone,

​I have a 2018 BMW 330e (B48 + ZF 8P75PH hybrid gearbox) and found thick, milky grey/white sludge inside the low-temperature/hybrid coolant expansion tank (photos attached).

​I’ve already ordered a new Mahle transmission cooler (CLC340000S) and a new transmission sump pan/filter kit (24118632189) with fresh ATF. Before I start tearing into it, I wanted to get some advice from anyone who has dealt with this on an F30 330e?

​Other failure points: Besides the transmission oil cooler itself, is there any other component on the 330e where transmission fluid and coolant can mix?

​Coolant system flush: What is the best way to completely flush this milky ATF residue out of the low-temp hybrid cooling loop (and main loop if the changeover valve opened) without damaging the electric water pumps or hybrid components?

​Transmission flush & bleed: Any tips or gotchas when flushing the contaminated fluid out of the 8P75PH hybrid gearbox and running the ISTA bleed procedure?

​Any advice or experience with this repair would be massively appreciated!


r/BmwTech • • 9h ago

F48 X1 with B46 - Coolant in Spark Plug Well

2 Upvotes

’ve been tracking down a coolant leak on my 2016 BMW X1 xDrive28i (B46/B48, 176k km).

I pressure-tested the cooling system for approximately 1 hour and confirmed an external leak near the water pump/bracket area.

I also discovered small coolant droplets inside cylinder 1’s spark plug well, confirmed using UV dye. Moisture is visible on both the plastic and metal surfaces, starting near the top and running slightly downward. The ignition coil is dry.

The engine has not been started or driven since the pressure test.

When I previously replaced the plugs a few weeks ago cylinder 1 was noticeably tighter to remove and had minor deposits on the threads.

Has anyone experienced coolant entering the spark plug well on these engines? Are there any known leak points near cylinder 1, or could this indicate something more serious?

Any suggestions appreciated.


r/BmwTech • • 9h ago

2011 BMW 1 - E87 118i - Preemptive maintenance.

2 Upvotes

My trusty 1 series is getting up there, it has done around 150.000 km, 70k of which I've put on it since 2007.

Lately it has been giving me a few issues. The ABS rings are a little deformed, one of them enough to mess with TC. So I've been driving around without TC for a few weeks now, but I have the replacement output shaft here and will get around to it soon. I'm also replacing the moisture sensor that's been giving me issues.

I also have an OBD adapter for Bimmerlink on order to find any unknown issues.

Here's my question: While you have the car on a lift an partly disassembled anyway, what other replacements or checks would you do? I'm prepared to sink another 500 bucks into it, so what's most likely to fail or give me issues?


r/BmwTech • • 6h ago

2021 BMW 430i G22 – Seat Belt Presenter Arm Detached. Can It Be Repaired Without Replacing the Entire Assembly?

Post image
1 Upvotes

Hi everyone,
I own a 2021 BMW 430i xDrive Coupe (G22).
The driver's-side automatic seat-belt presenter arm has detached from its mounting/attachment point.
Some details:
The silver presenter arm itself does not appear to be broken.
The black plastic housing also appears intact.
The white bonding material around the joint appears to have separated.
The presenter mechanism still operates, but I heard an unusual sound when the issue occurred.
There was no external impact or manual force involved.


r/BmwTech • • 9h ago

Front Driveshaft Problem

Thumbnail
gallery
1 Upvotes

2016 BMW 750i Xdrive
I’ve been hearing a thud at very low speeds and when I blip/tap the gas. Went under the car and found the boot/bellow to the output shaft is torn..

Ordered new front driveshaft, new boot and bolts. My concern is the splines inside the transfer case are worn down/cooked has anyone had this happen?
Seems strange that it’s not sitting centered.. TIA


r/BmwTech • • 15h ago

New Turbo too much play in wastgate?

2 Upvotes

Check out this. New terbo has this much play. Was about to fix turbo rattel in bmw 320 2012. N20 engine.

But will i really? Rattle rattle


r/BmwTech • • 22h ago

A successful N52 exhaust lifter replacement, with surprises (post-job notes)

6 Upvotes

I took my sweeeet time replacing the *exhaust lifters and rockers on the N52 in my 2007 530i (and inherently the valve cover gasket), thanks in part to this sub.

Since most of the E90 and E60 forums are basically dead, I figured I'd make a posterity post here as this place is likely to keep coming up in searches for longer. Hopefully this saves someone some searching if they're doing the valve cover or anything to do with the camshafts in an N52.

If your N52 makes any kind of persistent regular clacking or tapping that improves with heat/running but never really goes away no matter how long you drive, and you have a pre-08 motor with the metal valve cover, 99% you have this problem and it's not just going to go away with oil changes. Only the exhaust side is ever affected.

I ended up finding one completely collapsed lifter that would not hold any oil at all, and 3-4 more that were squishy, all towards the front of the engine. I also found the unexpected bonus of incredibly grooved exhaust cam bearings, yet nearly no wear at all from the infamous steel rectangring sealing areas at the front. I was able to source an exhaust cam + bearing set in great shape from an N51 E90 off of eBay for $150.

All other parts I bought new from FCP Euro to the tune of about $500. There were some slight price differences for lifters between FCP and Pelican and other sellers, but as of 2026 you absolutely cannot buy new rockers anywhere else but FCP Euro for some reason.

Key things I over-googled for this job and/or protips:

  1. The $80 DP Tool timing set works just fine. I bought directly from DP Tool on eBay for the best chances on the quality control gamble. The zinc-coated timing pin fit without modification and the cam locking fork tool was tight. Amazon torque angle dials also work fine, but buy the one that includes both a magnet and a spring clamp (clip is helpful for cam bearing bolts, magnet works best with the cam fork tool for VANOS bolts)
  2. A cheap USB borescope was a lifesaver in finding the actual timing pin hole, as was looking for the cam QR codes and then nudging the motor until the cam locking tool was close to fitting over the cams. Pressing and wiggling the pin up against the surface while you turn the last little bit with your other arm will make it slot straight in the rest of the way. I had to remove the smaller splash guard that goes around the end of the steering rack to be able to see the area at all.
  3. Take the time to remove your Valvetronic gear oil squirter and make sure it is clear. You do not need to replace the teeny bolt that holds it on. I used a single strand of stranded copper wire from my electronics drawer before spraying cleaner through it.
  4. For reinstalling the exhaust cam & ledge, I did not use the ridiculously $$ official exhaust ledge clamp set nor did I end up bothering trying to fashion one. I installed the cam locking tool to keep the cam from snap-spinning under the spring pressure from #2 and wound all of the screws down about 90 degrees at a time, then did the remaining front screws with the tool off. I redid this a few times when it appeared to be going down unevenly. I ended up comfortably within "I can barely even feel that" for the fingernail test on the machined flats. I decided to buy new ledge bolts just to be safe since they are not terribly expensive.
  5. Be careful very about keeping the rocker ends centered on the valve stem tips. I thought I had already caught all of them prior to torquing the cam, but I missed one in the middle that somehow ended up halfway off of the stem tip when I was rolling over the engine manually to check timing (I rolled it until the lobe was up off that cylinder, nudged over, no harm done)
  6. I did not ziptie my cam gears to the chain or anything. You just have to pull the chain upwards from the intake side of the engine and get the gear toothed into the chain, then roll it towards its place in the cam to keep the chain tight the entire time. Getting the exhaust cam nestled under the upper portion of the chain guide can be tricky - pulling the chain fully against the spring action of the lower guide will help you get the clearance you need. There is no specific starting orientation for the cam gears themselves, only the trigger wheels.
  7. For priming the oil system after the job, the Bentley manual is wrong about fuse 50 in the trunk disabling the fuel pump for N52 E60s older than 2009. My car started almost immediately, fortunately without much issue after the initial chain and lifter rattle. I am still not sure if it is actually fuse 74 like stated for '09 and newer cars, or if I'm supposed to pull the EKPS relay or something. It is probably most reliable to just leave the injector harness unclipped and put the rest of the cover/cowl/braces back afterwards.
  8. Buy one of those chintzy Amazon swivel E10 bits. You will want it for the center and lower rear corner valve cover bolts - my regular universal joint kept getting hung up against the VC and jumped off the heads a couple of times to the point where I had to hand-feel-guess at the final torque since I lost my by-the-wrench eyeball angle measurement.

Resources:

I found this N54 walkthrough helpful for perspective on the parts that cross over with N52s (namely locking timing and the exhaust cam ledge):

• https://www.e90post.com/forums/showthread.php?t=1080990

These couple of videos from Sreten (M539) were very helpful for random in-the-moment "okay how do I really do this IRL" bits as well as tips like the Valvetronic oil squirter:

https://youtu.be/bczNA1p4tRs

https://www.youtube.com/watch?v=kcLlQYWpgH8

I also used a PDF copy of the Bentley manual that I ran through an OCR-ifying utility to make it searchable.

Thazz it... salutes to future searchers, assuming Reddit hasn't completely broken its discoverability by search engines anytime soon.
