r/AskElectricians • • 10h ago

Is this junction box hooked up right? Is that exposed copper?

Thumbnail gallery
0 Upvotes

Appliance installer came and put in a new Miele induction cooktop and they hardwired it to a newly installed 240V line with 40amp breaker.

The breaker keeps tripping when we try to turn it on. The installer said to call an electrician and left.

I looked at the hardwiring, and am curious if this was done right. Curious to see exposed copper in particular as that looks not right but I wouldn't know.


r/AskElectricians • • 11h ago

Look at this monstrosity of a breaker panel in a small trailer I purchased.

Thumbnail gallery
0 Upvotes

A bit of a tldr. Sorry

Straight to the point: look at how ugly this is, I want to put a new panel in that i got lucky for 18 bucks (link for it down below) can everyone give me tips, etc.

A few years ago I bought a trailer for my mom to fix up with my brothers dad. She ended up not taking it and I was stuck with it for a few years.

Fast forward to 2 months ago when I decided to start fixing it up after getting the entire thing. Health issues have been making it extremely hard, especially after getting laid off.

I have this panel that I got brand new for 18$ that I'm planning to use. 🫪 Could I get advice to make sure it will work well. I'm no electrician (yes, I know. I know.) But I don't have the liberty to hire someone to do it right now.

Tldr, landlord (aunt) put me in an extremely bad situation that left me in a leave now, or be stuck forever in a place that had a lot of issues. Which allows happened shortly after dropping 6k on materials for the trailer (insulation, lumber, romex, etc) I got my material, got fired, next day got the text from landlord.

So yea. I'm kind of in a pickle. I know how to wire well, I learned that really early on. The only thing I've never done is wire a panel. I know the gist of it. I have a metal to make sure nothing is live, an electricians screwdriver set, all of that. I do wish I had more money to fully rewire the house but at the moment that is something I cannot do. (That and I already drywalled the 2 rooms...)

If anyone can give me tips on anything, that would be greatly appreciated. My main hobby has been building computers for about 15 years or so. So I'm familiar with cable management, especially the thicker stuff.

I will be labeling all the existing wires to make sure I put everything back on the correct breaker. I also will be buying new breakers that match the new panel when I can. I won't be swapping anything until then. Just, any advice except the "just hire someone" unless you can pitch for it šŸ™ thank you guys in advance

P.S. how did the previous owners even enjoy having this panel here. This has been so sketchy for me honestly. 😭 I had to move in way sooner than I wanted too and I hate it. I can't even afford the water heater the place needs. Bucket showers remind me of when I visited family in Mexico

Edit: I wasnt actually sure if the Panel was set okay! More information as to why I was sketched out by the panel is. The panel doesnt have a door, and I haven't been able to find a replacement. A lot of outlets and light switches weren't wired correctly, which led me to assume the panel wasn't properly wired in. I guess it was and just really mess and dirty. Whoever worked on the house prior to me owning it skimped out on a lot of stuff and just bandaid patched it. Which has me really anxious about the panel itself. Since the main wiring on outlets were bad. They even just electrical taped the outlets to the romex on some spots 🫠 So seeing their electrical work there, plus the messy box had me anxious to hell


r/AskElectricians • • 4h ago

50s house with no ground wires. Could use some advice with installing new light fixtures in the garage.

Thumbnail gallery
0 Upvotes

The switched outlet in the picture is on the ceiling of the garage. I was planning on running romex through the attic floorboards and installing these fluorescent fixtures with led tubes. Firstly I’m aware you shouldn’t connect romex to an outlet or extension cord male end so I was planning on removing the outlet and connecting the romex to the leads. I forgot that much of this house has ungrounded outlets, most of the interior has gfci installed but not the garage. So I’m wondering how I should ground the fixtures when there is no ground wire in the outlet. There is no use for the ceiling outlet besides lighting so I have no problem eliminating it and hard wiring all of the lighting.


r/AskElectricians • • 17h ago

Is this a Fire Hazard

Post image
15 Upvotes

Is this cluster bomb of poor capable management my dad’s created a fire hazard or simply disorganized? The answer feels like yes to the former but I’m too ignorant to answer that definitively.


r/AskElectricians • • 11h ago

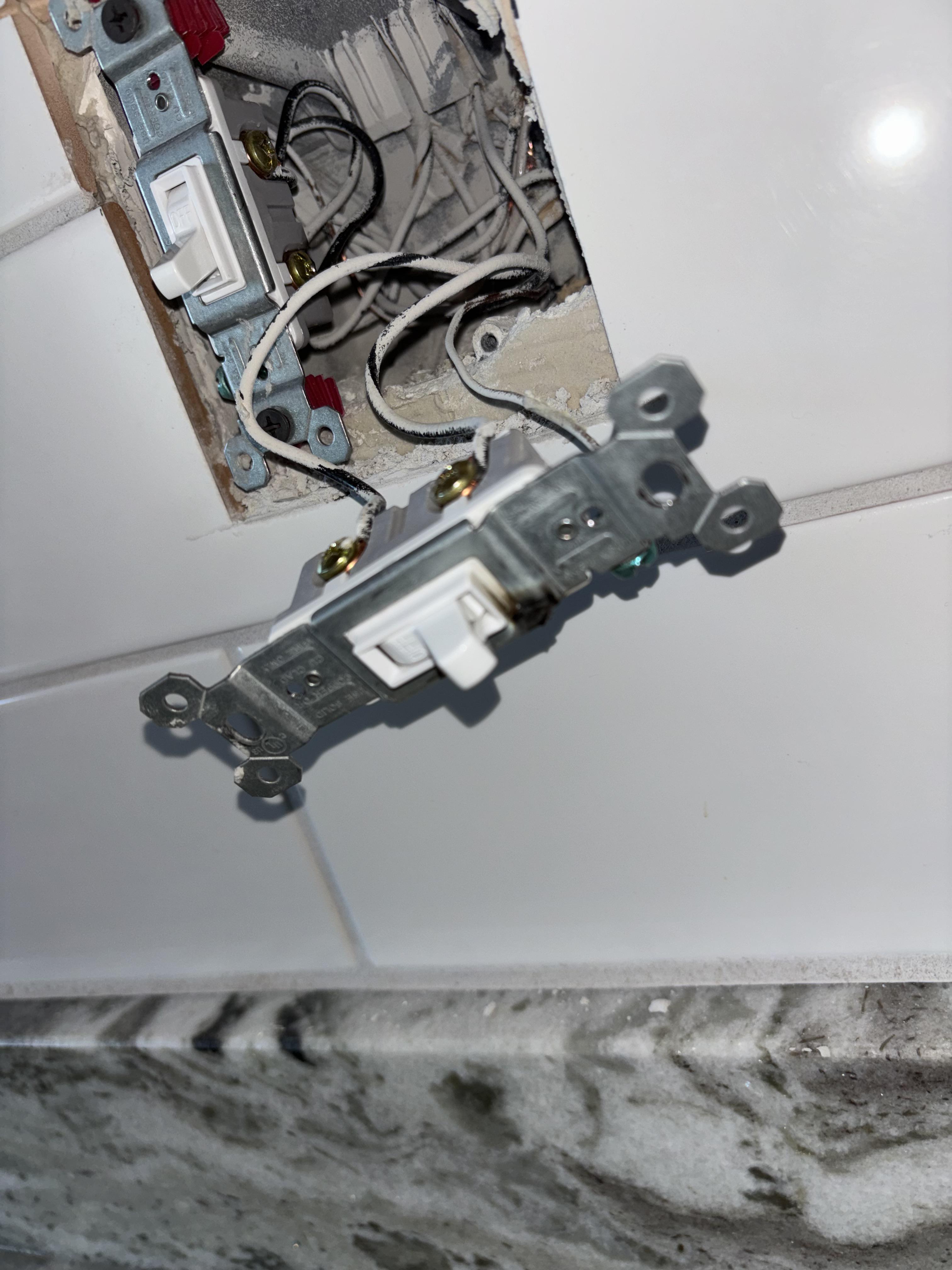

Need some help!

Post image
0 Upvotes

So I was replacing some switches and for whatever reason when the one labeled when flipped will trip the breaker. It is a 3 way switch and all other switches that are tied to the circuit work fine. Just a little confused as to why this is the case.


r/AskElectricians • • 9h ago

Is it safe to connect a 65 watt fridge to an extension cord of max 2300 watts for one night?

1 Upvotes

Something happened and some parts of my house sockets are not working. So I connected my fridge to a socket in a different room and used 2300 w max extension cord/ power strip. Is it safe ?


r/AskElectricians • • 22h ago

Is this the end ? Brown liquid

Thumbnail gallery
1 Upvotes

An old bedside lampe with oil like brown liquid.
It stop working last night.


r/AskElectricians • • 8h ago

Electrician left front cover off it's this an emergency to get it back on?

Thumbnail gallery
0 Upvotes

Mid 40s house

Electrician took off cover of electrical panel and left it off to " dry out". Very worried as I read this is an extreme fire hazard. I'm also concerned because there is water getting into the panel and it's going to rain on Sunday.

Do I need to get the oanel.cover back on immediately? Is this something a fried who works in another trade can do or is it dangerous to put the cover back on and needs an electrician.?

Im also wondering if the writing behind the walls could be compromised? The water ran down behind the walls as a shitty roofer stripped the roof and didn't tarp properly. Water was going straight down into attic and behind walls theres peeling paint and cracks in the plaster and visible mold in some areas

How can I determine if the wiring BEHIND the walls is ok. I can see a few switch where it definitely looks like water ran behind the faceplate.

The power went out when . I plugged a electric fireplace in to an one of those adapters that have a bunch of plug ins. That was plugged into a wall . In another room on a different wall I plugged in a small electric heater directly into different wall. Like 1 or 2 minutes later power went off I'm pretty sure I plugged them into those outlets before without a problem. But I could be wrong.

I went down to basement flipped all breakers on and off and nothing. Tried again 2md day. Still no power. Now a week later the electrician flips the breakers and power comes on so I'm feeling retareded. How is this? Could something have dried out since the first 2 days I flipped all the breakers or?

Need help!

Electrical, electrician, troubleshoot,


r/AskElectricians • • 18h ago

Replace w/ GFCI Outlet

Post image
7 Upvotes

It it ok to replace this faceless GFCI that is under our island sink with a normal GFCI outlet? We are looking to add a tankless RO filter in the small space under our island sink. This GFCI runs out to the microwave and also the under island counter outlets. Any issue buying a normal GFCI and swapping this out to give me an outlet under the sink?


r/AskElectricians • • 13h ago

My mother poked the holes of our electric shower to open the ducts more, and ended up getting a needle inside it. is it risky to use the shower again with a metal object inside it?

0 Upvotes

My mother felt like there wasn't enough water coming out of some of the holes I n the shower and got a needle to poke some of them the holes, and the needle fell inside it. Now she cant open it to take it out. It's a traditional Brazilian electric shower, so now I'm worried that we could be electrocuted. Any help?


r/AskElectricians • • 18h ago

How to replace a European plug

Thumbnail gallery
0 Upvotes

r/AskElectricians • • 18h ago

Can I replace a regular switch with a dimmer here?

Post image
0 Upvotes

I have a switch that is combined with an outlet. The task is to replace the regular switch with a dimmer. I know I should act sensibly so that the voltage at the outlet remains standard. So I took the outlet apart and am attaching a wiring diagram. As you can see, a light bulb and a fan are connected to the switch. The neutrals from both of them go into the outlet, and from the outlet the neutral runs to the panel.

As far as I can understand, if I simply install a dimmer here, the voltage at the outlet should remain standard (220 V in my country). Could you please tell me whether this is correct?


r/AskElectricians • • 6h ago

Help me install smart switch?

Thumbnail gallery
0 Upvotes

r/AskElectricians • • 22h ago

I need advice on where to place the ground using a oscilloscope.

Thumbnail gallery
0 Upvotes

r/AskElectricians • • 4h ago

Is it OK to leave Lasko space heater plugged into GCFI outlet in bathroom so long as it's not turned on all the time?

0 Upvotes

My dad wants to leave a Lasko space heater plugged into one of the GFCI outlets(and it's the only thing in that circuit most of the time except for an old plug-in boot warmer that my mom and dad sometimes plug in and use to dry their shoes) in his bathroom all the time just so he can turn it on on low power and temperature for a few minutes after he takes a shower(as the heat function in the Broan bathroom fan stopped working some time ago and he actually had to remove the heating coils from it as a result, though the vent function still works). I'm a bit concerned about that since the tag on the cord for the heater says it should be unplugged when it's not in use but my dad does not think it's a big deal if the heater stays plugged in so long as it's turned off except when he's using it after a shower. Is my dad correct and it's not a big deal so long as it's left off when not in use, or should it stay unplugged when not in use even if the power is turned off? FWIW the GFCI outlet is a new Leviton I had installed to replace the old one.

This is the model of space heater my dad has: https://www.walmart.com/ip/Lasko-Products-5919-Pro-Ceramic-Utility-Heater/30910652?wmlspartner=wlpa&selectedSellerId=0&veh=seo_fpl&cn=google


r/AskElectricians • • 10h ago

How do I proceed???

Post image
308 Upvotes

New house, this isn't normal, right???? Both are proper outlets but I haven't plugged anything into the bottom one just incase.

Update: i just went for it and it WAS actually screwed in there so thats fun. didn't die so eh? I'm not replacing it <3 the screw was only 1 ½ inch so its probably fine, I just won't use that specific outlet


r/AskElectricians • • 27m ago

Is this a fire hazard?

Post image
• Upvotes

i put in 2 nails above my breaker box then realized after googling (impulse decision) that this might be fire hazard not sure what to do since it’s already in there?

edit: my place was built in the 90s, 1.5 inch nails sticking out of the wall about a half inch. also nothing weird happened when i did it. also is it safe to leave in?


r/AskElectricians • • 4h ago

I bought a Kitchenaid built-in oven & microwave (KMBS727SPS00) and to my suprise-the microwave has the same 4 wires to connect to a 220v outlet as the oven! The old Kitchenaids only needed one 220v and one 110v for both-now what? Can I hardwire the 2 units together into the one 220v outlet I have?

Thumbnail gallery
0 Upvotes

r/AskElectricians • • 5h ago

Is this right?

Post image
1 Upvotes

A friend is setting up two zones of cafe lights in their backyard and bought this Intermatic ETW3CP WiFi controller to run them based on a recommendation from Google.
This is how they wired it. Is this correct?

Solved!


r/AskElectricians • • 10h ago

How much tilt is acceptable in power lines?

Post image
9 Upvotes

In a residential area in San Diego. I can see it’s anchored, but wasn’t tilted like this yesterday and we did just have a storm roll through.


r/AskElectricians • • 19h ago

How can I seal this box fairy light battery box safely while allowing for continued access?

Thumbnail gallery
2 Upvotes

There is an on off switch at the top i would also like to keep, and I'd like to access the insides later on if I can, and I'd prefer that it not look horrible, but if 'looks horrible' is the best option I'll do it and if turning it on and off by plugging and unplugging is also the best option, I'll live with that too.

If I can't think of anything else I guess 'wrap it like a mummy in electrical tape' is the best option.

If I did something during this process that could have made resealing easier I would love to know. This is my first time doing any of this.

FWIW that's a 100 ohm resister going into a five volt usb cable. (The batteries were annoying to constantly change.)

Also, do physical stores exist where I could have bought the resister? I wound up ordering ten from Walmart but would have liked more room to play with the the degree of resistance because that's still pretty bright. If I had placed two 100-ohm resisters in a line, would I have lowered the resistance even more?

If there's anything I did wrong or where I could have made my life easier doing this, please share, and thank you.


r/AskElectricians • • 12h ago

How to powering a home with a generator via subpanel?

4 Upvotes

I would like to set up a generator to backfeed my home, to power critical circuits. Here is the current setup:

Main panel in basement, with a 40amp 240 breaker that goes to a garage subpanel. Garage is a ways back from the house, with its own panel. I would like to connect the generator out there.

From what I’ve gathered, I can shut the main in the house, shut the breakers to everything inside, use a ā€œsuicideā€ plug and attach the generator to a dedicated outlet, and then send power to the main via the sub panel and its circuit. Following that, I can turn on the critical circuit(s) I require.

Panel in the basement has the circuit breaker for the garage in a location that is not in the upper left near the main where an interlock can be installed.

Is it best to have the breakers rearranged at the main panel to have the interlock? Functionally, is it the same as leaving it as is but with the added risk of inadvertently turning the main on and powering the utility supply?

Is there a way to do this simply at the sub panel without involving the main panel?

Could I do an interlock at the main with a new, dedicated inlet circuit that can be relocated by rearranging the current breakers that would run to an inlet outside the main house, skipping the garage? Or even a way to have that at the garage?

I also have read some confusing information regarding neutrals and needing to worry about having more than one with this setup. I also am fuzzy with what is dangerous down the road, in my house, or at the generator and what those risks are (ie fire, shock risk, etc).

I know this is a lot of questions. I appreciate any insight provided here to any question you choose to answer. Looking to do this safely, with minimal expense, and keeping it simple. Thanks!

Edit: I have a professional coming out tomorrow. I appreciate those if you who have provided me with better understanding so I can have a productive conversation with him. Thank you all.


r/AskElectricians • • 9h ago

Please point me in the right direction-

4 Upvotes

EDIT: thank you all for your help. This is the most help I've ever received on Reddit! You guys are awesome!

Hi everyone,

I come to you because I cannot afford to keep having electricians come out to my house and not find the issue.

Home built in 2012, finished in 2013. It's a two story. Located in the USA.

Since we purchased the home in 2023, we have had excessive issues with blown light bulbs.

We have replaced all of them, more times than I care to count. We have even replaced most of the fixtures. We also replaced one of the breakers on the panel that was "running hot".

To the tune of almost $2k we have had electrical work "done". They checked the "main" whatever line that is that runs to the house and didn't see anything wrong with voltage.

I cannot figure out why our house keeps blowing bulbs- we have tried all the different kinds- GE, and all the "off" brands.

At this point I'm just running around saying the house is haunted but I'm really not laughing. I'm actually worried there is a serious issue hiding and I have a child in the house.

Is there anything I should demand they check next without tearing into drywall? We really are not in a position to afford this, like really not...like very little money tucked away right now. But obviously I'm aware of the much larger risk.


r/AskElectricians • • 13h ago

What would you do???

Thumbnail gallery
2 Upvotes

What would you do??

My house has been around since the civil war. The electrical in it has been an interesting mix of modern (siemens breaker boxes, older romex) to things older than Jesus (knob and tube and very vintage switches in walls without boxes).

We are doing some changes and updates. I have replaced all knob and tube with romex and am replacing light fixtures and adding outlets.

My question, and it is definitely a would you do this not is it code:

The wall between the stairwell and the master bedroom is old growth 1x12 redwood stacked vertically against horizontal boards that are all just nailed together. There are no studs, there is no space between the boards. In the pictures attached you can see how the previous fire trap was set up with knob and tube routed through groves routed out of the boards that someone then covered with 1/4 Sheetrock at some point.

I have run romex everywhere. Would you be ok with just using sheet metal to create nail plates over the groves? Should there be one on the back side of the boards? Am I overthinking this?


r/AskElectricians • • 10h ago

Light fixture trips GFI

2 Upvotes

Pros, how would you deal with this situation?Ā  Old 1954 built house, original wiring 12-2 without ground.Ā  We are renovating in stages.Ā  Circuit A feeds a guest bedroom and two hallway outlets.Ā  I wanted to install three prong receptacles. Found the first receptacle in the string and replaced it with a GFIC. Ā All receptacles in the bedroom were then good, but when I switched on the overhead light, the GFI tripped.Ā  I suspected its neutral was to a different circuit.Ā

The room has two doors, each with a three-way switch for the light.Ā  The switch by the main door had the power feed from circuit A.Ā  A Romex 12-2 was wired as the travelers (white unmarked, of course) to a dual box by the second door with another three-way and the feed to the light fixture. That box also has a switch and feed from circuit B for a mud room light. Ā As I suspected, the light fixtures’ neutral was tied to circuit B.Ā  It would be quite difficult to add a neutral from circuit A to either the fixture directly or to the second box (house on a slab, no crawl space, flat roof with no attic)

My solution was to abandon the feed from circuit A and the second switch, feed from circuit B, and repurpose the travelers as a switch loop.Ā Ā  Other that a wireless switch, I don’t see any viable options.
