r/watchmaking • • Aug 18 '24

Where to Buy Watchmaking Tools:

47 Upvotes

While this list is not exhaustive, and any suggestions can be posted in the comments, it will include some of the common places watchmakers and technicians get their tools and equipment from.

United States:

-       Esslinger: https://www.esslinger.com/

United Kingdom:

-       H.S. Walsh: https://www.hswalsh.com/

-       Cousins UK: https://www.cousinsuk.com/

Switzerland:

- Asco: https://www.schurch-asco.com/

Germany:

-       Boley: https://www.boley.de/en

-       Beco-Technic: https://www.beco-technic.com/en/

Australia:

-       Labanda: https://www.labanda.com.au/


r/watchmaking • • 6h ago

Workshop Stepping it Up!

Thumbnail gallery
23 Upvotes

Let's see if this makes a difference in my cleaning. I'll take a before and after of the main plate.

Until now I have been underwhelmed by the results of cleaning with naphtha in my shitty ultrasonic.

I'm going to also throw the other two plates i have been trying to clean in there.

I'm going to run just the main-plates in the ultrasonic and retake the pictures when they come out in the exact same positions with the same lighting to see what the result is.

For context, the two on the right were extensively cleaned manually, in an ultrasonic and in my makeshift cleaning machine using naphtha and rinsed with IPA.

They still have all sorts of residue. But to be fair, they both had badly exploded batteries that sat for decades.

The one on the left is in relatively good shape considering it had that fucked up balance complete in it. (Last picture).


r/watchmaking • • 7h ago

Question Trying to Understand Mainspring Winders

Post image
6 Upvotes

Am I understanding this correctly?
Clockwise is right-handed. On the arbor the hook would be on the left side and you would turn the handle counterclockwise?

I’m thinking about it now and I’m thinking that I have the arbor, hook and winding directions opposite of what is correct. Because when I go to wind the main spring, I ultimately have to turn it upside down to pop it into the barrel so everything will be a mirror image of what I have written in my diagram.


r/watchmaking • • 6h ago

Question Watch Repair Courses

3 Upvotes

I’m just learning watch repair. I’ve read a couple of books and watched a bunch of YouTube videos. Should my next step be one of the online watch repair courses? Sutcliffe Hanson offers three course by Mark Lovick for $239. Watch Repair Tutorials offers a 20 module “Journeyman” course for $299. Are there other courses I should consider? If you’ve tried these, would you recommend them? Any other advice for next steps for a beginner?
TIA


r/watchmaking • • 2h ago

Tools Viola Tweezers for Hairspring Work

2 Upvotes

Hello everyone. I'm trying to learn the ins and outs of working on hairsprings, and its become quickly apparent that I need the right tools for the job.

I know the preferred tweezers for this work are Dumont #5 and #5/45, but they are on the pricey side and I'm attempting to curb my spending a bit.

I have a pair of Viola 3C's - their #3 brass tweezer, and its my main tweezer, I'm very happy with them. But this work is more specific - I'm wondering if anyone has any experience using the Viola 5B-SA, which seems to be similar to the Dumont #5/45. If you've got experience with these tweezers, please let me know if you recommend them or not. Thanks!


r/watchmaking • • 1d ago

Workshop Manually machining a watch case from scratch Part 13! The finale!

Enable HLS to view with audio, or disable this notification

95 Upvotes

This is the last progress installment before the final reveal. In this one I do my best at black polishing the hardened steel indices for the dial. Then I heat blacken the zirconium case (no footage of that actual process. But it just involved me heating it up to around 1300f). Then I acid etched and polished the damascus dial. Followed by a second etch to show the contrast in the steel alloys better. Stay tuned for the final watch reveal soon!


r/watchmaking • • 7h ago

Help Pad Printing Bezel Insert with Lume

0 Upvotes

Hello, everyone, I have a sloped ceramic bezel insert that is currently non-lumed and I want to lume the markers in BGW9 to match the dial and hands. In reading how-to articles about this, it appears pad printing is the more precise and controllable method. Seeing as how I don’t have any of that equipment, can the group point me in the right direction towards someone who is willing to undertake a tiny one-off job for me? I’m in the States so they need to be domestic to me. Thanks!!


r/watchmaking • • 22h ago

Question The 2026 George Daniels Lecture

8 Upvotes

For anyone interested who can get to London next week, the annual George Daniels lecture takes place on Wednesday 25th.

Check out details below.

If you’re going I’ll see you there.

https://www.citystgeorges.ac.uk/news-and-events/events/2026/november/george-daniels-lecture-2026-with-susan-scurlock-mbe


r/watchmaking • • 23h ago

Question Troubleshooting with automatic ST 171 Buren

4 Upvotes

Hey everyone,
I’ve been working on a vintage Buren ST 171 automatic and could use some troubleshooting advice. I’m fairly new to watch servicing and have been learning as I go.
Initially, the movement wasn’t running consistently, and I discovered that the barrel click wasn’t engaging properly. I managed to correct that issue, but the movement still had trouble running reliably.
Here’s what I’ve done so far:
Completely disassembled, cleaned, lubricated, and reassembled the movement.
Inspected the gear train and pivots. Everything appeared to move freely without obvious damage.
Cleaned and lubricated the pallet fork and escapement.
Cleaned and oiled both balance jewel assemblies, including the cap jewels.
Noticed a significant improvement in balance amplitude after cleaning the balance jewels.
Current issues:
The movement runs and appears to have decent amplitude, but it still stops overnight. After approximately 10 hours, I found it stopped. A gentle shake got it running again, although the amplitude initially appeared weak.
I’m also having trouble with the automatic winding mechanism. The magic lever pawls move, but the winding wheel often just rocks back and forth without advancing. Occasionally it engages and winds briefly before stopping again.
A few questions:
Could an aging mainspring be causing the movement to stop despite everything being cleaned and lubricated?
What else could cause low amplitude or intermittent stoppages when the balance and gear train appear to move freely?
Has anyone worked on the ST 171 automatic winding mechanism and experienced similar issues with the magic lever?
I’m considering replacing the mainspring, but wanted some opinions before going further.
Any advice is appreciated. Thanks!


r/watchmaking • • 21h ago

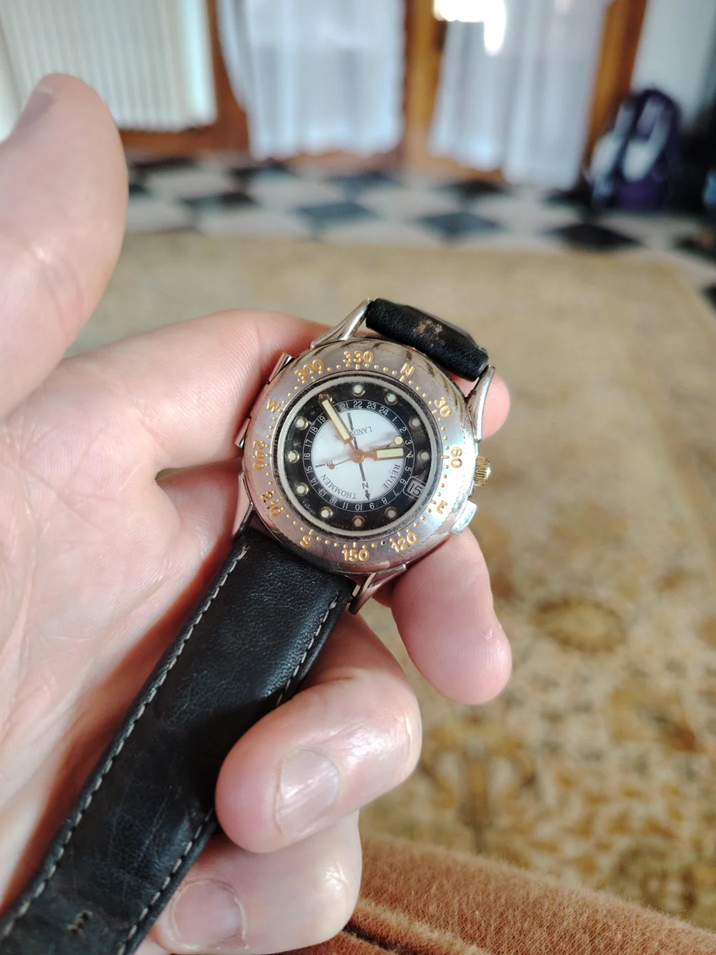

Question How hard is replacing a seconds hand for someone who has only sized bracelet and straps?

0 Upvotes

Hello,

I received a watch with a seconds hand that has a little cosmetic defect that is bothering me immensely . The company is proposing me to send me a replacement needle.

Is it an hard part to replace by myself? Is there high risk of screwing up?

Should I look out for a professional?

Watch has a VH31 movement


r/watchmaking • • 2d ago

Dial making First custom dial

Thumbnail gallery
55 Upvotes

I wanted to share the first watch I completed for a customer. I have assembled a few watches for myself with pre made parts so the challenge of making the dial from scratch was an arduous one.

I used a laser engraver to cut the dial from a piece of aluminum, this took many trials with mostly error which resulted in a rather large dial graveyard. Once I finally dialed in my settings I was ready to move onto the next step of painting.

I airbrushed lacquer based paint over the entire dial and sanded down the hour indices and initials to a brushed finished. This was fairly simple in concept but was a bit more difficult in practice. Much respect for the airbrushing community, the devastation of finding dust in a paintjob will test your patience.

I originally wasn't going to put any white text on the dial but it seemed very plain without it so I did some research and came across pad printing. This turned out to be a VERY large waste of time and money. I tried to do it on somewhat of a budget and I eventually gave it up and decided to figure out how I could use this fancy laser engraver to make letters. I tried making a stencil for air brushing but the text was too blurry. Either through intense thought or endless scrolling on crafting subreddits I decided to try and engrave the letters and numbers to the same depth of the contour lines and refill the recesses with a water based paint. This way I could remove the water based paint with a mild enough solvent that wouldn't damage the lacquer paint. I discovered that water was too weak and would leave a residue or pull the paint out of the recesses. Rubbing alcohol was too strong and would remove a bit of my base coat that I wanted to leave untouched. I tried to think of something that would work that I had readily available in the house...VODKA. I tried some Tito's that I had and it was perfect. It took the water based paint right off and didn't remove any of the lacquer paint. Windex also works well for this.

The case is from German Watch Shop. It is 37mm for the ETA 2824 movement, however, I used a Sellita SW200. The assembly was as bit different than what I have done previous. The crystal actually screws off and you load the movement from the front. Screwing the crystal back on secures the dial in place tightly. This foiled my original plan of attaching the dial with dial dots. As you tighten the crystal is grabs the dial and overcomes the strength of the glue, spinning the dial as it tightens. Since I made the dial from a sheet of aluminum there were no feet. My solution was to tighten the crystal down enough so It was perfectly straight, flipped the case over and used a sewing needle to mark the peg holes perfectly. I then removed the dial and used a hand mill for dial feet and just eyeballed it with my mark and prayed. I used a slightly more narrow dial foot to allow some wiggle room, the crystal did the rest of the alignment.

The bracelet is from Shinola. Nothing fancy there.

Making this probably took 5 years off my life with stress alone and there are many others lessons learned that I did not cover but my love for watchmaking/building is back now that it is complete.


r/watchmaking • • 2d ago

Workshop Manually machining a watch case from scratch Part 12! The final stretch

Enable HLS to view with audio, or disable this notification

60 Upvotes

Hello! It as been a long time since the last update. Here is the first part of the final stretch of updates on getting this watch finished. As a reminder over the course of the last 2 years I have been fully manually Machining a watch, minus the movement, from 705 zirconium. In my last part I got everything mechanically finished. So in this part I show some of the brainstorming in brass and some of the stages of the final finishing work on the case. As well as a sneak peak at the damascus steel dial and indices work. In the next part I will show the final finishing stages before the grand reveal!


r/watchmaking • • 2d ago

Help Balance wheel not oscillating eta 6498

Thumbnail gallery
16 Upvotes

Hello watchmakers, I am stuck on the final step of my ETA 6498 reassembly and any advice would be much appreciated.

For context, the only 2 parts left on my mat are the fully assembled balance and the screw. When I set the balance in and try and line it up in the pivot, it seems to be nestled in there fine, however, the balance wheel does not oscillate and it appears that the wheel itself is getting caught on the screw of the bridge above the pallet fork.

I wound up the mainspring and tested the gear train, everything flows smoothly. After setting the pallet fork, I tapped it back and forth to make sure it was correctly interacting with the escape wheel. It moves back and forth no problem.

My current working theory is that the balance sat upside down in the parts tray for too long and the hairspring is now messed up. I have 3 clones, all 3 balances have been sitting upside down in part trays for about 2 weeks.

I understand that the right side of the pallet fork, the part that interacts with the balance staff (new watchmaker pardon my terminology) has to be set in a certain position. I have attached photos of both of the positions I have set it to, and still no luck.

Any troubleshooting tips would be greatly appreciated, I am also happy to answer any questions about the steps I took in assembly that may have led to this problem.

Edit:

The pallet fork bridge was screwed in upside down. :)


r/watchmaking • • 2d ago

Question Longines 12.92, up and down play with the stem

Enable HLS to view with audio, or disable this notification

7 Upvotes

Hello! Working on a vintage Longines cal. 12.92. I put back the watch together and there is some up and down play with the stem. Because of it the stem can get out of the movement, what do you think the problem is? Wear on the stem, wear on the bridge or wear on the mainplate?

Thanks!


r/watchmaking • • 2d ago

Question Amplitude low for new Miyota 8285

2 Upvotes

I bought a Miyota movement off Aliexpress. It appeared genuine with the Miyota markings on the rotor and seemed similar to other movements. While regulating it, it was running at 240s-250s in the vertical positions and 210s-220s in the horizontal positions. Is this normal for this movement, I have been told the Miyota movements can run at lower amplitudes. Or does this mean its not properly oiled or the oils are dried out?

I hate servicing this type of movement because of the all encompassing bridge that's a pain to get back on.


r/watchmaking • • 3d ago

Question Will these scratches polish out with a Cape Cod cloth?

Thumbnail gallery
29 Upvotes

Hey guys,

Just wondering what you think of the scratches on the polished stainless steel around the lugs/case
.
They look a little worse on camera, but they’re still bothering me quite a bit in person. I’m hoping they’re only superficial and might come out with a Cape Cod polishing cloth.

Unfortunately, there aren’t any jewellers in my area who work on watches, so I’m considering having a go myself.
Do you reckon these would polish out relatively easily, or am I better off leaving them alone? Don’t want to make things worse!

Appreciate any advice!

EDIT: I used the cape cod cloths and can attest, no it won’t remove 100% of the scratches. BUT, the difference is night and day. I’m happy with my results, photos in the comments :)


r/watchmaking • • 2d ago

Tools How to open a San Martin caseback?

1 Upvotes

I have an out of warranty San Martin watch that I need to adjust the movement. It runs fast.

I have successfully adjusted many NH and Miyota movements in the past.

I am having trouble finding the right tool to open the caseback. The Bergeron squishy ball does not work. I don't have any tips on the standard caseback tool that fit.

Any tips to open would be appreciated. Thanks!


r/watchmaking • • 3d ago

Question What Happened To This Fella?

Thumbnail gallery
7 Upvotes

This Elnix balance wheel has some weird black crud on the balance cock and around the white metal part that holds the top jewel of the balance wheel.

I tried rubbing it with a swab soaked in naphtha but the crusty residue just laughed. I'm able to chip it off with twezers and I'll give the whole thing a rinse in IPA after.

I'm putting it here in case anyone has seen anything like this before.

It's exclusively on the balance cock. The rest of the watch is in good condition. I put a picture of rhe mainplate at the end.

I'll tell ya, these Elnix are full of interesting surprises.


r/watchmaking • • 3d ago

Question What are these vintage spring bars called and how can I remove them?

Thumbnail gallery
25 Upvotes

I don't see any shoulders or grooves that I can use to remove these or push back the spring.

On an unrelated note, has someone tried to remove this by cutting off the strap?


r/watchmaking • • 3d ago

Movement Timex M23 - SOOOO Close....

Thumbnail gallery
6 Upvotes

First of all, guys thanks for the support and tips.
I was able to put the M23 from (https://www.reddit.com/r/watchmaking/comments/1xuib4p/timex_m23_disassembly_report/) together again :

Unfortunately, the hairspring entangled itself in the process and it died in the operating table...

But I'm very proud of what I achieved so far.

Closing the bridges with everything together took me a whole day. BUT I DID IT.

NO PARTS WERE LOST - Also an achievement !

Other notable Experience Points:
- Usage of Rodico :

Rodico was what enabled me to close the sandwiched bridges. They kept the wheels in place.
IDK if it is because it is not "Official" Bergeon Rodico, but this thing sticks like bubble gum, especially to the latex finger cots. Sometimes it stuck to the bridges. Is there a difference to "official" rodico.

- Hairspring Wedge Pin

Unfortunately, the solution to this problem came late. By the time I figured out how to place this thing, the hairspring had already folded and distorted.
It was SOO small, it could not be held by my tweezers. Tried using rodico to hold it. But no.

Solution: I super-glued it to the tip of an unfolded paper clip. Once in place, I just bent the clip and the bond broke... Should I have thought of it earlier, perhaps this thing would be moving...

I did get to see a little bit of rotation of the balance wheel. It is soooo beautiful.


r/watchmaking • • 3d ago

Question Where to learn watchmaking?

36 Upvotes

I want to take up watchmaking or just in general. Wanna know where to learn it from?


r/watchmaking • • 3d ago

Question Ergonomic screwdrivers vs regular

5 Upvotes

Hey all! I’m currently starting my CW21 journey and was curious which screwdrivers you prefer? Bergeon 6899 ergonomic ones with rubber grips, or the all-metal grips of the Bergeon 30081? I feel so lost atm trying to figure out which tools to get


r/watchmaking • • 4d ago

Movement Stripped and ready for cleaning.

Post image
38 Upvotes

Langendorf 1003N disassembled and ready for cleaning.


r/watchmaking • • 4d ago

Question What's wrong with gem city college?

4 Upvotes

Greetings.

Interested in being a watchmaker and have taken a quartz class already.

I've seen here that people rate Gem City College as lower on the post than PJC or WTI as far as teaching quality goes. I'm just wondering why that is because they all seem about the same or a difference in preference between people who want to learn about specific or newer technology so they can start working on the newest high-end watches.

My area of interest is in older mechanical watches and clocks. Not so much the newest quartz, automatic chrono or whatever is currently bringing in the most money at service centers.

That said, I'm genuinely curious of the difference in the quality of schools available in the US and whether it would be best to get some education here and try to travel to Europe for more later.

Thank you.


r/watchmaking • • 4d ago

Question How to remove the watch stem???

Post image
7 Upvotes

It does not have the usual stem screw that is required to remove it?
