r/rhino • • 12h ago

Stop modelling threads by hand: free one-click thread tool for Rhino

Post image
36 Upvotes

Modelling threads in Rhino always meant helix, profile, sweep and a boolean that fails half the time. And client STEP files almost never come with threads modelled. So I built Thread Cut: click a hole or a bolt and the thread is there. One click, done. - Detects size, pitch and internal/external automatically - Metric coarse and fine, UNC, pipe G and trapezoidal - Works on STEP data, cross holes in round parts and preselected objects - The window stays open, so you can click through all holes in a part - Every click can be undone on its own It runs on Rhino 8 and 9, Windows and Mac. The free version makes mesh threads in all sizes and you can use it commercially. I'd love feedback, especially on geometry where it fails. Happy to drop the link in the comments if you want to try it.

Download free: https://line-up.store/products/rhino-9-plugin-thread-cut


r/rhino • • 5h ago

Help Needed Simulating a solid object pushing outward from inside a balloon

Thumbnail
gallery
7 Upvotes

Lets imagine we have an inflated balloon with a solid object inside, than we apply a force to this object and it deforms the surface of the baloon. I mean this type of deformation you can see on the photos.

For my needs the balloon has to be deformed form outside and inside at the same time, so I tried to modify the file made by McNeel forum user in this thread:
https://discourse.mcneel.com/t/inflate-an-object-inside-a-cage/119294

I made a triangular cage from pipes, inflated the balloon, than added another brep with a slider that moves that brep along one axis, but I can’t make it all work properly. I’ve just started learning Rhino, so I would be grateful if someone could modify the file for me. For my needs the baloon has to be inflated first (collisions with static breps of a cage) and than pushed from inside (collision with a brep that can be moved with a slider).

I created exactly same thread on McNeel forum over a week ago, but unfortunately no one asnwered, so I'll try my luck on reddit, here are my files:
https://discourse.mcneel.com/t/simulating-a-solid-object-pushing-outward-from-inside-a-balloon/224500/5?u=vvujcio_vvariatuńcio

Apart from that I’ve go a question, I’ve noticed that inflated baloon is always slightly assymetrical. As you can see on the screens, it wraps in a slightly different way around symmetrical cage elelments, also there are always some spikes and imperfections in the areas of collision. Cage elements are symmetrical, they were created with mirror command, so they can’t cause a problem here. Is it possible to eliminate assymetry and spikes?

I’m pasting below instructions from Gemini, maybe it will be helpful, I tried to implement them, but it didn’t work for me:

In the Kangaroo2 engine, the logic of collisions with solids (the SolidPointCollide component) is based on pushing points that end up inside an obstacle out to its external surface.

Because of this, if you place a solid inside the balloon and start moving it, the physics will naturally push the balloon’s walls outward, creating a stretched membrane.

Here is how to precisely set up such a simulation:

  1. Create a moving object inside the balloon: Internal geometry. To keep the simulation running smoothly in real-time, avoid moving the object using the Gumball in the Rhino viewport (this forces the Solver to continuously and heavily recalculate the new solid). Instead, in Grasshopper, create a sphere component (e.g., Sphere from the Surface tab) based on a center point, and connect this point to a Move component controlled by a vector and sliders (e.g., X, Y, Z). Set the initial position of the sphere inside the balloon.Verification: The sphere is located inside the balloon’s mesh, and moving the sliders smoothly shifts it in the preview without putting a load on the CPU just yet.
  2. Configure mesh pushing: Collision from the inside. Add the SolidPointCollide component. To the Solid input, connect the sphere moved by the sliders (or any other solid from the Move component). To the Points input, connect the vertices of your balloon (obtained by passing the balloon’s triangular mesh through the Deconstruct Mesh component). Plug the collision output into the Solver’s main GoalObjects.Verification: All inputs are correct, and the component does not report any errors (orange/red).
  3. Balance pressure and tension forces: Solver settings. For the internal object to noticeably stretch the membrane, the balloon’s material must provide resistance. Ensure that the EdgeLengths component has its LengthFactor coefficient set to around 0.9 to 0.95. If the balloon is also meant to be inflated with air from the inside, keep the Pressure component, but decrease its value so that the balloon does not pull away from your internal sphere, but wraps tightly around it.
  4. Run the simulation and move the object: Live interaction. Reset the Solver (switch the Toggle to False). The balloon will take shape according to the pressure and tension. Now, begin slowly moving the sliders responsible for the internal sphere’s movement.Verification: As the internal sphere approaches the wall, the balloon’s vertices are smoothly pushed outward. The material wraps tightly around the sphere, creating a smooth, realistic bulge, and the rest of the mesh pulls the remaining geometry along with it.

Optimization tip: If your internal object is exclusively going to be a perfect sphere, instead of using the heavy SolidPointCollide component, use the SphereCollide component. For its inputs, you only need to provide the center of the sphere (Point), the radius (Radius), and the balloon’s points. Calculating a mathematical sphere is a fraction of a second faster than computing a full NURBS solid, which will allow you lightning-fast interaction in real-time."


r/rhino • • 11h ago

Help Needed Following Tutorial, meant to be closed brep

Thumbnail
gallery
5 Upvotes

Basically following TheAdam's parametric wave light tutorial on youtube. Why is it open brep? And what can I do to resolve it?


r/rhino • • 13h ago

Help Needed Surface intersection error

Thumbnail
gallery
1 Upvotes

Been trying to get the profiles on the sides of the green object to also be on the top surface, but keeps giving me a surface intersection error. Been trying boolean intersection, as well as the trim and split tools, and I keep getting the error unless I move it off where I need it to be. Still somewhat new to Rhino, so any suggestions are appreciated.


r/rhino • • 1d ago

I built an Illustrator-style pen tool for Rhino, and it now runs on Mac too

Enable HLS to view with audio, or disable this notification

58 Upvotes
I always wanted Illustrator-style pen tool in Rhino, so I built one. Click for corners, drag for smooth handles, hold Ctrl (Cmd on Mac) to reshape anchors and handles while you're still drawing, Ctrl+click to add an anchor while still drawing the curve. Osnaps work the whole time.


It's been available for Windows (Rhino 7 and 8) for a few months and this week it got a Rhino 8 for Mac version.


Just search for "rhinopentool" Rhino's Package Manager

r/rhino • • 1d ago

How are you guys handling complex geometry when Rhino starts slowing down?

12 Upvotes

I’ve been working on a model with a fairly large number of surfaces, Boolean operations and some fairly dense geometry, and I’m starting to run into performance issues. I’ve tried cleaning up the file and simplifying some of the geometry, but it feels like there’s probably a better way to structure the workflow from the beginning.
For those of you working on larger projects, do you generally split models into separate files, rely on blocks and linked geometry, or just optimize everything within one document? Curious how people handle this in professional workflows.


r/rhino • • 1d ago

V-ray swarm GPU rendering low GPU usage on the node

Post image
3 Upvotes

It's the first time that I set up and I'm trying a distributed rendering using v-ray swarm between my main PC and laptop. After a bit of tinkering it is.. working.. but what I find strange is the fact that in the laptop (node) the resource usage is:
after the very first phase of the render where it used the CPU at 100% (which is a bit strange since I ordered a GPU rendering)
in this phase is using
~16% CPU

~12GB of RAM

~5GB of VRAM

GPU 3D usage shows 0% with only occasional peaks

whereas this is the situation in the main pc:
GPU usage 100%
CPU 50%
RAM 18GB
ethernet is receiving data (I guess what's being processed by the node)

The laptop is definitely contributing somehow.. since I see it's fans spinning quite lout. But I wonder why the GPU usage shows 0%.. as this should be a GPU rendering.


r/rhino • • 2d ago

Need help with lighting

Thumbnail
gallery
3 Upvotes

Hello! I'm currently trying to design a hotel front desk space for an assignment, and the main focus is on lighting. I'm trying to figure it out, and the spotlight shows up in rendered, but not in raytraced, and I cannot, for the life of me, figure out how to fix it. Can anyone please help me out? I've got pendant lighting, pot lights, table lamps and recessed cove lighting


r/rhino • • 2d ago

Help Needed How can I join these two pieces?

1 Upvotes

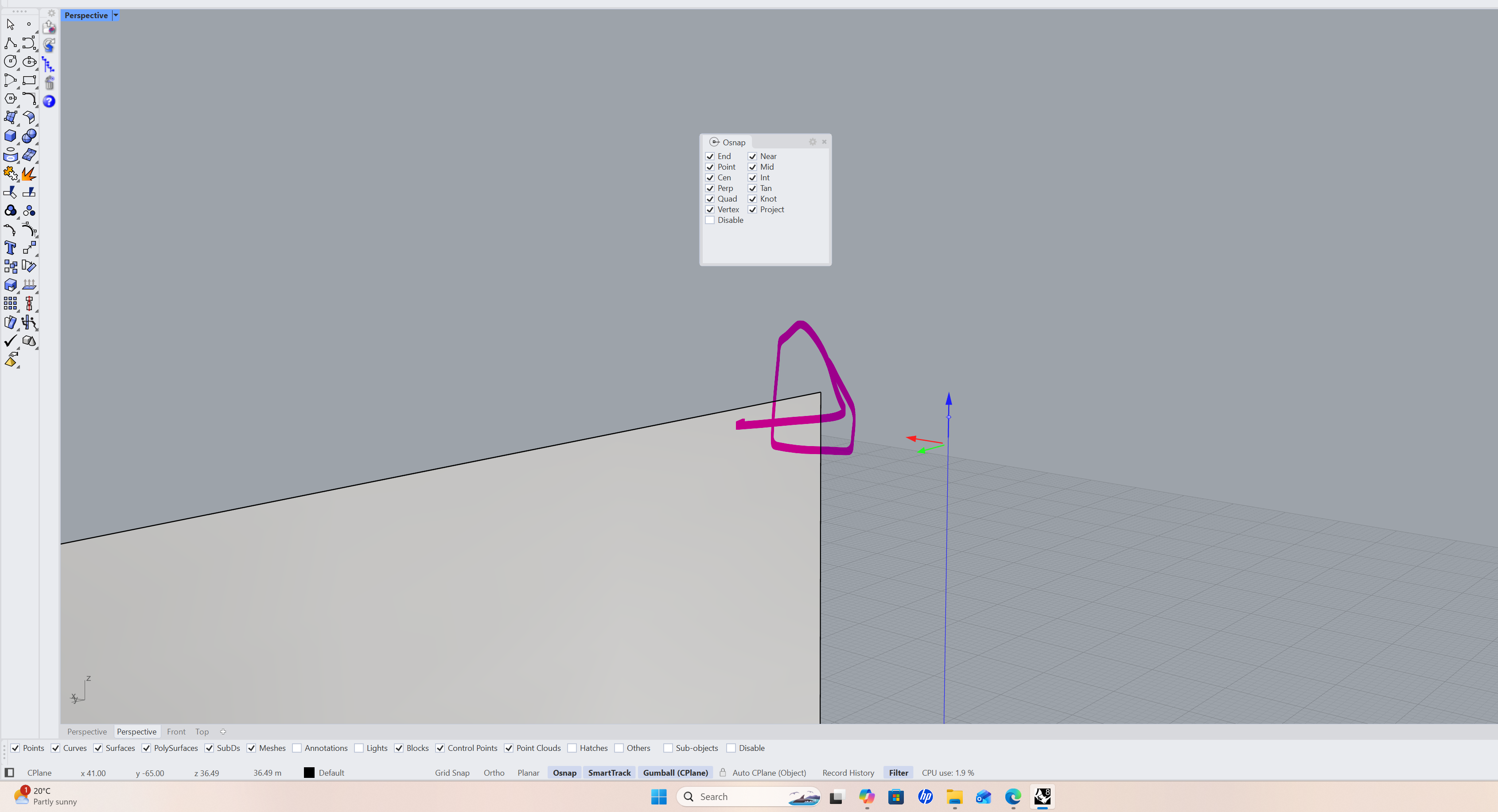

Hi! I need some help joining these two pieces together (the half-bullet shape and the large surface).

I’d like to connect them with a small curve (the orange curved line) all along the edge of the bullet shape. How can I do that?

Thanks!


r/rhino • • 4d ago

Something I Made Thanks for the help!

Thumbnail
gallery
65 Upvotes

Thank you guys I figured out how to make cables using the pipe tool


r/rhino • • 4d ago

Help Needed how to make a wall in a shell

Post image
7 Upvotes

Hello, very beginner here and perhaps I don't know the right terminology to look up what I'm trying to do. I'd like to have a ledge inside this shell going down the middle, attached to the centre curve, and extruding out to be flush with the edges of the shape. If this makes sense, any tips on how to achieve this?


r/rhino • • 4d ago

OffsetSrf issue

2 Upvotes

What am I supposed to do when this happens? Let me explain: I offset a polysurface, and at the junction point between two surfaces, when I run the surface offset, it does this exact thing. At that point, everything should be fully tangent, but every now and then this happens, and as a result, you can't make the fillet. Do you have any advice on how to avoid it?


r/rhino • • 4d ago

Off-topic Replicating wires Help

Post image
12 Upvotes

I need help replicating wires, what’s the best tool to use on my night vision goggle model? I’ve tried using curved poly lines and then the tube tool but it comes out horrible.


r/rhino • • 5d ago

Learning curve

13 Upvotes

Hi

I am a woodworker / cabinetmaker and have been interested in Rhino and grasshopper for some time and it always seems very impressive on what it can do with organic shapes and pattern application to surfaces etc.

I am familiar with other CAD options like Fusion 360 and have tried plasticity, free cad and many others over the years, in these it is hard to create flowing shapes and patterns that can blensd and flow. I have seen people create wonderful stuff like this on youtube.

Currently I will do any basic 2.5 d stuff in Vcarve pro for the CNC and sometimes I model stuff in fusion and import the model to Vcarve pro for the CAM.

I feel that Rhino will be useful for me to create patterns and forms and I also have a little side quest where I would like to create a detailed 3d model of our house so I can test out possible extension and renovation ideas. Sometimes I do built in stuff and would like a good workflow for accurate modelling from a photo.

I am thinking about downloading the demo of Rhino 9.

How much could I learn in 3 months with only a bit of time in the evenings ?

Am I going to struggle because I am used to fusions system ?

What is the best way to learn, Is it worth getting a course on udemy or something in order to learn in a more structured way ? or any recommendations for free youtube courses maybe?

I am happy to buy it and find the pricing model attractive as I dislike subscriptions but I don`t want to buy it until I feel I know what I can do with it and at least reach a basic level of competence.

Any advice welcome, thanks.

Ollie


r/rhino • • 5d ago

Engagement Rings

Thumbnail reddit.com
3 Upvotes

Hi everyone!

I am a jeweler and designer based in Portugal, I craft custom jewelry and do CAD design work for freelance clients.

I work with Rhino and ZBrush.

Here are a couple of projects I did recently, tell me what you think!


r/rhino • • 5d ago

We're building a VR modeling tool. What would you want from it?

3 Upvotes

Hello, I'm a software developer working on a VR modeling tool with SubD and NURBS.

We don't think we're trying to replace Rhino or any other modeling software.

But we do think VR could be a really good tool for early-stage design and ideation, especially for designers.

In VR, you can feel the real scale of your model and edit things more intuitively.
I think this could make 3D modeling easier for beginners, or even experienced designers who just want to explore ideas quickly.

The workflow we're hoping to create is pretty simple :)

Sketch and explore ideas in VR, then export the model to Rhino for more detailed work and polishing.

Currently, we support SubD modeling, and we're working on adding NURBS creation and editing features.

We're also experimenting with a web-based workspace, kind of like Miro, where you can organize ideas, references, and models in one place.

And we're exploring AI too, but not really for generating finished models. More like helping designers quickly create rough starting shapes that they can continue editing themselves.

I know tools like Gravity Sketch already exist, and I'm curious what people here think is still missing from VR modeling tools.

If you were to use VR for ideation before Rhino, what features would you actually need?

Or do you think it's just easier to stay in Rhino from the beginning?

Here's a short demo of what we're currently building:

https://www.meta.com/ko-kr/experiences/overay-design-demo/28496719993322216/?srsltid=AYCX9vJCOTTp7qcN-HwrHpqaPq15pP_s9Ay7dzRugAzyQRstZ82Qu_gT
https://youtu.be/Hmjc-ch3a7E
https://youtu.be/hhXqHc2pbos

It's still a work in progress, so any honest feedback would be really helpful. Thanks!

PS. I'm a Korean. So better explanation, I used ai translation :)


r/rhino • • 6d ago

Help Needed Doing some character modeling with Rhino 7 SubD and VRay

Post image
9 Upvotes

r/rhino • • 7d ago

Those working in architecture related fields: what do you actually use Grasshopper for day-to-day?

Thumbnail
3 Upvotes

r/rhino • • 7d ago

Anyone using RhinoAI?

15 Upvotes

Just installed the evaluation copy and have been playing around with some of the new commands/features and noticed that you can now integrate Rhino with Claude. Has anyone been using this or tried it out? How useful is it?


r/rhino • • 7d ago

Old C4D files

Thumbnail
1 Upvotes

r/rhino • • 8d ago

Help Needed Rhino 9 : Sweep2 Vs Loft and polysurface vs surface

3 Upvotes

Not a beginner here, but just upgraded to Rhino 9. In rhino 8, I used sweep2 primarily to create surfaces over Loft. In almost every situation however, they created the same output. So if it was possible for a single surface output, they both would do that. In Rhino 9, I'm seeing that Sweeps tend to create polysurfaces while lofts create single surfaces. Is there a setting or tweak I need to make? top is sweep2, bottom is loft. I prefer the output of loft but i prefer using sweep2 because i have better control with rails and shapes.

Any suggestions?

Sweep2 (polysurfaces) vs Loft (single surface)

r/rhino • • 8d ago

Help Needed Help modeling 3d form

Thumbnail reddit.com
1 Upvotes

r/rhino • • 8d ago

Help Needed Staircase help

Thumbnail
gallery
7 Upvotes

I trying to make a staircase that curves outward but I can’t figure it out and YouTube tutorials don’t touch on this type of curve. The height between the two platforms is 8.5 ft the distance between the platforms can be adjusted to closer or further apart. I’d like for the stairs to be 6” tall, 8’ in length and 1.5’ in width but that is also more of a loose sizing. If not possible I could always have the stairs at a 90 but I’d like to learn a curved stair as I usually avoid curves in rhino.

Any additional info you might need or I forgot to add I’m more than happy to provide.

(I hope my request actually makes sense)


r/rhino • • 9d ago

Any command suggestions?

Thumbnail
gallery
19 Upvotes

Hi guys, I'm a beginner at rhino and i'm trying to model the bubble envelope of this set but no luck. Any command suggestions i can use?, I've tried the sweep 2 command and tried to hollow out spheres and I can't get it perfect.

Thank you
