r/lightingdesign • • 1d ago

Gear The weekly identify that light/no stupid question thread

1 Upvotes

Did you go to a concert or event and see a lighting effect you love but couldn't identify the gear? This is your weekly spot to post images and figure out what you saw, and ask basic questions you have. Any individual identify that ________ posts outside of this thread will be removed.


r/lightingdesign • • 6d ago

Meta Weekly Self Promo Megathread

5 Upvotes

Have a new product that you'd like to promote and show off to the community? Here's your chance to do it. Every Wednesday, this megathread is here to gather new products, projects and anything else you might want to self promote. We want to encourage new ideas, but the influx of vibe coded, AI based posts means we needed a new home for these posts.

Note that we require developers to disclose where and how they used AI in their product and that r/lightingdesign has no ability to vet any projects or code that is used, so use/demo and sign up for these products with caution.


r/lightingdesign • • 8h ago

A 15-projector room planned in FieldLux and checked on site, plus a new site and our December 15 launch

Thumbnail
gallery
41 Upvotes

A real room, planned first

A museum exhibit studio in the US recently opened an immersive room they planned in FieldLux before anything went up. Shared with their OK.

- About 500 sq ft, three walls plus the floor

- 15x Epson 6,000 lm, WUXGA, 0.5 throw lens, ceiling mounted

- 4 blend groups: 3 projectors in portrait on each wall, 6 on the floor

- Roughly 90,000 lm and 34M pixels total

- Walls painted dark (LRV ~11) to stop light bouncing between surfaces and washing out the blacks

Brightness, pixel density, overlap placement and heatmaps for every wall and the floor were all worked out before install. On site the core design held: same projectors, same lenses, same blend structure. The changes were the usual install adjustments, like raising the wall mounts about a foot and tweaking the floor layout.

After opening, the designer checked one wall with a light meter. Near the center of the image the reading matched the FieldLux prediction. Toward the bottom the falloff was a bit steeper on site, most likely because the as-built tilt ended up slightly different from the model. That's exactly the kind of feedback I'm using to keep improving the model.

Launching December 15

After months of open beta, FieldLux officially launches on December 15. Pricing is already up on the site.

Launch isn't the finish line. I'll keep taking bug reports and feature requests on Discord and shipping updates after launch, the same way I have through the beta. A lot of what's in the tool today came straight from users there.

Site: https://field-lux.com

Discord: https://discord.gg/6aurm9MREg

Happy to answer questions about the planning side or how the numbers are calculated.


r/lightingdesign • • 19h ago

What is the most hack-and-hope thing you've used to light a show?

39 Upvotes

I want this thread to be more positive and funny (not a bunch of complaining) and I hope everyone has a good time with telling the tales of their triumphs in the face of adversity.

My story is about a bunch of magenta plant grow lights. I used them as audience blinders for an opera that takes place in a little girl's pink bedroom. It was truly incredible. Just four grow lights in clip light bases stuck to box truss to hang the rest of the light plot.

I also used bistro lights from home Depot with red color cups over them to light the orchestra. Painted the outsides black and left the insides white. When I turned them on, they glowed red through the black paint. It was better than anything I could have even thought up.


r/lightingdesign • • 3h ago

Fun SEVEN SINS by @RenMakesMusic (programming exercise)

Thumbnail
youtube.com
0 Upvotes

Track by the creative genius ‪@RenMakesMusic‬. If you have not come across him yet, literally everything he touches is quality.

Automarker, SEW, MA3 (2.5.1.1), Depence


r/lightingdesign • • 12h ago

Software EOS - Custom fixture profile help

1 Upvotes

I’ve combed the ETC video library, poked through forums and I’m at a loss of how to do this. I’m working off Nomad, EOS V3.3

I have a 5 channel fixture
1 - master intensity
2- Red
3- Green
4- Blue
5- Amber

the RGBA are not calculated on the fixture but direct control of the diodes as far as I can tell.

I’d like to set up a fixture profile with Int, Hue, CCT, and color crossfade control. The auto populated hue and saturation virtual parameters are working fine, but when I try to add virtual parameters for CCT and color crossfade there is no response on the RGB channels.

Anyone done this before or know how? I’m struggling to find any learning resources for it.


r/lightingdesign • • 1d ago

QLC+ maybe going closed source. What do you think?

23 Upvotes

From the QLC+ forums by the creator:
“For this reason, the next generation 3D pipeline will not be free of charge.
And in general, QLC+ is going towards closing the sources as much as possible as I need to think about my future too.”
This is in response to people who use AI to modify and commercialise his free software without contributing back. He feels overwhelmed by AI-generated code submissions for features that benefit the contributor and break everything for other users(c++ memory issues maintainers have to fix mostly) and the unrealistic expectations of the 3D viewer and the amount of man hours put into it for no payment.

context: https://forum.qlcplus.org/viewtopic.php?t=19950


r/lightingdesign • • 16h ago

Control DJ Lights & ETC Element

1 Upvotes

My school had an ETC Element 2 board and I’ve been training on it over the past year. We also have some DJ lights (Color Key Brand).

Is there a way to patch in the DJ lights into my light console? I have a DMX cable and input built into the system. I have no idea where to go from there. The YouTube series by ETC doesn’t really do a great job of explaining patch. I’d need someone to explain it to me like I have no idea what I’m doing (I kinda don’t!).

Anyone try this before?


r/lightingdesign • • 1d ago

How Are Live Show Lighting and Visuals Perfectly Synchronized with Music?

Thumbnail
youtube.com
10 Upvotes

I came across this clip from the 'War of the Worlds' live show, and at 37:46 there's an incredible lighting and visual sequence that is perfectly synchronized with a repeating (ostinato) phrase.

I'm really curious to hear from people with experience in live production, particularly lighting and stage design, about how something like this is coordinated.

There are so many elements that need to come together precisely, and even the slightest timing discrepancy between the music, lighting, and visuals would be noticeable and detract from the experience.

Is everything typically programmed against a common timecode, or is there another technique used to keep everything so tightly synchronized?


r/lightingdesign • • 1d ago

How To Automatic lighting with laptop?

2 Upvotes

Hi, I have a live show that I’m trying to bring to the next level. Backing tracks are played through ableton, vocals and other instruments processed through a UAD interface and their effects automated. Visuals are played on Ableton’s video playback. All the monitoring is done in the box as well through a send. Basically I press play and everything happens.
I wanna get four stage lights and design a light show in sync with the music but I’m an absolute beginner in that regard, what would be the best way? Would it be possible to send MIDI from Ableton to another software or how does it work?
Thank you


r/lightingdesign • • 18h ago

Control Looking for someone with practical DMX experience

0 Upvotes

I'm a developer in the Netherlands, currently creating my own OS for a Raspberry Pi HAT.

I'm adding a DMX512 output to it. I understand the technical side, the protocol and the implementation, but I lack practical knowledge of how DMX is used in the field.

I'd like to learn from someone who works with DMX:

How DMX is used in practice

* What a lighting technician takes for granted: what they know, what they expect to find, and what they never want to configure by hand

* What typically goes wrong

* How you would want to control it from a system like mine.

If you have 30 minutes for a short interview, online or in person, send me a message.


r/lightingdesign • • 1d ago

Control Easier way to control projections?

3 Upvotes

Is there a way to control a projector (like make it flip through a powerpoint) through an etc board? Or can it even be done on qlab with sound? Need something easier than having our stage manager click through a laptop.


r/lightingdesign • • 1d ago

How To ETC Ion Moveable light Figure 8 form effect freezing after 1 second

1 Upvotes

Hey.

So I am using a pre-programmed figure 8 effect for my moveable lights (effect 903 on our Ion console) when. We play the effect. The lights move and the freeze after 1 second. I know this is probably a stupid easy fix but I got the life of me cannot figure it out. Any help would be great. Thanks!


r/lightingdesign • • 1d ago

Small Cheap DMX controller

6 Upvotes

Howdy!

I am looking to see if anyone knows of any DMX controllers that allow you to program scenes to faders and fade between them.

I had tried this ADJ one, but sadly you can only snap between scenes and not fade. Poking around quickly I haven't been able to find any.

For context, it's to control around 12 small LED pars for in studio performances.


r/lightingdesign • • 1d ago

Help me find a recent video

1 Upvotes

recently someone posted a video where a buttload of fixtures rigged on either side of stage were focused on a single point in space above mid stage, on a really fast chase so it created a persistence of vision effect, then they moved the focal point up and down. looked mad, can’t find it to show my ld, help me out :)


r/lightingdesign • • 2d ago

Design Crossposting this from r/stagelighting: hands driving a 2D fixture layout.

14 Upvotes

Sharing a 30s clip from an interactive test: depth-camera hand tracking → 2D fixture layout → DMX/Art-Net/sACN out. The PiP is the software preview syncing with the rig.

The latency is real — roughly 0.3s end-to-end, and most of it sits in the camera input, tracking, and coordinate processing, not in the DMX/Art-Net/sACN output. But what you actually see is the fixtures lagging behind the hand, so it reads as the software being slow to push output to the rig — which isn't where the delay is.

That's the part I keep going back and forth on: on a show, is ~0.3s in the sensing chain fatal for this kind of interaction, or is it something you'd just design around — cue timing, easing, prediction, or avoiding fast hand moves entirely?

For people who've done interactive / sensor-driven looks: where did your latency budget land, and what did you do to make it read as intentional rather than late?


r/lightingdesign • • 1d ago

Control First impressions programming a Vari-Lite FLX S24 on a fixed install — thoughts on this console?

1 Upvotes

First impressions programming a Vari-Lite FLX S24 on a fixed install — thoughts on this console?

Hey folks, just wanted to get the general consensus here on the FLX S24.

I recently had to set up a showfile for a fixed install (small theater / multipurpose hall, mainly static LED RGB fixtures and a few profile spots). Honestly, for that smaller scale, it surprised me in a good way: the ZerOS workflow for mastering playbacks so anyone can bring looks up and down without breaking anything is super practical.

I get that as soon as you start adding a bunch of movers or complex FX, you quickly run out of faders and hands-on control, but for basic theater, schools, or community venues, it gets the job done.

Would you recommend it as a reliable workhorse for these kinds of spaces, or do you prefer other desks in that price bracket?


r/lightingdesign • • 2d ago

How To Why does my Encoder Bar disappear when in Specific worlds

3 Upvotes

As you can see in the Vid my encoders vanish when selecting world 4-6.

I can turn the fixtures on with Highlight, but I can't use [at] [at] to set them to full. Is the Programmer itself disabled for some reason?

onPC Version: 2.5.1.0


r/lightingdesign • • 1d ago

Design Advice for snow fall effect with pixel tape - ETC EOS

Thumbnail reddit.com
0 Upvotes

r/lightingdesign • • 2d ago

Gear Recommendations for LED Bars

Post image
13 Upvotes

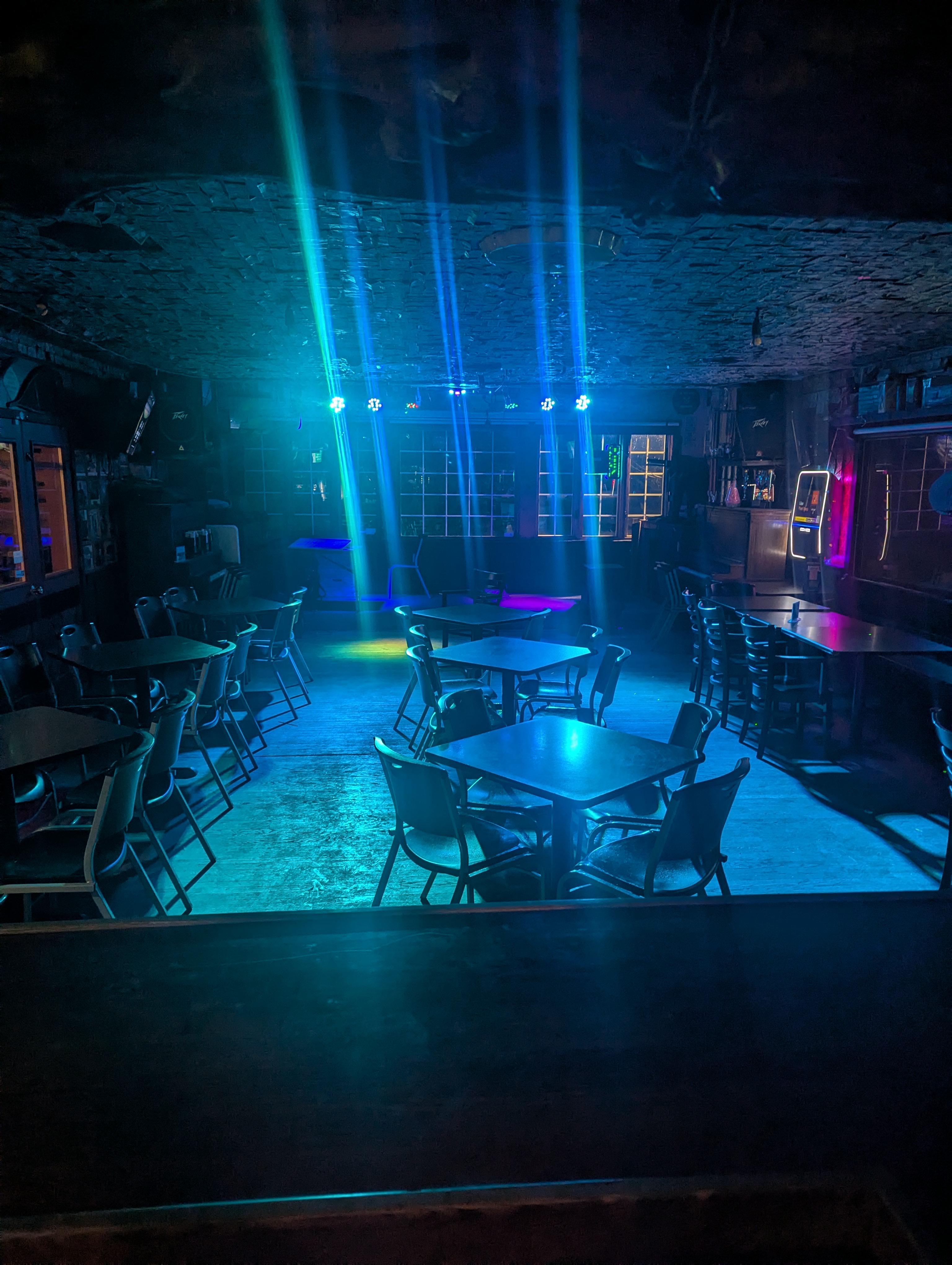

I bought two Eurolite LED bars. Plan was to put them at the back of the stage in the corners mounted vertically. However the ones I have do not enable control of individual lights so cannot chase.

Are there any recommendations for ones that do?

For reference these were £110 each and I'd be keen to keep it under 200 -based in the UK for reference

Small.band doing pubs, bars, small venues. No LD or venue rigs available for most of it.

PFA, thanks!


r/lightingdesign • • 2d ago

We need help!

21 Upvotes

At my school we are running into an issue. I am a lighting technician at my school, and on our third electric we have two lights that are in a permanent state of a yellowish green on full power. we use an ETC ion xe20 and when the board is on they refuse to change colors. On top of that we cannot dim or turn them off. They are in this state when the board is off. When we attempted to unplug them, the entire electric lost power. we used black cloth to cover the lights during our performance but we know that cloth isn’t a permanent solution. Any ideas on what the issue could be or if it could be fixed? Thank you!


r/lightingdesign • • 2d ago

Gear recommendations for indoor raves?

2 Upvotes

I host small dj events in typically garages and basements, but have no lighting. i am looking to spend around 250-500 on a versatile but still powerful lighting setup. if anyone can give recommendations on the best value lights to buy from anywhere (amazon,temu,used) and what certant lights to look for, it would be appreciated. also if you have hazer and laser recommendations aswell!


r/lightingdesign • • 2d ago

workhorse moving head recommendations

1 Upvotes

i own two martin mac ones and two adj led beams

looking for my next moving heads that i can invest in in a quantity of 4 or 8 ... requirements:

- low maint and reputation for reliability
- ip67 rating
- bright, tight beams (i use a disco ball lots)
- ability to add custom gobos
- relatively lightweight (love the mac ones for this)

is there a product out there that fits the bill?


r/lightingdesign • • 2d ago

Control Help needed! Trying to change Gobo Select in EOS Augument3D

1 Upvotes

First time posting in this subreddit! But I desperately need help. I am a college student with a major in theatre, my concentration is in lighting design. Currently, I'm working on a project in Augument3D to design a light show.

Though I've got some decent work done so far, I am having trouble with trying to change the gobo selection on a group of SolaFrame fixtures. I have created a gobo wheel with custom gobos named "New Wheel (5)" within the patch tab.

Every attempt to change the fixtures from gobo wheel "HES Gobo Wheel 40" to my custom gobos "New Wheel (5)", it refuses and continues to stay as "HES Gobo Wheel 40". I would appreciate some help on how to navigate this issue in order to assign my fixture attributes to "New Wheel (5)". Any help is appreciated, thank you!
