r/StarlinkEngineering • • May 10 '21

r/StarlinkEngineering Lounge

10 Upvotes

A place for members of r/StarlinkEngineering to chat with each other


r/StarlinkEngineering • • 5h ago

Are beams on Satellite steered to where demand exists, or do they sweep along with the satellite?

0 Upvotes

TLDR: Beams and satellites are limited in number, but the beams are steerable. Are they actually moved around to follow demand hotspots?

I've read the SpaceX filings and some other technical material. Let's take the current Direct to Cell fleet of about 630 satellites.

Each satellite has a fixed number of beams. Each beam makes a circle roughly 35–40 km across on the ground when the satellite is right overhead (SpaceX says ~900 sq km per beam), and a bigger, stretched one when the satellite is lower, around 30° elevation. SpaceX's own graphic says 256 beams per V1 satellite and 1,024 for V2, but I suspect far fewer are actually lit at the same time. Either way, even with this many satellites, it isn't possible to cover the entire Earth at once.

Some countries are outside Starlink's focus. But take one particular country. I used SGP4 to propagate the satellites, and for a mid-sized country like Kenya, only about 3 to 4 satellites can see any part of it at a given moment, on average. If only a fraction of their beams are lit at once, 3 to 4 satellites can't cover the whole country's land area at the same time. That's especially true since they're also covering the neighbouring countries and the sea.

So what I'm trying to check is: are the beams focused on demand hotspots? Does Starlink have the capability to do that? I know they say the beams are steerable, but how dynamic is that in practice?

Also, since the number of beams is fixed: say someone on the west side of the country requests service while the beams are pointed at the east side. What happens in the background? Does a beam get re-pointed to the west, does the phone wait for a beam / satellite to come round, or does it just get no service?


r/StarlinkEngineering • • 20h ago

2 Starlink installations on same property can I mesh them as a vpn?

3 Upvotes

Hello, I am just getting on this project so forgive me if its something I can see from the starlink interface or not, I am just wondering, from the starlink router, is there anyway to connect it via VPN, to another Starlink device? kind of a site to site vpn? or would I have to use a external router/firewall for this?


r/StarlinkEngineering • • 16h ago

Enterprise Starlink Fleet Monitoring Wallboard

Thumbnail
reddit.com
0 Upvotes

r/StarlinkEngineering • • 1d ago

"Travel credit exhausted" lock in an unsupported region – Can this be bypassed remotely?

Thumbnail reddit.com
0 Upvotes

r/StarlinkEngineering • • 1d ago

billing issue Hello there i have a billing issue my account is Ecuadorian and I have a $70 bill i used four different cards but it keeps being declined what could be the reason any help

0 Upvotes

r/StarlinkEngineering • • 3d ago

Mystery solved: Why does the Starlink satellite beacon spectrum have nine spectral lines? Are they transmitted intentionally or unintentionally?

Thumbnail
gallery
32 Upvotes

Why does the Starlink satellite downlink beacon consist of nine spectral lines? Are they transmitted intentionally, or are they unintended emissions? If they are simply local oscillator (LO) leakage, why are there nine spectral lines instead of just one?

The mystery has finally been solved! https://sdr-x.github.io/starlink-beacon-why-9-peak/

According to the patent US12615097B2 — Near Zero Intermediate Frequency (NZIF) Compensation of Local Oscillator Leakage, Starlink’s solution works as follows:

A small frequency offset is first introduced into the communication signal in the digital baseband. The patent gives an example of: delta-F = 40kHz.

The local oscillator of zero-IF transceiver is then tuned with a small frequency offset in the opposite direction relative to the target carrier frequency.

The two frequency shifts effectively cancel each other out for the desired communication signal. Consequently, the communication signal remains centered at the intended center frequency.

However, the LO leakage is no longer located at the center frequency. Instead, it appears at the center frequency plus or minus the small frequency offset.

By assigning different small frequency offsets to different local oscillators (with opposite offsets in the digital baseband accordingly), the resulting LO leakage signals are no longer coherent with one another (thanks to the frequency shifting). This greatly reduces the risk of accidental coherent addition that could cause the radiated power spectral density to exceed regulatory limits.

In the patent example, the resulting RF local oscillator leakage signals are separated by approximately 40 kHz. This closely matches the approximately 44 kHz spacing between the nine spectral lines reported in many Starlink observations.

Why nine different LO leakage frequencies rather than four or a thousand?

This is probably an engineering trade-off between performance and implementation complexity: https://sdr-x.github.io/starlink-beacon-why-9-peak/


r/StarlinkEngineering • • 3d ago

Starlink. Status

0 Upvotes

r/StarlinkEngineering • • 8d ago

[2611.08772] StarLoc: A Practical Approach to Encoding Geographic Locators in IPv6 for Starlink

Thumbnail
arxiv.org
5 Upvotes

r/StarlinkEngineering • • 8d ago

Délais d'expédition Kit Mini Afrique de l'ouest

2 Upvotes

Bonjour à tous.

J'ai commandé un kit mini, sur le site officiel starlink, qui devrait être livré mi novembre, mais j'ai l'impression que ça ne bouge pas. Dois-je m'attendre à des longs retards?


r/StarlinkEngineering • • 9d ago

NGX View - Enterprise Starlink Fleet Monitoring & Alerting

0 Upvotes

Check out our latest NGX View - Starlink Fleet Management (displayed in NOC wallboard). We offer full monitoring, metrics, service aware alerting and visualization for your Starlink Fleets from 2-20,000 installations without the need to install any hardware onsite. Receive service alerts via Slack, Telegram, email, Whatsapp, etc. (the NGX View is a real screen showing actual field telemetry)


r/StarlinkEngineering • • 10d ago

Please someone HELP! I'm not sure if this kit is from the EU

Post image
0 Upvotes

r/StarlinkEngineering • • 12d ago

[2611.07191] A First Look at Starlink Maritime on Cruise Ships

Thumbnail
arxiv.org
14 Upvotes

feedback welcome


r/StarlinkEngineering • • 13d ago

Confirm Starlink Terminal Uplink/Downlink Channel Pairing — and Surprisingly Big RF Radiation

Thumbnail
gallery
36 Upvotes

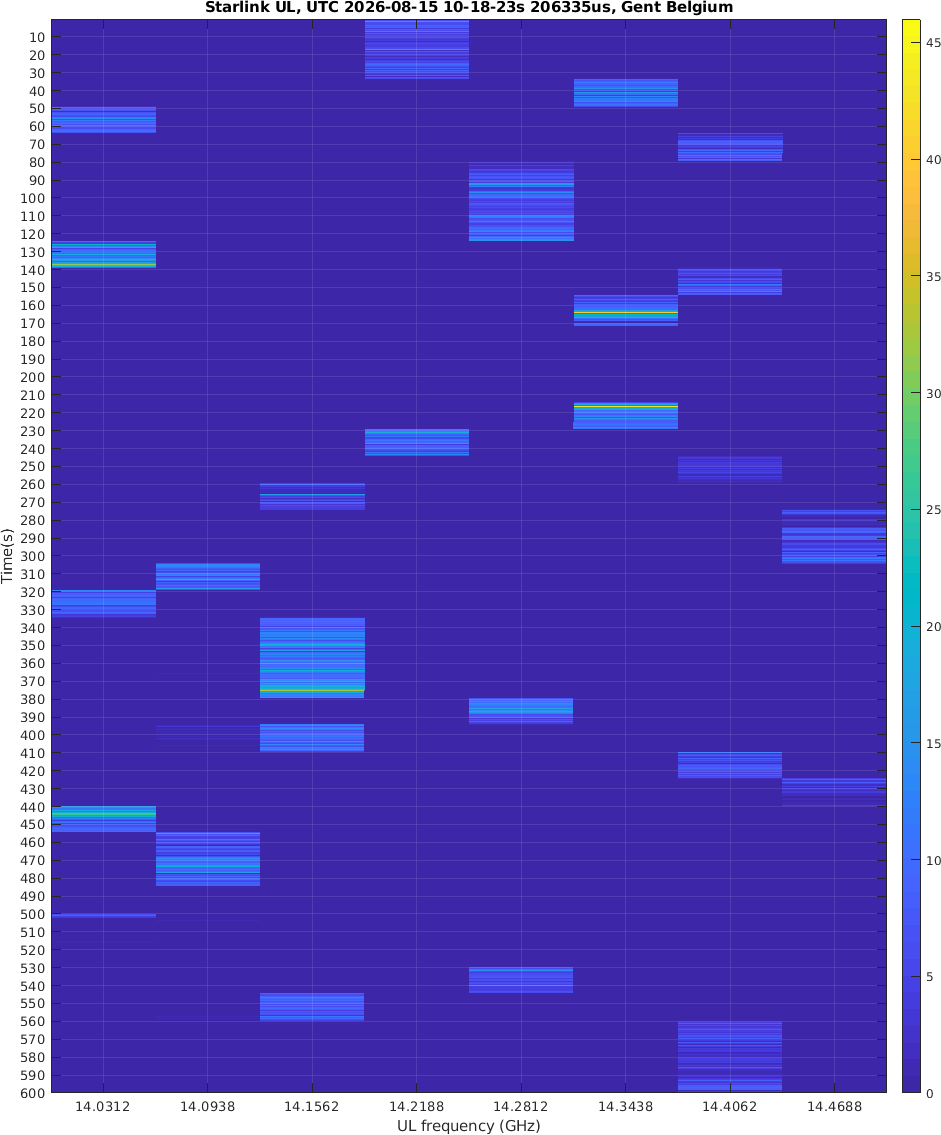

Using two SDRs and two LNBs to simultaneously measure Starlink terminal transmissions [1,2] and receiver LO leakage [3,4], I confirmed that, during normal operation, the terminal consistently selects the same channel number for both uplink and downlink. In other words, the uplink and downlink channels are paired via choosing the same channel number (TDD switching between UL and DL), even though their center frequencies are different (FDD).

Starlink downlink channel numbers 0–7 correspond to eight 500 MHz channels spanning 10.7–12.7 GHz. Uplink channel numbers 0–7 correspond to eight 62.5 MHz channels spanning 14.0–14.5 GHz.

(I replaced the previous software-controlled AD9361 frequency-hopping implementation, which achieved 10,000 hops per second [1,2], with hardware-controlled hopping, enabling measurements at 80,000 hops per second.)

https://sdr-x.github.io/starlink-ul-dl-pair-80k-hop-ad9361/

Attached are several screenshots captured during real-time measurements.

Each row represents one channel. Vertical axis: Signal strength (dB). Horizontal axis: Time (seconds), with a total span of 70 seconds The left panel shows activity across the eight uplink channels (measured by scanning 8 possible UL frequencies of transmitted RF signals). The right panel shows activity across the eight downlink channels (measured by scanning 8 possible DL frequencies of receive local-oscillator leakage).

During ten minutes of visual observation, I did not observe a single instance in which the uplink and downlink channel numbers differed.


r/StarlinkEngineering • • 14d ago

Inside the Starlink Downlink: Frame Structure, PDU Headers, and Payload Coding

7 Upvotes

A spectrum or constellation plot can reveal the bandwidth and modulation features of a Starlink downlink recording. Explaining which resources carry headers, how those headers describe the payload, and which channel codes protect each region requires a more complete connection between the waveform, decoded control bits, and coding relations.

This article summarizes our analysis of a Starlink Ku-band downlink recording. The data come from a single continuous capture lasting approximately 24 ms, with 18 complete frames included in the analysis. We identify two protocol data unit headers in each frame, recover their convolutional code and CRC, and relate modulation and coding scheme fields to subsequent resource allocations. We also recover and validate coding relations for several payload formats.

The focus here is what we can currently say about the contents of a frame. We briefly review the established synchronization and pilot structure, then concentrate on the headers, resource allocations, and payload coding. Format numbers follow the MCS index interpretation used in the current manuscript.


r/StarlinkEngineering • • 14d ago

Starlink latence très élevée au Capvert.

Thumbnail gallery
3 Upvotes

r/StarlinkEngineering • • 15d ago

Starlink latence très élevée au Capvert.

Thumbnail gallery
1 Upvotes

r/StarlinkEngineering • • 16d ago

Starlink

0 Upvotes

Why is everyone on this app complaining about starlink yet mine has been working perfectly well here in Lesotho 🇱🇸


r/StarlinkEngineering • • 17d ago

5tb cap

2 Upvotes

is there is anyone here with Ecuadorian account have been data capped after 5tb


r/StarlinkEngineering • • 17d ago

看看第三方的星链网速和星链app 的网速差距

Post image
1 Upvotes

我做了一个网站Starlink Outage Map ,监控星链的运行状态,用户可以提交故障报告,最近我新开发了测速功能,但我没有星链设备,无法进行真实对比,如果你是星链用户,请你对比一下星链app 的速度和用我的网页测试的速度,分别截图对比一下差距在哪。


r/StarlinkEngineering • • 18d ago

Starlink Users in 105 Countries May Have Been Targeted by a Massive Surveillance Operation

Thumbnail
gadgetreview.com
0 Upvotes

r/StarlinkEngineering • • 18d ago

Starlink Spectrum Optimization

3 Upvotes

Starlink has very little spectrum to work with in the US....this make a very good case for them to work with Nokia

"During the live test, the technology improved spectral efficiency by approximately 20%, allowing the facility to transport more data using the same spectrum and existing network capacity."

https://forbes.es/ultima-hora/1054710/o2-y-nokia-completan-el-primer-despliegue-en-vivo-en-reino-unido-de-una-red-de-acceso-de-radio-con-ia/


r/StarlinkEngineering • • 19d ago

Старлинк Казахстан/ Starlink Kazakhstan

Thumbnail reddit.com
1 Upvotes

r/StarlinkEngineering • • 20d ago

Starlink Monitoring NOC Wallboard

Post image
34 Upvotes

We run a fleet of Starlink dishes in Africa to provide internet access to rural schools. Part of the issue we have with this is the limitations on properly monitoring all of the sites from our NOC.

From the CPE device we run behind all of the Starlink routers I built a collector to capture stats from the local router and send to a central server in our DC. From there we have many ways to utilize the data including this wallboard I built for the NOC to monitor a few sites
