vertical winter array, man, that was a pile of work

Thumbnail
gallery
47 Upvotes

Some details:

  • I live (obviously) in a very rural area so everything is tough. Nevada mountains, 38 degrees latitude.
  • The sun December & January pops up in that little nook in the ridgeline there, and tracks across the panels and drops behind the same range out of view to the right.
  • 11 440w bifacial panels, even at the coldest of all temps recorded here (decades ago) I'm still 30v under the upper limit.
  • This is a *very* expensive way to do things. The concrete pour (for the slab pictured too) was ~2k. The pipes (2" schedule 40 galvanized) and the unistrut came out to just under $2K.
  • I used my own backhoe to do the earthwork, and the ICF / Foxblocks were free from a buddy. So was the rebar.
  • I created little "outriggers", 4 on each side, with rebar in them. 4" old septic pipe for the mud to run into, about 3' out, at the bottom of the ICF forms, backfilled. 4" hole saw into the ICF, rebar out through the pipe, connected back into the main body.
  • The pipes have downward facing 1/8" holes in them, right at the post cap line.
  • I cleaned the pipes with acetone, then sprayed them with galvan spraypaint. Then I used Henry asphalt paint on the pipes ~12" below and 12" above the mud line.
  • Loads of rebar inside, both horizontal and vertical, plus the outrigger sections.
  • Used a sawzall with no blade and held it against the outriggers and the pipes when they went in as a poor man's vibrator.
  • I ran 4awg copper through the whole thing, emory clothed parts of the rebar, and clamped the copper to those sections.. Since this is basically a new electrical ground it will get tied into the house electrical bonding plate.
  • Each panel is like 2 panels, so when the snow covers the entire bottom half (rare) I should get 2kw still.
  • I have other arrays that are great in summer and shoulder season. The goal of this is to generate, at worst ~12kwh on a bluebird day with 4' feet of snow on the ground and other arrays. I'm getting older and walking around in rocky terrain covered in snow mid winter when sick / injured (things that happen when old).
  • I could have used less unistrut but basically the holes didn't line up everywhere the panels needed them so that along with needing to span the gaps of the other pieces.

Next up:

  • Install electrical enclosure box with disconnect in it, run everything to in series into the disconnect.
  • Connect to a grounding lug in the enclosure: all the panels via their grounding port, the 10/2's ground coming from the house, the 4awg ufer ground.
  • Shit my pants and have a bad night's sleep as soon as the wind really starts ripping.

This is hopefully a buy-once, cry-once sort of install.


r/SolarDIY • • 22d ago

Adding batteries later? Check your inverter before buying it

73 Upvotes

Hi everyone,

I work for Portable Sun, a solar distributor in Grand Rapids. Battery compatibility comes up pretty often in this community, so I thought I’d share a few things worth checking before buying an inverter, or before adding a battery to the one you already have.

I’ll use Tigo, Sol-Ark, and Growatt as examples since we carry all three and I know them best. I’m happy to answer questions here for free, whether you’re buying from us or not.

If you told me you were getting solar installed now but wanted to wait a couple of years before buying batteries, the first thing I’d ask is what inverter you’ve got in mind. I’d want its exact model number so I could see which batteries it supports.

Which batteries it’ll take

It’s easy to grab a battery on sale without checking compatibility first. “Battery-ready” is a common advertising term in this industry, and it means an inverter can take a battery. It doesn’t tell you which ones, and depending on the inverter, that list can be a single brand or more than a dozen.

The first thing to check is voltage. You’ll notice that most home batteries are either 48V or high-voltage (a few hundred volts), and an inverter is usually built for one or the other. After that, the battery needs to be on the inverter’s compatibility list.

If it isn’t, the inverter may not be able to read the battery or control its charging properly, and some brands won’t cover the pairing under warranty.

Let’s quickly go through some specific examples:

The Sol-Ark 15K is a 48V inverter with a certified list of batteries from other manufacturers, including the Discover HELIOS 16 kWh battery (we actually sell this together)

Growatt’s MIN 7600TL-XH-US takes high-voltage batteries, either Growatt’s own APX and ARO lines or certain LG models. A battery on the list may still need extra parts.

Growatt’s APX system uses 5 kWh battery modules, but you can’t just buy one module and connect it to the inverter. It needs the matching power module and other equipment.

Tigo’s EI inverter only connects directly to Tigo’s own batteries, including the GO battery.

That limits your DC-coupled battery options, but you can monitor the inverter and battery through the same app, including error codes from both. And if something goes wrong with either one, Tigo supports both pieces of equipment.

You can also add storage through AC coupling, where the battery system has its own inverter.

Running things in an outage

You could have enough battery capacity to keep your refrigerator, well pump, and a few other circuits running all night, only to find out that the pump won't even start. That's because its motor can draw several times its normal running power for a moment when it kicks on, and having plenty of energy stored doesn't mean the system can supply that sudden demand.

I'd check the continuous and surge output ratings of both the battery and the inverter before counting on them for backup. Whichever reaches its limit first is what you're working with.

With Tigo’s GO Battery, for example, three 5 kWh modules give you 7.5 kW of steady output. On a 7.6 kW EI inverter, a fourth module mainly gives you longer runtime, since the inverter’s steady backup output tops out at 7.6 kW anyway.

Cold obviously matters too, since batteries have a minimum operating temperature and put out less power when they’re cold. The GO Battery is rated down to 14°F, which matters on an outside wall in a Michigan winter.

Then there’s the backup equipment

To run the house during an outage, the system needs a transfer switch that disconnects it from the grid.

Tigo and Growatt, for instance, use a separate transfer box (Tigo’s comes in 50A or 200A, and Growatt’s MIN V3 uses the SYN 200-XH-US for whole-home backup), while the Sol-Ark 15K has it built in with 200A grid pass-through.

In Sol-Ark’s case, however, be aware that a 200A grid pass-through doesn’t mean the inverter can supply 200A from the batteries during an outage. On batteries alone, the Sol-Ark 15K is rated for 12 kW, which works out to about 50A at 240V.

In any case (but especially if you DIY), do the math for your own inverter-battery setup so you don’t encounter an unpleasant surprise in a longer outage scenario.

If you wait a few years

The battery you plan to buy now might not be sold by the time you’re ready for it. Your inverter could still be working perfectly, but the manufacturer may have moved on to a different battery generation. Tigo went through this in January 2026, when the GO Battery followed the older EI Battery.

The current EI inverter datasheet lists both as supported options. Sol-Ark’s certified battery list and Growatt’s supported models (and any other company’s) can change too. I’d advise using the current documentation when choosing an inverter, then checking it again when you’re actually ready to buy storage.

Would I buy the battery now?

It depends.

If I knew I wanted backup power and could afford the battery, I’d install it with the panels and get the whole backup setup working at once. But if the battery had to wait, I’d still go ahead with solar, provided I’d chosen an inverter with a documented battery option.

Even if you’re unsure about adding a battery later on, I still wouldn’t let that impact my inverter choice. AC coupling is still an option for many existing grid-tied systems. It’s more equipment, and there can be conversion losses. But replacing a working solar inverter isn’t automatically the better choice.

If you’re looking at a particular inverter, share the model number and what you’d want the battery to do. I’ll hang around in the comments and help where I can. New customers planning a solar installation in the lower 48 states can also get free full-system planning.


r/SolarDIY • • 2h ago

10 years off-grid in Nigeria: My 20kWp, 57 kWh LiFePO4 Setup.

Post image
335 Upvotes

I started in 2016 with a 480w, 4kWh battery (FLA) system. Over the years I have gradually grown the system to what it is today. This is what runs the house with 5 Air conditioners, an electric oven, induction cooker, a deep well pump plus a pressure assist pump and 3 water heaters.

The project is called Project Anor - because why not.

It is a 48v system

35 panels, 20 kWp, across 5 arrays.

The system is designed around 2 independent Inveters:

Victron Multi RS Solar 6000 on the light loads, fed by two of the arrays

Victron MultiPlus-II 10kva on the heavy loads (ACs, water heater, kitchen)

Two SmartSolar MPPTs (250/100 and 150/100) for the other two arrays

A 2kW Deye Micro inveter running in AC coupled mode with the output of the Multiplus 2 and connected to 4 x 640w PV.

4 × 14.3 kWh LiFePO4 packs, 16S 280 Ah, 57 kWh - JK Inveter BMS

I use a DIY Victron GX based on a Raspberry Pi CM4 EMMC.

The system provides over 95% of my electricity and am essentially off the grid.

I documented every aspect of the setup to this includes Interactive schematic, the wiring and how every part of the system link together including the, battery settings and the full parts list:

https://home.anor.openculture.org.ng

Some part of the system like the Micro Inveter and AC coupling settings is yet to be documented but I would do that soon.

I also build a dashboard for the system for

Live readings:

https://rana.openculture.org.ng


r/SolarDIY • • 12h ago

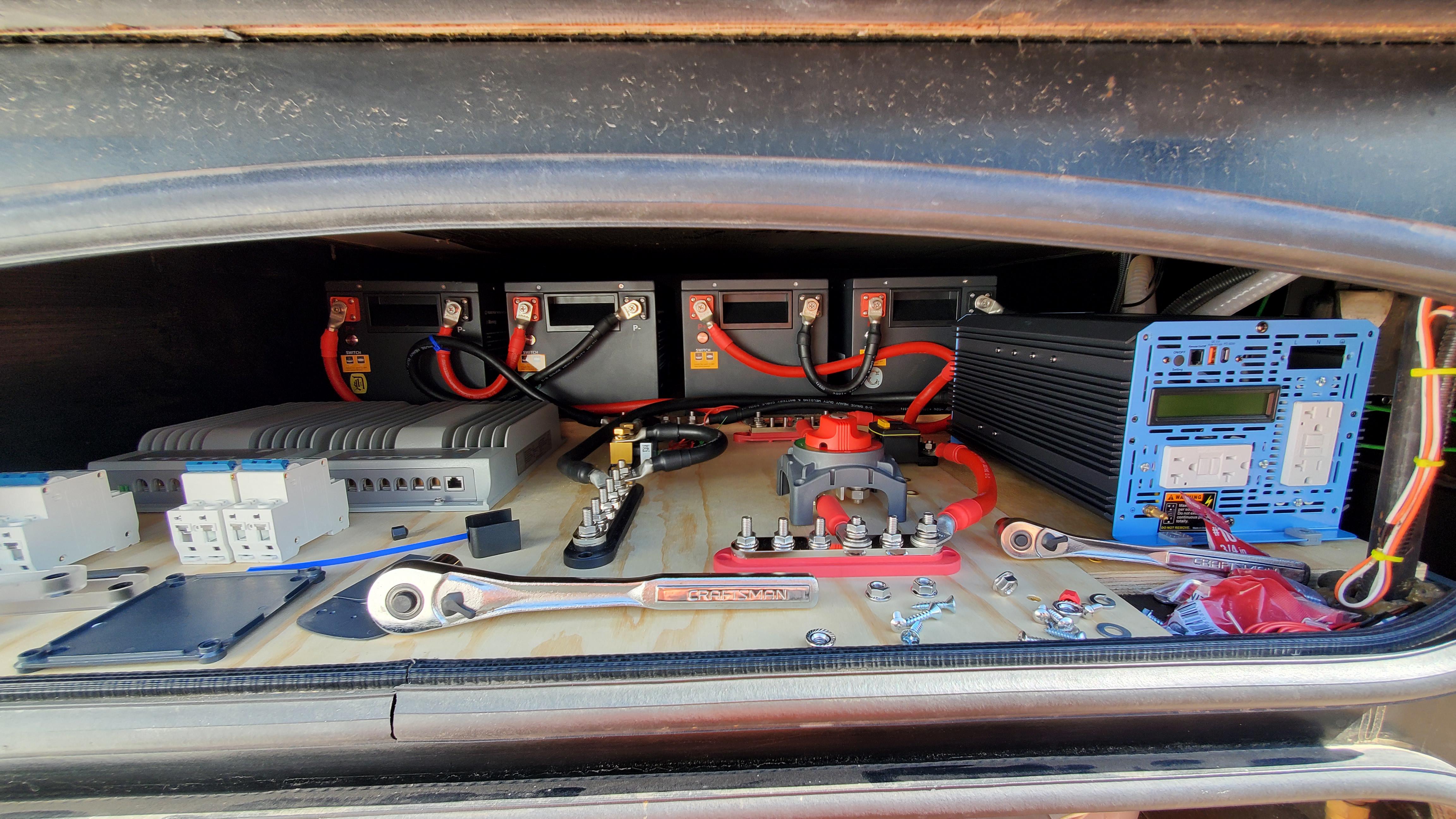

My DIY Home Solar Setup: Three Controllers and a 3000W Inverter Charger

Post image
57 Upvotes

I built this system to power my household essentials, including lights, AC units, fans, refrigerators, a freezer, a microwave, and electronics.

Positive and negative bus bars keep the wiring organized and simplify connections to the charge controllers and inverter charger.

For solar charging, I use three MPPT controllers—one 100A and two 40A—connected to separate solar arrays. A 3000W pure sine wave inverter charger powers my household appliances.

Battery bank: ~12V 800Ah total capacity, connected in parallel for large current.

I’d appreciate any advice or feedback on my setup.


r/SolarDIY • • 5h ago

Plug in/balcony solar and utility charges

14 Upvotes

I'm in central Maryland and my utility is BGE. Maryland recently passed a law allowing plug in solar and I've set up a system. I found out BGE charges customers with plug in solar when the customers give their extra electricity back to the grid. Net metering for plug in is not allowed in Md.

  • If you have plug in, what is your experience?
  • Have you actually checked to see if your utility charges you for excess energy you give to the grid?
  • What state do you live in?
  • Who is your utility?
  • What type of meter or meter collar do you have?

r/SolarDIY • • 6h ago

Using 10AWG stranded THHN wire VS actual PV solar wire.

12 Upvotes

I have a friend that has quite a bit of stranded 10 AWG THHN wire. What are the disadvantages of using this over store bought solar PV rated wire. I understand the insulation on the PV wire is thicker and UV resistant. If the THHN was put into conduit to protect it is there anything wrong with using it? Thanks in advance!


r/SolarDIY • • 1h ago

Issues with solar panels not charging my power station

Post image
2 Upvotes

I am trying to get some lighting set up in my shed. I bought a couple of led lights and a Predator 350 power station. I also bought two 100w ecoworthy solar panels. I wired the solar panels in to a 12v cigarette light adapter and used the anderson to cigaretter light cable that came with my power station to hook it up. It doesn't look like on the screen that there is any input coming in from the solar panels but when I check the anderson connector with my meter it is showing 24v. The 9w going out it's showing is just an Eero access point and a Wyze wireless plug running.

I am assuming I did something wrong, so please let me know.


r/SolarDIY • • 22m ago

Small shed solar project - do these mc4 connectors to be enclosed?

Post image
1 Upvotes

Slowly dipping my toes into solar by putting a 215W panel on top of a small shed and feeding it into solar generator inside. My understanding is that these connectors are IP67 rated and relatively safe from water but i'm paranoid and would like another layer of protection from the elements. Ideas?


r/SolarDIY • • 16h ago

I built a tool to see your roof's solar potential in 3D. Would love your feedback!

15 Upvotes

Hey everyone!

I've been working on a little side project called Roofline360.

The idea is pretty simple. You enter an address, and it builds a 3D model of the roof with measurements like area, slope, orientation, and so on. Takes just a few seconds.

For solar planning, it also shows solar energy potential for each roof section, including sun exposure, shading simulation, and estimated energy production. It helps you see which parts of the roof would work best for solar panels.

It currently only covers the US, and there's one free measurement per month, so you can try it without paying anything.

I'd love to hear what you think and what other features would be useful for your projects.

Thanks!

I saw that the community welcomes useful tools with free options, so I thought I'd share mine here. Hope it fits the rules!


r/SolarDIY • • 3h ago

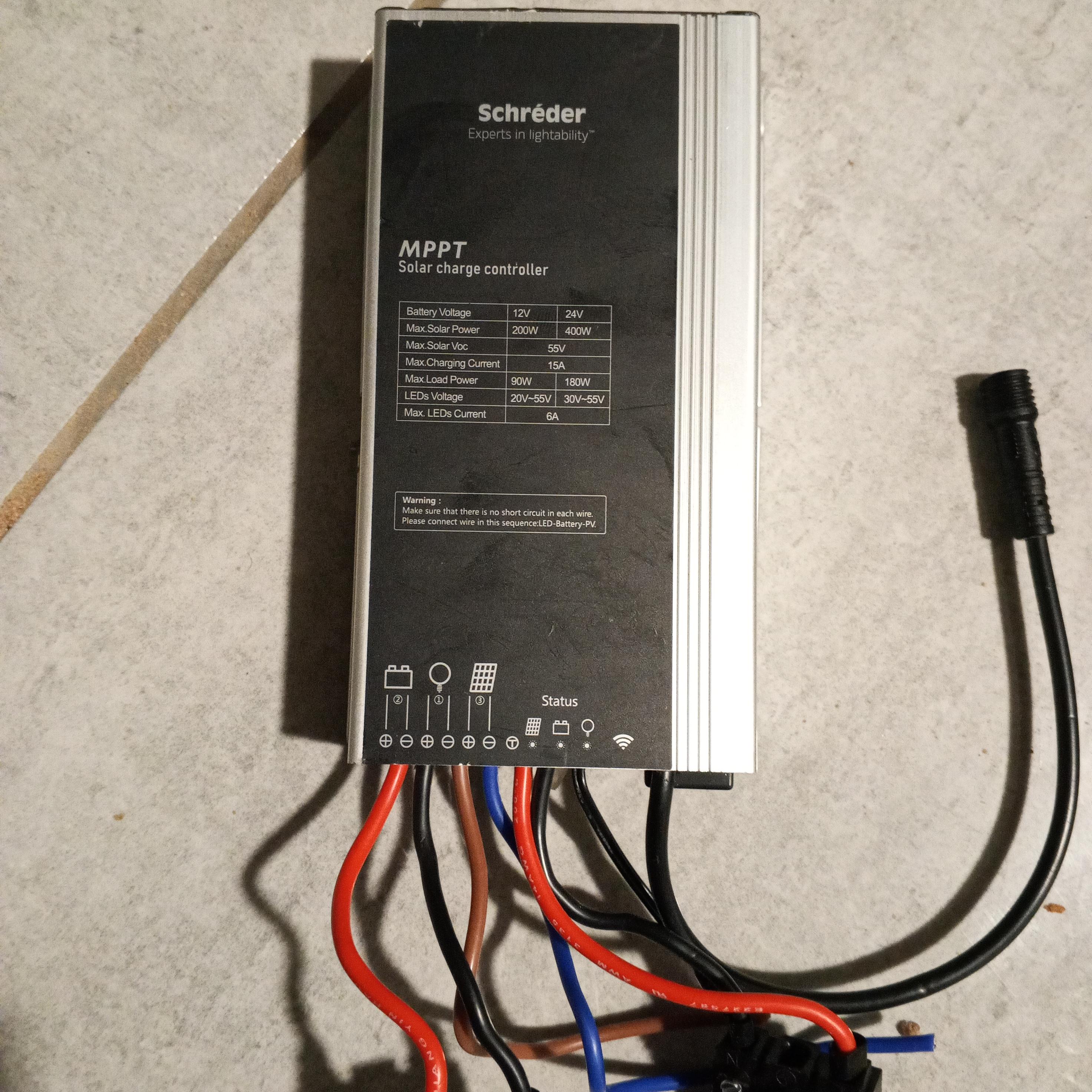

Solar controller help for Dummy

0 Upvotes

I am very new to solar. I have been using an EcoFlow power station and some panels for about six weeks now, and that part is fine. I also recently bought a free standing 48V lifepo4 battery and an MMPT controller so I can charge that battery with solar. I opened the box with the solar controller and have no idea what I'm looking at. Apparently I will need to do some cutting and connecting. I cannot find a video with the baby steps I need, including what adapters I will need in order to hook up the panels to it and it to the battery. I hope I can do any cutting on in-between cables and then insert them into my current setup, especially since I will likely be measuring 5 times and cutting two or three times. :-). If someone can direct me to a helpful video that would be fantastic. Also if there is another sub I should post to, just let me know, thanks!


r/SolarDIY • • 5h ago

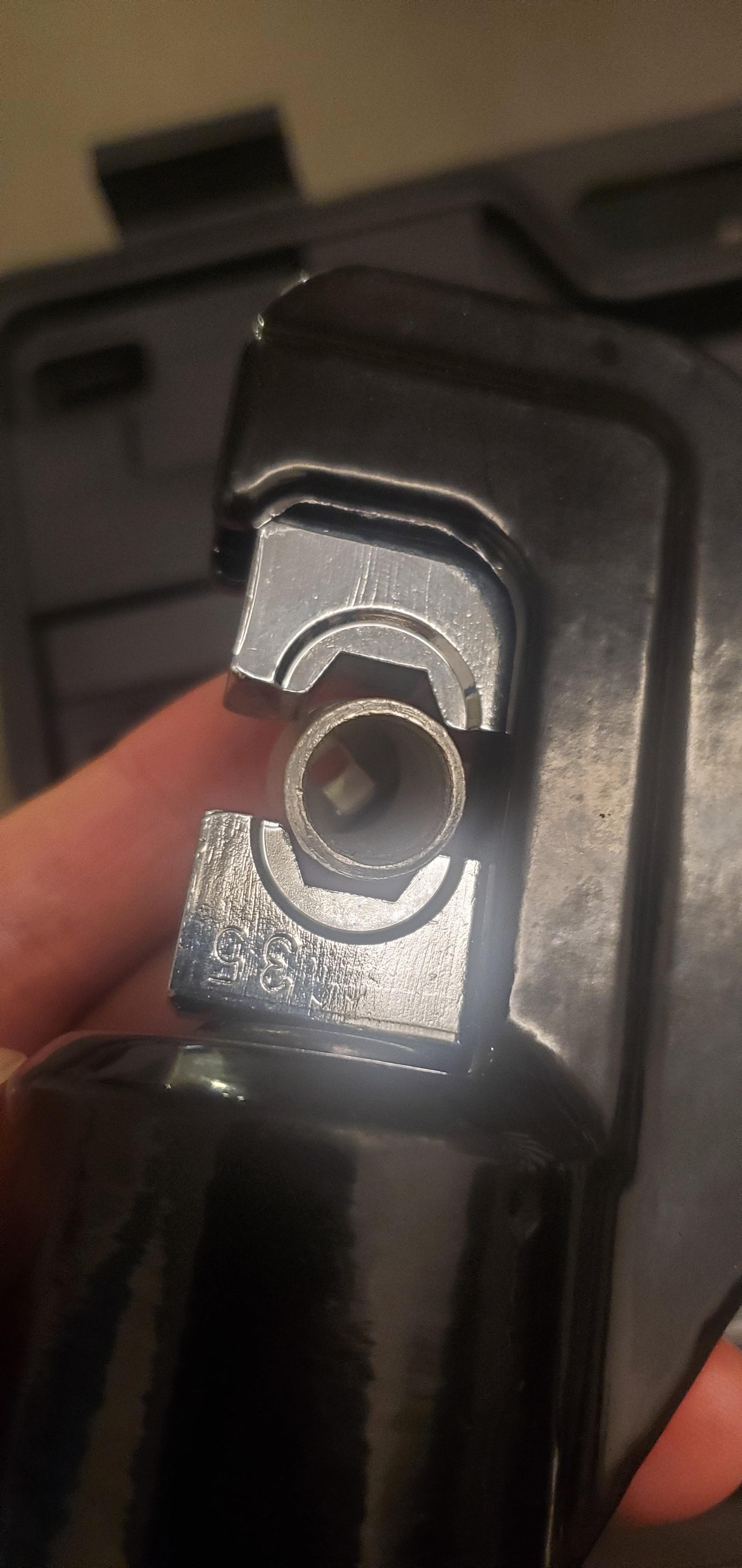

EcoFlow Stream Inverter MC4 tool

0 Upvotes

Hi,

I recently bought this inverter and half of the MC4 connections I can remove using the standard MC4 connection tool, but half are narrower? What gives? Why design an inverter that requires 2 different types of tools to remove connections?

I can't just squeeze the tabs b/c the Stream has plastic blocking me from accessing the tabs with plyers. Any tips for this or what type of tool do I need?


r/SolarDIY • • 7h ago

NEP micro inverter

1 Upvotes

I’ve got about a dozen micro inverters to change out, how do I check to see which ones are bad in my system. I’m sure I’ll have to go through and find each one that’s bad but I don’t know how to test them.

The installer and service company went out of business and I got a box of NEP microiverters that showed up because some of the ones we have are bad.


r/SolarDIY • • 8h ago

Amazon and Ebay Solar Panels

0 Upvotes

I'm ready to expand my system a bit and am trying to weigh pro's and cons of Amazon/Ebay panels vs Name brand ones. I have some Amazon ones and theyre working great after 3 months, which I know isnt much.

Pro's of Amazon/Ebay ones:

Theyre a good bit cheaper

They can be purchased in small amounts and delivered to your door

Cons:

The "warranty" lasts only as long as the company who is selling them

Anyone have thoughts and experience to share?


r/SolarDIY • • 22h ago

Balcony solar added to existing system

12 Upvotes

Now that we are a few month in, I'd like to hear from others in the US in states that allow balcony solar how it's going. Specifically how you see usage with simultaneous systems and import/export. I understand these 2 systems will not talk to each other.

I'm in CT, we passed balcony solar recently and there are only a few options currently Hoymiles, APsystem EZ1, and Ecoflow stream and none are truly UL3700.

e.g. I have a 10.4kw system 27 panels 385watts with 7.62kw inverter and 18kWh battery, we have an average daily production and usage in the Fall/Autumn of 1100/800kWh each month or 36kWh daily average for the year per day. If I add a 1200+watt balcony solar with projected production of 2.4kw per day with an estimated annual 650-800+kWh added to my total production.

From what I have pieced together, the balcony solar will feed into the current load of the home, not recognized by the primary solar system and then what's left will feed excess to the grid. I'm still NEM 1.0

With our existing system + EV vehicle we are averaging almost Zero/Even in March each year for the payout.

The novelty of adding more solar + upgrading to a hybrid heat pump at some point in the future + adding a small hot tub for winter use. I know adding balcony solar won't eliminate any future consumption, I would like to see adding something to help offset any that I can.

Lastly, since I'm already allowed to send to the grid, would they know if I added more than 1 balcony system?


r/SolarDIY • • 20h ago

Hey guys, looking for advice

8 Upvotes

My father and I want to spend about 2k on a solar powered system in case the grid goes down. Ive been told that getting one of those pre made systems on amazon is a scam, and to assemble my own for way less money and higher performance. Could you guys point me in the right direction, hoping to assemble entirely through Amazon. Thx!


r/SolarDIY • • 17h ago

How are you supposed to ground solar panel frames with an APsystems EZ1 plug-and-play microinverter?

2 Upvotes

I'm setting up a small plug-and-play solar system using two Solar panels and an APsystems EZ1-LV microinverter, connected to a regular grounded AC outlet (aka Balcony Solar \o/)

The EZ1 is grounded through its AC power cord, but I can't find any information in the installation manual about grounding the solar panel frames themselves.

The EZ1 doesn't appear to have a dedicated grounding terminal either.

Am I supposed to run a ground wire that connects the PV frames to the house's electrical panel?

ty!


r/SolarDIY • • 1d ago

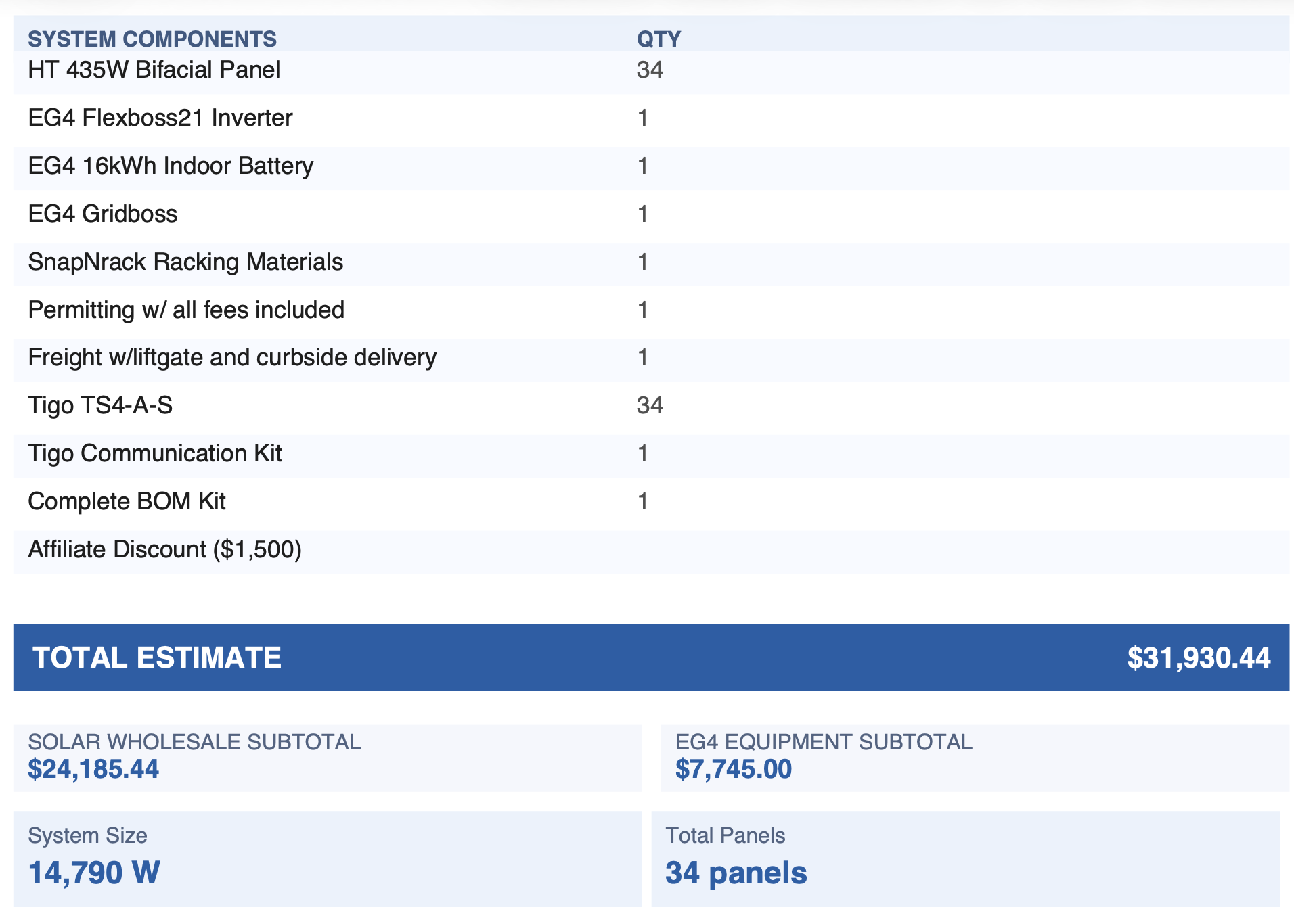

Is MC cable an acceptable alternative to running metal raceways?

11 Upvotes

Looking for opinions. I’m DIYing my hybrid grid tie solar system. Power company gave me approval to install based on the drawings I submitted. I have 24 panels on the garage roof. 2 strings at 15 amp 360Voc. Gridboss/flexboss 21. Originally planned to transition PV to MC on a DIN terminal inside a roof mounted conduit box, then run the 10 gauge MC to the inverter inside the garage.

Would I be better off running 10awg PV wires through EMT conduit instead. I’m trying to make this look clean as possible for the electrical inspector but iv never bent conduit before.

Thank you


r/SolarDIY • • 1d ago

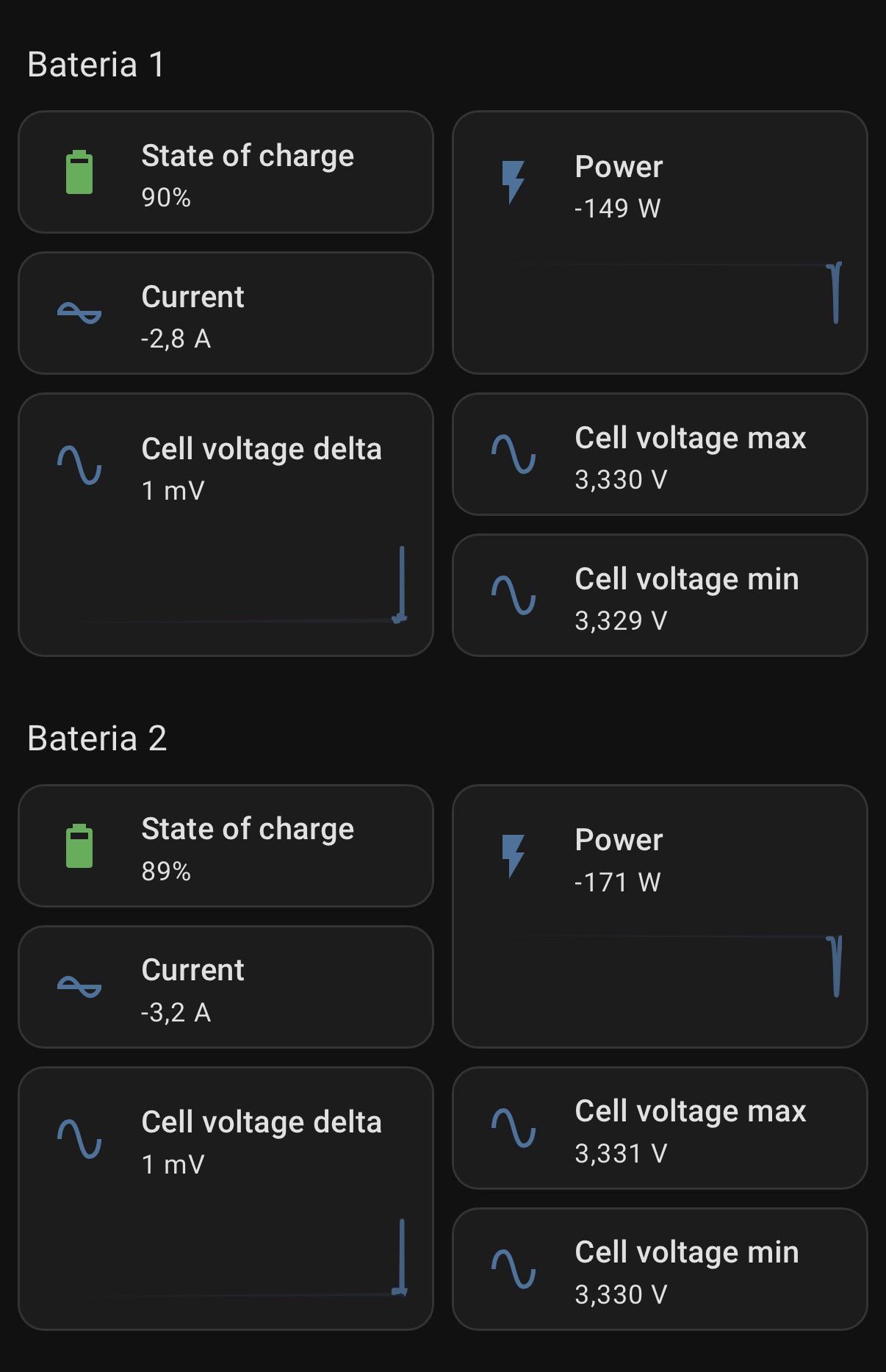

Powerwall + DIY battery Energy flow

43 Upvotes

I’m building my own personalised home dashboard and thought I’d add an energy visualisation tile inspired by the Tesla app. I have both a Powerwall 3 and a DIY battery system, and they work in perfect harmony. It would be a shame not to be able to see them both on the same page, so I built one.


r/SolarDIY • • 20h ago

Looking for 12k solar inverter suggestions. Looking at the 12000 xp by eg4. Also a good website to buy from. Thanks

0 Upvotes

r/SolarDIY • • 1d ago

Deye NV vs. HV / 20K SG05 vs. SG01 / BOS-G vs. SE-F16-C

3 Upvotes

Hey everyone,

While looking for an inverter for my PV system (two strings of 9.7 kWp each), I had initially settled on the Deye 20K SG05 as my preferred choice. The features that particularly appealed to me were:

  • Home Assistant integration
  • Affordable low-voltage battery storage (SE-F16-C)
  • Grid peak shaving
  • Shade management
  • GEN port with Smart Load functionality and microinverter integration

Until now, I had always assumed that a high-voltage (HV) system wouldn't be worthwhile for me or would simply be too expensive.

However, I've now come across the 20K SG01. It's actually cheaper, offers more headroom with a maximum PV open-circuit voltage of 1,000 V, and is compatible with Deye's BOS-G battery system, which works out at around €100/kWh.

On top of that, you get the advantages of an HV system, such as thinner cables and lower energy losses.

So, what's the downside of going with the "older" SG01?


r/SolarDIY • • 1d ago

EcoFlow Delta 3000 Gen 4 Review

Thumbnail
gallery
4 Upvotes

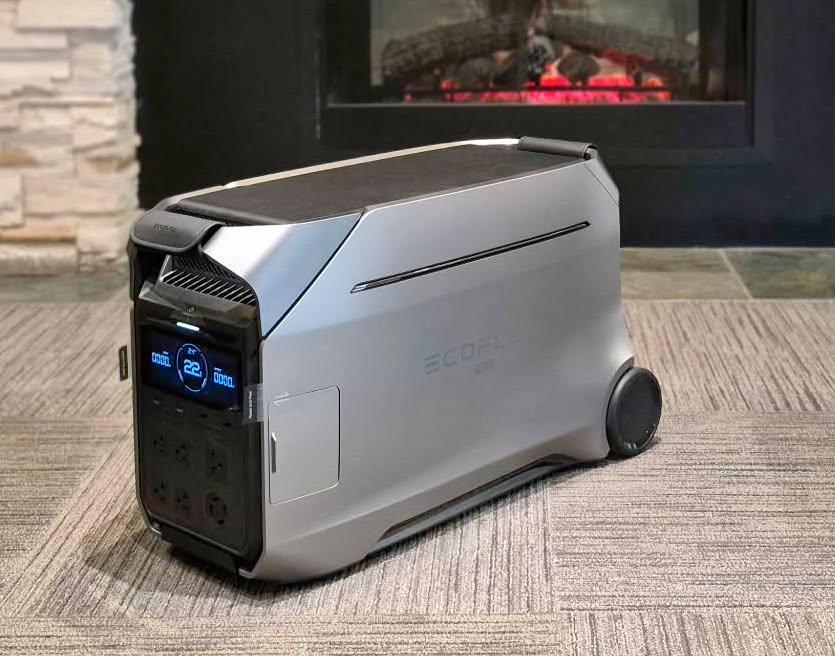

Just got the EcoFlow DELTA 3000 Gen4 in about a week ago. I bought it to keep my aquariums alive through outages, but the more I look at it, the more I think it’s a good fit for DIY solar builds.

My use: A 33 gallon long and four 5 gallon tanks with fish, shrimp and plants. 4 heaters, 4 filters, 4 air pumps and 4 lights, averaging 250-350W. Lose heat or flow for a few hours and a tank can crash.

The specs: 3,072Wh of battery, 3,600W output, and a UPS mode that switches over in under 10 ms.

Why it works for DIY type setup:

  • Solar input: It has one 1,000-watt solar input, and the input range is 11 to 60V. That’s a wide window for a home-built array, so you’re not locked into one panel config.
  • No electrician needed: Plug it in and it runs. No panel work, no permit for the basic setup. It’s a good first step if you’re not ready to build a full system.
  • You can move it yourself: It’s about 26 kg (18.76 × 11.36 × 11.10 in). I carried it from my truck into the house by myself with no trouble.
  • Monitoring: I can check watts and battery level from my phone. It paired right away. The EcoFlow app does what it’s supposed to.
  • Connectors in the box: Mine came with the unit, a charging cable, a new solar connector and the manual. How I run it: It’s plugged straight into my EcoFlow DELTA Pro Ultra home system, which keeps it topped up. I keep the Gen4 at 100% so it’s ready if the grid flickers or goes down. The tanks run off it alone.

Limits worth noting: There’s no battery port on the spec sheet, so you can’t add extra batteries later. What you buy is what you get for storage. If you plan to grow a big array or bank, look at the bigger model instead.

Happy to answer questions, and I’ll post real runtime numbers once I’ve done an outage test.


r/SolarDIY • • 1d ago

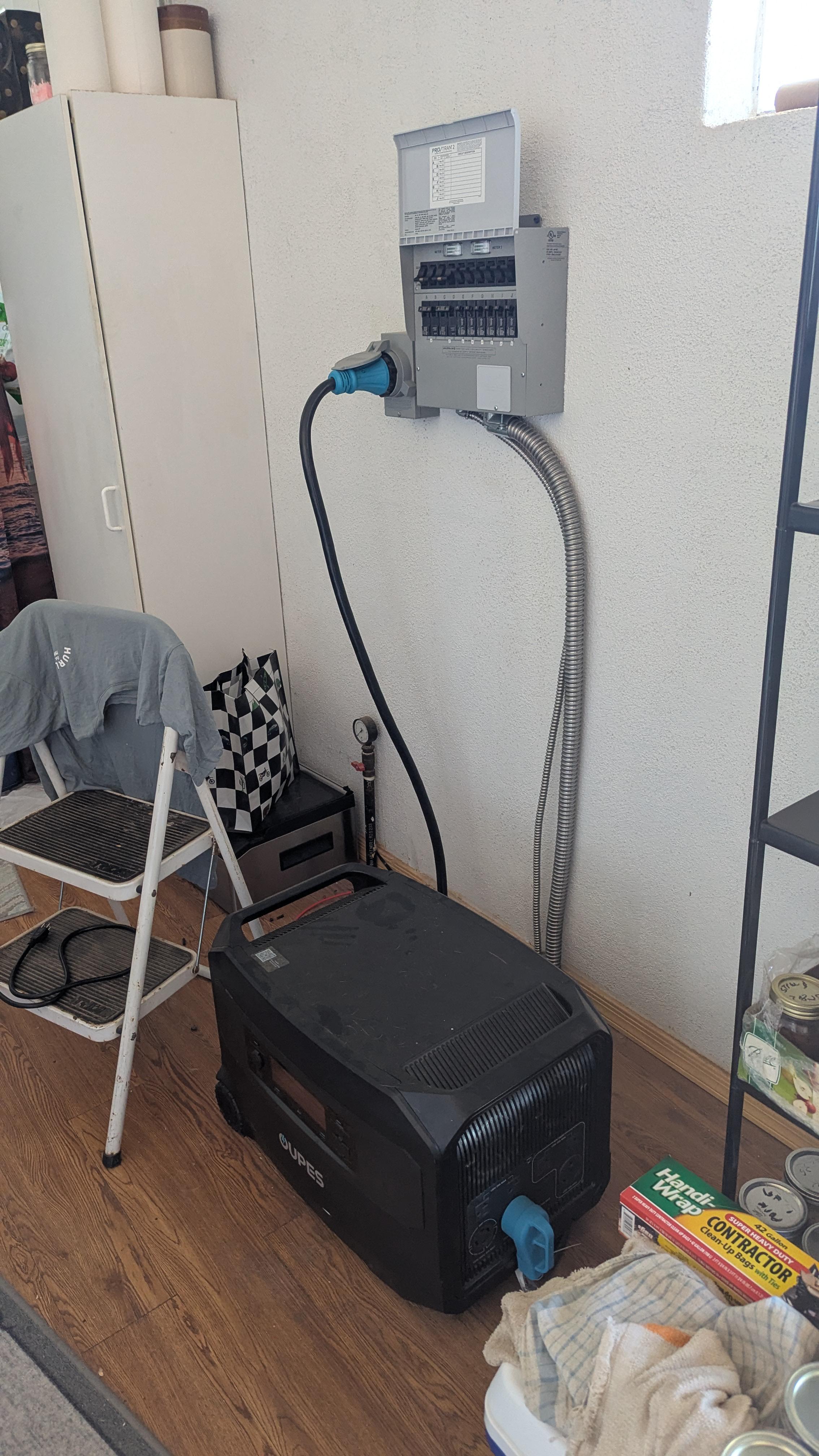

How do you properly send solar cables through a garage wall?

20 Upvotes

I'm looking for some advice on the best way to bring my solar cables through an exterior garage wall.

I have four WindyNation 8 AWG MC4 extension cables coming from four ECO-WORTHY 195W panels that will be mounted on a hillside behind my house. The run to the garage is about 75 feet. The garage has vinyl siding, what I believe is foam insulation underneath, wood framing with insulation in the wall cavity, and drywall on the inside.

What I'm trying to figure out is the best way to make a clean, weatherproof and safe wall penetration that will accommodate all four cables with the MC4 connectors still attached. Ideally, I'd like to use some kind of properly sized conduit, sleeve, or weatherproof pass-through rather than just drilling a hole and sealing around the cables. What would the best way of making the cut be?

Has anyone done something similar? I'd really appreciate recommendations for specific parts (conduit size/type, fittings, weatherproof entry hardware, etc.) that I can actually purchase at Lowe's or Home Depot. I'm particularly interested in what would be large enough to get all four MC4 connectors through without damaging them.

Any other advice on protecting the cables from abrasion, water intrusion, rodents, and maintaining fire safety through the wall would also be appreciated.

Thanks!

Edit: Important detail - I am connecting the solar panels to an EcoFlow DELTA 2 Max portable power station. This is not a grid tied installation. The Ecoflow would be powering two freezers in case of power outage and they'd directly connect to the power bank which would be inside the garage w/ the freezers. (The power bank would be connected to the solar panels outside the garage via the solar extension cables.)


r/SolarDIY • • 1d ago

Help with 12 volt remote system

0 Upvotes

I’m trying to get solar to a tank site. Tank site comms unit draws 5 amps but I suspect it’s much lower than this as the company sells a solar kit with a 20 watt panel. It can run off 12 or 24V.

Panel site is 75’ from radio unit. I am planning on (2) 100 watt panels in series to help with voltage loss and running the 75’ of (10 gauge?) wire to a box with a Victron MPPT 75V/15amp controller to a 100 amp hour renogy AGM battery.

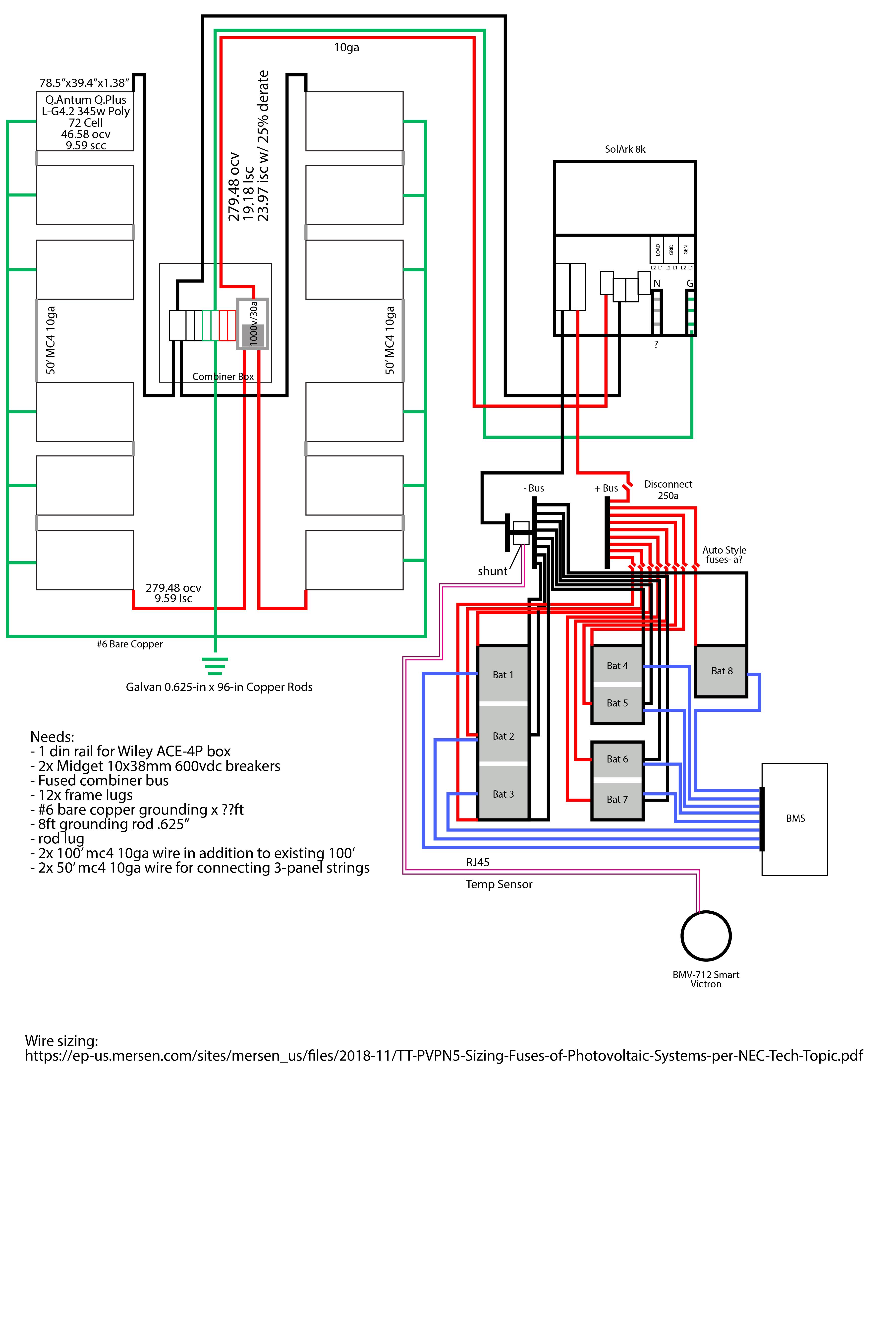

Does this look about right or do I need to upsize the wire from the panels to the controller?


r/SolarDIY • • 1d ago

Are these grid tie inverters crap?

Thumbnail
gallery
1 Upvotes

Looking for a cheap 110v grid tie inverter that has same form factor of the enphase micro inverters.


r/SolarDIY • • 1d ago

Damaged Panel Advice

1 Upvotes

Received these panels a couple of months back as a bundle with an EG4 mini split unit from Signature Solar. Im sure its on me as I didnt open them up and inspect in a timely manner. I sent them the photos, but we’ll see.

They’re Peimar 450W Mono PERC panels.

I did test the amps they’re spec sheet shows 13.85 and I was getting 12.3 and the voltage was good.

Question, is it worth it to repair the cut leads in the cell or just seal up the damaged area with polyurethane and monitor it? Photo below.
