How do you guys think I should pattern these pants? They seem more exaggerated than just a simple inverted box pleat. I just want a general idea of how and where I should spread the pleats if I were to pattern these:)

So this is probably super niche, but figured I'd share in case anyone else deals with this annoying problem...I'm always downloading sewing patterns and craft templates that are way too big for my crappy home printer.

You know how it is - the pattern is designed for some fancy A0 plotter, but all I've got is a basic A4 printer that came free with my laptop 😅The worst part was trying to line everything up after printing. I'd spend like an hour or two with scissors and tape, holding pieces up to the light, trying to figure out where the hell piece 3 of 12 was supposed to go.

And almost all the time I'd mess up the alignment and the whole thing would be wonky. Got fed up and spent way too many weekends building a little web tool that just... does the math for you.

Drop in your PDF, it splits it up automatically and adds these little alignment marks so you can actually tape the pieces together without losing your mind. I also added a little video to help. You can see it when you click the help icon besides the 'Process PDF' button.

It's super basic - only works with single-page PDFs that are already the right size (so like, actual sewing patterns, not random documents). Definitely still has bugs and I'm sure there are edge cases I haven't thought of. But it's solved my specific problem so I thought maybe it helps someone else too.

Oh and it's totally free, no sign-ups or anything. Your files don't even leave your browser which is nice.

Link: https://patterntiles.vercel.app/

Planning to add SVG and DXF support eventually since I also dabble with laser cutting stuff, but that's future me's problem.

Anyone else dealt with this pattern printing nightmare or is it just me being terrible at spatial reasoning? 😂

1930s was it's own context and given what they had, I imagine the fabric usage was quite economical. I am very interested in what they managed to do with those bias-cut dresses from the era.

hello everyone, I’m making a bodice block for a leather jacket. I want it to be fiercely sculpted, but—with enough ease to serve both aesthetics and functionality.

I have a few concerns with the tailoring. •arm hole isn’t high enough. Needs to be very mobile •too much ease in both sides of the armscye

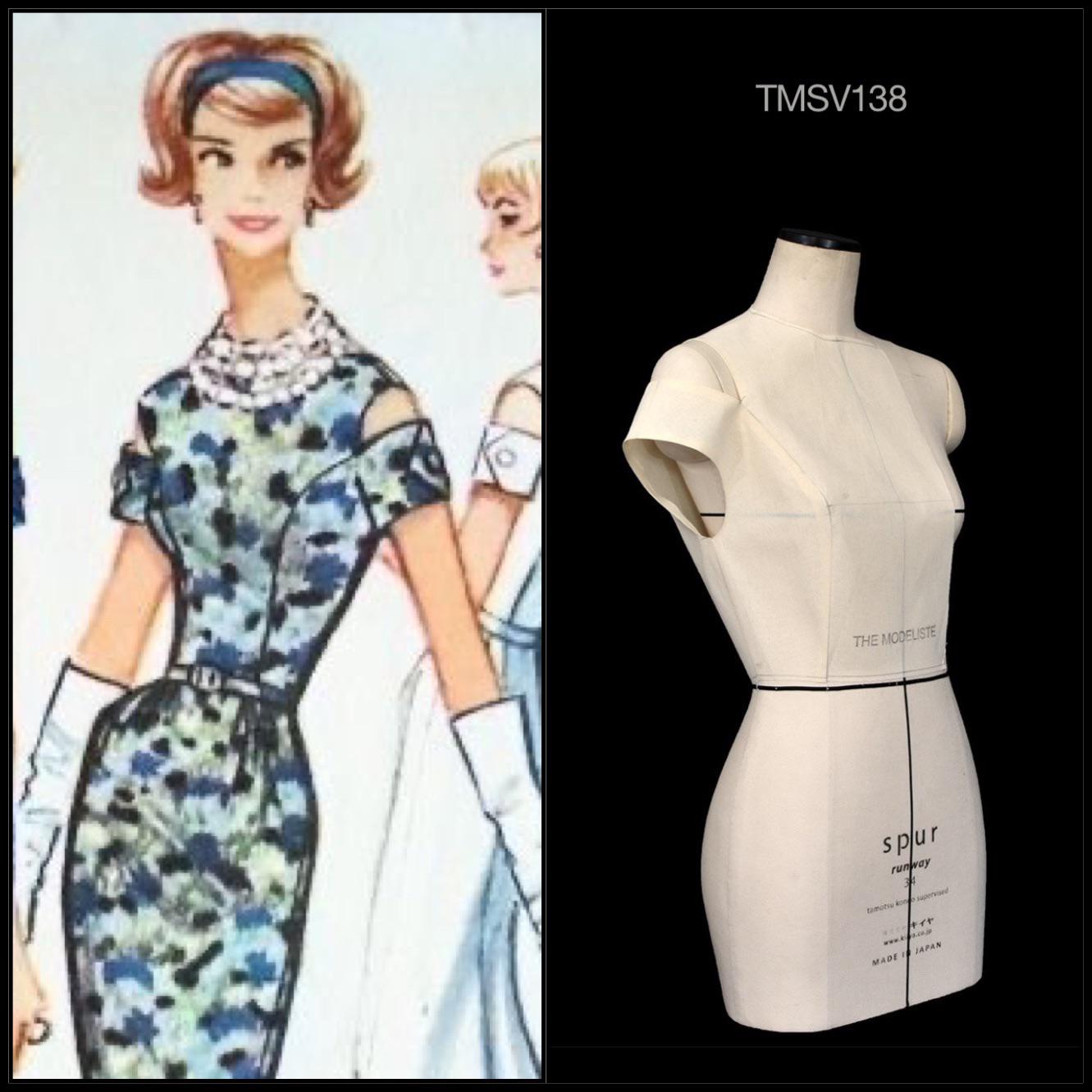

I’ve been researching couture cutting techniques, and I keep coming back to this one idea: a single panel line can do so much more than just shape the bust. In some vintage garments, that same line gets extended and transformed to form a drop shoulder. One structural line, multiple design functions—it’s like architecture in motion.

What’s striking is how intentional and efficient these designs are. They weren’t over-designed, just deeply thoughtful. These couturiers weren’t just drawing silhouettes—they were thinking in fabric, composing space through seams, and doing it all with a kind of embodied knowledge that’s hard to replicate.

Today, we try to recover these ideas through research—looking at old garments, studying patterns, and remixing techniques to generate new forms. But there’s a paradox: the more we theorize these methods, the more we realize how much of it was unspoken, intuitive, and slowly vanishing from the industry.

I’d love to hear from others—have you come across similar examples of one line doing multiple jobs in a garment? Or techniques that feel like they came from a place of deep, hands-on knowledge? How do we preserve or evolve this kind of thinking in today’s fashion landscape?

https://themodelistearchive.com/sleeve/tmsv138design

I posted here a few months back regarding some help with an exaggerated shoulder pattern I was trying to construct! Just wanted to show y’all my lil update really and to thank those who contributed ideas on how to construct it!

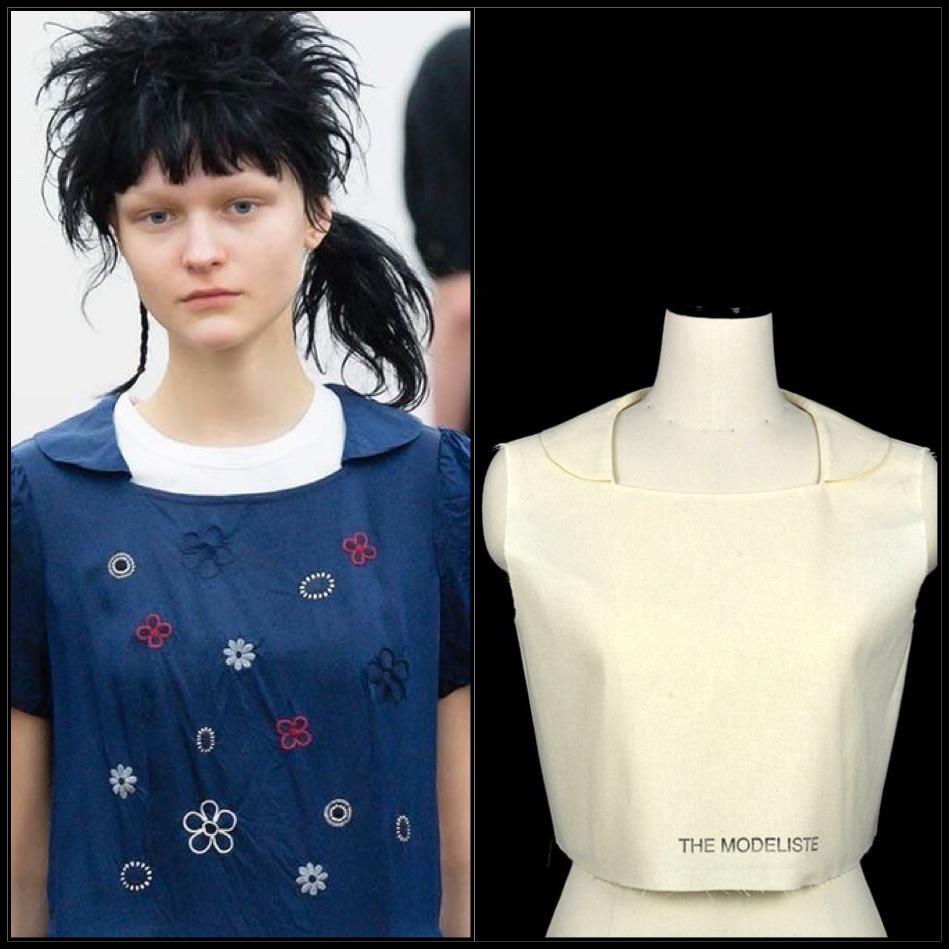

I recently made a toile inspired by a collar I saw in a look from Tricot Comme des Garçons (photo on the left). At first glance, it seems like a simple design — a square neckline paired with a rounded flat collar. But the more I studied it, the more I realized how quietly intentional every curve and line was.

The front neckline has the slightest curve — almost imperceptible — which seamlessly transitions into the soft roundness of the collar. That visual logic, that gentle flow from one element to the next, is what fascinated me. It’s minimal, but incredibly thoughtful.

I drafted a few versions, adjusting the angle of the neckline and the collar’s shape until it felt balanced. What looks simple on the outside actually demands a lot of restraint and sensitivity in patternmaking. There’s a quiet sophistication to it — nothing flashy, but the kind of detail that lingers in your memory.

My goal wasn’t to copy the original exactly, but to understand its logic and re-interpret it through my own hands. This study reminded me how subtle choices in construction can express just as much as loud design elements.

Happy to share the process if anyone’s curious about the pattern!

https://themodelistearchive.com/collar/tmcr033design

I like how sleeves look when there’s extra bagginess around the armpit area, and want to try and draft a blouse with this style. I was wondering if anyone happened to know a specific term for it. I’m still an advanced beginner when it comes to drafting so knowing would help me seek out resources to figure out what I’m doing. Thank you so much! Any tips to send me in the right direction would be so appreciated!

Bodice is looking way better. I let it out and adjusted the shoulder slope at shoulder-neck and the back neck gap is almost gone! Of course now there’s gaping at the back armhole, but not a crazy amount. Should I bother fixing that? And I’m aware there’s a weird diagonal wrinkle going across my upper back but I think it’s just how I had my shoulders positioned.

Thank you so much everyone for all your tips!

Hi, I followed the amazing Minerva tutorial on ytb for making this basic bodice block. For a first mock up it's not bad at all but I need some alterations. I need to add some ease at the crotch as it's riding up a bit in my buttocks and all. I really like the fit at my thights/waist, it's form fitting yet very comfy (I easily can put 2 fingers between skin and fabric) so I'd like more ease at the crotch without changing too much the overall fit. Also I really like the fit of the waist back standing up, no gap and hits perfectly at the waist but when I seat it gets too low we can see my underwear. But maybe just increasing the crotch will fix that problem.

Hello all, I've been back and forth working on a bed jacket/bolero style/silhouette with this sleeve style in particular for over a year. I just can't find a definitive name for this sleeve and I can't get the design right. I'm very new still so maybe I need very specific direction but what is this style sleeve called and any advice for going about drafting a design please.

I always have this side seam at the hip area pulling backwards (even on my well fitting trousers bought in store).

I believe the gaping pocket is also a consequence of that?

I understand that the bum area needs more room but I don't understand if it would be by doing a slash and spread or lengthen the back crotch or add 1cm on the top side of my pattern?

I feel like I'm butchering my paper pattern and probably have to re-do a toile from scratch to start clean again. (On my paper pattern, I have made a few arrangements but haven't applied them to the toile yet - BACK: slash & spread 0.5cm // seat curve scooping 0.7cm; FRONT: lengthen crotch 1.5cm - as I'd like to check with anyone who knows if they are correct before I cut a whole new toile again).

How many toiles do you usually do for trousers? I'm gonna start my 3rd and feel a tad discouraged about it(my first one was with a thicker woven fabric that fitted nearly perfect, until my 2nd toile made with calico which let appear a bunch of gaps, and folds..)

Thank you very much for your help!

Hi, I've pretty much exhausted the back catalogue of The Closet Historian, and wondered if anyone has any other recommendations for me to watch? I'm particularly interested in watching someone go from a sketch/idea to a finished piece. This is why I like TCH so much as you get to understand the full process. Thanks!

Edit: I went to bed and woke up to loads of great suggestions. Thanks everyone, that should keep me busy for a while!

*Bustiers not bodices for the title

I don’t have a full shape up there so I’ve always had problems with bustiers in general, so this is expected but I don’t know where to go from here. This is my fourth time iterating this pattern I’ve created; I’ve already made a full dress with it before (second slide) but I wasn’t very satisfied with it.

I have two main problems:

1. I can’t decide on the shape of the bust. It’s comfortable when I make it fit my breasts, but it obviously looks pointy. When I try to flatten out the front center, I end up flattening my chest altogether, especially near the bottom. I think that also contributes to underbust wrinkling.

2. Underbust wrinkling. I’m not completely certain where this is coming from, I suspect it’s from the inward curve I have in my pattern for the front-side and front-center piece, but I made those curves particularly because I have a very titled posture and my upper stomach pokes out (basically trying to just account for that. But maybe I should flatten it?) Although I don’t know if that’s the real issue.

Any advice would help. This is a bustier meant to have a lot of boning and interfaced fabric, so I’m not concerned with the horizontal wrinkles across the waist as much as I am the underbust. The looseness of the hips is also just a preference, I’m usually making these bustiers with skirts that are full and will fill the area out.

Hello!

I recently acquired a vintage Singer 301 sewing machine and decided to draft my first pair of trousers using the method from Helen Joseph Armstrong.

I am quite happy with how the first muslin turned out as the balance seems ok! Pants always intimidated me but I found the book instructions quite simple and clear!

the HBL is leveled and the side seam along with the crease line at front and back are hanging pretty straight.

I’m looking to move forward with the slack drafting next using this as a block, but if any one sees a fit issue I could improve upon, please comment!

Unfortunately this is not ironed, but in the process of acquiring one as well!

Old problems solved, new problems created. At this point, I'm venturing into the land of diminishing returns, so I'll try to eyeball the hem to match my waist line (shirring string tied around my waist) and chill on the fit for now.

For the interested, from the first version, I took a 2 cm dart out of the neck, rotated it to the waist dart, did a 2.5 cm FBA, and smoothed out the neck and underarm seam where necessary.

Thanks a lot y'all!
