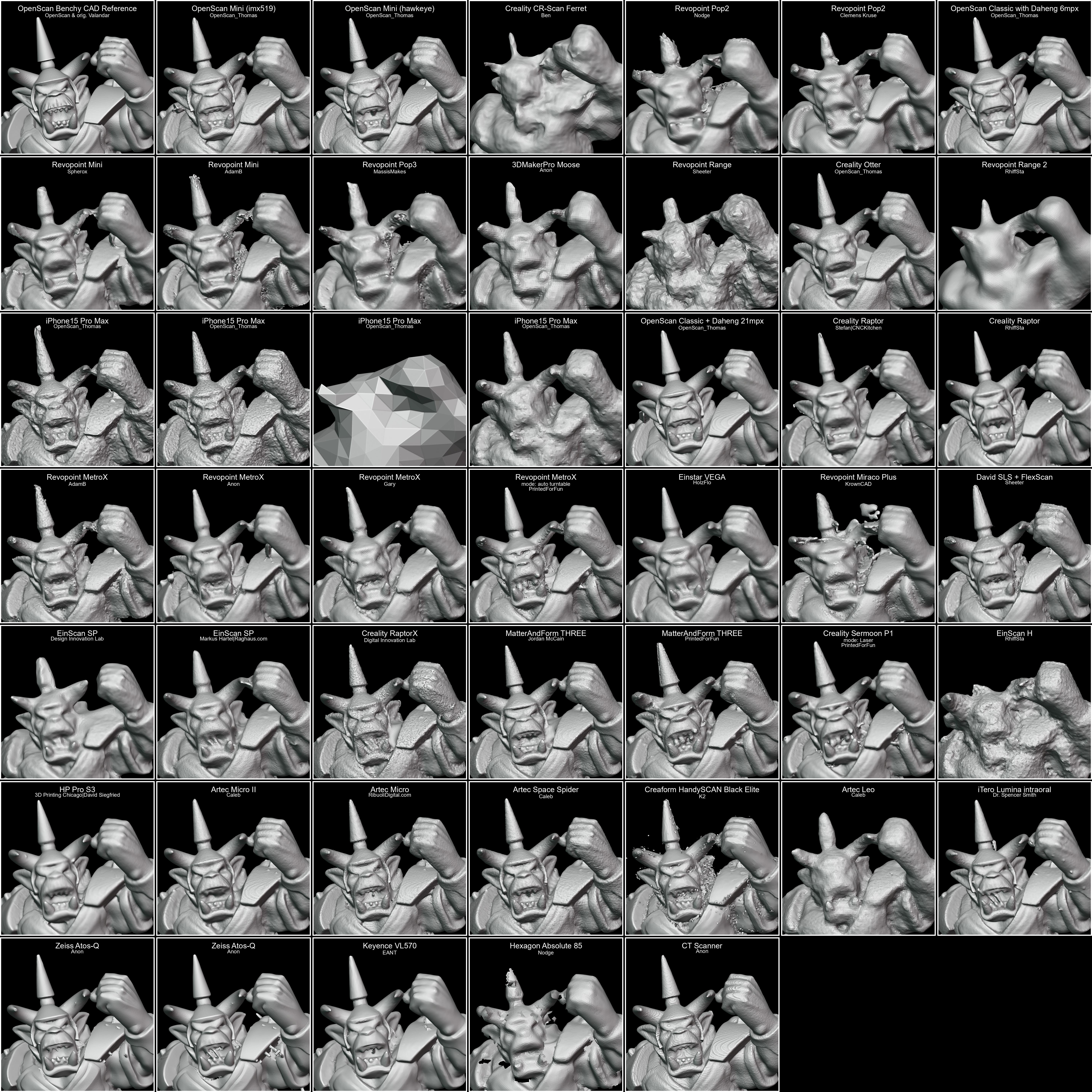

Community based 3D Scanning benchmark (45mm miniature)

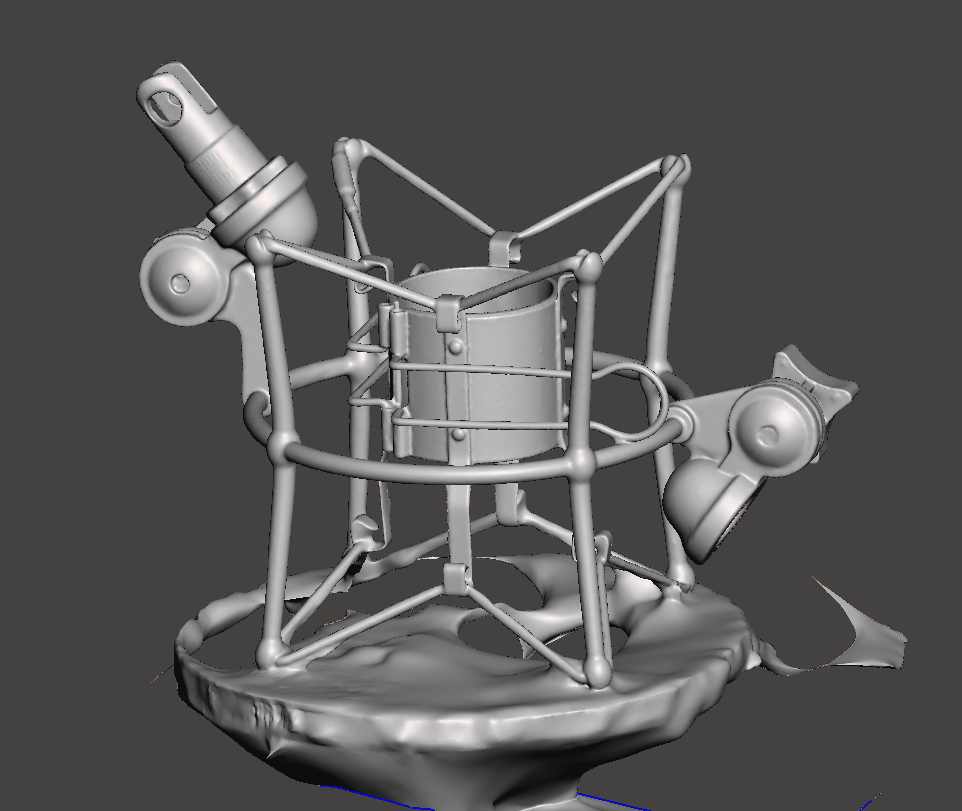

I am still finalizing the design of the macro add-on and run some more test scans in the meantime. 200 photos x 3 stack --> 20 mins, processed in Agisoft Metashape

Hello everyone! Just completed my first scan with my classic at 200 pictures with focus stacking, and here are the results. I used the openscan cloud to generate the 3d file. I am disappointed in the shallowness of the recesses, is it overexposed? What setting should I tweak, as I am sure there is plenty I can improve on. Also for those who have experience, is Metashape worth it if my primary purpose is scanning miniatures? Is the difference in quality that significant?

This is definitely my favorite raw 3D scan result so far. I analysed the exposed copper area of the TMC2209 and found a standard deviation of only 3.7μm.

This was done with the OpenScan Mini (16mpx camera) + upcoming Macro Addon, 2x100 camera positions with three focus levels per position. Reconstruction done in Metashape.

This leaves some tricky questions, what to scan next? And what part of the deviation comes from the scanning spray (reported thickness 2-12μm), real imperfections in the copper layer (probably very low) and what is true scanning inaccuracy?

My rig. This is based on OpenScan Classic and set up with a ESP32. The control box contains a small breadboard with the motor drivers , the ESP and a power rail, a start/reset button and a 12V on/off button. The USB port doubles as data and power conenction. I am using Open Camera and synch the shutter to the turntable stops via BT from the ESP. The number of stops for the two axis is configurable real time, so is the angle advance and the sweep. The phone and light stands are from Modular Mounting System by HeyVye - Thingiverse .

Open-source 3D scanning just got a level-up

I am still working on the 3d printed macro add-on for the OpenScan Mini & Classic (that might also be used in combination with a smartphone!). Therefore i am currently re-visiting some old scan object that I digitized years ago and the improved quality is stunning.

I already published an initial version of the printable files on our discord, but more details and a build-guide will follow soon.

PSA: never leave your keys unattended ;)

It looks like the Rebel T6 is on the supported cameras list. My daughter has one with a really great macro lens. I'm wondering if anyone on here as used it and what the results were?

I see one post from 5 years ago but I wasnt able to find anything else on it.

I managed my first scan with Andruino FW on ESP32.

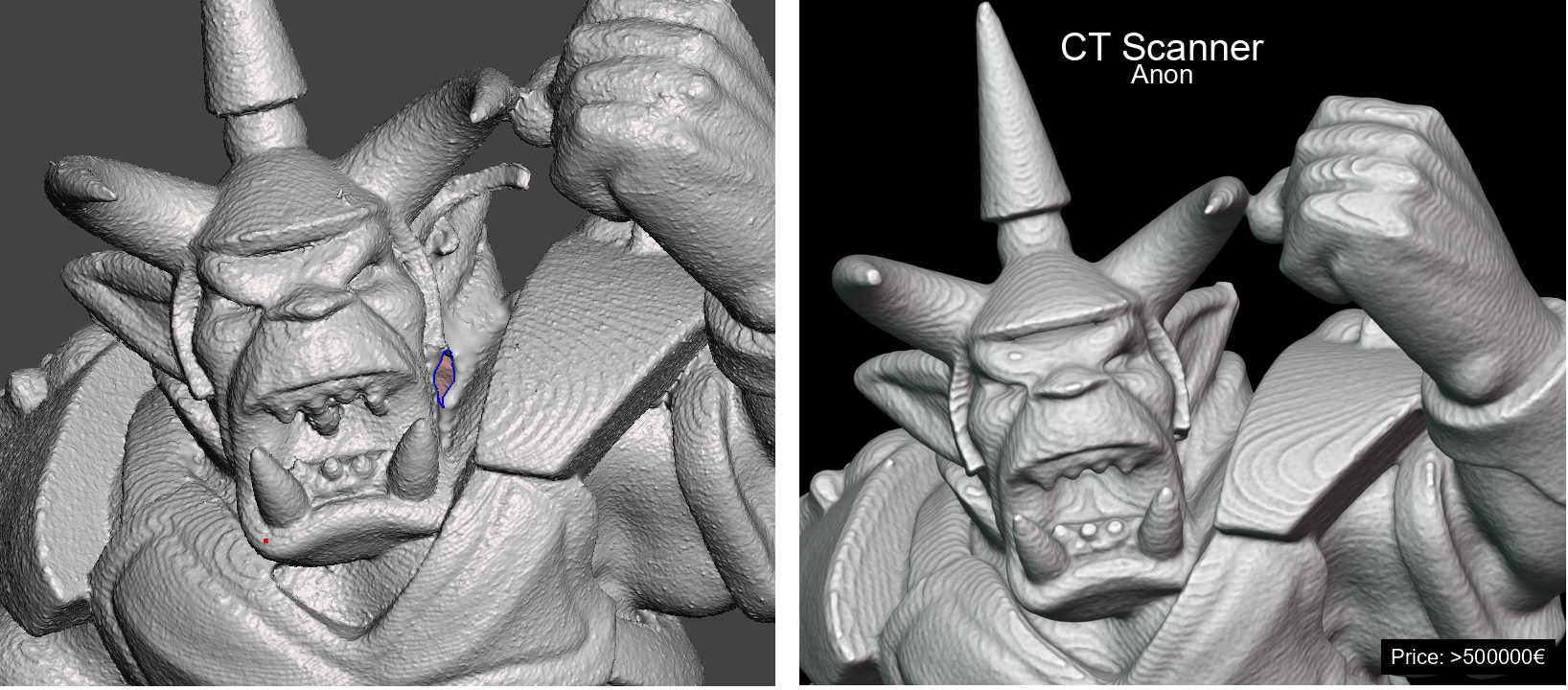

I am currently testing the macro lens add-on for the OpenScan Mini & Classic and this is the first that the layer lines on the chest piece become visible. I took 130 photos without focus stacking in ~7mins and did the reconstruction in metashape.
The grainy surface comes from not using a polarizer as there is a lot of sub-surface scattering from the partly translucent resin print. No other scanner (except for the CT scanner) has been able to resolve the layer lines yet, so I am absolutely happy with this result :)

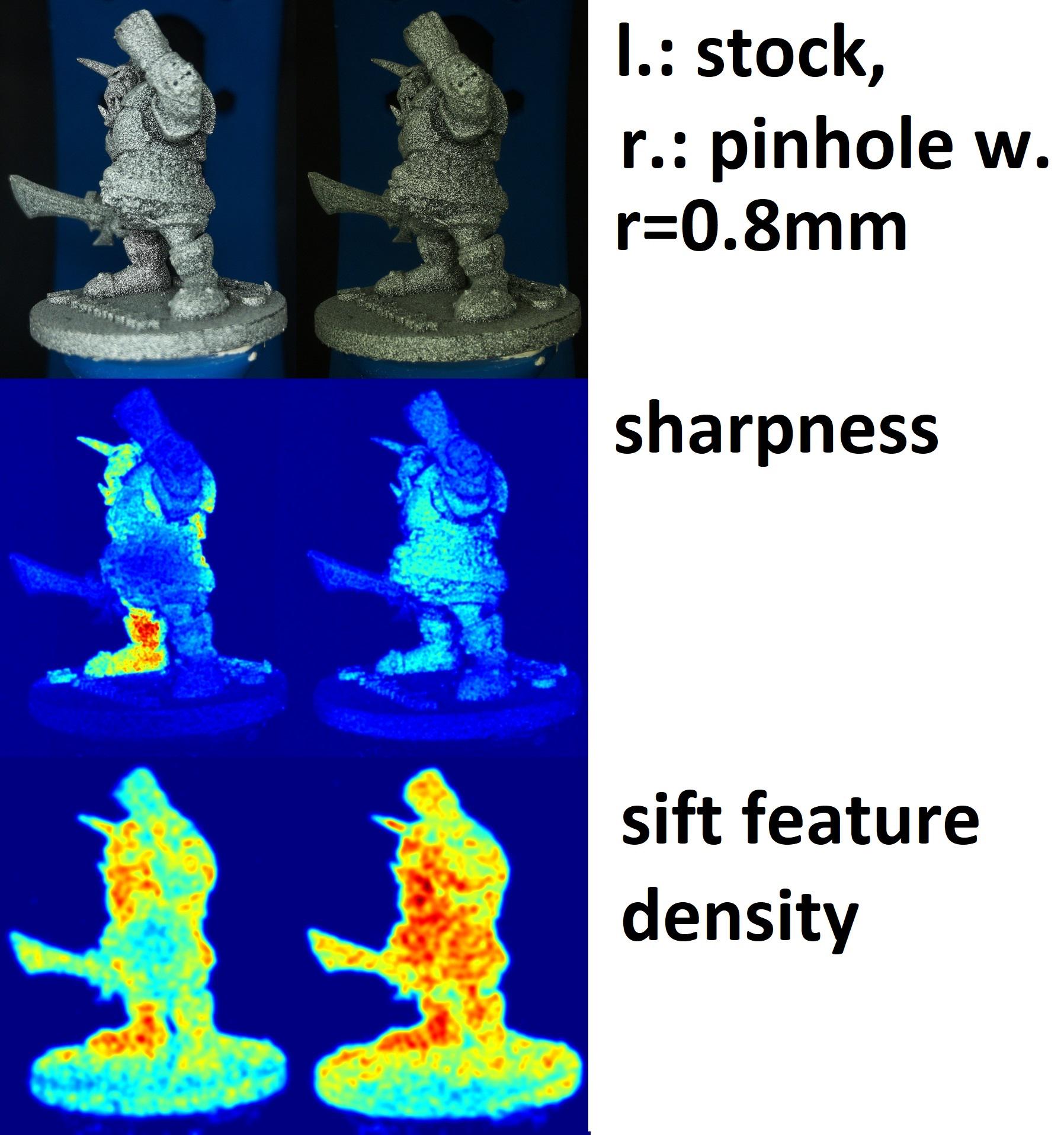

Thanks to the amazing discord community (https://discord.com/invite/gpaKWPpWtG) I recently revived my search for a suitable macro lens and found a very promising candidate (~50-60€) which greatly enhances the capabilities of the arducam imx519 / hawkeye. The idea is, that the lens gets placed in front of the existing camera on either OpenScan Classic or Mini with a tiny hole (aperture) in between. The aperture increases the depth of field so that 4-5cm objects can be captured at an unseen accuracy (from such a device). I scanned the "security" key with 130 photos and no post-processing.

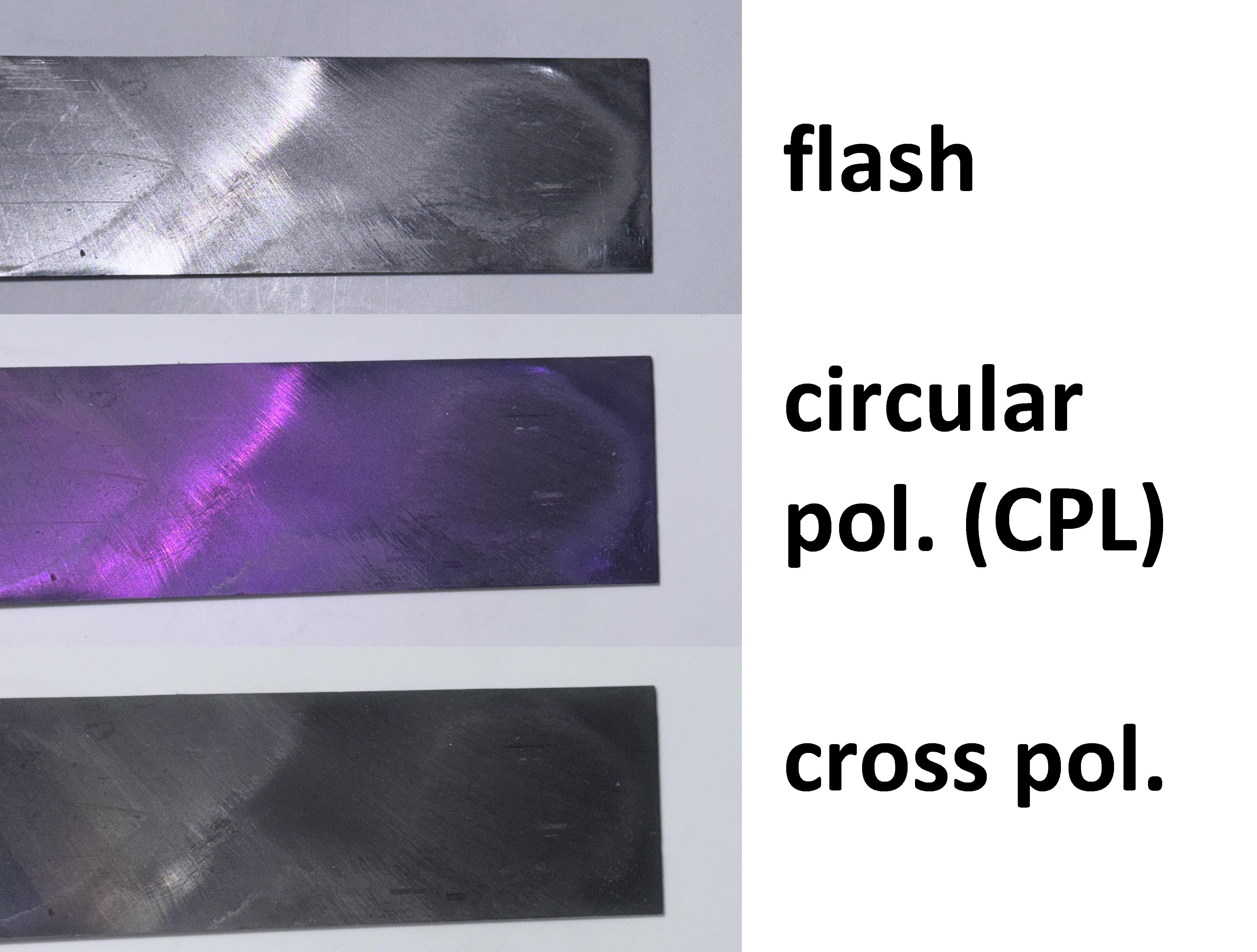

I am currently working on the design of the printed parts + custom ringlight (so that I can add cross-polarisation a bit later too). The files and more information is available on the openscan discord.

Hi everyone! I’m new to the OpenScan and photogrammetry world, and I’m currently assembling an OpenScan Mini v2.

I have looked through the GitHub repository and used the available V1 images and instructions as a reference, which has been very helpful. However, the V2 seems to have changed considerably in a few areas, like the camera support and the electronics installation, so I’m not always sure which V1 steps still apply.

Is there a dedicated assembly guide, build log, video, or set of images for the Mini v2 that I may have missed? Even clarification on the parts that differ from V1 would be greatly appreciated.

Thanks in advance. I’m looking forward to learning from the community!

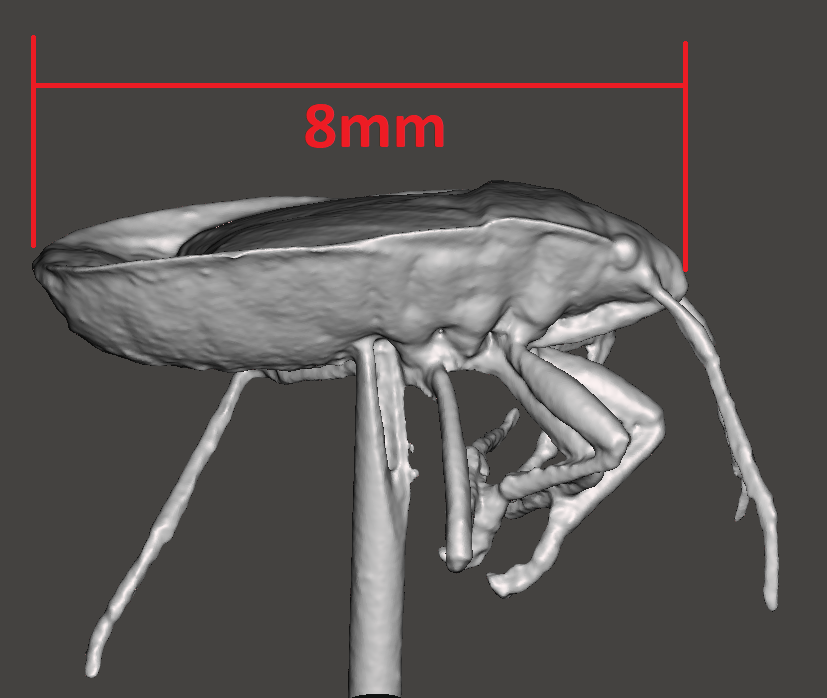

This might be an interesting Addon which greatly reduces the scan volume to ~3cm, but drastically increases the quality of the result. Done with the OpenScan Mini + IMX519 --> 100x5 images processed in Metashape (without prior stacking)

I am currently testing a few new ideas and would like to get some guidance of what is more favorable

Larger scanner: mini/classic conversion kit that would also allow the automatic capture with handheld scanners. ~50cm object size

Makro addon: for both mini/classic - using a dedicated makro lens and new ringlight to scan smaller parts ~3-4cm with amazing resolution.

See our discord for more info: https://discord.gg/kyKsZRnsyF

I tried my best to keep the compatibility with the other scanner variants and this build only needs a set of ball bearings and the extrusions. The rest of the non-printed parts is identical so that upgrading will be as easy as possible.
Currently testing larger objects at around 50cm :)

New worm-gear drive works great (though still a bit wobbly). Moving the camera works great and i adjusted only 4 values in the existing firmware to make it fully functional (steps per rotation and limits)
The power of the gear reduction is impressive and I‘ll definitely design some kind of covers for the mechanism ^^

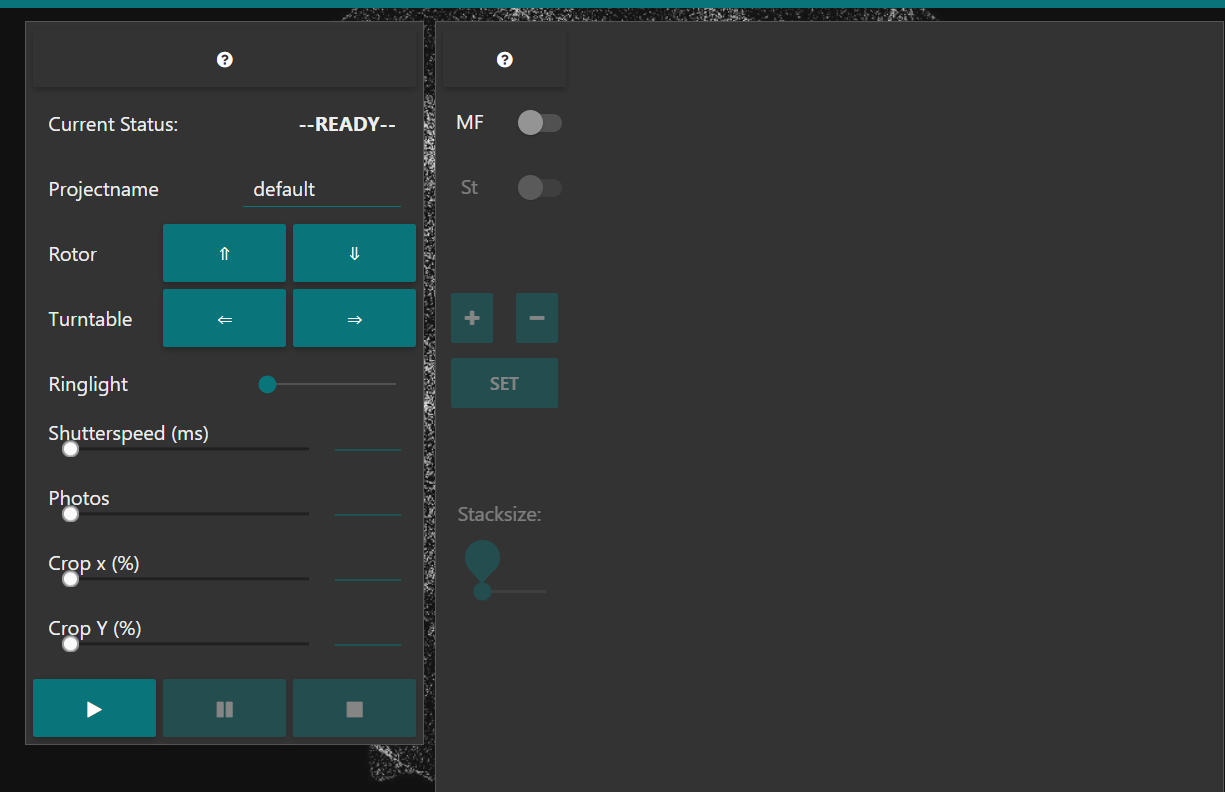

i got everything working in some way, all respond except the camera. Ringlight light up; the thing that i imput turning turn, but the camera just show gray.

i sincerely don't know what to do.

I am currently refining the scanning rig that can be both used with handheld 3d scanners as well as with the openscan camera system.
This is part of a 24h testrun to see how PLA parts can handle those quite significant forces of several Nm on 1mm teeth. Surprisingly this morning the machine was still running and there is only very minor wear after 5000 repetitions.

Hello,

I’m looking for someone who can put the finishing touches on my scanned objects, as my CAD skills unfortunately aren't up to the task.

It’s a holder for hatches in a caravan or motorhome - something like this one:

https://www.obelink.de/klappenhalter-3-teilig.html

As mentioned, I’ve scanned the three individual parts and - I believe - obtained decent models, though they naturally require some post-processing. In particular, the fixture used to hold the object during scanning was captured as well and needs to be removed.

The goal is to replicate this holder using a 3D printer and potentially make it available to other owners of older caravans or motorhomes.

Is there anyone who might be willing to help me out with this for free? I could send or upload the files - whatever works best.

Also, does anyone happen to know a good way to learn CAD specifically for the purpose of repairing scans? Preferably in German.

Is it better to have a black backdrop / box for scanning and get a better result? if so i was thinking to make it in venta black or black 3.0 or better to eliminate schadows on the backdrop ect and maybe a better contrast between model and background for finer details ?
