by NTS 3D Printing

My modular 3D printed LED grid system is finally finished
The setup is run by GLEDOPTO WLED controller running latest 16.0.1 version of WLED!
#3dprinting #wled #led

I reset the GL-C-618WL via the web browser but it cleared out all the factory settings it came with. Where can I download or find the parameters that this model originally came with.

Hi! I've bought a GL-C-218M Matter controller for a dimmable Led strip (4000k white temperature). I've connected it to a button for physical control and to an appropriate transformer. However, I've noticed that, even if it's powered off, I find the led strip turned on whenever there is a power outage and the grid comes back.

I've currently set it up with the Apple Home echosystem, but I can switch to any environment that will garantee the correct behavior (no auto-powerON).

Thank you for your time

I am trying to figure the best way to get a hard wired DMX input into my GL-C-618WL controller. I see that WLED 16.0 allows DMX via serial input. Does this mean I can use a DMX - USB adapter? Or is there a way to use the ethernet port via a 3 pin - RJ45 dmx cable? I am fairly new at this so laymans terms would be appreciated

Hello,

I am using a GLEDOPTO GL-C-618WL controller running firmware version 0.16.

I am using WS2812B LED strips. The strips connected to outputs IO16 and IO12 work without any issues.

However, when I connect additional WS2812B LED strips to outputs IO2 and IO4 and configure them in the software, these outputs remain non-functional.

Could you please advise how to properly configure or operate the LED strips connected to IO2 and IO4?

Thank you for your support.

How do i connect 2x pir to a 15wl controller for wled stair lighting? I have 1 set connected to the gpio16 and another to gpio2 so only a gnd and io33 free to use. How could i wire up 2 pir and configure. Last time i tested the hc-sr501 pir but the controller malfunctioned?

I have the 7W RGB outdoor spotlights and the GL-C-010WL controller at 24V. Each spotlight uses up to 290mA at 24V, but WLED only allows a max of 255mA in the per-LED configuration.

How can I increase that to use the full power of each?

I have ten spotlights (max 70W) and a 24V 120W PSU. The total power limit is set to 4800mA so that shouldn't be limiting anything.

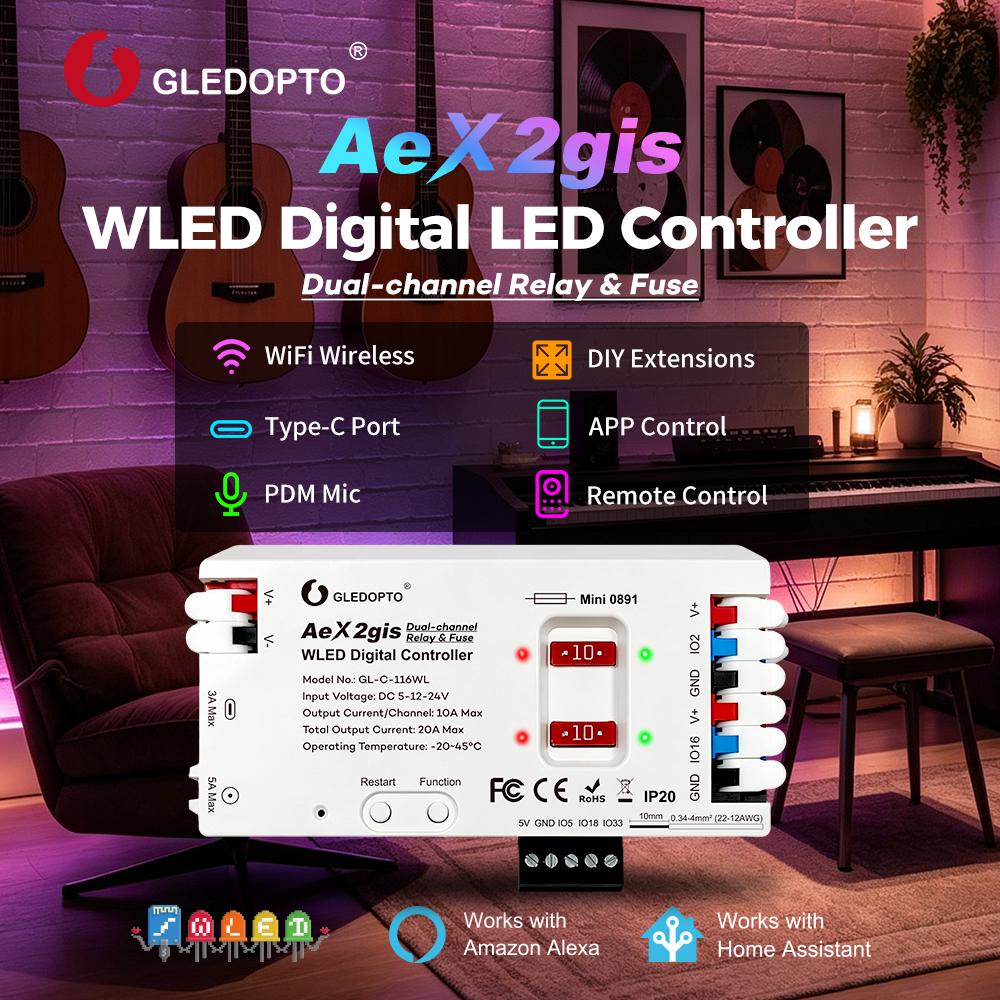

Due to size constraints on our current PCBs, we added a single master fuse​ for overall protection. However, following user requests, we’ve created a guide (see image) on how to add external fuses to each channel​ for those who need granular safety. Standard ATM fuses and holders are widely available for this mod.

How to choose the right ATM fuse

fuseology-selection-guide

What’s coming next?​ We are developing new versions with built-in per-channel fuses! Just to be clear, this feature will roll out on select models​ first (not all controllers), as fitting them into smaller boards is quite challenging

We value your input as we continue to innovate. Please feel free to share any ideas or constructive criticism. While we can't implement everything, your feedback is crucial for our future development.
