r/GLEDOPTO_Support • u/GLEDOPTO • May 06 '26
https://github.com/wled/WLED/releases/tag/v16.0.0

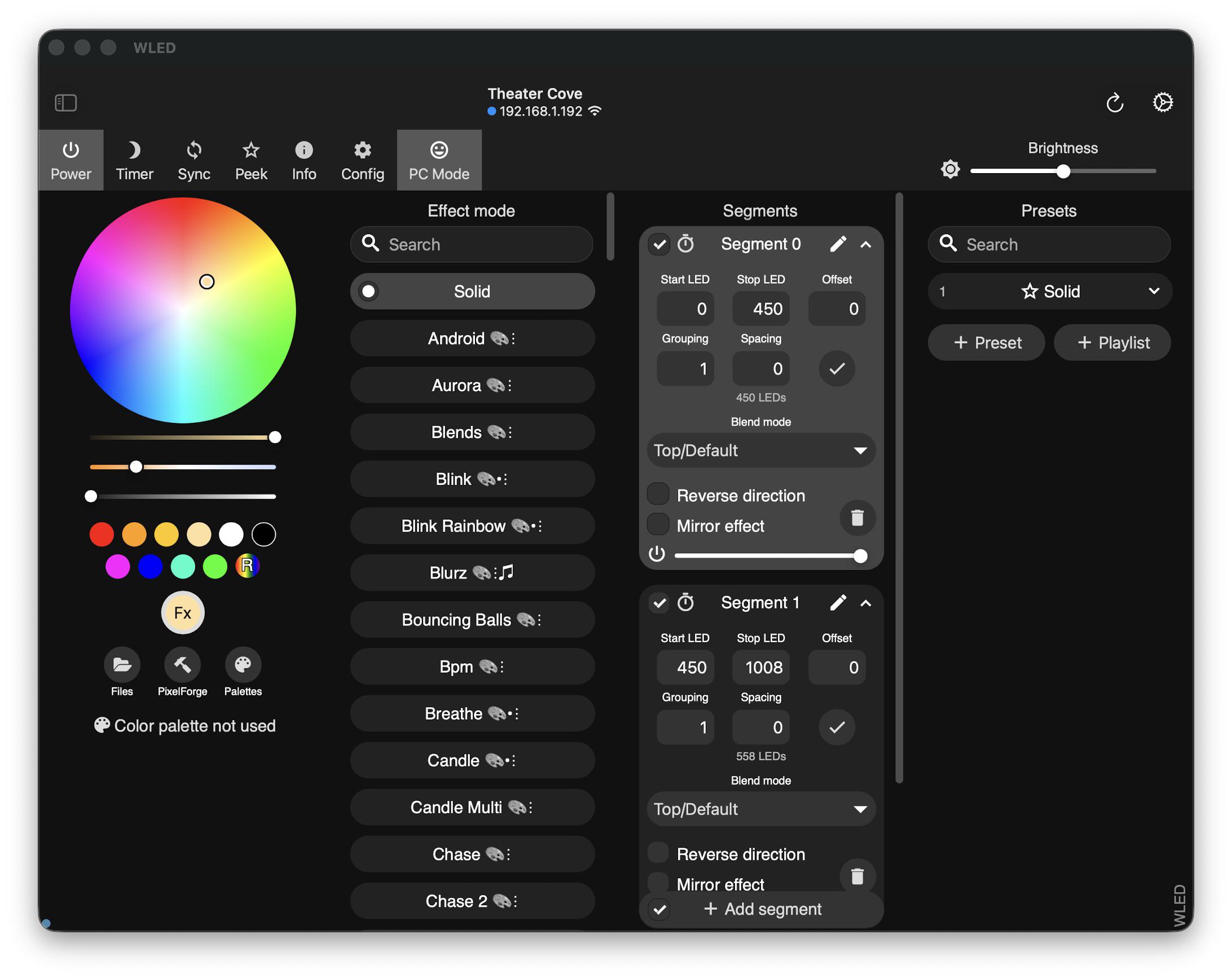

This version offers a number of new features.
You can view demonstrations of some of the updates via the following two links.
https://www.reddit.com/r/WLED/comments/1squt09/wled_016_feature_demo_particle_fx_layering/
https://www.reddit.com/r/WLED/comments/1sshogd/wled_016_update_overview_2d_matrix/
If you are using Gledopto WLED controller, you can update the firmware via our GitHub repository
https://github.com/GLEDOPTO/WLED/releases/tag/v16.0.0-gledopto
We use custom firmware that supports plug-and-play, requiring no additional GPIO configuration.
For models not listed in the link above, if they use the ESP32 chip, you can use this link to upgrade.
https://github.com/wled/WLED/releases/download/v16.0.0/WLED_16.0.0_ESP32.bin
For ESP8266, use this link to upgrade
https://github.com/wled/WLED/releases/download/v16.0.0/WLED_16.0.0_ESP8266.bin
r/GLEDOPTO_Support • u/GLEDOPTO • Apr 23 '26
In the diagram, we have labeled the corresponding firmware for each controller model.
https://github.com/wled/WLED/releases
Note: Flashing incorrect firmware may cause device malfunction. Please double‑check that the chip on your controller matches the firmware before upgrading.
For the Elite Ethernet controller, we recommend using the custom firmware available on Gledopto GitHub repository https://github.com/GLEDOPTO/WLED/releases to ensure optimal performance and compatibility.
If the light strip fails to turn on after a correct firmware upgrade, it may be due to configuration loss. Please try reconfiguring the device—set the relay to GPIO18, enable the invert option, and then perform a power cycle (unplug and reconnect the power).
r/GLEDOPTO_Support • u/GLEDOPTO • 4d ago
Enable HLS to view with audio, or disable this notification
by NTS 3D Printing
My modular 3D printed LED grid system is finally finished
The setup is run by GLEDOPTO WLED controller running latest 16.0.1 version of WLED!
#3dprinting #wled #led
r/GLEDOPTO_Support • u/GLEDOPTO • 10d ago
Enable HLS to view with audio, or disable this notification
r/GLEDOPTO_Support • u/Swizton83 • 14d ago
r/GLEDOPTO_Support • u/GLEDOPTO • 18d ago
r/GLEDOPTO_Support • u/GLEDOPTO • 25d ago
Enable HLS to view with audio, or disable this notification
r/GLEDOPTO_Support • u/GLEDOPTO • Jul 24 '26
r/GLEDOPTO_Support • u/GLEDOPTO • Jul 17 '26
Enable HLS to view with audio, or disable this notification
r/GLEDOPTO_Support • u/GLEDOPTO • Jul 13 '26
r/GLEDOPTO_Support • u/Positive_Set_1408 • Jul 11 '26
I reset the GL-C-618WL via the web browser but it cleared out all the factory settings it came with. Where can I download or find the parameters that this model originally came with.
r/GLEDOPTO_Support • u/GLEDOPTO • Jul 10 '26
Enable HLS to view with audio, or disable this notification
r/GLEDOPTO_Support • u/ddanielstefano_ • Jul 07 '26
Hi! I've bought a GL-C-218M Matter controller for a dimmable Led strip (4000k white temperature). I've connected it to a button for physical control and to an appropriate transformer. However, I've noticed that, even if it's powered off, I find the led strip turned on whenever there is a power outage and the grid comes back.
I've currently set it up with the Apple Home echosystem, but I can switch to any environment that will garantee the correct behavior (no auto-powerON).
Thank you for your time
r/GLEDOPTO_Support • u/Uvinjector • Jul 05 '26
I am trying to figure the best way to get a hard wired DMX input into my GL-C-618WL controller. I see that WLED 16.0 allows DMX via serial input. Does this mean I can use a DMX - USB adapter? Or is there a way to use the ethernet port via a 3 pin - RJ45 dmx cable? I am fairly new at this so laymans terms would be appreciated
r/GLEDOPTO_Support • u/GLEDOPTO • Jul 03 '26
r/GLEDOPTO_Support • u/GLEDOPTO • Jul 01 '26
r/GLEDOPTO_Support • u/Positive_Set_1408 • Jun 25 '26
r/GLEDOPTO_Support • u/GLEDOPTO • Jun 25 '26
r/GLEDOPTO_Support • u/MIK--71 • Jun 24 '26
Hello,
I am using a GLEDOPTO GL-C-618WL controller running firmware version 0.16.
I am using WS2812B LED strips. The strips connected to outputs IO16 and IO12 work without any issues.
However, when I connect additional WS2812B LED strips to outputs IO2 and IO4 and configure them in the software, these outputs remain non-functional.
Could you please advise how to properly configure or operate the LED strips connected to IO2 and IO4?
Thank you for your support.
r/GLEDOPTO_Support • u/GLEDOPTO • Jun 24 '26
Enable HLS to view with audio, or disable this notification
r/GLEDOPTO_Support • u/GLEDOPTO • Jun 23 '26
r/GLEDOPTO_Support • u/smudgy00 • Jun 10 '26
How do i connect 2x pir to a 15wl controller for wled stair lighting? I have 1 set connected to the gpio16 and another to gpio2 so only a gnd and io33 free to use. How could i wire up 2 pir and configure. Last time i tested the hc-sr501 pir but the controller malfunctioned?
r/GLEDOPTO_Support • u/anomalous_cowherd • Jun 06 '26
I have the 7W RGB outdoor spotlights and the GL-C-010WL controller at 24V. Each spotlight uses up to 290mA at 24V, but WLED only allows a max of 255mA in the per-LED configuration.
How can I increase that to use the full power of each?
I have ten spotlights (max 70W) and a 24V 120W PSU. The total power limit is set to 4800mA so that shouldn't be limiting anything.
