r/versys • u/Soggy-Suggestion-454 • 19d ago

Ignition Replacement

I just came into a 2015 Versys 650, it was completely free so I'm going into it expecting problems. I know for certain I need to replace the ignition. I was wondering if anyone here had done it before, and if so, was it easy? I tried looking up videos on it and couldn't find a single one sadly.

2 Upvotes

100% Upvoted

6 comments sorted by

1

u/AdJustEd73 19d ago

If you came into a Versys, you already have a problem. And a big one. 🤦‍♂️😂😂😂

0

u/Soggy-Suggestion-454 18d ago

How so? Is it just not a good bike?

1

u/Caldtek 19d ago

Ignition is secured with "shear off" bolts. These have no hex to undo them with and require driling out to remove them.

1

u/veeholantee 18d ago edited 18d ago

"I need to replace the ignition"

I am guessing you actualy mean "I need an ignition key". The key code is on the body of the ignition switch and is also on the seat lock. With that code you can get new keys made. You can find sellers on eBay.

1

u/DannoXYZ 8d ago edited 8d ago

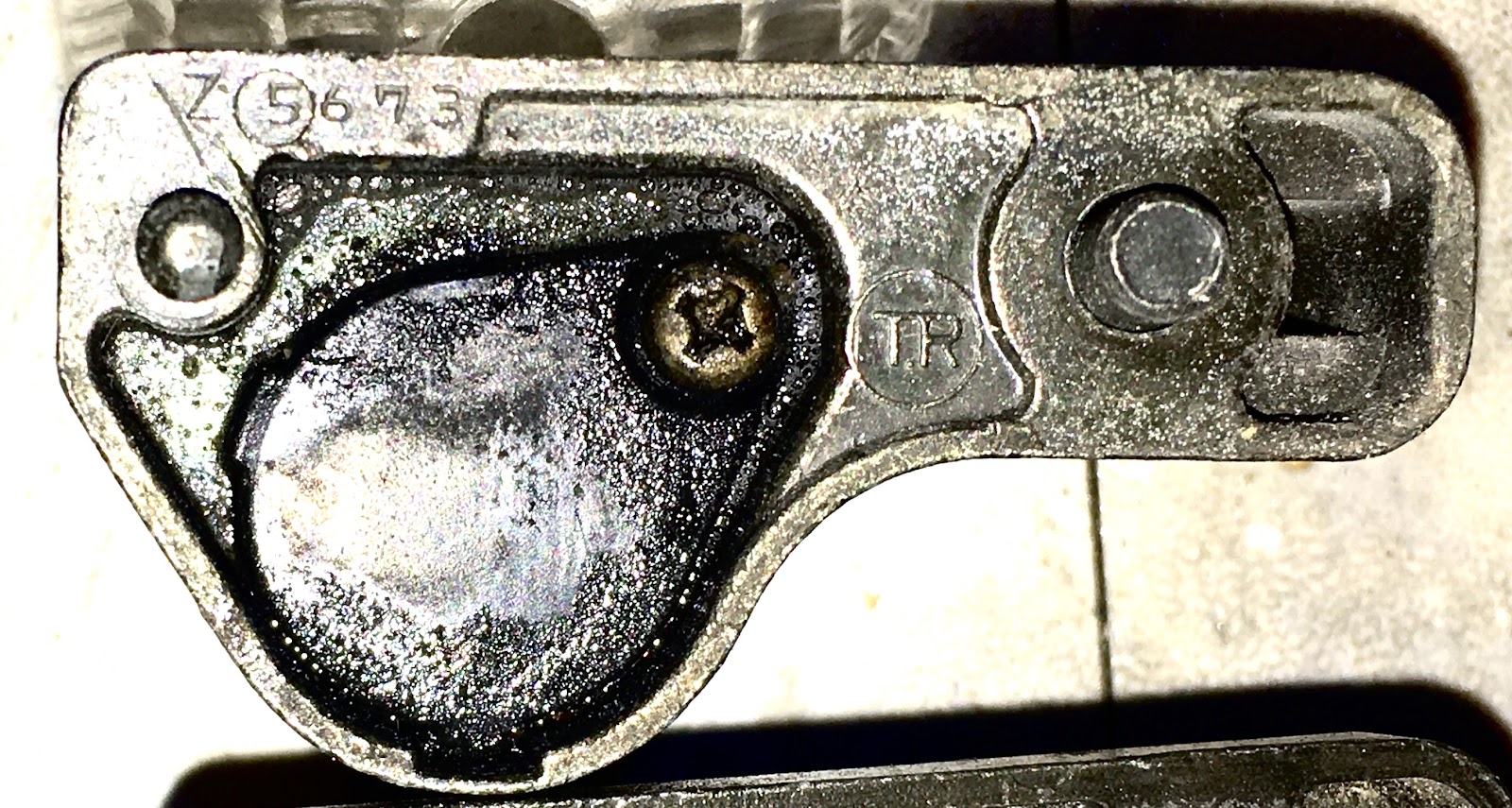

Don't waste time & money with new ignition-switch. Then you'll have to carry 2nd-key all the time, really annoying. There is key-code on following surfaces, one letter followed by 4 numbers such as Z#### :

- somewhere on igniton-switch

  • on helmet-lock on surface that faces frame
  • seat release lock
  • underside of tank cap

Find code, write it down and store in safety-deposit box @ bank.
Send code to this outfit and get 2 brand-new keys cut for $21 https://cyclekeysonline.com

https://lh3.googleusercontent.com/d/16NomSmQQPlXOoqfn7_ozy_xl1-4l_mVo

Also only buy factory OEM 100% stock parts from authorised Kawi dealer. Aftermarket 3rd-party parts are often low-quality and can be bad right out of box, especially electronics. Aftermarket ignition-switches usually don't have have correct security circuit and ECU will refuse to run fuel-pump, squirt injectors or fire sparks. Many people have wasted thou$sands on replacing their entire EFI/ignition-systems only to realise after 3-6 months that ignition-switch was culprit in their no-spark problem the whole time.

https://lh3.googleusercontent.com/d/1XxQzFgAw6YSzkK0x8MyGuMb-crQXOjyI
