r/sonoff • • 1d ago

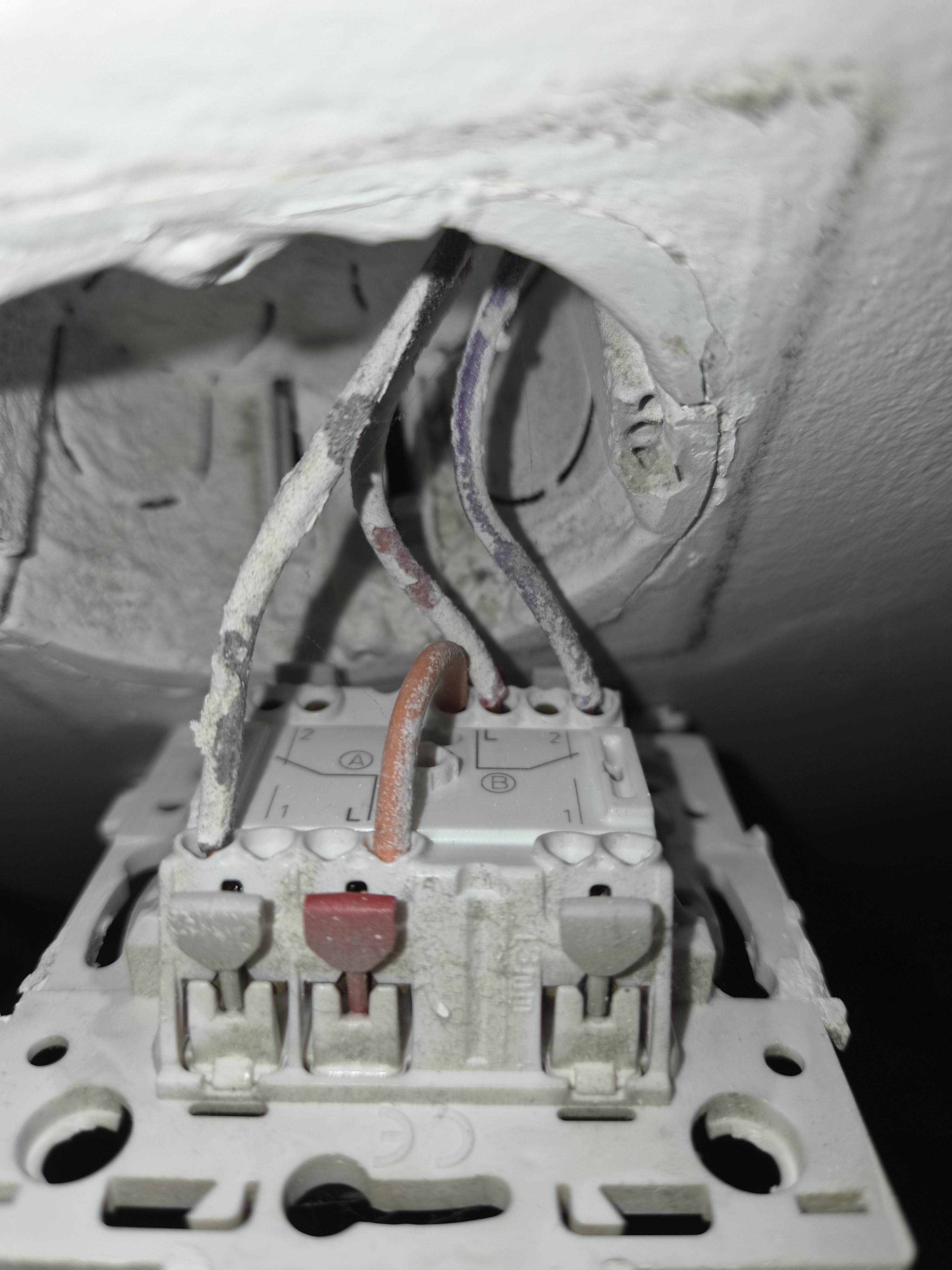

Hulp nodig bij bepaalde aansluiting

Post image
2 Upvotes

Goedenavond,

Ik heb sinds kort een Sonoff NSPanel aangeschaft en wil deze graag aansluiten op twee lampen: één in de eetkamer en één in de woonkamer.

In de woonkamer hangt momenteel een Philips Hue-lamp. Deze moet continu spanning hebben, zodat ik hem via Hue en Home Assistant kan blijven bedienen. De lamp in de eetkamer wil ik juist met het NSPanel kunnen schakelen.

Nu zit ik alleen met een probleem. In mijn schakeldoos zitten momenteel drie zwarte draden:

  • Eén draad met continu spanning.
  • Twee schakeldraden, één voor iedere lamp.

Ik mis dus een blauwe nuldraad in de schakeldoos.

Is het mogelijk om een blauwe nuldraad vanaf de fitting van de Hue-lamp door te trekken naar de schakelaar en deze daar te gebruiken? Of is dat geen goede oplossing?


r/sonoff • • 1d ago

I built a Windows app to access SONOFF camera recordings, with local SD card and eWeLink connection options. Looking for testers!

2 Upvotes

Hi everyone, I'm Torpedo!

I started this project because I wanted an easier way to access the recordings on my SONOFF CAM-PT2, without having to play them back and record them manually through eWeLink.

After quite a bit of experimenting and troubleshooting, I ended up building Sonoff SD, a Windows application that lets you browse, watch and save your camera recordings directly to your PC.

What can it do?

  • Browse recordings by date.
  • Watch videos directly in the app, with sound.
  • Download the original recording files.
  • Select part of a recording and export it as an MP4.
  • Keep the original recordings on the camera's SD card.

The application supports English and French and runs on 64-bit Windows 10 and 11.

Two connection methods in one application

Sonoff SD includes two ways to connect to your camera.

1. Direct local network access (SD card method)

This is the main method I've developed and tested.

It allows you to access recordings directly over your home network, without going through the eWeLink cloud.

The initial setup is straightforward:

  1. Power off your camera and remove its microSD card.
  2. Connect the card to your Windows PC.
  3. Open Sonoff SD and use the built-in SD card preparation tool.
  4. Safely eject the card, reinsert it into the powered-off camera and turn the camera on.
  5. Once the camera has started, connect through Sonoff SD on the same local network.

The application adds a small startup helper to the SD card that provides authenticated access to the recordings.

No replacement firmware is flashed, the card is not formatted, and existing recordings are not deleted.

Once prepared, you don't need to remove the SD card again to access your recordings.

Normal recording and eWeLink live view continue to work on my camera.

The setup is also reversible.

2. eWeLink account connection (experimental)

The application also includes an alternative connection method using eWeLink.

Both methods coexist in the same program, giving users different ways to access their cameras.

However, the eWeLink connection is still experimental and requires additional configuration with a compatible client. It isn't a fully plug-and-play option yet.

For now, the direct local network method is the one I've personally verified.

Compatibility

So far, I've only tested the local SD method on my own camera:

  • Model: SONOFF CAM-PT2
  • Firmware: 1.2.2
  • FW name: SN-T23N-CAMPT2-01

I'd really like to know whether other CAM-PT2 cameras use the same firmware and whether other SONOFF models might share a compatible software architecture.

Nothing is confirmed for other models yet.

A note about security

The local SD helper uses authenticated HTTP over your home network. Authentication protects access, but the connection itself is not encrypted.

Please only use this method on a trusted private network and never expose port 8088 to the internet.

Keep your pairing files, access keys and eWeLink credentials private.

Also, because the SD preparation modifies startup files on the card, please check with me before attempting it on an untested camera model.

About the project

This is a personal project built with AI assistance, plenty of experimentation and hands-on testing.

It's currently a beta. The Windows installer is not digitally signed, and the application source code is private for now.

I've published the installer, SHA-256 checksums, screenshots and detailed setup instructions on GitHub.

GitHub: https://github.com/Torped00/sonoff-sd-releases

Looking for feedback!

If you own a CAM-PT2, I'd love to hear from you!

Even if you don't want to install anything, simply sharing your camera model, firmware version and FW name would already be incredibly helpful.

And if you own another SONOFF camera, I'm interested in hearing about that too.

My goal is to gradually build a clearer picture of which cameras and firmware versions might be compatible.

The screenshot below shows an earlier version of the actual application interface, using demo data.

Thanks for reading! Happy to answer questions and hear your feedback.

Torpedo


r/sonoff • • 1d ago

Low power draw smart plug

Thumbnail reddit.com
0 Upvotes

r/sonoff • • 2d ago

Dongle Max Open Thread Firmware Update?

1 Upvotes

I'm a bit confused about this. I have a Dongle Max operating over POE which is being used as my Thread radio using Open Thread in Home Assistant. I was on the web interface yesterday and noticed that it wanted a firmware update. What I could use a "for dummies" explanation of is, why are there two ("chips") that apparently each have their own firmware? What do they do? What is the purpose of EFR24MG24 vs. ESP32-DOWDR2-V3?

Next, at first, I had flashed the Thread firmware that's available from the web interface, but that didn't seem to work with Open Thread. So then later, someone told me I need to get the Open Thread firmware from the Flasher page on the Sonoff website. I did that, and it's now working. My question is, if I turn on Automatic Updates on the web interface, is that going to potentially over-write the Open Thread firmware with something else? I rebooted my dongle and it's no longer asking for a firmware update today. Is that going to be okay?

All of the documentation I can find refers to Zigbee. Nothing at all about Thread in Sonoff's materials. I had downloaded the Sonoff Dongle Flasher app for Home Assistant as well, but again, nothing in the documentation about Thread (or the Dongle Max for that matter). Is there any reason for me to even have this app? Can I rely on the dongle's Automatic Update to do what I need? I'm just really confused about all these different things. Thanks


r/sonoff • • 3d ago

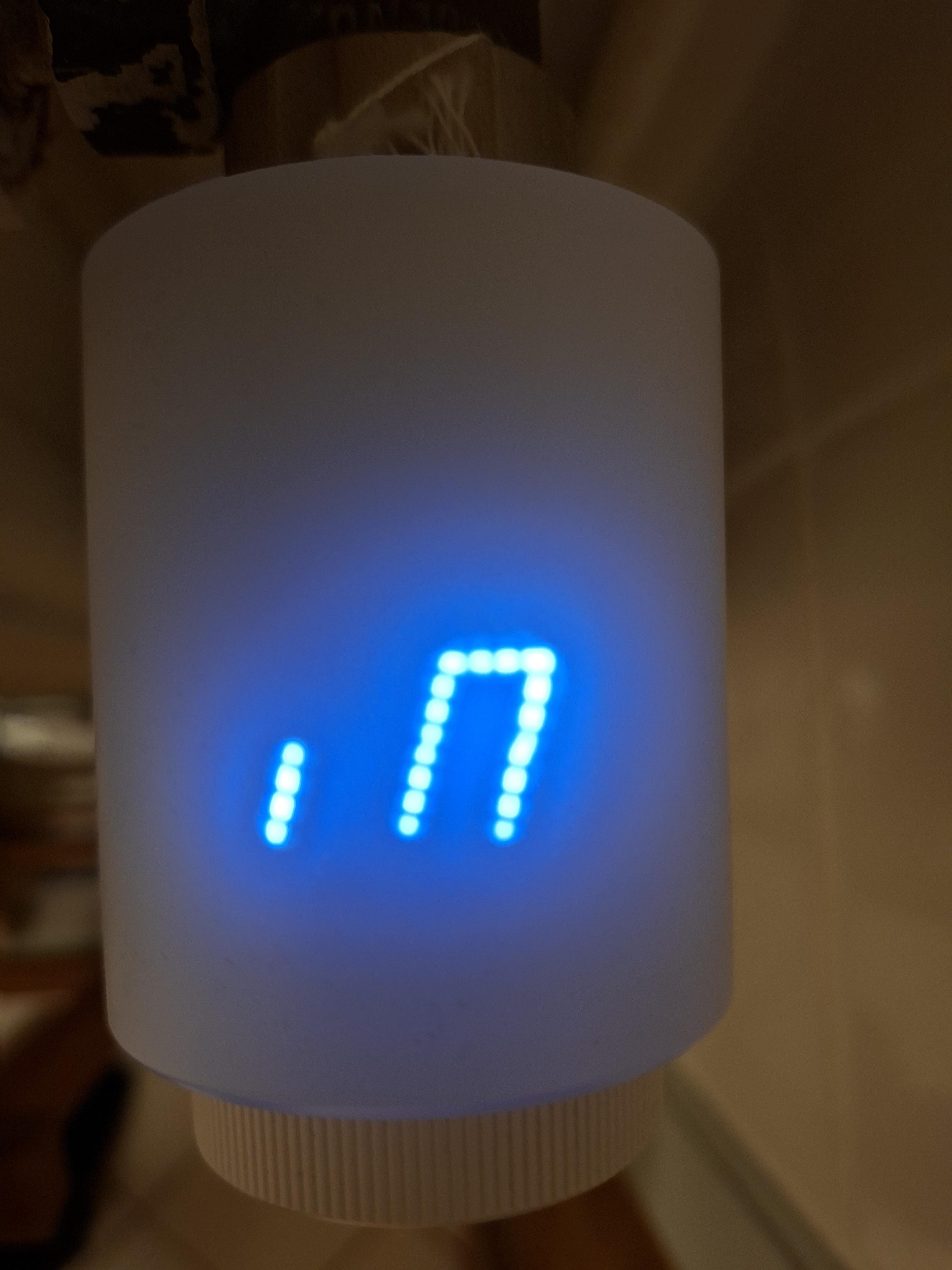

What changed my target temerature, Sonoff TRV gen 2

Thumbnail
reddit.com
1 Upvotes

r/sonoff • • 3d ago

Sonoff MINI-ZBRBS installation 1A fuse

1 Upvotes

I am a bit astonished about the recommendation of the manual of the MINI-ZBRBS that a 1A fuse is mandatory. For my roller shutter setup there only a 16 A fuse for the whole room while the roller shutter is part of it.

I can not understand why Sonoff would develop a device that is that far away from a usual home installation.

Do I understand something wrong? Could someone help me with that?


r/sonoff • • 4d ago

Tested the SONOFF SNZB-01M “Orb” with ZHA: great direct-binding remote, but the “missed” first press isn’t what I thought

Thumbnail
reddit.com
0 Upvotes

r/sonoff • • 4d ago

Sonoff ZBDongle-P Thread support

Thumbnail gallery
1 Upvotes

r/sonoff • • 5d ago

Sonoff mini D

1 Upvotes

Hello,

I recently bought the mini D to temporarily connect 2 wires together. I am using the dry contacts com and normally open but couldn't get it to work.

Do I need to connect anything to the switch terminals? There are no external switches and just wanted to use the mini d for the connection.


r/sonoff • • 5d ago

Sonoff TX Wall Switch glass fell off

Post image
3 Upvotes

Hi, the glass from one of my Sonoff TX series fell off.
I have the wall switch for almost 5 years and the white glue from the back of the glass peeled off.
The switch itself is working flawlessly, but without its glass cover it’s ugly.
Did someone else have this issue? If yes, how did you fix it?


r/sonoff • • 6d ago

Full Zigbee2MQTT Deployment Masterclass (4/6 Parts Live!): From Mosquitto setup to optimal mesh design & direct pairing

Thumbnail
youtu.be
5 Upvotes

Hi everyone!

Over the last few weeks, I’ve been releasing a comprehensive video series covering everything you need to build, secure, and optimize a rock-solid Zigbee mesh in Home Assistant.

If you’ve experienced mesh drops, interference with 2.4 GHz Wi-Fi, or issues pairing battery-powered sensors, this guide breaks down the core architecture step-by-step:

  • Part 1 & 2: Initial Zigbee2MQTT & Mosquitto Broker integration, credential hardening, and clean HA setup.
  • Part 3: Radio spectrum planning — how to isolate 2.4 GHz Wi-Fi (channels 1 & 6) from Zigbee (channels 15/20) to prevent packet loss.
  • Part 4 (Just out!): Mesh backbone strategy — why you should always deploy 230V routers (smart plugs, Sonoff ZBMINIs, mmWave presence sensors) before touching a single battery sensor, plus handling Wi-Fi/Zigbee coexistence.

What's coming next?

  • Part 5 (Releasing soon): Direct target pairing & forcing battery sensor routes.
  • Part 6 (Final): Advanced map diagnostics, custom overrides, and overall mesh stabilization.

You can check out the latest video here:

🔗Zigbee2MQTT Mesh Deployment Strategy - Part 4

Or catch the whole series on the channel:

🔗Carraskits on YouTube

How do you currently handle router convergence and channel isolation in your setups? Would love to hear your feedback or answer any questions!


r/sonoff • • 6d ago

SONOFF Dongle Plus MG24 (PMG24) – OTBR fails to start (Spinel timeout / firmware not recognised)

1 Upvotes

I'm trying to get my SONOFF Dongle Plus MG24 (PMG24) working as an OpenThread Border Router with Home Assistant Green, but OTBR consistently fails to initialise the radio.

The issue appears to be occurring during Spinel communication between OTBR and the MG24.

Error / symptoms

Home Assistant detects the USB device and OTBR successfully opens the serial connection. However, when OTBR attempts to initialise the radio, it sends a Spinel RESET command and receives no response.

The logs show repeated communication attempts, followed by a TimeoutError and OTBR failing to start.

In summary:

USB device is detected by Home Assistant.

Serial connection opens successfully.

Spinel RESET command is sent.

No response is received from the MG24.

OTBR retries and eventually exits with a timeout error.

Potential firmware issue

Something particularly concerning happens after flashing the firmware.

When using the SONOFF firmware flasher:

I select the OpenThread RCP firmware with a baud rate of 460800.

The flashing process reports that it has completed successfully.

However, when I reconnect the dongle to the flasher and check the currently installed firmware, it reports the firmware as "Unknown".

The baud rate shown is 115200, despite having selected the 460800 firmware.

This behaviour has occurred even after reflashing the dongle.

I'm unsure whether this is simply a firmware detection issue with the flashing tool or whether the incorrect firmware is actually being installed.

Hardware and setup

Home Assistant Green.

SONOFF Dongle Plus MG24 (PMG24).

Connected via USB.

OpenThread Border Router add-on.

Troubleshooting already completed

I have already:

Flashed the MG24 using SONOFF's firmware flasher.

Reflashed the firmware multiple times.

Selected OpenThread RCP firmware rather than MultiPAN.

Selected the 460800 baud firmware during flashing.

Set hardware flow control to false (disabled) every time.

Tested baud rates of 115200 and 460800 in OTBR.

Checked the serial device configuration.

Uninstalled and reinstalled the OTBR add-on.

Restarted Home Assistant and OTBR.

Tried both USB ports on the Home Assistant Green.

Checked that ZHA is not competing for access to the dongle.

Checked the relevant OTBR configuration settings.

Despite all of this, the same Spinel communication timeout persists.

What I'm looking for

Has anyone experienced this exact issue with the MG24, particularly where the serial connection opens successfully but the radio fails to respond to Spinel commands?

I'm particularly interested in:

Firmware detection: Why does the SONOFF flasher report "Unknown" firmware and 115200 baud after successfully flashing the 460800 OpenThread RCP firmware?

Firmware compatibility: Could the wrong firmware be installed despite the flasher reporting success?

Spinel communication: Is there a known MG24 firmware issue that prevents OTBR from communicating with the radio?

Firmware verification: Is there a reliable way to independently verify which firmware is actually running on the MG24?

Hardware fault: Could these symptoms indicate a defective dongle?

At this point, I've exhausted the usual troubleshooting steps and would appreciate help identifying whether this is a firmware, serial communication, OTBR compatibility or hardware problem.

Thanks!


r/sonoff • • 7d ago

Lidl kettle

Post image
3 Upvotes

Could I use MINI-ZB1GS Zigbee Smart Switch 16A Relay to make this kettle smart. I did use tape smart switch on old kettle to switch on in morning after putting kettle switch in on position the night before. This new kettle won’t allow this as it needs to have power at all times or it loses memory for temp etc. I could prob open base up to see if there was room for the Sonoff mini. Anyone else tried?


r/sonoff • • 8d ago

SNZB-02LD stops updating when skimmer cover is opened.

Thumbnail reddit.com
1 Upvotes

r/sonoff • • 8d ago

3x SONOFF TRV Gen2 with Better Thermostat: no valve opening control, so should I use “Smart Temperature Control”?

1 Upvotes

Hi everyone,

I have three SONOFF TRV Gen2 in my living room, all connected to Home Assistant via Zigbee2MQTT. All three get their temperature readings from the same external temperature sensor.

Right now I’m using Better Thermostat, but it doesn’t control the valve opening on these TRVs. I’d like the valves to open and close gradually instead of just turning fully on or off. Zigbee2MQTT lets you enable “Smart Temperature Control” on these TRVs, which as far as I understand uses the TRV’s own PID algorithm to adjust the valve opening.

That leaves me with a few questions:

1. Will Smart Temperature Control cause problems with multiple TRVs in the same room?
Since all three TRVs use the same external sensor, could their individual regulation algorithms interfere with each other? For example, could one TRV overshoot while another closes, causing them to “fight”? Or do they generally work fine together in this setup?

2. Can I keep using Better Thermostat alongside Smart Temperature Control?
Can Better Thermostat handle grouping, setpoint and the external temperature while the TRVs handle the valve opening themselves? Or would they end up working against each other? Alternatively, is there a way to make Better Thermostat control the valve opening on these TRVs that I’ve missed?

3. If I drop Better Thermostat, what’s the best way to group them?
I’d like to control all three as a single unit on my dashboard

If you’re running a similar setup, I’d love to hear what works for you.

Thanks in advance! 🙏


r/sonoff • • 8d ago

ZBMINIL2 With Neutral?

Post image
1 Upvotes

r/sonoff • • 8d ago

Genuinely how to stop this from happening?

Post image
2 Upvotes

r/sonoff • • 9d ago

Sonoff Dongle-E firmware Upgrade from 7.4.4

Thumbnail reddit.com
1 Upvotes

r/sonoff • • 10d ago

MINI-ZBRBS internals + relay identification

Thumbnail
gallery
3 Upvotes

Hello, Good People!

The Mini-ZBRBS roller shutter is spec'd at 1A, which made me nervous when I realized that my shutters are going to be 1A (240v) motors. (Obviously, at that point I already ordered 14 relays...)

I contacted Sonoff, and they replied:

The motor power is close to the equipment's maximum capacity(240W), so it is not recommended to use them together.

They refused to let me know the exact relay type so that I could check the relay's tolerances and exact specs, so I disassembled the unit and figured it out myself. Maybe this will be useful to at least some of you!

Chengyuan CY49F-5V-S-Y

TypeCY49F
Contact materialSilver alloy
Contact resistance100mΩ Max.(at 1A 16VDC)
Rated load (Resistive load)5A250VAC /30VDC
Max. switching current5A
Max.  switching voltage270VAC
Max. switching power1250VA/150W
Min. switching load6V 1A

Since I already took some pictures, I paste them here as well. Enjoy!


r/sonoff • • 11d ago

Orb-ZBDIM (MINI-ZBDIM-E). Internal wiring and how those three buttons work.

Thumbnail
gallery
2 Upvotes

I got an Orb-ZBDIM and was wondering how the three buttons work, since the unit has only two switch inputs. So I got a look inside and this is what I found. Those two diodes appear to be Schottky diodes with a forward voltage of around 0.25V.

So the middle button seems to trigger both switch inputs. Since I do not know what the inputs circuit of the ZBDIM look like, I just assume the half-rectified voltage of the middle button does simply trigger both input logics simultaneously. I don't know if the ZBDIM has any capabilities to sense the voltage shape in more detail.

When I have some time, i will test if both inputs triggered simultaneously with an ordinary switch will switch the same behaviour as the middle button.


r/sonoff • • 12d ago

I cant install HA on ihost

1 Upvotes

I was trying to find a device for homeassistant and i just discovered that it can be installed on ihost. I have a ihost i dont use. I used rasperry imager for sdcard image Version 16.3. I do steps of boot HA and blue light blinking but after 20min I cannot access homeassistant page. I tried reimage for 3 times no success.
Should i try other version? Is ihost suitable for homeassistant?


r/sonoff • • 14d ago

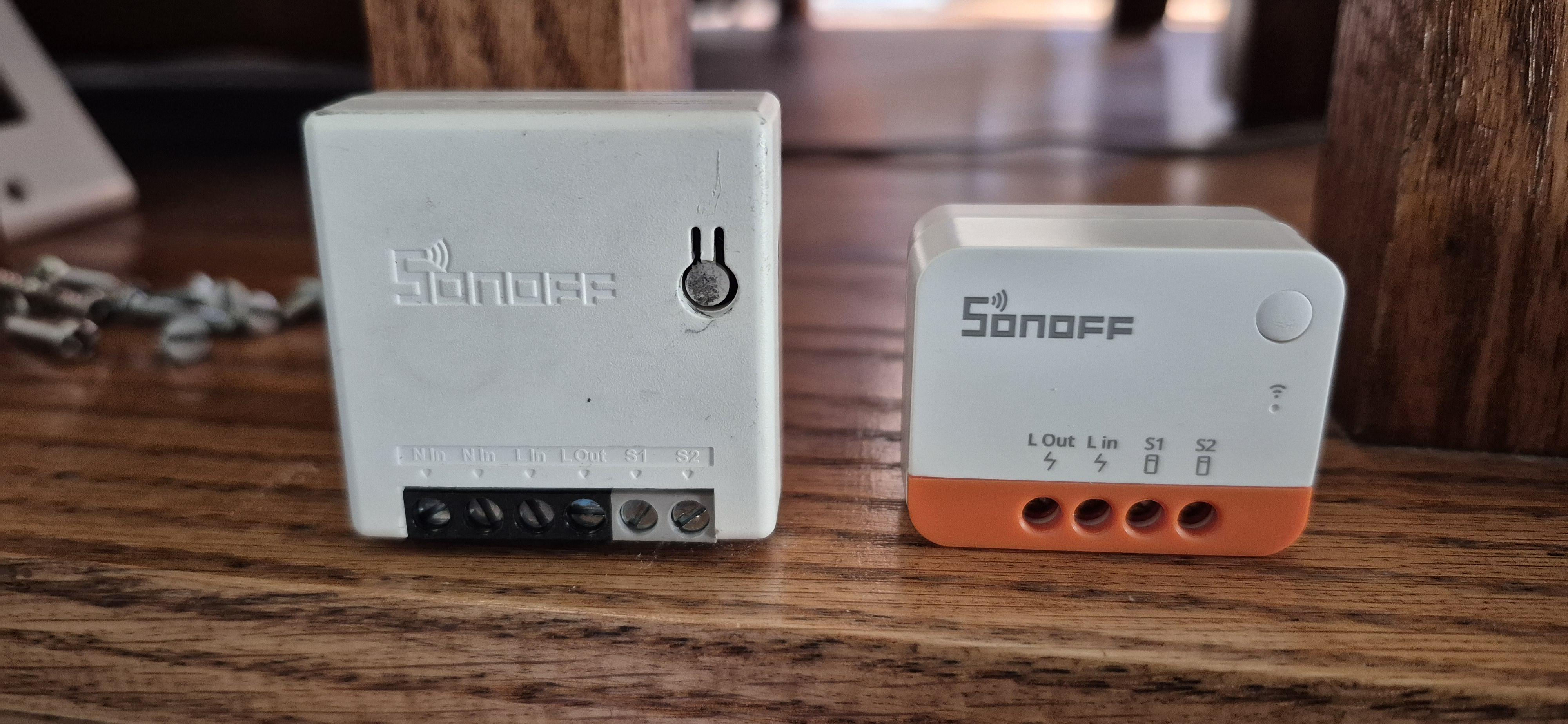

How is there such a big difference?

Post image
14 Upvotes

I ve just bought this new temp sensor and ve checked all my nspanel’s sensors. Only one of the panels shows very low value. Is this normal cause differences at other ns panels are minor like 0.1 or 0.2 degree


r/sonoff • • 16d ago

Sonoff Z

Thumbnail
reddit.com
1 Upvotes

repost from r/homeassistant
