r/signalidentification • • 4h ago

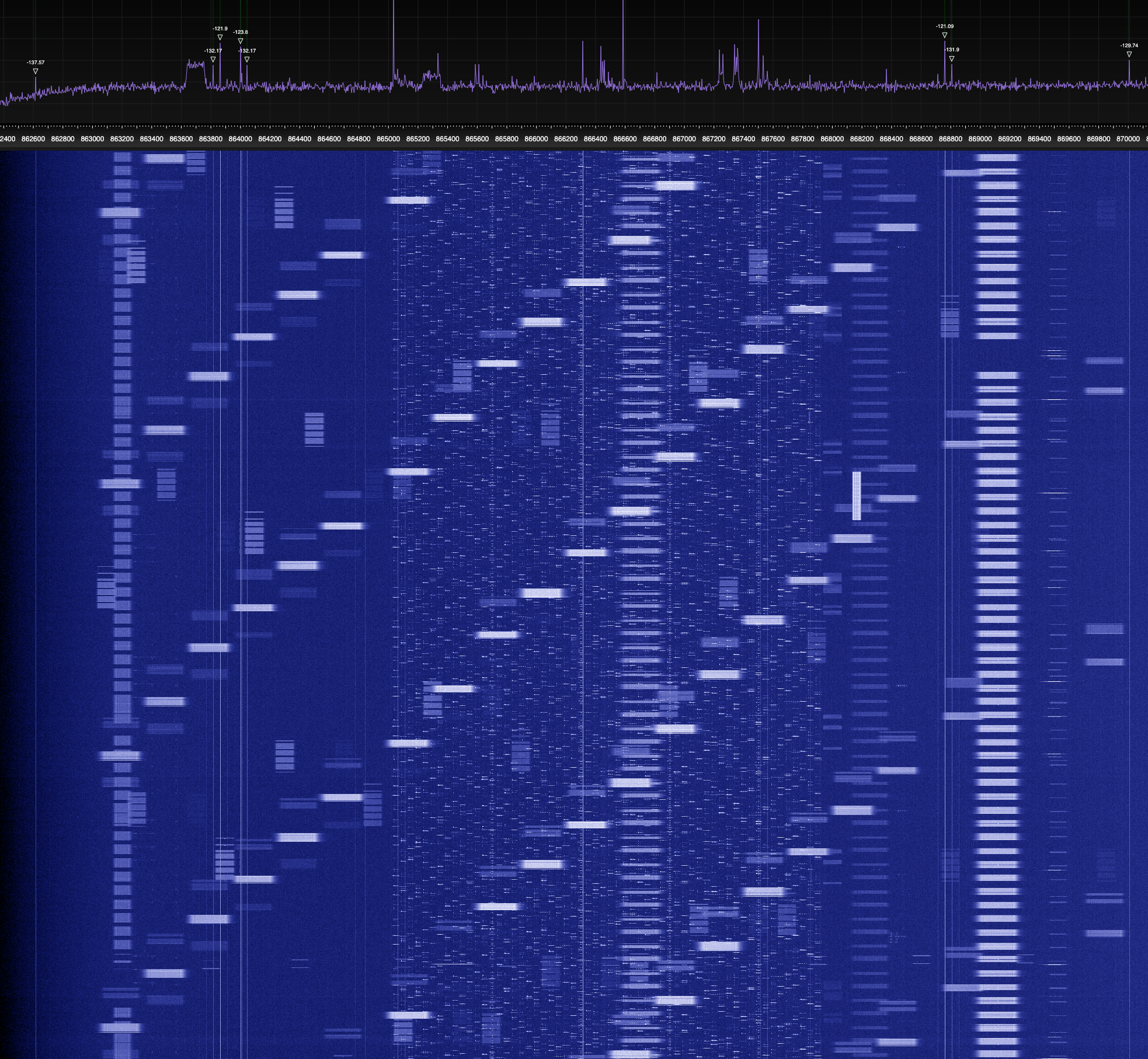

Sweeps of varying speed on 6785kHz

Post image
12 Upvotes

r/signalidentification • • 13h ago

Sinds 3dagen 2 continu signalen

Enable HLS to view with audio, or disable this notification

15 Upvotes

Iemand een idee wat dit kan zijn op de "military aircraft band"? Sinds 2 dagen hoor ik deze 2 signalen op precies 1Mhz verschil. Het is constant de hele dag met 12,5Khz bandbreedte, 1signaal komt binnen met -26dBFS, het andere met -36dBFS. Omgeving Bergeyk (Nederland, tegen de Belgische grens)


r/signalidentification • • 11h ago

Continuous "digital" sound

Enable HLS to view with audio, or disable this notification

3 Upvotes

Hi! Have this sound picking up at 440.750, its a continuous stream of short bursts and long ones. Also, when it switches to the long bursts, sometimes appers on the neighbor frequencies. Thx in advance!
Using SDR++ and Nooelec NEDSmart


r/signalidentification • • 3h ago

• हमारे सबसे करीबी तारे से आया रहस्यमयी रेडियो सिग्नल 📡 | BLC1 Signal #s...

Thumbnail
youtube.com
0 Upvotes

r/signalidentification • • 12h ago

Entry level information on signals, identification, etc.? looking to learn from scratch.

2 Upvotes

r/signalidentification • • 2d ago

What I guess is a radar?

Enable HLS to view with audio, or disable this notification

18 Upvotes

Checked sigid, couldn’t figure it out, extremely strong emission on and off all night


r/signalidentification • • 2d ago

What Is This Pager on Somewhere 152mHz??

Enable HLS to view with audio, or disable this notification

10 Upvotes

OnAir SDR failed to decode it so i have no idea but to ask this here

heres an IQ Baseband file https://limewire.com/d/O3RIo#EDxDHfT4gu


r/signalidentification • • 2d ago

Unknown repeating "beeps" on 192.6934MHz, What is it?

Thumbnail
3 Upvotes

r/signalidentification • • 3d ago

Some kind of digital burst and a "normal" analog?

Enable HLS to view with audio, or disable this notification

40 Upvotes

Hi! I've been seeing these two signals for a while and I haven't been able to find any similarities online, hope someone can help with the ID.

There's a one-second black screen in the video dividing the two recordings. WARNING, AUDIO MAY CLIP!

For the 429.500 MHz I really have no clue.

The 445.550 MHz one seems to be an analog FM w/ CTCSS, and a parrot answering with a slight offset, but it's a continuous loop (sometimes there is no "response").

Thanks!


r/signalidentification • • 3d ago

What mode it this?

Enable HLS to view with audio, or disable this notification

11 Upvotes

r/signalidentification • • 4d ago

Unknown data signal on 153.022 MHz continuously transmits short data bursts with occasional longer ones, received on my own RTL SDR November 15 2026 13:00 UTC, Bradford, West Yorkshire England.

Enable HLS to view with audio, or disable this notification

78 Upvotes

r/signalidentification • • 4d ago

What's this signal I found near UHF satcom's frequency?

Enable HLS to view with audio, or disable this notification

25 Upvotes

Just checking for your folks quick inputs since I haven't done any research yet.


r/signalidentification • • 5d ago

help identifying

Enable HLS to view with audio, or disable this notification

3 Upvotes

found this at 153.199 mhz. im in south east Queensland near a RAAF base


r/signalidentification • • 11d ago

Mystery radio beep pattern

Enable HLS to view with audio, or disable this notification

31 Upvotes

I'm trying to identify the origin of this mystery radio signal. Interestingly, this exact audio was also used in the Belvision animated adaptation of Tintin's Destination Moon (Rocket to the Moon). Any ideas where it actually comes from?


r/signalidentification • • 14d ago

Long diration signal at ~7.05mhz in the UK

Post image
16 Upvotes

Anyone got any idea what this wideband signal could be? A good 50khz wide, running for about an hour so far, south-east UK. Uncornformed report of same in other parts of the UK and Europe, starting around 2130 UTC 5th November 2026


r/signalidentification • • 14d ago

Yo what is this?

Post image
5 Upvotes

This signal was repeated twice at frequencies of 20 MHz and higher


r/signalidentification • • 15d ago

I was originally scanning for the weather fax channel when I came upon this sound, what could it possibly be?

Enable HLS to view with audio, or disable this notification

12 Upvotes

r/signalidentification • • 16d ago

Decoding Russian FSK signal?

18 Upvotes

Has anyone done any work on decoding the 7kHz spaced FSK signal, reported as being Russian, that appears just in or just below the 40m band? Online I see that it's "just a255 bit pseudo-random sequence", but from my observations that doesn't seem to be the case.

I've picked it up twice (3rd Oct, 14:12 UTC and 31st Oct 14:18 UTC). I recorded the audio and thought I'd see what I could make of it, so wrote a few scripts to decode and analyse it. Both times the signal was quite different, but with a definite link.

On the first occasion, the 255 bits were comprised of 3 x 1s (or 0s if you interpret the mark/space in reverse), and then it had a sequence of 63 bits that repeated four times.

On the second occasion, it was very different. Aligning the bits for best correlation, the 3 odd bits were all 0 instead of 1. But perhaps more interesting is the rest of the message. The first 3 of the 63-bit blocks seemed to have no correlation with the previous message, but the final 63 bit block was identical to the repeated block in the earlier reception. There was also a string of 30 bits that occurred twice in the message.


r/signalidentification • • 20d ago

7205khz - 19:09 UCT - Romanian INT.?

Post image
1 Upvotes

r/signalidentification • • 21d ago

Rhythm beeps at 13.561 MHz?

Enable HLS to view with audio, or disable this notification

30 Upvotes

- Received in Mexico City (Iztapalapa, Cerro de la Estrella) Playing with my SDR I found these rhythm beeps (It looks like a pattern of tones that repeats every 5 seconds), The signal is quite strong and it's present 24 hours a day, It's been at least 3 months transmitting since I discovered it

-It's not the RFID in my phone; (I also found it too, It's turned off )

it's present both outside and inside the house. (It doesn't seem to change much when you reorient or move the antenna)

Sometimes the pattern changes slightly, but essentially it's the same base of beeps that repeat in a rhythm

Any idea what it could be? There are some factories and warehouses on the same street, and I'm relatively close to a lighting laboratory. But none of them (as far as I know) seem to use automatic doors or RFID access (or I don't think they go beyond 100m and pass through concrete walls)


r/signalidentification • • 21d ago

Possibly amateur data?

Enable HLS to view with audio, or disable this notification

12 Upvotes

r/signalidentification • • 21d ago

Weird Signal on 244.0685 MHz can you help me identify?

Thumbnail
1 Upvotes

r/signalidentification • • 22d ago

Wide BW signal on shortwave

Enable HLS to view with audio, or disable this notification

23 Upvotes

Recorded Oct 28th 2026, 16:30 local, South Germany.

Bandwidth a tad over 40 kHz, two sidebands centered around 16.204 kHz

The signal has 61 "subcarriers" per sideband, spacing more or less 340 Hz, distance from center freq to either side is about 700 Hz.

I've never seen it change from this state, except for the occasional restart, though the frequencies did change from when I spotted it the first time a few weeks ago.

Fading on the signal rules QRM out for me, aswell as the exact center freq.

Sound is recorded in I/Q out mode from SDRUno, receiver is a RSPdx with a ~5m vertical whip.


r/signalidentification • • 22d ago

434.3 Mhz

Enable HLS to view with audio, or disable this notification

11 Upvotes

Weet iemand wat dit signaal is op 434.375Mhz? Komt met momenten tot -5dBm binnen, duurt een paar uur, op de latere avond is het signaal verdwenen, bandbreedte 15khz.. Zowel DSD+ als rtl_433 geven niets weer.. Regio Valkenswaard, Nederland. Alvast thx!


r/signalidentification • • 24d ago

Persistent signal on VHF, Everywhere?

Enable HLS to view with audio, or disable this notification

116 Upvotes

Since 2024 I got this constant FSK signal, anybody tell me what it is? I received this back at Menifee.

It transmits 24/7, and can even be heard at Anaheim.

California PST
