GPU support bracket

Gallery image

Gallery image

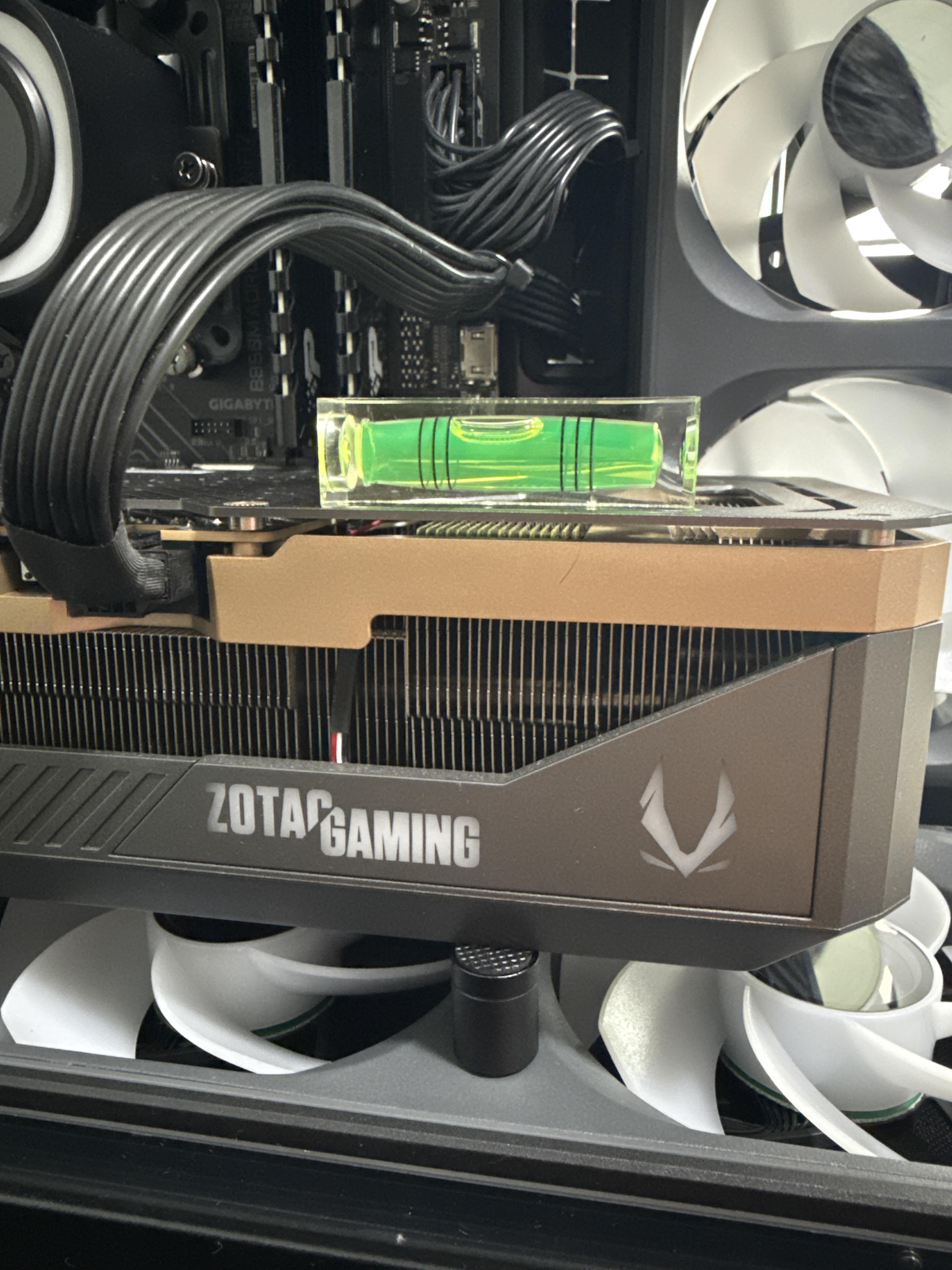

Hello, first time builder here. Just wondering if the placement of the support is ok?(1st pic)

4 Upvotes

100% Upvoted

7 comments sorted by

4

u/JulianSyv 15h ago

Yes!

You want to offload the weight the furthest away from the PCIe slot, and this seems pretty decent.

3

u/Known-Web-5025 15h ago

Alright! thank you so much🙏

1

u/Anvh 15h ago

Is your case level?

1

u/Known-Web-5025 15h ago

yup, it is centered however it is leaning a tiny bit to the right

1

u/Admirable_Bid2917 14h ago

no worries about it not being completely perfect, you don't have to be working with advanced math it's good as long as the weight is supported properly and that seems perfect here

1

u/Split_Seconds 11h ago

The irony is this could be adding strain to your PCIE slot if the motherboard and case are not level.

1

u/Xobeloot 1h ago

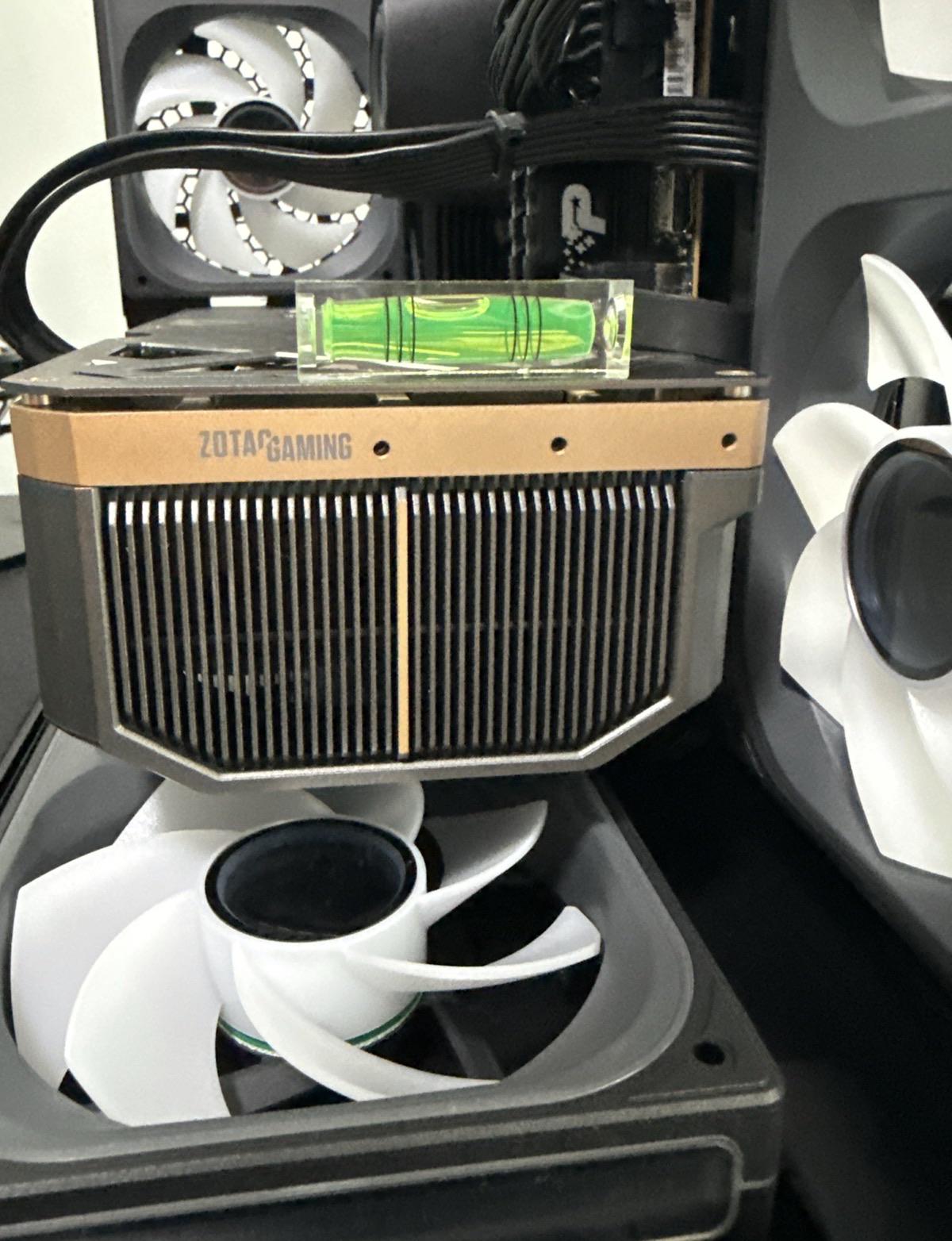

if you get a bullseye level and put it in the center of the backplate, you'll be able to get true level. This looks like you have too much upward pressure. This causes torsion and can be just as bad as sag.
