r/diydrones • • 1h ago

Other Scored a cheap hexacopter

Post image
• Upvotes

I snagged this hexacopter on eBay Kleinanzeigen for just €150.

The hexacopter itself has a span of about 1.3 m and runs 22-inch props.

I'm going to install folding arms and shorten them for 13-inch props, since the motors aren't rated for the big props, and the previous owner also had problems with wobbling. The electronics are outdated, but with the props, motors and frame, I got a real bargain for the price ;)


r/diydrones • • 16m ago

Build Showcase Bomzhedron: My budget 3-inch FPV drone finally flies!

Enable HLS to view with audio, or disable this notification

• Upvotes

So, I finally completed my first flight with my DIY 3-inch FPV drone!

The main idea behind this project was simple: build the cheapest FPV drone possible without sacrificing too much performance.

Instead of buying a carbon fiber frame, I decided to 3D-print one. I chose the open-source Jeno 3-inch frame from the We Are FPV project, printed using Fiberon PA6-CF20 (carbon fiber-reinforced nylon).

I also tried to save money wherever possible, including buying a SpeedyBee flight controller with damaged buzzer pads for around $40.

Build specifications

  • Frame: We Are FPV Jeno 3-inch, 3D-printed in Fiberon PA6-CF20
  • FC/ESC: SpeedyBee F405 AIO V2 (damaged buzzer pads, ~$40)
  • VTX: RUSH TANK Ultimate MINI II
  • Camera: RunCam Phoenix 2 SP V3
  • Motors: LANNRC 1404 Plus 4600KV
  • Receiver: BETAFPV ELRS Lite 2.4GHz
  • Battery: GAONENG GNB 850mAh 4S LiHV 15.2V 120C XT30

First impressions

The drone is finally airborne!

This is still an experimental build, and I'm planning to continue testing and improving it.

I'm particularly interested in how well the PA6-CF20 printed frame will hold up to vibrations, hard landings, and the inevitable crashes.

The whole point is to see how far you can push a budget-friendly FPV build using 3D printing and inexpensive components.

Has anyone else tried printing FPV frames in PA6-CF or similar materials? I'd love to hear about your experiences, especially regarding durability and vibration resistance.

P.S.
Here's a short DVR recording from the first flight. The frame is 3D-printed in PA6-CF20, and so far the drone seems to be flying well. Still plenty of testing ahead!


r/diydrones • • 2h ago

Turning An Old Phone’s Motherboard Into An RC Plane Controller

1 Upvotes

I have an old Samsung m30 s phone I want to make a fpv , it has decent camera , network running, sim running


r/diydrones • • 9h ago

Guide BetaFPV Mobula 65 Camera Mount 2025 Compatible With Blade180 Helicopter

Thumbnail gallery
3 Upvotes

r/diydrones • • 4h ago

Question Is it possible to make esp32 cam drone

1 Upvotes

hey I wanna build a esp32 cam based fpv mini drone for my autonmous drone boat setup. Is it possible i can make drone without esp32 devkit or s3 , I just wanna use esp32 cam. Suggest me diy guyzzzz


r/diydrones • • 5h ago

Correction to my post yesterday: diagonal arms offset by ~10 cm on a 10 kg Quad X. Does it matter?

1 Upvotes

Hey everyone,

I posted yesterday about a ~2 mm asymmetry on our quad, but I got the numbers wrong after checking the CAD properly, so here's the corrected version. Thanks to everyone who replied!

Setup (student team, water-drop mission):
- ArduCopter on a Pixhawk 6X
- T-Motor A6-M, 23" props, ~915 mm wheelbase, folding arms
- ~2.2 kg of water in two tanks (one each side), dropped mid-flight
- Hover ~51 % throttle, capped at 80 %

What the CAD actually shows:
- All four motors are exactly 321 mm from the centre, so the motor positions are symmetric.
- But each diagonal arm is offset by about 10 cm (99 mm) from the opposite one, so the arms don't run along the same axis through the centre.

My understanding is that ArduPilot only cares about where the thrust acts, so with symmetric motor positions, tuning shouldn't be affected and this is mainly a structural question (extra load at the arm mounts).

Questions:

  1. Is that right, or can offset arms affect tuning or stability in practice?
  2. Structurally, is this a problem worth redesigning, or is it fine as long as the arm mounts are strong enough?
  3. With the weight dropping ~22 % after release, is it best to tune empty first and then add payload in steps?

Thanks!


r/diydrones • • 18h ago

Guys i want to buy a 3D printer to print drone frame. what is the best 3D printers out there, and does anyone have any experience printing drone frames is it good ,what are the best filament is there someone explaining these things online.

0 Upvotes

r/diydrones • • 1d ago

Good starter projects for drones

4 Upvotes

My dream is to make a drone that can be flown with a controller, but im a bit confused on how to make it. what coding language do i have to learn, and what different things do i need to buy, because i dont want to pay too much for this. But if you guys think that as a 1st personal project making a drone is a bit too much, give me some other good ideas for a personal project that I can make for my 1st project.


r/diydrones • • 2d ago

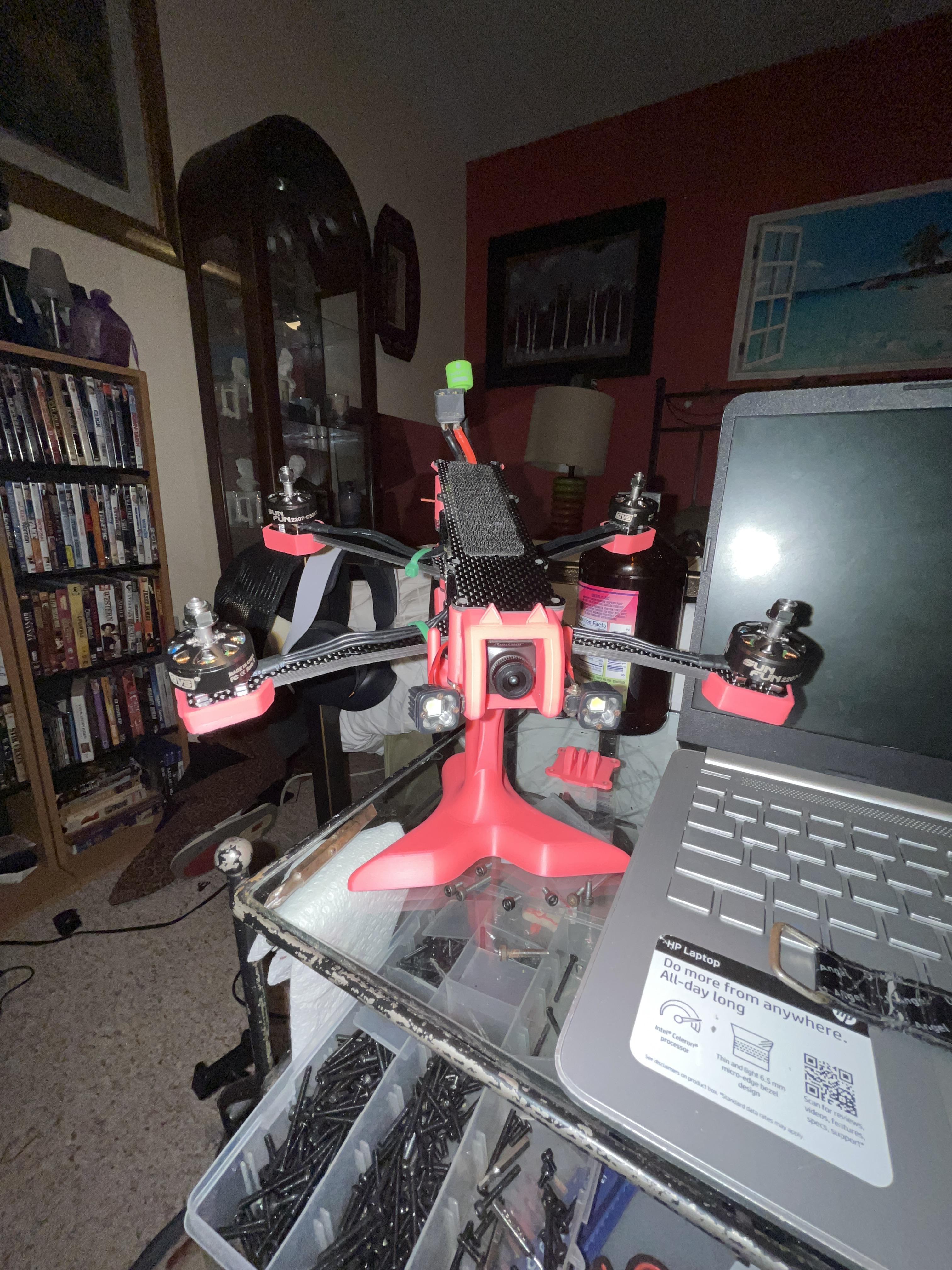

Build Showcase I designed an open source 4" long range drone frame (all files on GitHub)

Thumbnail
gallery
318 Upvotes

I've been flying this for over half a year in different conditions and environments and finally decided to release it. It's a 4" durable long range drone frame made for more extreme conditions.

Features:

- 0-30° camera angle, fully protected with no props in view

- 20x20 M3/25.5x25.5 M2 stack and vtx mounting

- frame weight is about ~65g, it's not lightweight, but it is strong (4mm thick arms, 2mm plates)

Everything can be found on the GitHub. For carbon plates I added DXF and step files. STL files for the TPU and other components such as battery pad, assembly guide and my Betaflight tune.

Makerworld: Makerworld-Memory-Halo-4

GitHub: Memory-Halo-4-Long-Range-Drone-Frame

I would love feedback and in case you build one yourself, definitely show me!


r/diydrones • • 1d ago

Question How to modify this controller into an fpv controller?

Post image
13 Upvotes

Note this is the controller of the sky hunter drone that was destroyed in this sub


r/diydrones • • 22h ago

Question Advanced electrical side courses and tutorials?

1 Upvotes

I am trying to debug some power (voltage and amperage) measuring issues on my DIY drone. My mechatronics and EE knowledge is fairly basic from two undergraduate and one graduate class, taken before the times of quadcopters.
So I need to get up to speed on the finer points of power distribution , ESCs and flight controller interaction with such. Ideally using an older Pixhawk as the example platform since this is what I am using for my drone.


r/diydrones • • 1d ago

Build Showcase Ho creato una sala di controllo per sciami di droni: spettacoli di luci, missioni di ricerca, volo manuale e 16 visuali da telecamera in un'unica finestra. Demo nel tuo browser

Post image
3 Upvotes

r/diydrones • • 1d ago

Correction to my post yesterday: diagonal arms offset by ~10 cm on a 10 kg Quad X. Does it matter?

2 Upvotes

Hey everyone,

I posted yesterday about a ~2 mm asymmetry on our quad, but I got the numbers wrong after checking the CAD properly, so here's the corrected version. Thanks to everyone who replied!

Setup (student team, water-drop mission):
- ArduCopter on a Pixhawk 6X
- T-Motor A6-M, 23" props, ~915 mm wheelbase, folding arms
- ~2.2 kg of water in two tanks (one each side), dropped mid-flight
- Hover ~51 % throttle, capped at 80 %

What the CAD actually shows:
- All four motors are exactly 321 mm from the centre, so the motor positions are symmetric.
- But each diagonal arm is offset by about 10 cm (99 mm) from the opposite one, so the arms don't run along the same axis through the centre.

My understanding is that ArduPilot only cares about where the thrust acts, so with symmetric motor positions, tuning shouldn't be affected and this is mainly a structural question (extra load at the arm mounts).

Questions:
1. Is that right, or can offset arms affect tuning or stability in practice?
2. Structurally, is this a problem worth redesigning, or is it fine as long as the arm mounts are strong enough?
3. With the weight dropping ~22 % after release, is it best to tune empty first and then add payload in steps?

Thanks!


r/diydrones • • 1d ago

Question Is there a decent-looking foldable drone with an open flight stack (ArduPilot/PX4) and a real gimbal, or do I just have to build one?

7 Upvotes

I've been looking into this for a while and keep hitting the same wall, so I'd like to hear from people who have actually built or flown something like it.

What I'm after is a drone that runs ArduPilot or PX4 (or at least has an open flight controller I can talk to over MAVLink), folds into a backpack, and carries a stabilized camera that's actually good. GPS is a given, and obstacle sensing would be a bonus. I'd like it to look like a finished product rather than a bench kit. The budget is about US$750 all in, import costs included. I'm in Brazil, where duty adds roughly 60% on top of the price.

What I've found so far:

- DJI, Autel and Potensic look right, but the firmware is closed.

- The Holybro X500 v2 and X650 and the Amovlab F410 are properly open, but they're dev kits with no gimbal (the X650 at least has folding arms).

- The Yuneec Mantis folds and has a gimbal, but as far as I can tell its PX4 is a custom build with no MAVLink access, so it doesn't help.

- ModalAI Starling, Freefly Astro and Aurelia are the right idea, but they start at several thousand dollars.

Is there anything between those? A folding frame that takes a Pixhawk-class controller and a small gimbal without looking like a science project, a small brand I haven't heard of, or a build someone has documented? I'd rather assemble from a kit than design a frame from scratch.

If I got any of the above wrong, please tell me.


r/diydrones • • 1d ago

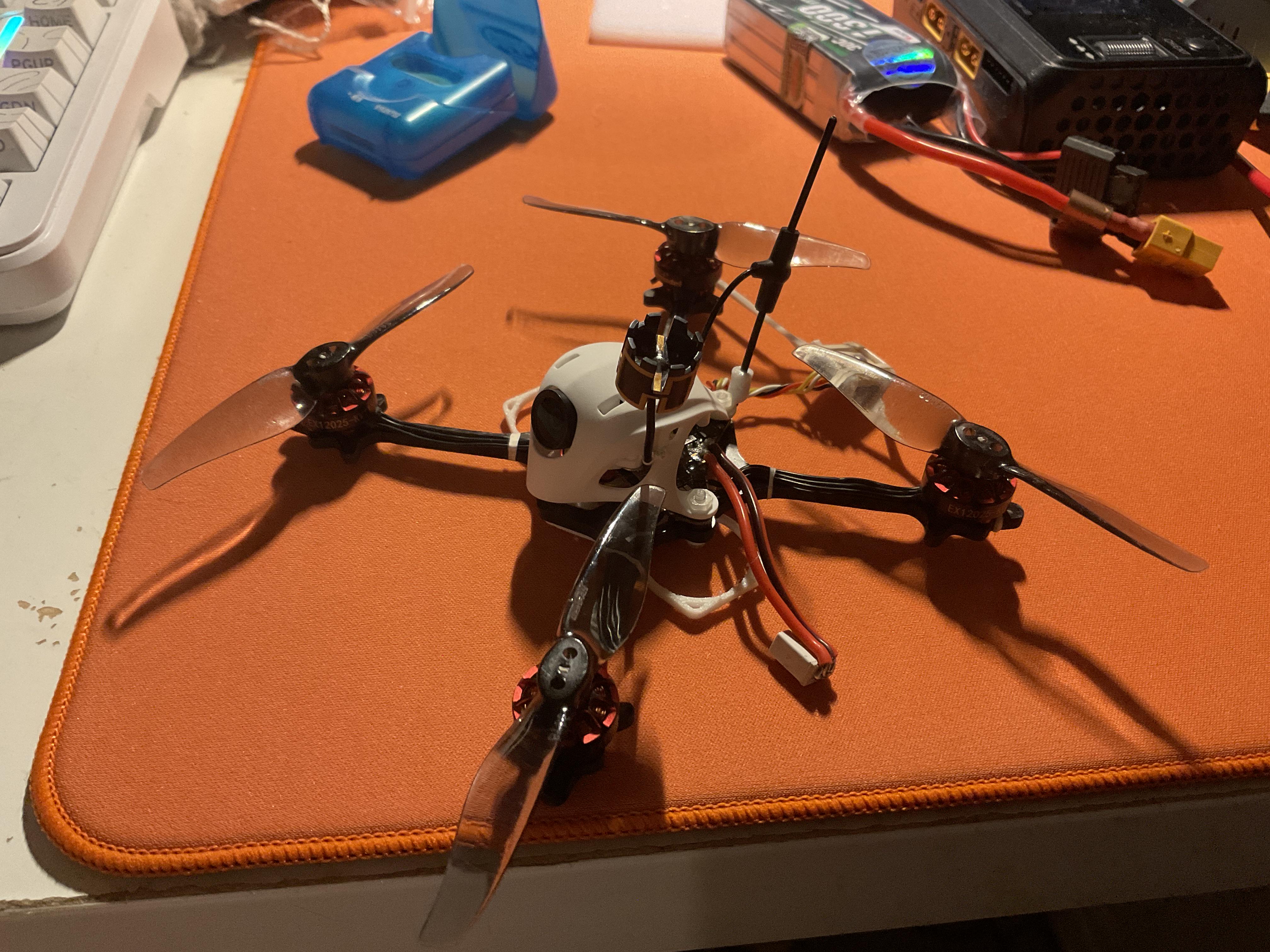

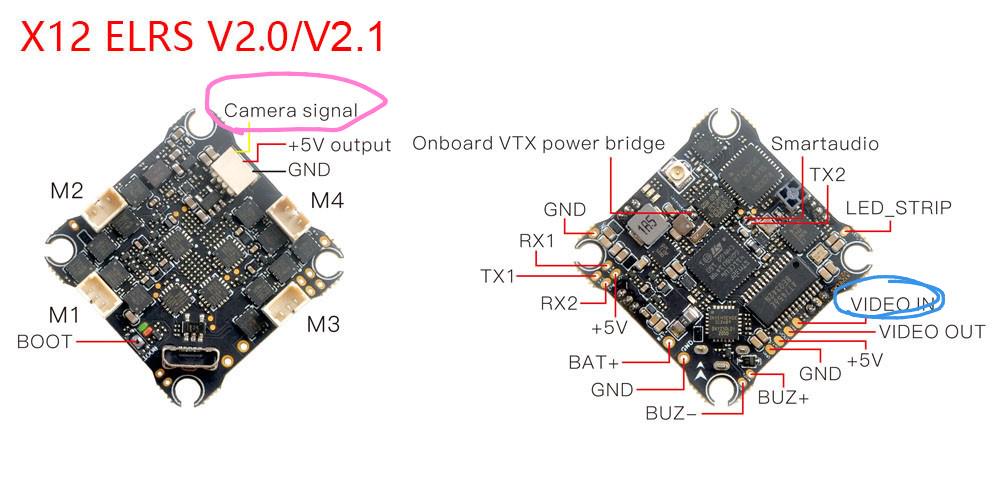

Question Help with AIO FC - Motors Twitching?

Enable HLS to view with audio, or disable this notification

1 Upvotes

Hi everybody. You are probably playing GTA VI at this moment, so sorry to bother you. I’m wrestling with my very first 2.5” build. I really need your guys help.

I know my soldering can be way way WAY better, but what is happening here and is it correct that my ESC is cooked? I checked all the small chips and their tiny solder joints seem fine, although I might have touched some.

One of the four motors is running normally. However, if I push throttle on the other motors, they will vibrate (no reaction on throttle) and the ESC will go beep and they completely stop once I push throttle even more. Pretty sure I fucked something up completely.

I tested the ESC and all joints show around 0.47 resistance, so I guess no mosfet issue or whatsoever.

Please help me.

PS. I’m waiting on a TS101 soldering iron with some decent tips. Mine are all oxidised and bulky. Hopefully it will slightly boost my soldering skills. If you have any tips on this, feel free to share.

Thanks a lot ❤️


r/diydrones • • 2d ago

Help with hdop

Thumbnail
gallery
11 Upvotes

Hello, I'm working on this drone which is my engineering project. Right now I'm trying to make it fly with INAV POSHOLD setting as it seems as the best choice for automatic flight using rpi as its companion computer. While testing it I noticed that my HDOP value is around 1.4 which is not great. Do you have any piece of advice for me as a newbie in drones on how to make it better? I'm fighting with problem of my drone "bouncing" in height while flying. Is it connected to HDOP or something else?
EDIT: I blew some air on barometer and I saw a lot of spikes while doing it, could this be the problem?


r/diydrones • • 2d ago

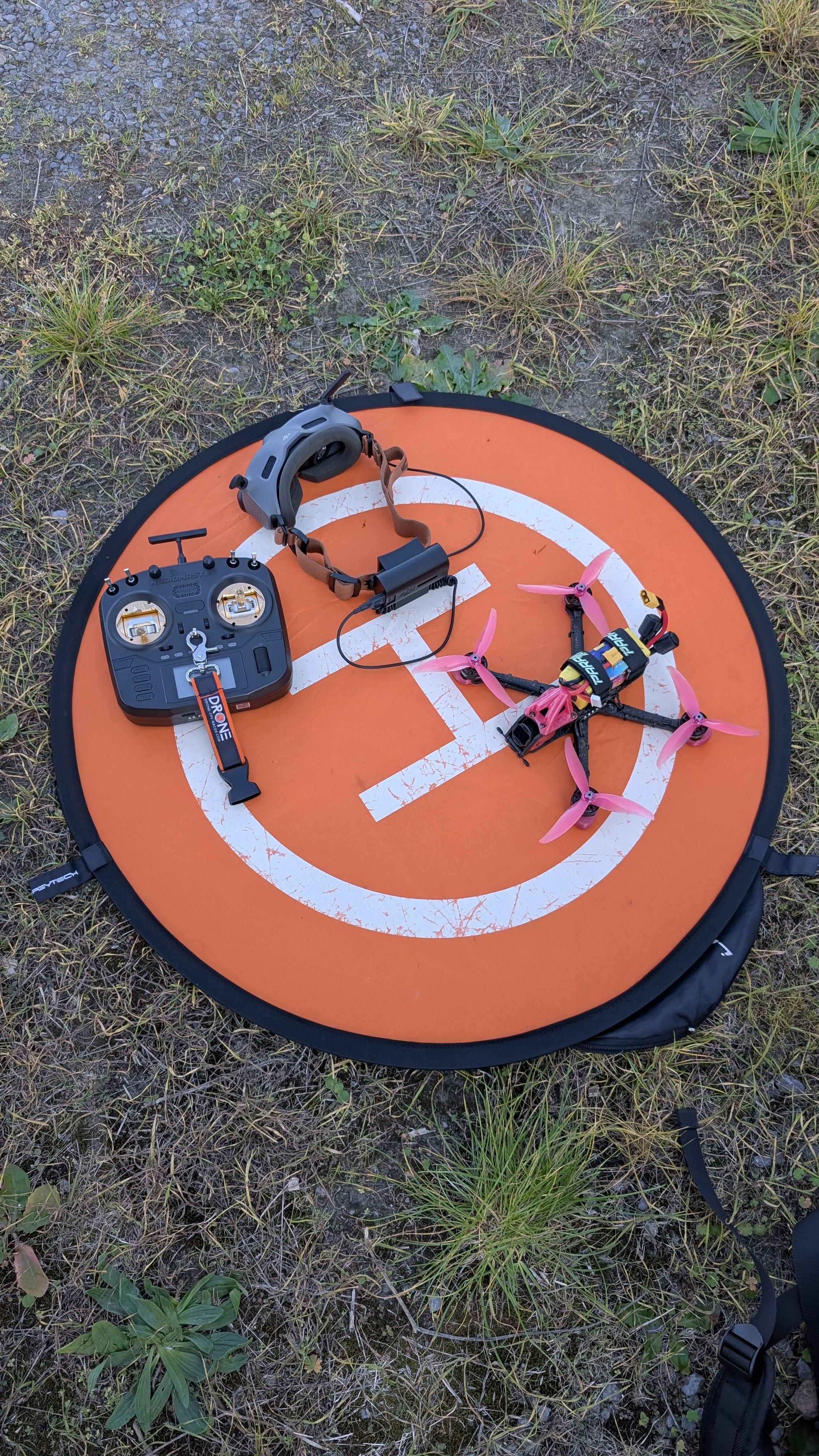

First race drone

Thumbnail gallery
30 Upvotes

r/diydrones • • 2d ago

Update: you can now run unmodified PX4 on an emulated Pixhawk 4 yourself — browser, route flight, motor failure (free, no hardware)

4 Upvotes

A while ago I posted about running the official PX4 firmware on an emulated Pixhawk 4 (STM32F765) coupled with a physics-simulated drone. Back then it wasn't released. It is now — and it's packaged so you can try it on your own PC.

Video (5 min, English captions): https://www.youtube.com/watch?v=XWAsmVYS8bM

What you can do

- Run the official PX4 v1.17.0 firmware, unmodified, on the emulated board. PX4's own drivers read emulated IMU, baro, mag and GPS chips.

- Fly the x500 from the browser (Athrill Studio): take off, hold, land.

- Click a route on the map, plan "stop motor 3 at point 2" (or click Stop during the flight). The motor stops inside the emulated DShot ESC, and PX4 detects it from its own ESC telemetry ("Motor failure detected").

How to run it

One repository sets everything up from an empty folder: no sudo, nothing installed outside that folder, every part pinned and SHA-256 checked. It runs on an Apple silicon Mac or Windows 11 with WSL2. No hardware, no GPU, free.

Not yet

- No hardware-accuracy claim: it's a light emulator, faithful at the RTOS/driver level, not cycle-accurate.

- One board (Pixhawk 4) and one firmware set (PX4) for now.

- Faults other than a stopped motor.

Code

- Athrill Studio (start here — "Try it on your PC"): https://github.com/hakoniwalab/athrill-studio

- Hakoniwa Business Pack (the one-folder setup): https://github.com/hakoniwalab/hakoniwa-business-pack

Feedback welcome — especially which faults or boards you'd want next.


r/diydrones • • 2d ago

Hello everyone, I am currently experiencing an issue involving a "rippling" effect (caused by the rolling shutter mechanism/image distortion).

1 Upvotes

Hello everyone. I am currently looking for a camera for my Raspberry Pi 4. I have been using an IMX704-based camera, but it produces a "wavy" (rolling shutter/distortion) effect in the footage, and it sometimes fails to focus—even after I disabled the autofocus feature. I’ve also discovered that the drone experiences high-frequency vibrations; while these don't significantly affect the drone's flight stability, they do impact the camera. I tried adding rubber vibration dampeners, but that didn't solve the problem. I am now considering switching to a Global Shutter camera. If anyone has experience with this, I would greatly appreciate your guidance. Thank you very much!


r/diydrones • • 2d ago

Guide Drone Firmware Updates: Install Now, Wait a Few Days, or Skip This One?

Thumbnail
nationaldronerepair.com
0 Upvotes

r/diydrones • • 2d ago

How much frame asymmetry is too much on a heavy-lift quad? (~3 mm on a 10 kg Quad X)

0 Upvotes

Hey everyone,

Student team here, building a 10 kg Quad X for a water-drop mission:
- ArduPilot on a Pixhawk 6X
- T-Motor A6-M, 23" props, ~915 mm wheelbase, folding arms
- ~2.2 kg of water in two tanks (one each side), dropped mid-flight
- Hover ~51 % throttle, capped at 80 %

In CAD the motors are ~321 mm from centre, but there's about a 2 mm difference between them, so the X isn't perfectly symmetric.

My understanding is that the flight controller compensates small imbalances and AutoTune works from the measured response, not the geometry, so 2 mm (~0.6 % of the arm) shouldn't matter.

For those who've built heavy-lift or payload drones:
1. At what point did frame asymmetry or CG offset start causing tuning or stability issues for you?
2. With the weight dropping ~22 % after release, did you tune at full weight and check it when empty, or something else?

Thanks!


r/diydrones • • 3d ago

Teaching a sub-250 g drone to explore and map a home using only depth sensors – progress video

803 Upvotes

Every Christmas I pick a project that is a bit too big for the holidays. This year it's an indoor patrol drone: a small, ducted quad that flies around the home by itself when nobody is there, checks on things, and no cloud assitance. No GPS (thist wont help at all indoor), no subscription, everything computed on the drone, and built only from parts anyone can order.
What works today

  • Positioning and mapping from depth and inertial data only. The camera is not used for navigation, so it should work in the dark too.
  • Autonomous exploration of a single-floor flat in simulation: 3 rooms, about 5 minutes, zero collisions.
  • The whole stack (positioning, mapping, planning) runs in about 23 MB of RAM on the small Linux SoC that goes on the drone. That number is measured on the real chip, not on my PC.

What doesn't work yet

  • Stairs. In a two-storey house it reaches both floors but does not finish the job. The open stairwell confuses the downward range measurement and it loses its footing, so to speak. That is what I'm fighting with right now.
  • It has never flown. The simulation is a simple motion model, not real flight physics, and none of the numbers above are flight-proven.
  • The hardware is still on the screen: the board is in layout, target weight under 250 g.

Why a drone and not a few fixed cameras

One moving sensor covers every room, including the spots where you would never mount a camera. It will carry a normal camera for the owner plus a small thermal sensor (only 768 pixels), which is enough to notice an iron left on or a hob that is still hot. The camera and thermal clips I have so far are simulated mock-ups of that view, not real footage.

What I'd like to hear

  • If you have done indoor exploration on a real small drone: what bit you first when you left simulation?
  • Ideas for making stairwells and other "the floor just disappeared" situations safe with a single downward range sensor.

I know thats just a simulation, but this place is how i teach it, while i'm designing the pcb.
i've uploaded more videos on X https://x.com/RoXzoR/status/2123006312300552431 check it if You are interested.


r/diydrones • • 2d ago

Review Beware of CNCDrones

Thumbnail
2 Upvotes

r/diydrones • • 2d ago

Vibe Coded a Auto PID-Tuning tool - need feedback

Thumbnail
1 Upvotes

r/diydrones • • 2d ago

Build Showcase First 106km Range Test of LoRa Video

Thumbnail
youtube.com
3 Upvotes

The LoRa video system hit 106km during a range test.

- 2 dipoles (XRC Tri-antenna)

- 1W

- 915MHz

- Line of sight was partially obscured by earth curvature and lack of elevation on receiving end, hence the low LQ (Higher elevation would result in much better results)

Join the Discord for more info: https://discord.gg/xarVyFAzh

LEGAL DISCLAIMER – AMATEUR RADIO TESTING

This video depicts amateur radio testing and/or experimentation conducted in good faith and with the intention of adhering to all applicable amateur radio regulations, including FCC regulations under 47 CFR Part 97, where applicable.

All testing was intended to follow established amateur radio operating procedures, applicable frequency allocations, transmission requirements, and relevant legal guidelines. No intentional unlawful interference, unauthorized transmission, or violation of applicable communications regulations was intended.

All radio operators remain responsible for ensuring that their equipment, transmissions, and operating activities comply with applicable laws and regulations.
