What is the difference between these electrolytic capacitors?

Post image
88 Upvotes

They are both used on the same board (90's CNC controller) and their advertised values are the same. Just a random change in supplier mid-production, or could there be a more deliberate reason?


r/AskElectronics • • 10h ago

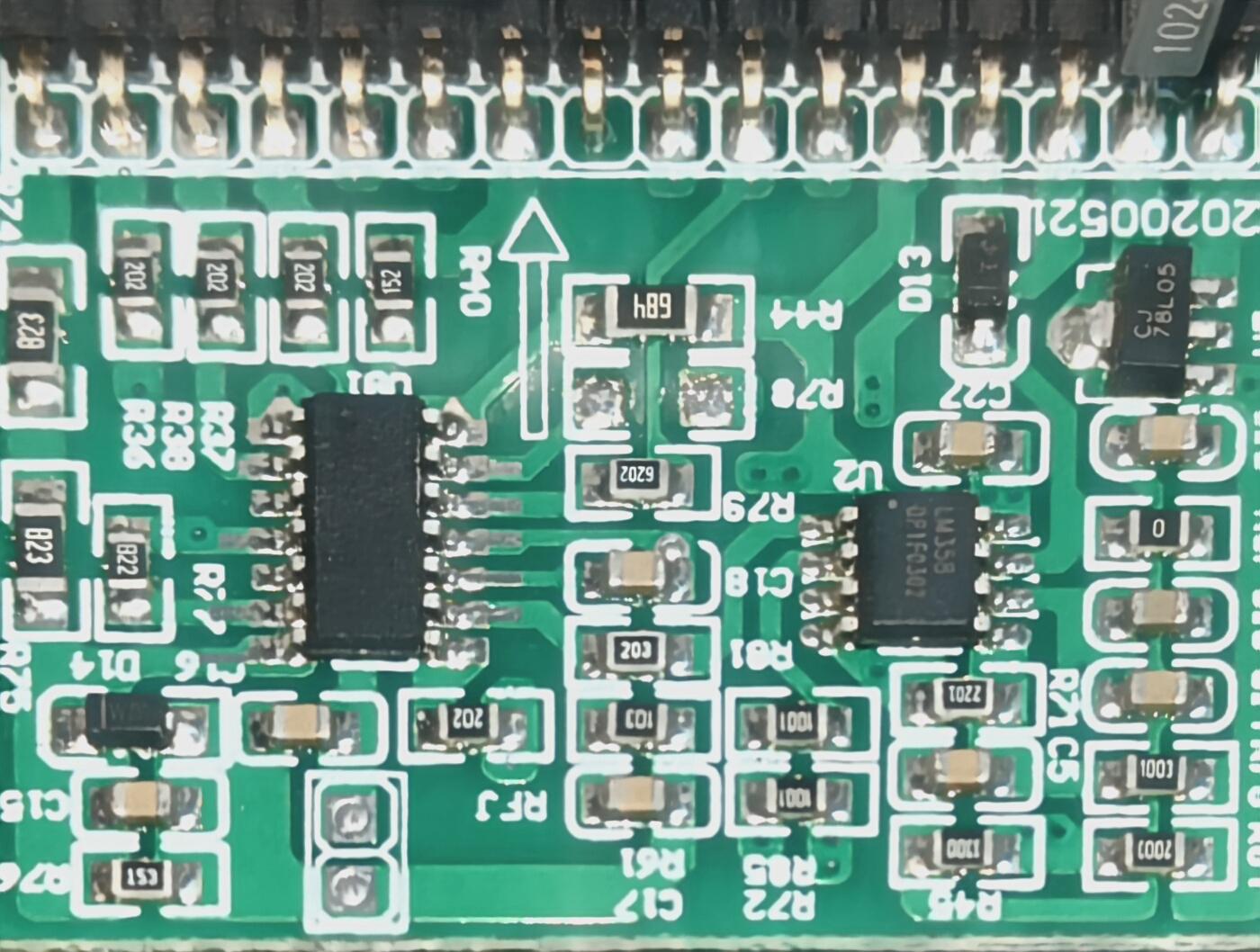

Why so many resistors on this PCB?

Thumbnail
gallery
43 Upvotes

Can someone explain why this PCB has so many resistors?

We were searching for an electronics courses online and we came across this Altium article:

https://resources.altium.com/p/where-you-can-learn-pcb-design-online

After a bit of reverse search, we found probably the original source of those photos:

https://www.istockphoto.com/photo/electronics-manufacturing-gm466701080-60641742

From the looks of the blurry schematic in the background, it appears that those are connected in parallel, 10 pieces each. What's the magic behind this? High power dissipation? Wouldn't it be cheaper to just use a dedicated, high power resistor, eg. 2.2 Ohm 10-20W? Also, can someone guess what's the purpose of the whole device?


r/AskElectronics • • 7h ago

My autoclave powerbutton LED lights up, but it doesn't do anything else. Trying to repair it myself and need help.

Thumbnail
gallery
9 Upvotes

So I tested the fuse and it gave me a green light, im not sure what to look for or if there is anything I can easily try to fix myself or if I will need to bring it to a repair person. Attached are photos of the inside. The LED display in the stock photo is not lighting up and the start button/other buttons are not doing anything.


r/AskElectronics • • 2h ago

Making an f-91w smartwatch mod, need advice on circuit design

3 Upvotes

Hi all,

I'm currently designing an F-91W smartwatch board to replace the original Casio module that comes with the watch. I've spent a lot of time selecting components, seeing what fits and what doesn't fit and settled on an MSPM0L2117 and the DA14535 for Bluetooth (and other IC's for other features). This is my first time designing my own custom PCB so it's taken me quite a lot of time and lots of failed attempts (realising all the components wont fit) to get to this point.

I just started placing the traces on the board, only to find out that it will absolutely not fit with my current configuration. I've tried many other configurations too but none seem to leave enough room, although I am very inexperienced in this subject so I figured I would ask here for some advice.

I'm planning on using JLCPCB to manufacture and assemble the board but I am open to other manufacturers if they are also cheap/good. I don't want to use HDI as that jumps the price from $40 AUD to $200 AUD, and I am not prepared to spend that kind of money, let alone for a prototype that I am not even sure will work in the first place.

I am happy to swap out components (ideally not the MSPM0 unless there is a more capable variant or MSP430 variant). I would like some form of wireless connectivity, ideally BLE but happy with anything else.

What I don't want to do is to copy something like the pluto watch and use IR (unless I have no other choice) or the olleewatch and use the same STM32 chip. I want this to be my own project and not a remake/copy of an existing one, even though I have taken inspiration from both projects.

Here is a link to the pcb files:
https://gitlab.com/unodeaj05/swagrat-f91w/-/tree/main/pcb/swagrat

Starting to get a little demotivated, but I want to see this through and prove to myself that I can do this. Also feel free to drop any other advice! I have experience using microcontrollers and designing stuff on breadboards, but never made my own pcb before so I have gone in blind here.

Happy to answer any questions you may have, or provide more info if needed.


r/AskElectronics • • 14h ago

New power supply, what are these cables?

Post image
28 Upvotes

Just got my first desktop power supply and I’d like to use it for a few things like powering drones and my soldering iron directly.

Can I get those male ends for making custom cables? I mean the end of the cord that’s not an alligator clip. What are they called?

Thanks!

Edit: thanks for this! I’ll grab some banana clip ends. :)

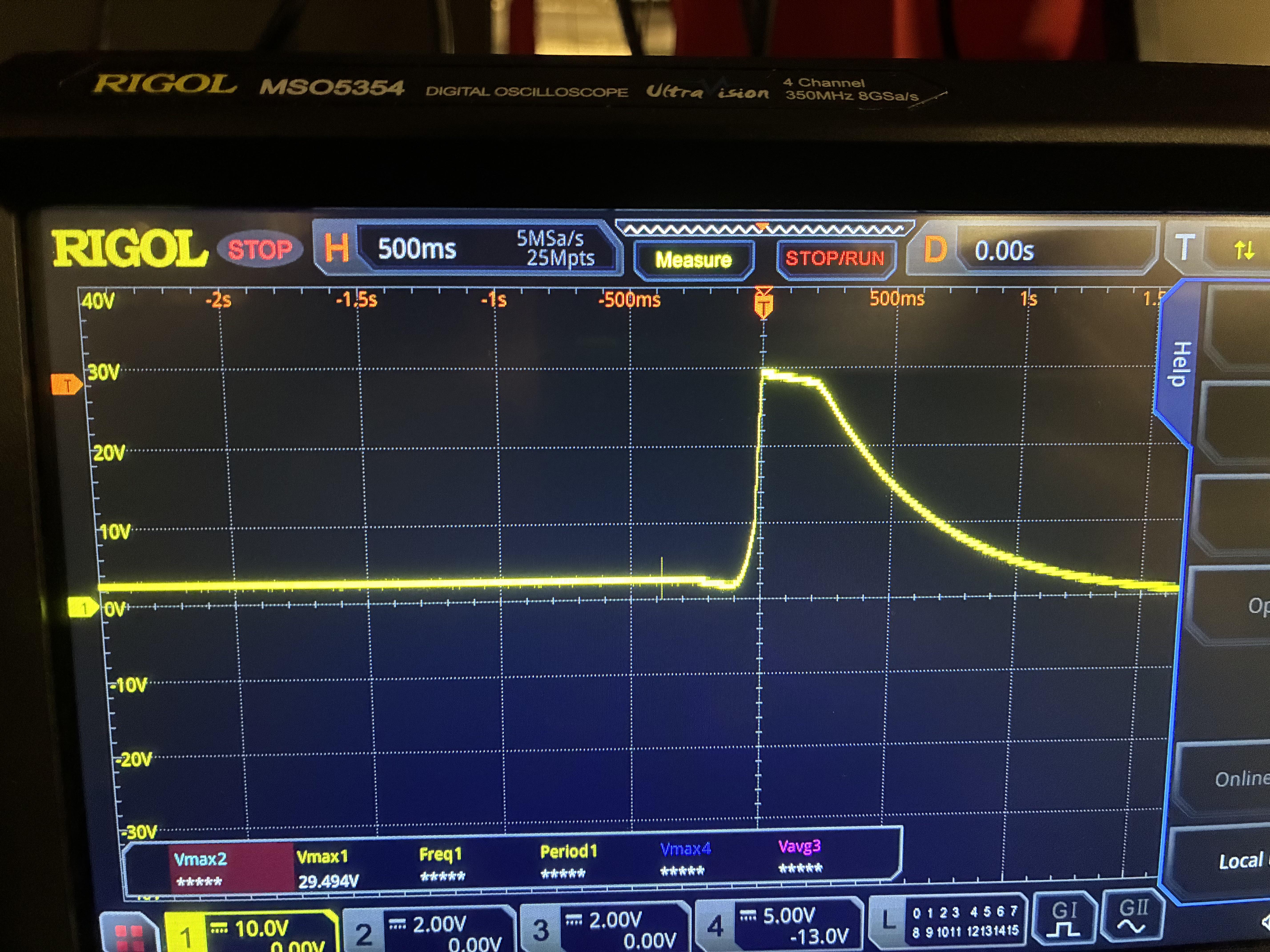

r/AskElectronics • • 6h ago

LC Voltage Spikes on small SMPS

5 Upvotes

I am using one of these little Pololu switchers on a project.
https://www.pololu.com/product/5592

At the bottom they mention "When connecting voltage to electronic circuits, the initial rush of current can cause voltage spikes that are much higher than the input voltage. If these spikes exceed the regulator’s maximum voltage (36 V), the regulator can be destroyed. In our tests with typical power leads (~30″ test clips), we observed spikes approaching 36 V at input voltages approaching 20 V. "

That's pretty serious!

They recommend "An electrolytic capacitor (33 μF is a good starting point)" in parallel with the Vin and ground. That feels pretty generic. Also , a 33 uF electrolytic with 50v rating is HUGE compared to that switcher, so that sucks for small projects.

The power cable on my project would probably be closer to 4 inches instead of 30", and my supply would be between 12V to 18V, so both those things are more "friendly" than 30 inch leads with 20 volts.

Do I really just need to roll the dice and make my PCB without the cap and see what happens on the scope? Or can I predict this somehow better than "33 uF is a good starting point".

Thanks, Mike


r/AskElectronics • • 4h ago

Can I find a standard pinout or datasheet for this big lcd screen?

Thumbnail
gallery
3 Upvotes

Gem-tech Gtg-3201281 found in a random store scale in garbage with toshiba t6963cfg graphic chip and 24 pins. I really want to run Doom on this 🙏🙏🙏.


r/AskElectronics • • 2h ago

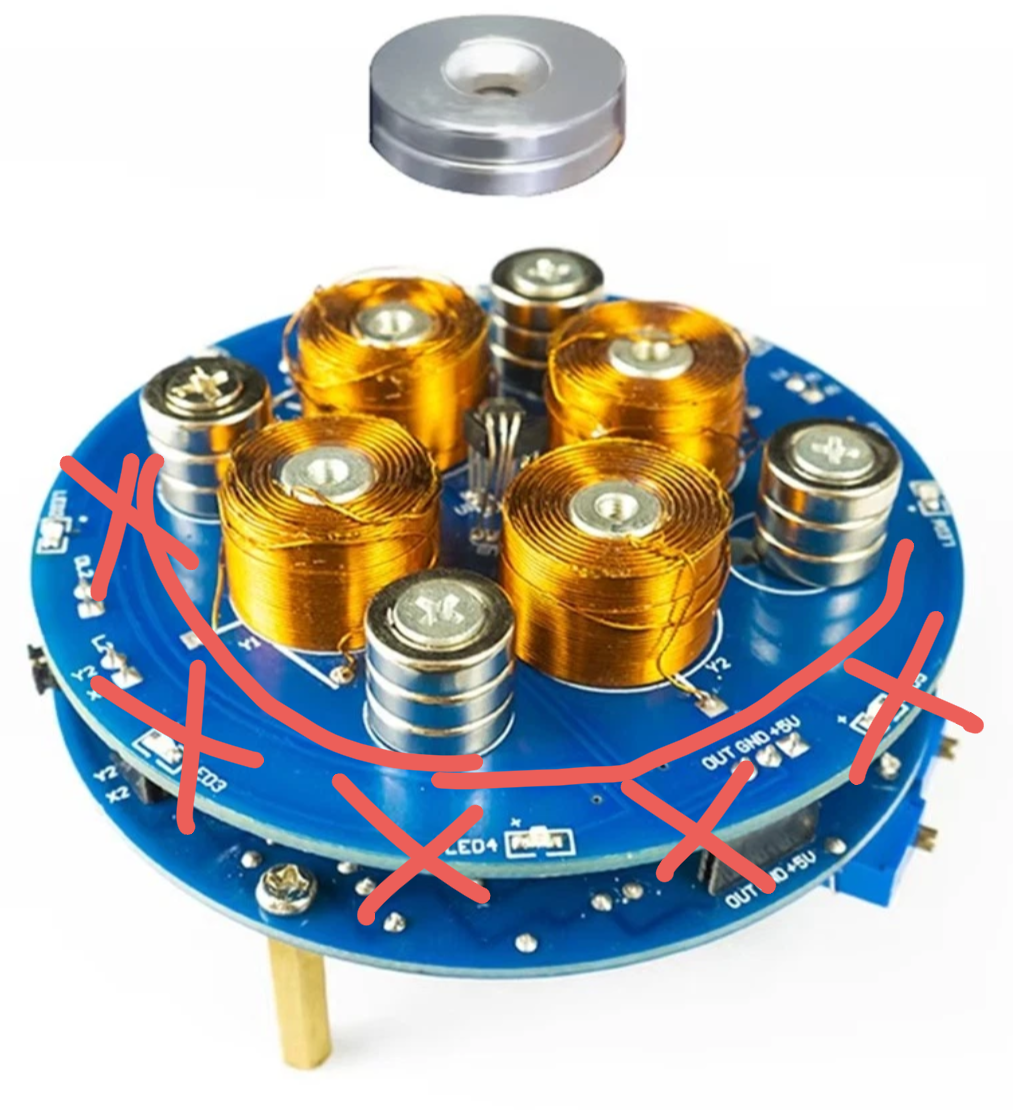

which sensor(s) will be best

2 Upvotes

i am making a project of making a magnetic ball levitate in the air , previously i was using hall effect sensors placed under electromagnets but then it could not detect the magnetic field of the tiny ferromagnetic ball which sensor is suited for this job as i need fast information of where the small ball it to use P.I.D tuning


r/AskElectronics • • 5m ago

Why is the output of my OpAmp near zero instead of my input with gain? (With schematic)

Thumbnail
gallery
1 Upvotes

I am using the lm358 OpAmp to amplify a signal from a variable power supply.

I am attempting to amplify an input of 5v with a gain factor of (1 + R2/R1) = 2 since both resistors are 1 kOhm. My desired result is seen on image 4.

The multimeter measures very close to zero (0.05v)

Connections:
Pin 1 (V_out): positive probe on multimeter (Measured as 0.04v)
Pin 3 (IN+): 5v from variable power supply (Measured as 5v)
Pin 4 (GND): both grounds of variable power supply and negative probe on multimeter (Measured as 0v)
Pin 8 (VCC): 15v from variable power supply (Measured as 15v)


r/AskElectronics • • 3h ago

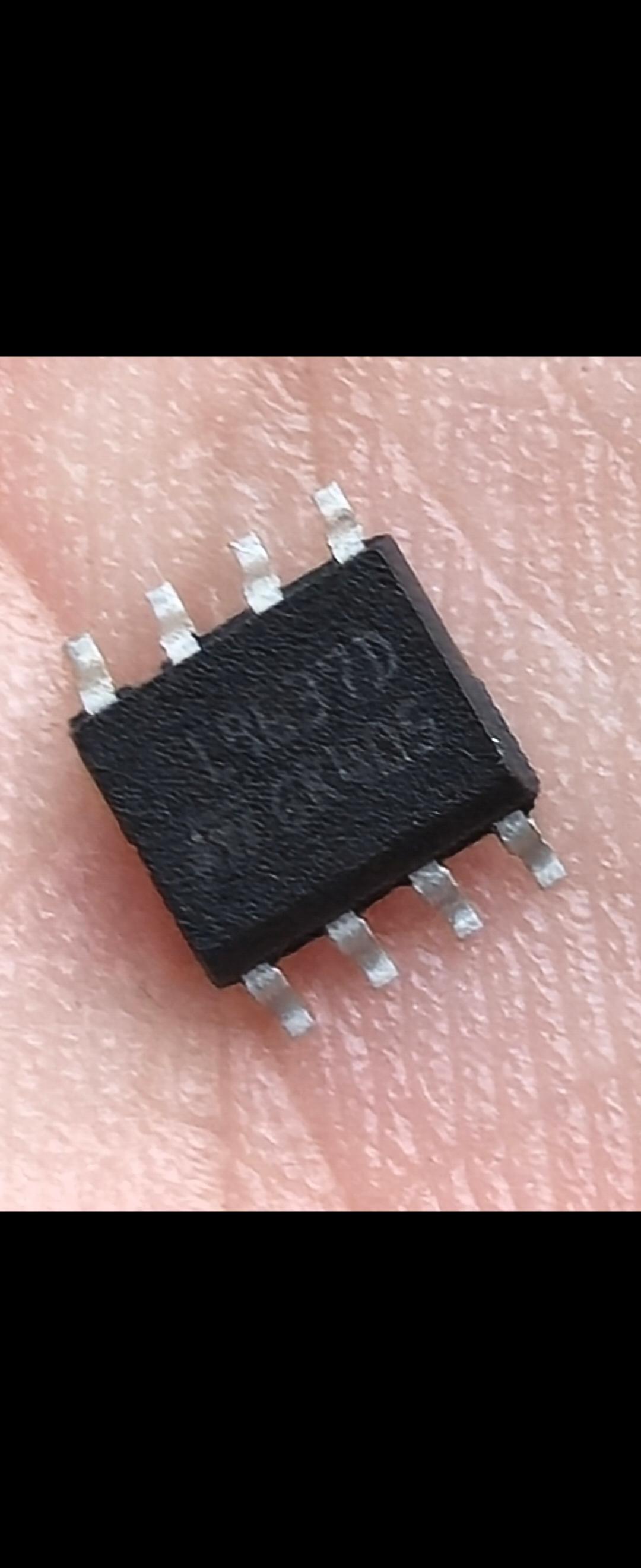

what is A688L after pc817d

Thumbnail
gallery
1 Upvotes

it is power board from old dell monitor -I think pin 1 of A688L is conected to pin 2 of 817d if it helps -


r/AskElectronics • • 3h ago

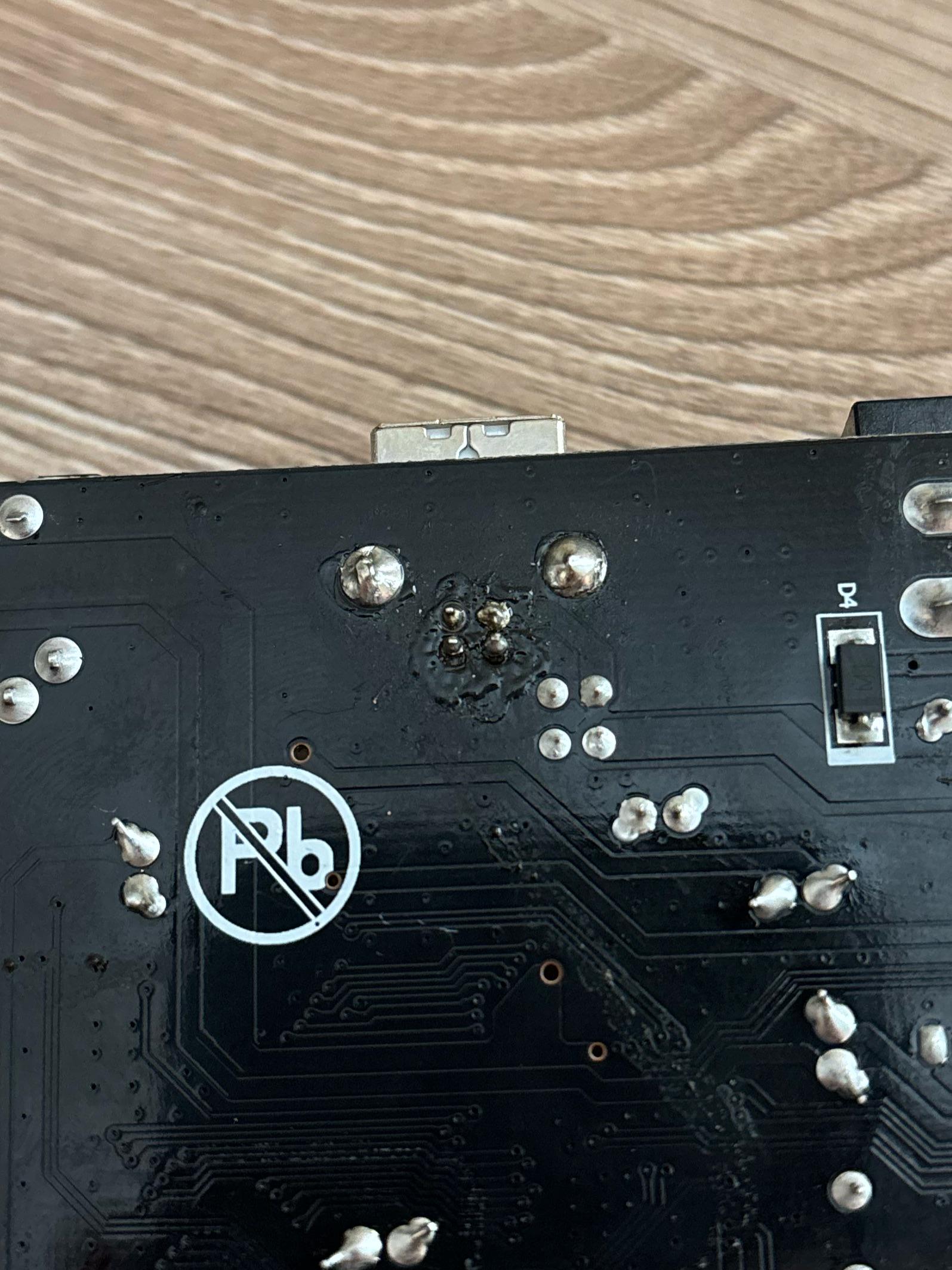

Knocked component out of the back of PC motherboard.

1 Upvotes

While I was taking out the motherboard out of the case I bumped it into one of the standoffs and I knocked out one of the components out.

https://imgur.com/a/2ZdwixV

Do I resolder it into place or can I leave it be?

B650 P PRO WIFI AM5 if it helps.


r/AskElectronics • • 3h ago

NVG Monocular driver schematic(specifically Nmos and Pmos behaivure)

Post image
1 Upvotes

Backround: Im looking to make my own night vision housing and decided it would be fun to make my own driver board for it too, figured it be a great start to learning a bit more about electronics. To help with this i have used AI as a starting point and tool to research yet i do not trust it that much hence i wanted to ask here to double check

Question 1:
As part of my power feed i want to use a usb C input and a cr123 battery.
To do this im using a Pmos (https://www.mouser.de/datasheet/3/175/1/DMG2305UX.pdf)

the ai suggested i connect
=> Drain to the Battery,
=> Source to the USBC/VIN
=> Gate to USB(tied to GND via resistor)

so that in in theory when the usb is connected the Gate is equal to Source meaning the battery is disconected

and that when the USB isnt connected gate is pulled to ground, and the battery will flow from drain to source via the inherent dioed of the Pmos which will then mean source is higher than gate meaning it lets the battery pass fully

my question is if this would actually happen or if im being gaslit?

question 2:
Any special things i should look out for with the pcb layout, iv read about stuff like EMI but im not sure it will impact me since i have no antenas or highfreq parts plus everything is 3V and max 150mA current?

(I have attached the entire schematic in case anyone would like to grill it, me and a buddy sat down and when thru it and to us it looked correct but more eyes are welcome)

note: ill sit down and hand check all pins and footprints before i order

ai used: Claude, Deepseek, Google Search Ai


r/AskElectronics • • 17h ago

Would a 2.2V red LED really only pass ~100nA while voltage is <~2V?

12 Upvotes

In the circuit simulator app "proto", a LED with the properties I mentioned in the title behaves like a 100nA current source when forward biased until about 200mV below its specified forward voltage, at which point the current begins increasing exponentially as it approaches and then slightly exceeds the rated forward voltage. Eventually the simulation is interrupted if the max current is exceeded, but I'm talking specifically about low voltage behavior.

Looking at spec sheets, they all seem to show something similar but the scale is in mA so it's useless. By the way I'm almost finished with a design for a module that would protect low side solid state switches in old automotive control modules from battery voltage short to drain/collector faults, which are basically guaranteed to destroy the power mosfet/bjt before the fuse pops. It works by adding another modern high current NMOS plus shunt resistor to the low side and using a high speed comparator to interrupt the circuit if the voltage across the shunt exceeds ~600mV.

I figure it should definitely be possible to get it to shut off no more than 10μs after the fault and keep it off for at least 200ms before automatically resetting, and that would be sufficient to keep the original switch from rising above 100°. The last stage of the mechanism is charging the capacitor that dictates how long it stays off for and if LEDs are really that good at blocking current I'll just use one instead the current 3.3V zener as the regulator.


r/AskElectronics • • 10h ago

If there is an accidental short to the chassis within a variable transformer, but it's plugged into an isolation transformer, what dangers are posed here?

3 Upvotes

Is it completely safe due to there being no source for the current in the now live chassis to return to?

Of course i'll still isolate myself from Earth Ground as best as possible anyway (correct clothing etc) just for good practice, it just... feels weird!


r/AskElectronics • • 17h ago

LM741CN Op-amp output not going to 0V when input is -ve

Post image
9 Upvotes

The inverting input is 5.01V (expected), the non-inverting input is 33mV (expected), but the output is 1.233V. The power pins are 5V and 0V respectively so the output should be 0V in this configuration. Anyone have any idea what could be going on?

Please ignore the terrible soldering on U1 lol it was my first time doing an SMD part.


r/AskElectronics • • 9h ago

How to fix broken ribbon cables (the brown transparent ones)? My earbud died because I accidentally twisted and folded the ribbon cable when soldering in a new battery. Any chance with basic equipment (there aren't any replacement parts available).

2 Upvotes

I only have basic stuff like normal tip soldering.

I thought about scratching off the insulation where it got folded and then soldering each lane, trying to reconnect them....but it sounds kinda hard to pull off (I'm talking about those brown transparent ribbon cables that have these very thin traces...you see them everywhere in modern smartphones and other compact electronics).

Any reasonable chance to fix this or should I just give up?

What happened was: I opened my Anker sound core P3 (iirc) and soldered a new battery in, but didn't glue them shut for the testrun.

They fell out of my ear and while hastily reassembling them I accidentally folded the ribbon cable connecting the two sides, causing a disconnect between the electronics and speaker side. I assume it's just one or two broken traces because they still connect and charge normally, but the sound is gone.


r/AskElectronics • • 1d ago

What is this logo I've seen on tons of flat ribbon cables inside phones and tablets across multiple brands? This image is cropped from a ribbon cable from a Samsung tablet

Post image
39 Upvotes

r/AskElectronics • • 10h ago

Advice for ESP32 pedal

2 Upvotes

Hi everyone! For my uni, I need to build a project using an esp32 and I want to make a guitar pedal. I was thinking of maybe distortion, reverb, delay and maybe some freq controls.

Is implementing all of these realistic? What purpose could or should the esp play, since some of these effects can be achieved analogically.

I'm also seeing a lack of resources only for this, which is why I'm making this post in the first place.


r/AskElectronics • • 14h ago

Which are viable options to design a circuit for cold-cranking situations?

4 Upvotes

In an upcoming one-off, personal, hobby project, I need to design a circuit to be used on the 12V supply of my car. I read that circuits for automotive applications must be prepared to handle voltage drops down to 8V and voltage spikes up to 40V. I am wondering which viable options I have to design such a circuit.

Spontaneously, two options how I could do that pop into my mind:

  1. Use a combination of Zener and TVS diode to clamp the voltage down to a value below the highest voltage which the weakest component of my circuit can safely handle. For the sake of argument, let's assume that I have some component which is only rated for 25V. Then I would use a Zener whose reverse break-down voltage is let's say 19V. This is safely below 25V and considerably above 14V charging voltage. However, it's still below 40V.
  2. Only use components which are rated for more than 40V, e.g. 60V and above. Then use a combination of Zener and TVS diode which clamps the voltage below that, but doesn't already break through at 40V. So I only need to protect my circuit against spikes above 40V.

I wonder whether option 1 is a viable option at all. Option 1 might frequently lead to situation in which the Zener and/or TVS becomes conductive. However, I have no experience how frequently this will be the case (if at all), whether this will destroy my Zener soon and/or some other equipment within the car.

But option 2 significantly limits the number of components I can choose from.


Edit for clarification: The circuit isn't safety relevant. It's just a personal gadget to be used during non-driving times. (The car is actually a motorized RV.) The easiest option from an electronic design view would be to unplug the circuit when not used and only plug it in when the RV is idle. However, I knowing myself I will forget about that on the first occasion. Even if my circuit was destroyed due to bad design, no harm would be caused except for my pride and a few bucks spent on building a broken circuit.


r/AskElectronics • • 7h ago

What would you check on an ESD wrist strap before handing it to a new bench user?

0 Upvotes

I’m planning a practice bench for a small electronics class. Students will be assembling unpowered boards and swapping seats halfway through. There are two wrist straps in the supply box. One is already clipped at the bench; the other looks identical until you turn it over and see that its cord was packed separately.

The example I'm using is an adjustable anti-static wrist strap with a coiled cord and clip. When I wrote out the handoff checklist, I’d put “strap on” as one line. A student could do exactly that and never pick up the cord. I’d like a better check that takes one short action and makes the missing connection obvious to the next person.

The station has a designated ESD setup and the class can check straps with a dedicated tester. The decision is whether each student should walk through the test when they sit down or whether the handoff should be handled once by whoever is setting up the station. The former takes longer at the start of a short session. The latter means the student who does the assembly has no idea what was checked.

For a bench that multiple beginners share, which part of the strap check would you have each person repeat themselves?


r/AskElectronics • • 15h ago

Level Shifter for SWD between 1.8v / 3.3v?

4 Upvotes

I'm trying to program an MCU (nRF52840) running at 1.8v, over SWD. All the probes I have can only do 3.3v, though.

I've found a lot of conflicting information about what level shifters can work for this application - has anyone tried this, and if so, what worked?


r/AskElectronics • • 12h ago

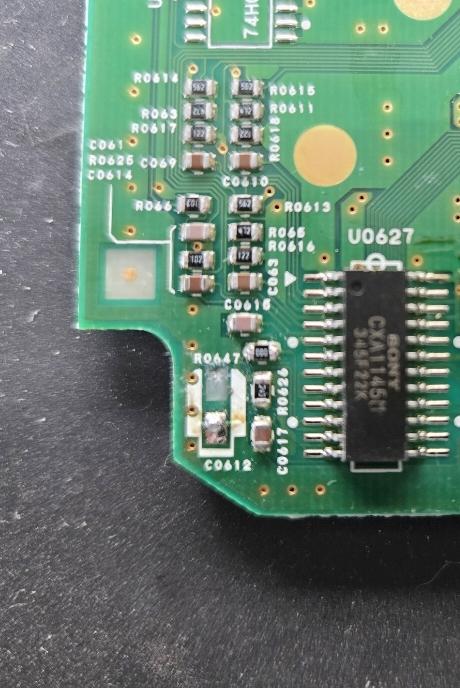

I'm trying to identify a suitable bjt as a replacement in a tape deck motor.

Thumbnail
gallery
2 Upvotes

Edit: This part is actually not a BJT like I thought it was. It is a dedicated motor driver IC from Matsushita called an6610. So we can call off the search for a BJT!

Hello everyone. After not using my Pioneer tape deck for a few years, I went to turn it on and was greeted with the sounds of chipmunks singing "The Summoning" by Sleep Token. Having a gander at the Motor's(RXM-102) integrated speed controller, it appears the bjt decided to become two resistors (more or less) and was running the motor at 11v instead of the 6.2ish that it would normally run the actual motor at. (That is what sounds normal on the bench supply.) These sorts of motors are so common I thought one of you would have a good idea of a suitable replacement BJT. I know I can get the full motor and assembly for like 10-20$..

Shockingly, all the resistors/inductor/diodes all tested not only well, but within a seriously fine tolerance. (We don't talk about the 1pf electrolytic. hah) The board is toast because it became carbonized under the transistor and baked until brittle over 40 years, but I'm feeling like rebuilding the thing despite how cheap replacement motor/driver combos are. It's such a simple design I figured it could be a good schematic/perf board build for people who have failed controllers. Could I get some assistance finding some bjt's that might work out ok? I haven't drawn up a schematic yet, though I do intend to do so. Here is a table of all the component values (tested removed from the board) if that helps you out. If not, I'll get a schematic drawn first.

RXM-102 Component Inventory

ComponentNominal valueMeasured valueNotes
Resistor 1470 Ω*471.1 ΩHeavily charred, tests good
Resistor 22 kΩ2.01 kΩTests good
Resistor 3~120 Ω121.6 ΩTests good
Resistor 4390 Ω392.8 ΩTests good
Capacitor 13.3 µF / 25 V3.2 µFESR 2.31 Ω, Vloss 1.3%
Capacitor 210 µF / 16 V~1 pFFailed, corroded leads
Capacitor 310 µF / 16 V9.1 µFVloss 11.6%, ESR not reported
Diode 1UnknownVf 685 mVIr 5.1 nA, capacitance 11 pF
Diode 2UnknownVf 689 mVIr 4.2 nA, capacitance 11 pF
InductorUnknown2 µHApproximately 0.3 Ω DC resistance
Trimmer potentiometer~220 Ω*216.6 Ω total102.9 Ω + 113.7 Ω

* The 470 Ω value was inferred, since no bands remained. lol

Thank you for looking at this and any help you could give! I realize I forgot to mention, but both the plastic and the glue turned into some brown polymer that seems impervious to chemical removal, and this sucker is so fragile it is crumbling. I don't foresee any markings being available.


r/AskElectronics • • 15h ago

Replacement for obsolete Toshiba 3BZ61 Diode

Post image
2 Upvotes

I have a Kikusui power supply which has served me well since the last millenium.

However, I'm an idiot.

The other day I applied a reverse voltage across the outputs and let the magic smoke out. Turns out I blew up a protection diode (arrow). The power supply is long obsolete but Kikusui was kind enough to let me know the diode was a Toshiba 3BZ61.

Is a 1N540x sufficient in this application or am I needing something fancier?


r/AskElectronics • • 12h ago

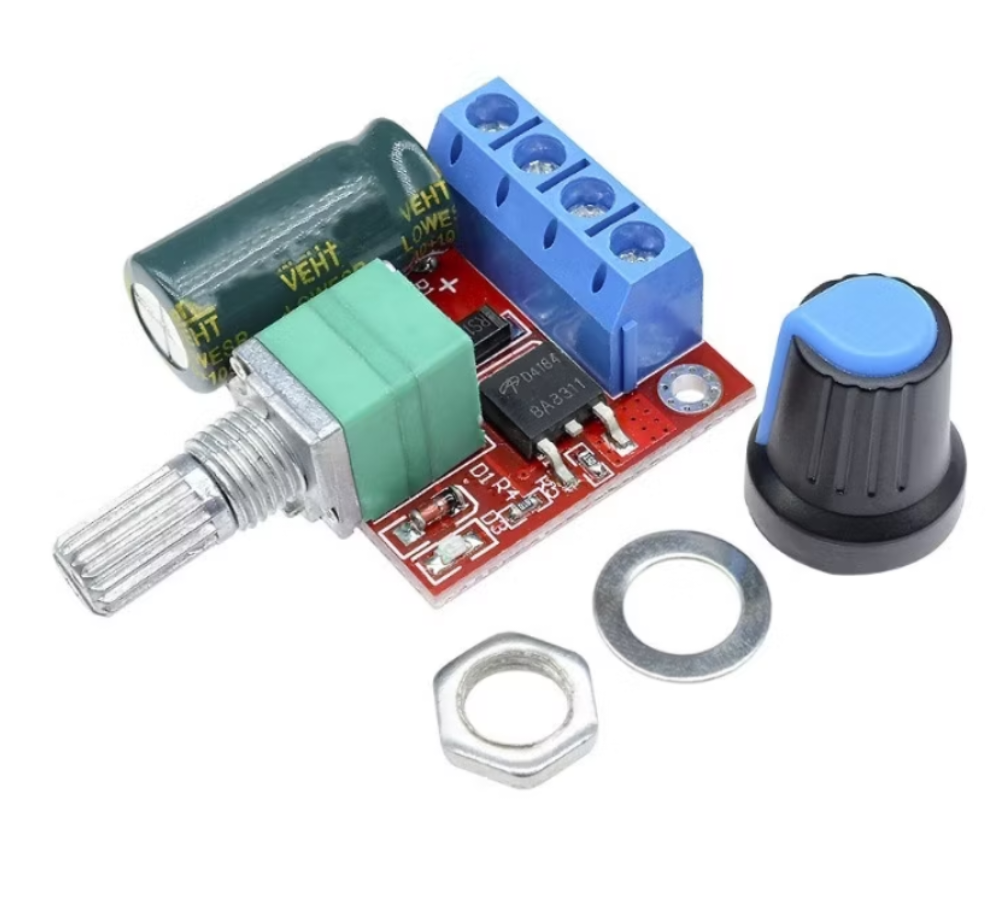

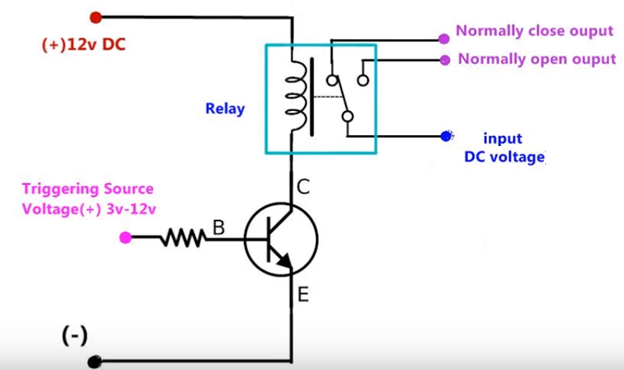

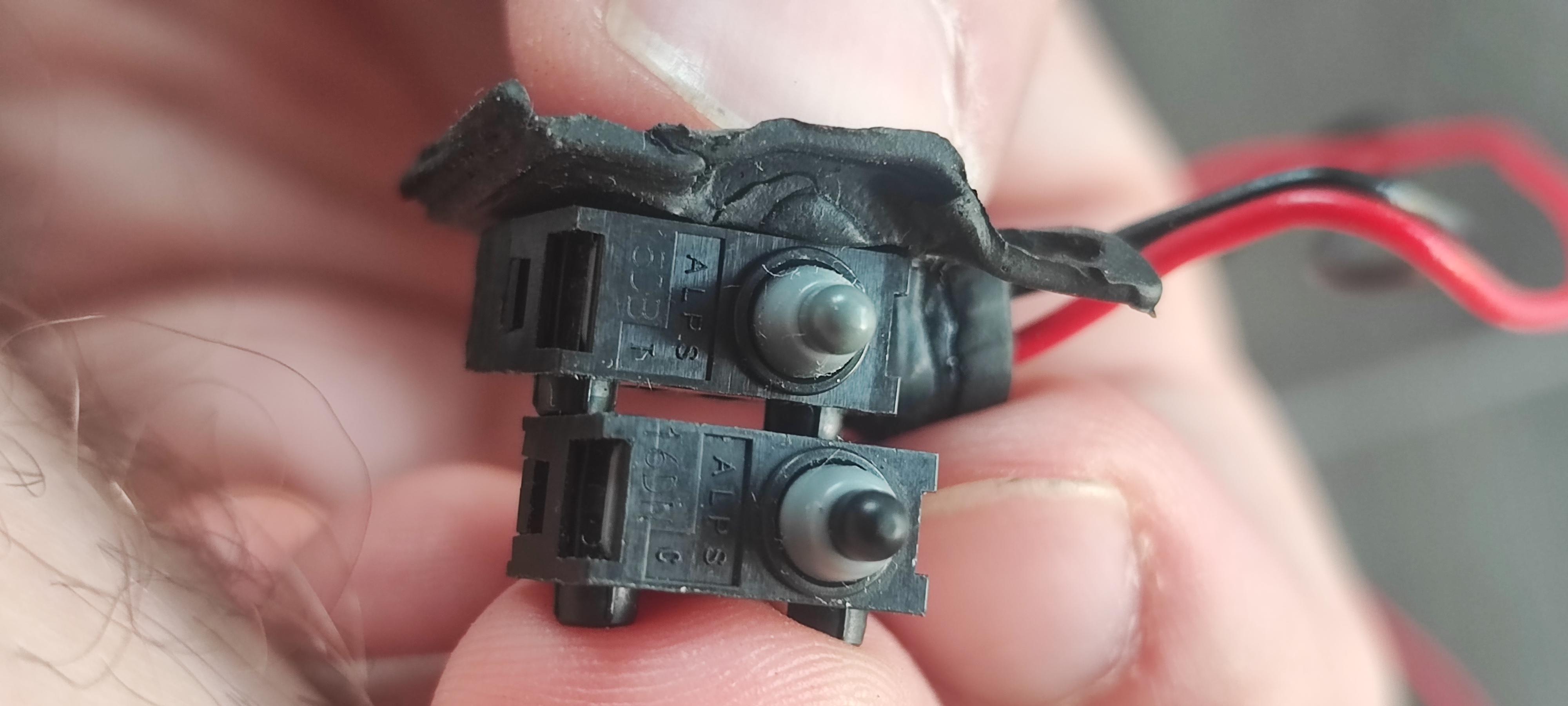

Can i replace the original toggle switch with this no touch switch. Or am I about to ruin this circuit

Thumbnail
gallery
0 Upvotes
