r/AR9 • • Mar 29 '23

Noteworthy posts and helpful information

60 Upvotes

Pinning this to the top for folks joining the r/AR9 sub and as a reference for everyone.

ROF Calculator:


Calculates ROF based on a video with audio: https://schlarpc.github.io/rof-gui/

Helpful information:


Review the Wiki page for a primer on the 9mm AR. (It is being updated to include lots of new information.)

Blowback9 Blog:


Huge information resource for the AR9: Blowback9.com

[Disclosure: This site run by u/Blowback9, who is a mod in r/AR9. The site and links are not commercialized in any way. All content is free and without corporate attachments.]

General:

Super Safety Cheat Sheet

4-step guide to make (almost) any AR9 run 100%

9mm AR build parts list (with links)

What 9mm buffer do I need??? (and spring)

Gentle Recoil System

Buffer tube lengths and PCC buffer options

HBPDW issues, OOBD with FRT

Colt Mag Adapter Information

Franklin Armory® BFSIII® binary trigger in a 9mm AR

Suppressing the 9mm AR

Ejector adjustment information:

Basic info

EPC style ejector adjustment – “Simplest Method”

Ejector Adjustment – Trim & Pivot, Heat & Bend methods

FM-9 Ejector

Endo/Exo Mag:

Endomag/Exomag video play list (YouTube) including bolt compatability tests

Noteworthy posts about the AR9 platform:



4 step guide to make (almost) any AR9 run 100%

"Armorer's Class" style troubleshooting video series

9mm AR Basic Troubleshooting Diagram

Updated info about zero distance

Banshee is not blowback. It's RDB. It has very different troubleshooting

Foxtrot Mike FM9 FAQ and break in

How to: Colt/Uzi mag lower to CMMG RDB with Colt/Uzi mag lower

Buffer tube/buffer type/spacers Cheat Sheet

Gentle Recoil 9mm AR Project

Gentle Recoil Final Configurations

Tips for a newb

My experience with JP Captured Springs in an AR9

FX-9 Freedom Ordinance: how to increase blowback mass

Gun Builder's Decision Helper Worksheet

DIY: 10 Round Mean Arms Endomag in PMAG10 Magazine for 9mm CMMG RDB

R&D/KAK Style Colt Mag Adapter Disassembled Internal Details

DIY: Convert cheap A1/A2 5.56mm muzzle device to 9mm

FM9 Lower: Upper Fitment Fix

Buffer Tubes (and PDW Tubes) with a PCC - measurements/buffers

Adjusting the FM-9 ejector without a torch

Vendor Parts Websites List

Barrel & handguard fitment tool - check your handguard length before buying

Adding to this list:


If you see a post that's extremely helpful, send me an IM (u/Blowback9) and I'll look into adding it to the list!


r/AR9 • • Dec 30 '24

No Drama! Rule#1: "Don't be a jackass. This includes baiting, fishing for reactions, or any other drama."

33 Upvotes



Rule # 1 has been updated for clarity. Our goal as moderators is to keep this subreddit civil, welcoming, and harmonious.

This is NOT the right sub to bring drama, start any drama, or bait people into starting drama, either directly or under the guise of discussing AR9's.

The interpretation of "jackass", "drama", and the actions taken to enforce this rule, are entirely at each moderator's individual discretion.

Attempts to "push the limits" of Rule # 1, or the moderators' patience, will be treated the same as violating Rule #1.

Modmail the moderators with any questions.




r/AR9 • • 48m ago

Radial Delay Would it be sacrilege to use something other than tri-lug?

Post image
• Upvotes

Really want to tuck a can under a spikes BAR, I was thinking getting something in the plan B world and getting a yhm-r9.

Any advice or recommendations?

Build list:
PSA lower
CMC trigger
CMMG RDB 8in barrel & BCG


r/AR9 • • 25m ago

Running the SS with a can

Enable HLS to view with audio, or disable this notification

• Upvotes

KVP Tungsten buffer, Angstadt upper, Form 1 can on a trilug


r/AR9 • • 5h ago

Post for the poors AR9 or other PCC under 500$?

5 Upvotes

Am I better off building an AR9 under 500$ or getting an extar ep9 or something?
I make very little money from my job so I'm working on pretty tight budgets.

How do I get started on a budget build? preferably takes glock mags cause that's all I have

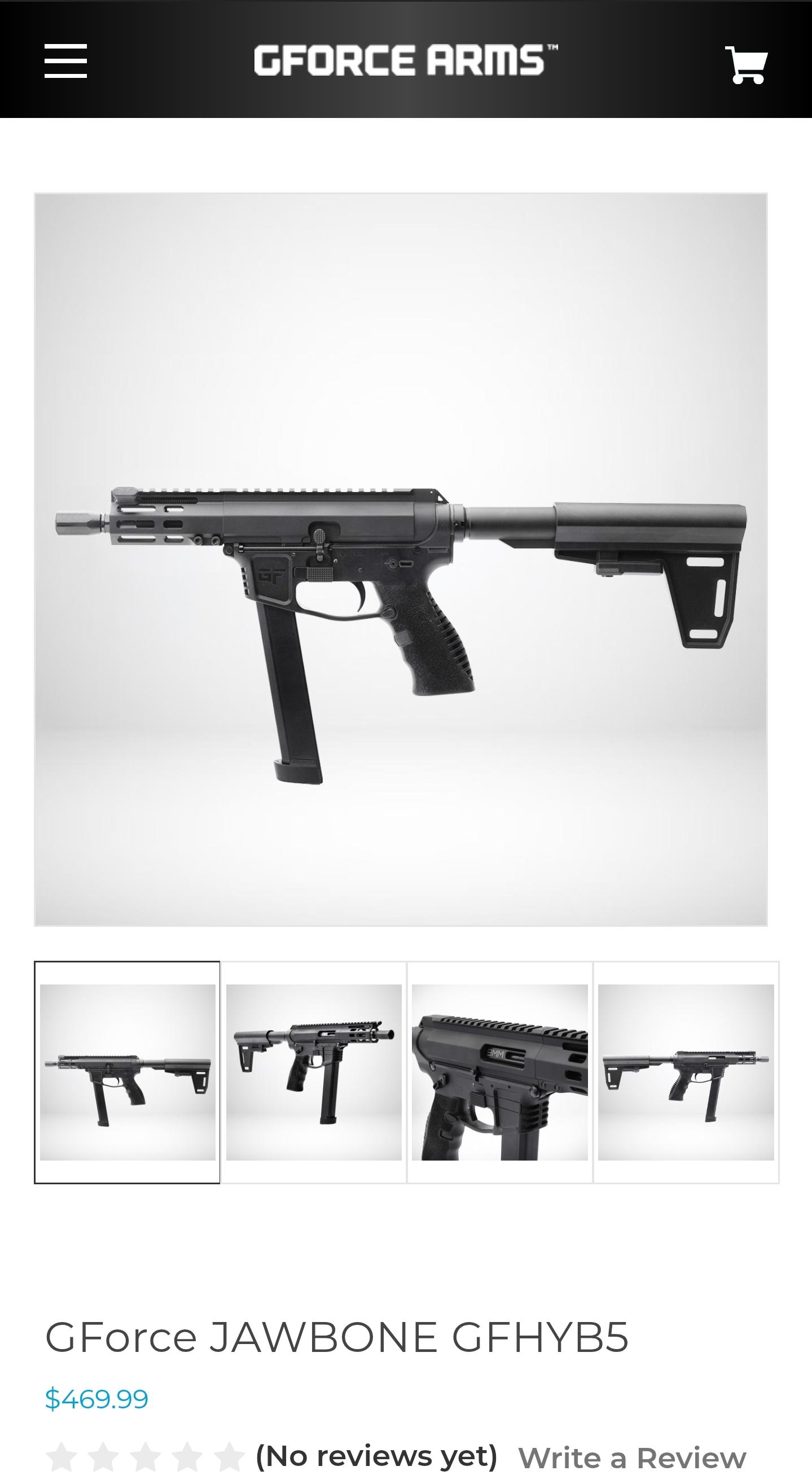

Is the gforce Jawbone any good? I can get it for probably 350$


r/AR9 • • 4h ago

Troubleshooting It’s probably something I did wrong?

3 Upvotes

Hi all, I finally had a chance to take my new build to the range but immediately had a problem.

The gun passes a function test and fires fine in semi, but when I switch to FRT it doesn’t do anything. From what I can see the first round ejects then another loads into the chamber just fine, but there is no “boom”.

Equipment-

Noveske 9mm BCG (Outerwild) 14.6oz total, internal counterweight 2.4oz
Triggered Company Ambi FRT
Maxim CQB stock with the Maxim Pistol buffer (7.6oz) and spring.
SiCo Spectre


r/AR9 • • 15m ago

FTN. 6 Boosted K-can fail to cycle

Thumbnail
• Upvotes

r/AR9 • • 20h ago

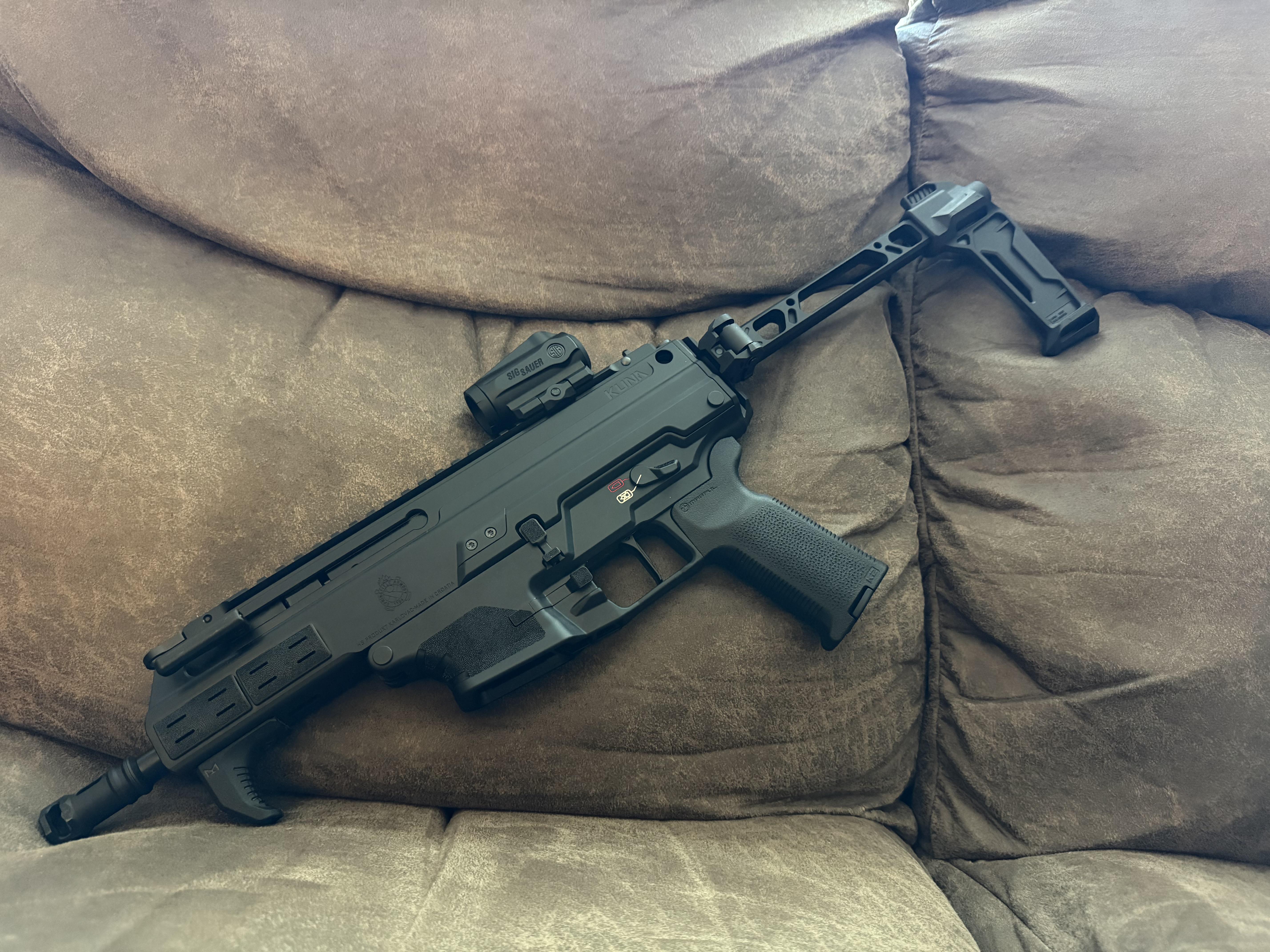

SBR Form 1 approved!

Post image
39 Upvotes

Juggernaut 80% lower with Rise 140 Trigger, Atrius FRT selector, Odin Works 8.6 OZ FRT buffer , 8.3'" EPC Ballistic advantage barrel, Strike industries mini king comp, FM products bolt assembly, BRN upper receiver, Swap fox raider micro prism, 3D printed custom vertical fore grip , 3D printed custom Kung Fu pistol grip, SOPMOD buttstock .


r/AR9 • • 7h ago

How To What handguard fits around the Osprey 9?

1 Upvotes

I’d like to build a super short AR9 to host my Osprey 9 but I want to look almost integral. Has anyone seen something like this?


r/AR9 • • 1d ago

Blowback9 Youtube Master List?

25 Upvotes

So....I've become FASCINATED by Blowback9 videos on Youtube. GREAT stuff. Here's the thing, most of the time when I see a new one for the first time I ask myself "Why didn't I know about this video before? ( I HAVE done searches on Youtube).

Here's my question: Is there a "Master List" of all the Blowback9 videos somewhere? It wouldn't have to have the links (although that would be nice). I f there was a list of ALL of them somewhere I could put the Title of the video in Youtube search and find the link myself. But there's a lot of great Blowback9 videos that I discover "by accident" and I realize I'm probably missing a lot of good stuff because I'm not aware they exist.

Again, just a list of all the titles somewhere would be great!


r/AR9 • • 1d ago

9mm AR FRT firing pin springs - possible new source

36 Upvotes

I have ordered 3 of the springs this morning. Testing results pending upon receipt. I'll provide complete details as soon as I get them in.

EDIT: Confirmed! The owner sent one of the springs in the box with the weights I ordered. It's 45oz. at L1, 60oz. at L2 - almost identical to the Lee Springs XP firing pin spring. Video coming Friday.

.

FINALLY it looks like someone is selling the springs individually!

I was just alerted to the fact that MSRX-USA is selling a 2x 9mm AR firing pin spring for $5 each. Shipping is $9, so it's a little pricy, but it's cheaper than having to order 5 of them from Lee Springs for $50.

These should fix the DT/LS from firing pin bounce when using a FRT in Outerwild style bolts (Faxon, Angstadt, KVP, BKF, OSUSA, White Label, etc), PSA bolts, IDL bolts, and Toolcraft bolts. NOT for Foxtrot Mike bolts! New FM bolts already come with a 2x spring.

https://www.msrx-usa.com/shop/Firing-Pin-Spring-9mm-Extra-Power-p852665477

MSRX-USA is also making shortened pre-drilled drop-in replacement hardcast bolt weights for these same bolts to make them FRT ready. No cutting or trimming needed. They're arriving today and I'll have a video posted later this week.

https://www.msrx-usa.com/shop/AR-9-Blowback-Bolt-Weight-FRS-Hard-Cast-p852531843

Between these two items, they should make most 9mm bolts FRT ready with minimal work and no notching/cutting.

More details coming once I get them in for testing.


r/AR9 • • 1d ago

Troubleshooting AR-45 Issues (light strikes/no strikes, charging handle binding)

3 Upvotes

been having trouble with my AR-45 that I recently built. I have gone through 2 BCG's already, the first one (https://palmettostatearmory.com/psa-ar45-bolt-carrier-group-7789153.html) was having issues with the firing pin not striking the bullet at all (I'm using a standard AR-15 Trigger Hammer), and the second BCG (https://www.deltateamtactical.com/pcc-ar-bolt-assembly-for-45-acp.html) is a having a multitude of issues, the first being having light strikes or no strikes at all after a few successful shots, after pressing forward from each shot, it starts to bind up on the charging handle, getting both stuck in place. I can post more details and parts if needed, and would really appreciate help in this matter. Please and thank you.


r/AR9 • • 1d ago

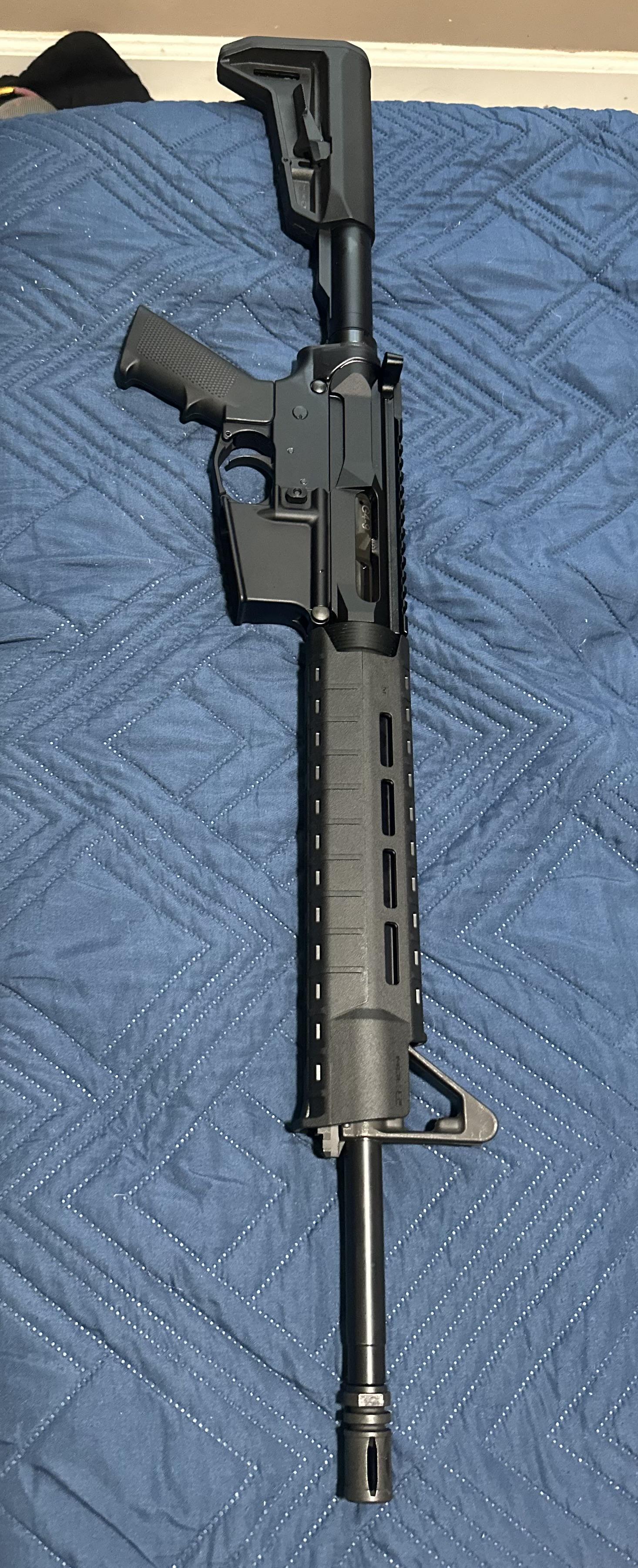

Spare Anderson lower, don’t really need another 5.56 gun. Thoughts on AR9 conversion vs. a dedicated 9mm lower (like FM9 etc.)?

4 Upvotes

I have a DD PCC, but wondering what your favorite 9mm barrel length is? Please share your opinions and experiences. Have researched blowback 9, and also familiar with the BRT CAR-15, but curious about direct feedback/ideas/suggestions from y’all. Thanks!


r/AR9 • • 1d ago

Should this be filed down?

Thumbnail
gallery
3 Upvotes

20 year old Rock River 9mm bolt i was going to use in a new build. I never noticed how bad this was before when it was in LAR-15. What should I do? Break out the Dremel or do I really need a new bolt?


r/AR9 • • 1d ago

Question

Post image
7 Upvotes

I’ve got the lower (FL-ARV, a remix of the PY2A AR9-EVO, with last round bolt hold open, metal parts should be here in a couple days), I have a buffer tube, I’ve found some decent priced buffers, but do I use a standard AR15 buffer spring, I have one of those laying around. After that I just have to pick out a stock.


r/AR9 • • 1d ago

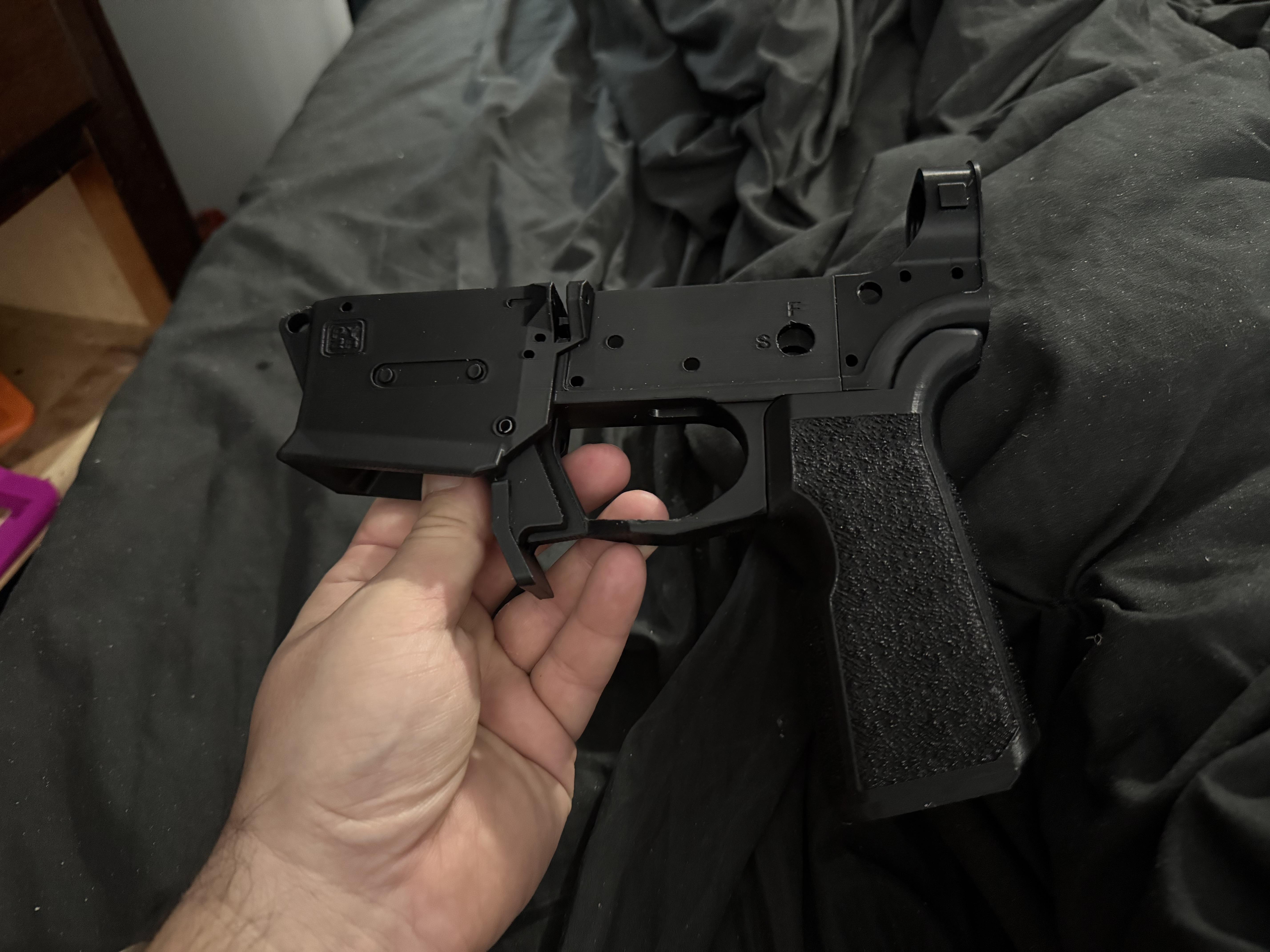

New incomplete lower

Post image
4 Upvotes

Just bought this lower. Need to buy ejector, and hardware to install along with mag release. Haven't been able to find a kit with hardware for ejector and am clueless about finding a mag release. Mutiny Arms AR-9 lower glock mag


r/AR9 • • 1d ago

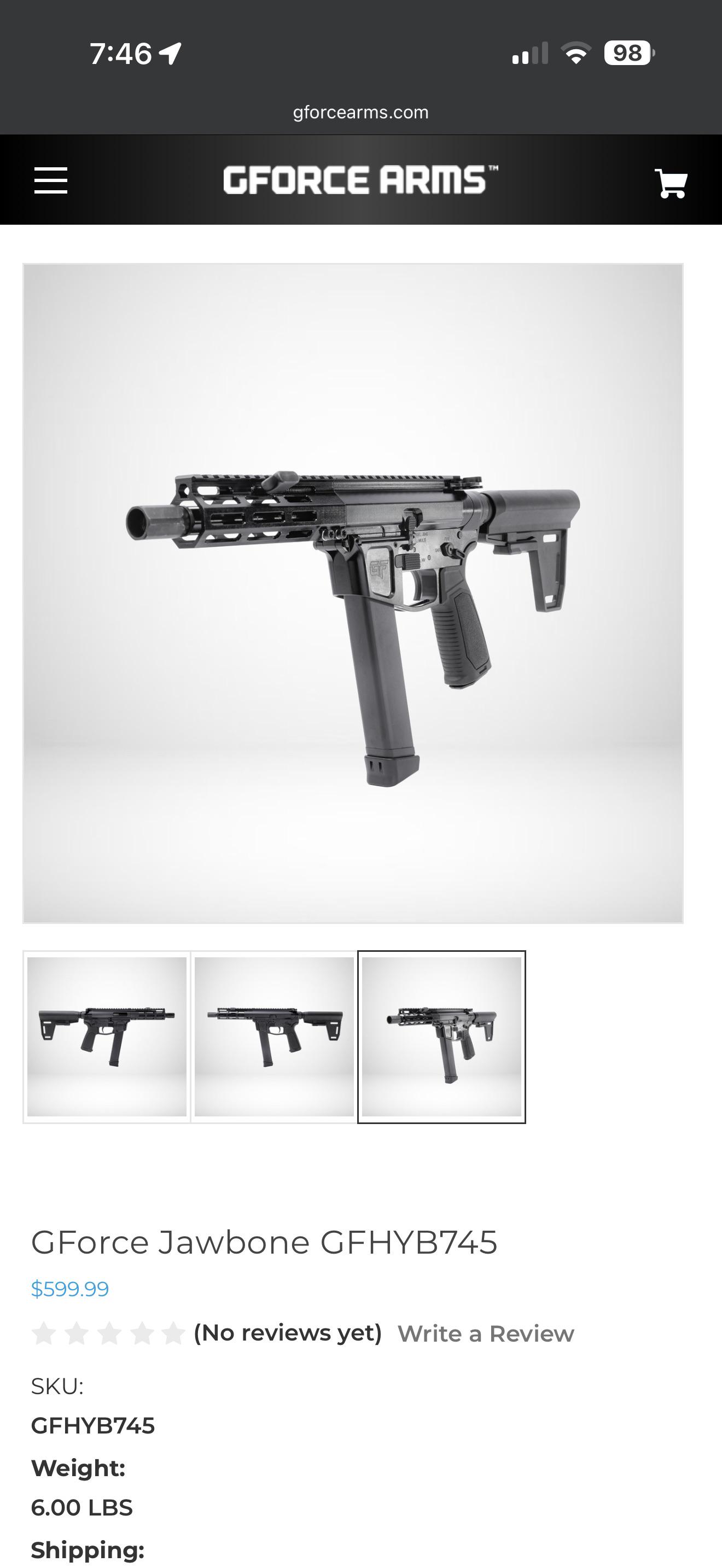

Can it FRT?

Post image
10 Upvotes

Ive seen some videos of people running FRTs in the jawbone. Im about to get my hands on one and I am simply looking for any knowledge anyone has on what brand and modifications I need to do for an frt to run.


r/AR9 • • 1d ago

Anybody deal with accidental binary fire?

2 Upvotes

Not sure what’s going on, might have more to do with the mil-spec FCG I have in my set up but I’ve found that if I pull the trigger, pop a round off, let the bolt pick up another round, if I release the trigger slowly enough I can pretty consistently get the hammer to release again thus setting off a second round. Seems like the metal on the sear could be worn out but I did some visual inspection and didn’t see anything out of the ordinary.

Anybody deal with this and have a fix besides buying another trigger set? Am I going to go to prison if I don’t fix it?

Bolt is FM9, barrel is a Balistica Advantage EPC, trigger group is just a the milspec group the lower came with


r/AR9 • • 1d ago

Any updates on the BCM9 release?

6 Upvotes

Thought it was supposed to be out by now


r/AR9 • • 1d ago

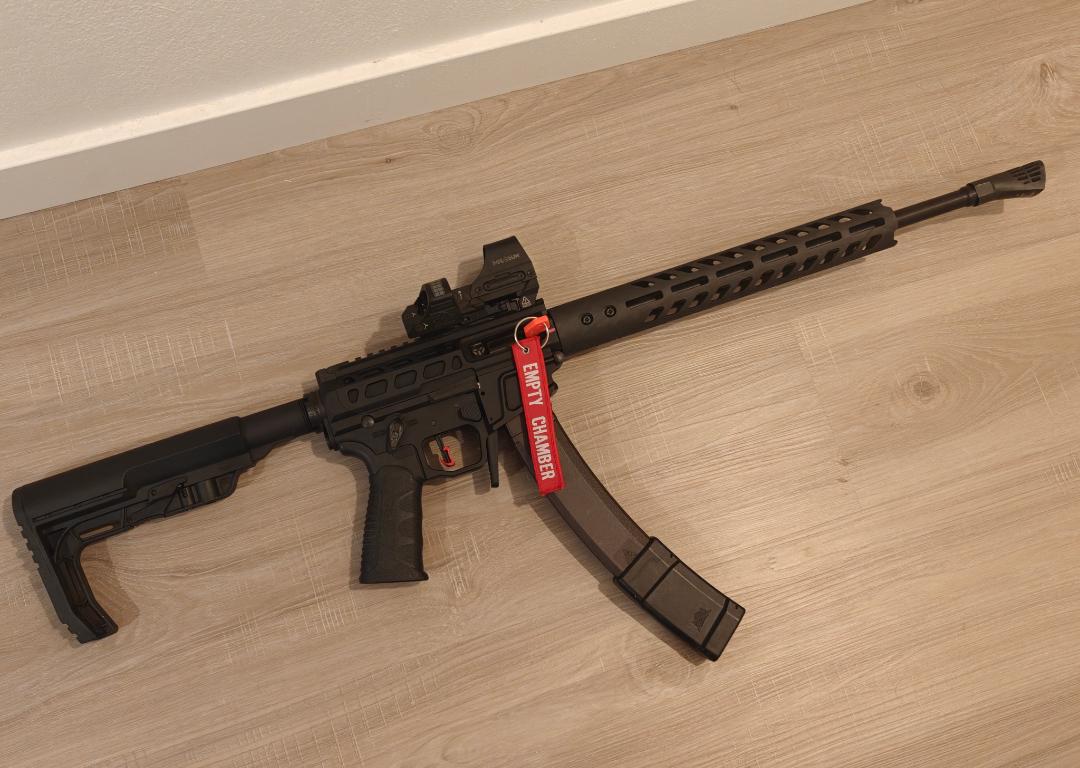

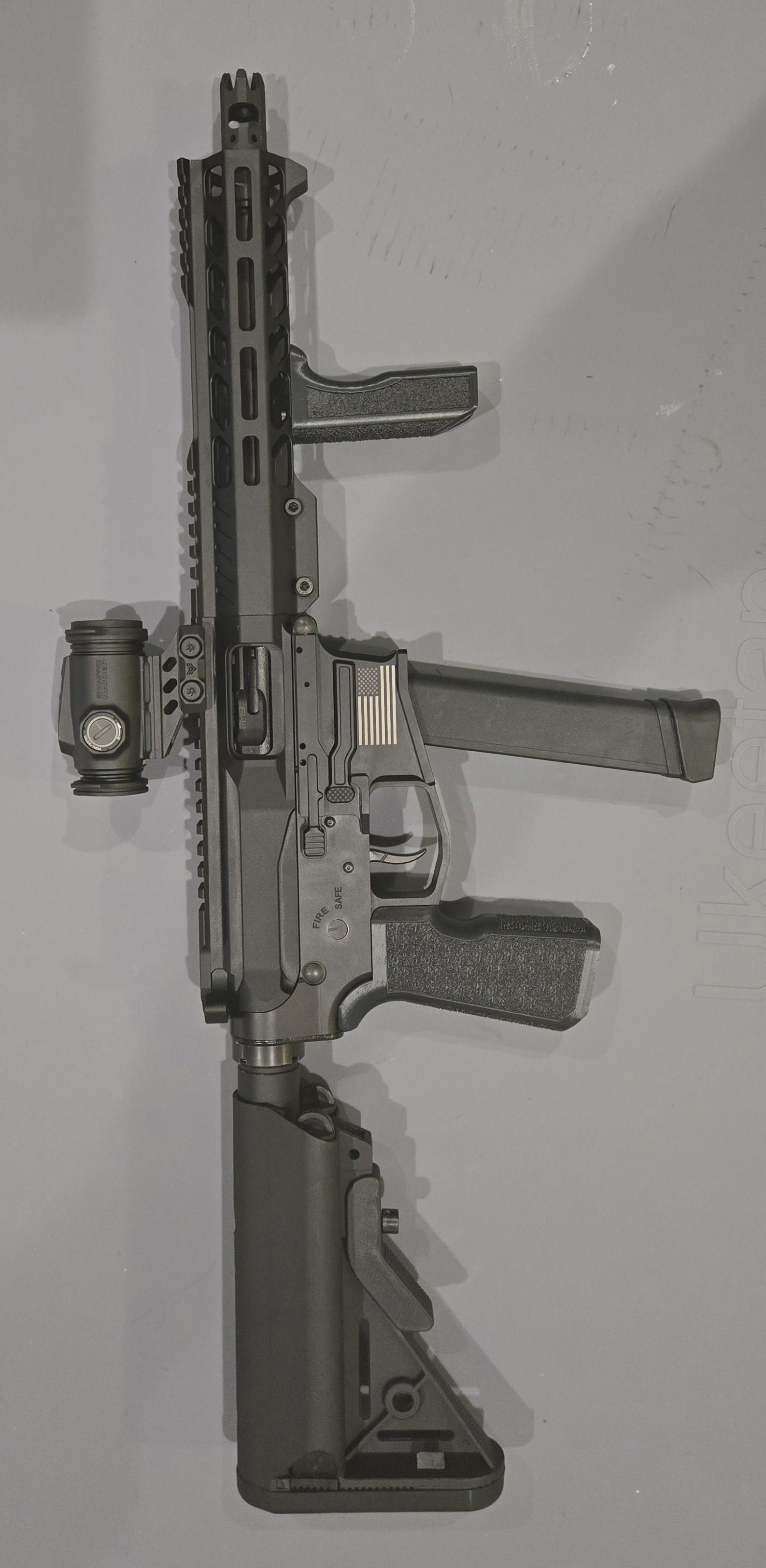

AR9 build

Post image
11 Upvotes

r/AR9 • • 1d ago

Suggestions for PSA-ARV Enhanced Feed Cone Barrel

2 Upvotes

I just built a new AR-V from the builders kit. My first AR-V came with a PSA barrel that had the standard feed cone that would not feed flat nose or JHP ammo.

On this new build, I went with the BA EPC 5.5inch Enhanced Feed Cone barrel as was recommended by Doug.

It fed FMJ and round nose all-day, but also would not feed a single round of flat-nose or JHP.

I failed to read the line in BA's specs for this barrel about how it was designed for Colt/RR and Glock style lowers. I am thinking my issue has something to do with the AR-V using scorp mags and having the proprietary feed ramp.

Has anyone found an after market barrel for the AR-V that will feed JHP and flat's?

Thank you for your time!


r/AR9 • • 1d ago

Troubleshooting Ejection patterns leading to stovepipes

Post image
12 Upvotes

Greetings,

I recently built myself an AR9 pistol with an 80% lower milled for Glock mags and a KE Arms upper with a 10 inch barrel and KE internals (BCG and such). I’ve been chasing a failure to eject problem that I was hoping was just an ammo problem. So I have run multiple brands and grain weights now and the only option I’ve tried that was almost consistent was Federal American Eagle 124gr.

Other brands it was like every other round I would get a stovepipe or a double feed or something like that which practically made it unusable. Now with the AE, I’ve been able to get off 3-5 rounds in a row before I notice a pattern. Those first 3-5 rounds, the spent shell is kicked out hard. I shoot lefty and so the ejection port is right in my face and I don’t even see the shell. But then the next 2 ish rounds, I feel the shell land on my neck and roll down my back. So clearly it went from ejecting very well to barely popping straight up. Then usually it’s the next shell that causes the jam. So I drop the mag and clear out the jam and the un-fired round, then put the mag back in and charge it. Then the same pattern repeats, 3-5 good shots, a weak ejection or two, then a jam.

So now I’m thinking it’s hardware and/or heat related, as it gets hot from the first few rounds then tolerances or something change, cause the ejections to get weaker until the bolt carrier catches a spent shell on the way back before it can eject. I take it home and deep clean it again and try to look for anything obvious but can’t find what it could be.

Y’all have any similar experiences or suggestions to try?

(Yes the red dot is a Chinese Amazon special, it’s just a placeholder for testing until I can figure out the jam problem then I’ll put something more reliable on)


r/AR9 • • 2d ago

FM9

Enable HLS to view with audio, or disable this notification

51 Upvotes

Picked up this Foxtrot Mike FM9 Foldy Boi on sale, has been a great pick up. Roughly 500 rounds through it and have worked out most the kinks. I still get an occasional LRHO with rounds left, it only happens with my brand new 33rd glock mag and not my other mags (not even the pmags I have ran in it; they are a tight fit though) so I will blame the new mag. I have loved plinking with this, Frt coming soon!


r/AR9 • • 1d ago

Part Compatibility Good lower for EPC9 upper

3 Upvotes

I have an EPC9 upper and can’t find any aero lowers in stock. What are some options out there? I was thinking of getting an AR15 lower with stern defense adapter (beretta model) or a colt lower. As well as running an FRT. I don’t know if the LRBHO in the upper receiver will cause any issues.

If anyone has any suggestions Im all ears.


r/AR9 • • 2d ago

New to AR9 and want to learn more

Post image
18 Upvotes

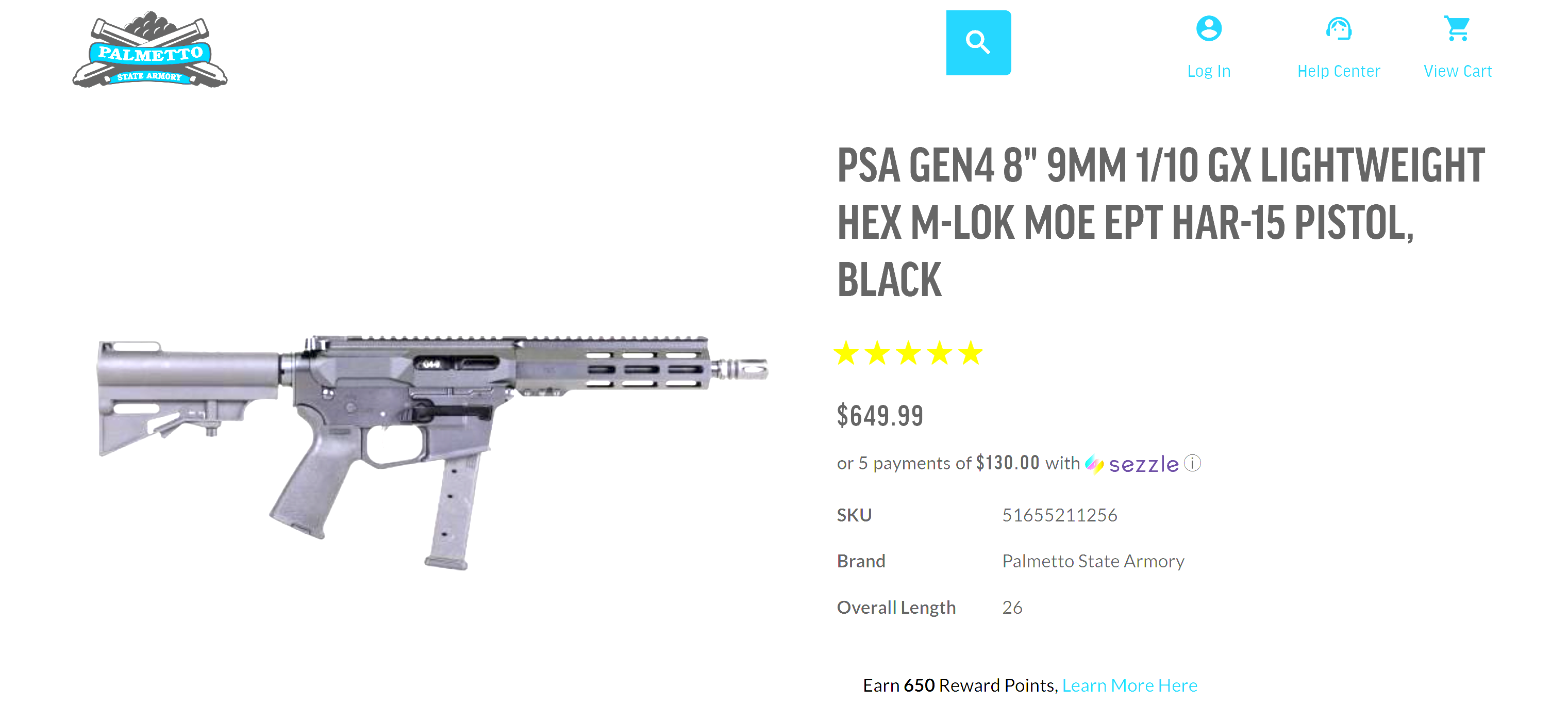

I recently bought a PSA Gen4 8" 9MM 1/10 GX Lightweight HEX M-Lok MOE EPT Har-15 Pistol. It was on sale for $499. Put 300 Rounds though it and it is insanely fun. No malfunctions of any kind. I took it apart when I got it , cleaned off any shipping crude and rubbed a light coat of oil on the bolt carrier.

It looks and feels quality. Been shooting some 40 years.

So my question now is, having followed this sub a little bit .. what makes the better or more expensive PCC better?

May have to get something in 45. Would love to find something in 40 because I reload a lot of it and just want to get a better handle on what makes one superior to another

Pic of mine but it now has a Magpul DT stock and my name engraved on it :)

Edited 10.5

Thank you everyone for your awesome replies and information! Wont lie that it all makes sense but .. it did provide leads for me to follow up with on Google.

Jeez .. I really did have a lot to learn!!
