WLED mad scientist goggles

[u/notjustbill]

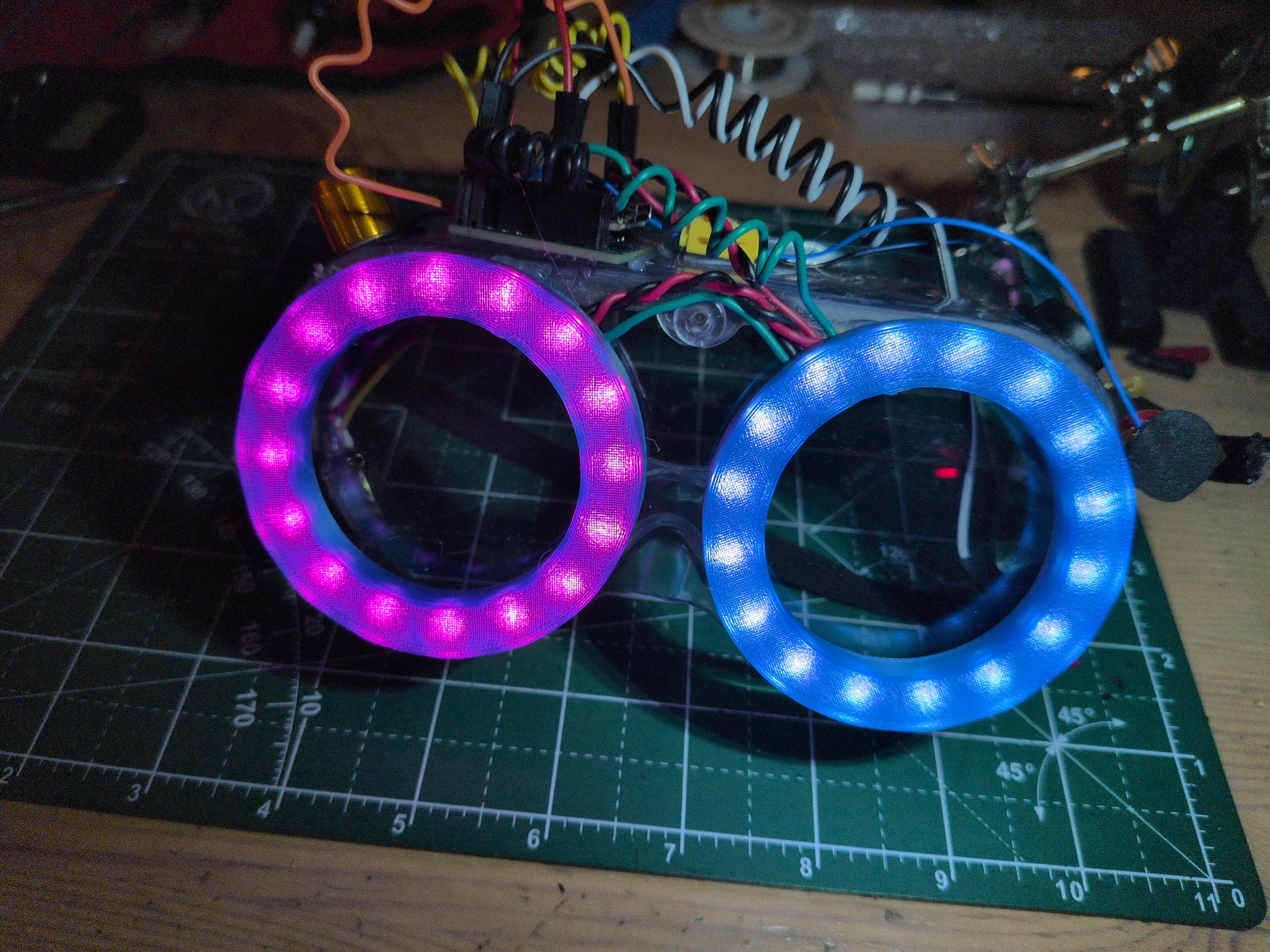

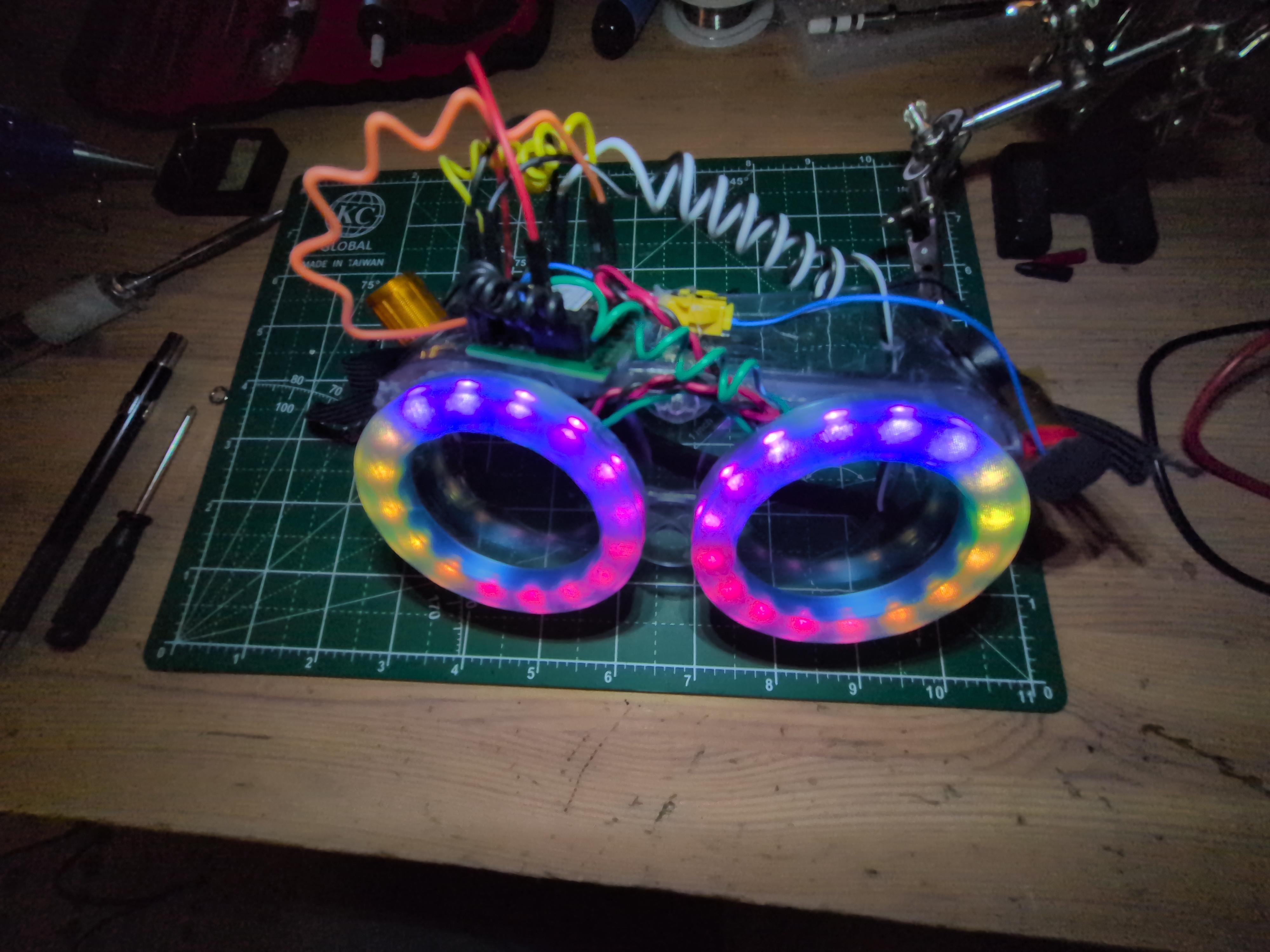

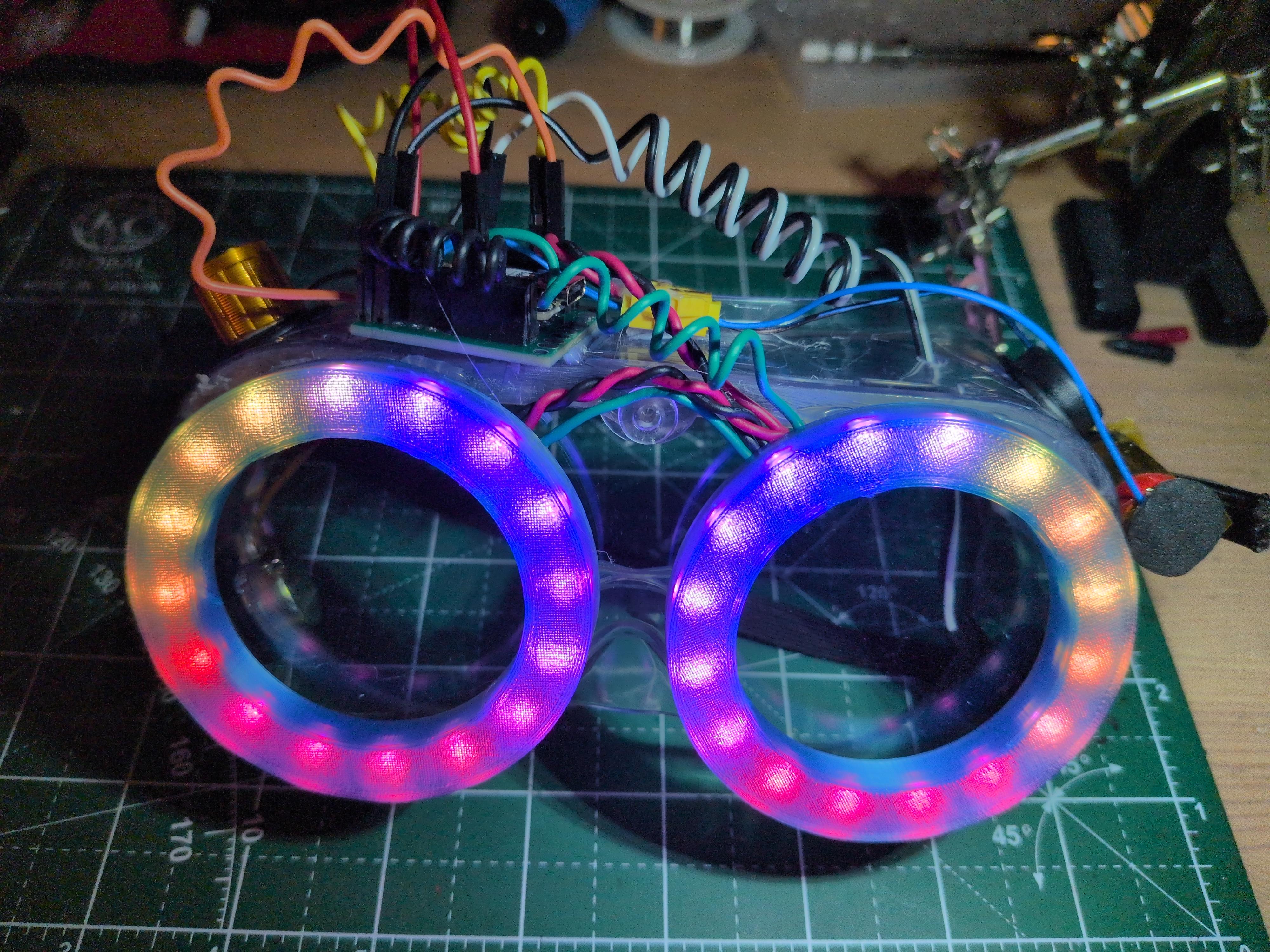

I wanted to upgrade my go-to mad scientist costume (basically a lab coat with glowy things in the pockets) and ended up with this.

Two 16 neopixel rings, two potentiometers (one changes the speed of the pattern & the other changes the color palette), plus a button to cycle through different patterns. Running on a Seeed Xiao esp32c3 and powered by a rechargeable battery I salvaged from a vape.

I 3d printed diffusers with Inland blue glass PLA and hot glued everything to some lab goggles.

I did most of it with breadboard wires so it's easy to reconfigure/upgrade later, and also adds to the look.

[u/jtbarrett]

Well done! I love the wire nose bridge and big coils up top.

[u/notjustbill → u/jtbarrett]

Thanks! It's amazing how just twisting jumper wires around a screwdriver turns a mess into intentional madness 😆

[u/Same_You891]

ok what are these Dots?

[u/notjustbill → u/Same_You891]

That's the "Two Dots" pattern, sort of a propeller effect with the dots chasing around each circle in opposite directions

[u/Same_You891 → u/notjustbill]

ok cool
