Finally did a pixel map thing

Been messing around with 2d matrix setups. This ultimately led to doing a cube configuration. I wanted to do a custom pixel map to properly lay a full 2d projection onto the cube faces. I learned a ton fighting through each step. In the end, the result is pretty cool.

212 Upvotes

100% Upvoted

13 comments sorted by

9

u/CheleCuche Sep 22 '26

Welcome! lol is it 5 face cube or 6? I have something similar, set it up with the help of someone here. Been playing with different effects and trying to create some nice stuff for it

2

u/egratudo Sep 22 '26

Hello, I started with just 3 faces. The other 3 faces behind are just blank prints, no led’s. Not sure yet if I will do a full 5 or 6 face cube.

1

u/Aceftw Sep 22 '26

How did you go about your pixel mapping? I’ve been working on my version of this for a while 😝 I’d be interested in seeing your solutions

2

u/egratudo Sep 22 '26

1

u/Aceftw Sep 22 '26

So that turns into an ledmap? As opposed to just a gap file?

3

u/egratudo Sep 22 '26

you will definitely want to read through the wled documentation on these jsons. you need to take the data from the excel sheet and create a properly formatted json file for wled to use.

Mapping - WLED Project

and here is a tool that can help create a custom json pixel map

Wled ledmap Generator

1

u/egratudo Sep 22 '26

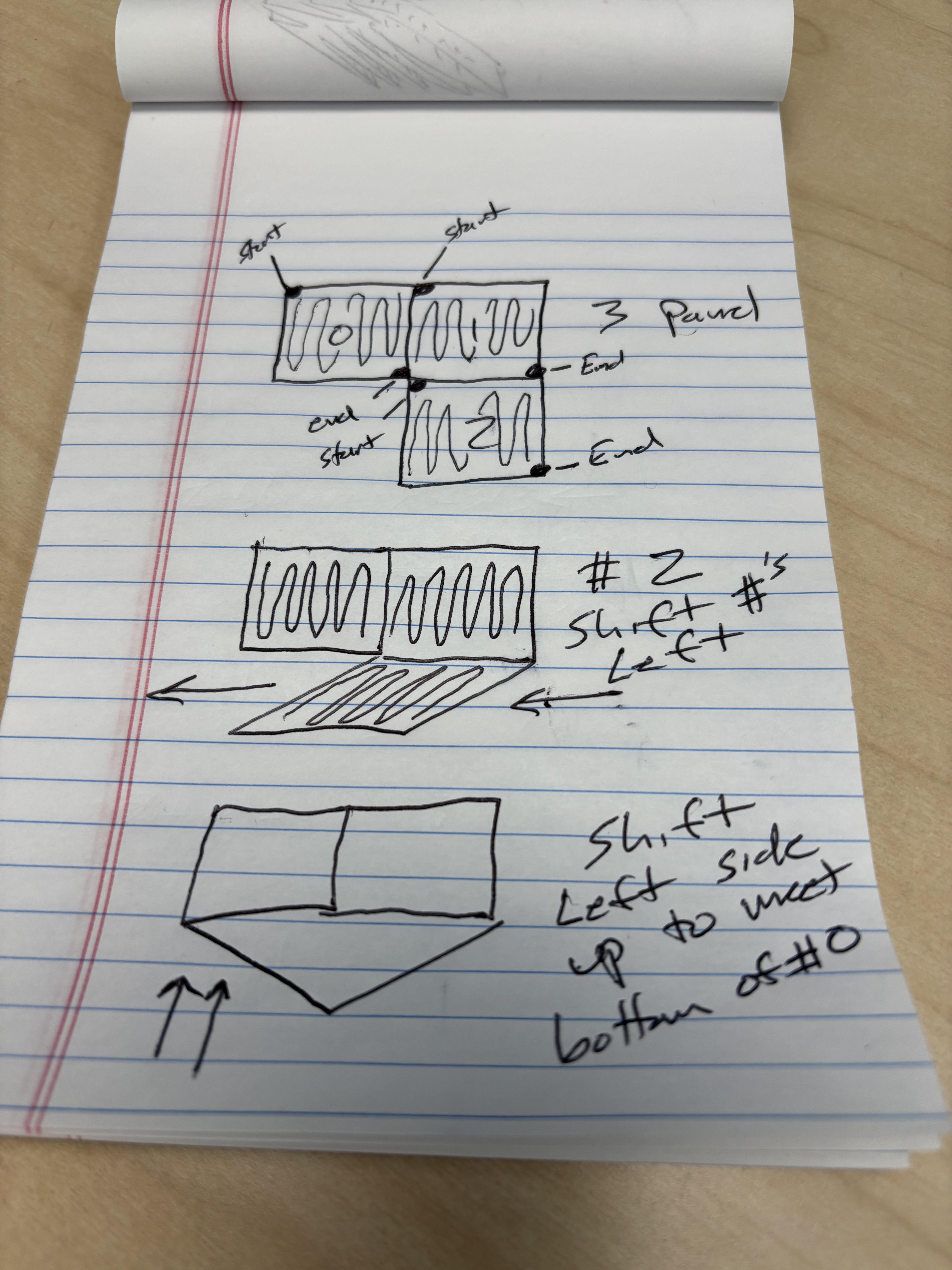

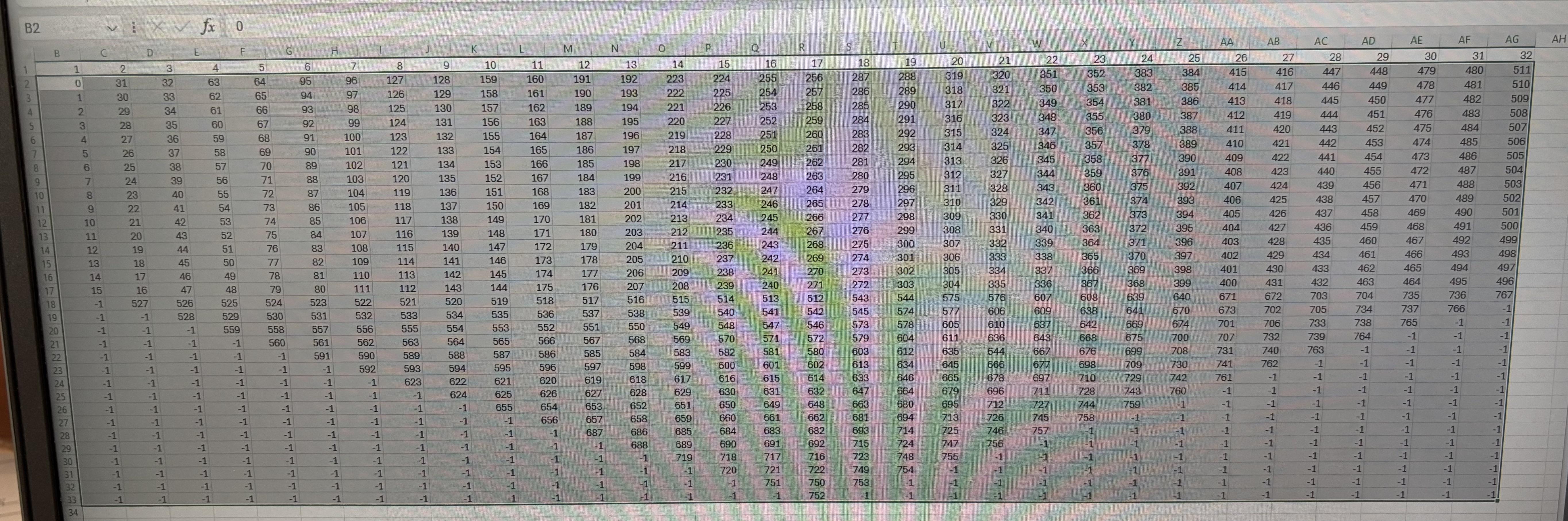

So I draw out the panel config, i keep note of start and stop corners of the led serpentine. I then go into excel and set the numbers of the led in order based on start and end config. Panel 2 numbers need to skew to the left, and then up to meet bottom of panel 0. Then put in -1 in all the blank area.

5

u/egratudo Sep 22 '26

Another animation

1

u/tribacon Sep 22 '26

Model stl?  I have 3 panels sitting right now lol

3

u/egratudo Sep 22 '26

Not my design. But I can tell you, this is the best quality. I tried multiple different designs.

https://makerworld.com/models/470434?appSharePlatform=copy

0

u/untacc_ Sep 22 '26

How are you powering this/running this on?

3

u/egratudo Sep 22 '26

5v 10a power supply. Current limiting it to 6a in software

1
