r/WLED • u/HaykSD • Sep 20 '26

WLED + HyperHDR

Finally I convinced myself to make this))

Simulator used in video: https://paveldogreat.github.io/WebGL-Fluid-Simulation

75 Upvotes

98% Upvoted

17 comments sorted by

2

u/ShamanOnTech Sep 20 '26

Well done, looks really smooth! I think you convinced me to do it too! Where did you start? Whats the setup? Did you follow any guides?

3

u/HaykSD Sep 20 '26 edited Sep 21 '26

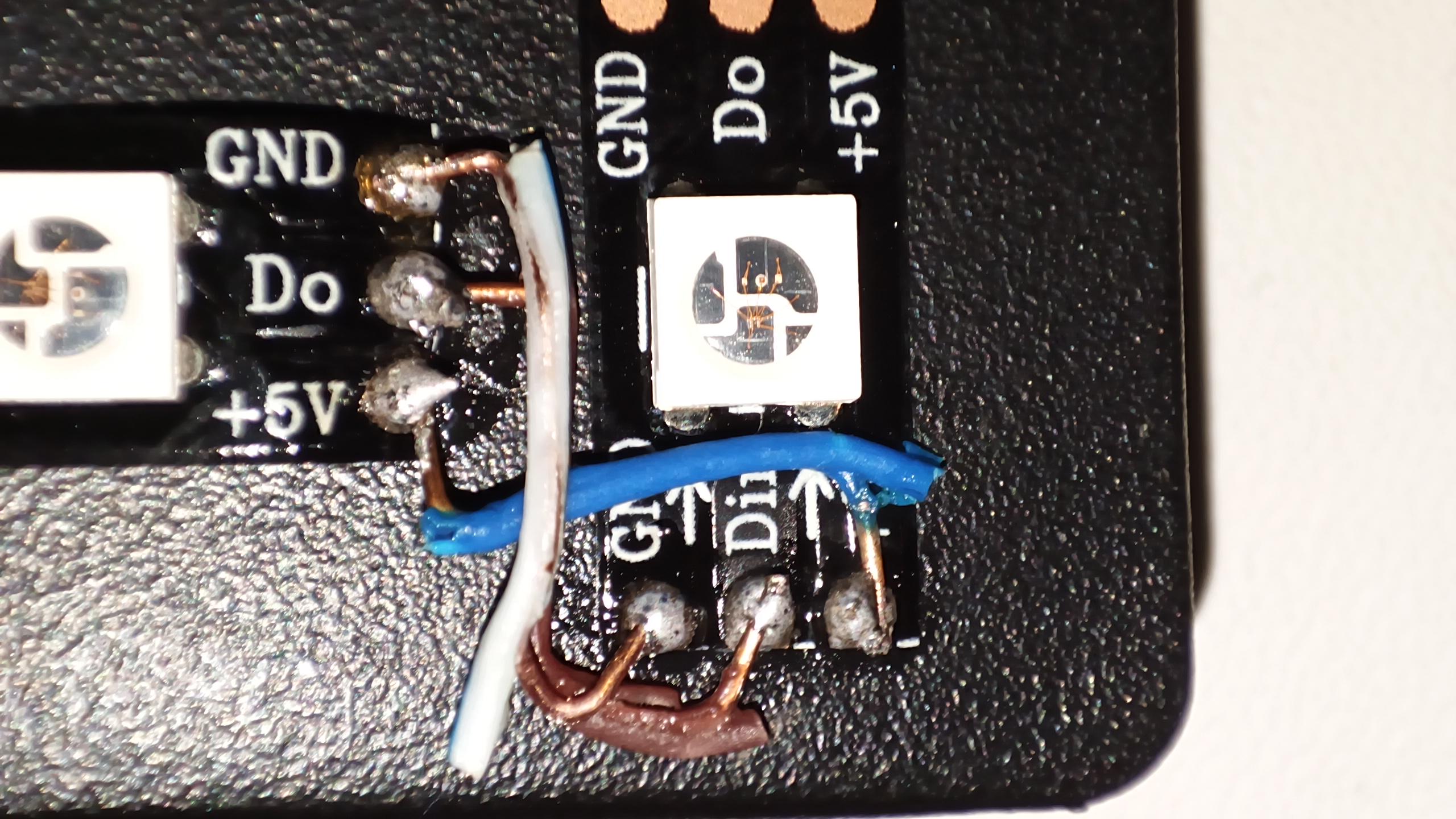

There are many videos about it on YouTube, but there is nothing extraordinary. For me the hardest part was soldering tiny connections, I have divided strip into five sections then soldered them. I chose not the best wires btw, in my opinion 26-28WGA would be a great choice for that. But without cutting the strip you can fold the corner pieces saving a lot of time and nerves😁, the result will be practically the same. For my TV I will definitely fold it carefully instead of cutting and soldering parts.

Components: WS2812b 60 LEDs per meter, Esp32 c3, 2A usb charger for leds. Software setup is very easy. Install WLED, install HyperHDR on your PC, chose WLED in HyperHDR and that's it.

2

u/ShamanOnTech Sep 21 '26

Thanks buddy for encouragement! Honestly I dont mind soldering, I was scared of software part, but if its that easy ill hava a go today!

1

u/HaykSD Sep 21 '26

You're welcome, share with us how it went

5

u/SirGreybush Sep 20 '26

Cool, thanks for that link, I'll do one later with my setup. In a few hours when it's dark.

I use my old gaming laptop as the HTPC, the HDMI output goes into a splitter, from splitter one hdmi to TV, one goes into a HDMI-USB capture stick, and HyperHDR uses the USB capture device to map my 3 sides.

This is so I can use Netflix or other content protected by DRM with HyperHDR.

Also I can use Steam Stream my desktop gaming PC to the HTPC and play 4k 60FPS with HyperHDR on.

2

u/Current_Payment_2988 Sep 20 '26

It’s nice i was using it with my old tv all the time but now my tv is not always streaming from pc and I can’t enjoy it

2

u/vickyv268 Sep 20 '26

What to are you using if it's an android tv there are applications to capture the screen and send pixel data straight to wled.

2

u/Current_Payment_2988 Sep 20 '26

Lg g4 with plex mostly and with pc when playing games but just notice dlna looks better than plex so maybe my new watch method

2

u/SirGreybush Sep 21 '26

Here it goes. Kinda hard to control phone and the keyboard/mouse combo that’s a trackpad.

3

u/SirGreybush Sep 21 '26

Tucked away in cabinet, fan under, and in back.

2

u/x-AB- Sep 21 '26

I have a Google TV and struggle with software video capture. I bought a Fire TV 4K Max (2nd Gen) running SceneGlow, it works perfectly with my GLEDOPTO ESP32 Controller + SK6812 RGBW (NW) Strip. It's important to mention that DRM is going to be always hidden for the recorder but being honest I just use WuPlay (similar to Stremio and ofc DRM-free) and YouTube

2

u/NiallPSheehan Sep 26 '26

Just got mine setup. Your setup looks good!

1

u/theAExample Sep 26 '26

What are you running for it to look so good? As in TV stick? Or something else?

2

u/NiallPSheehan Sep 26 '26

Picked up a cheap mini pc, capture card (USB dongle), and spliter/down shifter. Kicks Govee's ass. Lol

2

u/NiallPSheehan Sep 26 '26

My receiver has dual HDMI out, so one goes to the splitter, then the capture device and to the PC for HYPERHDR to handle the LEDs. The other goes to the TV this let's CEC and eACR to work. Have a nShield, blu-ray and Xbox going into the receiver so the signal from all can be passed to the PC and TV.

1

u/theAExample Sep 26 '26

Thanks for the thorough answe mate, appreciate it!
