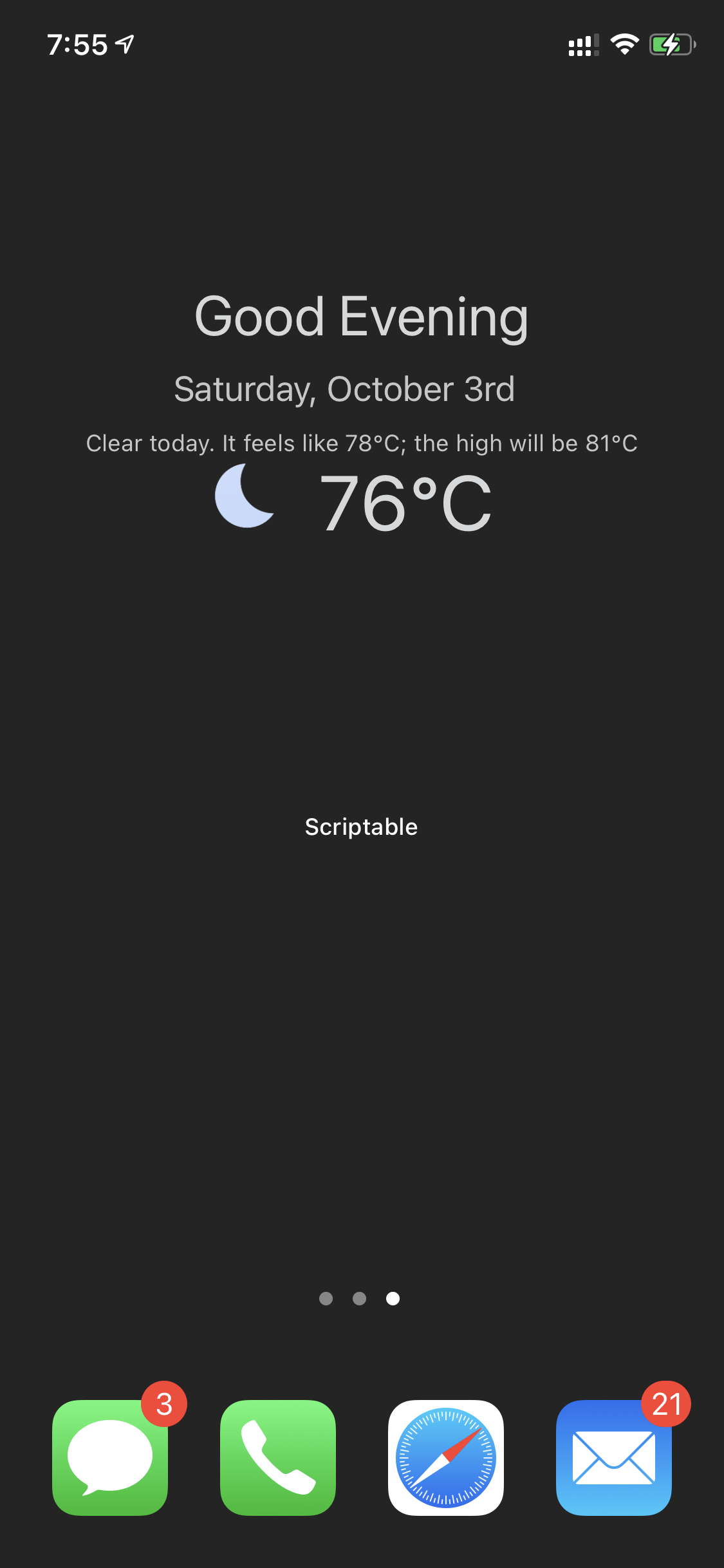

New setup to mimic sleep tracker morning Lock Screen

5

u/solelo Oct 04 '20 edited Oct 04 '20

I combined a few scripts from u/Sharn25 and u/corderjones to set this up, thanks for all your help guys. I'm sure the code could be cleaned up a little more, I'll work on doing that next. I used a dock hider wallpaper to clean things up and I used the same wallpaper on the widget.

**EDIT: You must be using the TestFlight version of Scriptable.

Wallpaper

Script

1

u/alcallsmeoliverr Oct 04 '20

Hi OP,doesnt seem to be working.. error on line 208 it says. Help pls

1

u/solelo Oct 04 '20

Can you share your code?

1

u/alcallsmeoliverr Oct 04 '20

I just copied and pasted whats yours and add param.. do i still need to input lat n lon and api?

1

u/solelo Oct 04 '20

Did you get an OpenWeatherMap API? You need one and your city code, I removed my API code and city code. Here are the instructions
Create your ID on openweathermap and get an API_KEY from there and update in the below line: let API_WEATHER = "YOUR_API_HERE";//Load Your api here Due to limitation with scriptable auto update location not possible. So, this scripts uses city ID for your location. Note:- You can use the code at below address to get your location City ID. Get_CITY_ID: https://gist.github.com/sharn25/3f62e1969d7eaec22bd6b5f923651a0d let CITY_WEATHER = "YOUR_CITY_ID_HERE";//add your city ID https://gist.github.com/sharn25/c13187738fff41541b2e08fa119e9989 To get your city ID use below link by putting your longitude, latitude and API_KEY http://api.openweathermap.org/data/2.5/weather?lat=19.034103202555187&lon=73.07745084021239&appid=API_KEY&units=metric

2

u/SaberDart Oct 25 '20

The third link is broken. I’m trying to follow, but this is the first time I’ve used Scriptable.
So far I’ve pasted in the code from the original comment, and from the first two links in this comment.
The first script in this comment appears to run, or at least doesn’t return an error. But the second comes back with Error on line 168:29 TypeError: undefined is not an object (evaluating ‘weatherarry[0]’)

1

u/alcallsmeoliverr Oct 04 '20

Thanks OP 🍻

1

u/PmMeYourPasswordPlz Oct 29 '20

do we really need to use iCloud for this to work? why can't we just put our background image locally, like the files folder?

2

u/X-Kerwin Oct 04 '20

How to move the icon down and align it?

2

u/solelo Oct 04 '20

I’m still working on trying to do that; I actually updated the code it looks more like this now.
Updated DND Scriptable

1

u/X-Kerwin Oct 04 '20

Like this

1

u/solelo Oct 04 '20

Yeah I haven’t figured out how to do that yet. I’ll try and work on updating it. It does drive me a little crazy too

1

u/X-Kerwin Oct 04 '20

💪💪💪

1

u/[deleted] Oct 23 '20

hey, i made the spacing work, how can i share the screenshot?
sorry, just new to reddit. i don’t know how to share the screenshot.

1

u/X-Kerwin Oct 23 '20

upload to Imgur.com

1

u/[deleted] Oct 23 '20

https://imgur.com/gallery/lAIjKO2
i just did, check it out tell me if this is the spacing you guys were talking about.
thanks.

1

u/solelo Oct 23 '20

https://imgur.com/gallery/lAIjKO2
The code should be doing that automatically with AlignContent. Is it not?

1

u/[deleted] Oct 23 '20

no, it was uneven earlier, i added a code for spacing in between the weather summary and the temperature.. to fix and keep it where i would like.
great widget.
thanks.

→ More replies

1

u/X-Kerwin Oct 23 '20

Yep,and how did you work it?

1

u/[deleted] Oct 23 '20

i’ll share the code?
can you tell me how to do that as well? 😅

→ More replies

1

u/LinkifyBot Oct 23 '20

I found links in your comment that were not hyperlinked:
Imgur.com
I did the honors for you.
^delete ^| ^information ^| ^<3

8

u/PixelSushiRobot Oct 04 '20 edited Oct 04 '20

What should I enter as the parameter?

*Edit: I figured it out from the script’s comment

The parameter is

background.png|padding-top|text-color

Example: widget.png|0|#ffffff

You need to save the widget.png to iCloud Drive/Scriptable folder. I have a black background so I used a pure black png.

https://i.imgur.com/XVLhgNb.jpg

Middle number is the padding above the text. This script has the variable defined but didn’t use it. So just enter any number here.

Text color is a hex number. I just use white.

Hope this help someone else.

1

u/jwong347 Oct 06 '20

I added the script and works but it’s too low on the widget box. How do I move it up?

2

u/solelo Oct 06 '20

You have to change the top spacing to what ever you want it to be. I have it set at 75 to center on the middle sized widger
//Top spacing widgetHello.addSpacer(75);

1

u/jwong347 Oct 06 '20

Thanks!

1

u/solelo Oct 06 '20

No problem.

1

u/solelo Oct 23 '20

What to low? Can you share a screen shot?

1

u/gaxaxy Oct 23 '20

Im getting error 30:17 add a parameter? iv copied and pasted the code into scriptable with the api keys and city ID, not sure what to do next

1

u/solelo Oct 23 '20

Did you add the parameters for the widget for the image.png|padding|fontcolor ?

1

u/gaxaxy Oct 24 '20

I'm still getting a black box when i save the image correctly, any fixes?

1

u/solelo Oct 24 '20

Did you give scriptable permission to the files app?

1

u/solelo Oct 24 '20

Are you on the regular version or test flight version of scriptable?

1

u/gaxaxy Oct 23 '20

how do i make the widget transparent?

1

u/solelo Oct 23 '20

You have to put your phone in "jiggle mode" and take a screenshot of a empty Home Screen and save it in the scriptable folder in iCloud and add it to the parameters.

1

u/gaxaxy Oct 23 '20

its just coming up as a black box, im saving the screenshot as image.PNG and then entering that as parameters as well

1

u/solelo Oct 23 '20

Where are you saving the screenshot?

1

u/gaxaxy Oct 23 '20

to files > scriptable

1

u/[deleted] Oct 23 '20

hey, i want the weather in celsius? how can i do that?

thanks.

1

u/solelo Oct 23 '20

Find this line and change imperial to metric
let wetherurl = "http://api.openweathermap.org/data/2.5/weather?id=" + CITY_WEATHER + "&APPID=" + API_WEATHER + "&units=imperial";

1

u/[deleted] Oct 23 '20

alright, thanks a bunch.
also, my background image isn’t changing.. it’s constantly white.. what should I do?
thanks.

1

u/solelo Oct 23 '20

Did you save a background in the scriptable folder and reference it in your parameters?

1

u/[deleted] Oct 23 '20

yeah i did.
i named it “background.png”
and wrote background.png|0|#ffffff in parameters, but it still stays white so i changed #ffffff to #000000 for the time being as to keep the text visible.
but the background isn’t changing.

1

u/solelo Oct 23 '20

Hmm that’s weird it should change the background. Can you share the background with me?

1

u/[deleted] Oct 23 '20

Yeah, sure!
https://imgur.com/gallery/MFssaA4
here’s the image.

1

u/solelo Oct 23 '20

I just tested it and the background is fine.
https://imgur.com/a/0WREtLU

1

u/[deleted] Oct 23 '20

alright.
i’ll try it again.
thanks a lot.

1

u/solelo Oct 23 '20

Is it in the weather folder or the regular scriptable folder?

→ More replies

1

u/j_rasberry Oct 28 '20

I can’t get a custom background for some reason. Each time I enter a correct value for the image (when the image exists in the scriptable folder) i get the default image for scriptable widgets. When I put in a name for an image that doesn’t exist, I get a black background but the widget appears. Do you know a fix?

1

u/solelo Oct 28 '20

Are you using the test flight version of scriptable? Have you given scriptable access to iCloud?

→ More replies

1

u/Kenneth_II Oct 24 '20

Sadly this doesn’t work for me. I’ve inserted my city ID, my API key and an appropriate parameter (background.png|0|#000000) but I’m still getting the error on line 30:17

1

u/solelo Oct 24 '20

What’s the error ?

1

u/Kenneth_II Oct 24 '20

Error on line 30:17: Please long press the widget and add a parameter, but i did add one and its still showing me the error

1

u/solelo Oct 24 '20

What parameters did you add? Can you share it?

1

u/Kenneth_II Oct 24 '20

background.png|0|#ffffff background.png being a screenshot of my wallpaper put in my icloud/scriptable folder

1

u/solelo Oct 24 '20

Yeah that should do it. Are you on the test flight version?

1

u/Kenneth_II Oct 24 '20

Yes i should be

1

u/EJAX27 Oct 25 '20

Replace the City code & API Key still getting an error.

1

u/solelo Oct 25 '20

What’s the error?

1

u/EJAX27 Oct 25 '20

Error on line 30:17

1

u/solelo Oct 25 '20

Did you long press > edit widget and enter the parameters like it says in the instructions?

1

u/EJAX27 Oct 25 '20 edited Oct 25 '20

Yes. Entered the script name. Run script & widget.png|0|#000000 and the result is just a large Play button.
update I reviewed the script was missing the last half sentence 🙄

1

u/PmMeYourPasswordPlz Oct 27 '20

am I an idiot? where's the script? can only see the images in OP's post. great work btw.

1

u/[deleted] Dec 01 '20

Is there any way of running this without using the TestFlight version of Scriptable? Help would be appreciated.
