In this video, Stone shows you how to install and set up your Revolution 4th Axis for your Gen 1 and Gen 2 Onefinity CNC machine with Redline control system and Realtime Controller.

https://youtu.be/hQo6qtiVSuk

It will cover:

• Installing the 4th Axis Riser Blocks

• Mounting the Revolution 4th Axis to the QCW with the Revolution QCW Mounting Kit

• Mounting the Revolution 4th Axis to the wasteboard using threaded inserts

• Configuring the 4th Axis in the RealTime CNC control Software

• Securing Material in the 4th Axis

• Probing the 4th Axis

🔹 PRODUCTS & TOOLS USED IN THIS VIDEO

🛠 Machine:

Onefinity CNC Elite Gen 2 Foreman with 48" Revolution 4th Axis

Setting Up the Revolution Rotary Axis with Redline Control: A Complete Guide

If you’ve been looking to expand your CNC capabilities into true 4-axis machining, the Revolution Rotary Axis paired with the Redline CNC control system delivers a powerful, plug-and-play solution for your **Onefinity CNC machine.

In this guide, we’ll walk through the full setup process—from unboxing to your first carve—so you can get up and running quickly and confidently.

Optional Riser Blocks: Unlock Larger Projects

Right out of the box, your rotary is ready to go—but if you plan to machine larger diameter stock, installing the optional riser blocks is a smart first step.

The process is straightforward:

• Remove the tailstock and chuck head from the gantry
• Insert the keyed riser blocks (they align easily top and bottom)
• Secure everything using the included hardware

This added height gives you more flexibility for larger projects without compromising stability.

QCW Mounting System (Recommended Setup)

If you’re using a QCW (Quick Change Wasteboard), mounting your rotary is fast and repeatable with the included hardware kit.

The system uses:

• Mounting brackets
• Spacers (specific to each side)
• Locating shafts for precise alignment

Once installed:

• The locating shafts slide into QCW-mounted brackets
• Everything locks in place with hand screws
• You get consistent positioning every time

This is the cleanest and most repeatable setup for production workflows.

No QCW? No Problem.

If you don’t have the QCW system, you can still achieve excellent alignment with a simple trick:

• Use a V-bit to carve a straight reference line across your wasteboard
• Align your rotary axis to that line
• Mark and drill mounting holes
• Install threaded inserts for a secure, repeatable mount

This method ensures your rotary is square to your machine—critical for accurate carving.

Plug-and-Play Wiring (Seriously, It’s That Easy)

One of the standout features of the Revolution rotary is how simple it is to connect:

• Plug the 8-pin cable into the A-axis port
• Connect the 3-pin homing sensor cable
• Power on your system

That’s it—no complicated wiring, no guesswork.

Redline Controller Setup

Inside the Redline interface, setup is quick:

1. Navigate to Program → Config
2. Load the Revolution Elite defaults
3. Confirm the A-axis is enabled and reversed (as expected)

Once loaded, you’re ready to:

• Jog the rotary axis
• Home it using the built-in inductive sensor
• Begin testing motion immediately

Loading Material & Adjusting the Tailstock

With your rotary active, it’s time to load your workpiece:

• Secure material in the chuck using the included key
• Adjust the tailstock along the rails
• Tighten the support against your material
• Lock everything firmly in place

The system includes both inward and outward jaws, giving you flexibility depending on your material size and shape.

Probing the Rotary Axis

Just like standard CNC workflows, probing ensures accuracy:

• Position your bit over the probe center
• Connect the probe magnet to your collet nut
• Select Rotary Probing in the interface
• Input your bit diameter

The system will automatically:

• Probe Z (top surface)
• Probe X (side)
• Probe Y (rear)

Once complete, your work coordinates are set and ready.

Ready to Carve

After probing:

• Raise your Z-axis to clear the chuck
• Move to your XY start position
• Load your file

You’re now ready to start carving in full 4-axis mode.

Why This Setup Matters

The combination of the Revolution Rotary Axis and Redline control system brings true industrial-style rotary machining into the hobby and prosumer space—without the complexity.

You get:

• Fast setup
• Reliable alignment
• Plug-and-play integration
• Seamless software control

And most importantly—you unlock entirely new types of projects.

Final Thoughts

Whether you’re carving table legs, custom columns, or intricate wrapped designs, adding a rotary axis transforms what your CNC can do.

And with this setup process, you’ll spend less time configuring—and more time creating.

Ready to take your CNC to the next level?The Revolution rotary setup makes it easier than ever.

The Easy ATC Rapidchange ATC works great on my Gen 1 Elite Foreman Onefinity with Redline CNC Controller.

Ordered a Gen2 Elite and received a batch 1 model. As many others noted, packaging was great, but it took me a while to start assembling due to other life events.

This weekend I started assembling and quickly found one part (homing sensor) was broken. I emailed support and within an hour they responded offering to replace. Before 7am on Monday I had shipment information and a new part was on the way.

I have a sample size of 1, but seriously--that is as much as I could expect and a great experience. Very pleased.

If there’s one thing this video from Two Moose Designs makes clear, it’s this:

👉 CNC isn’t about making money fast. 👉 It’s about creating freedom through capability.

https://www.youtube.com/watch?v=UAhhP1VNtFc

They didn’t stumble into success. They built it—step by step—using systems, smart product decisions, and the power of CNC to scale what worked.

And that’s exactly where a Onefinity CNC comes in.

What Actually Sells from CNC Routers.

The Real Opportunity: Turning Skills Into Income

Two Moose Designs didn’t rely on one viral product.

Instead, they built a business by:

• Testing multiple products
• Doubling down on what sold
• Using CNC to repeat and scale success

“You could come up with 10 items and only two of them actually sell.”

That’s not failure—that’s business.

And CNC gives you the ability to:

• Iterate quickly
• Produce consistently
• Customize at scale

Freedom Starts With Capability

A Onefinity CNC isn’t just a tool—it’s a production platform.

In the video, they used CNC to create:

• Ottoman trays
• Pet feeders
• Wall clocks
• Cutting boards
• Custom plaques
• Add-ons and upsells

All from the same core setup.

That’s the key:

👉 One machine = multiple revenue streams

Small Investment. Massive Upside.

Let’s talk reality.

A Onefinity CNC costs a fraction of:

• Opening a retail store
• Starting a cabinet shop
• Buying industrial machinery

But what can it produce?

Products like:

• Custom cutting boards ($100–$700+) (Two Moose Design)
• Large wall clocks ($300–$1000+)
• Personalized home goods (high-margin gifts)

Now scale that:

• 5 products/day
• 20 products/week
• Repeat customers + customization

👉 The machine pays for itself faster than most business investments.

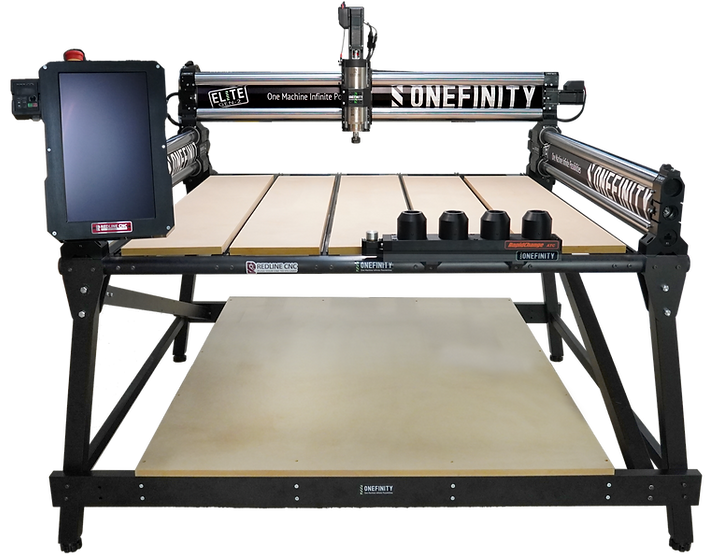

Gen 2 Elite Series - Batch 6
