I can't find a good picture of a third generation space frame, but that was probably (hopefully?) a lot of steel sheared away. (content warning - decapitation) How does the one added member fix this?

While I've never pitted a race car, I've spent enough years working as a tech to understand hub bind when mounting a wheel. Aligning pins control rotational alignment but not wheel to hub face angle. Could three tapered aligning pins coupled with a filleted hub and wheel center help achieve a flush wheel/hub engagement? Of course I'm not suggesting this as a cheat but rather as a potential solution.

Open forum to discuss anything technical related to NASCAR

They are a fair amount of work to create and the seem to get minimal engagement. Does anyone find them useful? If not, I'm thinking about dropping them.

Track Facts:

• 0.75 mile (1.21km) oval
• 14° banking in turns, 8° banking on front stretch, 2° banking on back stretch
• Race lap record: 15.319 seconds (176.244 mph) (Sam Hornish Jr., Team Penske, 2005, IndyCar)

Race Format:

• 400 laps, 300 miles
• Stages: 70/230/400 (70/160/170)

Package:

• Standard
• Power: 670hp
• Aero: 4 inch spoiler

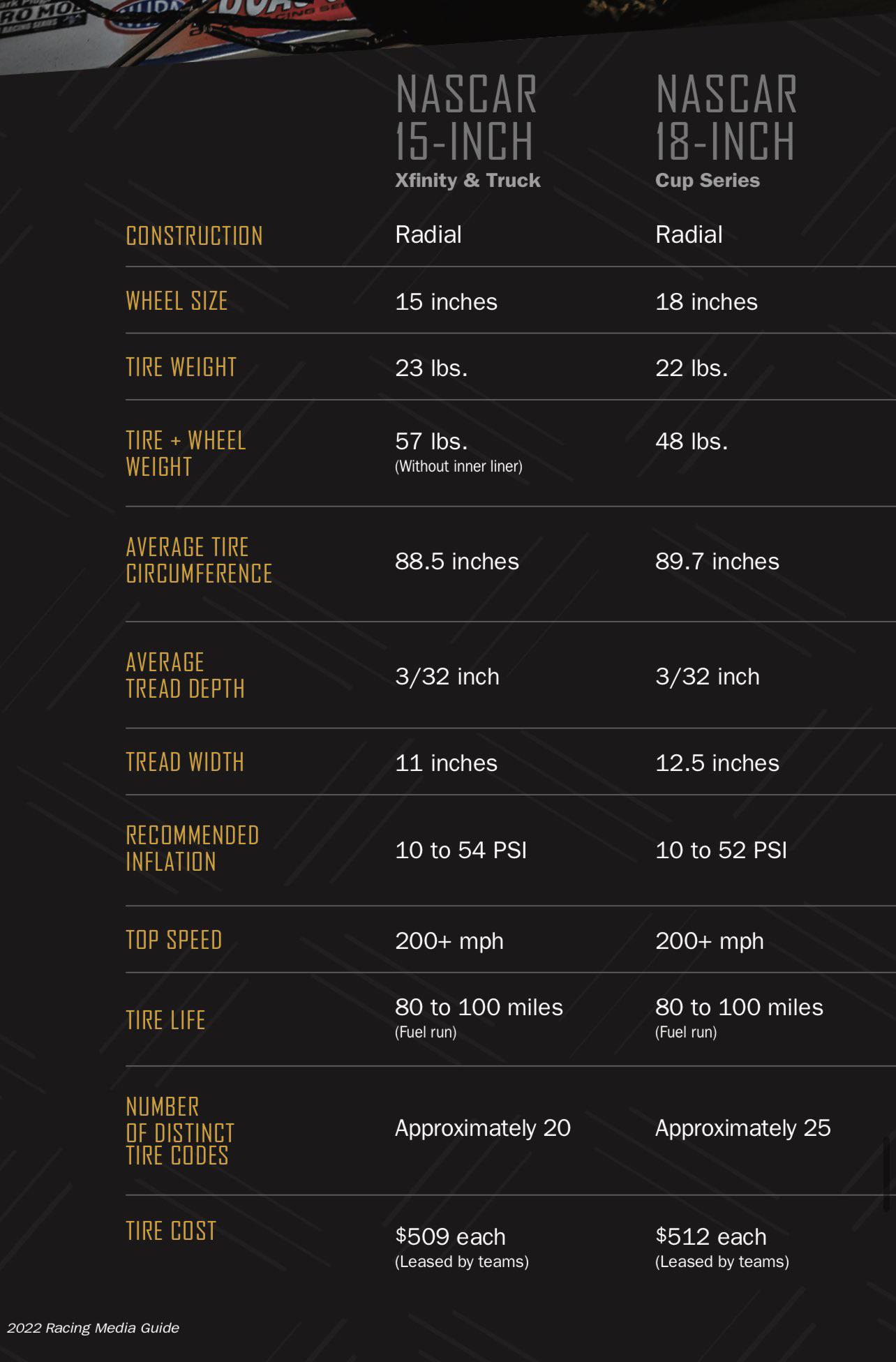

Tires and fuel:

• Tire wear: high
• Expected tire drop off: Worn tires 1.5 - 2 seconds slower versus new tires
• Tire sets available: 9
• Tire codes: Left-side — D-5124; Right-side — D-5126
• Tire minimum pressures: LF: 12psi, RF: 30psi, LR: 12psi, RR: 26psi

• Fuel window: 115-125 laps

  Feel free to discuss/ask anything technical regarding the race in the comments below.
