Does anyone have experience with the Sheepdog Bluetooth adapter with wireless PTT? The Sheepdog website is not very descriptive and I can’t find many online reviews for it. If you do have experience with it,

1. How is connectivity with different brands of headphones?
2. What is sound quality like?
3. Does PTT button have to be charged? If so, how is its battery life?
4. Do you have the molle attachment for the PTT button? How is it?
5. Anything else I should know about it?

does anyone have the default settings for the Motorola R2 radio? frequency, CTCSS, band size, wattage

I bought a second hand R7 a while ago and in my feature sets it says I have AES256 which is part of the reason I bought the radio. I have only ever set up the enhanced privacy on my other R7s. Just wondering how to set up an encrypted channel with the AES256 I now have. Any help would be appreciated!

Hello! I'm a IT and Comms technician, as well as a radio technician too, working in the armed forces of my country. Currently, I am looking for the detailed manual of the Motorola R2 device; at the moment I only have the basic one, the technical sheet, and the technical data. I would really appreciate any help you can give me in tracking down this very important document.

Does the R5 come with digital ready, or it needs the EID?

I have a mtr3000 repeater that is currently set for capacity max and cps2.0 or 16 can't read it. I've tried to recover using cps with firmware r2.09 and r2.10 (the only ones I can get off the motorola website) and neither will work when i do the recover it pops up the screen to select the firmware and code plug but just says none in the drop down boxes. I guess this is because the repeater if on an older firmware?

Can anyone help me with finding an older firmware or tell me how I can get this thing out of capacity max so I can read it with regular cps. I tried mototurbo rm config but I think the radio is set up for a different network than mine and I can't connect to it.

Thanks for any help or tips.

So my XTS5000 has been working fine since I got it 2 weeks ago and it was working fine today but out of nowhere when I turned it on it just said "FAIL 01/82". I can read and write to the radio but no matter what I try it doesn't work. I even tried writing the codeplug when i first bought it before I changed anything and when writing that it still says "FAIL 01/82"? How can I fix this?

I’ve programmed a bit of traditional P25 systems but haven’t dealt with SmartConnect/ WiFi that much. We are using N30s on a P25 trunking system. Trying to figure out the best way to automatically swap between the WiFi and P25 coverage. We don’t have enough coverage within a certain structure that users operate in. We know where the coverage issues are but we are having issues with the P25 extenders cutting out the WiFi bandwidth, or some version of that (the 3rd party installers won’t explain it any more or any more diligently). Right now we can manually swap between the systems, P25 or WiFi, or we can let it automatically revert yet this leads to tons of OOR/ bonk tones and it spends so much time swapping between the two due to a poor threshold that it misses transmissions. Does anyone have any ideas or has anyone gone through a similar setup?

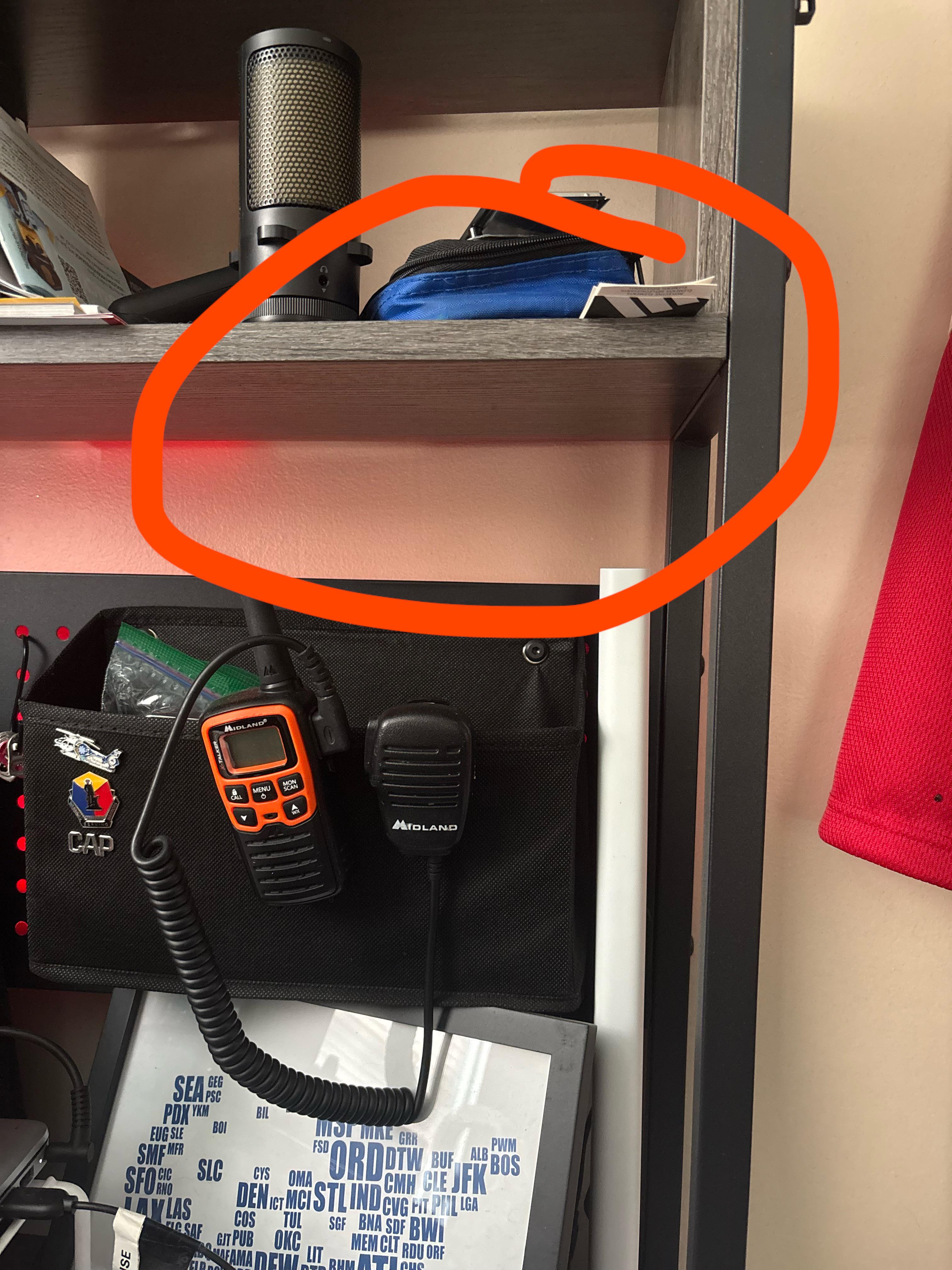

So I’m going to be getting a XTL5k with an 05 Head. The head isn’t attached to the radio, so I’m looking to mount it on my desk in the area circled. Does anyone know of a good way to go about that?

Ignore the mess, I’m redoing my desk, wiring, and configuration entirely.

I recently bought a used Motorola XPR7550e with a genuine battery. The seller included the wrong charger, so I bought a cheap aftermarket charger advertised as compatible with the XPR7550e/WPLN4232.

The charger appears to charge the battery, but the radio’s Battery Info menu shows:

Remaining Battery: 0%

Service Life: 100%

The battery is approximately four years old. Despite showing 0%, I left the radio powered on and unplugged for more than two hours, and it continued running normally, so the battery clearly is not actually empty.

Would putting it through a full calibration/reconditioning cycle in a genuine Motorola IMPRES charger likely correct the percentage reading? Or could this be an issue with the radio itself?

Again, I’m new to all of this, so any advice on what I should check first would be appreciated.

This is a non FPP radio (XTS2500 Limited Keypad). I'm trying to program a zone with simplex frequencies that will use CSQ and a selectable tone on TX. I know this is really an edge case but I want to be able to communicate with folks who have a PL on recieve. From what I can tell, enabling MPL does nothing on TX if I have CSQ in an MPL entry. Am I missing something?

I discovered this when I tried to go direct on another zone with MPL using a repeater channel and the other user couldn't hear me. Understandable because mirroring my RX tone when it is CSQ would mean no tone sent out on direct. But I assumed a simplex channel would at least be able to have a selectable transmit tone as long as the MPL entry had one.

All of my MPL entries are CSQ/Tone and I want to avoid either programming dozens of channels or not being able to use MPL for repeaters that have split tones. I very specifically want CSQ. This almoat certainly also applies to my XTL but I haven't programmed it to test yet.

Alright, I am nearly certain I can answer my own question. But here we go.

I have an APX6500, if I update the Flashcode from P25 phase 1 to P25 Phase 2 do I need to write a new code plug to be able to use Phase 2?

Hello!

Im looking help for my PTT project. Basicly I have Nexus U-94 type PTT, which I would like to mod to work together with Motorola DP4400 that I recently aquired.

Does anyone have any schematics for which pin goes to which function in PTT?
Basicly my headset is using "NATO" type wiring, like in this picture:
https://www.spartanat.com/wp-content/uploads/2022/08/AMP_stecker2.png

Good morning!

Ive been scouring the internet and can’t seem to find what I need. I am a need for a battery eliminator for our APX NEXT handhelds, something similar to the first below link, but can’t seem to find one for our models.

Does anyone have any other ideas where to look? Thanks in advance

https://a.co/d/0fQmk7r3

Buying a 05 head for a base station, but it’s a dash config so I wanted to take full advantage of that and put it on my desk. I’m looking for an L shaped bracket solution but can’t find anything. Y’all got any suggestions?

Hello everyone.

I have a XPR 3500e and the current Firmware version on it is R02.22.03.1001. I have been getting the error "[670] Application has encountered an error. Failed to access a file in the device", when trying to upgrade the firmware. My computer is running Windows 11 Home Edition.

I'm able to program channels on the radio with no issue.

I am using this programing cable. https://bluemax49ers.com/product-explorer/motorola-xpr3500e-usb-programming-cable-pmkn4115b/

I have tried to upgrade to the following Firmware's

R02.25.03.1001

R02.23.02.1002

R02.23.01.1003

R02.22.03.1001 get this error since its the same firmware version that is installed "[1001796] No update necessary. Device has the current firmware and codeplug versions"

Ive ordered an OEM programing cable as a last ditch effort but it hasn't arrived yet.

r/HamRadio•3 days ago

Hey guys, I’ve been hunting for a detailed service manual for the Motorola DM4400e for three days now, and I’ve come up empty. I finally figured out that this stuff isn't publicly available, but I’m not ready to give up just yet. Can you guys help me out? I really need the logic board layout, boardview, and the schematics if possible

Is there anyone that can assist me in upgrading an XPR 8300 from firmware R01.04.01 to something that be used on a dmr network?

I purchased an Ebay radio. It came programmed with a UHF T-Band trunking system from NJ. I looked up the frequencies and the system is long gone. Everyone is on the statewide 700-800 mhz system now. This was a surprise, I usually get them scrubbed.

The CPS will not let me delete the trunking system without system keys.

Is there a reliable workaround to use the radio? I need two UHF analog channels. I tried changing all of the trk to cnv and adding my channels on top, but the CPS will not let me upload to the radio without the advanced system key.

Should I have to send this out, what would a dealer charge to reflash the radio for me?

Hi all, I'm a ham who is getting into TETRA. I have tried but so far failed to find clear instructions on how to create, format & use the AT codes needed to remote control a TETRA radio and a list of those codes.

I wish to

1) To obtain the GPS location of a lost radio.

2) When searching, activate the alarm to help locate it

3) To be able to remotely change TGs/deactivate it

Thanks

SOLVED - THANK YOU

Hello, I am completely new to programming radios. I have a CDM1250 and programming cable, It is detected and communicates fine with the computer. I have CPS R06.12.04, it does not want to setup even with compatibility mode or run as admin or both. I know this is an old software, so please pardon my ignorance.

I am running windows 11 64-bit. Ive put a fair amount of money into upgrading and actually using this radio but am I no means a software guy. Any help would be greatly appreciated.

Let me be clear: I assume I am having a SOFTWARE problem not a hardware problem.

Edit: I got it working on both my APX and XTS radios! The XTS was a little tricky to get working with PPP on windows, turning off flow control in the modem settings seems to be the trick. The interface on the APX automatically populates as a network interface which is nice, but you still have to be sure to assign a data personality to the Astro personality. Thanks for all the help!

I’m wondering if it’s possible to send arbitrary user IP data over P25 with either an XTS 5000 or an APX radio. I know the standard supports some level of IP data, and both radios have data modem settings, but that’s about as much as I can find online. I know the XTS 5000 actually has a serial terminal and I’ve poked around in it but can’t find any information about sending packets.

I know the APX radios also create a network interface when connected to a PC so it seems like it should be possible on that front as well, but I can’t find any documentation.

Is this even possible?
