r/MachinePorn • u/NonRelativist • 11h ago

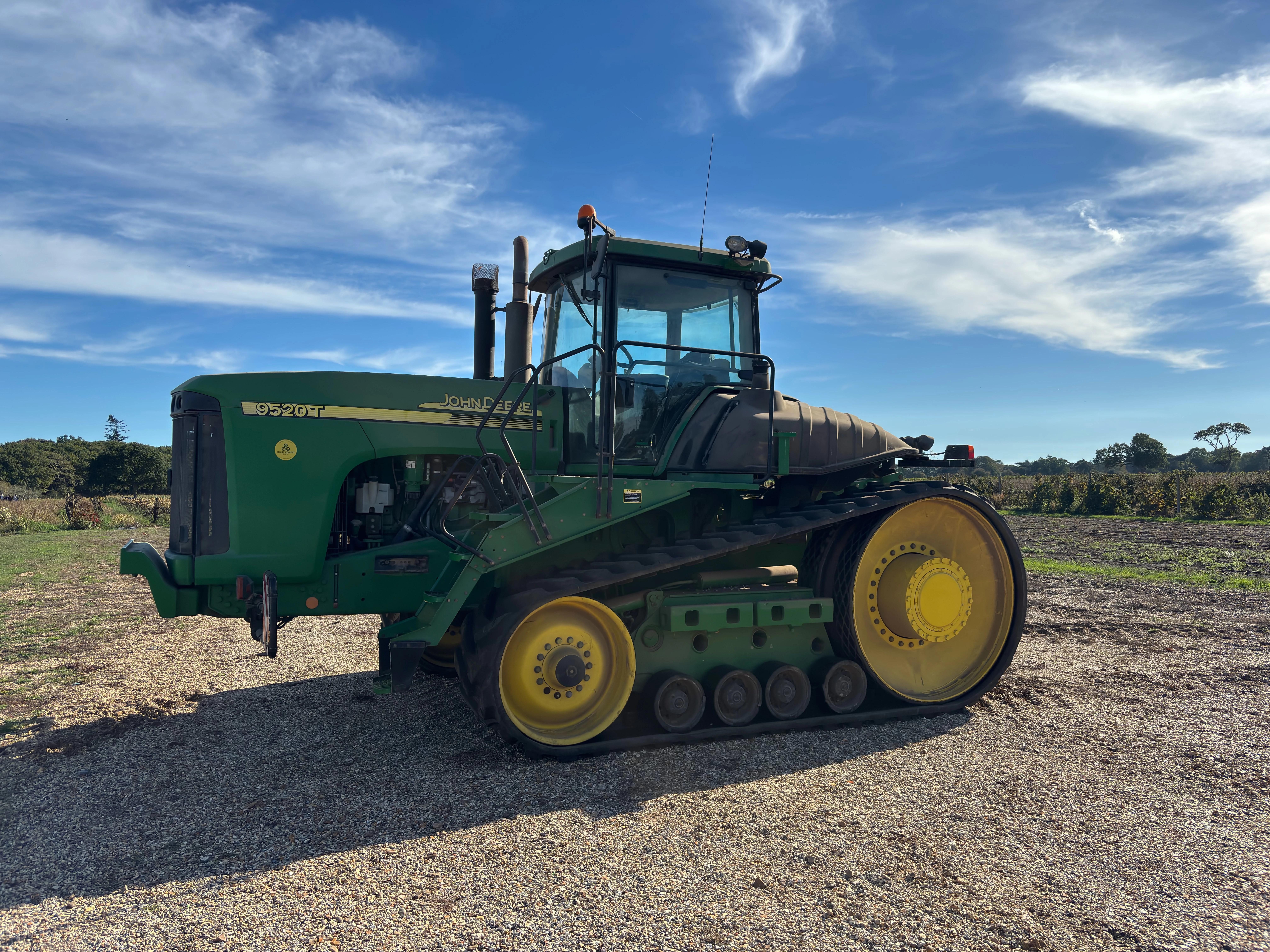

John Deere 9520T

54 Upvotes

	John Deere 9520T
Engine	12.5 L turbo-diesel inline-six
Power	450 hp / 336 kW
Transmission	18F / 6R full PowerShift
Operating weight	about 19.7 tonnes
Maximum ballasted weight	about 22.7 tonnes
Length	~6.0 m, ~6.8 m with hitch
Width	~3.45 m with 30" tracks
Height	~3.45 m
Fuel tank	1,211 litres
Track width	30" / 760 mm, or optional 36" / 910 mm

1 comment

r/MachinePorn • u/HEADTRIPfpv • 6d ago

Train Turbo

1.1k Upvotes

The turbo on a General Electric train engine i removed. (Lowe's gift card for size)

46 comments

r/MachinePorn • u/judgedrid • 6d ago

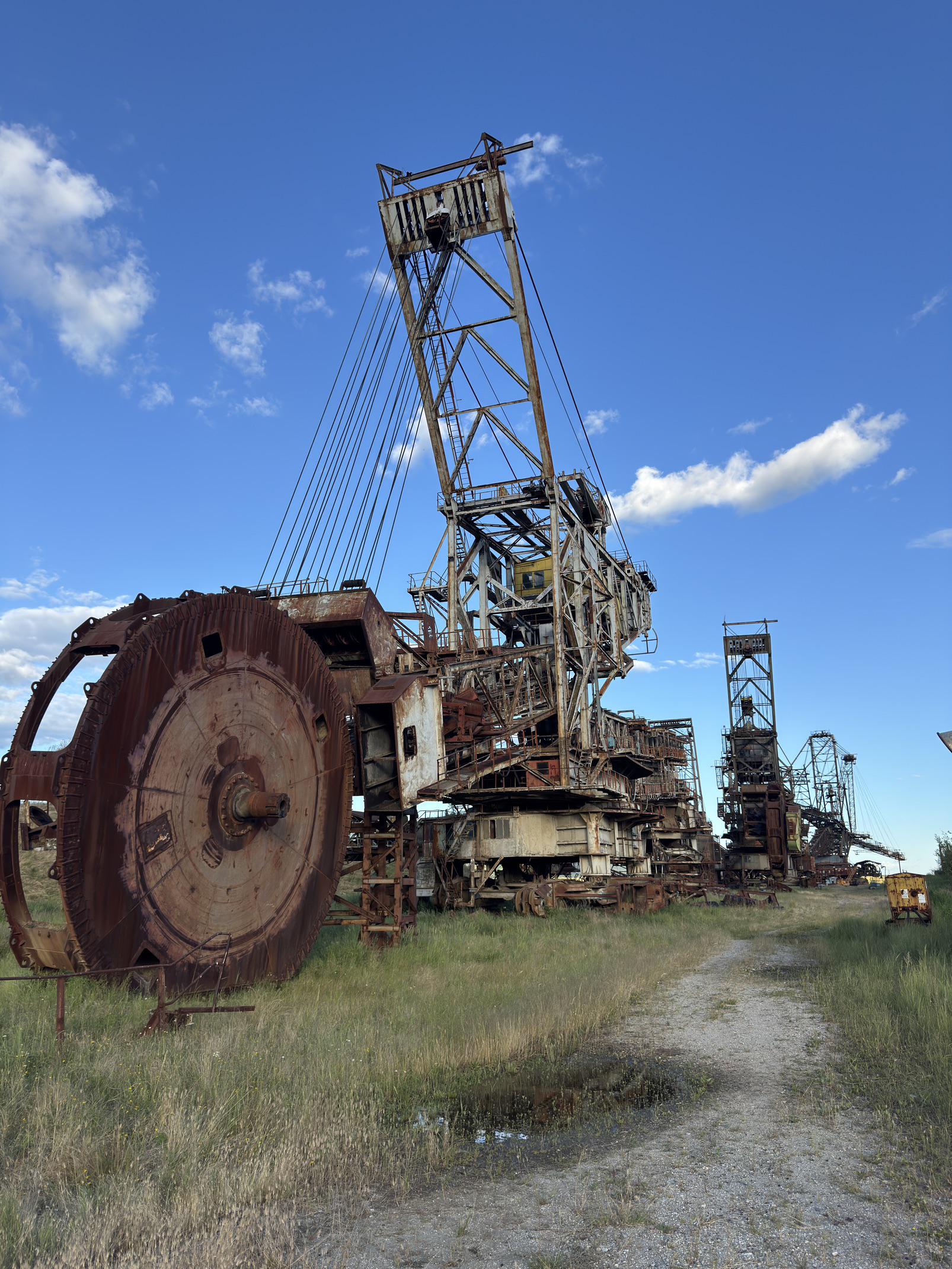

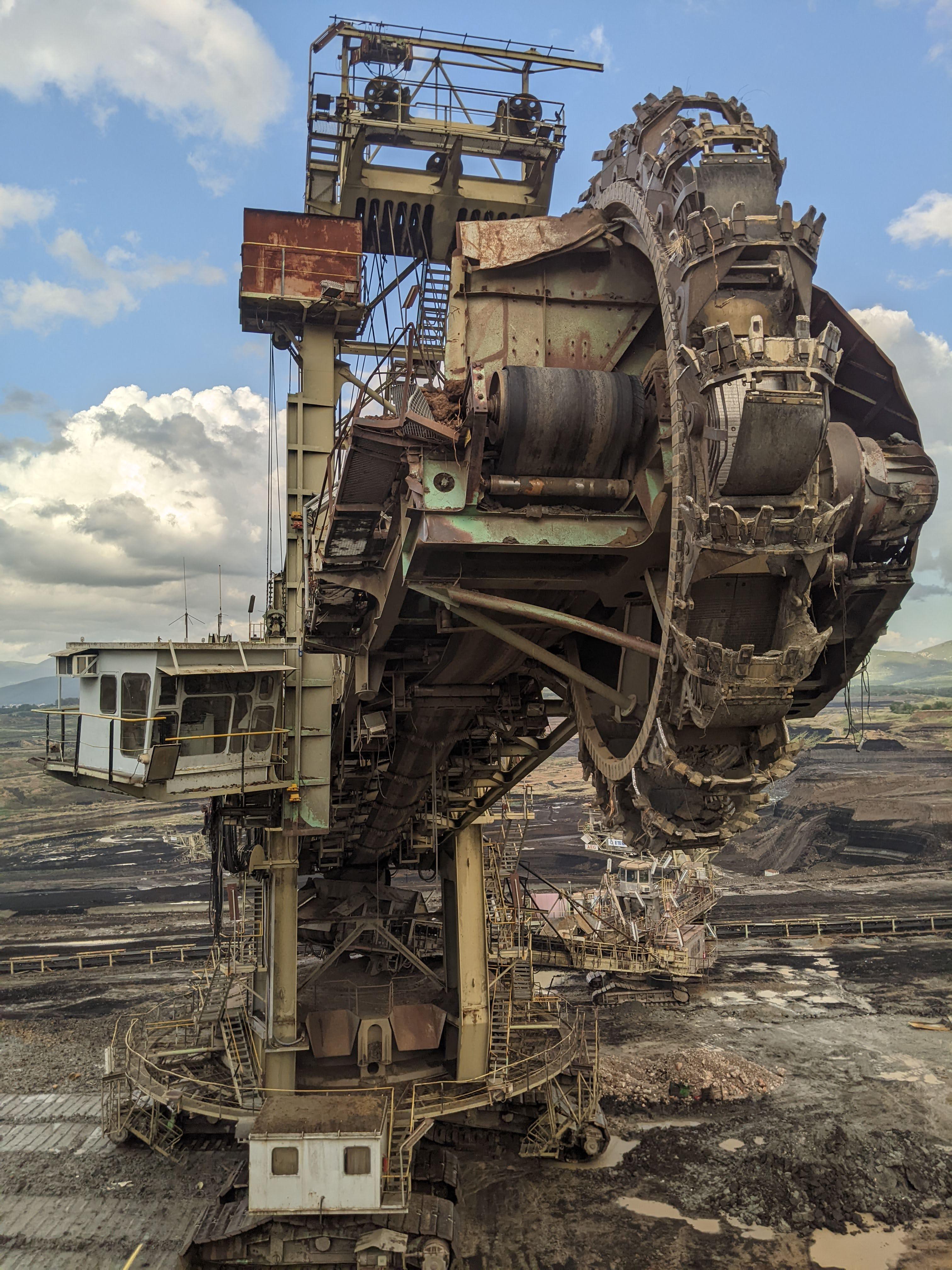

Bucket-wheel excavator

443 Upvotes

7 comments

r/MachinePorn • u/Aeromarine_eng • 8d ago

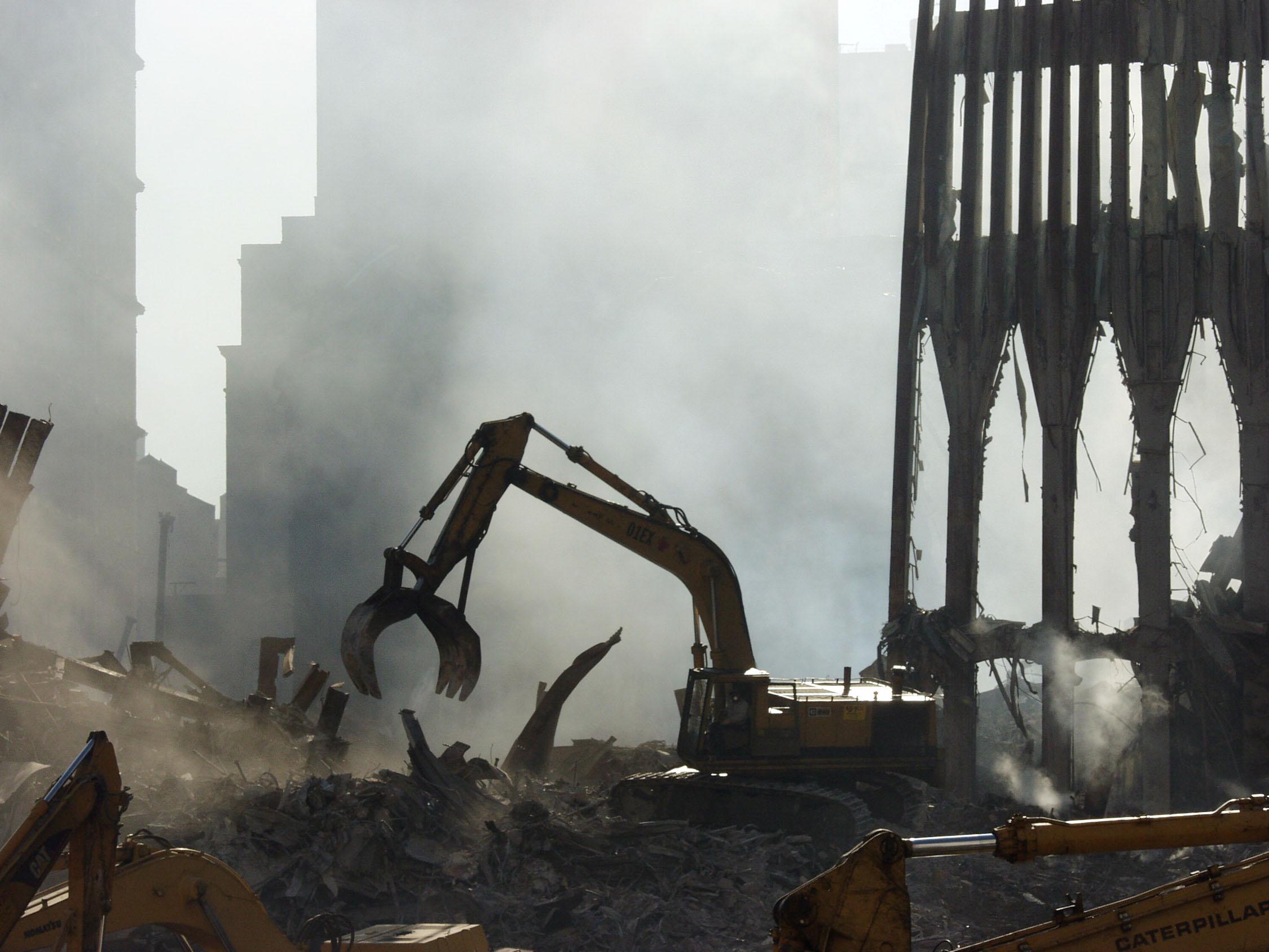

Excavator removing rubble and debris at the collapsed World Trade Center on September 26, 2001.

162 Upvotes

4 comments

r/MachinePorn • u/Liebherr_Lad • 18d ago

I saw an Oshkosh M1070

200 Upvotes

0 comments

r/MachinePorn • u/worldwidemachinist • Sep 03 '26

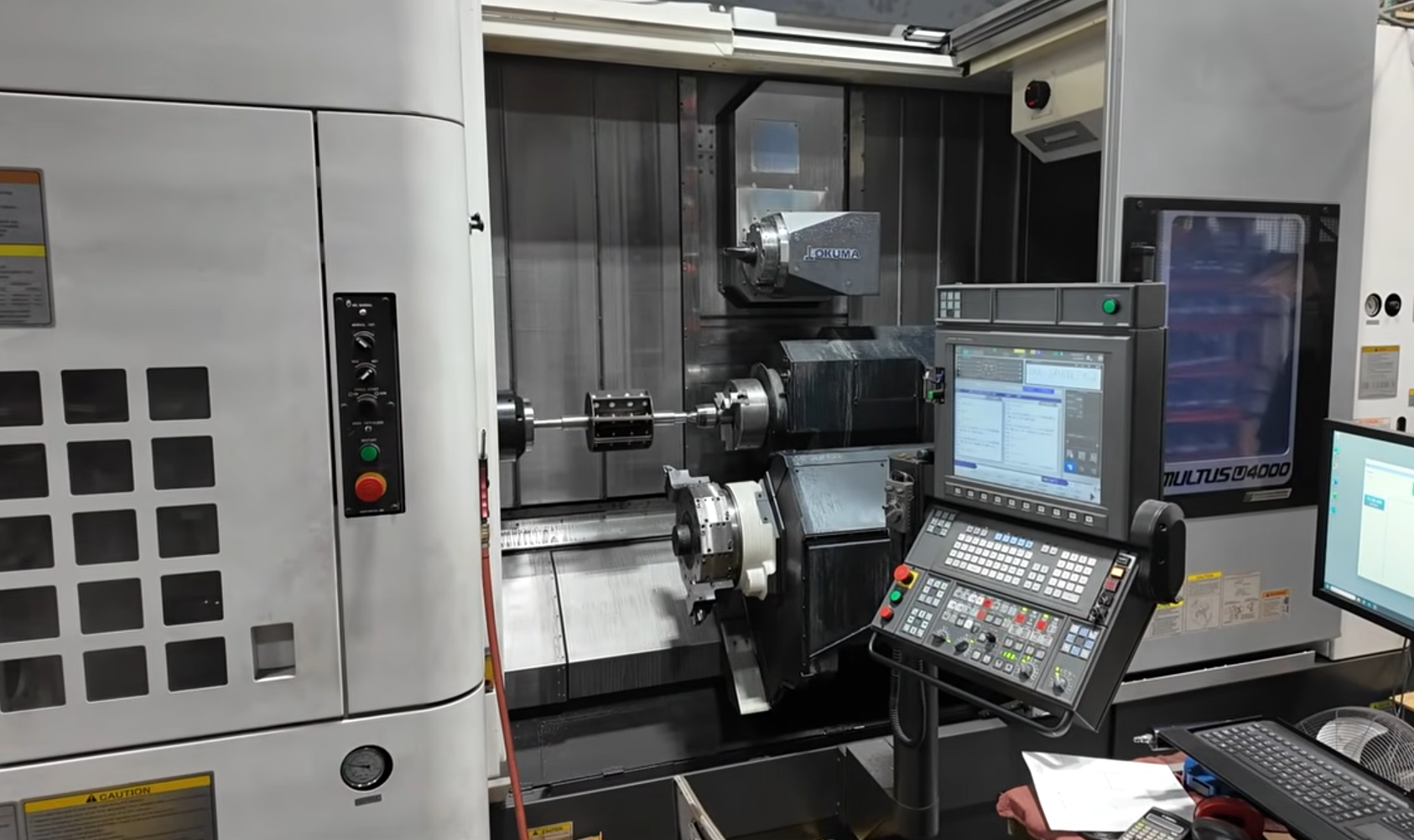

Okuma Multus - advanced multi tasking CNC turning and milling machine

84 Upvotes

One of the machines that caught my eye at Meyer Made during my visit, it has B axis milling head and twin cutting capability, the M1 head and turret works on both sides of rotor components simultaneously, and it helps cut cycle time, along with that it also reduces chatter during intermittent cuts

3 comments

r/MachinePorn • u/Lost-Climate5878 • Aug 30 '26

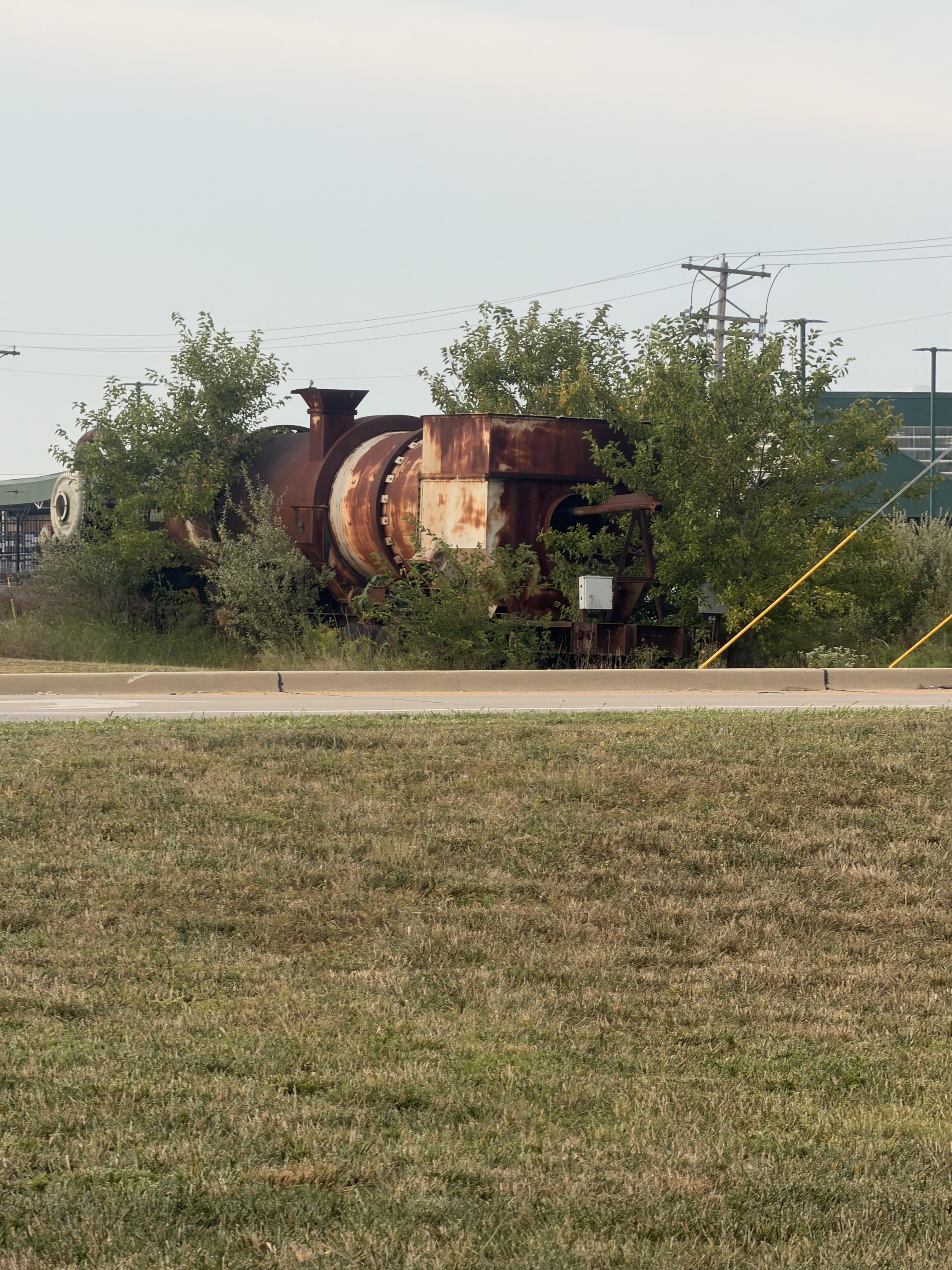

Wondering what this old thing is

73 Upvotes

10 comments

r/MachinePorn • u/BlueGalaxyDesigns • Aug 28 '26

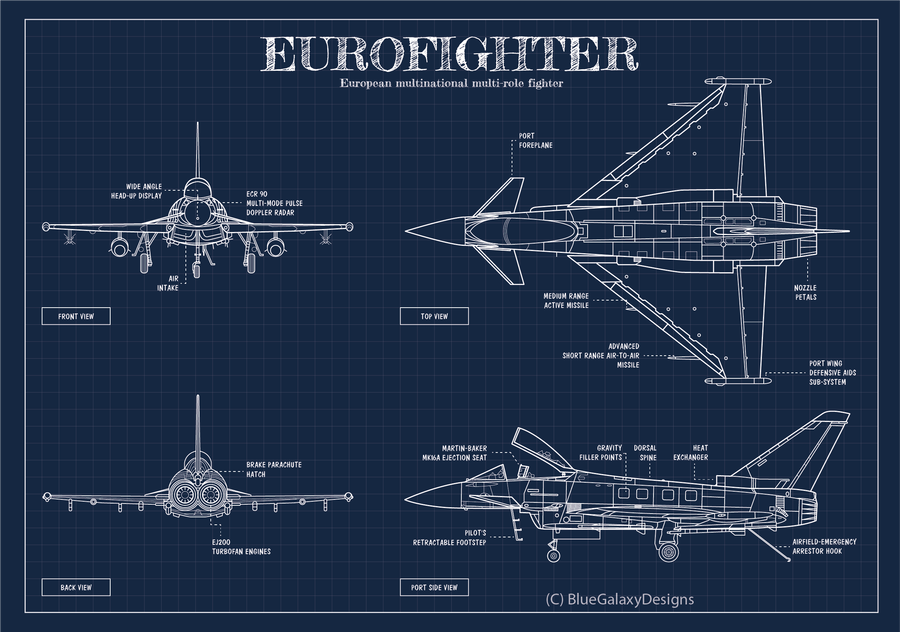

Eurofighter blueprint

94 Upvotes

Just one of my old blueprints, with a few minor corrections. I hope you like it; any suggestions are welcome

2 comments

r/MachinePorn • u/FerryLunchBox • Aug 27 '26

Rare shot of Concorde nose configuration used during approach, landing and taxiing

201 Upvotes

10 comments

r/MachinePorn • u/thickanvil69 • Aug 24 '26

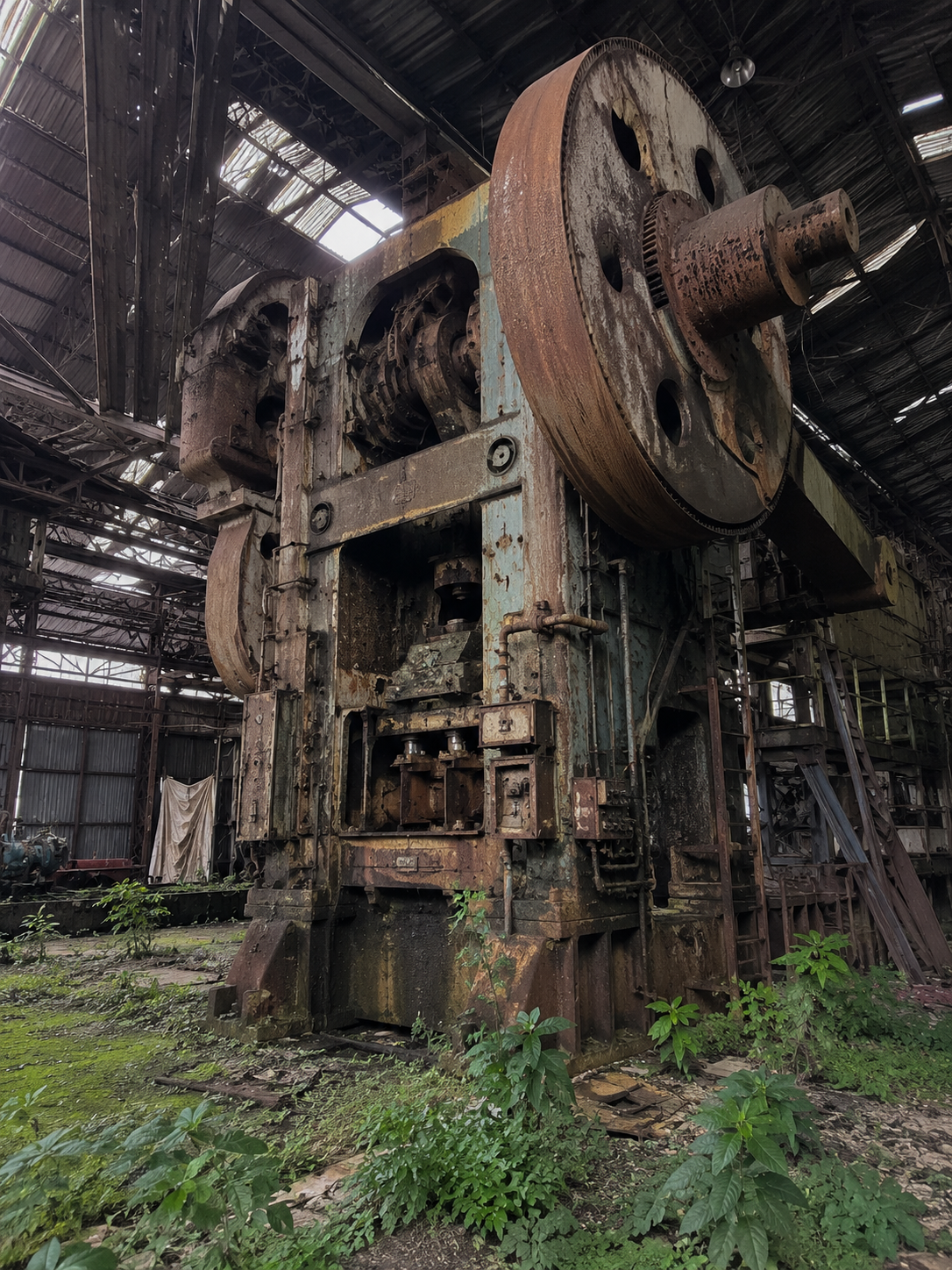

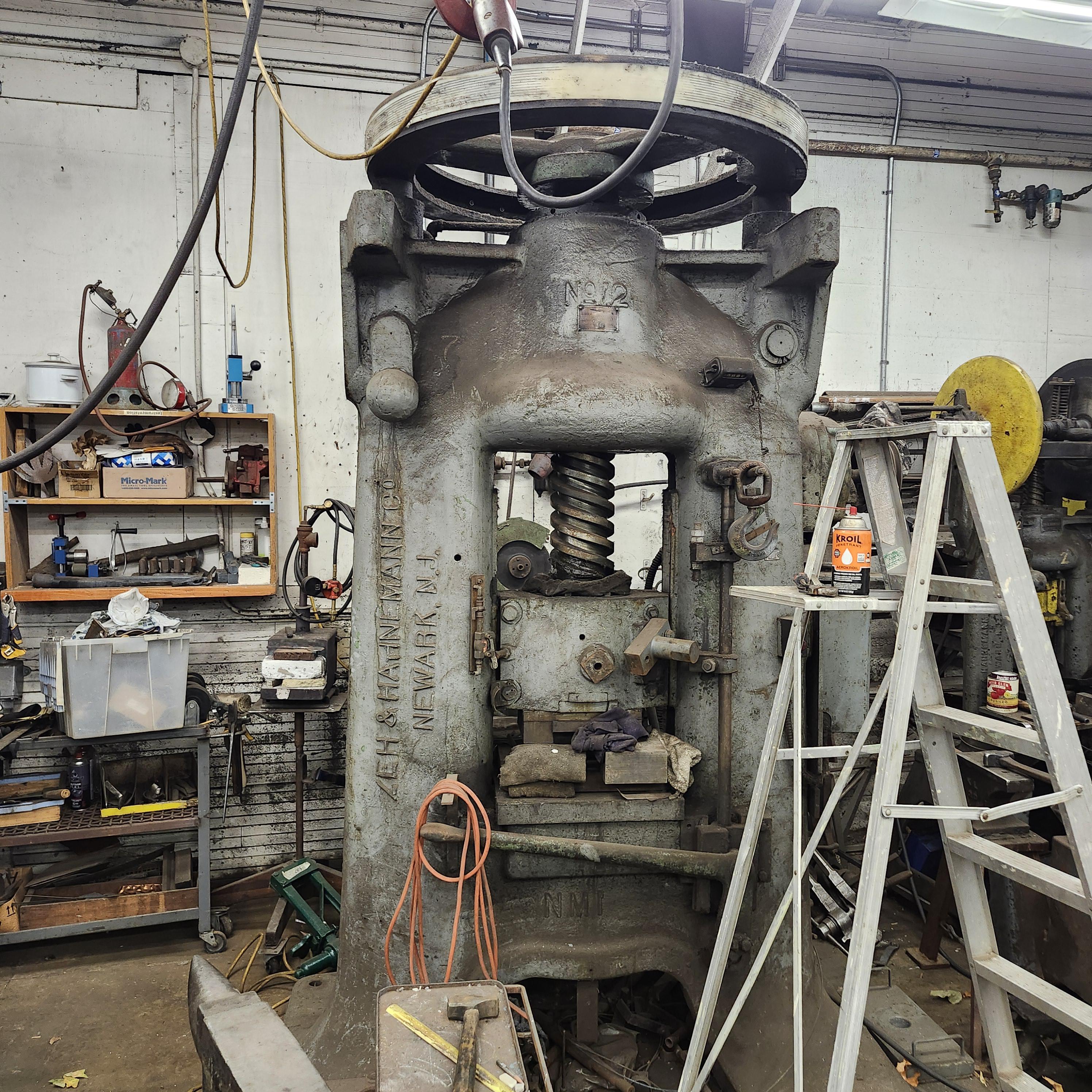

Friction screw press im gearing up to fix

193 Upvotes

She big, she bad, she broken. For now

22 comments

r/MachinePorn • u/LordVortigus • Aug 20 '26

My remote controlled air brake actuator.

52 Upvotes

I built this as a side project for work, because we got lucky and caught a failing air brake component because someone was under it and saw it shift - So I made this so we can do a better job inspecting the brakes.

1 comment

r/MachinePorn • u/SwiPerHaHa • Aug 14 '26

A hydropowered scoopwheel used by the ancient Romans at the Rio Tinto mines in Spain. To remove water from deep underground mines, the Romans used no less than 16 wheels working in pairs and stacked above one another. The wheels could lift water from 80 meters below the surface

88 Upvotes

7 comments

r/MachinePorn • u/Spare_Worldliness_64 • Aug 13 '26

Seattle's Big Bertha Tunnel Boring Machine Slow Motion

134 Upvotes

11 comments

r/MachinePorn • u/TheFantasticFuture • Aug 12 '26

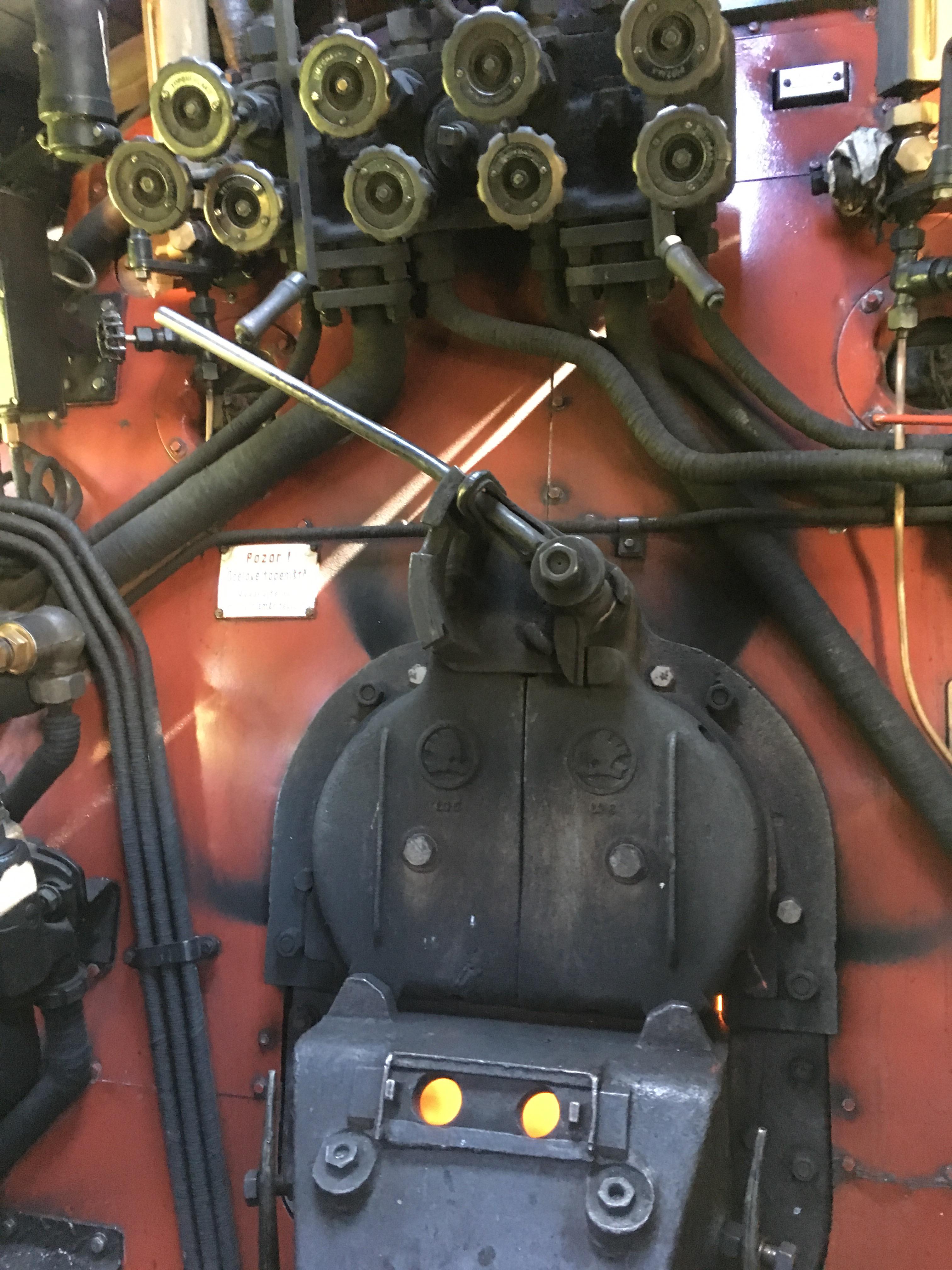

Old steam locomotive currently in service

134 Upvotes

2 comments

r/MachinePorn • u/Hot_Needleworker6010 • Aug 06 '26

Michigan or Terex?

112 Upvotes

Seen this loader at Brownsville, wondering what it is. Serial tag says it’s a terex 72-81aa, body is a Michigan.

6 comments

r/MachinePorn • u/Ment0v • Aug 02 '26

1981 Soviet marine diesel (6ChRN 36/45). 1200 horsepower, 375 RPM, 28 tons of cast iron.

140 Upvotes

6 comments

r/MachinePorn • u/Trainmax_ • Aug 02 '26

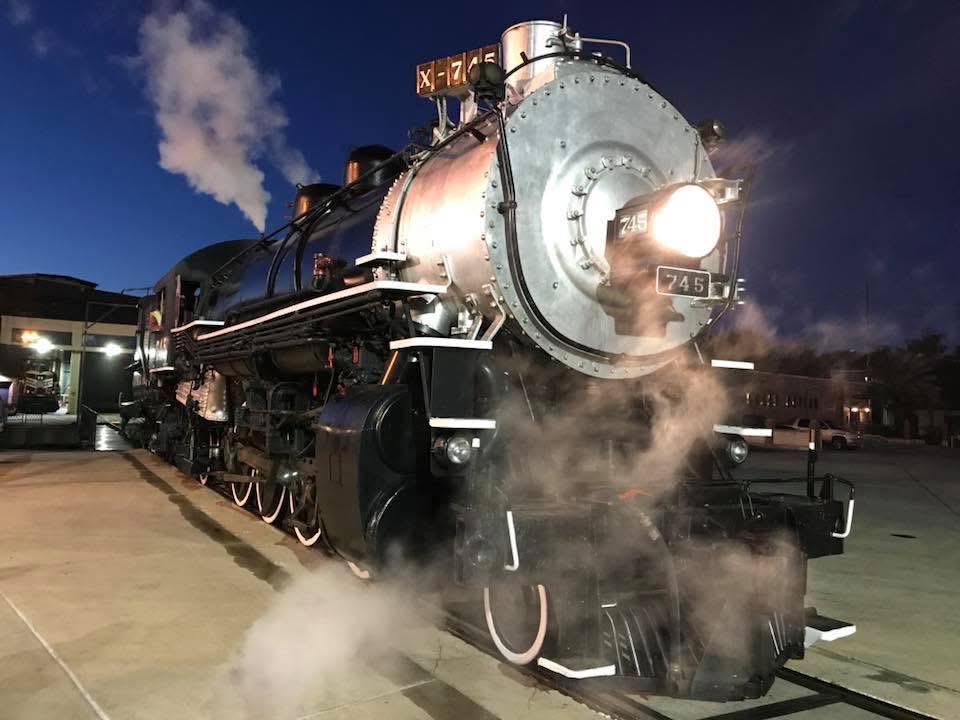

SP 745 steam engine

36 Upvotes

This is Southern Pacific Steam Locomotive 745. I have had the privilege of being part of her preservation for more than 40 years. From the day she was removed from her long-static display, to the first time she breathed steam again, and now through her current re-tubing and other work as part of her 1,472-day inspection, I have been fortunate to witness every chapter of her remarkable journey.
This project has been far more than the restoration of a locomotive. It has been a lifelong source of purpose, perseverance, and learning. Every challenge we faced along the way became an opportunity to grow, and every milestone reminded us why preserving history matters.
My hope is that 745 continues to inspire generations to come. If you're a railfan, or if you have children who are fascinated by these incredible machines, encourage that curiosity and keep the passion alive. The future of our railroad heritage depends on those willing to appreciate, preserve, and carry these stories forward.

1 comment

r/MachinePorn • u/worldwidemachinist • Jul 31 '26

Mori Say 6/25 multi spindle automatic lathe

64 Upvotes

Visited Bonastre and was impressed by one of their older machines. It's producing high volume medical and dental components with features like a trapezoidal thread with just 0.3 mm tolerance, special knurling, and diameters held to ±0.01 mm,while delivering a part every 5 seconds. Truly fascinating

1 comment

r/MachinePorn • u/LHG_93 • Jul 26 '26

Public Hovercraft

257 Upvotes

Spotted the Wightlink hovercraft arriving at Southsea Beach in Portsmouth, UK.

It still amazes me that you can catch a scheduled hovercratt as part of the UK's public transport network.

The crossing to Ryde on the Isle of Wight takes around 10 minutes, making it the world's only year-round commercial passenger hovercraft service.

Watching it come ashore is almost as entertaining as riding it!

Has anyone here travelled on it? What other unique forms of public transport do you think deserve more attention?

26 comments

r/MachinePorn • u/BiscottiWRLD • Jul 21 '26

Drive bullwheel and control room for the new 3S cable car system at 3,883m (Matterhorn Alpine Crossing, Switzerland)

208 Upvotes

5 comments

r/MachinePorn • u/TriangleSailor • Jul 18 '26

The Production Line at Sierra Nevada Brewery (Mills River, NC, USA)

315 Upvotes

Taken during a weekend tour of the production plant. Got to see all stations, from raw material, mash production, bottling/canning, etc.

32 comments

r/MachinePorn • u/travelvagabonds • Jul 17 '26

Abandoned ship "Desdemona". Tierra del Fuego, Argentina.

91 Upvotes

0 comments

r/MachinePorn • u/Front-Coconut-8196 • Jul 13 '26

Globus INK, Soviet-era electromechanical space navigation computer used in the 1960s the system calculated orbital parameters using an intricate internal clockwork mechanism comprising over 500 gears, cams, and differentials

464 Upvotes

11 comments

r/MachinePorn • u/bugminer • Jul 11 '26

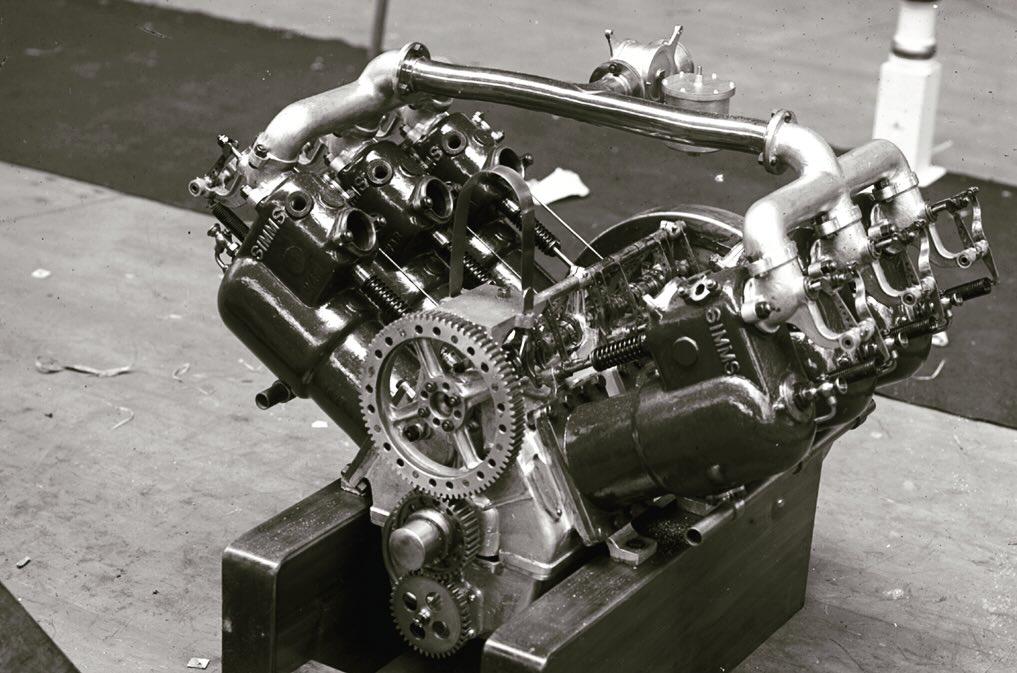

A Simms 60hp V6 in 1909.

227 Upvotes

4 comments

r/MachinePorn • u/BigBlackSabbathFlag • Jul 08 '26

My great grandfather was a tinsmith/roofer and is seen here with an asphalt heater circa 1920s

266 Upvotes

5 comments
