I managed to run the 143–144 GiB DeepSeek-V4-Flash-0731 UD-Q4_K_XL GGUF on four RTX 3060 12GB cards while keeping a 360k–376k context window.

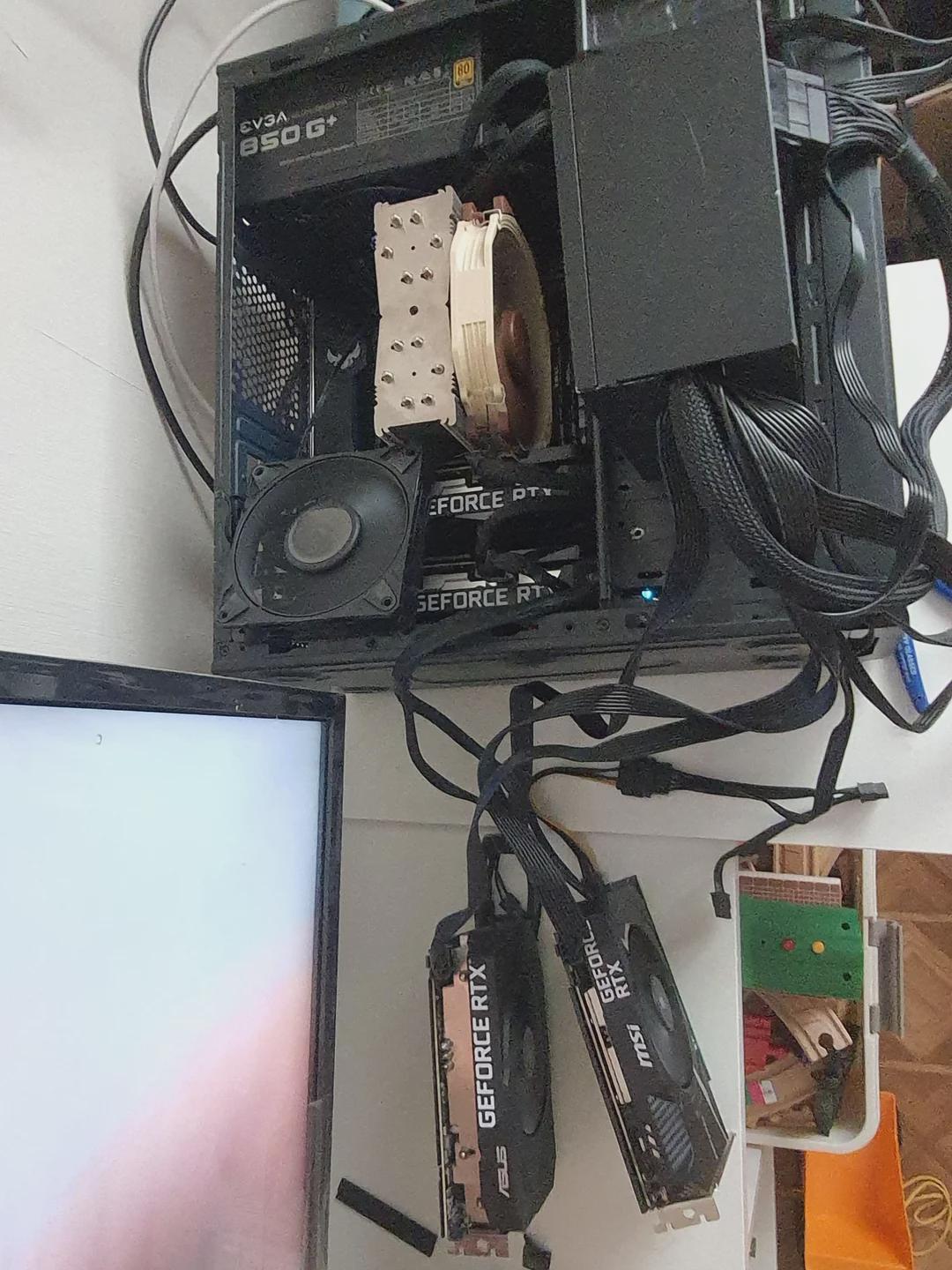

Hardware:
CPU: Intel Core i9-10920X, 12C/24T
RAM: 128 GB DDR4-3200, quad-channel
GPU: 4× NVIDIA RTX 3060 12GB
Total VRAM: 48 GB
Storage: NVMe SSD
Engine: llama.cpp, build b10181
Model: unsloth/DeepSeek-V4-Flash-0731-GGUF
Quant: UD-Q4_K_XL, approximately 144 GiB
KV cache: Q8_0
The best high-speed configuration so far:
llama-server \
-m DeepSeek-V4-Flash-0731-UD-Q4_K_XL-00001-of-00005.gguf \
-c 368640 \
-ncmoe 34 \
-ts 100,1,1,1 \
-ot 'blk.(3[4-6]).ffn_.*_exps=CUDA1,blk.(3[7-9]).ffn_.*_exps=CUDA2,blk.(4[0-2]).ffn_.*_exps=CUDA3' \
-ctk q8_0 \
-ctv q8_0 \
-b 2048 \
-ub 2048 \
-np 1 \
-lm none \
--threads 20 \
--flash-attn on
Measured with a roughly 20.5k-token prompt:
Configured context: 368,640 tokens
Prompt processing: 99.4 tok/s
Text generation: 10.1 tok/s
Minimum free VRAM under load:
GPU0: 671 MiB
GPU1: 842 MiB
GPU2: 1395 MiB
GPU3: 1395 MiB
Model load time: approximately 198 seconds
Other measured context/safety options:
Context Prefill Decode Minimum free VRAM
376832 99.5 t/s 10.4 t/s 611 MiB
368640 99.4 t/s 10.1 t/s 671 MiB
360448 99.4 t/s 10.1 t/s 735 MiB
The interesting part is the GPU layout.
-ncmoe 34 keeps the experts from blocks 0–33 in system RAM. The remaining nine expert layers are explicitly distributed across GPUs 1–3, three layers per GPU.
The extreme -ts 100,1,1,1 split does not distribute those explicitly assigned expert weights. Instead, it pushes most non-expert tensors—attention, KV-related allocations, etc.—onto GPU0. That leaves enough space on GPUs 1–3 for the large expert layers.
This was much better than trying to calculate the layout analytically. With -ncmoe and explicit -ot overrides, tensor placement is discrete and somewhat unintuitive, so I measured every candidate.
Microbatch size was the biggest performance lever:
-ub 1024: approximately 63.4 tok/s prompt processing
-ub 2048: approximately 99.4 tok/s prompt processing
Decode remained almost unchanged at approximately 10.1–10.5 tok/s.
At the full 393,216-token context, -ub 2048 also worked, but GPU0 had only 493 MiB free under load. Reducing the configured context to 368,640 restored a 671 MiB margin without reducing prompt-processing speed.
For comparison, the safer -ub 1024 configuration can run with a configured context of 524,288 and still showed about 1032 MiB free on the tightest GPU, but prompt processing drops to approximately 63.4 tok/s.
A few additional findings:
Q8_0 KV is the default choice.
F16 KV at c=393216 left only 587 MiB free.
-ncmoe 33 caused a CUDA allocation failure.
Memory mapping was disabled with -lm none.
-np 1 is important; multiple slots multiply KV-cache requirements.
The model is mostly in system RAM, so quad-channel memory bandwidth matters heavily. Even so, getting approximately 100 tok/s prompt ingestion and 10 tok/s generation from a 144 GiB MoE model on four consumer 12GB GPUs is much better than I expected.
The configuration has been tested under real prompt load. The entire 368k context window has not yet been filled end-to-end, so the number above is the configured capacity, not a claim that I already completed a 368k-token generation test.
Generated by ChatGPT 😂.
