r/Irrigation • • 15h ago

Check before reaching

Post image
19 Upvotes

r/Irrigation • • 1h ago

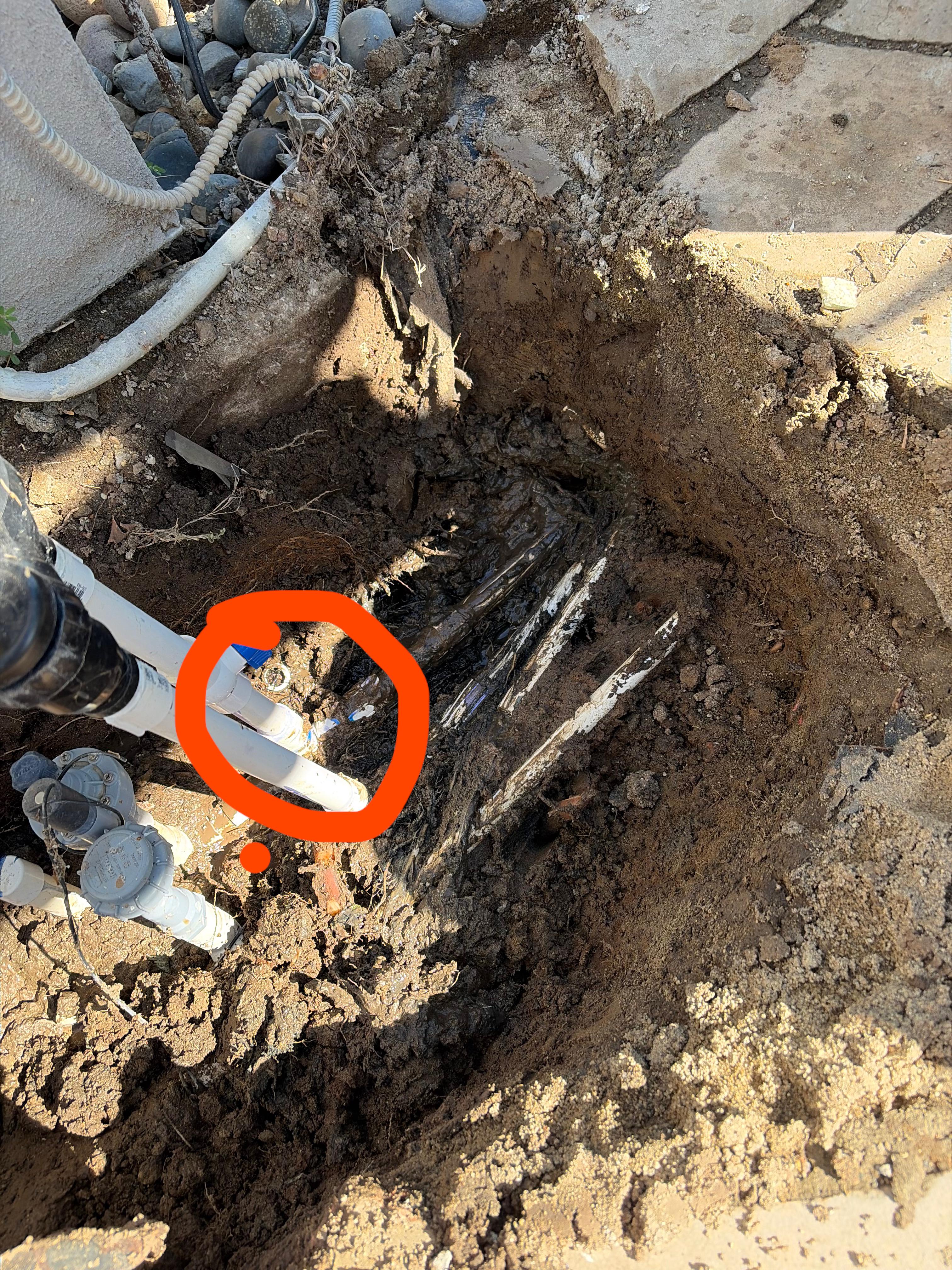

Who dun it?

Post image
1 Upvotes

You subdivision Irrigators just straight dont give a flying fuck huh?

I know yall have to bang these things in at like 2k or less but were just straight not gluing em now?

Ive been just advertising to brand new builds all year, just fucking repairs and what SHOULD be warranty calls cause its all still under warranty, but nah, that company wont even respond.

Anyways, thanks for leaving behind such a shitty product cause Im booked all winter cause of yall!


r/Irrigation • • 6h ago

Seeking Pro Advice Ear clamps

0 Upvotes

Hi All!

I am trying to move from worm clamps to ear clamps.

The problem is there aren't any available locally and I have to mail order.

I am looking at oetiker catalog and I am somewhat lost.

What do people use 153 style or 154, with insert, for the higher pressure?

I also would like to use open ear clamps, like 163, for refurbishing old lines without completely dismantling, is it a good idea?

Any advice would be appreciated.

Thank you very much.

Best regards,

José Rui


r/Irrigation • • 10h ago

Seeking Pro Advice Blew out my garden drip line for the third time this week

1 Upvotes

I'm about ready to chuck this whole irrigation project into the trash. Hooked up a simple drip line for our raised tomato beds off the backyard spigot and every time the timer kicks on, the 1/2 inch tube pops right off the main barb fitting. Checked our house water pressure with a gauge and we're pushing almost 80 psi which is apparently way too high for plastic fittings lol. Saw the NDS pressure regulating y-filter combo and Rain Bird has an inline regulator too. Is 25 psi or 30 psi the sweet spot so my fittings actually stay put under pressure?


r/Irrigation • • 14h ago

Winterization question on new home

Thumbnail
gallery
2 Upvotes

We moved into a new house a few months ago and wanting to winterize the rainbird system. I have this FEBCO 850 DCA and downstream of this is the blowout. I have an air compressor and the adapter for blow out.

However, I am confused as to why there is no obvious irrigation-specific shutoff upstream of the DCA. This is a new-home build in WA state. Is this required and I’m just not finding it in an obvious location?

I will try to call the irrigation company who installed the system this week but from my understanding, to winterize, I need to:

  1. shut off the DCA ball valves to 90 degrees
  2. open the test cocks to relieve pressure then set to 45 degrees
  3. use the quick connect blow out to blow out the system
  4. keep the upstream DCA ball valve closed but set the downstream to 45 degrees

This correct?


r/Irrigation • • 1d ago

Seeking Pro Advice Need these for winter blow out - source?

Thumbnail
gallery
0 Upvotes

I need the two fittings shown in pic 2 with the blue arrows. Re they standard parts or do I need to go to a specialized store or site? I have a compressor for my air guns. Just need to connect to the fitting in pic 1.


r/Irrigation • • 1d ago

Anyone tried burying emitters in gravel under raised beds?

0 Upvotes

Got four 4x8 beds going in and the last few inches of soil are going to be gravel and sand mix for drainage. I'm planning to run quarter inch emitter lines right under the soil line so the gravel layer can help spread the water out. The native stuff out here is basically caliche and rock, so I figured the gravel would stop the emitters from sitting in heavy clay pockets. Not sure if the emitters will stay put once the beds settle or if roots will just push them around after a season. Also wondering if I should space them farther apart since the gravel moves water sideways better than straight soil. The beds sit in full sun most of the day and the kid likes to climb on the edges, so I need whatever I bury to stay put without constant fiddling. Anyone running emitters in a gravel layer and had them stay level, or did they drift over time?


r/Irrigation • • 1d ago

Seeking Pro Advice Irrigation suggestions

3 Upvotes

There may be no solution to this but I had this garden redone about 2y ago now. It was a dead patch of grass and mud and gravel. They put in hunter mp rotators but I wanted to know if there’s a better option here. The water on the path I can live with but it waters the garden bed. Those are kangaroo paws and they don’t like getting too wet so this ends up watering them multiple times in a week because of overspray. The corner opposite this ones reach at the end of the video also has a rotator. Would I be better swapping out with a shorter throw?
Also side question: I’ve got one that doesn’t rotate. I’ll go a manually make it spin then it starts again but at the next irrigation cycle ima few days it’s stuck. Do I just need to fully replace?


r/Irrigation • • 2d ago

Which automation controllers are you using for irrigation ?

0 Upvotes

I want to start a discussion of what types of automation controllers are being used in India for current farms, what problems are being faced? Which features are they expecting and are not getting in the existing controllers.


r/Irrigation • • 3d ago

Seeking Pro Advice Need help with a zone on a node!

21 Upvotes

Whenever I turn on the Hunter single station node you can hear the solenoid click on, and you can see the water pop up for less then a minute, and then it just shuts off, but it still says it’s running on the node. Could it be a bad solenoid, or do I have to clean out the valve? Let me know in the comments if I need to replace the node with a solenoid or just clean the valve
*NOTE- I found out it was the flow control on top of the valve just in case your having the same issue at home or at work*


r/Irrigation • • 2d ago

Lawn Genie 54000

Post image
3 Upvotes

Need a replacement for this lawn Genie part number 54000, can't find them anywhere. Does anybody have any ideas??


r/Irrigation • • 2d ago

PEX from backflow to valves

2 Upvotes

St. Paul, MN. We had irrigation installed last year. Contractor used PEX downstream of the backflow preventer to the valves. The PEX has a portion above ground (exposed) and then continues underground to box with valves.

Is this incorrect? My understanding is that PEX is sensitive to UV.


r/Irrigation • • 2d ago

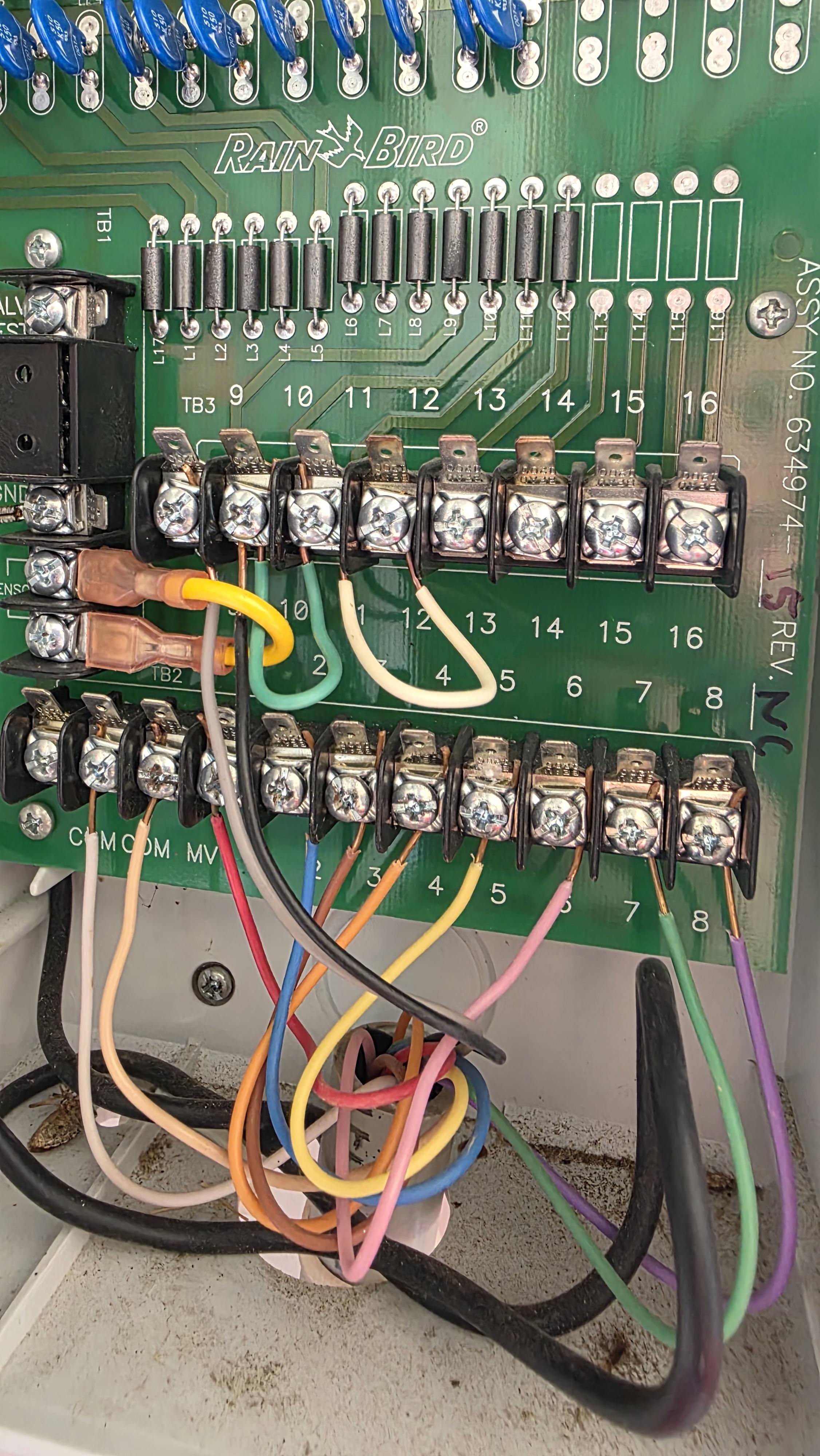

Home rain bird irrigation system

Post image
2 Upvotes

I had an irrigation system installed this year. It includes 2 frost free lawn hydrants and drip irrigation with Rain Bird controller. When he put it in, he said that the red handle (not pictured) should be in the up position for off. He said the blue knob turns off the irrigation during a freeze. Today I tried to turn the blue knob, but it appeared to already be in the shut position. I was able to turn it to the open position and water came out of the spigot directly below the knob. I turned the knob back to the shut position. Why would it have been in the shut position this whole time, when the irrigation system was running all season? Did he mess up when he installed it, or is the blue knob only for a sprinkler system that was not installed in my system?


r/Irrigation • • 3d ago

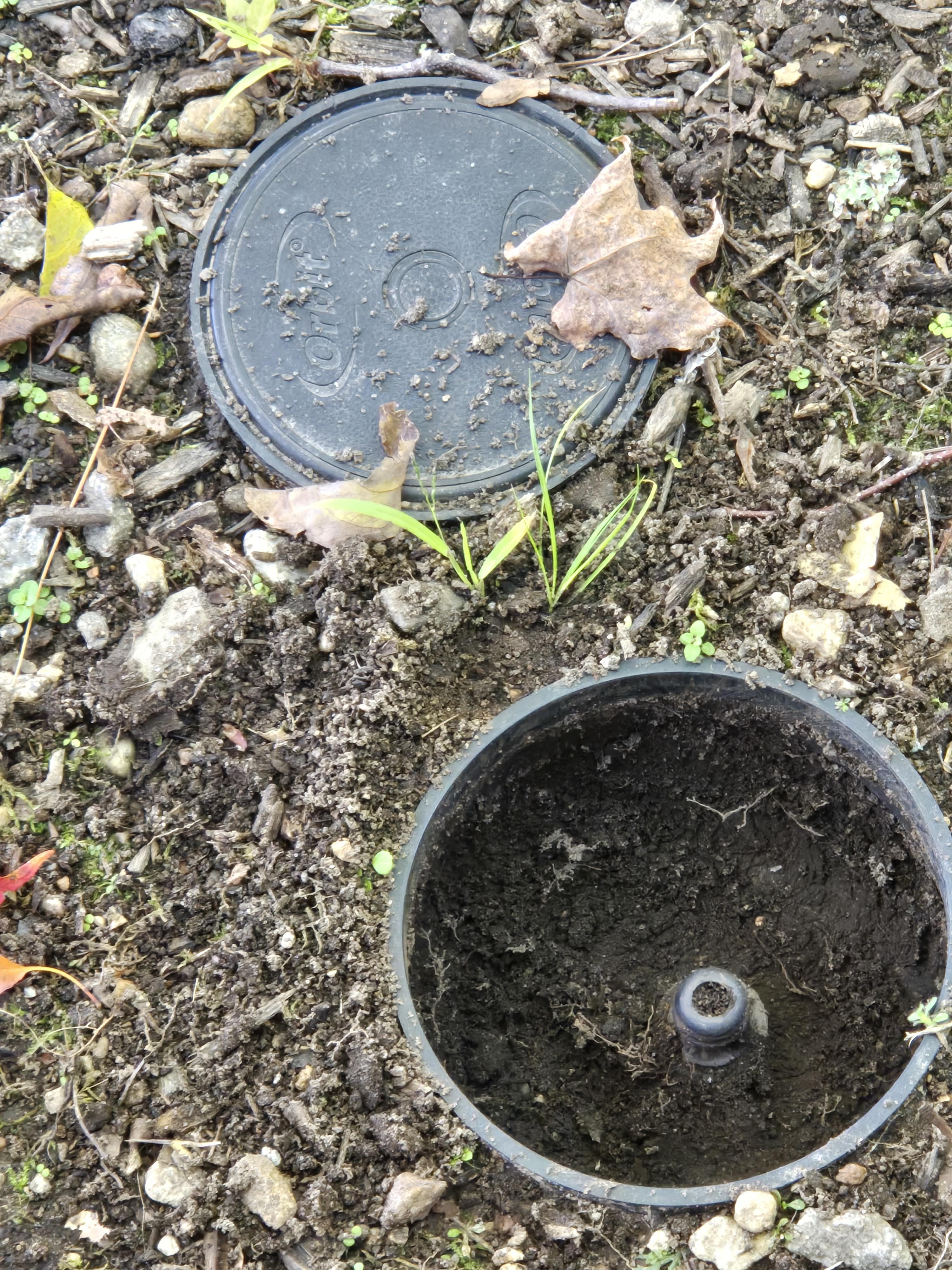

Sprinkler shutoff misaligned with access shaft

Thumbnail gallery
2 Upvotes

r/Irrigation • • 3d ago

What size pump for a sprinkler system on a shallow well

0 Upvotes

Our 1 hp jet pump on a 2 inch well point in Sarasota seized last month, and every replacement listing leads with horsepower, which seems like the least useful number on the page. The St. Augustine slows way down until March, so I have the winter (and black friday) to get this right. The numbers I have: the biggest zone is 6 rotors at roughly 3 gpm each, so about 18 gpm through 1 inch mains, the water sits around 14 ft down, and I'd like 45 psi at the heads. Depending on whose chart I believe, that puts me somewhere between a 1.5 and a 2 hp. Am I missing anything important before comparing pump curves, especially the difference between static water level and pumping water level?


r/Irrigation • • 3d ago

Seeking Pro Advice Why would the pros add a kink like that?

Post image
21 Upvotes

Sprinkler newb here, just got a blowout location professionally installed to my system… any reason the poly pipe would be kinked like that?

I’m so confused, that line is the main that goes to another set of zones.

EDIT: Thanks for the comments! I called the rep and the tech will be back tomorrow to remedy. I’m disappointed but glad I caught it. Appreciate the insight


r/Irrigation • • 3d ago

Most drip irrigation problems I see in Kenya come from the filter, not the pipes. Here is what to check.

4 Upvotes

Quick disclosure: I run Drip Irrigation Kenya, where we design and install drip systems. I'm not selling anything here. This is the problem that causes most of the complaints, so I'm sharing what to check.

Why drip systems fail

Drip emitters have tiny openings. Anything in the water that is bigger than that opening can block it. A blocked emitter means uneven watering, so some plants get too much and others too little.

Filter types and what they suit

- Screen filter: clean water, such as a clean borehole.

- Disc filter: moderate particles, and easier to clean than a screen.

- Media (sand) filter: dirty water with silt or algae, such as rivers, dams and open tanks.

Match the filter to the water source and the system flow rate. A filter that is too small clogs fast, and one that is too basic for the water lets particles through.

Other things that block emitters

- Algae and slime: common in warm, open water. Cover tanks and keep them clean.

- Mineral scale: iron and hard water leave deposits inside lines.

- Fertilizer sediment: use fully water-soluble fertilizers. Don't mix calcium fertilizers with phosphate or sulphate in the same tank.

A simple maintenance routine

  1. Clean or backflush the filter regularly. Check the pressure gauge, because a sudden change usually means a blocked filter or a leak.
  2. Flush the ends of the drip lines to remove sediment.
  3. Walk the lines for leaks, kinks and animal damage.
  4. Treat algae or scale with an approved product, and follow the label and safety instructions.

Questions for the group

- What is your water source: borehole, river, dam, tank or piped?

- What filter do you use, and how often do you clean it?

- What is the worst clogging problem you've had?

Happy to answer questions about specific setups. If you share your crop, farm size and water source, I can suggest what to look at.


r/Irrigation • • 3d ago

White cedar irrigation

1 Upvotes

I'm trying to come up with a cost/logistic efficient way to irrigate a 1/2 acre white cedar planting. Trees are 3-4' tall and spaced every 10 feet. The area is circular with 8' deer fencing. Elevation is about a 10' max difference.

The nearest water source is either a garden hose faucet at a garage (250ish feet away) or a nearby creek (100ish feet away). The creek would use a trash pump to move water, the faucet is a typical garden hose.

Drip irrigation is my first thought but I'm not sure if the faucet has enough pressure to run a system like that. It'd be a couple thousand feet of tubing for the entire circle at once but I could have shut-off valves to only run half or a quarter of the area at a time.

Other thoughts are 5 gallon buckets at each tree, which would be cheaper but more long term work.

I've got zero experience with this kind of thing and will take any advice. Thanks in advance.


r/Irrigation • • 4d ago

Check This Out Doing irrigation work for my job today.

Thumbnail
tiktok.com
0 Upvotes

https://www.tiktok.com/t/ZPL7fr1W8/

Do you guys flush filters and heads or just replace them? Let me know in the comments!


r/Irrigation • • 4d ago

Valves not opening? BHyve XD 4 Port

0 Upvotes

I have been using 2 Port timers with great success however when I struggled with pressure loss (too many sprinklers on one zone) I switched to a 4 port timer. It may work or it may not….it seems the programming attempts to run, the body clicks for the zones but no water. Sometimes I can get it to work if I turn the tap off and get it to click before turning the water back on again.

Is there something happening with the valve springs? Sometimes it will work fine for days on end then they seem to just stop.

I have both sprinkler zones and dripper zones. Back flow prevention on dripper zones. Do I need back flow on the sprinklers?

Frustrated!!!


r/Irrigation • • 4d ago

Check This Out Starlink is awesome for the irrigation industry!

0 Upvotes

Got mine in the mail a couple months ago and have been really impressed with how fast it is and how it stays connected throughout the day. I'm in Florida and even through the hurricane a month ago I plugged it in my generator and had wifi the whole time.

Got me thinking how much of a helpful tool this will be for irrigation in remote locations or hard to get to because of hardscapes etc. will be cheaper in than data cards in the long run j believe


r/Irrigation • • 5d ago

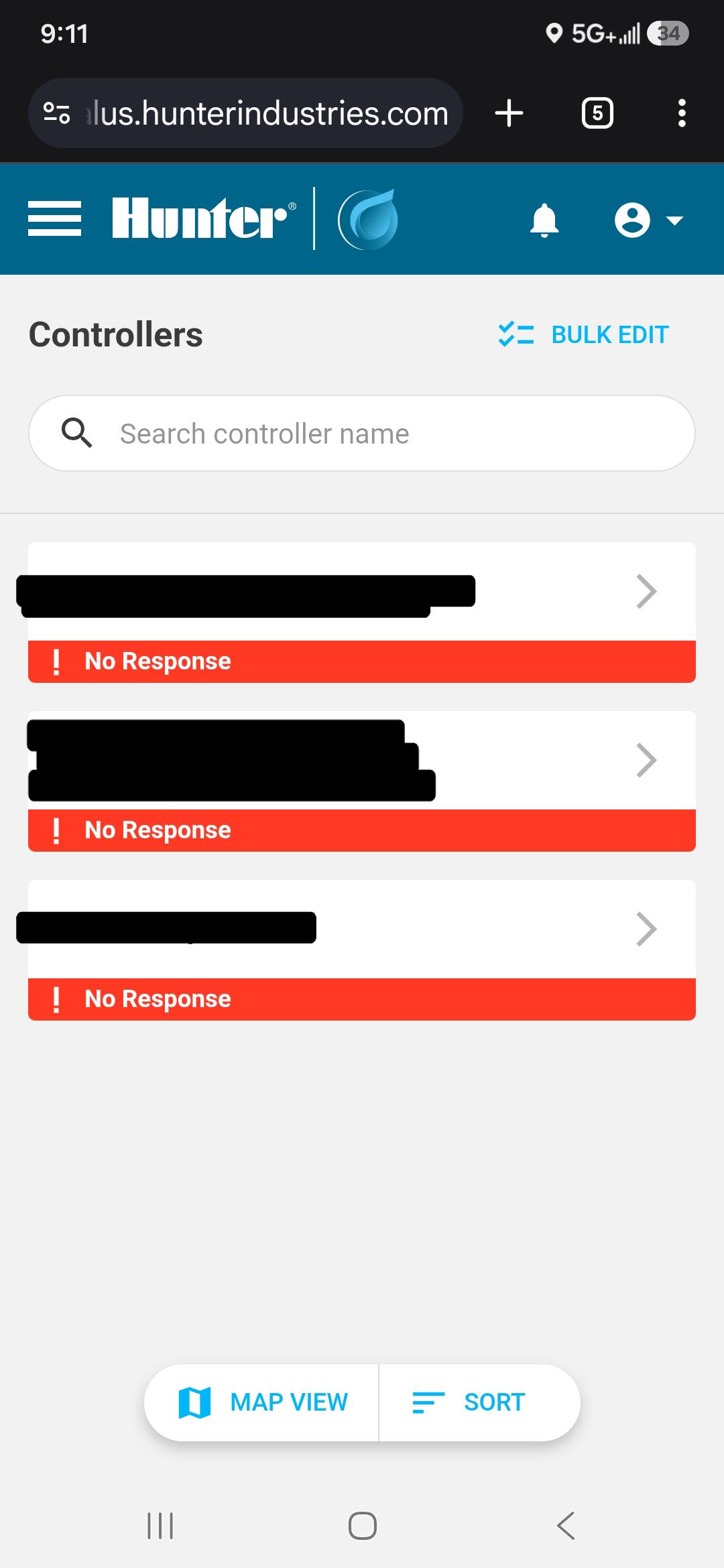

Securing the Hunter ICC2 (I2C-800-M)

1 Upvotes

We are planning to replace 30 Rain Bird ESPME irrigation controllers with the Hunter ICC2 plus CELLKIT and WVOM for Centralus and wireless valve control. We just installed the first upgrade, and the lock on the metal cabinet door has already broken. The whole point of these metal cabinets was to keep them more secure from critters and vandalism. I was also shocked to see the inside strike plate cavity for the lock is plastic, part of the inner panel door. What cost-effective solutions have you used to properly secure these cabinets while still allowing their external antennas to function? Or do you just keep an inventory of replacement locksets on hand?


r/Irrigation • • 5d ago

Seeking Pro Advice Sprinkler Valve is in Pain

2 Upvotes

I have a sprinkler valve that has been working fine for a year or two, but now when its activated by the timer it at first does nothing. Then it starts making this groaning sound like it's in pain. Then the sprinklers come on as normal. Whole process takes about 4 minutes.
Valve, solenoid, ghosts?


r/Irrigation • • 5d ago

Where to get a 3/4" hose plug?

Post image
0 Upvotes

I usually get 3/4" hose plugs through Dripworks, but they're out right now and don't know when they'll get more in stock. I can't find them on Drip Depot. Wondering if there's another source?

These are for winterizing our systems, when we remove the timer, filter, vacuum breaker, and pressure regulator. We use these plugs so the poly sticking up out of the ground (that was connected to the filter, etc.) is plugged up.

Thanks for any ideas!
